SG720151015I70Smart phone

Precautions Please carefully read and observe the terms below: Safe power on Do not use your mobile phone where it is forbidden to use or you might cause a disturbance or danger. Safe transportation first Please observe all related local laws and regulations. Do not use your mobile phone while driving. Safe transportation should be considered first when driving. Turn off when in the hospital Please follow related limitations. Please switch your mobile phone off when near a medical instrument. Turn off on an airplane Please follow related limitations. Do not use your mobile phone on an airplane. Turn off when at a gasoline station Do not use your mobile phone at a filling station or around fuels or chemicals. Turn off around exposure Area Please observe related limitations and do not use your mobile phone near an area where explosions can occur. Backup Remember to make a backup or keep a written record of all important information saved in your mobile phone. Use qualified after sales service Only a qualified technician can install or repair your mobile phone. Please contact the authorized service center in case of phone failure. Accessories and batteries Only use the authorized accessories and batteries and do not connect to incompatible manufacturers or products. Your phone Power Key Long press to switch the phone on and off Press to lock or wake up the touch Earphone Jack Charge/USB Connector Connect a charger or a USB data cable for data transfer Touch Screen Menu Key Open a list of options available in the current screen or application Home Key Go to Home screen Long press to open recent application list Back Key Go back to the previous screen Receiver Front Camera Speaker Volume Key Adjust the volume Proximtity sensor/ambient Light sensor Your phone Back Camera Camera flash SIM Card Installing the SIM Card Make sure that the clipped corner of the SIM card is facing the correct direction and the metallic contacts are facing the correct direction. Slide the SIM card into the card slot until it stops. Lock & Unlock Screen Locking the Screen To save your battery, prevent accidental touches or when you want to wipe smudges off your touch screen, put the touch screen to sleep by pressing the Power Key Unlocking the Screen To wake up the touch screen, just press the Power Key again, and then drag the lock icon to the right on the screen to unlock according to the clue on the screen. Lock icon Unlock icon Home Screen Status Bar and Notifications The status bar at the top of the screen contains icons that tell you about messages and phone status and shows what’s going on in your phone. You can drag down the status bar to open the Notification panel and get more information. Toolkits In the toolkits you can quickly start the common applications such as Bluetooth, WLAN and so on. Touch to open the toolkits panel Touch to open the Notification panel Touch to open the system settings Home Screen The Home screen is your gateway to the main features in your phone. Notifications Drag down to open the Notification panel Status bar Launcher Touch to enter Main menu Browse all the installed applications The favorite tray Touch the applications in the tray to enter applications Touch and hold the applications to dra g them in or out from the tray Slide the Home screen left or right to view more content in other panels on the Home screen Customizing The phone provides you with Options menus. Touch the Menu Key to enter customizing: Touch to select a wallpaper, and set it as the wallpaper of Home screen Touch to enter the Settings, and set the system preferences Phone Function Making a Call Touch to enter the Dial pad. The phone offers you several ways of making a call. You can make a call through the Phone, People, Messaging and Call log. Delete Dial pad Call log Touch to choose the card, and then dial the number Connecting to WLAN Connecting to WLAN 1. You can connect to the WLAN, and use it to surf the Internet at high speed and download. Touch Launcher → Settings → WLAN. 2. Turn on the switch to activate WLAN. 3. Touch WLAN. 4. Choose an available WLAN network to connect 5. Secured networks are indicated with a Lock icon. If the network is secured, you are prompted to enter a password or other credentials (Ask your network administrator for details) 6. Touch “Connect”. Accessing the Internet Using the Browser Touch to enter the Browser. Touch to enter the Bookmarks Touch to look through the thumbnails of all web page windows, and switch the web pages Touch to go back to the previous page Touch to forward the browser to the next web pa ge Accessing the Internet When you are viewing the web page, touch the Menu Key, the following options are available to you: Taking Pictures/Videos Taking pictures and videos Touch to enter the Camera. View taken photos or videos Take pictures Flash Settings Record videos Switch to the front camera Playing Music Music Player Touch to enter Music. Categories Select Genres, Artists, Albums, and Songs Touch to open the album, songs or playlist Shuffle Repeat: Touch to repeat the all songs; touch again to repeat the current son g Next song Previous songPlay/Pause Troubleshooting Frequently Asked Questions Cause and Solution Fail to turn on Press the Power Key for over 1 second. Check if the battery is properly connected. Please remove and install it again, retry to turn it on; Check if battery is appropriately charged. Fail to connect network Weak signal. Please try and move to a location with strong signal and try connecting to the network again; Please ensure that you are not beyond the network coverage of service providers; Please ensure you have a valid SIM card. Please contact your network provider for further information; Poor quality of calling Please check if the sound volume is tuned improperly In an area with poor receiving condition, example: basement, the signal might be weak. Try searching a location with stronger signal reception and call again. While using the…

Text truncated - open the document above for the full version.

Haier Telecom （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-10-28 SUBJECT: FCC Application for (FCC ID: SG720151015I70) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

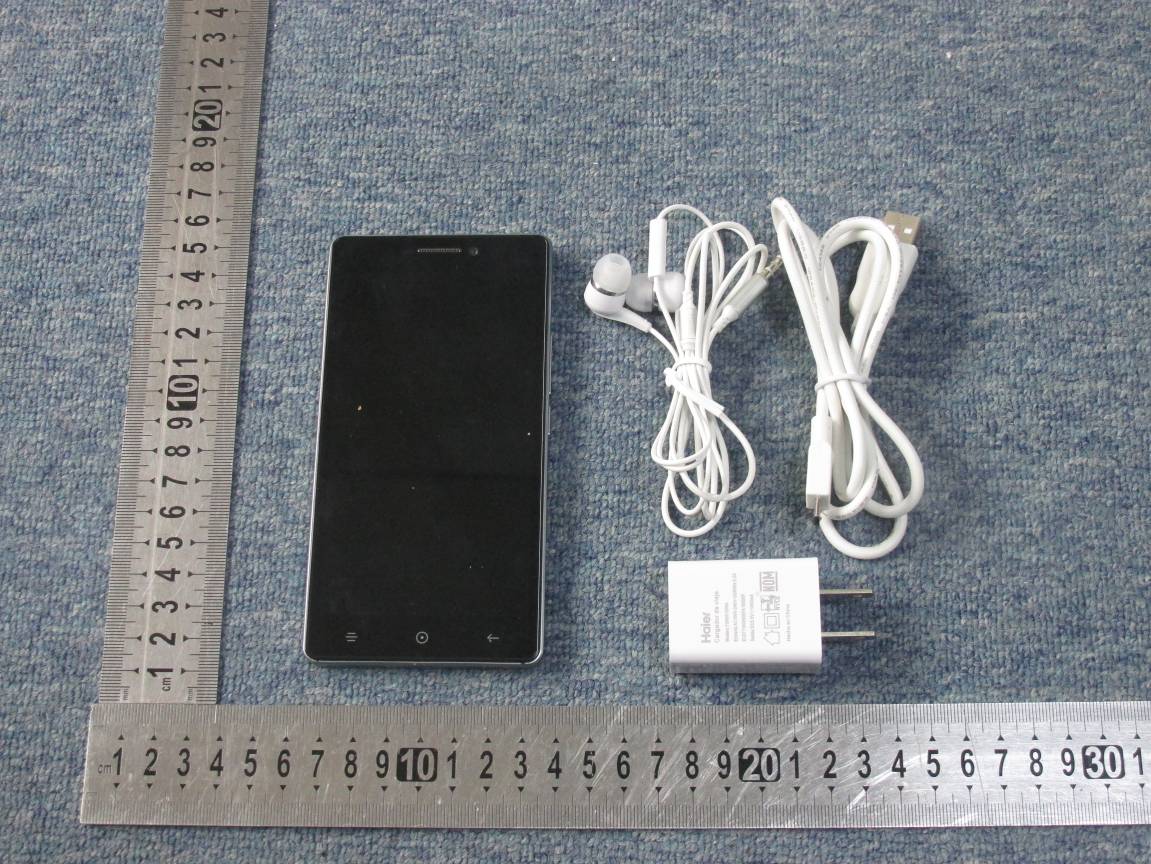

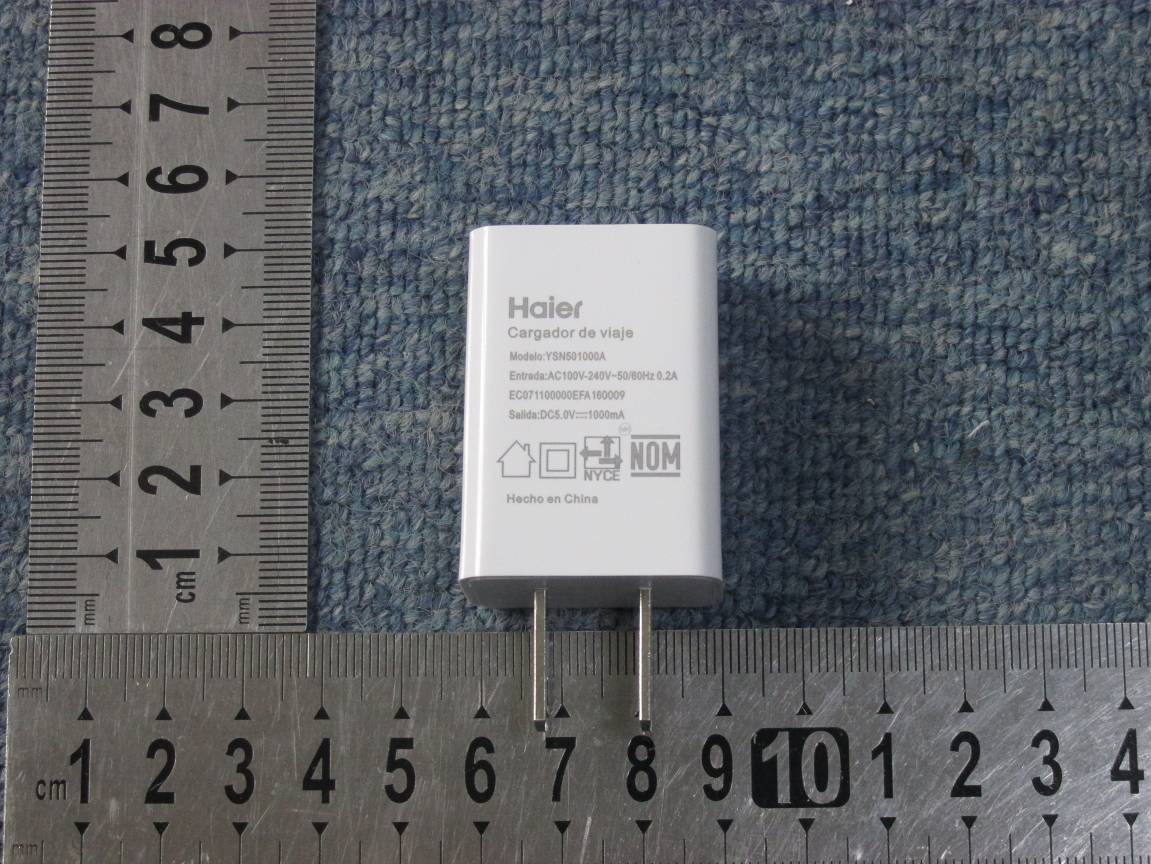

External Photo

Internal Photo GSM/WCDMA ANT GPS ANT WIFI ANT

Report No. SET2015-14915 CCIC-SET/T-I (00) Page 71 of 123 Plot 11:Wi-Fi 802.11b ,Right Cheek, Low Type: Phone measurement ( 11 points in the volume) Date of measurement: 11/10/2015 Measurement duration: 7 minutes 23 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Right head Device Position Cheek Band IEEE 802.11b ISM Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivity (real part) 38.96 Relative permittivity (imaginary part) 13.22 Conductivity (S/m) 1.80 Variation (%) 0.14 ConvF: 4.93 SURFACE SAR VOLUME SAR Maximum location: X=-35.00, Y=9.00 SAR Peak: 0.93 W/kg SAR 10g (W/Kg) 0.241901 SAR 1g (W/Kg) 0.496445 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 72 of 123 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.5148 0.3220 0.1717 0.0893 0.0464 3D screen shot Hot spot position Report No. SET2015-14915 CCIC-SET/T-I (00) Page 73 of 123 Plot 12:Wi-Fi 802.11b , Back, Low Type: Phone measurement Date of measurement: 25/09/2015 Measurement duration: 7 minutes 14 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Validation plane Device Position Body Band IEEE 802.11b Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivity (real part) 52.47 Relative permittivity (imaginary part) 14.25 Conductivity (S/m) 1.94 Variation (%) 0.04 ConvF: 5.09 SURFACE SAR VOLUME SAR Maximum location: X=14.00, Y=70.00 SAR Peak: 0.81 W/kg SAR 10g (W/Kg) 0.227514 SAR 1g (W/Kg) 0.456152 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 74 of 123 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1083 0.0689 0.0380 0.0208 0.0117 3D screen shot Hot spot position Report No. SET2015-14915 CCIC-SET/T-I (00) Page 75 of 123 ANNEX E of CCIC-SET CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS SET2015-14618 Mobile phone Type Name: G10+/W717+ Hardware Version： M08_V1.02_PCB_(140911) Software Version： S001 Calibration Certificate of Probe and Dipoles This Annex consists of 84 pages Date of Report：2015-10-21 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 76 of 123 Probe Calibration Ceriticate Report No. SET2015-14915 CCIC-SET/T-I (00) Page 77 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 78 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 79 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 80 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 81 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 82 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 83 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 84 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 85 of 123 SID835 Dipole Calibration Ceriticate Report No. SET2015-14915 CCIC-SET/T-I (00) Page 86 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 87 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 88 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 89 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 90 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 91 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 92 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 93 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 94 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 95 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 96 of 123 SID1900 Dipole Calibration Ceriticate Report No. SET2015-14915 CCIC-SET/T-I (00) Page 97 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 98 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 99 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 100 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 101 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 102 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 103 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 104 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 105 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 106 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 107 of 123 SID2450 Dipole Calibration Ceriticate Report No. SET2015-14915 CCIC-SET/T-I (00) Page 108 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 109 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 110 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 111 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 112 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 113 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 114 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 115 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 116 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 117 of 123 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 118 of 123 <Justification of the extended calibration> Referring to KDB 450824, if dipoles are verified in return loss(<-20dB, within 20% of prior calibration),and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -23.17 - 57.40 - 2015.08.26 -22.96 4.95 57.88 0.48 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 835MHz Report No. SET2015-14915 CCIC-SET/T-I (00) Page 119 of 123 Body 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -24.50 - 55.00 - 2015.08.26 -24.60 -2.28 55.06 0.06 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 835MHz Rep…

Text truncated - open the document above for the full version.

Report No. SET2015-14915 CCIC-SET/T-I (00) Page 1 of 123 FCC SAR TEST REPORT Report No.： SET2015-14915 Product： Mobile phone Brand Name: Haier Model No.： I70 FCC ID： SG720151015I70 Applicant： Haier Telecom （Qingdao） Co.,Ltd. Address： No.1 Haier Road, Hi-tech Zone, Qingdao, China Issued by： CCIC-SET Lab Location： Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 123 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2015-14915 CCIC-SET/T-I (00) Page 2 of 123 Test Report Product. ...................: Mobile phone Model No. .................: I70 Brand Name..............: Haier FCC ID.......................: SG720151015I70 Applicant....................: Haier Telecom （Qingdao） Co.,Ltd. Applicant Address.......: No.1 Haier Road, Hi-tech Zone, Qingdao, China Manufacturer............: Haier Telecom （Qingdao） Co.,Ltd. Manufacturer Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques; Test Result...............: Pass Tested by ..............: 2015-10-20 Chun Mei, Test Engineer Reviewed by.............: 2015-10-20 Shuangwen Zhang,Senior Egineer Approved by...............: 2015-10-20 Wu Li’an , Manager Report No. SET2015-14915 CCIC-SET/T-I (00) Page 3 of 123 Contents 1. GENERAL CONDITIONS-----------------------------------------------------------------4 2. ADMINISTRATIVE DATA-----------------------------------------------------------------5 2.1. Identification of the Responsible Testing Laboratory--------------------------------5 2.2. Identification of the Responsible Testing Location(s)--------------------------------5 2.3. Organization Item-------------------------------------------------------------------------5 2.4. Identification of Applicant---------------------------------------------------------------5 2.5. Identification of Manufacture-----------------------------------------------------------5 3. EQUIPMENT UNDER TEST (EUT)-----------------------------------------------------6 4. SAR SUMMAY--------------------------------------------------------------------------------7 5. Specific Absorption Rate(SAR)------------------------------------------------------------8 5.1. Introduction--------------------------------------------------------------------------------8 5.2. SAR Definition----------------------------------------------------------------------------8 5.3. Phantoms-----------------------------------------------------------------------------------9 5.4. Device Holder-----------------------------------------------------------------------------9 5.5. Probe Specification----------------------------------------------------------------------10 6. OPERATIONAL CONDITIONS DURING TEST------------------------------------11 6.1. Schematic Test Configuration---------------------------------------------------------12 6.2. SAR Measurement System--------------------------------------------------------------12 6.3. Equipments and results of validation testing------------------------------------------13 6.4. SAR measurement procedure-----------------------------------------------------------14 6.5. Antennas position and test position----------------------------------------------------17 7. CHARACTERISTICS OF THE TEST--------------------------------------------------18 7.1. Applicable Limit Regulations----------------------------------------------------------18 7.2. Applicable Measurement Standards---------------------------------------------------18 8. LABORATORY ENVIRONMENT-------------------------------------------------------19 9. CONDUCTED RF OUTPUT POWER---------------------------------------------------19 10. TEST RESULTS------------------------------------------------------------------------------28 11. MEASUREMENT UNCERTAINTY-----------------------------------------------------32 12. MAIN TEST INSTRUMENTS-------------------------------------------------------------35 This Test Report consists of the following Annexes: Annex A: Test Layout ---------------------------------------------------------------------36 Annex B: Sample Photographs----------------------------------------------------------43 Annex C: System Performance Check Data and Highest SAR Plots------------45 Annex D: Calibration Certificate of Probe and Dipoles----------------------------76 Report No. SET2015-14915 CCIC-SET/T-I (00) Page 4 of 123 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CCIC-SET and the Accreditation Bodies, if it applies. Report …

Text truncated - open the document above for the full version.

Report No.：SET2015-14886 CCIC-SET/T（00） Page 1 of 84 RF TEST REPORT Report No.: SET2015-14886 Product: Smart phone FCC ID: SG720151015I70 Model No.: I70 Applicant: Haier Telecom （Qingdao） Co.,Ltd. Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China Dates of Testing: 10/08/2015 — 10/15/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzh China Tel：86 755 26627338 Fax：86 755 26627238 This test report consists of 84 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.：SET2015-14886 CCIC-SET/T（00） Page 2 of 84 Test Report Product.........................: Smart phone Brand Name..................: Haier Trade Name...................: Haier Applicant......................: Haier Telecom （Qingdao） Co.,Ltd. Applicant Address.........: No.1 Haier Road, Hi-tech Zone, Qingdao, China Manufacturer.................: Haier Telecom （Qingdao） Co.,Ltd. Manufacturer Address....: No.1 Haier Road, Hi-tech Zone, Qingdao, China Test Standards..............: 47 CFR FCC Part 2: 2013 47 CFR FCC Part 22(H): 2013 47 CFR FCC Part 24(E): 2013 Test Result....................: PASS Tested by.......................: 2015.10.16 Lu Lei，Test Engineer Reviewed by..................: 2015.10.16 Zhu Qi, Senior Egineer Approved by...................: 2015.10.16 Wu Li’an，Manager Report No.：SET2015-14886 CCIC-SET/T（00） Page 3 of 84 Table of Contents 1. GENERAL INFORMATION .................................................................................................... 4 1.1 EUT Description ......................................................................................................................... 4 1.2 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ................... 5 1.3 Test Standards and Results ........................................................................................................ 5 1.4 Test Configuration of Equipment under Test ........................................................................... 6 1.5 Measurement Results Explanation Example ........................................................................... 7 1.6 Facilities and Accreditations ...................................................................................................... 7 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 8 2.1 Conducted RF Output Power .................................................................................................... 8 2.2 Peak to Average Radio .............................................................................................................. 11 2.3 99% Occupied Bandwidth and 26dB Bandwidth Measurement ......................................... 18 2.4 Frequency Stability ................................................................................................................... 38 2.5 Conducted Out of Band Emissions ......................................................................................... 42 2.6 Band Edge ................................................................................................................................. 62 2.7 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 70 2.8 Radiated Spurious Emissions .................................................................................................. 74 3. LIST OF MEASURING EQUIPMENT ................................................................................. 84 Change History Issue Date Reason for change 1.0 2015.10.16 First edition Report No.：SET2015-14886 CCIC-SET/T（00） Page 4 of 84 1. GENERAL INFORMATION 1.1 EUT Description EUT Type Smart phone Hardware Version H01 Software Version V17_S72B_H01_S001 EUT supports Radios application GSM /GRPS/EDGE/WCDMA/HSPA WLAN2.4GHz 802.11b/g/n (HT20/HT40) Bluetooth V3.0+EDR / Bluetooth V4.0LE Multi Slot Class GPRS: Multi slot Class12, EGPRS: Multi slot Class12 Frequency Range GSM 850MHz: Tx: 824.2 - 848.8MHz (at intervals of 200kHz); Rx: 869.2 - 893.8MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.2 - 1909.8MHz (at intervals of 200kHz); Rx: 1930.2 - 1989.8MHz (at intervals of 200kHz) WCDMA 850MHz Tx: 826.4 - 846.6MHz (at intervals of 200kHz); Rx: 871.4 - 891.6MHz (at intervals of 200kHz) WCDMA 1900MHz Tx: 1852.4 - 1907.6MHz (at intervals of 200kHz); Rx: 1932.4 - 1987.6MHz (at intervals of 200kHz) Maximum Output Power to Antenna GSM 850: 31.59dBm GSM 1900: 28.69dBm EDGE 850: 31.25dBm EDGE 1900: 28.29dBm WCDMA 850: 22.36dBm WCDMA 1900: 22.19dBm Type of Modulation GSM / GPRS:GMSK EDGE:GMSK / 8PSK WCDMA: QPSK(Uplink) HSDPA:QPSK(Downlink) HSUPA:QPSK(Uplink) Antenna Type Monopole Antenna Antenna Gain 850MHz: -2dBi 1900MHz: -1dBi Report No.：SET2015-14886 CCIC-SET/T（00） Page 5 of 84 1.2 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator System Type of Modulation Emission Designator Frequency Tolerance (ppm) Maximum ERP/EIRP(W) GSM 850 GMSK 250KGXW 0.03 0.877 GSM 1900 GMSK 246KGXW 0.03 0.488 EDGE 850 8PSK 248KG7W 0.03 0.764 EDGE 1900 8PSK 246KG7W 0.03 0.452 WCDMA 850 RMC 12.2Kbps QPSK 4M18F9W 0.03 0.088 WCDMA 1900 RMC 12.2Kbps QPSK 4M20F9W 0.03 0.097 1.3 Test Standards and Results 1. 47 CFR Part 2, 22(H), 24(E) 2. ANSI / TIA / EIA-603-D-2010 3. FCC KDB 971168 D01 Power Meas. License Digital Systems v02r02 Remark： 1. All test items were verified and recorded according to the s…

Text truncated - open the document above for the full version.

PCE Setup Photo
