SG7201511L32Mobile Phone

1 Contents Safety .................................................................................................................... 3 Environment ........................................................................................................ 4 1 Getting Started ................................................................................................. 5 1.1 Getting to know your touch phone .................................................... 5 1.2 Installing the SIM card, battery, and storage card ............................. 5 1.3 Charging the Battery .......................................................................... 6 1.4 Starting up the device......................................................................... 7 1.5 Status Icons ........................................................................................ 9 2 Using phone features ..................................................................................... 11 2.1 Turning the phone function on and off ............................................ 11 2.2 Making a call ................................................................................... 11 2.3 Answering and Ending a call ........................................................... 11 2.4 In-call options .................................................................................. 12 2.5 Using call history ............................................................................. 12 2.6 Call settings ...................................................................................... 13 3 Setting on your device .................................................................................... 13 4 ActiveSync ....................................................................................................... 16 5 Contacts .......................................................................................................... 19 6 Exchanging Messages .................................................................................... 21 7 Internet ........................................................................................................... 26 7.1 Ways of Connecting to the Internet ................................................. 26 7.2 Browser ............................................................................................ 26 8 Experiencing Multimedia .............................................................................. 28 8.1 Camera & Picture ............................................................................. 28 8.2 Music................................................................................................ 31 8.3 FM Radio ......................................................................................... 33 8.4 Sound record .................................................................................... 33 9 Other applications .......................................................................................... 33 2 9.1 Calendar ........................................................................................... 33 9.2 Alarm Clock ..................................................................................... 34 9.3 Calculator ......................................................................................... 35 10 Play Store* .................................................................................................... 36 3 Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool...). Protect it from liquids and other moisture. Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C. The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety: Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety: When traveling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these regulations. Explosive materials: Please comply with warning signs at petrol station asking you to switch your phone off. You will need to comply with radio equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment: To avoid the risk of demagnetization, do not let electronic devices close to your phone for a long time. Electronic medical equipment: Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15 cm be maintained between the phone and an implant. Your doctor or the 4 manufacturers of such equipment will be able to give you any advice you may need in this area. Hospitals: Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Road safety: Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You must comply …

Text truncated - open the document above for the full version.

Haier Tele com （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SG7201511L32 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram SG7201511L32 _Block Diagram.pdf Circuit Diagram SG7201511L32 _Schematics.pdf Operational Description SG7201511L32 _Operational description.pdf Tune up procedure SG7201511L32 _Tune up procedure.pdf BOM List SG7201511L32 _BOM List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

Date: 25 Nov. 2015 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG7201511L32 Dear Sirs: Haier Telecom （Qingdao） Co.,Ltd. requests acceptance of the labeling proposal described below for mobile phone bearing FCC identifier: SG7201511L32. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22, 24,27 for this mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom （Qingdao） Co.,Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Haier Telecom （Qingdao） Co.,Ltd will add the FCC identifier " SG7201511L32" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86‐532‐88937275 E‐Mail: [email protected] Address: No.1 Haier Road, Hi‐tech Zone, Qingdao, China

Haier Telecom (Qingdao) Co., Ltd. Declaration Letter Dear Sir， For our business issue and marketing requirement, we would like to list below model numbers on the certificates and reports, as following: Model No.:L32, HM-G351-FL We declare that the difference of these is listed as below: Main Model No Serial Model No Difference L32 HM-G351-FL Exactly the same, only the different model name Thank you! Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

Haier Telecom （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-11-25 SUBJECT: FCC Application for (FCC ID: SG7201511L32) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

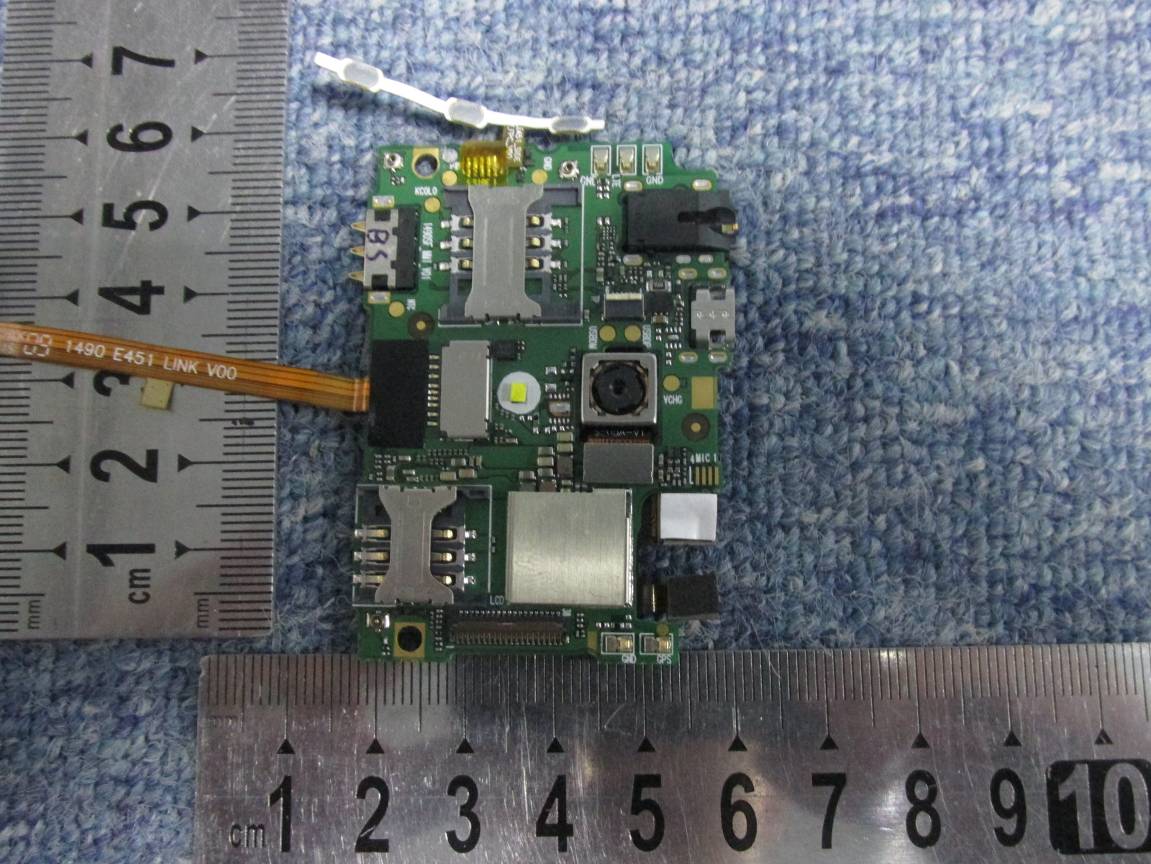

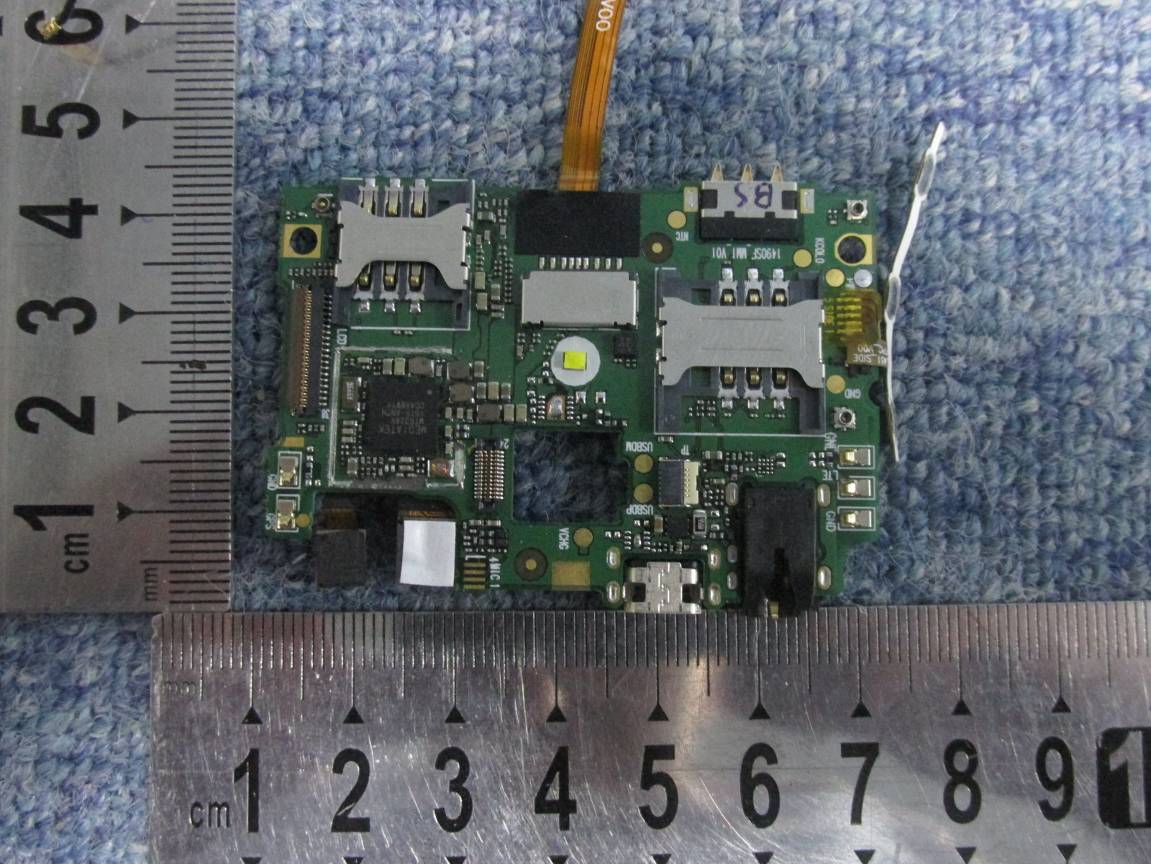

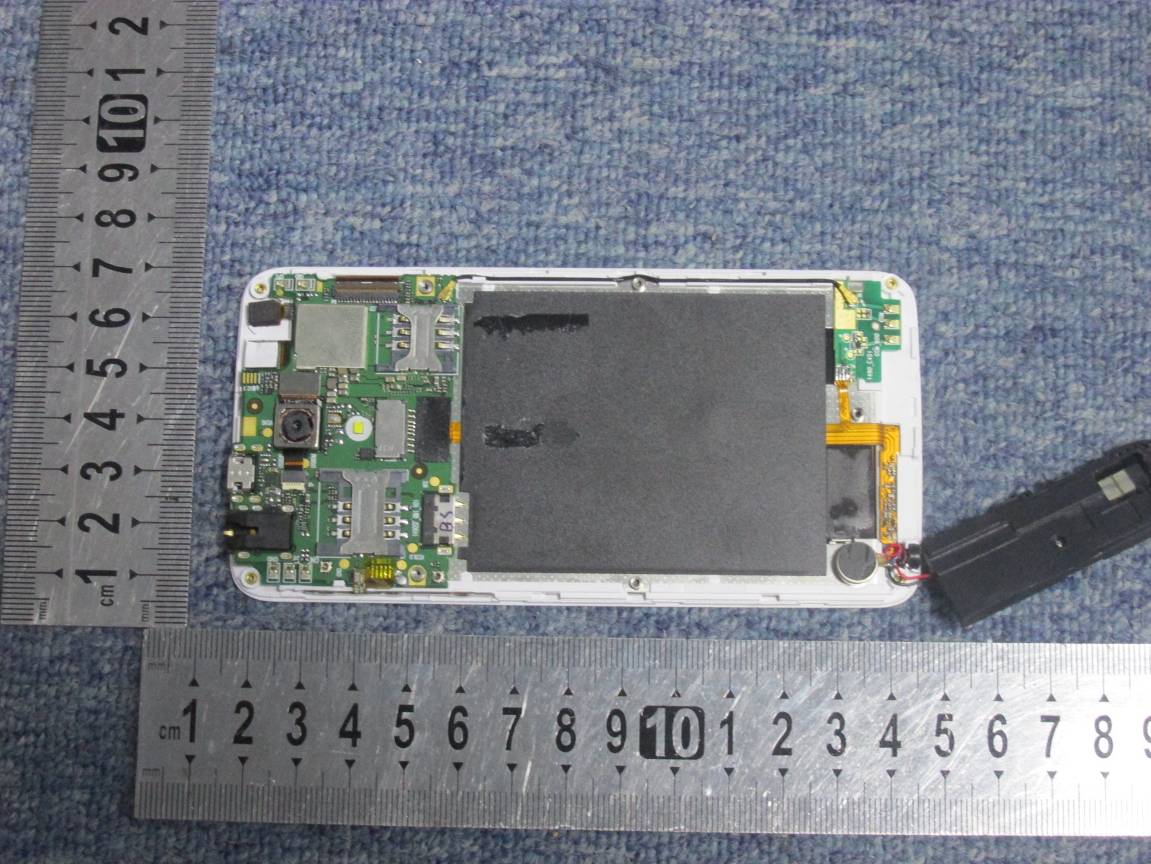

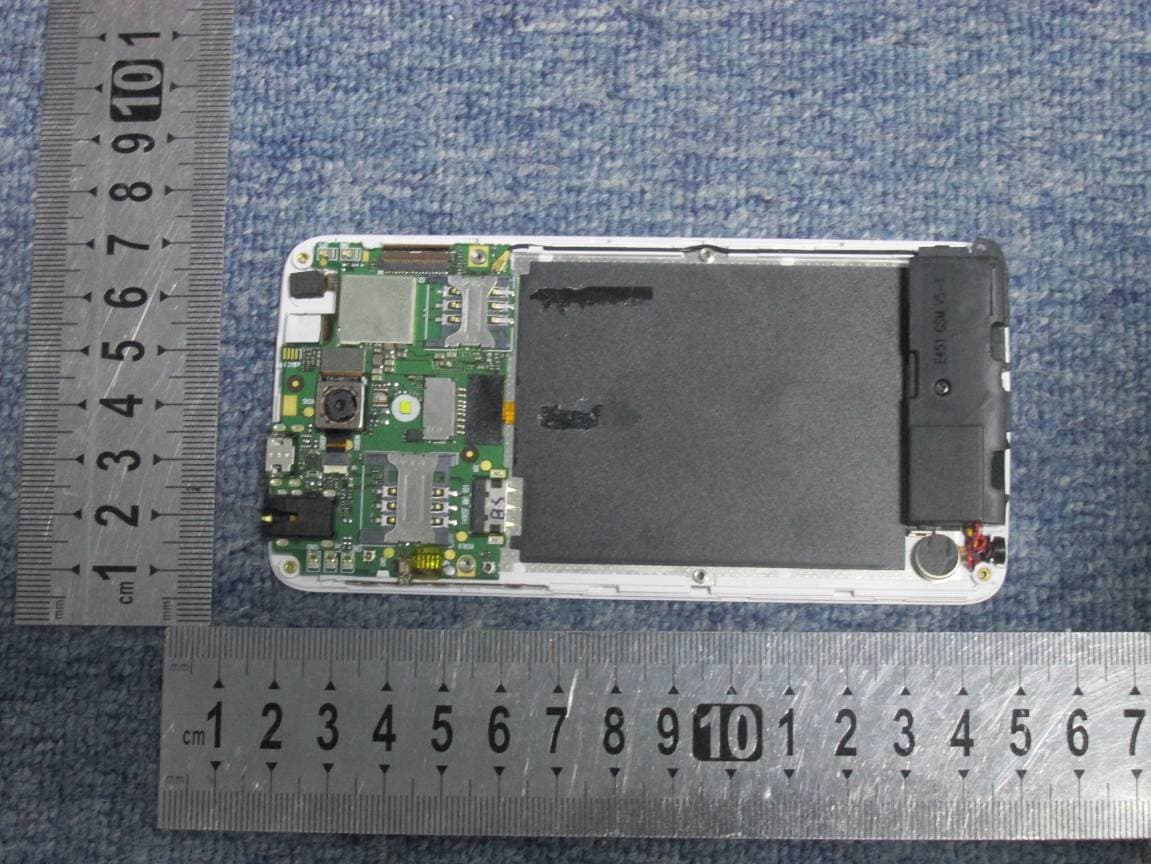

Internal Photo WWAN ANT LTE Sub ANT GPS/WIFI /BT ANT

Report No. SET2015-16624 CCIC-SET/T-I (00) Page 1 of 193 FCC SAR TEST REPORT Report No.： SET2015-16624 Product： Mobile phone Brand Name: Haier Model No.： HM-G351-FL , L32 FCC ID： SG7201511L32 Applicant： Haier Telecom(Qingdao) CO., Ltd. Address： No1.Haier Road,Hi-tech Zone Qingdao,China Issued by： CCIC-SET Lab Location： Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 193 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2015-16624 CCIC-SET/T-I (00) Page 2 of 193 Test Report Product. ...................: Mobile phone Model No. .................: HM-G351-FL , L32 Brand Name..............: Haier FCC ID.......................: SG7201511L32 Applicant....................: Haier Telecom(Qingdao) CO., Ltd. Applicant Address.......: No1.Haier Road,Hi-tech Zone Qingdao,China Manufacturer............: Haier Telecom(Qingdao) CO., Ltd. Manufacturer Address: No1.Haier Road,Hi-tech Zone Qingdao,China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques; Test Result...............: Pass Tested by ..............: 2015-11-23 Chun Mei, Test Engineer Reviewed by.............: 2015-11-23 Shuangwen Zhang,Senior Egineer Approved by...............: 2015-11-23 Wu Li’an , Manager Report No. SET2015-16624 CCIC-SET/T-I (00) Page 3 of 193 Contents 1. GENERAL CONDITIONS-----------------------------------------------------------------4 2. ADMINISTRATIVE DATA-----------------------------------------------------------------5 2.1. Identification of the Responsible Testing Laboratory--------------------------------5 2.2. Identification of the Responsible Testing Location(s)--------------------------------5 2.3. Organization Item-------------------------------------------------------------------------5 2.4. Identification of Applicant---------------------------------------------------------------5 2.5. Identification of Manufacture-----------------------------------------------------------5 3. EQUIPMENT UNDER TEST (EUT)-----------------------------------------------------6 4. SAR SUMMAY--------------------------------------------------------------------------------7 5. Specific Absorption Rate(SAR)------------------------------------------------------------9 5.1. Introduction--------------------------------------------------------------------------------9 5.2. SAR Definition----------------------------------------------------------------------------9 5.3. Phantoms-----------------------------------------------------------------------------------10 5.4. Device Holder-----------------------------------------------------------------------------10 5.5. Probe Specification----------------------------------------------------------------------11 6. OPERATIONAL CONDITIONS DURING TEST------------------------------------12 6.1. Schematic Test Configuration---------------------------------------------------------12 6.2. SAR Measurement System--------------------------------------------------------------12 6.3. Equipments and results of validation testing------------------------------------------15 6.4. SAR measurement procedure-----------------------------------------------------------17 6.5. Antennas position and test position----------------------------------------------------18 7. CHARACTERISTICS OF THE TEST--------------------------------------------------19 7.1. Applicable Limit Regulations----------------------------------------------------------19 7.2. Applicable Measurement Standards---------------------------------------------------19 8. LABORATORY ENVIRONMENT-------------------------------------------------------20 9. CONDUCTED RF OUTPUT POWER---------------------------------------------------20 10. TEST RESULTS------------------------------------------------------------------------------40 11. MEASUREMENT UNCERTAINTY-----------------------------------------------------47 12. MAIN TEST INSTRUMENTS------------------------------------------------------------50 This Test Report consists of the following Annexes: Annex A: Test Layout ---------------------------------------------------------------------51 Annex B: Sample Photographs----------------------------------------------------------59 Annex C: System Performance Check Data and Highest SAR Plots------------61 Annex D: Calibration Certificate of Probe and Dipoles----------------------------98 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 4 of 193 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CCIC-SET and the Accreditation Bodies, if it appli…

Text truncated - open the document above for the full version.

Report No. SET2015-16624 CCIC-SET/T-I (00) Page 91 of 193 Plot 17: LTE Band4, 20MHz, Back Upward(Body-worn, hotspot), Middle Type: Phone measurement Date of measurement: 17/7/2015 Measurement duration: 7 minutes 37 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band LTE Band 4 Channels 20175 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 1732.5 Relative permittivity (real part) 53.37 Relative permittivity (imaginary part) 15.00 Conductivity (S/m) 1.50 Variation (%) -4.62 ConvF: 4.96 SURFACE SAR VOLUME SAR Maximum location: X=-160.00, Y=-40.00 SAR Peak: 0.13 W/kg SAR 10g (W/Kg) 0.036992 SAR 1g (W/Kg) 0.073612 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 92 of 193 Plot 18: LTE Band 7, 20MHz, Left Cheek, Middle Type: Phone measurement Date of measurement: 16/11/2015 Measurement duration: 6 minutes 53 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE Band 7 Channels 21100 Signal LTE(Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2535 Relative permittivity (real part) 38.89 Relative permittivity (imaginary part) 13.36 Conductivity (S/m) 1.93 Variation (%) -4.86 ConvF: 5.08 SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-50.00 SAR Peak: 0.20 W/kg SAR 10g (W/Kg) 0.040682 SAR 1g (W/Kg) 0.097411 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 93 of 193 Plot 19: LTE Band 7, 20MHz, Back Upward(Body-worn, hotspot), Middle Type: Phone measurement Date of measurement:19/11/2015 Measurement duration: 7 minutes 29 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band LTE Band 7 Channels 21100 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2535 Relative permittivity (real part) 52.56 Relative permittivity (imaginary part) 14.88 Conductivity (S/m) 2.15 Variation (%) 2.34 ConvF: 5.22 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=10.00 SAR Peak: 2.50 W/kg SAR 10g (W/Kg) 0.461019 SAR 1g (W/Kg) 1.069221 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 94 of 193 Plot 20: LTE Band 17, 10MHz, Left Cheek, Middle Type: Phone measurement Date of measurement: 13/11/2015 Measurement duration: 6 minutes 53 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE Band 17 Channels 23790 Signal LTE(Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_09/13_EP169 Frequency (MHz) 710 Relative permittivity (real part) 41.71 Relative permittivity (imaginary part) 21.12 Conductivity (S/m) 0.88 Variation (%) -4.03 ConvF: 5.26 SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-31.00 SAR 10g (W/Kg) 0.064272 SAR 1g (W/Kg) 0.080151 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 95 of 193 Plot 21: LTE Band 17, 10MHz, Back Upward(Body-worn, hotspot), Middle Type: Phone measurement Date of measurement:17/11/2015 Measurement duration: 7 minutes 29 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Back Band LTE Band 17 Channels 23790 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_09/13_EP169 Frequency (MHz) 710 Relative permittivity (real part) 55.01 Relative permittivity (imaginary part) 22.80 Conductivity (S/m) 0.95 Variation (%) -0.46 ConvF: 5.41 SURFACE SAR VOLUME SAR Maximum location: X=-3.00, Y=17.00 SAR 10g (W/Kg) 0.192641 SAR 1g (W/Kg) 0.251494 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 96 of 193 Plot 22: Wi-Fi 802.11b ,Right Tilt, Low Type: Phone measurement ( 11 points in the volume) Date of measurement: 16/11/2015 Measurement duration: 7 minutes 21 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Right head Device Position Tilt Band IEEE 802.11b ISM Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivity (real part) 38.94 Relative permittivity (imaginary part) 13.15 Conductivity (S/m) 1.79 Variation (%) 0.08 ConvF: 4.93 SURFACE SAR VOLUME SAR Maximum location: X=-36.00, Y=-11.00 SAR Peak: 1.07 W/kg SAR 10g (W/Kg) 0.174738 SAR 1g (W/Kg) 0.422141 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 97 of 193 Plot 23:Wi-Fi 802.11b , Back Upward, Low Type: Phone measurement Date of measurement: 19/11/2015 Measurement duration: 07 minutes 09 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Validation plane Device Position Back Upward Band IEEE 802.11b Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivity (real part) 52.53 Relative permittivity (imaginary part) 14.25 Conductivity (S/m) 1.94 Variation (%) -0.14 ConvF: 5.09 SURFACE SAR VOLUME SAR Maximum location: X=19.00, Y=50.00 SAR Peak: 0.22 W/kg SAR 10g (W/Kg) 0.046417 SAR 1g (W/Kg) 0.101304 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 98 of 193 Plot 24:Wi-Fi 802.11b , Edge A, Low Type: Phone measurement Date of measurement: 19/11/2015 Measurement duration: 07 minutes 07 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm Phantom Validation plane Device Position Edge A Band IEEE 802.11b Channels 1 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_04/13_EP166 Frequency (MHz) 2412 Relative permittivit…

Text truncated - open the document above for the full version.

Report No. SET2015-16624 CCIC-SET/T-I (00) Page 142 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 143 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 144 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 145 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 146 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 147 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 148 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 149 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 150 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 151 of 193 SID1900 Dipole Calibration Certificate Report No. SET2015-16624 CCIC-SET/T-I (00) Page 152 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 153 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 154 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 155 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 156 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 157 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 158 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 159 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 160 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 161 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 162 of 193 SID2450 Dipole Calibration Certificate Report No. SET2015-16624 CCIC-SET/T-I (00) Page 163 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 164 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 165 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 166 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 167 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 168 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 169 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 170 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 171 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 172 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 173 of 193 SID2600 Dipole Calibration Certificate Report No. SET2015-16624 CCIC-SET/T-I (00) Page 174 of 193 . Report No. SET2015-16624 CCIC-SET/T-I (00) Page 175 of 193

Report No. SET2015-16624 CCIC-SET/T-I (00) Page 176 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 177 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 178 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 179 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 180 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 181 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 182 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 183 of 193 Report No. SET2015-16624 CCIC-SET/T-I (00) Page 184 of 193 <Justification of the extended calibration> Referring to KDB 865664 D01v01r03, if dipoles are verified in return loss(<-20dB, within 20% of prior calibration),and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -23.17 - 57.40 - 2015.08.26 -22.96 4.95 57.88 0.48 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 835MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 185 of 193 Body 835MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -24.50 - 55.00 - 2015.08.26 -24.60 -2.28 55.06 0.06 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 835MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 186 of 193 Head 1800MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -25.01 - 46.70 - 2015.08.26 -25.36 -7.74 47.72 1.02 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1800MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 187 of 193 Body 1800MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -26.43 - 45.80 - 2015.08.26 -26.50 -1.60 45.60 -0.2 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1800MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 188 of 193 Head 1900MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -23.44 - 55.40 - 2015.08.26 -23.79 -7.74 55.33 -0.07 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1900MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 189 of 193 Body 1900MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -27.36 - 51.70 - 2015.08.26 -26.94 10.15 51.18 -0.52 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1900MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 190 of 193 Head 2450MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -27.50 - 51.70 - 2015.08.26 -27.09 9.90 50.99 -0.71 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2450MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 191 of 193 Body 2450MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -27.56 - 54.30 - 2015.08.26 -27.30 6.17 55.11 0.81 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 2450MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 192 of 193 Head 2600MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -31.53 - 51.30 - 2015.08.26 -31.75 -4.94 50.99 -0.31 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2600MHz Report No. SET2015-16624 CCIC-SET/T-I (00) Page 193 of 193 Body 2600MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2014.08.28 -24.53 - 45.00 - 2015.08.26 -24.76 -5.16 46.23 1.23 The return loss is <-20dB, within 20% of prior calibration; the impedance is…

Text truncated - open the document above for the full version.
