SG7201511L50Mobile Phone

HaierPhone L52 User Manual www.haier.com READ ME FIRST Congratulations! You have just purchased your HaierPhone L52. Please read this manual before using the device to ensure safe and proper use. Some contents may differ from your device depending on the region, service provider, or device’s software. What’s in the box: 1. HaierPhone L52 2. AC Adaptor 3. Micro USB cable 4. Battery 5. Hands‐free kit 6. User manual 7. Warranty card Main Features: Operating SystemAndroid™5.1(KitKat) Processor MT6735M Ouad‐Core,1.0GHz ROM 8GB RAM 1GB Network FDD‐LTEBand 2/4/7/17 H+/3G+/3G WCDMA 900/2100 MHz 2G GSM 850/900/1800/1900 MHz Display Size 5.0’’ Display ResolutionFWVGA (480*854pixels) Battery 2000 mAh Li‐ion Main camera5 Megapixels Front camera2 Megapixels Wi‐Fi IEEE 802.11 b/g/n PORT USB™ 2.0 Audio Jack 3.5mm jack Bluetooth 4.0 GPS Yes 1.1 Safety Information Please read this safety information carefully to ensure safe and proper use. Driving Using a mobile phone can distract the user and result in an accident. You must fully comply with the local regulations and laws regarding the use of cell phones whilst driving. Near Sensitive Electronics Don’t use your phone near sensitive electronic equipment – particularly medical devices such as pacemakers and electronic implants, as it could cause them to malfunction. Your phone may cause interference with TV, radio, fire detectors, and other automatic‐control equipments. For more information about how your phone affects pacemakers or other electronic equipments, please contact the manufacturer or your local distributor. Flying Your phone can cause interference with aircraft equipment. So please turn your phone off when flying. Hospitals Your phone may interfere with the operation of medical equipments. You must observe and follow any instructions or warnings in hospitals and treatment centers. At Petrol Stations Don’t use your phone in petrol stations. In fact, it’s suggested to be switched off near any fuels, chemicals or explosives. Contact with liquid Keep your phone away from water (or any other liquid). Any damage caused by liquid may be irreparable. Making Repairs Never take your phone apart. Please handle the repairs with the professionals. Any unauthorized repairs would break warranty terms. Broken Antenna Don’t use your phone if the antenna is damaged, as it could cause injury. Around Children Keep your mobile out of children’s reach. It should never be used as a toy and it might not be good for their health. Original Accessories Only use the original accessories supplied with your phone or those approved by the manufacturer. The use of unauthorized accessories may damage your phone or cause a safety risk. Near Explosives and Fire hazard Turn off your phone in or near explosive materials or heat sources such as radiators or cookers. Always obey local regulations and laws. Turn off your phone when requested. Emergency Calls To make an emergency call your phone must be turned on and in an area where there’s net and press ‘send’. E help has arrived. Working The working tem p Degree Celsius. Pl phone under too h Always make a ba your mobile phon Attention:  Us e short, applies especially  If you are using low power emitt e  Information abo collection point fo and proper recove the time of dispos Moreover, proper equipment will en Backu twork coverage. Dial the Explain exactly where yo Temperature perature for the phone is ease don’t use the phon high or too low tempera ckup or keep a written r e. e cell phone when the sig , use headset or send a t to children, adolescents a Bluetooth headset de v er. out the meaning of Logo Electronic Equipment The WEEE logo on th e that this product mus with your other hous e dispose of all your ele equipment by relocat or recycling of such hazar ery of your electronic an sal will allow us to help c r recycling of the electron nsure safety of human he up national emergency nu m ou are and don’t hang up s between 0 Degree and e outside the range. Usi n ture might cause malfun record of all important da gnal is good. Keep your c text message. This advice and pregnant women. vice, please make sure it o WEEE (Waste Electrical ): e product or on its box in t not be disposed of or d ehold waste. You are liab ectronic or electrical wast ing over to the specified rdous waste. Isolated co d electrical waste equip m onserving natural resour nic and electrical waste ealth and environment. mber p until 40 ng the nction. ata in calls e t has a and ndicates dumped ble to te llection ment at rces.  Caution: risk of explosion if battery is replaced by an incorrect type.  Dispose of used batteries according to the instructions.  For pluggable equipment, the socket‐outlet shall be installed near the equipment and shall be easily accessible.  RADIO WAVES: Proof of compliance with international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user and any other person is an essential requirement of these standards or this directive. THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg(10g) for CE. The SAR limit set by the FCC is 1.6 W/kg(1g). Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under th…

Text truncated - open the document above for the full version.

Rev 11/20/07 Haier Telecom （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SG7201511L50 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram SG7201511L50 _Block Diagram.pdf Circuit Diagram SG7201511L50_Schematics.pdf Operational Description SG7201511L50_Operational description.pdf Tune up procedure SG7201511L50_Tune up procedure.pdf BOM List SG7201511L50_BOM List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

Date: 30 Nov. 2015 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG7201511L50 Dear Sirs: Haier Telecom （Qingdao） Co.,Ltd. requests acceptance of the labeling proposal described below for mobile phone bearing FCC identifier: SG7201511L50. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22, 24,27 for this mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom （Qingdao） Co.,Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Haier Telecom （Qingdao） Co.,Ltd will add the FCC identifier " SG7201511L50" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86‐532‐88937275 E‐Mail: [email protected] Address: No.1 Haier Road, Hi‐tech Zone, Qingdao, China

Haier Telecom (Qingdao) Co., Ltd. Declaration Letter Dear Sir， For our business issue and marketing requirement, we would like to list below model numbers on the certificate and reports, as following: Model No.: L52, L50a We declare that the difference of these is listed as below: Main Model No Serial Model No Difference L52 L50a Exactly the same, only the different model name Thank you! Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

Haier Telecom （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-11-30 SUBJECT: FCC Application for (FCC ID: SG7201511L50) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name/Title: David Yang/ Certification Manager Company name: Haier Telecom (Qingdao) Co., Ltd. Tel: +86-532-88937275 E-Mail: [email protected] Address: No.1 Haier Road, Hi-tech Zone, Qingdao, China

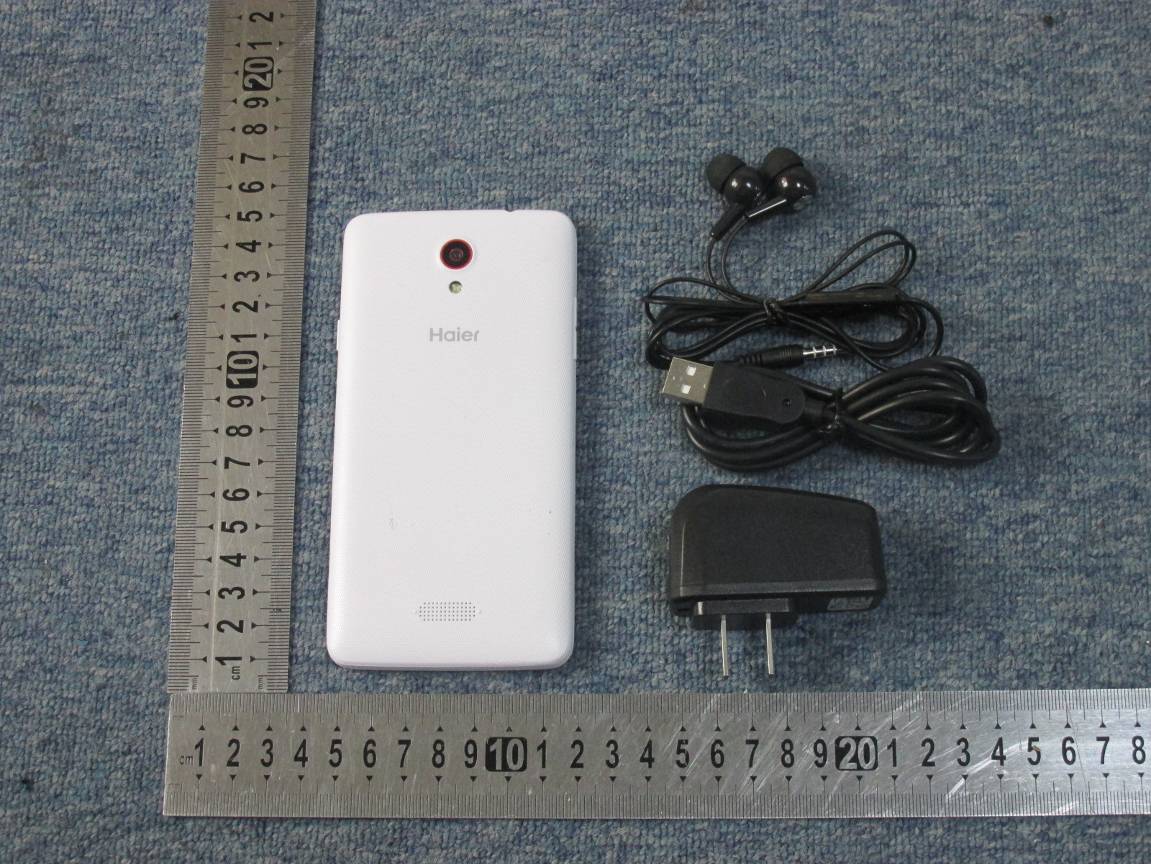

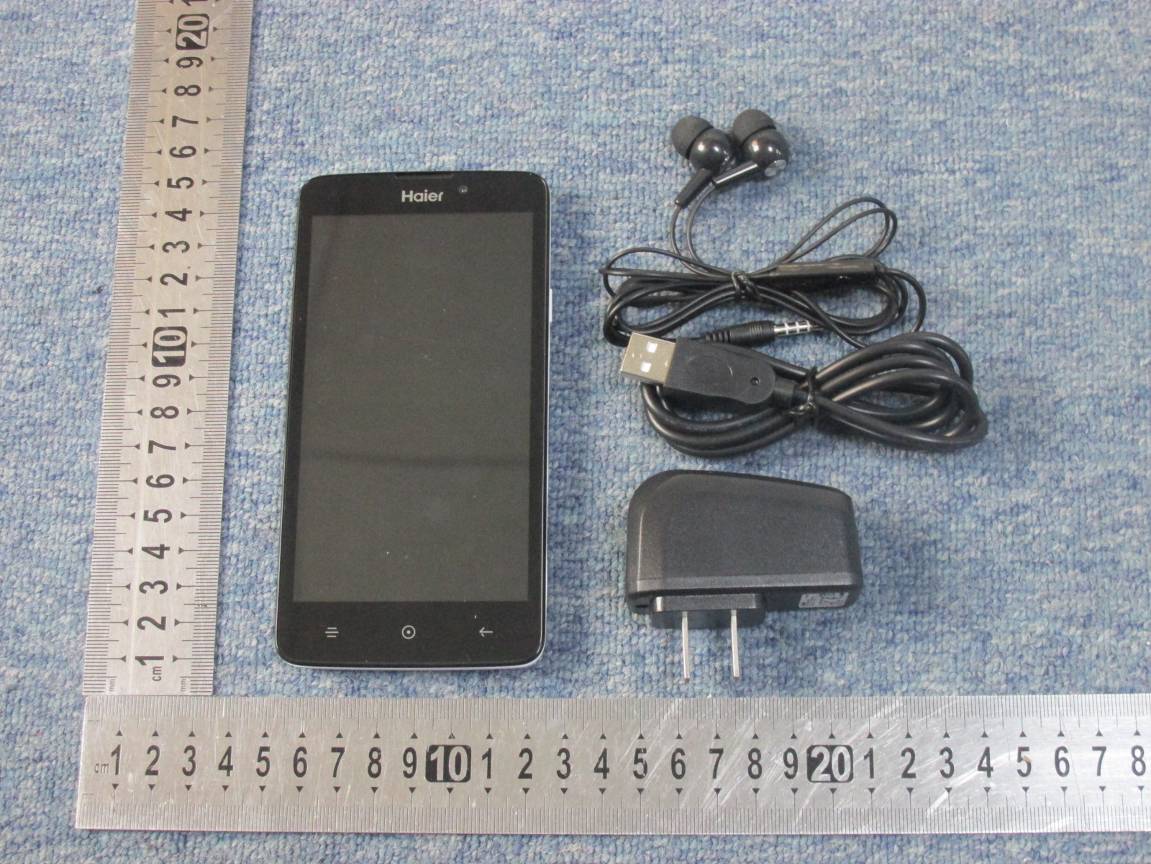

External Photo

Internal Photo WWAN ANT LTE Sub ANT GPS/WIFI /BT ANT

Report No.: SET2015-17174 CCIC-SET/T（00） Page 1 of 33 RF TEST REPORT Report No.: SET2015-17174 Product Name: Mobile Phone FCC ID: SG7201511L50 Model No. : L52, L50a Applicant: Haier Telecom(Qingdao) CO., Ltd. Address: No1.Haier Road,Hi-tech Zone Qingdao,China Dates of Testing: 11/10/2015 — 11/24/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-17174 CCIC-SET/T（00） Page 2 of 33 Test Report Product Name ...................... : Mobile Phone Brand Name ......................... : Haier Trade Name .......................... : Haier Applicant .............................. : Haier Telecom(Qingdao) CO., Ltd. Applicant Address ............... : No1.Haier Road,Hi-tech Zone Qingdao,China Manufacturer ........................ : Haier Telecom(Qingdao) CO., Ltd. Manufacturer Address ........ : No1.Haier Road,Hi-tech Zone Qingdao,China Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10-2009：American National Standard for Testing Unlicensed Wireless Devices KDB 558074D01 v03r03 Test Result ........................... : PASS Tested by ............................ : 2015.11.25 Lu Lei, Test Engineer Reviewed by ......................... : 2015.11.25 Zhu Qi, Senior Egineer Approved by ........................ : 2015.11.25 Wu Li’an, Manager Report No.: SET2015-17174 CCIC-SET/T（00） Page 3 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................. 4 1.1. EUT Description .................................................................................................................... 4 1.2. Test Standards and Results ..................................................................................................... 5 1.3. Facilities and Accreditations .................................................................................................. 7 2. 47 CFR PART 15C REQUIREMENTS ................................................................................. 8 2.1. Antenna requirement .............................................................................................................. 8 2.2. Peak Output Power................................................................................................................. 9 2.3. 6dB Bandwidth .................................................................................................................... 10 2.4. Conducted Band Edges and Spurious Emissions ................................................................. 13 2.5. Power spectral density (PSD) .............................................................................................. 18 2.6. Radiated Band Edge and Spurious Emission ....................................................................... 21 2.7. Conducted Emission ............................................................................................................ 29 3. LIST OF MEASURING EQUIPMENT .............................................................................. 33 Change History Issue Date Reason for change 1.0 2015.11.25 First edition Report No.: SET2015-17174 Page 4 of 33 1. General Information 1.1. EUT Description EUT Type Mobile Phone Hardware Version H01 Software Version V01 EUT supports Radios application GSM/GPRS/EDGE/WCDMA/HSPA/LTE WLAN2.4GHz 802.11b/g/n (HT20/HT40) Bluetooth V3.0+EDR / Bluetooth V4.0LE Frequency Range Bluetooth LE 4.0 2402MHz~2480MHz Channel Number Bluetooth LE 4.0 40 Bit Rate of Transmitter Bluetooth LE 4.0 1Mbps Modulation Type Bluetooth LE 4.0 GFSK Antenna Type PIFA Antenna Antenna Gain 1.3dBi Note 1: The EUT is a Mobile Phone, it contain Bluetooth 4.0 LTE Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth 4.0 LTE is F(MHz)=2402+2*n (0<=n<=39). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 20(2442MHz) and 39 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%. Note 4: The EUT is a Mobile Phone，it contains two models，they are L52 and L50a. They have the same size, appearance and internal structure, and the only difference is the model number. Report No.: SET2015-17174 Page 5 of 33 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2013 Radio Frequency Devices 2 ANSI C63.10-2009 American National Standard for Testing Unlicensed Wireless Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Description Result 1 15.203 Antenna Requirement PASS 2 15.247(b) Peak Output Power PASS 3 15.247(a) Bandwidth PASS 4 15.247(d) Conducted Band Edges and Spurious Emission PASS 5 15.247(e) Power spectral density (PSD) PASS 6 15.207 Conducted Emission PASS 7 15.209 15.247(d) Radiated Band Edges and Spurious Emission PASS The tests of C…

Text truncated - open the document above for the full version.

Report No.: SET2015-17176 CCIC-SET/T（00） Page 1 of 64 RF TEST REPORT Report No.: SET2015-17176 Product Name: Mobile Phone FCC ID: SG7201511L50 Model No. : L52, L50a Applicant: Haier Telecom(Qingdao) CO., Ltd. Address: No1.Haier Road,Hi-tech Zone Qingdao,China Dates of Testing: 11/10/2015 — 11/24/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-17176 CCIC-SET/T（00） Page 2 of 64 Test Report Product Name ...................... : Mobile Phone Brand Name ......................... : Haier Trade Name .......................... : Haier Applicant .............................. : Haier Telecom(Qingdao) CO., Ltd. Applicant Address ............... : No1.Haier Road,Hi-tech Zone Qingdao,China Manufacturer ........................ : Haier Telecom(Qingdao) CO., Ltd. Manufacturer Address ........ : No1.Haier Road,Hi-tech Zone Qingdao,China Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices ANSI C63.10 2009：American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v03r03 Test Result ........................... : PASS Tested by ............................ : 2015.11.25 Lu Lei, Test Engineer Reviewed by ......................... : 2015.11.25 Zhu Qi, Senior Egineer Approved by ........................ : 2015.11.25 Wu Li’an, Manager Report No.: SET2015-17176 CCIC-SET/T（00） Page 3 of 64 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................. 4 1.1. EUT Description .................................................................................................................... 4 1.2. Test Standards and Results ..................................................................................................... 5 1.3. Table for Supporting Units ..................................................................................................... 6 1.4. Facilities and Accreditations .................................................................................................. 6 2. 47 CFR PART 15C REQUIREMENTS ................................................................................. 7 2.1. Antenna requirement .............................................................................................................. 7 2.2. Peak Output Power................................................................................................................. 8 2.3. 6dB Bandwidth .................................................................................................................... 10 2.4. Conducted Band Edges and Spurious Emissions ................................................................. 18 2.5. Power spectral density (PSD) .............................................................................................. 35 2.6. Radiated Band Edge and Spurious Emission ....................................................................... 43 2.7. Conducted Emission ............................................................................................................ 60 3. LIST OF MEASURING EQUIPMENT .............................................................................. 64 Change History Issue Date Reason for change 1.0 2015.11.25 First edition Report No.: SET2015-17176 Page 4 of 64 1. General Information 1.1. EUT Description EUT Type Mobile Phone Hardware Version H01 Software Version V01 EUT supports Radios application GSM/GPRS/EDGE/WCDMA/HSPA/LTE WLAN2.4GHz 802.11b/g/n (HT20/HT40) Bluetooth V3.0+EDR / Bluetooth V4.0LE Frequency Range WLAN 802.11b/g/n-20MHz: 2.412GHz - 2.462GHz 802.11n-40MHz: 2.422GHz - 2.452GHz Channel Number WLAN 802.11b/g/n-20MHz: 11 802.11n-40MHz: 7 Bit Rate of Transmitter WLAN 802.11b: 11/5.5/2/1 Mbps 802.11g: 54/48/36/24/18/12/9/6 Mbps 802.11n : up to 135 Mbps Modulation Type WLAN DSSS (802.11b), OFDM (802.11g/n) Antenna Type PIFA Antenna Antenna Gain 1.1dBi Note 1: The EUT is a Mobile Phone, it contain WIFI operating at 2.4GHz ISM band; it supports 802.11b, 802.11g, 802.11n and they are all tested in this report. Note 2: The frequencies allocated is F (MHz) =2412+5*(n-1) (1<=n<=11). The lowest, middle, highest channel numbers of the EUT used and tested in this report are separately 1ch (2412MHz), 6ch(2437MHz), 11ch(2462MHz) for 802.11b/g/n-20MHz., and 3ch(2422MHz), 6ch(2437MHz), 9ch(2452MHz) for 802.11n-40MHz. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 4: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%. Note 5: The EUT is a Mobile Phone，it contains two models，they are L52 and L50a. They have the same size, appearance and internal structure, and the only difference is the model number. Report No.: SET2015-17176 Page 5 of 64 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2013 Radio Frequency Devices 2 ANSI C63.10 2009 American National Standard for Testing Unlicensed Wireless Devices Test detailed items/s…

Text truncated - open the document above for the full version.

15C Setup Photo
