SG70507M1610Mobile phone

User Manual of M1610 Phone 1. Phone Introduction 1.1 Keypad Area There are 23 keys on keypad of this phone, which can be divided into two parts: • Number/letter area, total 12 keys • Control keys area, total 12 keys 1.1.1 Number/letter key Number/letter area consists of 12 keys, which arranges according to definite standard, and includes [0]~[9], [*] and [#]. Keys in keypad area allows users input numbers or characters, according to different screen environment, same key can produce different key value, which is shown as following table: Multi-Tap Number (Dialing) Keypad Label Capital letter ABC Small letter abc Short press Long press Password Tim e Counter 1 Blank 1@_#= <>()&£$¥ Blank 1@_#= <>()&£$¥ 1 1 1 1 1 2ABC ABC2AÄÅÆç abc2àäåæç 2 2 2 2 2 3DEF DEF3ÉE def3éè 3 3 3 3 3 4GHI GHI4 ghi4ì 4 4 4 4 4 5JKL JKL5 jkl5 5 5 5 5 5 6MNO MNO6ÑòÖØ mno6ñòöø 6 6 6 6 6 7PQRS PQRS7ß pqrs7ß 7 7 7 7 7 8TUV TUV8Üù tuv8üù 8 8 8 8 8 9WXYZ WXYZ9 wxyz9 9 9 9 9 9 0 .0/”’?!,:;¡¿*+-% .0/”’?!,:;¡¿ *+-% 0 . 0 0 0 * Switching input mode Switching input mode * + + - * / #. Press and hold for a long time: switching capital and small mode Press and hold for a long time: input symbols Press and hold for a long time: switching capital and small mode Press and hold for a long time: input symbols # wp . 1.1.2 Control key [On/Off]: Right red key at keypad area, also called red key or power key. • Press and hold the key for a long time to turn on the phone when it is off. • Press and hold for a long time under state to turn off the phone when it is on. • Press and hold for a short time under menu and edit state to return stand-by menu. • Press the key to end current call during the call. • Press the key to reject answering when you receive a call. [PickUp]: Left green key at keypad area, also called green key or send key. Press the key to answer call or dial phone number. [SKL] and [SKR] [SKL] is at left and upper area of keypad, and [SKR] is at right and upper area of key pad. They usually have different functions corresponding to the functions indicated at SK hint area of lower menu according to different definition of program. Direction key: includes up, down, left and right four keys. [Up] and [Down]: • Turn over page to display stand-by character in editor. • Scroll screen up and down. • Turn over page on stand-by row under Pinyin and Bihua input state. • Browse short message or other long text message. • Turn to last and next picture when previewing pictures. Note: [Up] and [Down] keys have automatic repeating function; if we press and hold one key of them for a long time, it is equal to press the key for many times. It means that when the time you press the key exceeds preset time, phone starts the automatic repeating function of the key. Interval for automatic repeating has been preset, and you can’t change it. [Left] and [Right]: • Move cursor to left and right in editor. • Move selected words or pin combination under pinyin and bihua input states • Browse main menu • Turn to last and next picture when previewing pictures [OK] In the middle of four direction keys, also called middle key. It is ok key in default. [C] At the bottom of the UP key, also named CANCEL key. • Delete editor content or input symbol in editor. • Return to the last level at other windows. Up/down keys on side • Press and hold for a short time to answer the call when you receive a call and when phone cover is closed and earphone is inserted. • Press and hold for a long time when you receive a call to stop ring, vibration and shining of background light when phone cover is closed, nor matter if earphone is inserted. • Press and hold for a long time to hang up current call in call state when phone cover is closed and earphone is inserted. • Press and hold for a short time to adjust volume of headphone or earphone during call. • Press and hold for a long time to stop ring and vibration when you receive a call no matter if earphone is inserted. 1.1.3 Key operation under stand-by state When screen displays stand-by menu, you can. • Press [PickUp] to enter dialed phone list. • Press [OK] to enter WAP. • Press [Up] to enter message. • Press [Down] to enter STK. • Press [Left] to visit Phonebook. • Press [Right] to enter camera. • Press [SKL] to enter calllist. • Press [SKR] to enter phonebook menu. • Input phone number directly by digit number, then dial phone and enter relevant option menu. • Use hotkey, which should be customized. (Refer to hotkey setup). 1.1.4 Key operation without SIM card • Press [OK] to enter first level menu. • Pres [SKR] to enter SOS. 1.2Display The phone has single liquid crystal display, graphic area of the display is 128（width）×160 （Height）pixels, can display 64K colors and takes CSTN technology. Following icons can only be displayed under stand-by state, used to display current state of phone, such as electricity, network signal and etc. Icon Name of icons Description Battery Display energy of battery, there is five battery indicator levels. The icon scrolls during charge process. Network Nework icon is divided into two parts, left part indicates if it register in network, left part indicateds signal strength, which is divided into five levels (from no signal to strongest signal). Roam When phone regesters in network outside home network, display the icon . Otherwise don’t display the icon. Home network When phone registers in home network, display the icon. Otherwise don’tdisplay the icon. (The function needs network support) If logon GPRS Display when GPRS network exist and phone logon GPRS, otherwise nodisplay. (The function needs network support) MMS Above two icons show at least one MMS is not read now in message list and MMS memory is full respectively. If there is unread MMS and MMS memory is also full, only display the full icon. Message Above icons shown there is at least one message that is not read now in message list and message memory is full respectively. If there is unread MMS and MMS m…

Text truncated - open the document above for the full version.

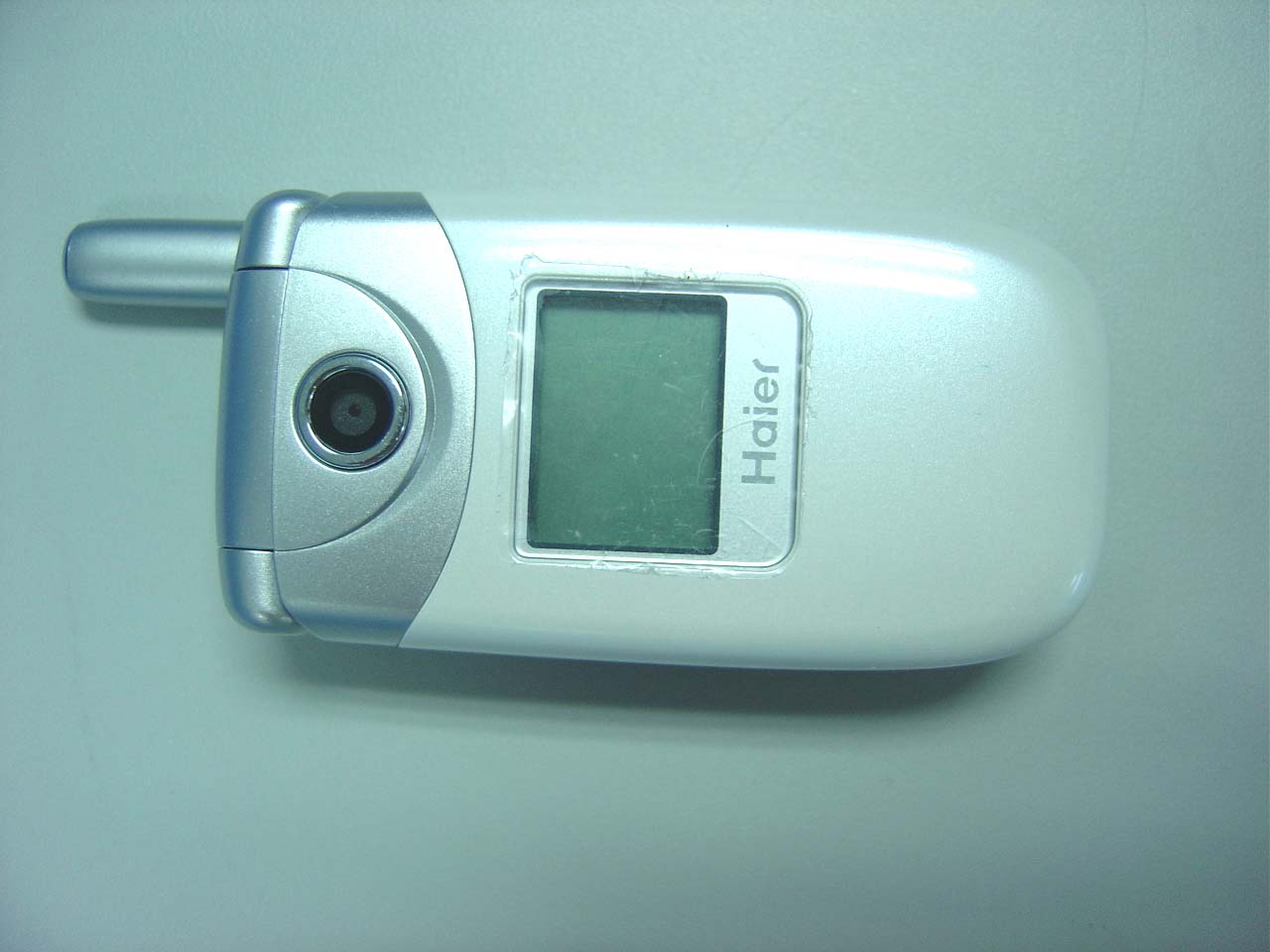

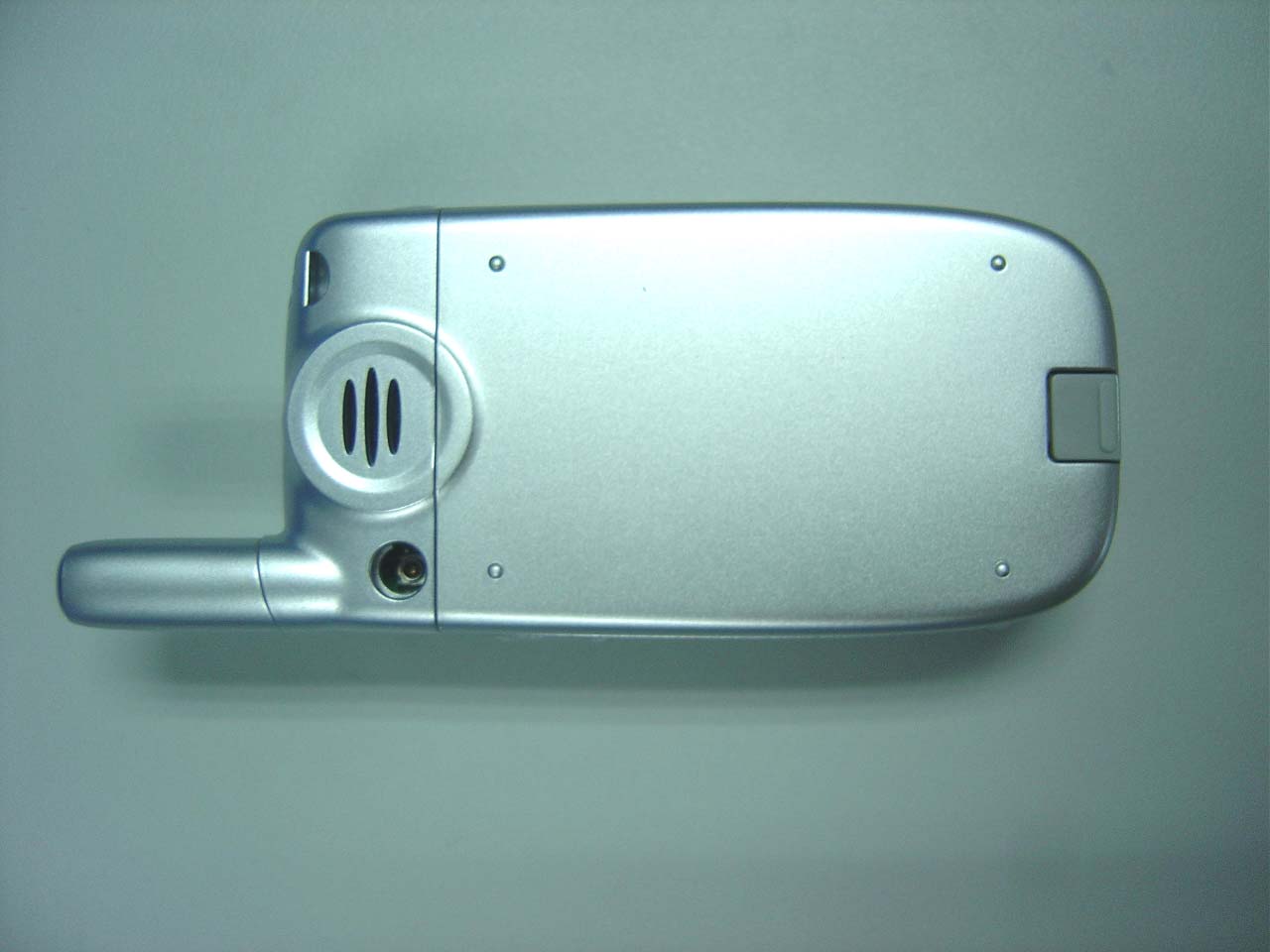

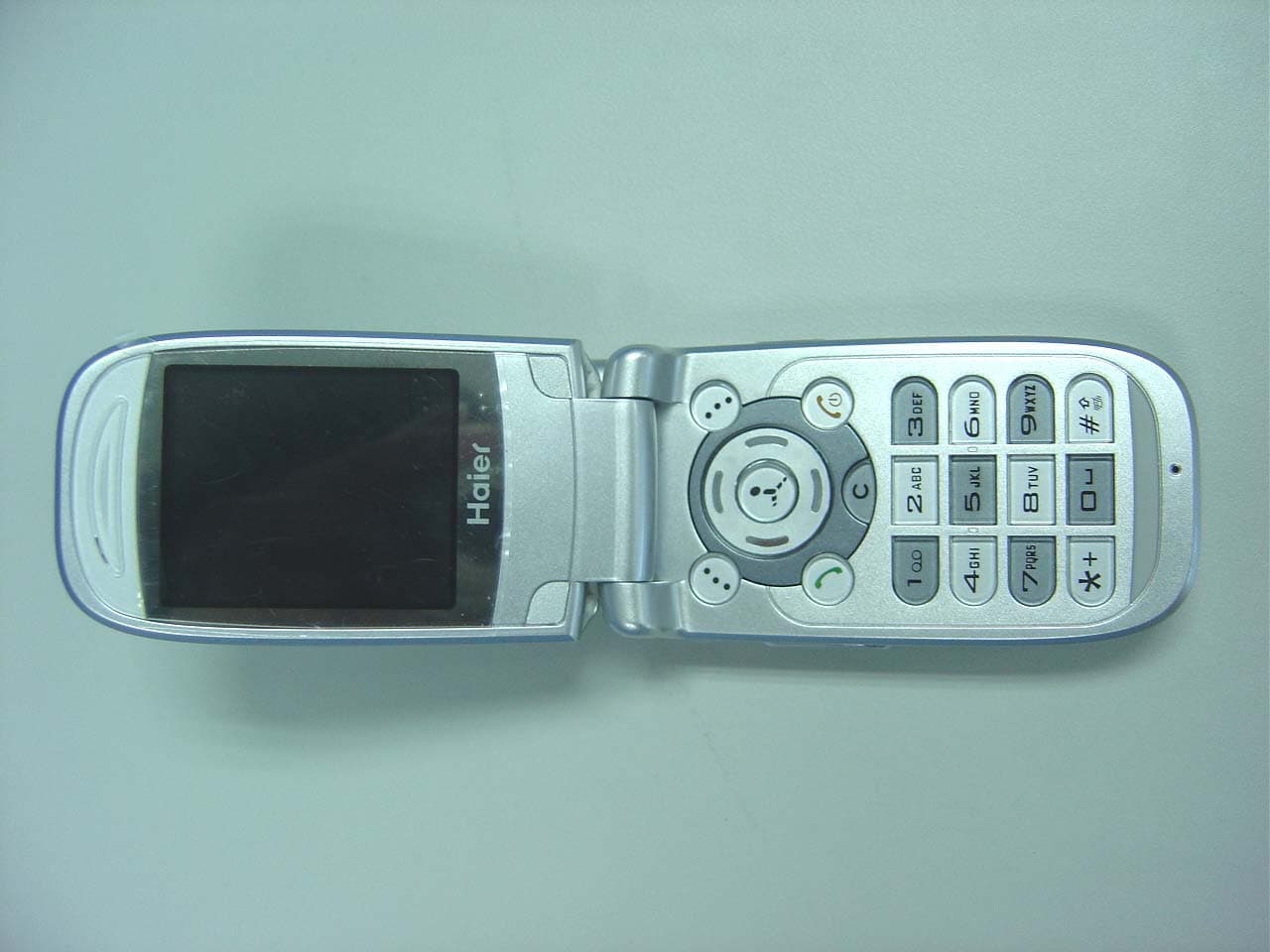

Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Top View of EUT Bottom View of EUT Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw View of EUT Battery Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Adaptor

Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT Internal of EUT Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT Internal of EUT Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT Internal of EUT

Order No: SHGLO050700059GSM Date: Aug. 17, 2005 Page: 1 of 100 SAR TEST REPORT Eequipment Under Test : GSM 850&PCS1900MHz MOBILE PHONE FCC ID : SG70507M1610 Model No. : M1610 Applicant : Qingdao Haier Telecom Co, .ltd. Address of Applicant : Haier Park, No. 1 Haier Road, Qingdao, 266101, P.R. China Date of Receipt : 2005.07.20 Date of Test : 2005.08.04 – 2005.08.16 Date of Issue : 2005.08.17 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS-CSTC Shanghai GSM Lab or testing done by SGS-CSTC Shanghai GSM Lab must approve SGS Shanghai GSM Lab in connection with distribution or use of the product described in this report in writing. Tested by : Date : 2005.08.17 Approved by : Date : 2005.08.17 Order No: SHGLO050700059GSM Date: Aug. 17, 2005 Page: 2 of 100 Contents 1. General Information...........................................................................5 1.1 Test Laboratory..........................................................................................................5 1.2 Details of Applicant...................................................................................................5 1.3 Description of EUT(s)................................................................................................5 1.4 Test Environment......................................................................................................6 1.5 Operation Configuration...........................................................................................6 1.6 The SAR Measurement System................................................................................6 1.7 SAR System Verification...........................................................................................8 1.8 Tissue Simulant Fluid for the Frequency Band 850MHz and 1900MHZ................9 1.9 Test Standards and Limits......................................................................................10 2. Summary of Results.........................................................................11 3. Instruments List...............................................................................13 4. Measurements..................................................................................14 850MHz GSM Mode........................................................................................................14 4.1 FCC-OET65-LeftHandSide-Touch-GSM850-Low...................................................14 FCC-OET65-LeftHandSide-Touch-GSM850-Low..................................................................14 4.2 FCC-OET65-LeftHandSide-Touch-GSM850-Mid....................................................15 FCC-OET65-LeftHandSide-Touch-GSM850-Mid...................................................................16 4.3 FCC-OET65-LeftHandSide-Touch-GSM850-High..................................................17 FCC-OET65-LeftHandSide-Touch-GSM850-High.................................................................17 4.4 FCC-OET65-LeftHandSide-Tilt-GSM850-Low........................................................19 FCC-OET65-LeftHandSide-Tilt-GSM850-Low......................................................................19 4.5 FCC-OET65-LeftHandSide-Tilt-GSM850-Mid.........................................................21 FCC-OET65-LeftHandSide-Tilt-GSM850-Mid.......................................................................21 4.6 FCC-OET65-LeftHandSide-Tilt-GSM850-High.......................................................23 FCC-OET65-LeftHandSide-Tilt-GSM850-High......................................................................23 4.7 FCC-OET65-RightHandSide-Touch-GSM850-Low................................................25 FCC-OET65-RightHandSide-Touch-GSM850-Low................................................................25 4.8 FCC-OET65-RightHandSide-Touch-GSM850-Mid.................................................27 FCC-OET65-RightHandSide-Touch-GSM850-Mid.................................................................27 4.9 FCC-OET65-RightHandSide-Touch-GSM850-High................................................29 FCC-OET65-RightHandSide-Touch-GSM850-High...............................................................29 Order No: SHGLO050700059GSM Date: Aug. 17, 2005 Page: 3 of 100 4.10 FCC-OET65-RightHandSide-Tilt-GSM850-Low....................................................31 FCC-OET65-RightHandSide-Tilt-GSM850-Low....................................................................31 4.11 FCC-OET65-RightHandSide-Tilt-GSM850-Mid.....................................................33 FCC-OET65-RightHandSide-Tilt-GSM850-Mid.....................................................................33 4.12 FCC-OET65-RightHandSide-Tilt-GSM850-High...................................................35 FCC-OET65-RightHandSide-Tilt-GSM850-High...................................................................35 4.13 FCC-OET65-Body-Worn-GSM850-Low................................................................37 FCC-OET65-Body-Worn-GSM850-Low................................................................................37 4.14 FCC-OET65-Body-Worn-GSM850-Mid.................................................................39 FCC-OET65-Body-Worn-GSM850-Mid.............................................................…

Text truncated - open the document above for the full version.

Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 Page: 1 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 22 SUBPART H and PART 24 SUBPART E REQUIREMENT OF Product Name: GSM 850/1900 mobile phone Brand Name: Haier Model Name: M1610 FCC ID: SG70507M1610 Report No.: ER/2005/70021 Issue Date: Aug 03, 2005 FCC Rule Part: 2 & 24E& 22H Prepared for Haier Telecom(Qingdao) Co., Ltd. Haier Park,No.1 Haier Road, Qingdao, 266101, P.R. China Prepared by SGS Taiwan Ltd. No. 134, Wu Kun g Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Haier Telecom(Qingdao) Co.,Ltd Haier Park,No.1 Haier Road, Qingdao, 266101, P.R. China Equipment Under Test: GSM 850/1900 mobile phone FCC ID Number: SG70507M1610 Brand Name: Haier Model No.: M1610 Model Difference: N/A File Number: ER/2005/70021 Date of test: Jul. 27, 2005 ~ Aug. 03, 2005 Date of EUT Received: Jul. 26, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-1-1998 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 subpart H and FCC PART 24 subpart E. The test results of this report relate only to the tested sample identified in this report. Test By: Date Aug. 03, 2005 Willis Chen Prepared By: Date Aug. 03, 2005 Eva Kao Approved By Date Aug. 03, 2005 Vincent Su Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Aug 03, 2005 Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Product Description ......................................................................................................................... 6 1.2 Related Submittal(s) / Grant (s) ....................................................................................................... 6 1.3 Test Methodology ............................................................................................................................ 6 1.4 Test Facility...................................................................................................................................... 7 1.5 Special Accessories .......................................................................................................................... 7 1.6 Equipment Modifications................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ......................................................................................... 8 2.1 EUT Configuration .......................................................................................................................... 8 2.2 EUT Exercise ................................................................................................................................... 8 2.3 Test Procedure.................................................................................................................................. 8 2.4 Configuration of Tested System....................................................................................................... 9 3. SUMMARY OF TEST RESULTS ............................................................................................ 10 4. DESCRIPTION OF TEST MODES ......................................................................................... 10 5. RF POWER OUTPUT MEASUREMENT .............................................................................. 11 5.1 Standard Applicable ....................................................................................................................... 11 5.2 Test Set-up: ..........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos Report No.: ER/2005/70021 ID: SG70507M1610 Issue Date: Aug. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
