SG7060801HC-D900CDMA 1X digtial mobile

M101 User manual Haier User Manual for M101 Mobile Phone November, 2007 M101 User manual I Summary Welcome to select M101 mobile phone. This instruction manual explains the exmobileent performance of M101 mobile phone for details. Besides basic function of talking, M101 mobile phone and system network also provide you with practical multi-functions and service to facilitate your work and leisure activity. We provide you with the multiple special fitting parts including charging battery and charger for your selection. Please refer to section 11 of this instruction manual for the detailed description on these fitting parts. If using fitting parts without permission from the providers, it is possible to result in danger; the resulted damage is beyond warranty. Our company reserves the right to modify the technical specification in this instruction manual without pre-notification. Explanation for reading the manual Different styles are used to describe different operation details in this manual as follows: Operation Content description Example Display content Represented with normal character 0-9 General key Except the function keys, all others are represented by normal character with frame 0-9 Menu item Represented by italics with boldface Hold the call Note: The pictures used in the manual are the function illustration pictures only, and maybe they are different from display in your mobile phone. Please take yours as the standard. M101 User manual 第 2 页 CONTENTS SUMMARY ....................................................................................................................................................................... I SECURITY AND PERFORMANCE.............................................................................................................................. 5 1 START TO USE ....................................................................................................................................................... 9 1.1 BATTERY................................................................................ 9 1.1.1 The disassembly and installation of battery................................................................................................ 9 1.1.2 Battery charging ......................................................................................................................................... 9 1.1.3 Use of battery.............................................................................................................................................. 9 1.1.4 Indication of battery capacity ..................................................................................................................... 9 1.2 CONNECTION OF NETWORK................................................................... 10 1.2.1 SIM card ................................................................................................................................................... 10 1.2.2 Insertion of SIM card ................................................................................................................................ 10 1.2.3 Unlocking of SIM card.............................................................................................................................. 10 1.2.4 Connect to network ................................................................................................................................... 11 1.3 IDLE SCREEN AND CONTENT.................................................................. 11 1.4 KEYS................................................................................. 12 1.5 INPUT OF NUMBER AND CHARACTER............................................................. 13 1.6 INPUT MESSAGE.......................................................................... 13 1.6.1 Edit screen for inputting the text............................................................................................................... 14 1.6.2 Switch the input methods .......................................................................................................................... 14 1.6.3 Input method of intelligent English ........................................................................................................... 14 1.6.4 Input method of English letter................................................................................................................... 14 1.6.5 Input method of T9SP（T9Sp）or Sp (SP) ............................................................................................... 15 1.6.6 Input method of number ............................................................................................................................ 15 1.6.7 Input method of symbol............................................................................................................................. 15 2 DIAL AND ANSWER THE PHONE.................................................................................................................... 16 TURN ON/OFF PHONE............................................................................ 16 2.1 MAKE A PHONE CALL....................................................................... 16 2.1.1 Direct dial ................................................................................................................................................. 16 2.1.2 Make a phone call from contacts .............................................................................................................. 17 2.1.3 Speed dial.................................................................................................................................................. 17 2.1.4 SIM card dial ............................................................................................................................................ 17 2.1.5 Unsuccessful calls.............................................................................…

Text truncated - open the document above for the full version.

Date: 24 Jan, 2008 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Haier Telecom (Qingdao) Co., Ltd. , the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Haier Telecom (Qingdao) Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID # SG7080117HG-M101 including the signing of documents in connection with this Application. Necessary acts carried out by Haier Telecom (Qingdao) Co., Ltd. on our behalf of the Haier Telecom (Qingdao) Co., Ltd. in connection with the Application shall have the same effect as acts of the Haier Telecom (Qingdao) Co., Ltd.. The Haier Telecom (Qingdao) Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Sincerely Yours, James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Date: 24 Jan, 2007 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Haier Telecom (Qingdao) Co., Ltd. FCC ID: SG7080117HG-M101 FCC Part 22&24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Haier Telecom (Qingdao) Co., Ltd. requests that the following documents regarding this submission for FCC ID: SG7080117HG-M101 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Haier Telecom (Qingdao) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Haier Telecom (Qingdao) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

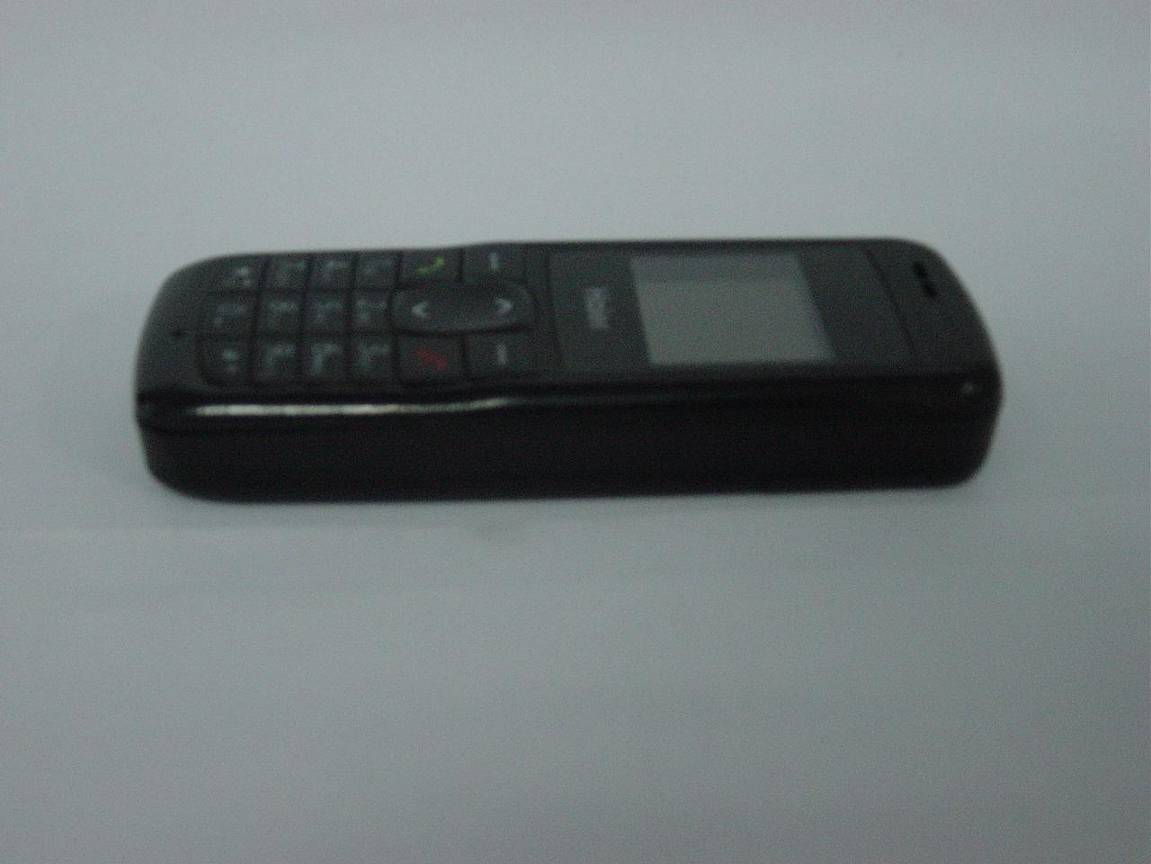

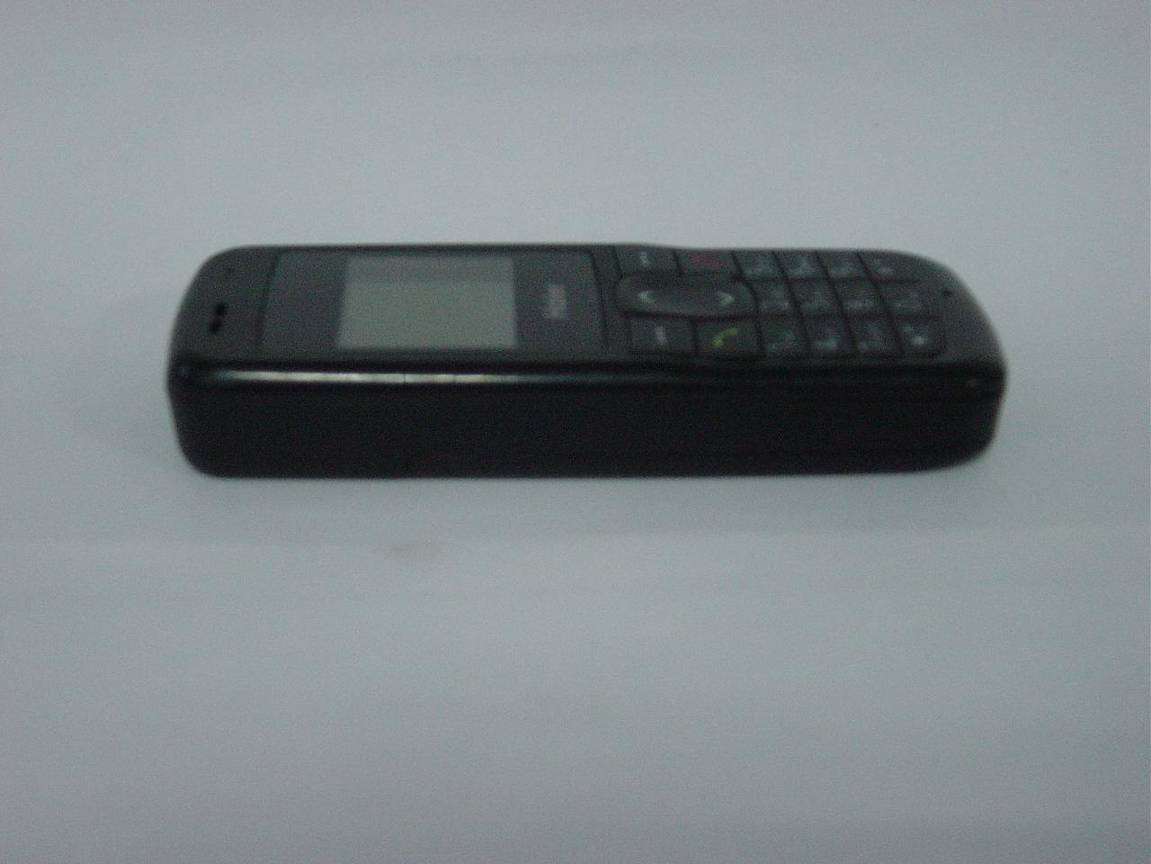

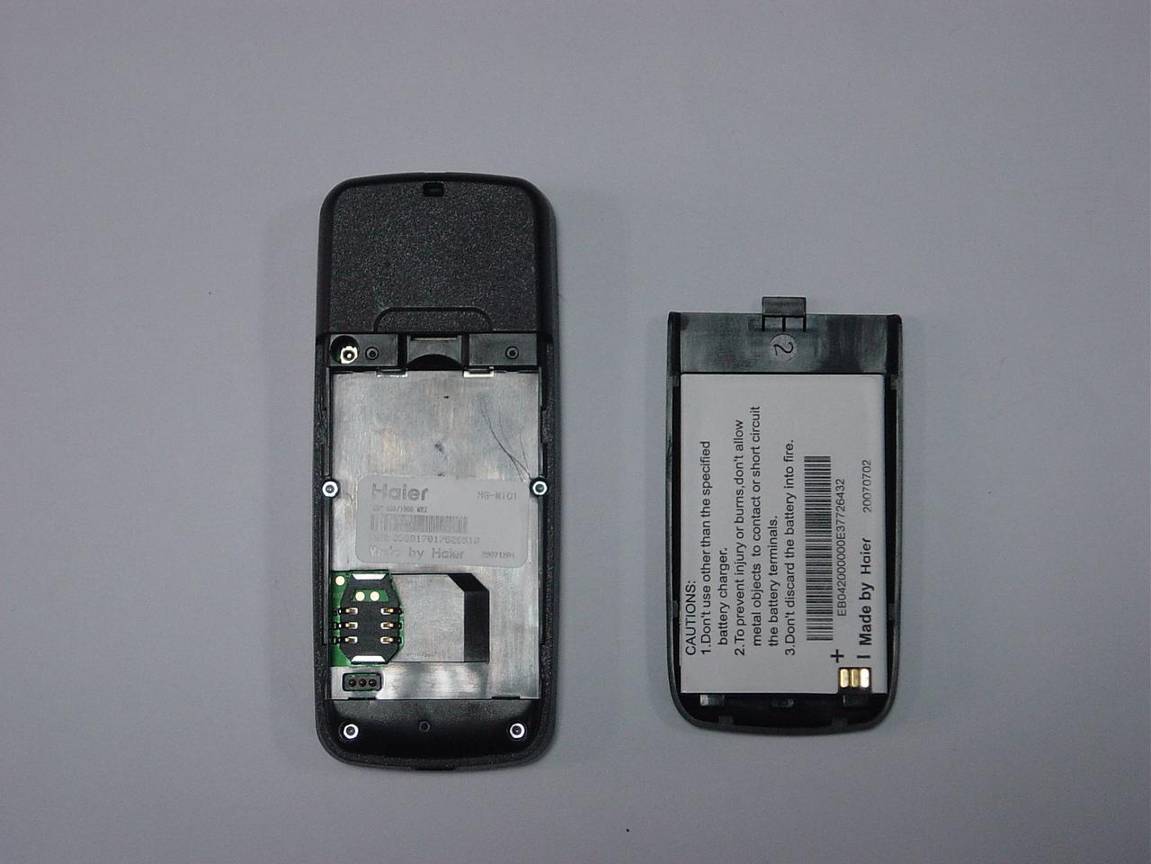

External Photos 1. Front View of EUT 2. Inside View of EUT 3. Back View of EUT 4. Side View of EUT

Label Label Location

24 Jan 2008 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG7080117HG-M101 Dear Sirs: Haier Telecom (Qingdao) Co., Ltd. requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier SG7080117HG-M101. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22 for CDMA mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Haier Telecom will add the FCC identifier " SG7080117HG-M101" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Internal Photos

No.SAR08-004 Page 3 of 72 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 8. MEASUREMENT UNCERTAINTY 9. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results Annex E: System Performance Check Data No.SAR08-004 Page 4 of 72 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Electronic Product Quality Testing Center. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Electronic Product Quality Testing Center and the Accreditation Bodies, if it applies. No.SAR08-004 Page 5 of 72 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Telephone: +86-755-26628676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wu Li’an 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item S.E.T Report No.: SAR08-004 S.E.T Project Leader: Mr. Li Sixiong S.E.T Responsible for accreditation scope: Mr. Wu Li’an Start of Testing: 2008-1-4 End of Testing: 2008-1-21 2.4. Identification of Applicant Company Name: QINGDAO HAIER TELECOM CO., LTD Address: No.1, Haier Road Hi-tech Zone Qingdao,266101 P.R.China Contact person: Shi Jian Telephone: 0532-88936513/13646425000 Fax: 0532-88939585 2.5. Identification of Manufacture Company Name: QINGDAO HAIER TELECOM CO., LTD Address: No.1, Haier Road Hi-tech Zone Qingdao,266101 P.R.China Contact person: Shi Jian Telephone: 0532-88936513/13646425000 Fax: 0532-88939585 Notes: This data is based on the information by the applicant. No.SAR08-004 Page 6 of 72 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: Haier Ty pe Na me: HG-M101 Marking Name: HG-M101 Test frequency GSM 850MHz PCS 1900MHz Development Stage Identical Prototype Accessories Charger, Battery Battery type H11102 Battery specification 650mAh 3.7V Antenna type Build inside Operation mode Call established General description: Modulation mode GMSK NOTE: 1. The EUT is a model of GSM Mobile Station (“MS” for short in this report) operating in GSM 850MHz and PCS 1900MHz band. 2. Please refer to Appendix C for the photographs of the EUT. For a more detailed features description about the EUT, please refer to User’s Manual. 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code IMEI Hardware Version Software Version / 356817017603538P1 M101－H01－S002－ SPANISH No.SAR08-004 Page 7 of 72 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The TCH is allocated to 128, 190 and 251 respectively in the case of GSM 850 MHz, or to 512, 661 and 810 respectively in the case of PCS 1900 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR Measurement System The SAR measurement system being used is the IndexSAR SARA2 system, which consists of a Figure1. SAR Lab Test Measurement Set-up No.SAR08-004 Page 8 of 72 Mitsubishi RV-E2 6-axis robot arm and controller, IndexSAR probe and amplifier and SAM phantom Head Shape. The system is controlled remotely from a PC, which contains the software to control the robot and data acquisition equipment. The software also displays the data obtained from test scans. In operation, the system first does an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found, the system will then carry out a 3D scan centred at that point to determine volume averaged SAR level. 4.2.1 Robot system specification The robot is used to articulate the probe to programmed positions inside the phantom head to obtain the SAR readings from the DUT. 4.2.2 Probe and amplifier specification IXP-050 Indexsar isotropic immersible SAR probe The probes are constructed using three orthogonal dipole sensors arranged on an interlocking, triangular No.SAR08-004 Page …

Text truncated - open the document above for the full version.

Report No.: SZ07090047E01 Page 2 of 63 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ..........................................................................................4 2. GENERAL INFORMATION ....................................................................................................5 2.1 Equipment under Test (EUT) Description ...............................................................................5 2.2 Test Standards and Results ........................................................................................................6 2.3 Facilities and Accreditations ......................................................................................................7 2.3.1 Facilities ....................................................................................................................................7 2.3.2 Test Equipments ........................................................................................................................7 2.3.3 Test Environment Conditions....................................................................................................8 3. 47 CFR PART 15B REQUIREMENTS ....................................................................................9 3.1 General Information...................................................................................................................9 3.1.1 EUT Function and Test Mode ...................................................................................................9 3.1.2 Test Setup ................................................................................................................................10 3.2 Conducted Emission .................................................................................................................12 3.2.1 Requirement ............................................................................................................................12 3.2.2 Test Procedure .........................................................................................................................12 3.2.3 Test Result ...............................................................................................................................13 3.3 Radiated Emission ....................................................................................................................15 3.3.1 Requirement ............................................................................................................................15 3.3.2 Test Procedure .........................................................................................................................15 3.3.3 Test Result ...............................................................................................................................16 4. 47 CFR PART 2, PART 22H, PART 24E REQUIREMENTS ..............................................18 4.1 General Information.................................................................................................................18 4.1.1 Conducted Related Tests .........................................................................................................18 4.1.2 Radiated Power and Spurious Emission Tests ........................................................................19 4.1.3 Frequency Stability Test ..........................................................................................................20 4.2 Frequencies................................................................................................................................21 4.2.1 Frequency Blocks Available for Cellular Service ...................................................................21 4.2.2 Frequency Blocks Available for Broadband PCS ...................................................................21 4.2.3 Test Procedure .........................................................................................................................21 4.2.4 Test Result ...............................................................................................................................22 Report No.: SZ07090047E01 Page 3 of 63 4.3 Conducted RF Output Power ..................................................................................................24 4.3.1 Requirement ............................................................................................................................24 4.3.2 Test Procedure .........................................................................................................................24 4.3.3 Test Result ...............................................................................................................................25 4.4 Occupied Bandwidth ................................................................................................................29 4.4.1 Occupied Bandwidth Definition .............................................................................................29 4.4.2 Test Procedure .........................................................................................................................29 4.4.3 Test Result ...............................................................................................................................30 4.5 Conducted Spurious Emission.................................................................................................34 4.5.1 Requirement ............................................................................................................................34 4.5.2 Test Procedure .........................................................................................................................34 4.5.3 Test Result ...............................................................................................................................35 4.6 Transmitter Radiated Power (EIRP/ERP) ..................................................................…

Text truncated - open the document above for the full version.

Report No. SN0093_900 April 2007 INDEXSAR 900MHz validation Dipole Type IXD-090 S/N 0093 Performance measurements MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5BG. UK. Tel: +44 (0) 1306 632870 Fax: +44 (0) 1306 631834 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An Anritsu MS4623B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made from a low- permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 Ohm co-ax, which is joined by soldering and is gold-plated subsequently. The constructed dipoles are easily deformed, if mis-handled, and periodic checks need to be made of their symmetry. Rohacell foam spacers designed for presenting the dipoles to 2mm thick PMMA box phantoms. These components also suffer wear and tear and should be replaced when the central hole is a loose-fit on the dipole arms or if the edges are too worn to ensure accurate alignment. The standard spacers are dimensioned for use with 2mm wall thickness (additional spacers are available for 4mm wall thickness). 2. Typical SAR Measurement A SAR validation check is performed with the box-phantom located on the SARA2 phantom support base on the SARA2 robot system. Tests are then conducted at a feed power level of approx. 0.25W. The actual power level is recorded and used to normalise the results obtained to the standard input power conditions of 1W (forward power). The ambient temperature is 21 o C +/- 1 o C and the relative humidity is around 40% during the measurements. The phantom is filled with a 900MHz brain liquid using a recipe from [1], which has the following electrical parameters (measured using an Indexsar DiLine kit) at 900MHz: Relative Permittivity 42.5 Conductivity 0.97 S/m The SARA2 software version VPM2.2 is used with an Indexsar probe previously calibrated using waveguides. The 3D measurements made using the dipole at the bottom of the phantom box is shown below: The results, normalised to an input power of 1W (forward power) are typically: Averaged over 1 cm3 (1g) of tissue 10.55 W/kg Averaged over 10cm3 (10g) of tissue 6.80 W/kg These results can be compared with Table 8.1 in [1]. The agreement is within 10%. 3. Dipole impedance and return loss The dipoles are designed to have low return loss ONLY when presented against a lossy-phantom at the specified distance. A Vector Network Analyser (VNA) was used to perform a return loss measurement on the specific dipole when in the measurement-location against the box phantom. The distance was as specified in the standard i.e. 10mm from the liquid (for 900MHz). The Indexsar foam spacers (described above) were used to ensure this condition during measurement. The impedance was measured at the SMA-connector with the network analyser. The following parameters were measured: Dipole impedance at 900 MHz Re{Z} = 49.998 Ω Im{Z} = 631.311 μΩ Return loss at 900MHz -20.418 dB 4. Dipole handling The dipoles are made from standard, copper-sheathed coaxial cable. In assembly, the sections are joined using ordinary soft-soldering. This is necessary to avoid excessive heat input in manufacture, which would destroy the polythene dielectric used for the cable. The consequence of the construction material and the assembly technique is that the dipoles are fragile and can be deformed by rough handling. Conversely, they can be straightened quite easily as described in this report. If a dipole is suspected of being deformed, a normal workshop lathe can be used as an alignment jig to restore the symmetry. To do this, the dipole is first placed in the headstock of the lathe (centred on the plastic or brass spacers) and the headstock is rotated by hand (do NOT use the motor). A marker (lathe tool or similar) is brought up close to the end of one dipole arm and then the headstock is rotated by 0.5 rev. to check the opposing arm. If they are not balanced, judicious deformation of the arms can be used to restore the symmetry. If a dipole has a failed solder joint, the dipole can be fixed down in such a way that the arms are co-linear and the joint re-soldered with a reasonably-powerful electrical soldering iron. Do not use gas soldering irons. After such a repair, electrical tests must be performed as described below. Please note that, beca…

Text truncated - open the document above for the full version.

Report No. SN0112_1900 April 2007 INDEXSAR 1900MHz validation Dipole Type IXD-080 S/N 0112 Performance measurements MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5BG. UK. Tel: +44 (0) 1306 633870 Fax: +44 (0) 1306 631834 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An Anritsu MS4623B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made from a low- permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be use…

Text truncated - open the document above for the full version.
