SG70701HG-E30GSM 850/ 1800/ 1900 Mobile

Important Safety Precautions 2、Personal Radio equipments including mobile phone may cause interfere to some medical equipments, such as audiphone and pacemaker. Please consult your medical equipment supplier or doctor before using the mobile phone. Please pay much attention to the limitation on usage of raido equipments at the site near oil store, chemical plants where there is explosive gas or explosive product lines.Your mobile phone will radiate electromagnetic signal when your mobile phone is in standby status.If neccessory you shall shut down your phone set. Please pay attention to safty driving.Don’t use mobile phone when driving. Or you shall stop your car before using your phone. Please info your operator or distributor to disable your mobile phone and SIM card at once when your mobile phone is lost or stealed. It may free you from further economic loss.When you contact operator or operator’s distributors, they need your mobile phone’s IMEI number.The number is printed on the label on backside of the phone set (You shall revome the battery to find this label).Please record this number in a proper place for your further use. To prevent potential misusage of your mobile phone, please carry out some security means, such as: setup SIM card’s PIN code or mobile security password, and modify these codes and password in time if known by others. Don’t leave your phone in your car when you leave your car. It’s better to keep the phone set in your pocket or pack Don’t let children play phone, charger or battery. 3、Mobile Phone Your mobile phone will cause change in electromagnetic field, so please place it near electromagnetic media such as softdisks. Using mobile phone near TV, telephone, radio or PC may cause interfere and thus effect the performance of mobile phone. Never place your mobile phone or other accessories near liquid or in humid environment. Please do not put phone at super high and knockdown temperature environment. Never place any article under the folder of mobile phone. Never place your mobile phone near flame or burned cigarette. Never scrawl on your mobile phone. Never drop your mobile phone. Never place it near electromagnetic media such as softdisks or credit card.Or the data stored in these media may be damaged by mobile phone. Never try to disassemble mobile phone or other accessories. Clean mobile phone with only wet or anti-static cloth. Never clean mobile phone with dry or static cloth. Never use any chemical material or detergent with abrading element, or they may damage the shell of mobile phone. Microphone may heat in normal operation, and mobile phone may heat during recharging. 4、 Battery Don’t short pass battery, or it may cause the battery damaged and the heat may cause fire. Never litter the battery into fire, or it may cause explosion. You shall place used batteries into collection site or return them to providers, and never put them into home garbage bin. Never remove battery when the mobile phone is turn on. Never put battery into your mouth, for the electrolyte in the battery may cause you poisoned. The built-in battery of mobile phone can only be repaired by professional engineers. Unmatched battery may cause explosion. Please handle used batteries following manufacture’s instruction. Any battery or charger not authorized by the manufacture of the mobile phone may cause danger. The damage resulted from these reasons is not covered by warranty. Microphone may heat in normal operation, and mobile phone may heat during recharging. Notice: Don’t touch any leakage from broken batteries. If the leakage contact your skin, please rinse your skin with water and ask doctors for help. 5、On Road You must control the auto safely all the time, please pay the attention to the driving. Please pay much attention to the laws and regulations related tothe usage of mobile phone before make or answer any call. Please stop the auto firstly, then dial or answer the phone. Answering or dialing call in hard shoulder of expressway is forbidden unless on emergent condition. Airbag, brake, velocity control system and oil injection system is free from any radio effect. Any problem about these fields please contact your motor distributors.Airbag will bring strong force when it is released, so please never place or install wireless equipments over airbag or around the expending area of airbag, otherwise these equipments may cause severe damage when it is released. When oiling please shut off your mobile phone and all radio equipments are not permitted to use at the same time. Don’t place the mobile phone with any flammable materials, or the internal flash may cause fire. 6、On Board During the whole period of flight, please shut off your mobile phone to avoid interfere to the airplane’s communication system. In emergency you shall get permit from the crew of airplane before using mobile phone. Getting Start Please read this manual carefully before using your mobile phone. This chapter will teach you how to install, recharge and maintain your mobile phone batteries. It will also tell you some information about GSM network and instruct you to insert and unlock SIM card. The info about it will also be detailed in this chapter. 2.1 Battery The phone is powered by a rechargeable Li-ion battery. It was not fully charge but can still support the power on of your mobile phone. The new battery shall be recharged for at least 14-16 hours( but less than 24 hours), and shall be recharged again only after used out completely; the third time of recharge shall performed only after used out completely, and then the battery can reach its best performance. 2.1.1 Load and unload of battery Load battery The metal joint of battery should aim at metal joint of the phone, slide it into slot top at the angle of 15°and slide the battery to the end forward. Then press the bottom of battery, you can hear the sound of “kaka” and the battery is locked. Cover the battery cover to the phone. 2.1.2 Remove battery…

Text truncated - open the document above for the full version.

Date: 29 Jan, 2007 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Haier Telecom (Qingdao) Co., Ltd. FCC ID: SG70701HG-E30 FCC Part 15 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Haier Telecom (Qingdao) Co., Ltd. requests that the following documents regarding this submission for FCC ID: SG70701HG-E30 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Those documents contain detailed system and equipment description and related information about the product which Haier Telecom (Qingdao) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Haier Telecom (Qingdao) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

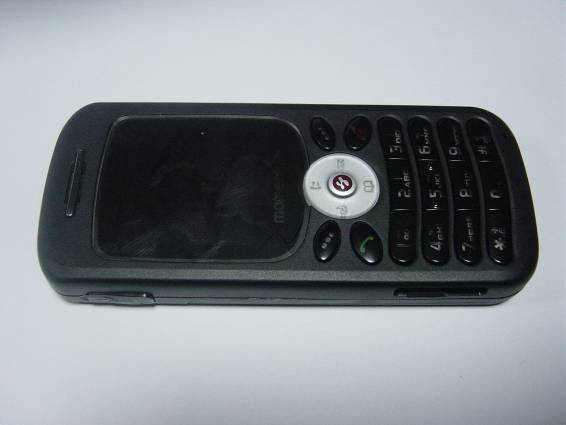

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Label Label Location

29 Jan 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG70701HG-E30 Dear Sirs: Haier Telecom (Qingdao) Co., Ltd. requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier SG70701HG-E30. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22&24 for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls, camera and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these m the battery pack as a he consumer packaging for these models is a "gift box" which does not allow hank you for your attention to this matter. odels includes separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. T the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Haier Telecom will add the FCC identifier " SG70701HG-E30" to the outside of the consumer "gift box" packaging. T James Shi l Manager ) Co., Ltd. Type Approva Haier Telecom (Qingdao

Internal Photos

Report No.: SZ06120046E03 Page 2 of 26 TABLE OF CONTENTS 1.TEST RESULT CERTIFICATION ..........................................................................................3 2.GENERAL INFORMATION ....................................................................................................4 2.1Equipment under Test (EUT) Description ...............................................................................4 2.2Test Standards and Results ........................................................................................................5 2.3Facilities and Accreditations ......................................................................................................6 2.3.1Facilities ....................................................................................................................................6 2.3.2Test Equipments ........................................................................................................................6 2.3.3Test Environment Conditions....................................................................................................7 3.47 CFR PART 15B REQUIREMENTS ....................................................................................8 3.1General Information...................................................................................................................8 3.1.1EUT Function and Test Mode ...................................................................................................8 3.1.2Test Setup ..................................................................................................................................9 3.2Conducted Emission .................................................................................................................11 3.2.1Requirement ............................................................................................................................11 3.2.2Test Procedure .........................................................................................................................11 3.2.3Test Result ...............................................................................................................................12 3.3Radiated Emission ....................................................................................................................14 3.3.1Requirement ............................................................................................................................14 3.3.2Test Procedure .........................................................................................................................14 3.3.3Test Result ...............................................................................................................................15 ĉ PHOTOGRAPH OF THE TEST SETUP ...................................................................................17 Ċ PHOTOGRAPH OF THE EUT ...................................................................................................20 Report No.: SZ06120046E03 Page 4 of 26 2.General Information 2.1Equipment under Test (EUT) Description EUT 1 / MS: Description ........................... : 850/1800/1900 Tri-band Handset Model Name ......................... : HG-E30 Serial No. .............................. : --- IMEI ..................................... : 354415010001025 Hardware Version ................. : V2.0 Software Version .................. : MAUI.05C.W06.28 EUT 2 / Battery: Description ........................... : Li-ion Battery Model Name ......................... : H11092 Trade Name .......................... : Haier Serial No. .............................. : N/A Manufacturer ........................ : Shenzhen XWODA Electronic Co. Ltd Capacitance........................... : 630mAh Rated Voltage........................ : 3.7V Charge Limit Voltage............ : 4.2V EUT 3 / Charger: Description ........................... : Travel Charger Model Name ......................... : H21080 Trade Name .......................... : Haier Serial No. .............................. : N/A Manufacturer ........................ : NINGBO LISHUNDA ELECTRON CO.,LTD. Rated Input ........................... : ~ 100-240V, 50/60Hz, 0.2A Rated Output......................... : 5.0V, 550mA Length of DC Cable.............. : 160cm NOTE: 1. The EUT consists of EUT 1 /MS and normal options EUT 2 /Battery and EUT 3 /Charger. 2. For the detailed function of the EUT and test mode used, please refer to section 3.1.1. 3. For detailed features about the EUT, please see user manual supplied by applicant. Report No.: SZ06120046E03 Page 5 of 26 2.2Test Standards and Results The objective of the report is to perform EMC tests according to 47 CFR Part 15 Subpart B, and the EUT is classified as a Class B digital device: No.IdentityDocument Title 1 47 CFR Part 15 (10-1-05 Edition) Radio Frequency Devices Test detailed items and the results are as below: No.RulesTest Type ResultDate of Test 1 §15.107 Conducted Emission PASS 2007-1-18 2 §15.109 Radiated Emission PASS 2007-1-18 Report No.: SZ06120046E03 Page 6 of 26 2.3Facilities and Accreditations 2.3.1Facilities Shenzhen Electronic Product Quality Testing Center (Morlab) is a testing organization accredited by China National Accreditation Board for Laboratories (CNAL) according to ISO/IEC 17025. The accreditation certificate number is L1659. All measurement facilities used to collect the measurement data are located at Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, P. R. China. The site was constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22, the FCC registration number is 741109. 2.3.2Test Equipments No.DescriptionSpecification 1 System Simulator Manufacturer: Rohde&Schwarz Model No.: CMU200 Serial No.: 100448 2 System Simulator Manufacturer: Agilent Model No.: E5515C Serial No.: GB43130131 3 Receiver Manufacturer: Agilent Model…

Text truncated - open the document above for the full version.

Test Setup Photos For Part15B 1. CE 2. RE
