SG71001HG-M307SMobile Phone

M307S User Guide 1 This document and all its contents included remain the proprietary material of Qingdao Haier Telecom Co. Ltd. (Haier Telecom) and are protected by the Chinese laws and applicable international conventions on copyrights. Any reproduction, transmission, disclosure，revision, modification or use otherwise of this document or the whole or part of its contents, in whatever form and by whatever means, is not permitted without prior express written authorization from Haier Telecom. Offenders will be liable for any and all damages caused by their offence hereof and will be subject to all remedies that Haier Telecom is entitled to seek under applicable laws. M307S User Guide 2 Contents 1. Safety Precautions Please read these simple guidelines. Not following them may be dangerous or illegal. Do not switch the phone on where Mobile Phone use is prohibited or when it may cause interference or danger. Do not place your phone and its accessories in containers with strong electromagnetic field. Obey all traffic laws. Always keep your hands free, to operate the vehicle while driving. Your first consideration while driving should be road safety. Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow all regulations and rules enforced. Do not use the phone at a refueling station. Do not use near fuel or chemicals. Follow all instructions. Wireless devices can cause interference in aircraft. Keep the phone and all its parts, including accessories, out of the reach of children. Do not use the phone while connected to the charger or with wet hand or bare feet. Use only approved batteries and chargers. Disconnect the charger from the power source when it is not in use. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life. Please remove the battery only after the phone is switched off normally, otherwise it could cause unpredictable damage for the phone. Only qualified personnel should service the phone. Faulty service may be dangerous and may invalidate any warranty applicable to the device. M307S User Guide 3 2. Handset guide The illustration below displays the main components of your phone. The appearance of the mobile phone and introduction: Name Description Left soft key (LSK) In standby mode, press left soft key to enter Menu. Right soft key (RSK) In standby mode, press right soft key to enter Names. Send key In standby mode, press this key to access the all calls. End (Power) key Long press: power on, power off. Up key In standby mode, press this key to show the Shortcuts. Down key In standby mode, press this key to show the Alarm. Left key In standby mode, press this key to show the User profiles. Right key In standby mode, press this key to show the Tone settings. M307S User Guide 4 Number keys Enter numbers, letters, and some special characters. In standby mode, press and hold 1 key to access your voice mail server. * key In standby mode, long press this key to select the symbol “*”,”+”,”p”,”w”. Short press this key to input the symbol “*”. In standby mode, press LSK then * key to lock the keypad. # key In standby mode, long press this key to enable or disable the Silent mode. Short press this key to input the symbol “#”. Notice: long press means pressing the key for more than 2 seconds; short press means pressing key for less than 2 seconds. 2.1 Idle mode screen Icon Description Indicates signal strength. You have one or several missed call. You have one or several new text messages. You have one or several new multimedia messages. Indicates a headset is connected to the phone. Alarm clock has been activated. Indicates ring alert type. Indicates vibrate alert type. Indicates vibrate and ring alert type. Indicates vibrate then ring alert type. Indicates battery power level. 2.2 Battery 2.2.1 Installing and removing Install the battery Remove the battery M307S User Guide 5 2.2.2 Charging the battery 2.3 SIM card 2.3.1 Insert and remove the SIM card Insert the SIM card Remove the SIM card 2.4 Making and receiving a call 2.4.1 To make a call You can use the function only after the network-prompting icon is shown on screen. 1. Making phone call using the keypad After dual cards have been inserted into your phone, in idle mode, directly type in the M307S User Guide 6 phone number to dial. Notes: press send key to dial using SIM1 card and press LSK to dial using SIM2 card. 2. Making phone call using contacts Enter the phonebook to view the contacts list and select a desired entry to dial. 3. Making phone call using call logs In idle mode, press send key to access the call logs, scroll to the number or name you wish to dial. 4. Making phone call using speed dial In idle mode, long press a number key to make phone call. 5. Ending a call You can end a call at any time by pressing end key till the call has been terminated. 2.4.2 To receive a call When an incoming call arrives, phone will alert you. Press the send key to answer. To reject the call, press the end key. 2.4.3 During a phone call During a phone call, press up/down navigation key to increase/decrease the volume, press RSK to activate handsfree function, press LSK (options) to view the following options: 1. Hold single call This is useful if you want to make a new call during a call. Put the current call on hold, but maintain connection of the communication line. 2. End single call End the current call. 3. New call Enter dial-up interface, dial another phone number. 4. Phonebook Allow you to view the phone book option. 5. Messaging Allow you to view the message option. 6. Mute Allow you to temporarily turn the microphone off. 7. DTMF Dual Tone Multi Frequency. This function allows you to set whether send out DTMF signal. M307S User Guide 7 3. Input method Your phone provides the following input methods. English input method: input English characters. Spanish input method: input Spanish characters. Numeric i…

Text truncated - open the document above for the full version.

Date: Jan 05, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Haier Telecom (Qingdao) Co., Ltd. , the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Haier Telecom (Qingdao) Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID # SG70911M560C including the signing of documents in connection with this Application. Necessary acts carried out by Haier Telecom (Qingdao) Co., Ltd. on our behalf of the Haier Telecom (Qingdao) Co., Ltd. in connection with the Application shall have the same effect as acts of the Haier Telecom (Qingdao) Co., Ltd.. The Haier Telecom (Qingdao) Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Sincerely Yours, James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Date: Jan 05, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Haier Telecom (Qingdao) Co., Ltd. FCC ID: SG71001HG-M307S FCC Part 22H&24E Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Haier Telecom (Qingdao) Co., Ltd. requests that the following documents regarding this submission for FCC ID: SG71001HG-M307S be kept confidential: Exhibit Type File Name Block Diagram SG71001HG-M307S_Block Diagram.pdf Schematics SG71001HG-M307S_Schematics.pdf Operational Description SG71001HG-M307S_Technical Description.pdf Part list SG71001HG-M307S_BOM.pdf Tune-Up-Procedure SG71001HG-M307S_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Haier Telecom (Qingdao) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Haier Telecom (Qingdao) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

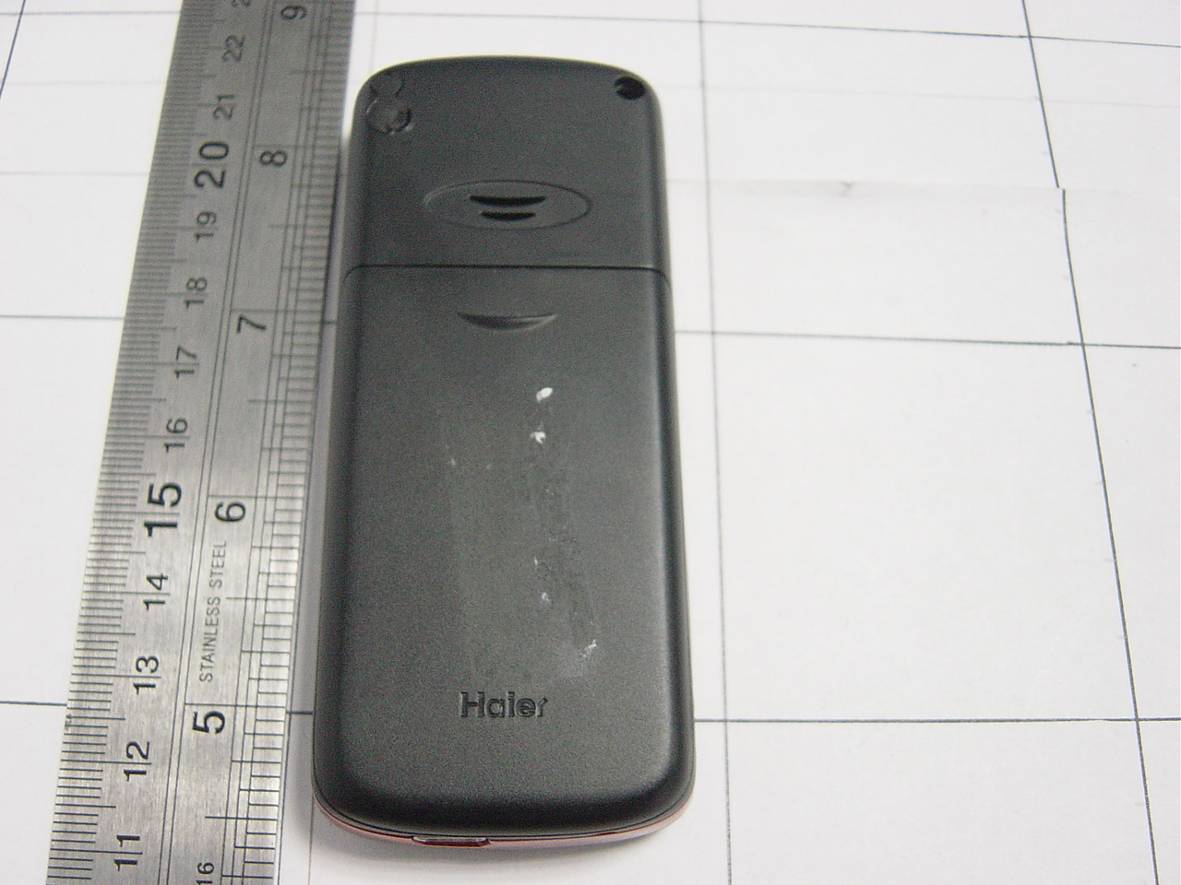

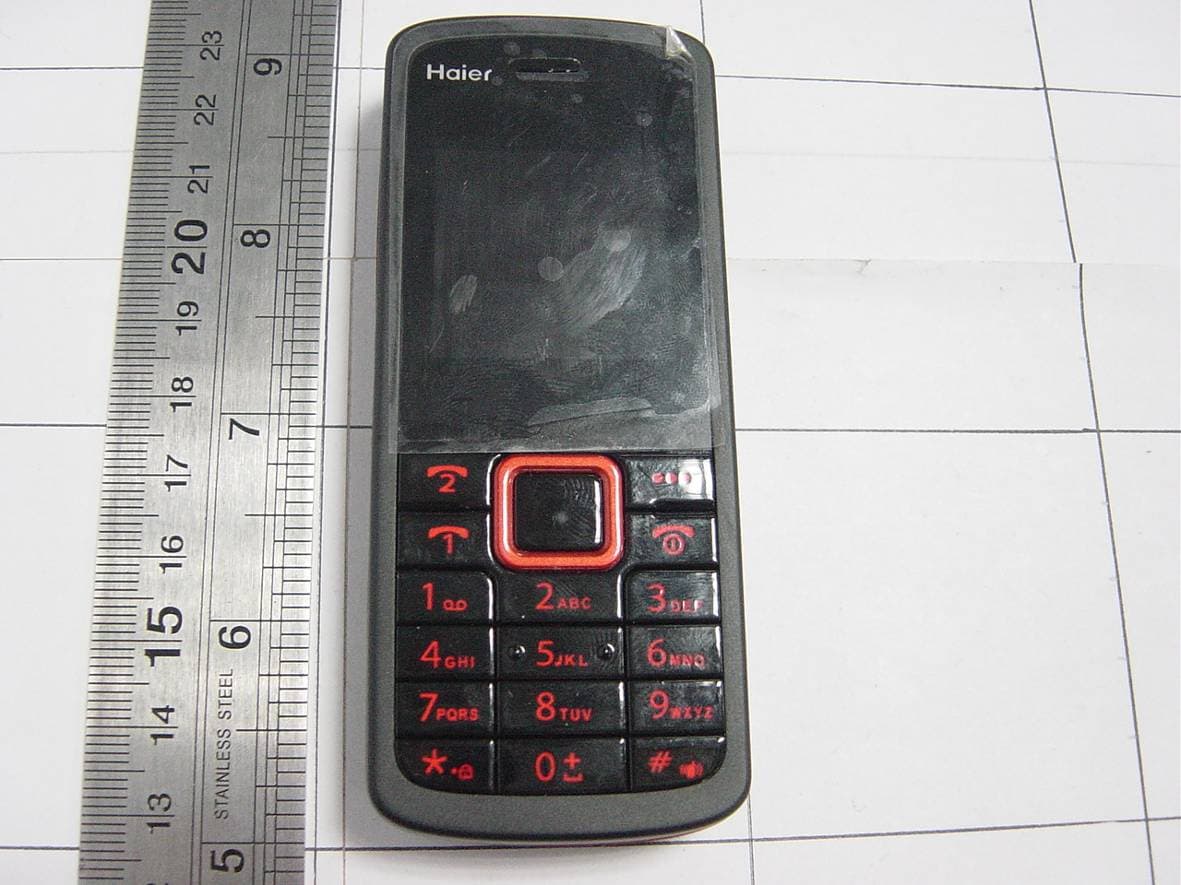

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

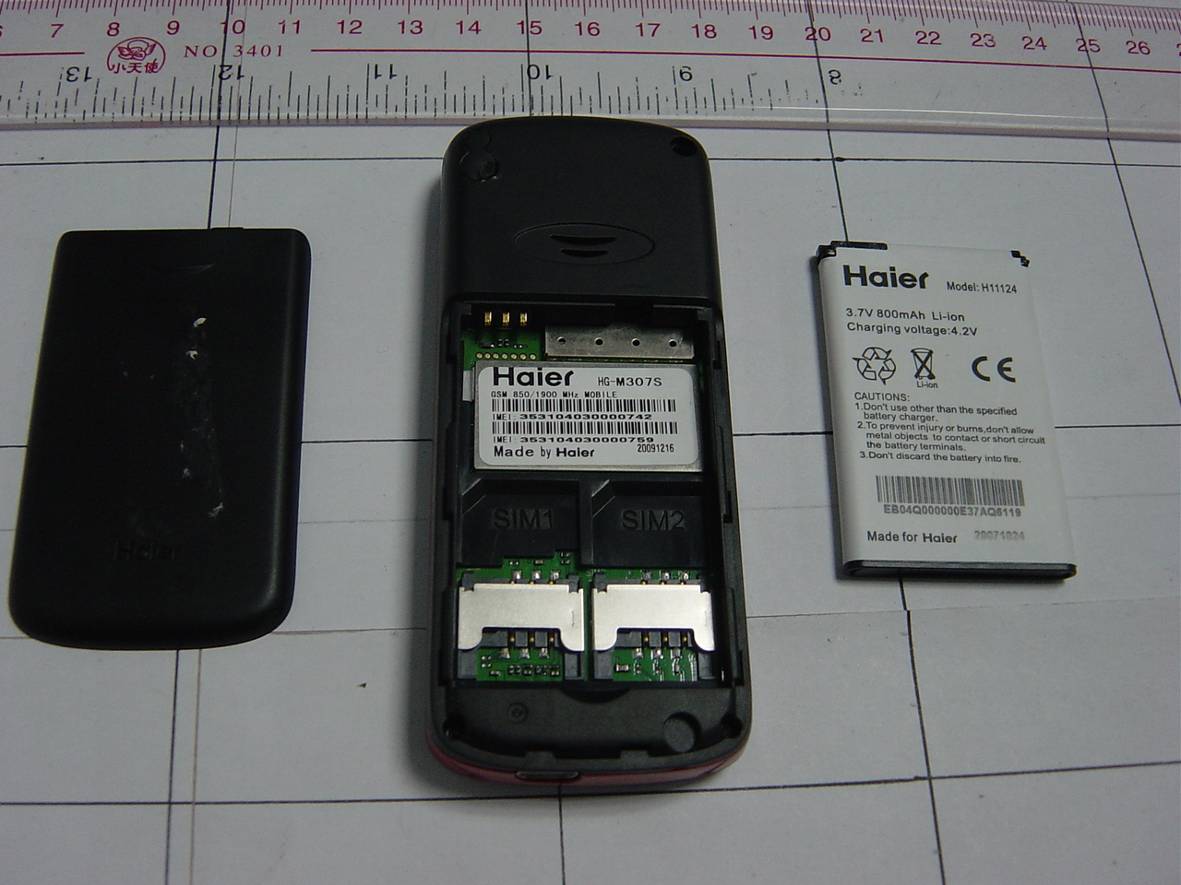

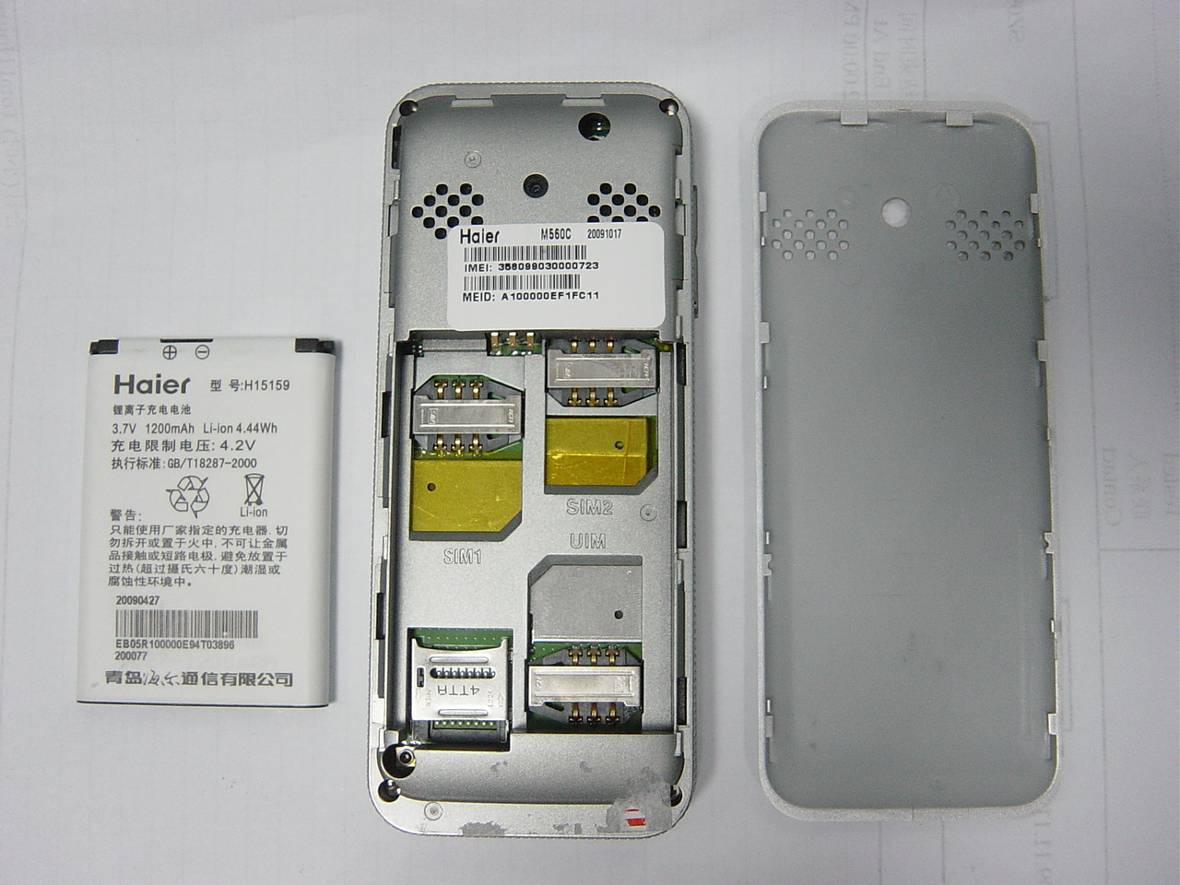

Label Label Location

Internal Photos

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2009/10/05 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2009/10/05 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 14/11/2008 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2009/10/05 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2009/10/05 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2009/10/05 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2009/10/05 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: E=(e1*e1+e2*e2+e3*e3)pow(1/2) The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2009/10/05 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.46…

Text truncated - open the document above for the full version.

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-200 9 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,64 % 9,805 W/Kg + 3,21 % Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 1800 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 1800 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF101 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF101 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1800 MHz head liquid. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1800 MHz: -25.09 dB -25,09 -35 -30 -25 -20 -15 -10 -5 0 1,71,81,9 Frequency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2009 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1800 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,05 W/Kg + 1,24 % 39,32 W/Kg + 3,20 % Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Report No.: SZ09120128S01 Page 2 of 143 Contents 1.GENERAL INFORMATION....................................................................................................3 1.1.Notes.........................................................................................................................................3 1.2.Organization item....................................................................................................................3 1.3.Conclusion................................................................................................................................3 2.TESTING LABORATORY.......................................................................................................4 2.1.Identification of the Responsible Testing Laboratory..........................................................4 2.2.Identification of the Responsible Testing Location..............................................................4 2.3.Accreditation Certificate........................................................................................................4 2.4.List of Test Equipments..........................................................................................................4 3.TECHNICAL INFORMATION ...............................................................................................5 3.1.Identification of Applicant......................................................................................................5 3.2.Identification of Manufacturer..............................................................................................5 3.3.Equipment Under Test (EUT)................................................................................................5 3.3.1.Photographs of the EUT..................................................................................................6 3.3.2.Identification of all used EUTs........................................................................................6 4.TEST RESULTS.........................................................................................................................6 4.1.Applied Reference Documents...............................................................................................6 4.2.Test Environment/Conditions................................................................................................7 4.3.Operational Conditions During Test.....................................................................................7 4.3.1.Informations On The Testing..........................................................................................8 4.3.2.The Measurement System.............................................................................................10 4.3.3.Uncertainty Assessment.................................................................................................12 4.4.MEASUREMENT PROCEDURES....................................................................................13 4.4.1.Procedures Used To Establish Test Signal....................................................................14 4.5.Items used in the Test Results List.......................................................................................15 4.6.Test Results List.....................................................................................................................16 ANNEX AACCREDITATION CERTIFICATE..........................................................................17 ANNEX BPHOTOGRAPHS OF THE EUT ................................................................................19 ANNEX CGRAPH TEST RESULTS ...........................................................................................22 Report No.: SZ09120128S01 Page 4 of 143 2. Testing Laboratory 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Electronic Product Quality Testing Center Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 2.2. Identification of the Responsible Testing Location Name: Shenzhen Electronic Product Quality Testing Center Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 2.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L1659 (see 0) 2.4. List of Test Equipments No. Instrument Type 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 3 Voltmeter Keithley (2000, SN:1000572) 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 5 Amplifier Nucl udes (ALB216, SN:10800) 6 Power Meter Rohde&Schwarz (NRVD, SN:101066) 7 Probe Antennessa (SN:SN_3708_EP80) 8 Phantom Antennessa (SN:SN_36_08_SAM62) 9 Liquid Antennessa (Last Calibration:21 08 04) Report No.: SZ09120128S01 Page 5 of 143 3. Technical Information Note: the following data is based on the information by the applicant. 3.1. Identification of Applicant Company Name: Qingdao Haier Telecom Co.Ltd. Address: No.1,HaierRoad,Hi-tech Zone,Qingdao,266101,P.R.China 3.2. Identification of Manufacturer Company Name: Qingdao Haier Telecom Co.Ltd. Address: No.1,HaierRoad,Hi-tech Zone,Qingdao,266101,P.R.China 3.3. Equipment Under Test (EUT) Brand Name: Haier Type Name: Haier Marking Name: HG-M307S Hardware Version: SP Software Version: HG-M307S-H01-S001-Latin-T Frequency Bands: GSM 850MHz (channel 128:824.20MHz,channel 190:836.59MHz, channel 251:848.29MHz) PCS 1900MHz (channel 512:1850.19MHz,channel 661:1880.00MHz, channel 810:1909.80MHz) Modulation Mode: GMSK Antenna type:Build inside Development Stage: Identical prototype Battery Model: H11124 Battery specification: 800mAh 3.7V Report No.: SZ09120128S01 Page 6 of 143 3.3.1. Photographs of the EUT Please see for photographs of the EUT. 3.3.2. Identific…

Text truncated - open the document above for the full version.

Report No.: SZ09120128E01 Page 2 of 41 TABLE OF CONTENTS 1. TEST CERTIFICATION ...........................................................................................................3 2. GENERAL INFORMATION ....................................................................................................4 2.1 EUT Description.........................................................................................................................4 2.2 Test Standards and Results........................................................................................................6 2.3 Facilities and Accreditations .....................................................................................................7 3. 47 CFR PART 2, PART 22H REQUIREMENTS ....................................................................8 3.1 Frequencies .................................................................................................................................8 3.2 Conducted RF Output Power..................................................................................................12 3.3 99% Occupied Bandwidth.......................................................................................................16 3.4 Frequency Stability ..................................................................................................................20 3.5 Conducted Out of Band Emissions .........................................................................................22 3.6 Band Edge .................................................................................................................................26 3.7 Transmitter Radiated Power (EIRP/ERP).............................................................................29 3.8 Radiated Out of Band Emissions ............................................................................................35 Change History Issue Date Reason for change 1.0 January 18, 2010 First edition 1.1 January 20, 2010 Page 29, Max/Min power and step size was added Report No.: SZ09120128E01 Page 4 of 41 2. GENERAL INFORMATION 2.1 EUT Description EUT Type.............................. : GSM Mobile Phone Model Name ......................... : HG-M307 Serial No. .....................…

Text truncated - open the document above for the full version.
