SG71101HW-A57WQuad-Band GSM/GPRS/EDGE and WCDMA Mobile Phone

WCDMA Digital Mobile Phone （Single SIM） User Manual Before use Please read the manual Conten- 2 WELCOME： Thank you for choosing the WCDMA digital mobile phone. After reading this guide, you will be able to fully master the usage of your mobile phone and appreciate all its thorough functions and simple operation approaches. DECLARATION： This manual as a product use instruction does not represent the explanation for the product’s software and hardware, the features possibly varies by region. This dual SIM dual stanby mobile is compatible with GSM/GPRS/EDGE/WCDMA technology. Some functions referred in this guide also need the support from a network operator or a service provider. In order to ensure use in safety, please read the “Safety Notice” in advance. Regarding all the functions marked (*)，the manufacturer reserves the right to final interpretation. Conten- III ICONs： INDICATES caution information. INDICATES SPECIAL EXPLANATION OR TIP IN USAGE. INDICATES warning for special attention. Conten- IV Contents 1. GETTING TO KNOW YOUR PHONE ·············································· 10  STATUS BAR ···································································· 12 2. GETTING STARTED ································································ 14  INSTALL THE USIM/SIM CARD AND BATTERY ··································· 14  INSERT THE MEMORY CARD····················································· 17  CHARGE THE BATTERY ·························································· 18  TURN YOUR PHONE ON AND OFF ··············································· 18  PASSWORD ····································································· 18 PIN code ···························································· 18 PIN2 code ··························································· 19 PUK code ···························································· 19 PUK2 code ·························································· 19 3. QUICK START GUIDE ······························································ 20  STANDBY AND UNLOCK ························································· 20 Standby Mode ······················································ 20 Main Menu ························································· 21 Screen Lock Settings ··············································· 21 Unlock ······························································· 22 Date and Time Setting············································· 22  MAKE A CALL ··································································· 22 Make a call ·························································· 22 Make a call from Dial Board ······································ 22 Make a call from Phonebook ····································· 23 Make a call from Call Log ········································· 23 Make an international call ········································ 23 Dial an extension number ········································ 23 Conten- V Make an emergence call ·········································· 23  ANSWER A CALL, CHECK MISSED CALLS ········································· 24 Answer a call ······················································· 24 Answer two calls in the same time ······························ 24 Check missed calls ················································· 24 Adjust volume ······················································ 24 End call ······························································ 24  SEND A MESSAGE ······························································ 25  READ A NEW MESSAGE························································· 25 Read a message ···················································· 25 4. FUNCTIONS DESCRIPTION ······················································· 26  CALL LOG ······································································ 26 Check call log ······················································· 26 Call back quickly···················································· 27 Delete call log ······················································ 27  CONTACTS ··································································· 28 Add a new contact ················································· 29 View contacts information········································ 29 Edit contact information ·········································· 30 Delete contacts ····················································· 30 Speed find ·························································· 31  MESSAGE ···································································· 31 Create a SMS/MMS ··············································· 31 Read the message·················································· 32 Inbox ································································ 32 Outbox ······························································ 32 Drafts ································································ 32 Sent ·································································· 32 Conten- VI Settings ······························································ 32 SMS setting ························································· 32 Cell broadcast ······················································ 33 Text template ······················································· 33  SETTINGS····································································· 33 Profiles ······························································ 33 Personal display ···················································· 34 Personal ringtone ·················································· 34 Phone setting ······················································· 34 Time and Date ····················································· 34 Language···························································· 34 Dual SIM manager ················································· 3…

Text truncated - open the document above for the full version.

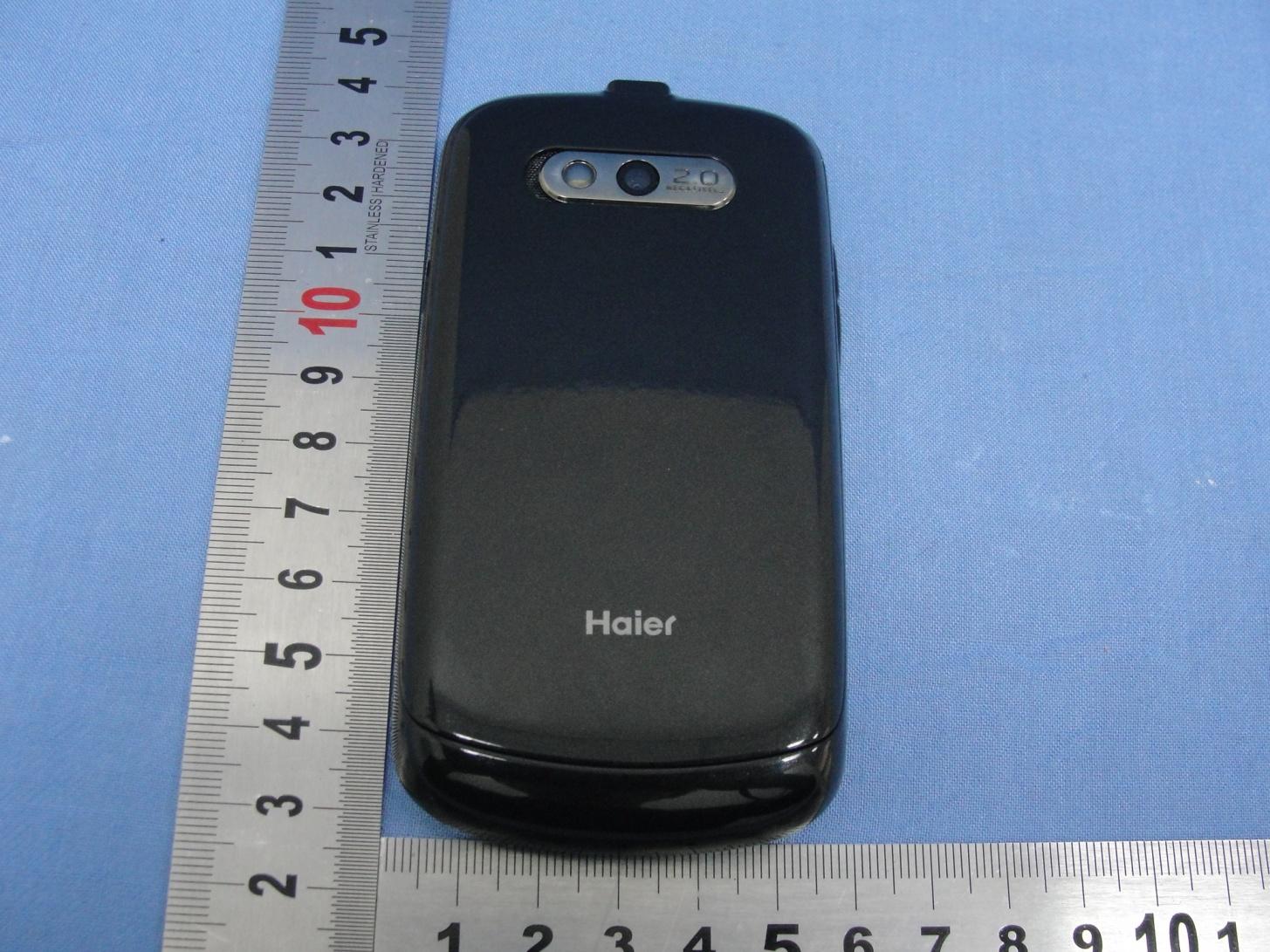

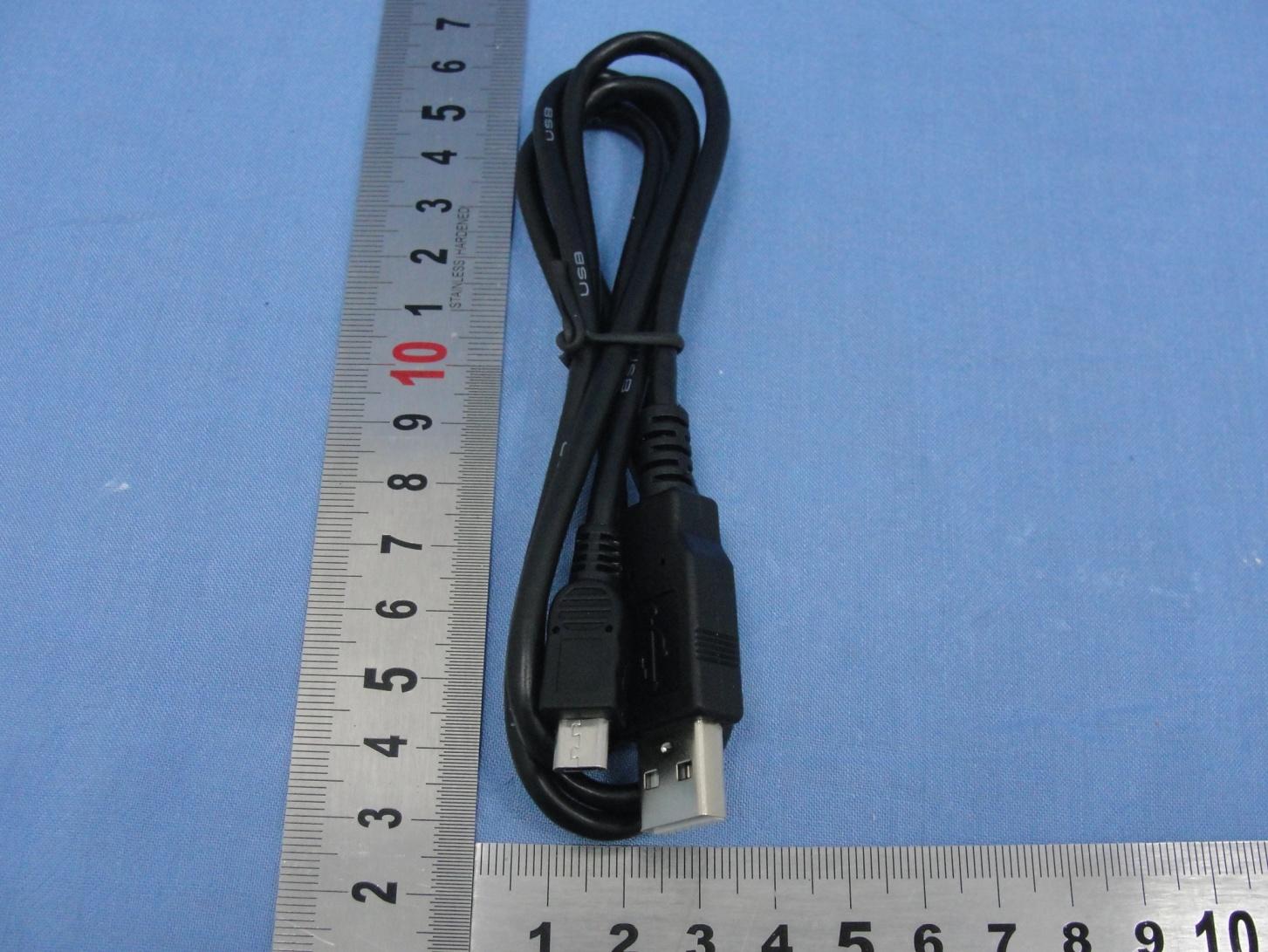

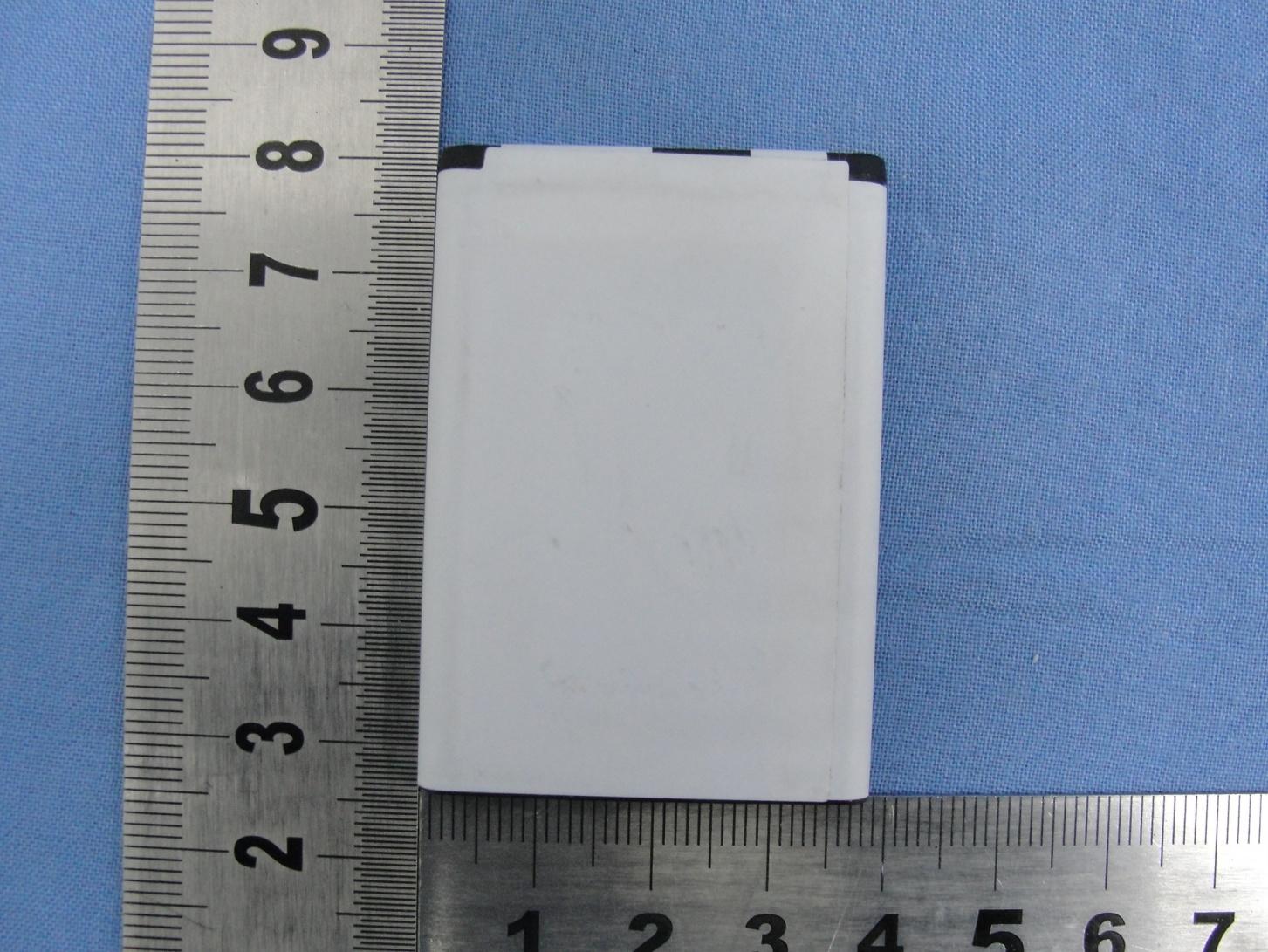

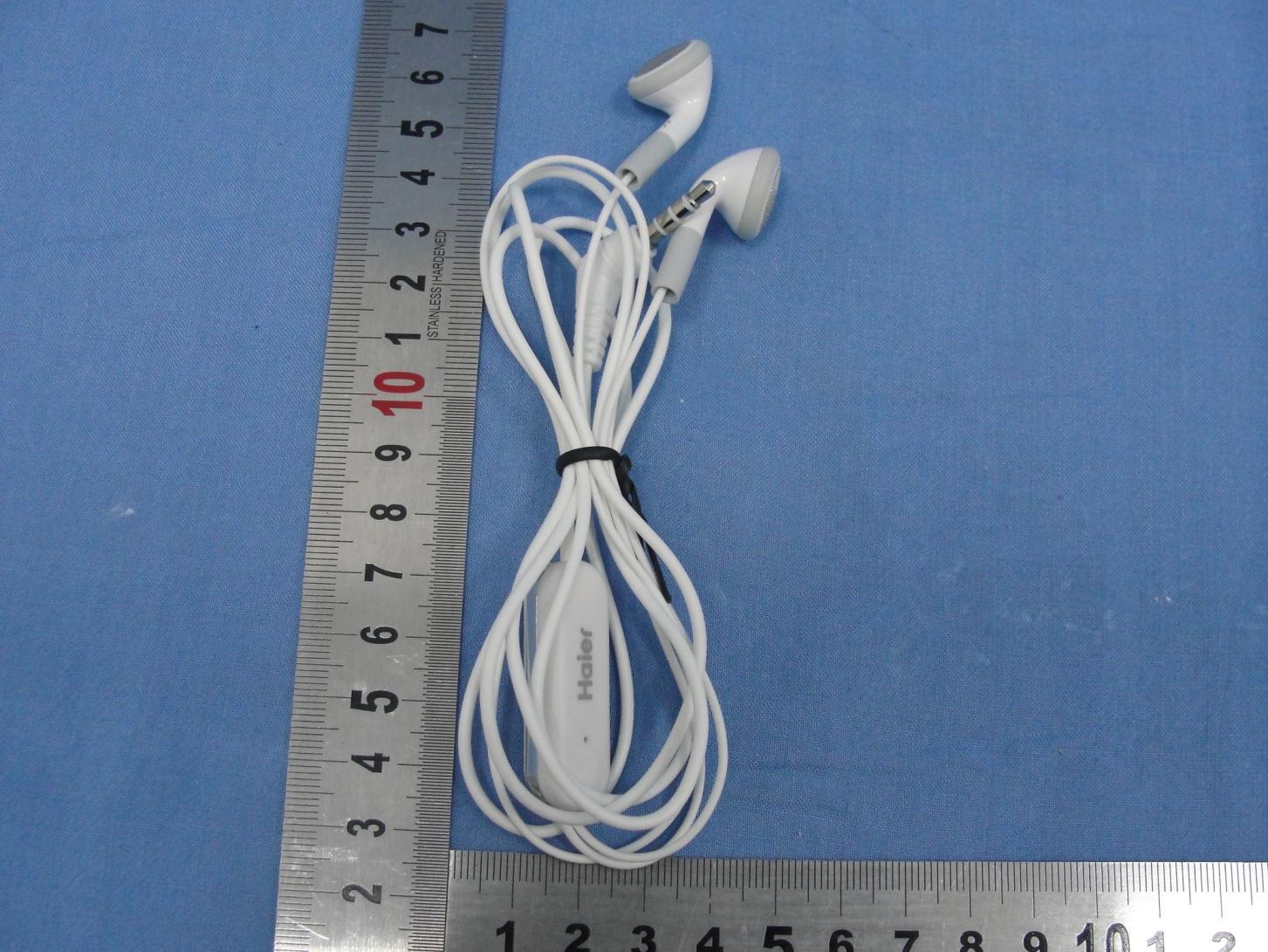

Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W List of Accessory: Specification of Accessory AC Adapter Brand Name Haier Model Name TS21-500550U Battery Brand Name Haier Model Name H15159 Earphone Brand Name Haier Model Name Not Stated USB Cable Brand Name Haier Model Name Not Stated Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W 720510 Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 23 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W

Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W 720510 Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP0D3134 Brand Name: Haier / Model Name: HW-A57W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 03, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W Bluetooth Antenna <Tx/Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 08, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W FCC SAR Test Report Report No. : FA0D3134 FCC SAR Test Report APPLICANT : QingDao Haier Telecom CO., Ltd. EQUIPMENT : MOBILE PHONE BRAND NAME : Haier MODEL NAME : HW-A57W FCC ID : SG71101HW-A57W STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 31, 2010 and completely tested on Feb. 22, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 08, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W FCC SAR Test Report Report No. : FA0D3134 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ...…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-22 #15 GSM850_Right Cheek_Ch128 DUT: 0D3005 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110222 Medium parameters used: f = 824.2 MHz; σ = 0.909 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.606 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.96 V/m; Power Drift = 0.045 dB Peak SAR (extrapolated) = 0.796 W/kg SAR(1 g) = 0.572 mW/g; SAR(10 g) = 0.399 mW/g Maximum value of SAR (measured) = 0.621 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-22 #16 GSM850_Right Tilted_Ch128 DUT: 0D3005 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110222 Medium parameters used: f = 824.2 MHz; σ = 0.909 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.441 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = 0.128 dB Peak SAR (extrapolated) = 0.530 W/kg SAR(1 g) = 0.415 mW/g; SAR(10 g) = 0.312 mW/g Maximum value of SAR (measured) = 0.433 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-22 #17 GSM850_Left Cheek_Ch128 DUT: 0D3005 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110222 Medium parameters used: f = 824.2 MHz; σ = 0.909 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.671 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.97 V/m; Power Drift = 0.151 dB Peak SAR (extrapolated) = 0.848 W/kg SAR(1 g) = 0.651 mW/g; SAR(10 g) = 0.461 mW/g Maximum value of SAR (measured) = 0.704 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-22 #17 GSM850_Left Cheek_Ch128_2D DUT: 0D3005 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110222 Medium parameters used: f = 824.2 MHz; σ = 0.909 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.671 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.97 V/m; Power Drift = 0.151 dB Peak SAR (extrapolated) = 0.848 W/kg SAR(1 g) = 0.651 mW/g; SAR(10 g) = 0.461 mW/g Maximum value of SAR (measured) = 0.704 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-22 #18 GSM850_Left Tilted_Ch128 DUT: 0D3005 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110222 Medium parameters used: f = 824.2 MHz; σ = 0.909 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.403 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.110 dB Peak SAR (extrapolated) = 0.488 W/kg SAR(1 g) = 0.384 mW/g; SAR(10 g) = 0.291 mW/g Maximum value of SAR (measured) = 0.407 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-22 #13 GSM1900_Right Cheek_Ch512 DUT: 0D3005 Communication System: Generic GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_110222 Medium parameters used: f = 1850.2 MHz; σ = 1.36 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch512/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.34 mW/g Ch512/Zoom Scan (5x5x7)/Cube 0:…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F1 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 08, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W FCC SAR Test Report Report No. : FA0D3134 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the TS 34.121. The EUT's WCDMA is Release 99 version and not supports HSDPA and HSUPA. A detailed analysis of the output power for WCDMA is provided in the tables below. According to the FCC 3G procedures, handsets with both HSDPA and HSUPA should be tested according to Release 6 HSPA test procedures, and the function. Device was tested according to procedure KDB941225 - section Release 6 HSPA Data Devices as documented/evaluated in the following table. WCDMA SAR Test mode - Conducted Power Mode Setup AWS band (1700) CH1312 CH1413 CH1513 1712.4 (MHz) 1732.6 (MHz) 1752.6 (MHz) WCDMA RMC 12.2Kbps 21.62 21.48 21.64 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F2 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 08, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W FCC SAR Test Report Report No. : FA0D3134 WCDMA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting i. Data rates: Varied from RMC 12.2Kbps ii. RMC Test Loop = Loop Mode 1 iii. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F3 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 08, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71101HW-A57W FCC SAR Test Report Report No. : FA0D3134 Reference: [1] 941225 D01 SAR test for 3G devices v02, SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA/HSPA Oct. 2007 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2.] TS 34.121 Universal Mobile Telecommunications System (UMTS); Terminal Conformance Specification, Radio Transmission and Reception (FDD) [3.] HSUPA Measurement Guide with 8960 V7.5.0 Release 7 (2007-06) Ver.: v.02.18

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2011 FAX :…
