SG71103HG-M158GSM Mobile Phone

1 Copyright © 2011 Haier HG - M158 Mobile. All rights reserved. Haier Mobile, Experience the new high, M158. The Mobile Original Logos are registered trademarks of Haier Mobile. The information contained in this user’s guide is written for M158. Haier Mobile reserves the right to make changes to any of the products described in this document and also reserves the right to revise this guide at any time without any prior notice. This device may contain accessories, technology or software subjected to export laws. 2 Safety Instructions These instructions are intended for safe and effective use of your phone. Please follow these guidelines. Failure to do so might cause the product to malfunction or even become a potential hazard to your health. Do not use your mobile phone while driving. Park the car before making a call. Turn off your phone when refueling. Do not use your phone near a gas station, flammable, or chemical substances. Warning! It may explode when exposed to fire. Do not use your phone during a flight, it is dangerous. Do not use your phone near medical equipments like pacemaker and hearing aids without requesting permission from the physician or medical staff. Radio signals may affect the performance of the phone. Do not touch any exposed parts of the antenna during a call; otherwise it will affect the call reception and waste battery power. Do not attempt to disassemble or modify the phone by yourself. Only authorized personnel should perform this service. When you connect accessories to your phone, please read the safety guidelines carefully. Do not use unauthorized products or accessories with phone. Please use only the original accessories or products that are authorized by our company. Keep out of children's reach. 3 Phone Overview (Picture for reference only) Description of Keys Key Description Left Soft key Activates/selects the menu function at the left bottom side of the LCD screen. Right Soft key Activates/selects the phonebook menu function at the right bottom side of the LCD screen. Answer/Dial key Dial and answer calls. In standby mode, press to view recently dialed calls. End/Power key Ends or reject calls; Power on/Power off; In the menu programming, press to return to standby mode. Navigation key In standby mode, press; Left – Call Records Right – Alarm Down – Contact list Center-Main Menu Up - Inbox Left Soft key Answer/Dial key Right Soft key End/Power key Navigation key 4 Long press up torch on/off Getting Started Inserting SIM card and Battery WARNING! Keep SIM Card out of children's reach. Any abrasions or bend might easily cause damage. Please take extra care. Make sure the phone is power off when you remove the SIM Card. Remove the battery cover by sliding it downward.  Insert the SIM Card into the SIM card slot as per figure on slot.  Place the battery into the phone. Make sure that the charge pins are in contact with the battery terminals. Slide the battery cover until it locks into place. Taking out the battery Remove the battery cover. Insert your fingernail at the bottom slot of the battery compartment and then pull out the battery. Charging the Battery  Insert the connector of the charger into the bottom side of the phone (Note: Ensure that the charger connector is plugged in).  Plug the charger into the AC wall outlet.  When the power turns on, “Charging...” will be displayed on the LCD screen, and the battery indicator will start scrolling. It will only stop when the battery is fully charged. If a battery is completely discharged, it may take a few minutes before the charge indicator appears on the LCD screen. 5  After charging is completed, disconnect charger from phone and the socket of the alternating current. Notice:  When charging, please place the phone in an environment that has a normal room temperature and good ventilation. It is recommended to charge the phone in an environment with a temperature that ranges from 5°C~40°C. Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the phone and the guarantee.  When the phone automatically turns off or indicates the alarm information of power shortage, please charge the battery on time.  The duration time of the standby and conversation of the phone offered by manufacturer is based on ideal working environment. It may vary according to the network condition, working environment, and application methods. Warnings!  Do not take the battery out when it is being charged.  To ensure best performance, please use original accessories.  Using any unauthorized accessories may affect your mobile phone’s performance. Personal data and settings in your phone and SIM card may be lost when you take out the battery. Security number PIN PIN (Personal Identity Number), usually provided to a SIM Card by the network operator. If you enter the wrong PIN three times in a row, it will be locked. 6 You need to enter your PUK (Personal Unblocking Key) number to unlock. Please contact your network operator for more details. PIN2 PIN2 is provided to some SIM. If you enter the wrong PIN for another three times in a row, it will be locked. You need to enter your PUK2 to unlock. This PUK2 may be different from previous PUK. Thus, please contact your network operator for more information. PUK PUK (Personal Unblocking Key) is used to unblock the PIN. PUK is provided to a SIM card. If you lose or forget the password, contact your network operator. Phone code Protects your phone against unauthorized usage. You can turn on the Phone code for your personal security use. General Features Turn on the phone 1. Press and hold (End key) to turn on the phone. The LCD screen will turn on. 2. If SIM card is not properly installed, a warning prompt will appear on the screen. Press and hold (End key) to turn off, and re-install the SIM card properly. 3. If you have set a phone password, you will be asked to enter your passwo…

Text truncated - open the document above for the full version.

1/1 Haier Telecom (Qingdao) Co., Ltd. No1. Haier Road , Hi-tech Zone,Qingdao, China Tel: +86-532-88936513 Fax: +86-532-88939585 Date: March 28, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SG71103HG-M158 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: HG-M158 _ExtPho.pdf)  Internal Photos (file: HG-M158 _IntPho.pdf)  Test Setup Photos (file: HG-M158 _Tsup.pdf)  User Manual (file: HG-M158_UserMan.pdf) The application contains technical information, which Haier Telecom (Qingdao) Co., Ltd.,. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, James Shi

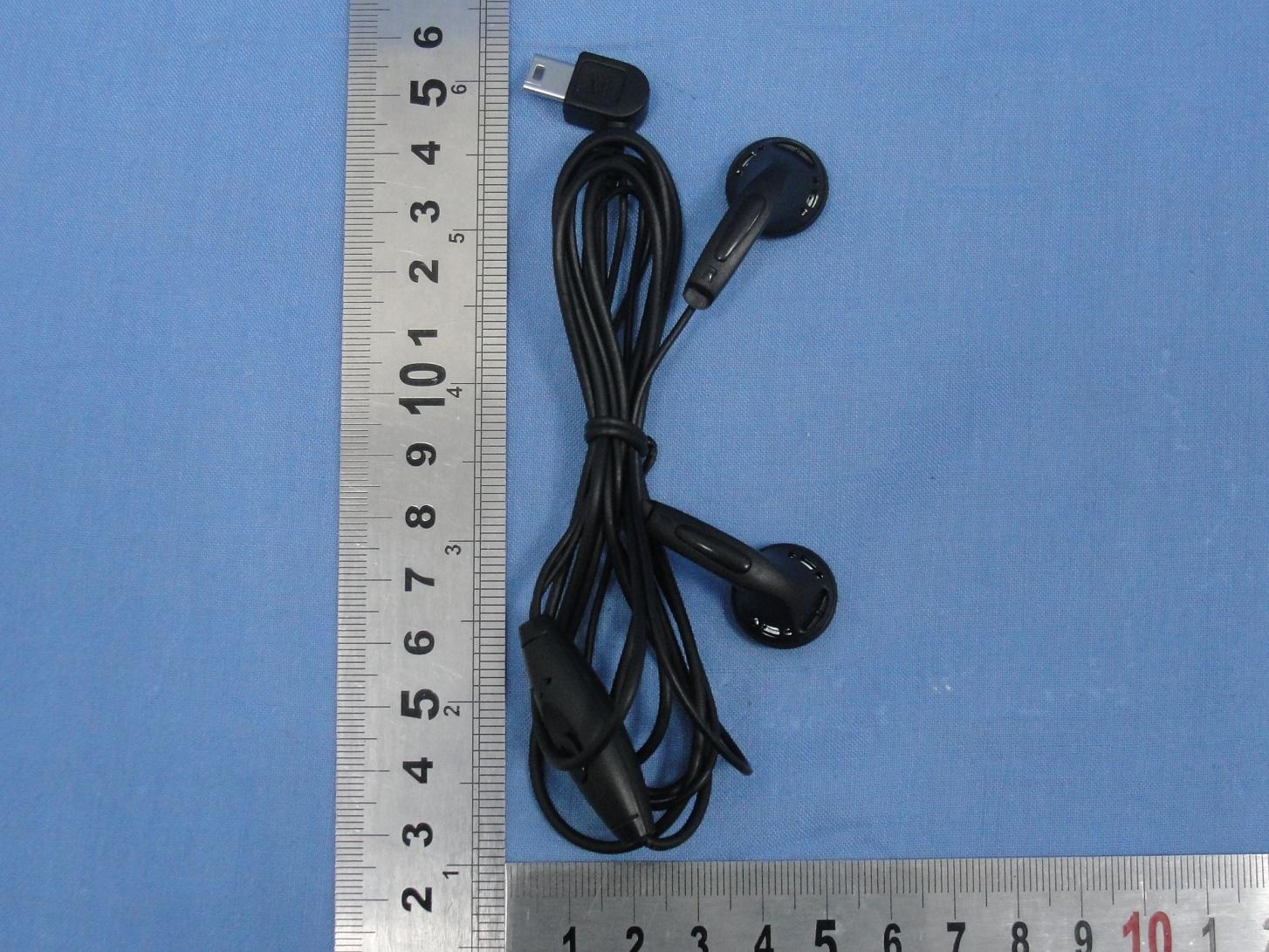

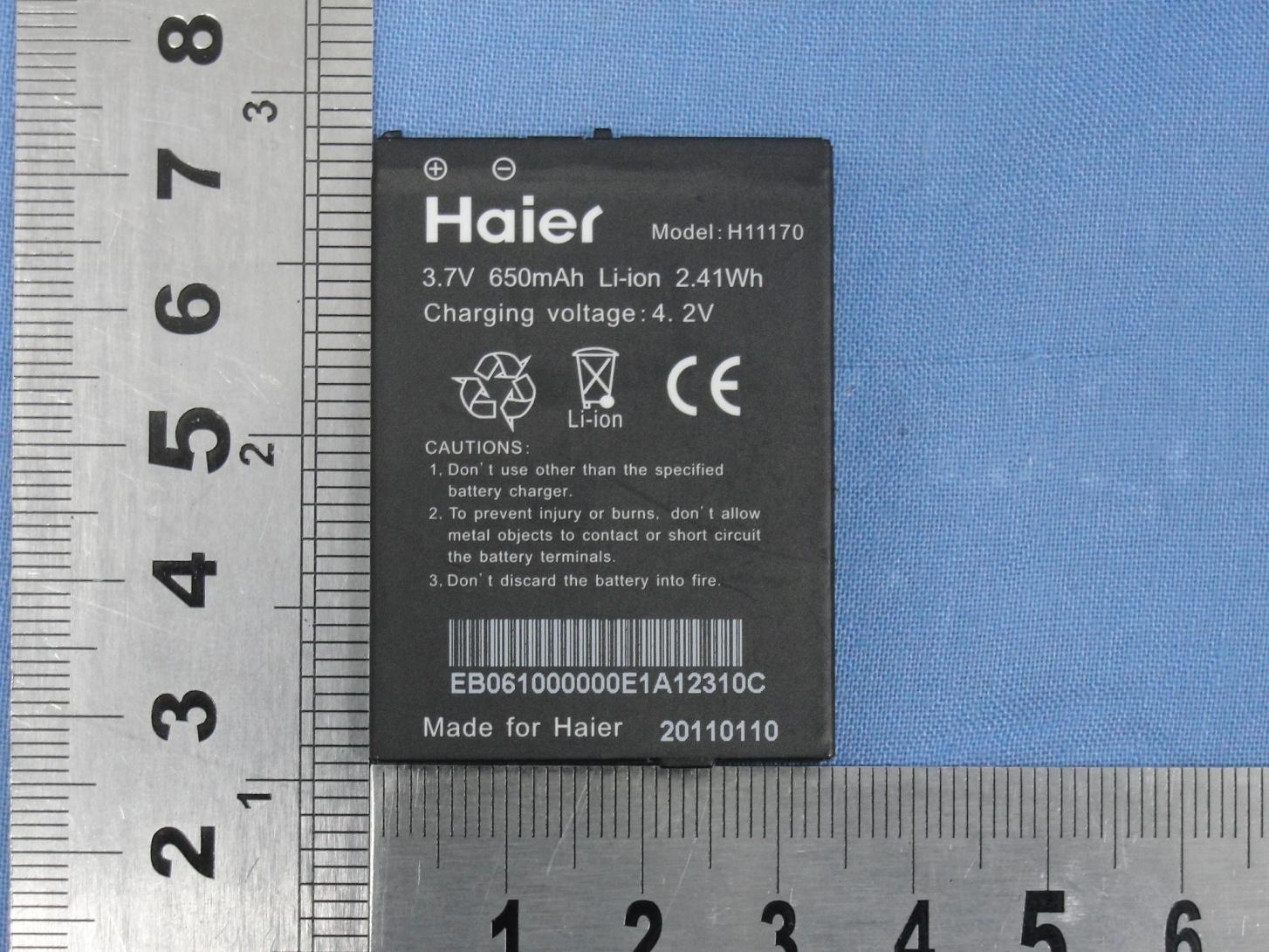

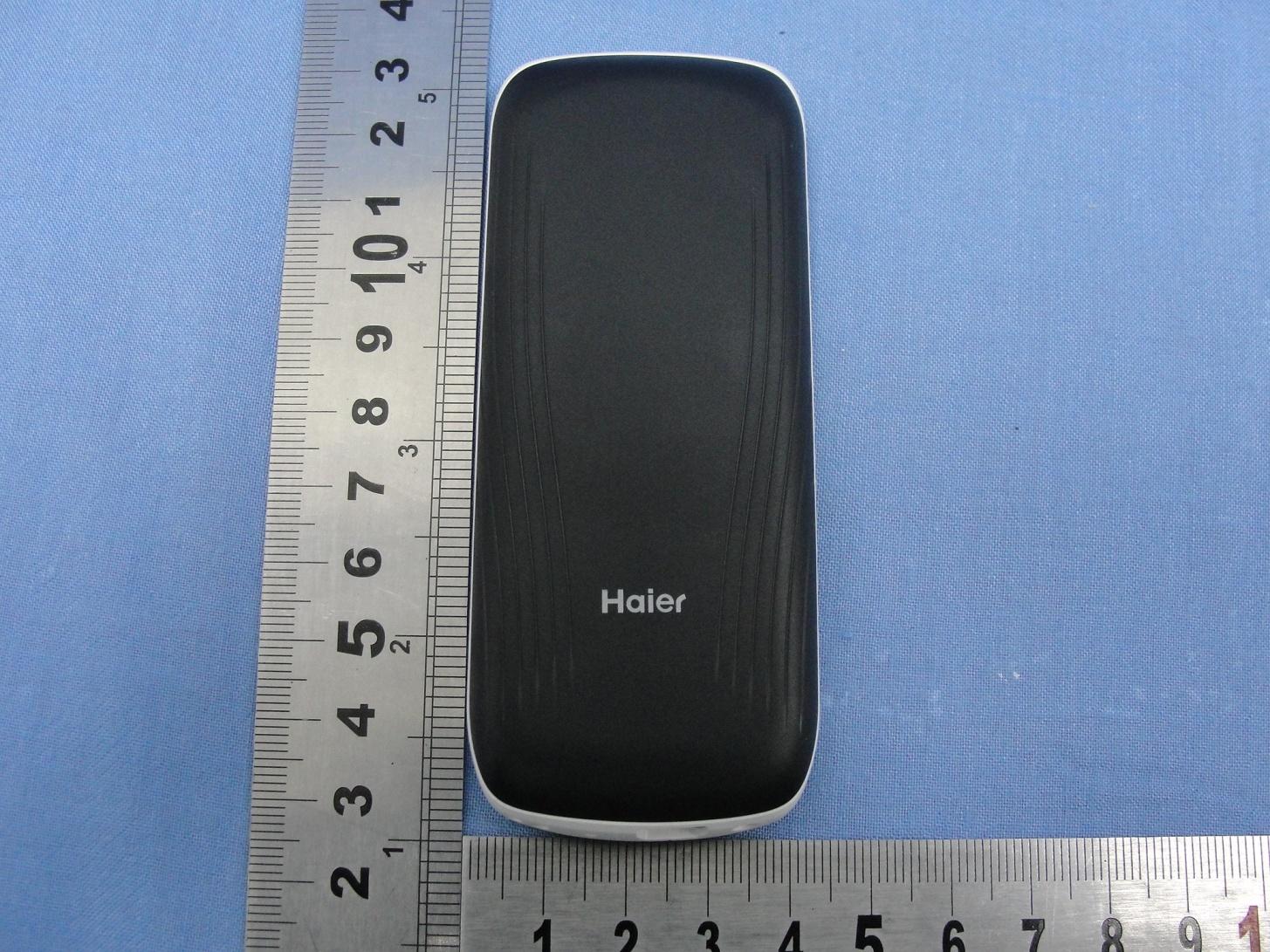

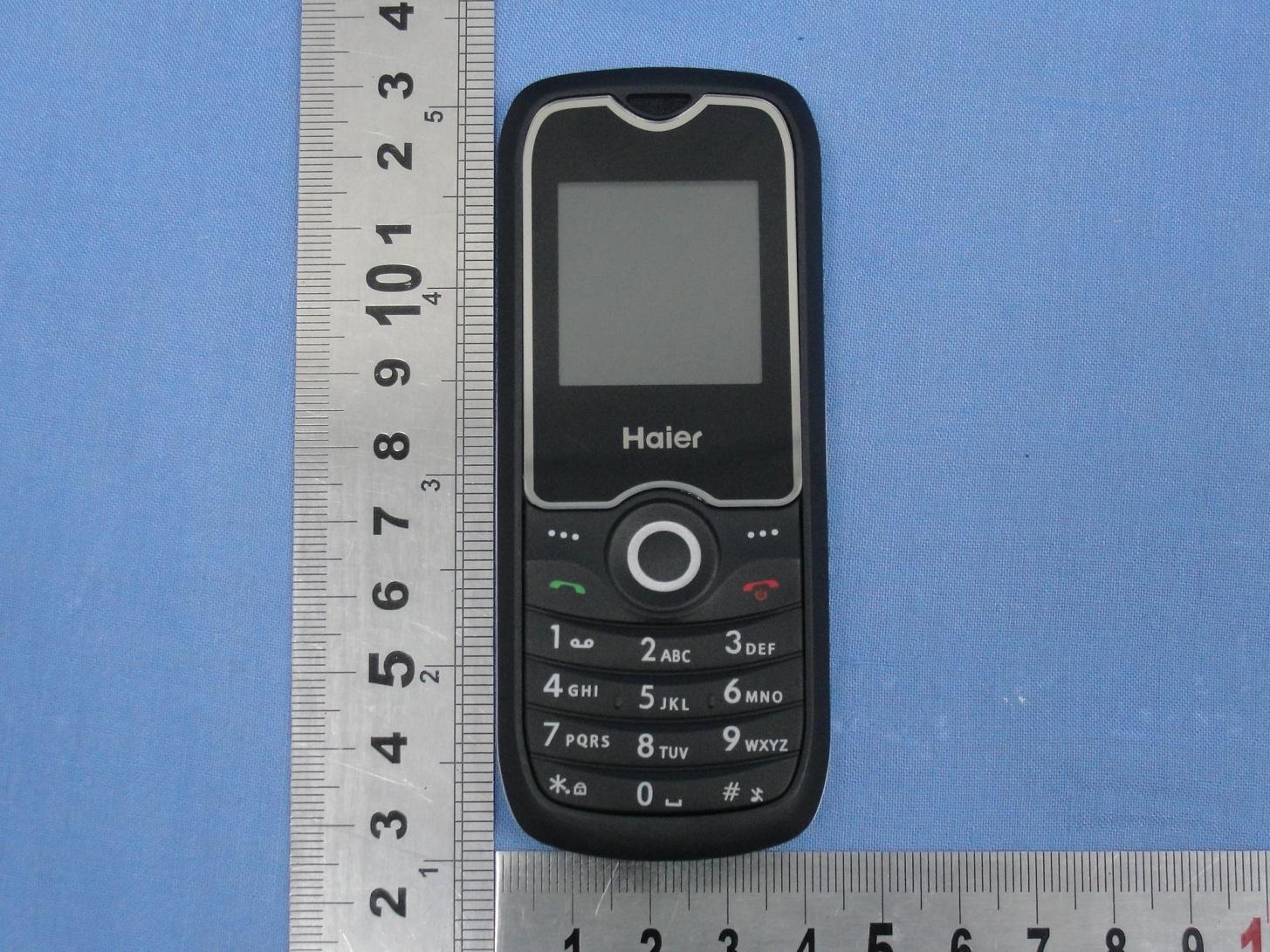

Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 1. External Photograph of EUT Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 720510 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 List of Accessory: Specification of Accessory AC Adapter Brand Name Haier Model Name LSA-80A5 Battery Brand Name Haier Model Name H11170 Earphone Brand Name Haier Model Name 10Pin USB Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 720510

Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 3. Internal Photograph of EUT Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 720510 Photographs of EUT Report No.: EP130929 Brand Name: Haier / Model Name: HG-M158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 20 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 WWAN Antenna <Tx/Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 FCC SAR Test Report Report No. : FA130929 FCC SAR Test Report APPLICANT : Qingdao Haier Telecom Co., Ltd. EQUIPMENT : GSM Mobile Phone BRAND NAME : Haier MODEL NAME : HG-M158 FCC ID : SG71103HG-M158 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 09, 2011 and completely tested on Mar. 18, 2011. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71103HG-M158 FCC SAR Test Report Report No. : FA130929 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 6 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 System Check_Head_835MHz_110318 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110318 Medium parameters used: f = 835 MHz; σ = 0.902 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.43 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.5 V/m; Power Drift = 0.00928 dB Peak SAR (extrapolated) = 3.38 W/kg SAR(1 g) = 2.26 mW/g; SAR(10 g) = 1.48 mW/g Maximum value of SAR (measured) = 2.44 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 System Check_Body_835MHz_110318 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110318 Medium parameters used: f = 835 MHz; σ = 0.97 mho/m; ε r = 56.5; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.51 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.4 V/m; Power Drift = 0.00224 dB Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.51 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 System Check_Head_1900MHz_110318 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110318 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.2 V/m; Power Drift = 0.00293 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 9.37 mW/g; SAR(10 g) = 4.75 mW/g Maximum value of SAR (measured) = 10.5 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 System Check_Body_1900MHz_110318 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110318 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.5 V/m; Power Drift = -0.0045 dB Peak SAR (extrapolated) = 19.8 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.14 mW/g Maximum value of SAR (measured) = 11.3 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 #12 GSM850_Right Cheek_Ch251 DUT: 130805 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110318 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.19 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.6 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.780 mW/g Maximum value of SAR (measured) = 1.19 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 #08 GSM850_Right Tilted_Ch128 DUT: 130805 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110318 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.497 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.7 V/m; Power Drift = -0.098 dB Peak SAR (extrapolated) = 0.636 W/kg SAR(1 g) = 0.461 mW/g; SAR(10 g) = 0.321 mW/g Maximum value of SAR (measured) = 0.490 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 #14 GSM850_Left Cheek_Ch251 DUT: 130805 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110318 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.27 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.8 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 1.68 W/kg SAR(1 g) = 1.18 mW/g; SAR(10 g) = 0.806 mW/g Maximum value of SAR (measured) = 1.25 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 #14 GSM850_Left Cheek_Ch251_2D DUT: 130805 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110318 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.27 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.8 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 1.68 W/kg SAR(1 g) = 1.18 mW/g; SAR(10 g) = 0.806 mW/g Maximum value of SAR (measured) = 1.25 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 #10 GSM850_Left Tilted_Ch128 DUT: 130805 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110318 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.544 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.3 V/m; Power Drift = -0.069 dB Peak SAR (extrapolated) = 0.747 W/kg SAR(1 g) = 0.494 mW/g; SAR(10 g) = 0.332 mW/g Maximum value of SAR (measured) = 0.531 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-18 #15 GSM1900_Right Cheek_Ch512 DUT: 130805 Communication System: Generic GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_110318 Medium parameters used: f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch512/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.568 mW/g Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement gr…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificat…

Text truncated - open the document above for the full version.
