SG71104HW-A56WMobile Phone

User Manual for A56W 1 Introduction to Manual This manual provides operation guidelines for use of your A56W mobile phone. Please refer to the Quick Start Guide, included in the box for a brief overview of the basic functions. Introduction to Manual Icon The following icons are used for indication an important message in the User Manual: Message prompt. A service or function requires the support of network service. For more details, please consult the network service supplier. 2 TABLE OF CONTENTS Getting to Know Your Phone ............................................................................... 4 Front View ................................................................................................ 4 Side View .................................................................................................. 4 Back View ................................................................................................. 5 Getting started ..................................................................................................... 6 (U)SIM Card and Battery .......................................................................... 6 Powering the Phone On and Off .............................................................. 7 Display Screen .......................................................................................... 8 Keys ........................................................................................................... 9 Text Input Methods ................................................................................10 Set up Your Phone .................................................................................. 11 Guideline for Quick Use ..................................................................................... 14 Call Function ...........................................................................................14 Main Menu Functions ............................................................................19 SAT ..........................................................................................................21 Browser ..................................................................................................21 Entertainment ........................................................................................25 Camera ...................................................................................................27 Messages ................................................................................................31 Contacts ..................................................................................................43 Tools ........................................................................................................48 3 Multimedia .............................................................................................52 My stuff ..................................................................................................54 Calendar .................................................................................................58 Call Log ...................................................................................................60 Settings ...................................................................................................61 FAQs and Troubleshooting Solution .................................................................. 69 Health & Safety Information ............................................................................. 72 Declaration of Conformity ................................................................................. 76 4 Getting to Know Your Phone Front View Side View USB socket Headphones socket Phone Receiver CENTRAL Display Screen Right Soft Key (RSK) Navigation Key Music player Left Soft Key (LSK) Special Function Key END/POWER Key SEND key Delete Key 5 Back View Camera Battery Cover Loudspeaker 6 Getting started (U)SIM Card and Battery When you subscribe to wireless services you will receive a (U)SIM Card (subscriber identity module), which contains information about your network services and your mobile number. Please consult with your SIM card provider, network service provider or network operator to obtain and use SIM‐based information. Insert (U)SIM Card and Battery Power off the phone and ensure the adapter is disconnected from the phone before removing the battery. 1. With the phone back facing upward, slightly press and push the rear cover toward the phone bottom until the cover is removed. 2. Remove the battery. 3. Insert the SIM card into marked SIM slot with the golden chip facing down. 4. Install the battery, ensuring contacts are aligned. 5. Push the back cover back to the original place. Recharging the Battery When the battery power is low, the phone will display a low power notification with a flickering battery icon with zero bars. When the battery is low, some functions of the phone might not operate until the battery receives a full charge. When the power is lower than the threshold value, the phone will automatically power off until it is recharged. When the phone is powered‐on and being charged, the battery icon on the top‐right corner of the display will flicker to show it is being recharged. When the battery is fully charged, the prompt of “charge completed” is displayed on the top‐right corner of the screen. When the phone is powered‐off and being charged, the charging status is displayed on the screen; after charging has finished, the prompt of “charge completed” is displayed on the screen. It takes approximately 2.5 hours to fully charge the battery. Be sure to fully 7 charge your battery before using for the first time. Charging your battery: 1. Insert the USB connector of the charger into the phone. 2. When charging is compleletd, remove the USB charger from the phone Powering the Phone On and Off Before the phone is powered on, ensure that the phone has been charged and that the (U)SIM card is …

Text truncated - open the document above for the full version.

Qingdao Haier Telecom Co., Ltd. No1. Haier Road , Hi-tech Zone,Qingdao, China Tel: +86-532-88936513 Fax: +86-532-88939585 Date: May 25, 2011 Statement We , Qingdao Haier Telecom Co., Ltd. , states that our device, FCC ID: SG71104HW-A56W has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, James Shi

Rev. 1/1/03 Qingdao Haier Telecom Co., Ltd. No1. Haier Road , Hi-tech Zone,Qingdao, China Tel: +86-532-88936513 Fax: +86-532-88939585 Date: May 25, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SG71104HW-A56W, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: HW-A56W _Schem.pdf) Block Diagram (file: HW-A56W _BlkDia.pdf) Parts List (file: HW-A56W _PartsLst.pdf) Operation Description (file: HW-A56W _OpDes.pdf) Tune up Procedure (file: HW-A56W _TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, James Shi

1/1 Qingdao Haier Telecom Co., Ltd. No1. Haier Road , Hi-tech Zone,Qingdao, China Tel: +86-532-88936513 Fax: +86-532-88939585 Date: May 25, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SG71104HW-A56W To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: ‹ External Photos (file: HW-A56W _ExtPho.pdf) ‹ Internal Photos (file: HW-A56W _IntPho.pdf) ‹ Test Setup Photos (file: HW-A56W _Tsup.pdf) ‹ User Manual (file: HW-A56W _UserMan.pdf) The application contains technical information, which Qingdao Haier Telecom Co., Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, James Shi

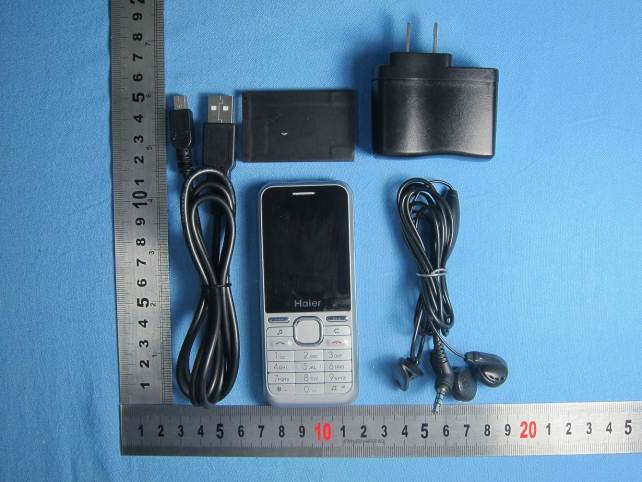

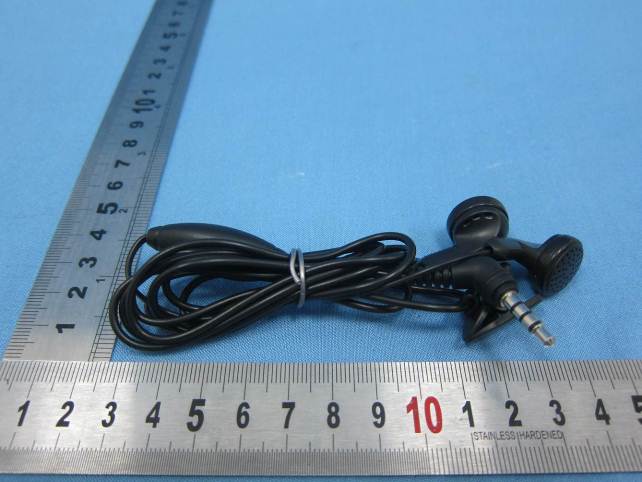

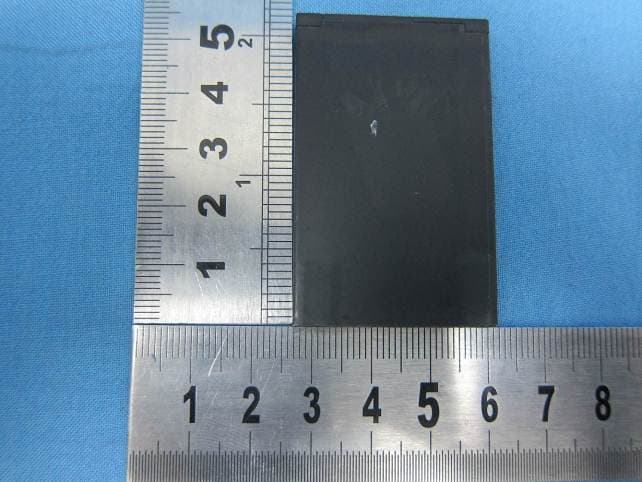

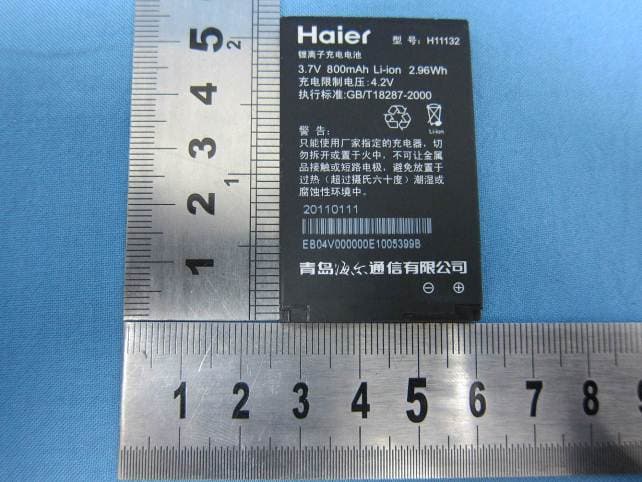

Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W 1. External Photograph of EUT Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W List of Accessory: Specification of Accessory AC Adapter Brand Name Haier Model Name LSA-80A5 Battery Brand Name Haier Model Name H11132 Earphone Signal Line Type 1.55cm non-shielded with core USB Cable Signal Line Type 1.20cm non-shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W

Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W 3. Internal Photograph of EUT Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W Bluetooth Antenna Photographs of EUT Report No.: EP142024 Brand Name: Haier / Model Name: HW-A56W SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 23 TEL : 86-0512-5790-0158 Report Issued Date : May 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : May 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W FCC SAR Test Report Report No. : FA142024 FCC SAR Test Report APPLICANT : Qing Dao Haier Telecom CO., Ltd. EQUIPMENT : MOBILE PHONE BRAND NAME : Haier MODEL NAME : HW-A56W FCC ID : SG71104HW-A56W STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 19, 2011 and completely tested on May 23, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : May 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71104HW-A56W FCC SAR Test Report Report No. : FA142024 Table of Contents Revision History ......................................................................................................................................................... 3 1. Statement of Compliance .................................................................................................................................... 4 2. Administration Data ............................................................................................................................................. 5 2.1 Testing Laboratory ...................................................................................................................................... 5 2.2 Applicant .................................................................................................................................................... 5 2.3 Manufacturer .............................................................................................................................................. 5 2.4 Application Details ...................................................................................................................................... 5 3. General Information ............................................................................................................................................. 6 3.1 Description of Device Under Test (DUT) ...................................................................................................... 6 3.2 Product Photos ........................................................................................................................................... 6 3.3 Applied Standards ...................................................................................................................................... 7 3.4 Device Category and SAR Limits ................................................................................................................ 7 3.5 Test Conditions ........................................................................................................................................... 7 3.5.1 Ambient Condition ............................................................................................................................. 7 3.5.2 Test Configuration ............................................................................................................................. 7 4. Specific Absorption Rate (SAR) .......................................................................................................................... 9 4.1 Introduction ................................................................................................................................................ 9 4.2 SAR Definition ............................................................................................................................................ 9 5. SAR Measurement System ................................................................................................................................ 10 5.1 E-Field Probe ........................................................................................................................................... 11 5.1.1 E-Field Probe Specification.............................................................................................................. 11 5.1.2 E-Field Probe Calibration................................................................................................................. 12 5.2 Data Acquisition Electronics (DAE) ............................................................................................................ 12 5.3 Robot ....................................................................................................................................................... 12 5.4 Measurement Server ................................................................................................................................ 13 5.5 Phantom .................................................................................................................................................. 14 5.6 Device Holder ........................................................................................................................................... 15 5.7 Data Storage and Evaluation..................................................................................................................... 16 5.7.1 Data Storage................................................................................................................................... 16 5.7.2 Data Evaluation................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 System Check_Head_835MHz_110429 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110429 Medium parameters used: f = 835 MHz; σ = 0.908 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.4 V/m; Power Drift = 0.034 dB Peak SAR (extrapolated) = 3.48 W/kg SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.51 mW/g Maximum value of SAR (measured) = 2.5 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 System Check_Body_835MHz_110429 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110429 Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.7 V/m; Power Drift = 0.027 dB Peak SAR (extrapolated) = 3.7 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.7 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 System Check_Head_1900MHz_110429 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110429 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.73, 4.73, 4.73); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.9 V/m; Power Drift = 0.039 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 9.8 mW/g; SAR(10 g) = 5.06 mW/g Maximum value of SAR (measured) = 11 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 System Check_Body_1900MHz_110429 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110429 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.3, 4.3, 4.3); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.8 V/m; Power Drift = 0.063 dB Peak SAR (extrapolated) = 18 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.24 mW/g Maximum value of SAR (measured) = 11.4 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-5-23 System Check_Head_2450MHz_110523 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110523 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010-9-21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.7 V/m; Power Drift = -0.00588 dB Peak SAR (extrapolated) = 29.8 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.28 mW/g Maximum value of SAR (measured) = 15.4 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 #21 GSM850_Right Cheek_Ch189 DUT: 141904 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110429 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.22 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.5 V/m; Power Drift = -0.00724 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 1.16 mW/g; SAR(10 g) = 0.850 mW/g Maximum value of SAR (measured) = 1.23 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 #22 GSM850_Right Tilted_Ch189 DUT: 141904 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110429 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.698 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.6 V/m; Power Drift = 0.019 dB Peak SAR (extrapolated) = 0.902 W/kg SAR(1 g) = 0.690 mW/g; SAR(10 g) = 0.508 mW/g Maximum value of SAR (measured) = 0.720 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 #23 GSM850_Left Cheek_Ch189 DUT: 141904 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110429 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.5 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = 0.131 dB Peak SAR (extrapolated) = 1.79 W/kg SAR(1 g) = 1.36 mW/g; SAR(10 g) = 0.979 mW/g Maximum value of SAR (measured) = 1.42 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-29 #24 GSM850_Left Tilted_Ch189 DUT: 141904 Communication System: Generic GSM; Frequency:…
