SG71109HG-M508GSM Mobile Phone

1 1 Overview Your Phone The following figure is a sketch of the phone. The actual product may differ. 2 1 Earpiece 6 * key 11 Right soft key 2 Screen 7 Headset jack 12 OK/Confirm Key 3 Left soft key 8 Charger jack/USB port 13 Navigation keys 4 Calling key 9 # Key 14 Torch key 5 Number keys 10 Ending key Keys and Functions Press... To... Left soft key  Access to main menu in standby mode.  Select the highlighted item. Ending key  Power on or power off the phone (by pressing and holding it for about 3s).  End a call, or reject an incoming call.  Return to standby mode. 3 Press... To... Calling key  Make a call.  Answer an incoming call.  View call logs in standby mode. Right soft key  Display Phonebook in standby mode.  Return to the previous menu. Navigation keys  Access: Missed calls(Up direction key), Add new contact(Down direction key), SMS(Left direction key), and SIM toolkit (Right direction key) in standby mode.  Select a item. Confirm Key  Access to main menu in standby mode.  Confirm the selecting  In standby mode, long press OK key to turn on/off the torch. 4 Press... To... Number keys  Enter numbers, letters, and characters.  Call the voice mail center in standby mode (by pressing and holding the 1 key for about 3 seconds).  Speed-dial phone numbers in standby mode (by pressing and holding the 2–9 keys for about 3 seconds).  Select a submenu item labeled with the corresponding number. * key  In standby mode, press the key once to enter *, twice to enter +, three times to enter P, and four times to enter W.  Display the symbol list in any input mode.  Lock the keypad in standby mode (by pressing Left soft key and then * key). 5 Press... To... # key  Enter #.  Enable or disable the silent mode in standby mode (by pressing and holding it for about 3s).  Change input modes when editing texts. Screen Icons Icon Indicates Signal strength. A new text message has received. The call forwarding function has enabled. 6 Icon Indicates MP3 music is being played in the background. An alarm has activated. The keypad has locked. Battery’s Power level. The General profile has activated. The Outdoor profile has activated. The Silent profile has activated. Missed call/s. 7 2 Getting Started Installing the Battery and a SIM Card You can install SIM card on the phone. When installing the SIM card, ensure that the golden contact area on the SIM card is facing downward, and the beveled edge of the SIM card is properly aligned with that of the card slot. 8 Installing a micro SD Card You can insert a micro SD card to expand the memory capacity of your phone. When installing a micro SD card, ensure that the golden contact area on the micro SD card is facing downward, and the beveled edge of the micro SD card has properly aligned with that of the card slot. Then pull out the clip to fix the micro SD card in the slot. 9 No micro SD card is delivered in the product package. If a micro SD card is required, you can buy one yourself. Charging the Battery 1. Connect the charger to a power socket. 2. Connect the charger to the charger jack on the phone. 10 Phone Lock The phone lock protects your phone from unauthorized use. By default, the phone lock function has disabled. You can change the default phone lock code (0000) into any numeric string in the range of four to eight digits. Do remember your phone lock code. If you forget it, contact the service center. PIN and PUK The personal identification number (PIN) protects your SIM card from unauthorized use. The PIN unblocking key (PUK) can unlock the blocked PIN. Both PIN and PUK are delivered with the SIM card. For details, consult your service provider. If you enter wrong PINs for a specified number of times consecutively, the phone asks you to enter the PUK. 11 Locking the Keypad In standby mode, press the Left soft key and then * key to lock the keypad, and press the Left soft key then * key again to unlock the keypad. If the Auto Keypad Lock function has enabled and the phone is idle for a preset period in standby mode, the keypad has locked automatically. When the keypad has locked, you can press the Calling key to answer an incoming call or make emergency calls. 3 Phone book The phone provides two kinds of storage media: SIM card and phone. The phone can store 500 entries. The capacity of the phone book on your SIM card depends on the type of SIM card provided by your network operator. Enter a number in idle screen and press the left soft key or the OK key to save the number. Select the storage location. Then the edit interface appears. 12 4 Media center Camera The phone is provided with a built-in 0.3 mega pixel CMOS camera at the back, which supports the photographing and video shooting functions. Pictures are saved in the file system of the phone or the T-Flash card. The file is in the *.jpg format. You can send the pictures taken by the MMS/Bluetooth function provided by the phone. When you set the Image size '80x60' '160x120' '320x240' '640x480' ‘176 x220’ , please rotate the phone with 90 degree. Audio player Allow you to play audio files. The phone supports external memory card. You need to save downloaded music files to directory My Music, so that they can play normally. Video player Allow you to play audio files. The phone supports external memory card. You need to save downloaded music files to directory Videos, so that they can play normally. 13 Video recorder Video recorder is used for video shooting. Press OK key to start or stop shooting. The video clip is saved to the phone or T-Flash card. When you do the video recorder, please rotate the phone with 90 degree. Sound recorder 1. Select Menu > Multimedia > Sound recorder. 2. Press LSK(Options) and then select New record to start recording. 5 Bluetooth Through Bluetooth, you can exchange data with other Bluetooth devices, or use a Bluetooth headset to enjoy music. 6 WAP You can access WAP sites and use WAP-based services on your phone. To access the WAP sites through…

Text truncated - open the document above for the full version.

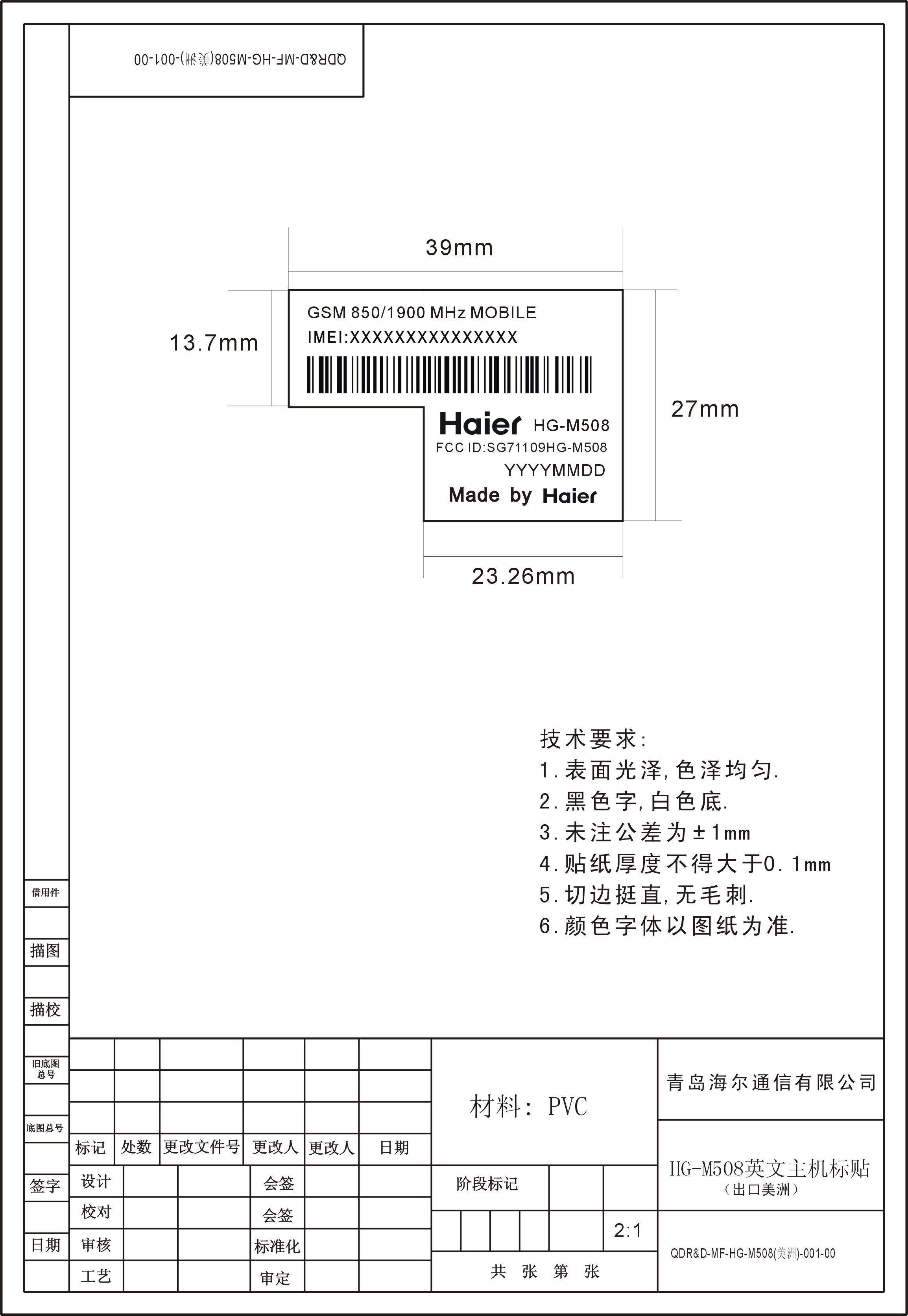

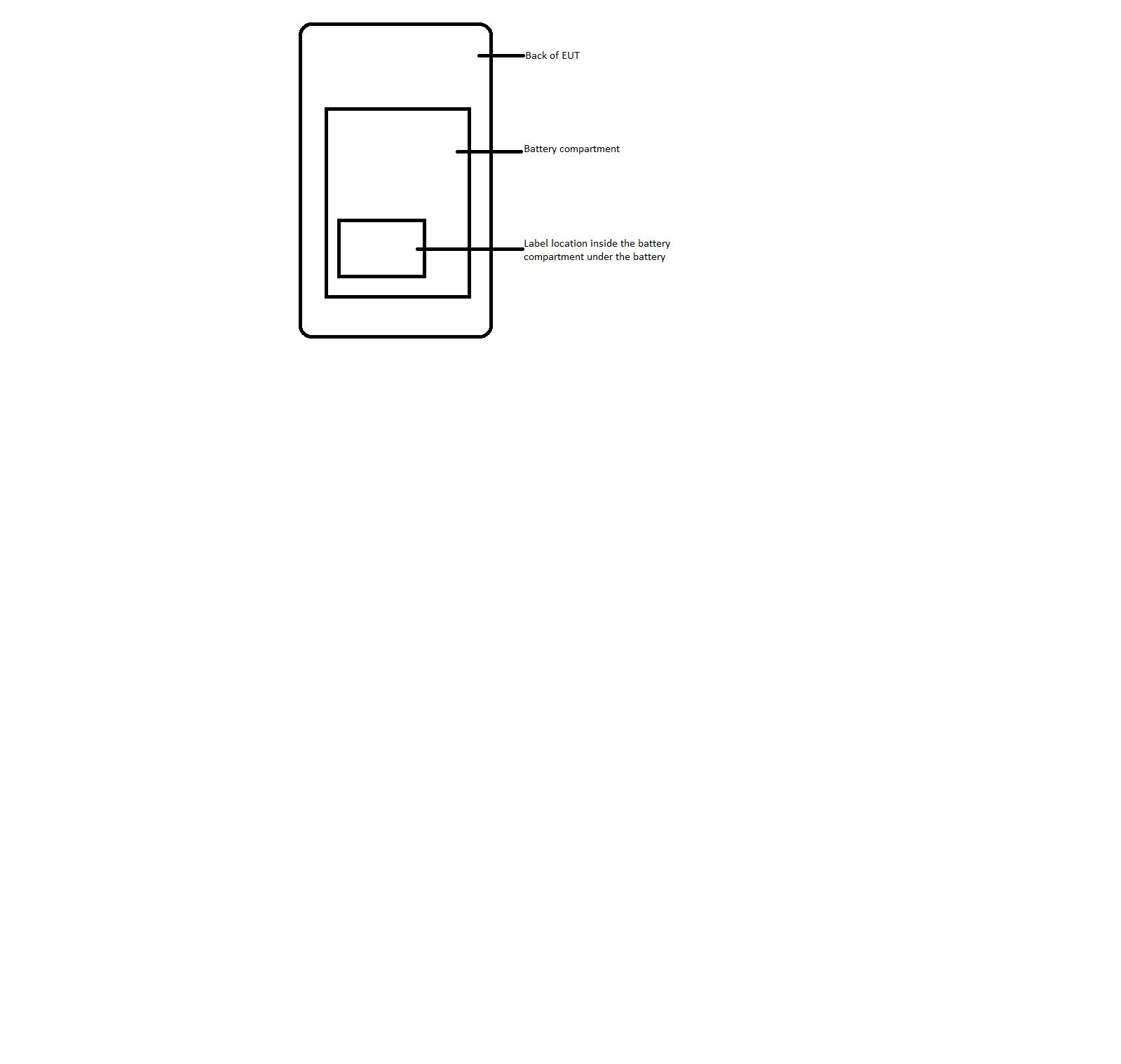

Haier Telecom (Qingdao) Co., Ltd. No.1, Haier Road Hi-tech Zone Qingdao,266101 P.R.China Tel: +86-532-88936513 ; Fax: +86-532-88939585 Date: September 29, 2011 Statement We, Haier Telecom (Qingdao) Co., Ltd., states that our device, FCC ID: SG71109HG-M508, has no space to put the label except the battery compartment of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ James Shi

Rev. 1/1/03 Haier Telecom (Qingdao) Co., Ltd. No.1, Haier Road Hi-tech Zone Qingdao,266101 P.R.China Tel: +86-532-88936513 ; Fax: +86-532-88939585 Date: September 29, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SG71109HG-M508 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: HG-M508_Schem.pdf) Block Diagram (file: HG-M508_BlkDia.pdf) Parts List (file: HG-M508_PartsLst.pdf) Operation Description (file: HG-M508_OpDes.pdf) Tune up Procedure (file: HG-M508_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ James Shi

Haier Telecom (Qingdao) Co., Ltd. No.1, Haier Road Hi-tech Zone Qingdao,266101 P.R.China Tel: +86-532-88936513 ; Fax: +86-532-88939585 Date: September 29, 2011 Power of Attorney To whom it may concern, Please be notified that I, James Shi, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SG71109HG-M508 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: James Shi Company: Haier Telecom (Qingdao) Co., Ltd. TEL: +86-532-88936513 FAX: +86-532-88939585 E-mail: [email protected]

1/1 Haier Telecom (Qingdao) Co., Ltd. Date: September 29, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SG71109HG-M508 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Haier Telecom (Qingdao) Co., Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: James Shi Company: Haier Telecom (Qingdao) Co., Ltd. TEL: +86-532-88936513 FAX: +86-532-88939585 E-mail: [email protected]

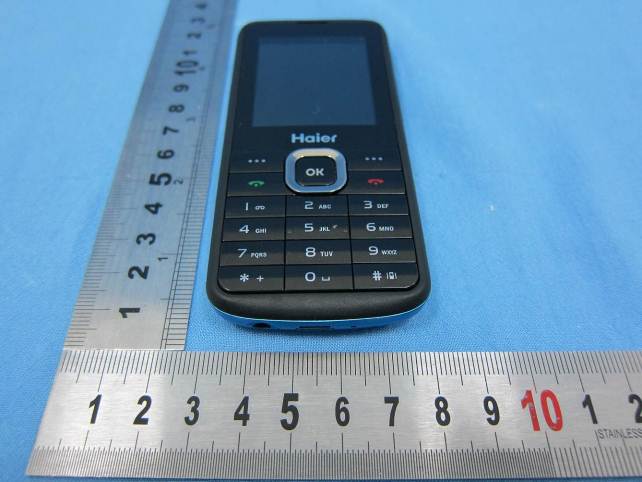

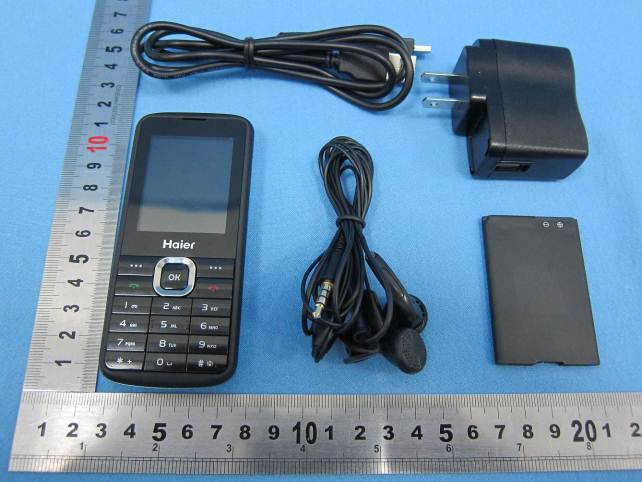

Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 1. External Photograph of EUT Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 List of Accessory: Specification of Accessory AC Adapter Brand Name Haier Model Name LSA-80A5 Battery Brand Name Haier Model Name M508 Earphone Type 164cm non-shielded without core USB Cable Type 102cm shielded with core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508

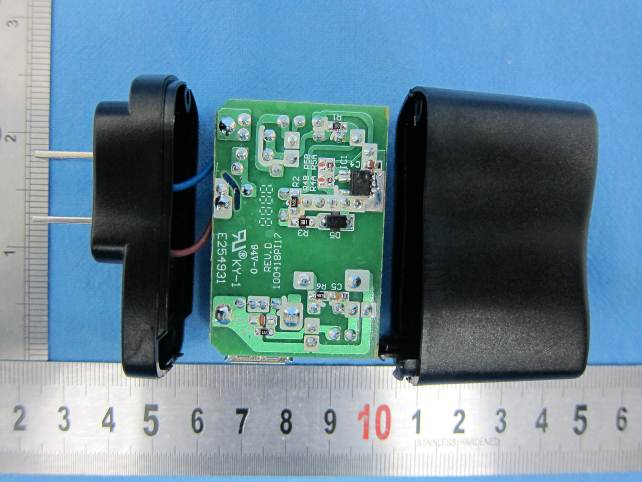

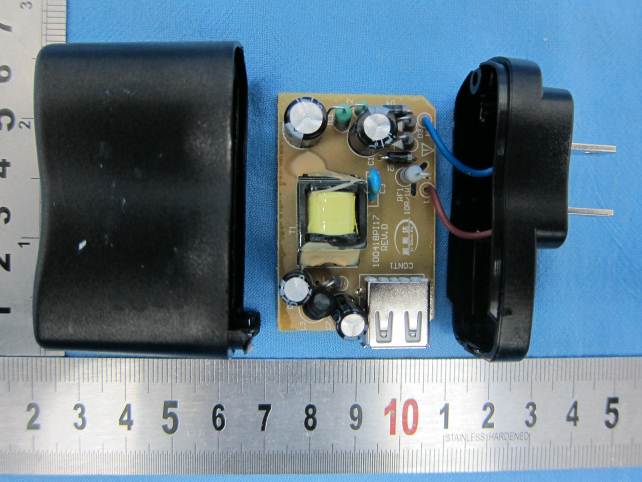

Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 3. Internal Photograph of EUT Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 WWAN Antenna Photographs of EUT Report No.: EP191406 Brand Name: Haier / Model Name: HG-M508 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 29, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 Bluetooth Antenna

SPORTON INTERNATIONAL(KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 27, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 FCC SAR Test Report Report No. : FA191406 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 System Check_Head_835MHz_110923 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110923 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 41.806; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.468 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.596 V/m; Power Drift = -0.0078 dB Peak SAR (extrapolated) = 3.384 W/kg SAR(1 g) = 2.25 mW/g; SAR(10 g) = 1.43 mW/g Maximum value of SAR (measured) = 2.471 mW/g 0 dB = 2.470mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 System Check_Body_835MHz_110923 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110923 Medium parameters used: f = 835 MHz; σ = 0.978 mho/m; ε r = 54.403; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.573 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.768 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.284 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.576 mW/g 0 dB = 2.580mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 System Check_Head_1900MHz_110923 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110923 Medium parameters used: f = 1900 MHz; σ = 1.427 mho/m; ε r = 41.191; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.135 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.764 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 16.666 W/kg SAR(1 g) = 9.48 mW/g; SAR(10 g) = 5.01 mW/g Maximum value of SAR (measured) = 10.593 mW/g 0 dB = 10.590mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 System Check_Body_1900MHz_110923 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110923 Medium parameters used: f = 1900 MHz; σ = 1.532 mho/m; ε r = 52.397; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.48, 4.48, 4.48); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.969 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.137 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 18.301 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.67 mW/g Maximum value of SAR (measured) = 12.126 mW/g 0 dB = 12.130mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-26 System Check_Head_2450MHz_110926 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110926 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.753; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.216 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.594 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 32.179 W/kg SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.19 mW/g Maximum value of SAR (measured) = 15.419 mW/g 0 dB = 15.420mW/g

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 27, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : SG71109HG-M508 FCC SAR Test Report Report No. : FA191406 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 #01 GSM850_Right Cheek_Ch251 DUT: 191406 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110923 Medium parameters used: f = 849 MHz; σ = 0.92 mho/m; ε r = 41.646; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.309 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.789 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 1.458 W/kg SAR(1 g) = 1.19 mW/g; SAR(10 g) = 0.853 mW/g Maximum value of SAR (measured) = 1.271 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 #02 GSM850_Right Tilted_Ch251 DUT: 191406 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110923 Medium parameters used: f = 849 MHz; σ = 0.92 mho/m; ε r = 41.646; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.920 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.392 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.140 W/kg SAR(1 g) = 0.810 mW/g; SAR(10 g) = 0.573 mW/g Maximum value of SAR (measured) = 0.860 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 #03 GSM850_Left Cheek_Ch251 DUT: 191406 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110923 Medium parameters used: f = 849 MHz; σ = 0.92 mho/m; ε r = 41.646; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.368 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.915 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.604 W/kg SAR(1 g) = 1.25 mW/g; SAR(10 g) = 0.870 mW/g Maximum value of SAR (measured) = 1.335 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 #04 GSM850_Left Tilted_Ch251 DUT: 191406 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110923 Medium parameters used: f = 849 MHz; σ = 0.92 mho/m; ε r = 41.646; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.840 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.152 V/m; Power Drift = 0.0058 dB Peak SAR (extrapolated) = 1.068 W/kg SAR(1 g) = 0.717 mW/g; SAR(10 g) = 0.505 mW/g Maximum value of SAR (measured) = 0.773 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-9-23 #05 GSM850_Right Cheek_Ch128 DUT: 191406 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110923 Medium parameters used: f = 824.2 MHz; σ = 0.899 mho/m; ε r = 41.926; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.71, 6.71, 6.71); Calibrated: 2011-5-20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.050 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.481 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 1.218 W/kg SAR(1 g) = 0.963 mW/g; SAR(10 g) = 0.675 mW/g Maximum value of SAR (measure…

Text truncated - open the document above for the full version.
