SG71202HG-M306Mobile Phone

1 MOBILE PHONE HG-M306+ FCC ID:SG71202HG-M306 Quad-band GSM mobile phone 850/900/1800/1900MHz CONTENT 1. SAFETY PRECAUTIONS 5 2.PHONE OVERVIEW ............ 10 3. GETTING STARTED ........... 12 4.TEXT ENTRY ........................ 20 5.CALLING ............................... 20 6. MENUS .................................. 24 6.1FILE MANAGER.................... 25 FILE LIST .................................. 25 6.2PHONEBOOK ....................... 25 6.3GAMES ................................ 28 3 6.4CALL CENTER ..................... 28 6.4.1. Call history ................ 28 6.4.2. Call settings .............. 30 6.5MESSAGES .......................... 34 6.5.1. Write message ........... 34 6.5.2. Inbox ......................... 34 6.5.3. Drafts ........................ 34 6.5.4. Outbox ....................... 34 6.5.5.Sent message .............. 35 6.5.6Delete message ............ 35 MMS .................................... 36 6.6 MULTIMEDIA ...................... 36 6.7ORGANIZER ......................... 39 6.8SETTINGS ............................ 41 6.8.1.Phone settings ............ 41 6.8.2. Security settings ........ 43 6.8.3Conncetivity ................ 44 Bluetooth ............................. 44 6.8.4Restore factory settings ............................................ 45 6.9SERVICES ............................ 45 5 1. Safety Precautions Information for parents Please read the operating instructions and safety precautions carefully before use. Explain the content to your children and the hazards associated with using the phone. Remember to comply with legal requirements and local restrictions when using the phone, for example, in aero planes, petrol stations, hospitals or while driving. Mobile phones can interfere with the functioning of medical devices such as hearing aids or pacemakers. Keep at least 20 cm(9inches)distance between the phone and pacemaker. When using the mobile phone hold it to the ear which is furthest away from the pacemaker. For more information, consult your doctor. Always keep the phone and accessories out of reach of small children. Small parts such as the SIM card, dust cap, lens ring and lens cap as well as the micro SD card can be dismantled and swallowed by small children. Do not place the phone near to electromagnetic data carriers such as credit cards and floppy disks. Information stored on them could be lost. Do not look directly into the LED (such as flash LED) with optical magnifiers because of radiation. This product complies with IEC/EN 60825-1 “Safety of Laser Products” for 7 LED Class 1M products; such products are safe under reasonably foreseeable operating conditions. Permanent hearing loss may occur if you use earphones or headphones at high volume. You can adapt over time to a higher volume, which may sound normal but can be damaging to your hearing. Set your volume to a safe level. If you experience discomfort or buzzing in your ears, reduce the volume or discontinue use of your earphones or headphones. Ring tones, info tones and hands free talking are reproduced through the loudspeaker. Do not hold the phone to the ear when it rings or when you have switched on the hands free function. Otherwise you risk serious permanent damage to your hearing. The mains voltage (V) specified on the power supply unit must not be exceeded. Otherwise the charging device may be damaged. The power supply must be plugged into an easily accessible AC mains power socket when charging the battery. The only way to turn off the charging device after charging the battery is to unplug it. You may only open the phone to replace the battery, SIM and micro SD card. You must not open the battery under any circumstances. All other changes to this device are strictly prohibited and will invalidate the guarantee. The phone may cause interference in the vicinity of TV sets, radios and PCs. 9 Dispose of unwanted batteries and phones as permitted by the laws in your countries. Only use original batteries and charging devices. Otherwise you risk serious damage to health and property. The battery could explode, for instance. All batteries can cause property damage, injury or burns if a conductive material such as jewelry, keys or beaded chains touch exposed terminals. The material may complete an electrical circuit and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside your pocket, purse or other container with metal objects. Do not dispose of batteries in fire as they may explode. Improper use will invalidate the guarantee! These safety instructions also apply to original accessories. As mobile devices offer a range of functions, they can be used in positions other than the head, such as directly on the body. In this case, the limits are met too. 2.Phone Overview Communication control keys SIM calling keys SIM calling key is used to make a call after a number has been entered or selected from the phone book, or to answer an incoming call. In idle screen, press SIM calling key to show call logs of SIM card. End key 11 End key is used to end a call during calling or conversation, or to quit the menu and return to idle screen. Press and hold the ending key for about two seconds to turn on/off the phone. Direction keys Go to Settings > Phone setup > Dedicated key to set direction keys. Center key In idle screen, press center key to open the main menu. In lists and menus, press the center key to start an application/function. Left and right soft keys In idle screen, press the left soft key to open the main menu. In idle screen, press the right soft key to directly access the phone book list. During menu operation, the current functions of the left and right soft keys are shown in the bottom line of the screen, and they are closely related to the current status of the phone. Number keys Press number keys (0-9) to enter numbers. . You can also use number keys to select menus. If a number is shown before an option in menu list, you can…

Text truncated - open the document above for the full version.

Feb Fed Aut FCC Re: Pur s requ 1: B 2: C 3: O 4: P 5: T Th e rele app Th e all a app Sin c Sin Ha Co Titl bruary 22, deral Comm thorization C ID: SG7 : Confiden suant to Se uests confid Block Diagra Circuit Diagra Operational D Parts List Tune Up Proc e above mat ased to the licant and p e Applicant u accompanyi lication. cerely, ncerely yo aier Telec ntact per e: Type A 2012 munication and Evalu 1202HG-M ntiality Re ctions 0.457 ential treatm m am Description cedure terials conta e public. The rovide unjus understands ng docume n ours, com (Qin rson: Jam Approval n Commiss uation Divis M306 quest 7 and 0.459 ment of infor ain trade se e public dis stified benef that pursua ntation will ngdao) C mes Shi Manage r sion sion 9 of the Com rmation appl ecrets and p sclosure of t fits to its com nt to Rules 0 not be mad Co., Ltd. r mmission’s R ied this app proprietary these matte mpetitors. 0.457, disclo e before th Rules, the a lication as o information ers might be osure of this e date of th applicant he outlined belo not custom e harmful to s Application he Grant for ereby ow: marily o the n and r this

dev lab vis the Si n Ha Co Titl No.1 We, Ha vice, FC bel exce sible to t e battery ncerely y aier Telec ntact per e: Type A Haie 1 Haier R aier Tel C ID: S G pt the the user y. yours, com (Qin rson: Jam Approval er Teleco Road Hi‐ Tel: 0 St ecom (Q G71202H battery rs as the ngdao) C mes Shi Manage r om (Qing ‐tech Zon 0532‐889 tateme Qingdao HG‐M30 compar ey purch Co., Ltd. r gdao) Co ne Qingd 936583 ent o) Co., L 06, has n rtment o hase the o., Ltd. dao P.R.C Date: Fe Ltd. stat no space of this produc t CHINA ebruary 22 tes that e to put device. ts and in 2, 2012 t our t the It is nstall

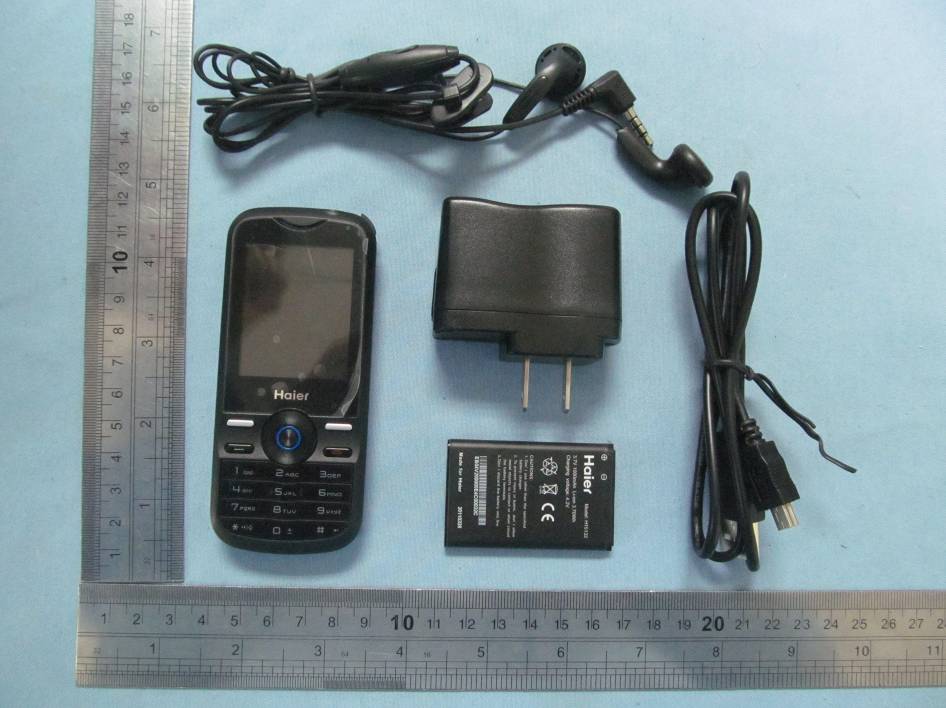

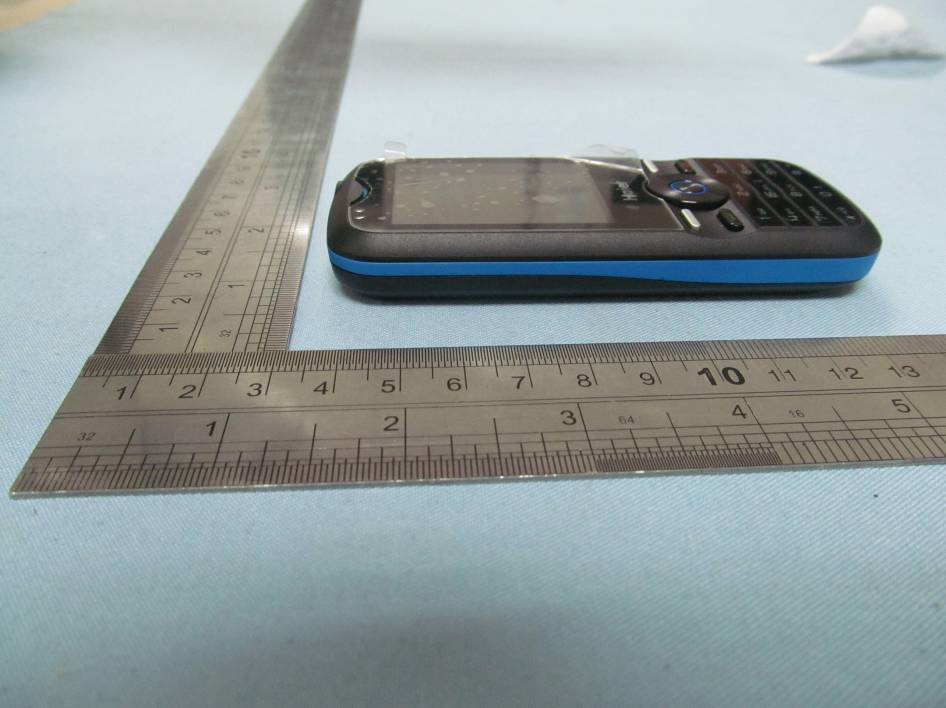

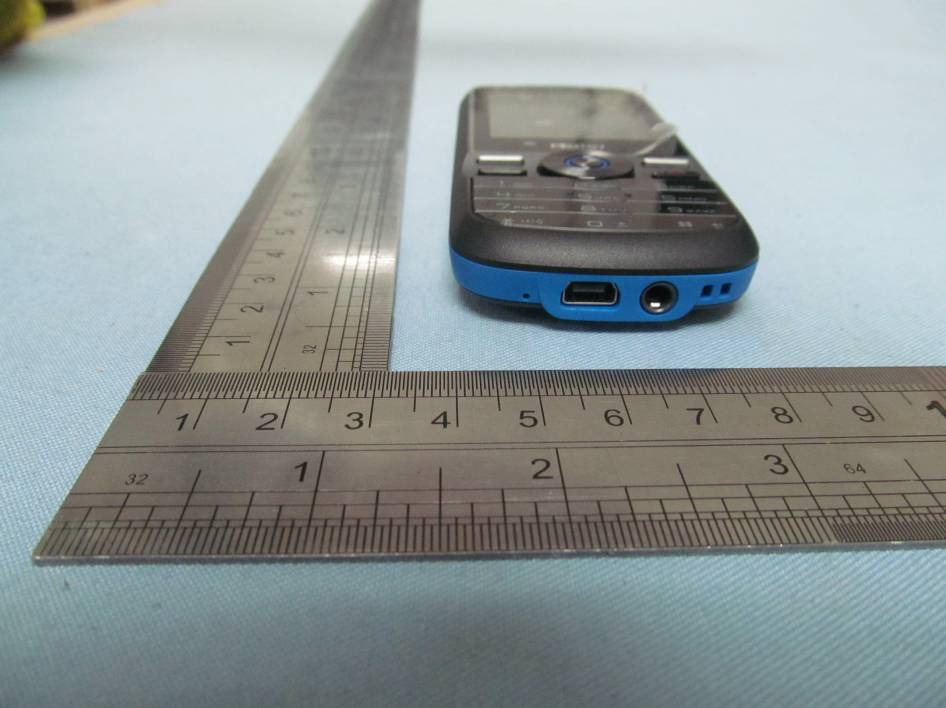

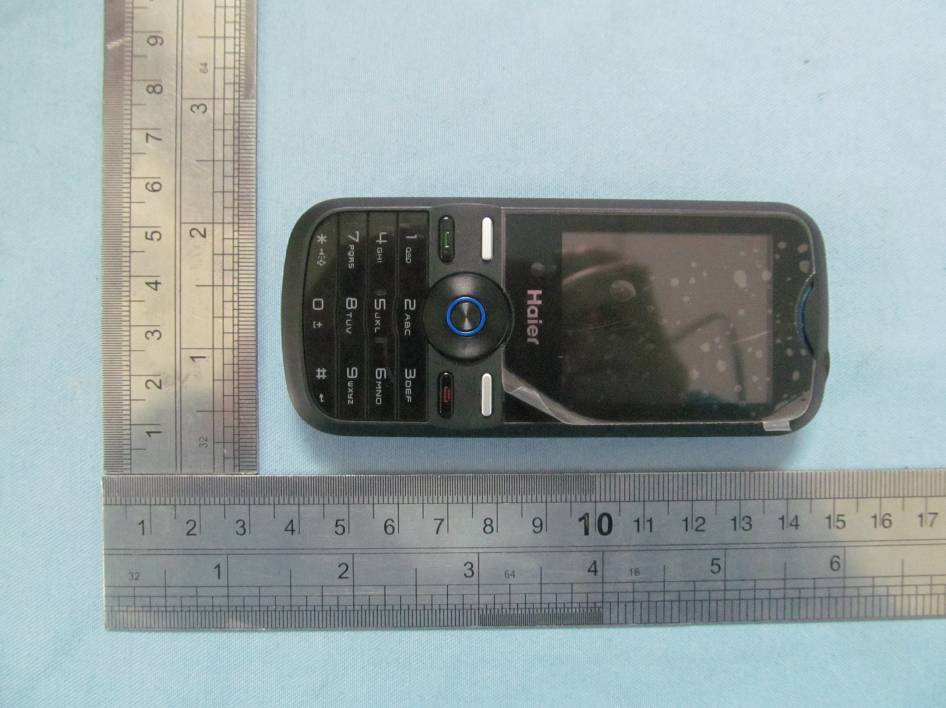

TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FRONT VIEW OF SAMPLE BACK VEIW OF SAMPLE ALL VIEW OF SAMPLE

FCC ID Label Location

OPEN VIEW OF SAMPLE-1 OPEN VIEW OF SAMPLE-2 OPEN VIEW OF SAMPLE-3 GSM Antenna Bluetooth Antenna INTERNAL VIEW OF SAMPLE – 1 INTERNAL VIEW OF SAMPLE – 2 INTERNAL VIEW OF SAMPLE – 3

SAR Test Report Report No.: AGC19U120201S1 FCC ID : SG71202HG-M306 Product Designation : Mobile Phone Brand Name : Haier Test model : HG-M306+ Client : Haier Telecom (Qingdao) Co., Ltd. Date of Issue : Feb.25,2012 STANDARD(S) : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Attestation of Global Compliance Applicant Applicant Manufact Manufact Product N Brand Na Model Na EUT Volta Applicabl Te s t D a te Te s t R e su Performe t Name t Address turer Name turer Addres Name ame ame age e Standard e ults ed Location Test : Hai : No. : Hai ss : No. : mo : Hai : HG : DC : FCC IEE : 02 - : M A Hea Bod : Att e 1F. Xix Tested Checke d Authorize t Repo ier Telecom .1 Haier Roa ier Telecom .1 Haier Roa bile phone ier G-M306+ C3.7V C Oet65 Su EE Std. 1528 -25-2012 AX SAR MEA ad:0.739 W/ dy:0.733 W/ estation of G , No.2 Build iang, Baoan By d By ed By ort Ce (Qingdao) C ad Hi-tech Z (Qingdao) C ad Hi-tech Z pplement C 8-2003,47CF ASUREMEN /Kg （Sca /Kg Global Comp ding, Huafe n District, Sh Angela L Forrest L Solger Zh a ertifica Co., Ltd. Zone Qingda Co., Ltd. Zone Qingda June 2001 FR § 2.10 NT(1g) ling SAR=1 . pliance Co., ng No.1 Te henzhen Li F Lei F ang F Report ation ao P.R.CHIN ao P.R.CHIN 93 .008W/Kg） Ltd. echnical Ind eb.25, 2012 eb.25, 2012 eb.25, 2012 No.:AGC19 Pa NA NA ustrial Park 9U120201S1 age 2 of 127 k, Sanwei, 1 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 3 of 127 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................... 4 1.1. EUT DESCRIPTION ............................................................................................................................. 4 1.2. TEST PROCEDURE ............................................................................................................................. 5 1.3. TEST ENVIRONMENT ........................................................................................................................... 5 2. SAR MEASUREMENT SYSTEM ............................................................................................................ 6 2.1. COMOSAR SYSTEM DESCRIPTION ..................................................................................................... 6 2.2. COMOSAR E-FIELD PROBE .............................................................................................................. 7 2.3 ROBOT .............................................................................................................................................. 8 2.4. VIDEO POSITIONING SYSTERM ............................................................................................................ 9 2.5. DEVICE HOLDER ................................................................................................................................ 9 2.6. SAM TWIN PHANTOM ....................................................................................................................... 10 3. TISSUE SIMULATING LIQUID ............................................................................................................. 11 3.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ........................................................................... 11 3.2. TISSUE CALIBRATION RESULT ............................................................................................................. 11 3.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ..................................................... 12 4. SAR MEASUREMENT PROCEDURE ................................................................................................ 13 4.1. SAR SYSTEM VALIDATION ................................................................................................................. 13 4.2. SAR MEASUREMENT PROCEDURE .................................................................................................... 15 5. SAR EXPOSURE LIMITS ................................................................................................................... 16 6. TEST EQUIPMENT LIST .................................................................................................................... 17 7. MEASUREMENT UNCERTAINTY ....................................................................................................... 18 8. CONDUCTED POWER MEASUREMENT ........................................................................................... 19 9. TEST RESULTS ................................................................................................................................. 20 9.1. SAR TEST RESULTS SUMMARY ......................................................................................................... 20 APPENDIX A. SAR SYSTEM VALIDATION DATA ................................................................................. 25 APPENDIX B. SAR MEASUREMENT DATA ........................................................................................... 29 APPENDIX C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPS .................................................. 89 APPENDIX D. PROBE CALIBRATION DATA ...................................................................................... 101 APPENDIX E. DIPOLE CALIBRATION DATA ....................................................................................... 110 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 4 of 127 1. General Information 1.1. EUT Description Product Name mobile phone Model No. HG-M306+ Hardware Version D460_MB_PCB_P1 Software Version HG-M306+ -H01-S005-Guatemala-Tigo Device Category Portable RF Exposure Environment Uncontrolled Antenna Type Internal GSM and GPRS Support Band GSM850/PCS1900 It a…

Text truncated - open the document above for the full version.

Report No.:AGC19U120201S1 Page 76 of 127 3D screen shot Hot spot position Attestation of Global Compliance Report No.:AGC19U120201S1 Page 77 of 127 Test Laboratory: AGC Lab data time: 2012-02-25 PCS 1900 Mid-Body- worn (3up) DUT: Mobile Phone; Type: HG-M306+ Communication System: GPRS-3Slot; Communication System Band: PCS1900; Duty Cycle:1:2.8; ConvF=6.42 Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ = 1.50 mho/m; εr =52.66; ρ = 1000 kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.0, Liquid temperature (°C): 21.0 Satimo Configuration: Probe:SSE5; Calibrated: 09/12/2011 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/GPRS1900 Mid Body-Back/Area Scan: Measurement grid: dx=20mm, dy=20mm Configuration/GPRS1900 Mid Body-Back/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5m; SAR(1 g) = 0.120 W/Kg; SAR(10 g) = 0.079 W/Kg; Zoom SAR(1g)=0.126 W/Kg Area Scan surf_sam_plan.txt ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Very fast Phantom Validation plane Device Position Body Band GSM1900 Channels Middle Signal TDMA (Crest factor: 2.7) Attestation of Global Compliance Report No.:AGC19U120201S1 Page 78 of 127 SURFACE SAR VOLUME SAR Maximum location: X=8.00, Y=-26.00 SAR 10g (W/Kg) 0.079281 SAR 1g (W/Kg) 0.119702 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.1256 0.0849 0.0595 0.0440 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 79 of 127 3D screen shot Hot spot position Attestation of Global Compliance Report No.:AGC19U120201S1 Page 80 of 127 Test Laboratory: AGC Lab data time: 2012-02-25 PCS 1900 Mid-Body- worn (4up) DUT: Mobile Phone; Type: HG-M306+ Communication System: GPRS-4Slot; Communication System Band: PCS1900;Duty Cycle: 1:2.1; ConvF=6.42 Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ = 1.50 mho/m; εr =52.66; ρ = 1000 kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.0, Liquid temperature (°C): 21.0 Satimo Configuration: Probe:SSE5; Calibrated: 09/12/2011 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/GPRS1900 Mid Body-Back/Area Scan: Measurement grid: dx=20mm, dy=20mm Configuration/GPRS1900 Mid Body-Back/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5m; SAR(1 g) = 0.121 W/Kg; SAR(10 g) = 0.079 W/Kg; Zoom SAR(1g)=0.126 W/Kg Area Scan surf_sam_plan.txt ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Very fast Phantom Validation plane Device Position Body Band GSM1900 Channels Middle Signal TDMA (Crest factor: 2.0) Attestation of Global Compliance Report No.:AGC19U120201S1 Page 81 of 127 SURFACE SAR VOLUME SAR Maximum location: X=7.00, Y=-31.00 SAR 10g (W/Kg) 0.078966 SAR 1g (W/Kg) 0.120701 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.1255 0.0815 0.0560 0.0418 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 82 of 127 3D screen shot Hot spot position Attestation of Global Compliance Report No.:AGC19U120201S1 Page 83 of 127 Test Laboratory: AGC Lab data time: 2012-02-25 PCS 1900 Front-Body- worn DUT: Mobile Phone; Type: HG-M306+ Communication System: Generic GSM; Communication System Band: PCS 1900;Duty Cycle:1:8 ; convF=6.42 Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ = 1.50 mho/m; εr =52.66; ρ = 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.0, Liquid temperature (°C): 21.0 Satimo Configuration: Probe:SSE5; Calibrated: 09/12/2011 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/GPRS1900 Mid Body-Back/Area Scan: Measurement grid: dx=20mm, dy=20mm Configuration/GPRS1900 Mid Body-Back/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5mm; SAR(1 g) = 0.568 W/g; SAR(10 g) = 0.408 W/g; Zoom SAR(1g)=0.586W/Kg Area Scan surf_sam_plan.txt ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Very fast Phantom Validation plane Device Position Body Band GSM1900 Channels Middle Signal TDMA (Crest factor: 8) Attestation of Global Compliance Report No.:AGC19U120201S1 Page 84 of 127 SURFACE SAR VOLUME SAR Maximum location: X=7.00, Y=-7.00 SAR 10g (W/Kg) 0.407725 SAR 1g (W/Kg) 0.567838 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.5855 0.4349 0.3348 0.2696 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 85 of 127 3D screen shot Hot spot position Attestation of Global Compliance Report No.:AGC19U120201S1 Page 86 of 127 Test Laboratory: AGC Lab data time: 2012-02-25 PCS 1900 Mid-Body- worn (with headset) DUT: Mobile Phone; Type: HG-M306+ Communication System: Generic GSM;Communication System Band:PCS 1900; Duty Cycle:1:8 ;ConvF=6.42 Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ = 1.50 mho/m; εr =52.66; ρ = 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.0, Liquid temperature (°C): 21.0 Satimo Configuration: Probe:SSE5; Calibrated: 09/12/2011 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/GPRS1900 Mid Body-Back/Area Scan: Measurement grid: dx=20mm, dy=20mm Configuration/GPRS1900 Mid Body-Back/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5mm; SAR(1 g) = 0.355 W/g; SAR(10 g) = 0.222 W/g; Zoom SAR(1g)=0.362W/Kg Area Scan surf_sam_plan.txt ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Very fast Phantom Validation plane Device Position Body Band GSM1900 Channels Middle Signal TDMA (Crest factor: 8.0) Attestation of Global Compliance Report No.:AGC19U120201S1 Page 87 of 127 SURFACE SAR VOLUME SAR Maximum location: X=15.00, Y=-24.00 SAR 10g (W/Kg) 0.221978 SAR 1g (W/Kg) 0.355219 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.3622 0.2276 0.1470 0.1000 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 88 of 127 3D screen shot Hot spot position Attestation of Global Compliance Report No.:AGC19U120201S1 Page 89 of 127 Appendix C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPS Test Setup Photographs LEFT-CHECK TOUCH LE…

Text truncated - open the document above for the full version.

Report No.:AGC19U120201S1 Page 91 of 127 Body Back15mm Front Back15mm Attestation of Global Compliance Report No.:AGC19U120201S1 Page 92 of 127 Body back with Headset Attestation of Global Compliance Report No.:AGC19U120201S1 Page 93 of 127 DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2003 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 94 of 127 EUT PHOTOGRAPS TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Attestation of Global Compliance Report No.:AGC19U120201S1 Page 95 of 127 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Attestation of Global Compliance Report No.:AGC19U120201S1 Page 96 of 127 FRONT VIEW OF SAMPLE BACK VEIW OF SAMPLE Attestation of Global Compliance Report No.:AGC19U120201S1 Page 97 of 127 ALL VIEW OF SAMPLE OPEN VIEW OF SAMPLE-1 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 98 of 127 OPEN VIEW OF SAMPLE-2 OPEN VIEW OF SAMPLE-3 Bluetooth Antenna GSM Antenna 0.5cm Attestation of Global Compliance Report No.:AGC19U120201S1 Page 99 of 127 INTERNAL VIEW OF SAMPLE-1 INTERNAL VIEW OF SAMPLE-2 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 100 of 127 INTERNAL VIEW OF SAMPLE-3 INTERNAL VIEW OF SAMPLE-4 Attestation of Global Compliance

Report No.:AGC19U120201S1 Page 101 of 127 Appendix D. Probe Calibration Data Attestation of Global Compliance Report No.:AGC19U120201S1 Page 102 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 103 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 104 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 105 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 106 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 107 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 108 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 109 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 110 of 127 Appendix E. Dipole Calibration Data Attestation of Global Compliance Report No.:AGC19U120201S1 Page 111 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 112 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 113 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 114 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 115 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 116 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 117 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 118 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 119 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 120 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 121 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 122 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 123 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 124 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 125 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 126 of 127 Attestation of Global Compliance Report No.:AGC19U120201S1 Page 127 of 127 Attestation of Global Compliance

FCC Test Report Report No.: AGC19U120201F1 FCC ID : SG71202HG‐M306 PRODUCT DESIGNATION : Mobile Phone BRAND NAME : Haier MODEL NAME : HG‐M306+ CLIENT : Haier Telecom (Qingdao) Co., Ltd. DATE OF ISSUE : Feb. 27, 2012 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. 1. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC19U120201F1 Page 1 of 22 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 2 2. PRODUCT INFORMATION ........................................................................................................................... 3 3. TEST FACILITY ............................................................................................................................................. 4 4. SUPPORT EQUIPMENT LIST ....................................................................................................................... 5 5. SYSTEM DESCRIPTION ............................................................................................................................... 5 6 SUMMARY OF TEST RESULTS .................................................................................................................... 6 7. FCC LINE CONDUCTED EMISSION TEST .................................................................................................. 7 7.1. TEST EQUIPMENT OF LINE CONDUCTED EMISSION TEST ................................................... 7 7.2 .LIMITS OF LINE CONDUCTED EMISSION TEST .................................................................... 7 7.3. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .................................................... 7 7.4. PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 8 7.5 TEST RESULT OF LINE CONDUCTED EMISSION TEST .......................................................... 9 8. FCC RADIATED EMISSION TEST .............................................................................................................. 11 8.1. TEST EQUIPMENT OF RADIATED EMISSION .......................................................................................... 11 8.2. LIMITS OF RADIATED EMISSION TEST ..................................................................................................... 11 8.3 BLOCK DIAGRAM OF RADIATED EMISSION TEST .................................................................................. 11 8.4 PROCEDURE OF RADIATED EMISSION TEST ......................................................................................... 11 8.4 PROCEDURE OF RADIATED EMISSION TEST ......................................................................................... 12 8.5 TEST RESULT OF RADIATED EMISSION TEST ........................................................................................ 13 APPENDIX 1 ..................................................................................................................................................... 15 PHOTOGRAPHS OF TEST SETUP ................................................................................................................. 15 APPENDIX 2 ..................................................................................................................................................... 16 PHOTOGRAPHS OF EUT ................................................................................................................................ 16 Report No.: AGC19U120201F1 Page 2 of 22 1. VERIFICATION OF COMPLIANCE Applicant: Haier Telecom (Qingdao) Co., Ltd. No.1 Haier Road Hi-tech Zone Qingdao P.R.CHINA Manufacturer: Haier Telecom (Qingdao) Co., Ltd. No.1 Haier Road Hi-tech Zone Qingdao P.R.CHINA Product Designation: Mobile Phone Brand name: Haier Model Name: HG-M306+ FCC ID: SG71202HG-M306 Measurement Procedure: ANSI C63.4: 2003 File Number: AGC19U120201F1 Date of test: Feb.23, 2012 to Feb.24, 2012 Deviation: None Condition of Test Sample: Normal The above equipment was tested by Attestation Of Global Compliance Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2003. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tested By : Curoky Chen Feb. 27, 2012 Reviewed By : Forrest Lei Feb. 27, 2012 Approved By: Solger Zhang Feb. 27, 2012 Report No.: AGC19U120201F1 Page 3 of 22 2. PRODUCT INFORMATION I/O Port Information ( Applicable Not Applicable) I/O Port of EUT I/O Port Type Q’TY Cable Tested with USB port 1 1.0 m, unshielded 1 earphone 1 1.5m, unshielded 1 Frequency Band： GSM850 MHz :824.2 MHz – 848.8 MHz PCS 1900 MHz :1850.2 MHz – 1909.8 MHz It also supports GSM 900 / DCS 1800 non-US bands Housing Type: Plastic EUT Rating Voltage: DC 3.7V by battery Adapter Input AC100~240V,50/60Hz,150mA Adapter Output DC5.0V,550mA Report No.: AGC19U120201F1 Page 4 of 22 3. TEST FACILITY Facility Attestation of Global Compliance Co., Ltd. Location: 1F, No.2 Building, Huafeng No.1 Technical, Industrial Park, Sanwei, Xixiang, Baoan District, Shenzhen, China Description: The test site is constructed and calibrated to meet the FCC requirements in documents ANSI C63.4:2003. Site Filing: The FCC Registration Number is 259865 Instrument Tolerance: All measuring equipment is in accord with ANSI C63.4 requirements that meet industry regulatory agency and accreditation agency requirement. Report No.: AGC19U120201F1 Page 5 of 22 4. SUPPORT EQUIPMENT LIST Device Type Manufacturer Model Name Serial No. Data Cable Power Cable PC DELL Ins15RD-958 -- N/A 1.5m unshielded *…

Text truncated - open the document above for the full version.

FCC Test Report Report No.: AGC19U120201F2A FCC ID : SG71202HG-M306 PRODUCT DESIGNATION : Mobile Phone BRAND NAME : Haier TEST MODEL : HG-M306+ CLIENT : Haier Telecom (Qingdao) Co., Ltd. DATE OF ISSUE : Feb. 27, 2012 STANDARD(S) : FCC Part 22H & 24E Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC19U120201F2A Page 1 of 49 VERIFICATION OF COMPLIANCE Applicant: Haier Telecom (Qingdao) Co., Ltd. No.1 Haier Ro…

Text truncated - open the document above for the full version.
