SG71204HC-C330MOBILE PHONE

· Copyright©2012 Haier Technologies Co.., Ltd All Rights Reserved Reproduction, transfer, distribution or storage of part or all of the cont ents in this document in any form without the prior written permi ssion as Haier Technologies Co.., Ltd. Statement The contents of this manual maybe different wi th the cell phone please according to the cell phone. Haier reserves the right to revise this documen t or withdraw it at any time without prior notice. Safety Precautions Please read these simple guidelines. Not following them may be dangerous or illegal. For further information, see the section of “Warnings and Precautions”. Do not switch the phone on when Mobile Phone use is prohibited or when it may cause interference or danger. Do not place your phone and its accessories in containers with strong electromagnetic field. Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideratio n while driving should be road safety. Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Do not use the phone at a refueling point. Do not use near fuel or chemicals. Follow any restrictions. Wireless devices can cause interference in aircraft. Keep the phone and all its parts, includi ng accessories, out of the reach of small children. Use only approved batteries and chargers . Disconnect the charger from the power source when it is not in use. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its lift. Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device. i Contents 1 Getting to Know Your Phone ................................................................................. 1 2 Getting St arted ........................................................................................................ 6 3 Basic Functions ....................................................................................................... 8 4 Text Entry .............................................................................................................. 11 5 Contacts ................................................................................................................. 12 6 Messages ................................................................................................................ 15 7 Call Hi story ........................................................................................................... 18 8 Profiles ................................................................................................................... 19 9 Alarm ..................................................................................................................... 1 9 10 Tools ..................................................................................................................... 20 11 Settings ................................................................................................................. 2 2 12 My Data ............................................................................................................... 27 ii 13 Extras ................................................................................................................... 2 7 14 Care And Maintain ............................................................................................. 28 15 Safe Information ................................................................................................. 31 1 1 Getting to Know Your Phone Basic specification Size: 108.5*45.8*12.9 (mm) Standby Time: about 360 hours Talking Time: about 410 Minutes  Notice: Standby time is the handset continuous work ing time without making phone calls. Standby time and talking time are both depending on mobile phone using situations, network situations and environments. Mobile phone appearance Mobile phone view 2 3 The appearance of the mobile phone and introductions Name Description (1) Left soft key In standby mode, press left soft key to the main menu. (2) Right soft key In standby mode, press right soft key to enter contacts. (3) Send key Making or answering a call. In standby mode, press this key to enter the all calls screen. (4) End (power) key End calls or reject calls. Long press: power on, power off. (5) Up key In standby mode, short press up key to Message Menu. (5) Down key In standby status, press down key to Contacts Menu. (5) Left key In standby mode, press left key to enter FM Radio. (5) Right key In standby mode, press right key to enter Alarm. (5) Center key In standby mode, short press Center key to enter Main menu. (6) Number keys Number keys. 4 (7) Charger connector Plug the travel adapter into the charger connector. (7) Headset connector (8) Electric torch Before using headset, pull in the headset to this port. In standby mode, Long press the down key will on/off the flashlight. Icon bar Icon Description Indicates signal strength. Indicates call in progress. Indicating the mobile phone is under roaming service mode. Indicating the keypad is locked. Indicating the phone is locked. One or several new text messages. One or several new voice mails. Playing the FM radio function. 5 Icon Description Connect the earphone. You have set the alarm clock. You have set the scheduler. You have set the general mode. You have set the outdoor mode. You have set the meeting mode. You have set the silence mode. You have set the mute mode. Indicating battery power level. 1X data flow. 6 2 Getting Started Install and charge the phone 1. Remove the back casing 2. Insert the RUIM card 7 3. Insert the battery 4. Insert the back casing 8 3 Basic Functions Switching On/Off In the power off status, long press the Power Key to switch on the phone. In the power on status, long pr…

Text truncated - open the document above for the full version.

Date: Sept.21, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Haier Telecom (Qingdao) Co., Ltd. , the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Haier Telecom (Qingdao) Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID # SG71204HC-C330 including the signing of documents in connection with this Application. Necessary acts carried out by Haier Telecom (Qingdao) Co., Ltd. on our behalf of the Haier Telecom (Qingdao) Co., Ltd. in connection with the Application shall have the same effect as acts of the Haier Telecom (Qingdao) Co., Ltd.. The Haier Telecom (Qingdao) Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Sincerely Yours, James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Date: Sept.21, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Haier Telecom (Qingdao) Co., Ltd. FCC ID: SG71204HC-C330 FCC Part 22H Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Haier Telecom (Qingdao) Co., Ltd. requests that the following documents regarding this submission for FCC ID: SG71204HC-C330 be kept confidential: Exhibit Type File Name Block Diagram SG71204HC-C330_Block Diagram.pdf Schematics SG71204HC-C330_Schematics.pdf Operational Description SG71204HC-C330_Operational description.pdf Part list SG71204HC-C330_BOM.pdf Tune-Up-Procedure SG71204HC-C330_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Haier Telecom (Qingdao) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Haier Telecom (Qingdao) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

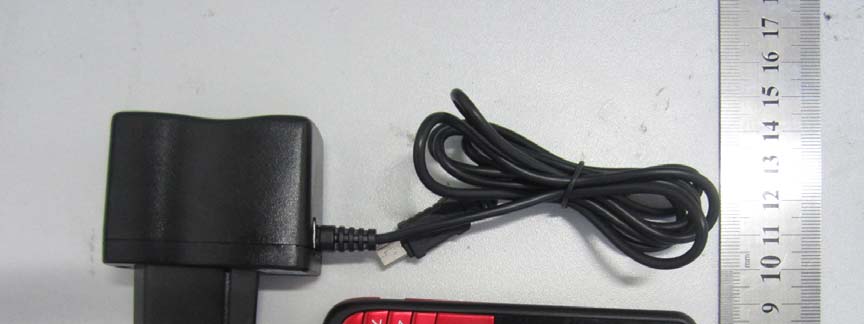

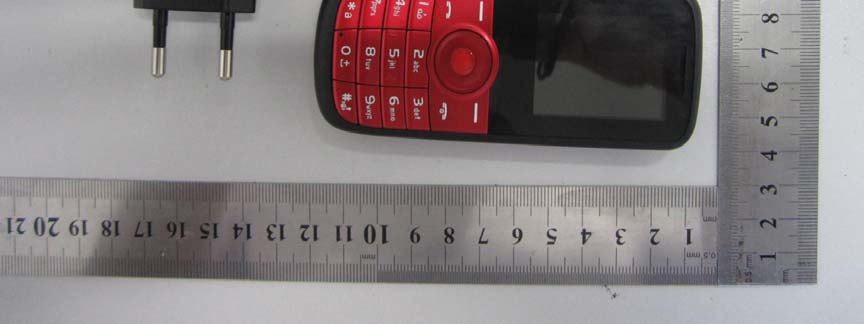

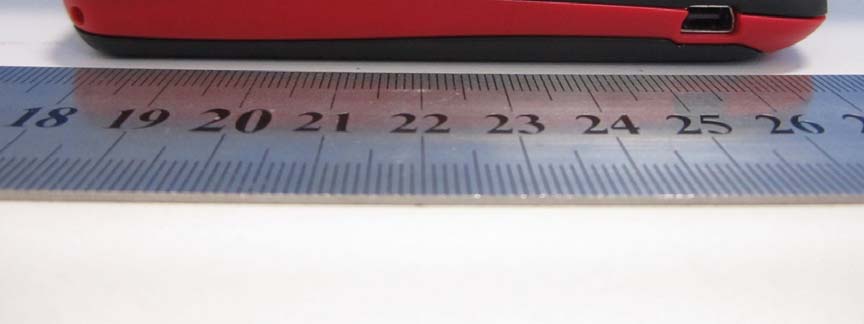

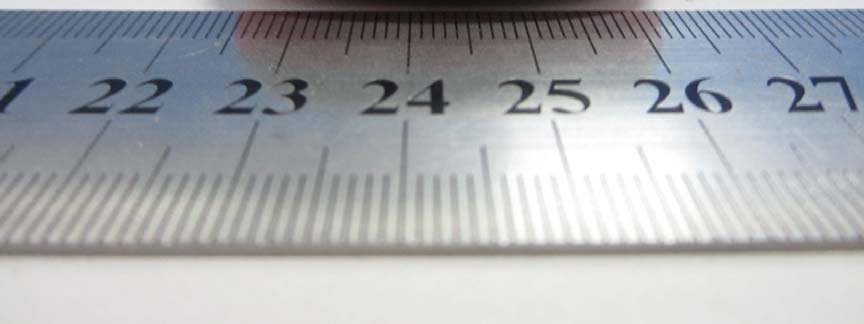

External Photos

FCC ID: SG71204HC-C330 Label Label Location

Date: Sept.21, 2012 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG71204HC-C330 Dear Sirs: Haier Telecom (Qingdao) Co., Ltd. requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier SG71204HC-C330. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22H for CDMA mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom (Qingdao) Co., Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Senior Tech LLC will add the FCC identifier " SG71204HC-C330 " to the outside of the consumer "gift box" packaging. Besides, the USB Connector is for charging purpose. The mobile phone has no data transmission function. Thank you for your attention to this matter. Sincerely Yours, James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Internal Photos

SZ12090025S01 Page 2 of 45 DIRECTORY DIRECTORY ...................................................................................................................................... 2 1. TESTING LABORATORY ............................................................................................................. 3 1.1.IdentificationoftheResponsibleTestingLaboratory ............................................................ 3 1.2.IdentificationoftheResponsibleTestingLocation ................................................................. 4 1.3.AccreditationCertificate ............................................................................................................ 4 1.4.ListofTestEquipments ............................................................................................................. 4 2. TECHNICAL INFORMATION ....................................................................................................... 5 2.1.IdentificationofApplicant ......................................................................................................... 5 2.2.IdentificationofManufacturer .................................................................................................. 5 2.3.EquipmentUnderTest(EUT) ................................................................................................... 5 2.3.1.PhotographsoftheEUT .......................................................................................................... 5 2.3.2.IdentificationofallusedEUT ................................................................................................. 5 2.4.AppliedReferenceDocuments .................................................................................................. 6 2.5.DeviceCategoryandSARLimits ............................................................................................... 6 2.6.TestEnvironment/Conditions .................................................................................................. 7 3. SPECIFIC ABSORPTION RATE (SAR) ........................................................................................ 8 3.1.Introduction ................................................................................................................................ 8 3.2.SARDefinition ............................................................................................................................ 8 4. SAR MEASUREMENT SETUP ...................................................................................................... 9 4.1.TheMeasurementSystem ......................................................................................................... 9 4.2.Probe ........................................................................................................................................... 9 4.3.ProbeCalibrationProcess ....................................................................................................... 11 4.3.1DosimetricAssessmentProcedure ...................................................................................... 11 4.3.2FreeSpaceAssessmentProcedure ....................................................................................... 11 4.3.2TemperatureAssessmentProcedure ................................................................................... 11 4.4.Phantom .................................................................................................................................... 12 4.5.DeviceHolder ........................................................................................................................... 12 5. TISSUE SIMULATING LIQUIDS ................................................................................................ 13 6. UNCERTAINTY ASSESSMENT .................................................................................................. 15 6.1.UNCERTAINTYEVALUATIONFOREUTSARTEST ............................................................... 15 1.1.UNCERTAINTYFORSYSTEMPERFORMANCECHECK ......................................................... 16 SZ12090025S01 Page 3 of 45 7. SAR MEASUREMENT EVALUATION ....................................................................................... 18 7.1.SystemSetup ............................................................................................................................ 18 7.2.ValidationResults .................................................................................................................... 19 8. OPERATIONAL CONDITIONS DURING TEST ........................................................................ 20 8.1.Informationsonthetesting ..................................................................................................... 20 8.2.Body‐wornConfigurations ...................................................................................................... 20 8.3.Measurementprocedure ......................................................................................................... 21 8.4.Descriptionofinterpolation/extrapolationscheme ............................................................. 21 9. MEASUREMENT OF CONDUCTED PEAK OUTPUT POWER ................................................ 23 9. TEST RESULTS LIST .................................................................................................................. 24 ANNEX A PHOTOGRAPHS OF THE EUT ..................................................................................... 25 ANNEX B GRAPH TEST RESULTS ................................................................................................ 29 Change History IssueDateReason for change 1.0Sep. 19, 2012First edition 1. Testing Laboratory 1.1. Identification of the Responsible Testing Laboratory Company Name:Shenzhen Morlab Communications Technology Co., Ltd. Department:Morlab Laboratory Address:3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518…

Text truncated - open the document above for the full version.

 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         1    COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology          This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         2  COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Date SAR TEAM MANAGER  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         3  PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         4  MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         5  PROBE UNCERTAINTIES  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         6  1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW)     Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula:   EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         7  Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.00031…

Text truncated - open the document above for the full version.

Report No.: SZ12090025W01 Page 2 of 23 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 4 1.3 Facilities and Accreditations ...................................................................................................... 5 2. 47 CFR PART 2, PART 22H REQUIREMENTS .................................................................... 6 2.1 Conducted RF Output Power .................................................................................................... 6 2.2 99% Occupied Bandwidth ......................................................................................................... 9 2.3 Frequency Stability ................................................................................................................... 11 2.4 Conducted Out of Band Emissions ......................................................................................... 13 2.5 Band Edge ................................................................................................................................. 15 2.6 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 17 2.7 Radiated Out of Band Emissions ............................................................................................ 20 Change History Issue Date Reason for change 1.0 Sep 19, 2012 First edition Report No.: SZ12090025W01 Page 3 of 23 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : Mobile phone Model Name ......................... : HC-C330 Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : SP Software Version .................. : Applicant .............................. : Manufacturer ........................ : HC-C330_R-S005 Qingdao Haier Telecom Co., Ltd No.1 Haier Road, Hi-tech Zone,Qingdao,266101,P.R.China Qingdao Haier Telecom Co., Ltd No.1 Haier Road, Hi-tech Zone,Qingdao,266101,P.R.China Frequency Range .................. : CDMA 800MHz: Tx: 824.7-848.31 MHz; Rx: 869.7-893.31MHz Modulation Type................... : CDMA 1X Emission Designators ........... : 1M26F9W Modulation Type................... : PIFA Antenna Note 1: The EUT is a model of mobile Phone operating in Cellular and PCS bands. Note 2: The normal configuration for the EUT is the Mobile Phone (MS) associated with ancillary equipments e.g. the Battery and/or the AC Adapter (Charger). Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ12090025W01 Page 4 of 23 1.2 Test Standards and Results The objective of the report is to perform testing according to: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-09 Edition) Public Mobile Services Test detailed items/section required by FCC rules and results are as below: No. Section in CFR Description Test Band Result 1 2.1046 Conducted RF Output Power CDMA 800MHz PASS 2 2.1049 Occupied Bandwidth CDMA 800MHz PASS 3 2.1055 22.355 Frequency Stability CDMA 800MHz PASS 4 2.1051 2.1057 22.917 Conducted Out of Band Emissions CDMA 800MHz PASS 5 2.1051 2.1057 22.917 Band Edge CDMA 800MHz PASS 6 22.913 Transmitter Radiated Power (EIPR/ERP) CDMA 800MHz PASS 7 2.1053 2.1057 22.917 Radiated Out of Band Emissions CDMA 800MHz PASS NOTE：This report in accordance with according to ANSI/TIA-603-D 2010 standard method Report No.: SZ12090025W01 Page 5 of 23 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 Report No.: SZ12090025W01 Page 6 of 23 2. 47 CFR PART 2, PART 22H REQUIREMENTS 2.1 Conducted RF Output Power 2.1.1 Requirement According to FCC section 2.1046(a), for transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on the circuit elements specified 2.1.2 Test Description 1. Test Setup: The EUT, which is powered by the Battery, is coupled to the Spectrum Analyzer (SA) and the System Simulator (SS) with Attenuators through the Power Splitter; the RF load attached to the EUT antenna terminal is 50Ohm; the path loss as the factor is calibrated to correct the reading. The EUT is commanded by the SS to operate at the maximum output power i.e. a call is established between the EUT and the SS. 2. Equipments List: Description Manufacturer Model Serial No. Cal. Date System Simulator Agilent E5515C GB43130131 2012.05 Spectrum Analyzer Agilent E7405A US44210471 2012.05 Power Splitter Weinschel 1506A NW521 (n.a.) Attenuator 1 Resnet 20dB (n.a.) (n.a.) Attenuator 2 Resnet 3dB (n.a.) (n.a.) System…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CSE 2. RSE
