SG7200611HG-A7GSM Mobile Phone

CEC Wireless 84-20-0042-20-06 1 H2113 User’s Manual （Version: draft） 【Document Code】 【Confidentiality level】 III 【Project Name】 H2113 【 Issue date】 July 23, 2006 【Compiled by】 Shayla xia 【Abstract】 Introduce how to use H2113 mobile phone. 【Key word】Mobile introduction, function introduction, menus introduction, accessories CEC Wireless 84-20-0042-20-06 2 Catalogue 1. Mobile introduction......................................................................................................10 1.1 Keypad area ........................................................................................................................................10 1.1.1 Number/ alphabet key.......................................................................................................10 1.1.2 Control key .......................................................................................................................12 1.1.3 Key operation under idle state ..........................................................................................13 1.1.4 Key operation when without SIM card.............................................................................13 1.2 LCD ....................................................................................................................................................13 1.3 Assembly and unassembly of battery .................................................................................................14 1.4 Assembly and unassembly of SIM card .............................................................................................15 1.5 Battery charging .................................................................................................................................15 2. Funtion introduction.....................................................................................................15 2.1 Turn on ...............................................................................................................................................15 2.2 Turn off...............................................................................................................................................16 2.3 Dial .....................................................................................................................................................16 2.4 Answer a call ......................................................................................................................................16 2.5 Inputting method.................................................................................................................................17 2.5.1 Pinyin method of Chinese Star .........................................................................................17 2.5.2 Stroke method of Chinese Star .........................................................................................18 2.5.3 Intellectual English method of Chinese Star ....................................................................18 2.5.4 Multi-Tap（abc/ABC）...................................................................................................18 2.5.5 Number（123）...............................................................................................................18 2.6 Phonebook ..........................................................................................................................................18 2.6.1 Query ................................................................................................................................19 2.6.2 List of phonebook.............................................................................................................19 2.6.3 Add new numbers.............................................................................................................20 2.6.4 Group numbers .................................................................................................................20 2.6.5 Select memory ..................................................................................................................20 2.6.6 Copy all ............................................................................................................................20 2.6.7 Move all............................................................................................................................21 2.6.8 Delete all...........................................................................................................................21 2.6.9 Capacity............................................................................................................................21 2.6.10 Personal information ......................................................................................................21 2.7 Lunar calendar and 24 solar terms......................................................................................................21 2.8 Reminder of festival congratulations..................................................................................................21 2.9 ID image .............................................................................................................................................21 2.10 Safer..................................................................................................................................................21 3. Menu operation..........................................................................................................21 3.1 Call record ..........................................................................................................................................22 CEC Wireless 84-20-0042-20-06 3 3.1.1 Outgoing call ....................................................................................................................22 3.1.2 Answered call .....................................................................................…

Text truncated - open the document above for the full version.

Date: 17 Jan, 2007 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Haier Telecom (Qingdao) Co., Ltd. FCC ID: SG7200611HG-A7 FCC Part 15 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Haier Telecom (Qingdao) Co., Ltd. requests that the following documents regarding this submission for FCC ID: SG7200611HG-A7 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Those documents contain detailed system and equipment description and related information about the product which Haier Telecom (Qingdao) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Haier Telecom (Qingdao) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

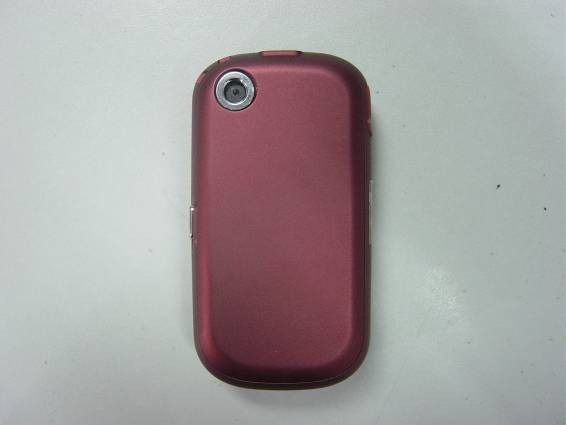

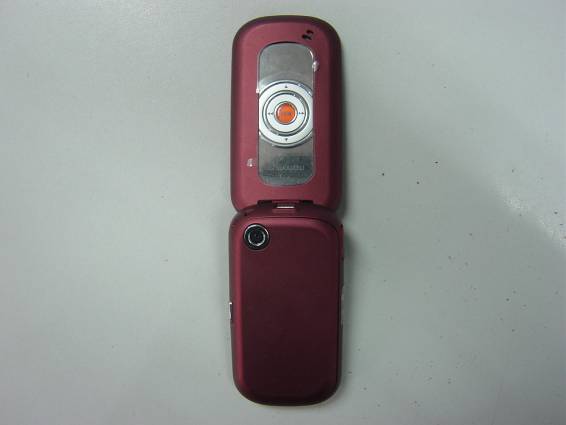

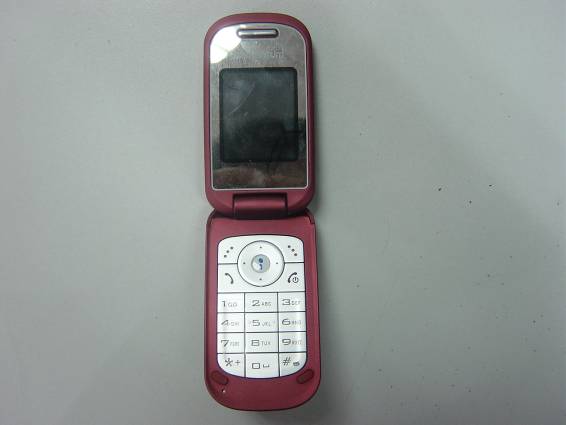

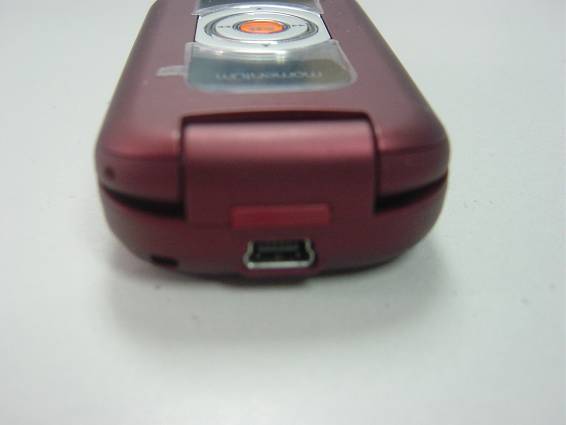

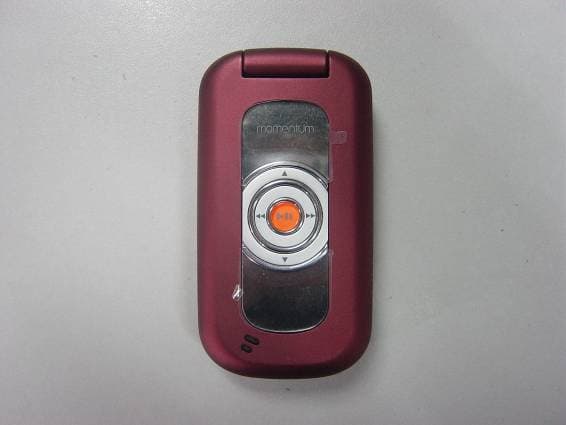

External Photos 1. Front View of EUT 2. Open View of EUT 3. Back View of EUT 4. Side View of EUT

17 Jan 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG7200611HG-A7 Dear Sirs: Haier Telecom (Qingdao) Co., Ltd. requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier SG7200611HG-A7. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22&24 for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Haier Telecom will add the FCC identifier " SG7200611HG-A7" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Label Label Location

Internal Photos

Report No.: SZ06120009E03 Page 2 of 27 TABLE OF CONTENTS 1.TEST RESULT CERTIFICATION ..........................................................................................3 2.GENERAL INFORMATION ....................................................................................................4 2.1Equipment under Test (EUT) Description ...............................................................................4 2.2Test Standards and Results ........................................................................................................5 2.3Facilities and Accreditations ......................................................................................................6 2.3.1Facilities ....................................................................................................................................6 2.3.2Test Equipments ........................................................................................................................6 2.3.3Test Environment Conditions....................................................................................................7 3.47 CFR PART 15B REQUIREMENTS ....................................................................................8 3.1General Information...................................................................................................................8 3.1.1EUT Function and Test Mode ...................................................................................................8 3.1.2Test Setup ..................................................................................................................................9 3.2Conducted Emission .................................................................................................................11 3.2.1Requirement ............................................................................................................................11 3.2.2Test Procedure .........................................................................................................................11 3.2.3Test Result ...............................................................................................................................12 3.3Radiated Emission ....................................................................................................................14 3.3.1Requirement ............................................................................................................................14 3.3.2Test Procedure .........................................................................................................................14 3.3.3Test Result ...............................................................................................................................15 ĉ PHOTOGRAPH OF THE TEST SETUP ...................................................................................17 Ċ PHOTOGRAPH OF THE EUT ...................................................................................................20 Report No.: SZ06120009E03 Page 4 of 27 2.General Information 2.1Equipment under Test (EUT) Description EUT 1 / MS: Description ........................... : 850/1800/1900 Tri-band Handset Model Name ......................... : HG-A7 Serial No. .............................. : --- IMEI ..................................... : 359832000196751 Hardware Version ................. : H04 Software Version .................. : 030 EUT 2 / Battery: Description ........................... : Li-ion Battery Model Name ......................... : H11092 Trade Name .......................... : Haier Serial No. .............................. : N/A Manufacturer ........................ : Shenzhen BYD Electronic Co. Ltd Capacitance........................... : 560mAh Rated Voltage........................ : 3.7V Charge Limit Voltage............ : 4.2V EUT 3 / Charger: Description ........................... : Travel Charger Model Name ......................... : H21080 Trade Name .......................... : Haier Serial No. .............................. : N/A Manufacturer ........................ : NINGBO LISHUNDA ELECTRON CO.,LTD. Rated Input ........................... : ~ 100-240V, 50/60Hz, 0.15A Rated Output......................... : 5.1V, 550mA Length of DC Cable.............. : 160cm NOTE: 1. The EUT consists of EUT 1 /MS and normal options EUT 2 /Battery and EUT 3 /Charger. 2. For the detailed function of the EUT and test mode used, please refer to section 3.1.1. 3. For detailed features about the EUT, please see user manual supplied by applicant. Report No.: SZ06120009E03 Page 5 of 27 2.2Test Standards and Results The objective of the report is to perform EMC tests according to 47 CFR Part 15 Subpart B, and the EUT is classified as a Class B digital device: No.IdentityDocument Title 1 47 CFR Part 15 (10-1-05 Edition) Radio Frequency Devices Test detailed items and the results are as below: No.RulesTest Type ResultDate of Test 1 §15.107 Conducted Emission PASS 2007-1-9 2 §15.109 Radiated Emission PASS 2007-1-9 Report No.: SZ06120009E03 Page 6 of 27 2.3Facilities and Accreditations 2.3.1Facilities Shenzhen Electronic Product Quality Testing Center (Morlab) is a testing organization accredited by China National Accreditation Board for Laboratories (CNAL) according to ISO/IEC 17025. The accreditation certificate number is L1659. All measurement facilities used to collect the measurement data are located at Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, P. R. China. The site was constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22, the FCC registration number is 741109. 2.3.2Test Equipments No.DescriptionSpecification 1 System Simulator Manufacturer: Rohde&Schwarz Model No.: CMU200 Serial No.: 100448 2 System Simulator Manufacturer: Agilent Model No.: E5515C Serial No.: GB43130131 3 Receiver Manufacturer: Agilent Model No.: E7405A Seri…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2. RE-USB 3. RE-MP3
