SG720150318M220GSM digital mobile phone

User Manual M220 Contents Basic Information ................................................................................................... 3 Brief Introduction ..................................................................................................... 3 Safety Notice ............................................................................................................. 3 Cleaning and Maintaining ........................................................................................ 3 Before Using ........................................................................................................... 3 SIM ........................................................................................................................... 4 Phone Unlock ........................................................................................................... 4 SIM Unlock ............................................................................................................... 4 Function menu Introduction .................................................................................. 4 Call center ................................................................................................................ 4 Call history ........................................................................................................... 4 Call settings .......................................................................................................... 5 Messaging ................................................................................................................. 7 Write message ...................................................................................................... 7 Inbox ..................................................................................................................... 7 Drafts .................................................................................................................... 8 Outbox .................................................................................................................. 8 Sent messages ....................................................................................................... 8 Message settings ................................................................................................... 8 Multimedia ................................................................................................................ 8 Camera.................................................................................................................. 8 Image viewer ........................................................................................................ 9 Video recorder ...................................................................................................... 9 Video player ......................................................................................................... 9 Audio player ......................................................................................................... 9 Sound recorder.................................................................................................... 10 FM radio ............................................................................................................. 10 Settings ................................................................................................................... 10 Profiles ................................................................................................................ 10 Phone settings ..................................................................................................... 11 Security settings.................................................................................................. 13 Network settings ................................................................................................. 14 Connectivity ....................................................................................................... 14 Restore settings ................................................................................................... 14 Shortcuts ............................................................................................................. 14 Phonebook .............................................................................................................. 14 Fun .......................................................................................................................... 15 Games ................................................................................................................. 15 File manager .......................................................................................................... 15 Services ................................................................................................................... 16 Internet service ................................................................................................... 16 SIM tool kit ........................................................................................................ 16 Organizer ................................................................................................................ 17 Calculator ........................................................................................................... 17 Bluetooth ............................................................................................................ 17 Calendar.............................................................................................................. 17 Alarm .................................................................................................................. 18 Torch .................................................................................................................. 18 3 Basic Information Brief Introduction Thank you for choosing M220 mobile phone. You can r…

Text truncated - open the document above for the full version.

Rev 11/20/07 Haier Telecom （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SG720150318M220. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram SG720150318M220_Block Diagram.pdf Circuit Diagram SG720150318M220_Schematics.pdf Operational Description SG720150318M220_Operational description.pdf Tune up procedure SG720150318M220_Tune up procedure.pdf BOM List SG720150318M220_BOM List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, James Shi

Date: 14 Apr, 2015 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: SG720150318M220 Dear Sirs: Haier Telecom (Qingdao) Co., Ltd. requests acceptance of the labeling proposal described below for mobile phone bearing FCC identifier SG720150318M220. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22 Subpart H and 24 Subpart E for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Haier Telecom proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Haier Telecom will add the FCC identifier " SG720150318M220" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

\\192.168.6.100\无线射频业务\任务\15-03486 海尔（M220）\签字表格\POA_Letter_140225.docx Haier Telecom （Qingdao） Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-04-08 SUBJECT: FCC Application for (SG720150318M220) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, James Shi

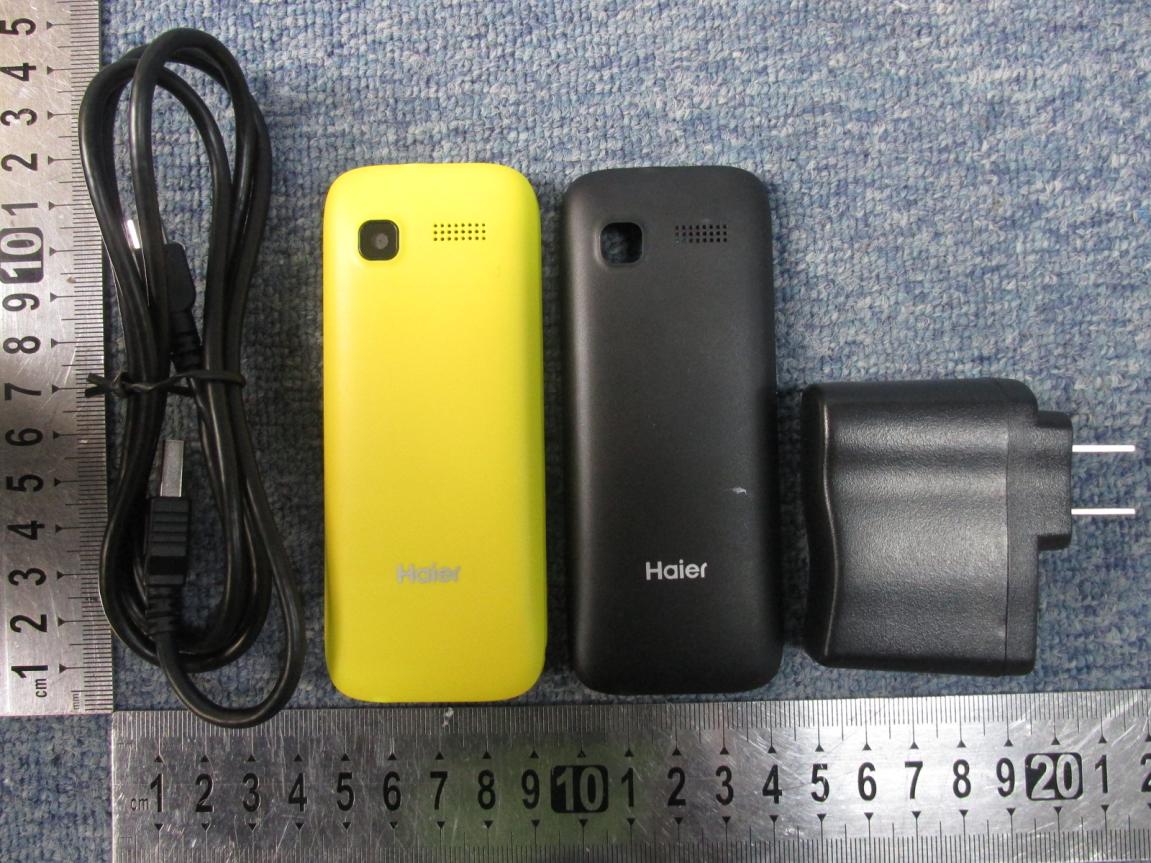

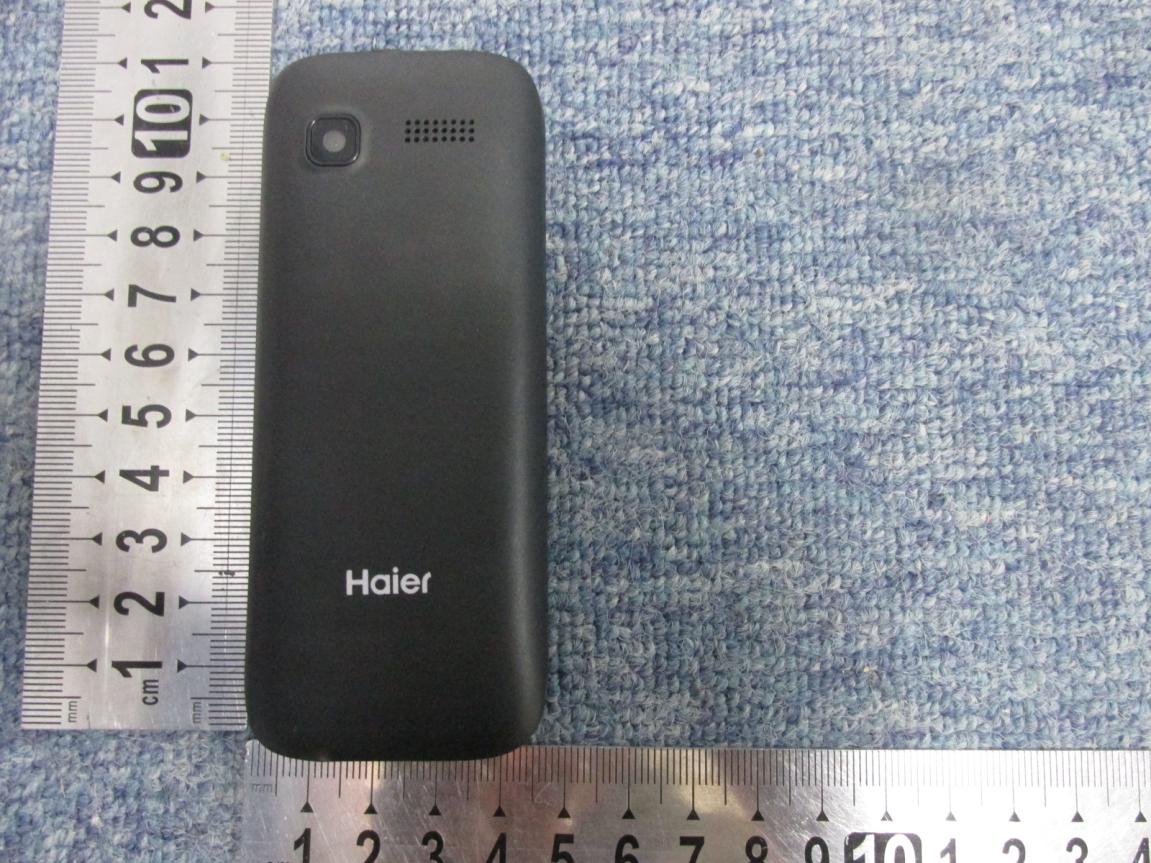

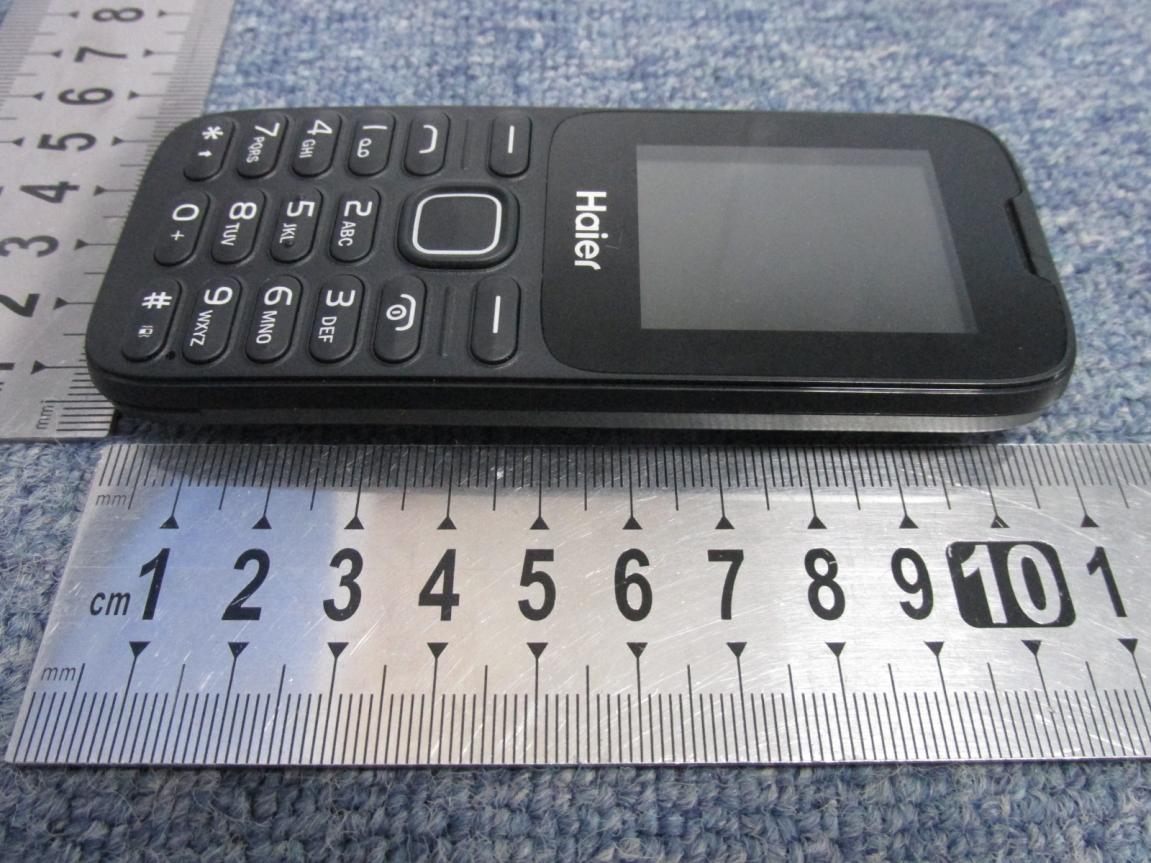

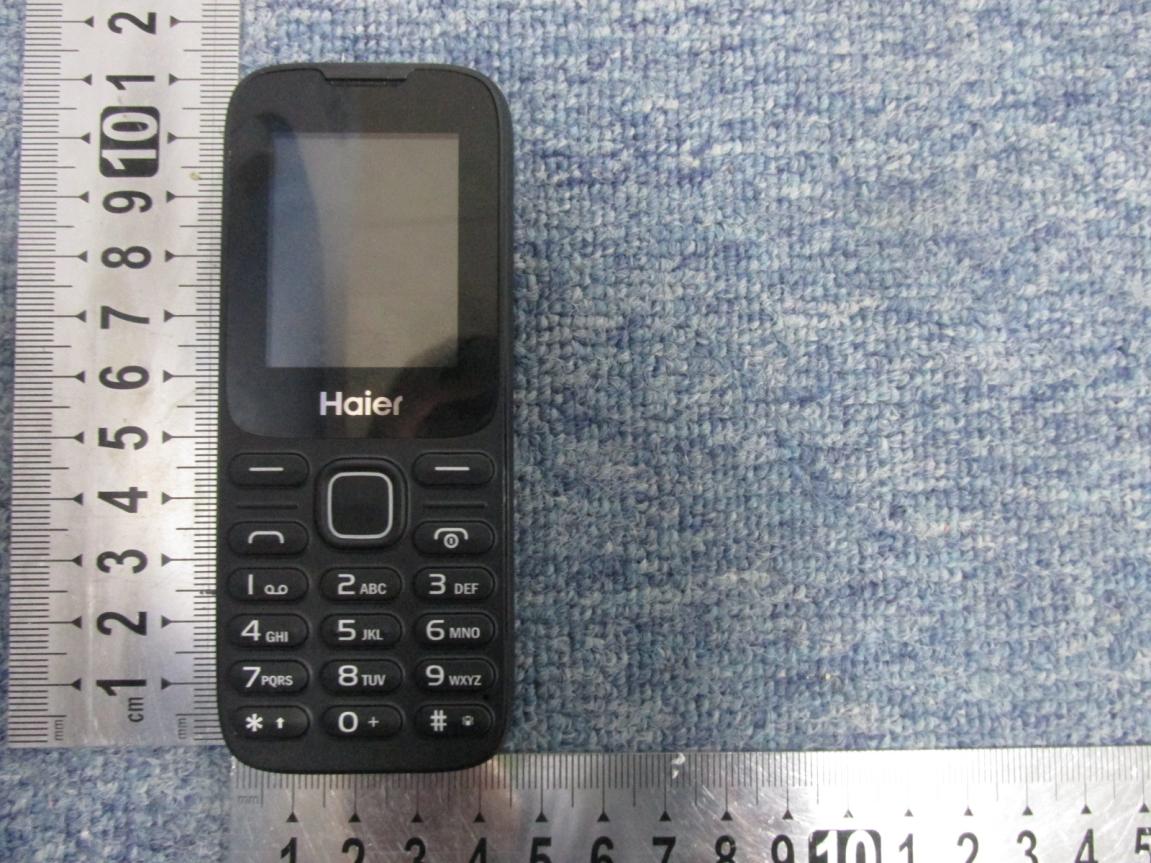

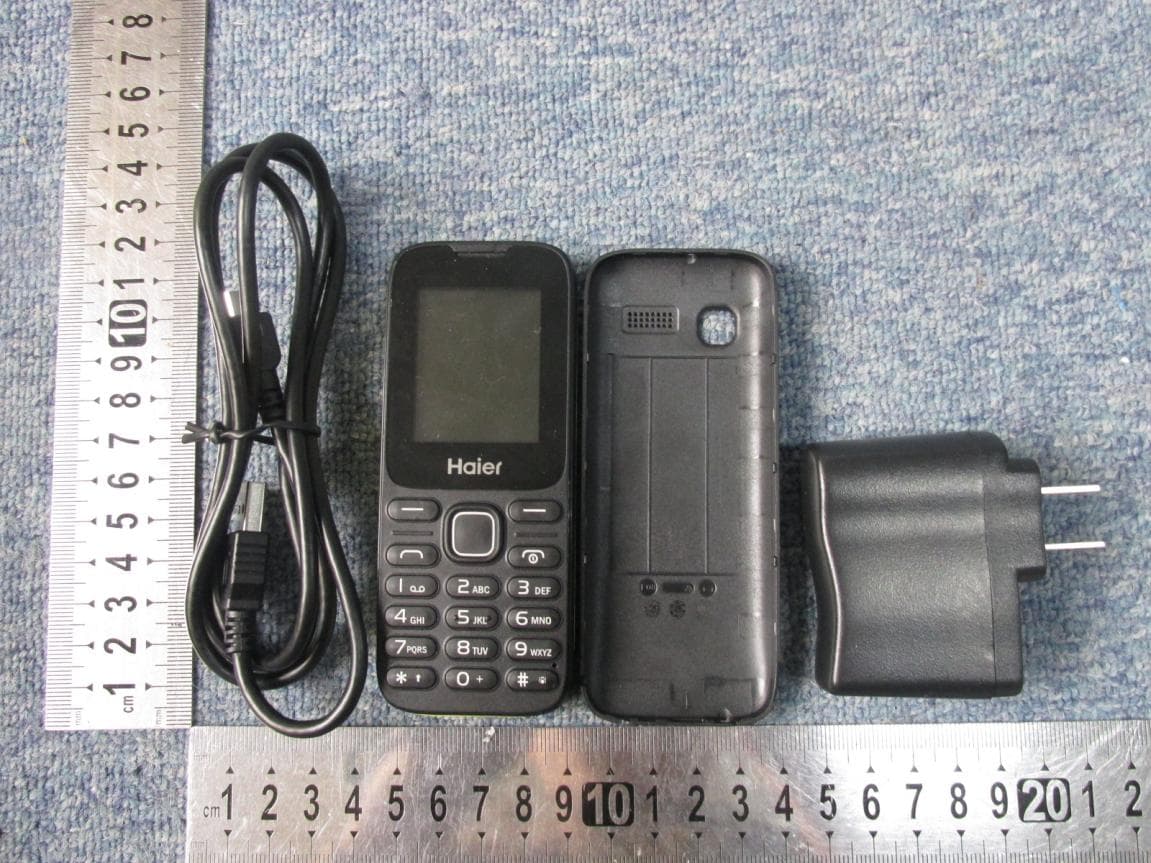

External Photo

Internal Photos Bluetooth Antenna GSM Antenna

Report No. SET2015-04152 CCIC-SET/T-I (00) Page 1 of 96 FCC SAR TEST REPORT Report No.： SET2015-04152 Product： GSM digital mobile phone Model No.： M220 FCC ID： SG720150318M220 Applicant： Haier Telecom (Qingdao) Co., Ltd. Address： No1. Haier Road , Hi-tech Zone, Qingdao China Issued by： CCIC-SET Lab Location： Building 28/29, Shigudong,Xili Industrial Area,Xili Street,Nanshan District,Shenzhen,Guangdong,China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 96 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2015-04152 CCIC-SET/T-I (00) Page 2 of 96 Test Report Product. ...................: GSM digital mobile phone Model No. .................: M220 Brand Name..............: Haier FCC ID.......................: SG720150318M220 Applicant....................: Haier Telecom (Qingdao) Co., Ltd. Applicant Address.......: No1. Haier Road , Hi-tech Zone, Qingdao China Manufacturer............: Haier Telecom (Qingdao) Co., Ltd. Manufacturer Address: No1. Haier Road , Hi-tech Zone, Qingdao China Test Standards..........: 447CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques; Test Result...............: Pass Tested by ..............: 2015-04-08 Chun Mei, Test Engineer Reviewed by.............: 2015-04-08 Shuangwen Zhang,Senior Egineer Approved by...............: 2015-04-08 Wu Li’an , Manager Report No. SET2015-04152 CCIC-SET/T-I (00) Page 3 of 96 Contents 1. GENERAL CONDITIONS-----------------------------------------------------------------4 2. ADMINISTRATIVE DATA-----------------------------------------------------------------5 2.1. Identification of the Responsible Testing Laboratory--------------------------------5 2.2. Identification of the Responsible Testing Location(s)--------------------------------5 2.3. Organization Item-------------------------------------------------------------------------5 2.4. Identification of Applicant---------------------------------------------------------------5 2.5. Identification of Manufacture-----------------------------------------------------------5 3. EQUIPMENT UNDER TEST (EUT)-----------------------------------------------------6 4. OPERATIONAL CONDITIONS DURING TEST-------------------------------------7 4.1. Introduction--------------------------------------------------------------------------------7 4.2. SAR Definition----------------------------------------------------------------------------7 4.3. Phantoms-----------------------------------------------------------------------------------8 4.4. Device Holder-----------------------------------------------------------------------------8 4.5. Probe Specification-----------------------------------------------------------------------9 5. OPERATIONAL CONDITIONS DURING TEST------------------------------------10 5.1. Schematic Test Configuration---------------------------------------------------------10 5.2. SAR Measurement System------------------------------------------------------------10 5.3. Equipments and results of validation testing----------------------------------------14 5.4. SAR measurement procedure----------------------------------------------------------17 5.5. Antennas position and test position---------------------------------------------------18 6. CHARACTERISTICS OF THE TEST--------------------------------------------------19 6.1. Applicable Limit Regulations----------------------------------------------------------19 6.2. Applicable Measurement Standards---------------------------------------------------19 7. LABORATORY ENVIRONMENT-------------------------------------------------------20 8. CONDUCTED RF OUTPUT POWER---------------------------------------------------21 9. TEST RESULTS------------------------------------------------------------------------------28 10. MEASUREMENT UNCERTAINTY-----------------------------------------------------35 11. MAIN TEST INSTRUMENTS------------------------------------------------------------36 This Test Report consists of the following Annexes: Annex A: Accreditation Certificate ----------------------------------------------------37 Annex B: Test Layout ---------------------------------------------------------------------39 Annex C: Sample Photographs----------------------------------------------------------46 Annex D: System Performance Check Data and Highest SAR Plots------------48 Annex E: Calibration Certificate of Probe and Dipoles----------------------------102 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 4 of 96 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CCIC-SET and the Accreditation Bodies, if it applies. Report No. SET2015-04…

Text truncated - open the document above for the full version.

Report No. SET2015-04152 CCIC-SET/T-I (00) Page 80 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 81 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 82 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 83 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 84 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 85 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 86 of 96 SID1900 Dipole Calibration Ceriticate Report No. SET2015-04152 CCIC-SET/T-I (00) Page 87 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 88 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 89 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 90 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 91 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 92 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 93 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 94 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 95 of 96 Report No. SET2015-04152 CCIC-SET/T-I (00) Page 96 of 96 ———End of the Report———

Report No.：SET2015-04600 CCIC-SET/T（00） Page 1 of 39 RF TEST REPORT Report No.: SET2015-04600 Product: GSM digital mobile phone FCC ID: SG720150318M220 Model No.: M220 Applicant: Haier Telecom (Qingdao) Co., Ltd. Address: No1. Haier Road , Hi-tech Zone, Qingdao China Dates of Testing: 03/26/2015 — 04/08/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzh China Tel：86 755 26627338 Fax：86 755 26627238 This test report consists of 39 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.：SET2015-04600 CCIC-SET/T（00） Page 2 of 39 Test Report Product.........................: GSM digital mobile phone Brand Name..................: Haier Trade Name...................: Haier Applicant......................: Haier Telecom (Qingdao) Co., Ltd. Applicant Address.........: No1. Haier Road , Hi-tech Zone, Qingdao China Manufacturer.................: Haier Telecom (Qingdao) Co., Ltd. Manufacturer Address....: No1. Haier Road , Hi-tech Zone, Qingdao China Test Standards..............: 47 CFR FCC Part 2: 2013 47 CFR FCC Part 22(H): 2013 47 CFR FCC Part 24(E): 2013 Test Result....................: PASS Tested by.......................: 2015.04.08 Haigang He，Test Engineer Reviewed by..................: 2015.04.08 Zhu Qi, Senior Egineer Approved by...................: 2015.04.08 Wu Li’an，Manager Report No.：SET2015-04600 CCIC-SET/T（00） Page 3 of 39 Table of Contents 1. GENERAL INFORMATION .................................................................................................... 4 1.1 EUT Description ......................................................................................................................... 4 1.2 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ................... 4 1.3 Test Standards and Results ........................................................................................................ 4 1.4 Test Configuration of Equipment under Test........................................................................... 5 1.5 Measurement Results Explanation Example ........................................................................... 6 1.6 Facilities and Accreditations ...................................................................................................... 6 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 8 2.1 Conducted RF Output Power .................................................................................................... 8 2.2 Peak to Average Radio ............................................................................................................. 10 2.3 99% Occupied Bandwidth ....................................................................................................... 13 2.4 Frequency Stability ................................................................................................................... 20 2.5 Conducted Out of Band Emissions ......................................................................................... 23 2.6 Band Edge ................................................................................................................................. 30 2.7 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 33 2.8 Radiated Out of Band Emissions ............................................................................................ 36 Change History Issue Date Reason for change 1.0 2015-04-08 First edition Report No.：SET2015-04600 CCIC-SET/T（00） Page 4 of 39 1. GENERAL INFORMATION 1.1 EUT Description EUT Type GSM digital mobile phone IMEI No. 353503059947339 Hardware Version M721C_FS_MB_V0.1 Software Version M721C_LD_SINGLE_CARD_F08_WNRL_V003_20150312. EUT supports Radios application GSM/GPRS Bluetooth EDR Type of Modulation GSM / GPRSK:GMSK Frequency Range GSM 850MHz: Tx: 824.2 - 848.8MHz (at intervals of 200kHz); Rx: 869.2 - 893.8MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.2 - 1909.8MHz (at intervals of 200kHz); Rx: 1930.2 - 1989.8MHz (at intervals of 200kHz) Multislot Class GPRS: Multislot Class12 Maximum Output Power to Antenna GSM 850: 33.15dBm GSM 1900: 30.26dBm Antenna Type FPC Antenna Antenna Gain 0.55dBi 1.2 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator System Type of Modulation Emission Designator Frequency Tolerance (ppm) Maximum ERP/EIRP(W) GSM 850 GMSK 246KGXW 0.05 2.094 GSM 1900 GMSK 244KGXW 0.03 1.094 1.3 Test Standards and Results 1. 47 CFR Part 2, 22(H), 24(E) 2. ANSI / TIA / EIA-603-D-2010 3. FCC KDB 971168 D01 Power Meas. License Digital Systems v02r02 Remark： Report No.：SET2015-04600 CCIC-SET/T（00） Page 5 of 39 1. All test items were verified and recorded according to the standards and without any deviation during the test. 2. This EUT has also been tested and complied with the requirements of FCC Part 15, Subpart B, recorded in a separate test report. Test detailed items/section required by FCCrules and results are as below: No. Section Description Limit Result FCC 1 2.1046 Conducted Output Power Reporting Only PASS 2 24.232(d) Peak to Average Radio ＜13dBm PASS 3 2.1049 22.917(b) 24.238(b) Occupied Bandwidth Reporting Only PASS 4 2.1055 22.355 24.235 Frequency Stability ≤±2.5ppm PASS 5 2.1051 22.917 24.238 Conducted Out of Band Emissions < 43+10log10 (P[Watts]) PASS 6 2.1051 22.917 24.238 Band Edge < 43…

Text truncated - open the document above for the full version.

Conducted Test setup photos Radiated Test setup photos
