SG7U802TCDMA 1X RTT (800MHz Single Band USB Modem)

U802T User’s Manual 1. Installation – Wi ndows Vista --------------- 2 2. UI Features In troduction -------------------- 9 3. Data Connection & Disconnection ------- 10 4. Voice call Connection & Disconnection- 13 5. SMS Sending -------------------------------- 18 6. SMS Receiving ------------------------------- 25 7. Phonebook ------------------------------------- 33 8. Settings ----------------------------------------- 38 8-1. Data Service Terminal -------- (39)8-2. SOUND ----- ---------------------- (40) 8-3. SMS -------- --------------- -------- (42) 8-4. LOCK ------ --------------- --------- (43) 8-5. TONE ------ --------------- --------- (44) 8-6. VOICE ------- ---------------------- (45) 8-7. Others ------ --------------- -------- (47) 9. Information ------------------------------------- 48 9-1. USE ---------- ---------------------- (49) 9-2. CALL HIST ORY----------------- (50) 9-3. MODEM ----- ---------------------- (51) 10. TATA Indicom Web Page Connection-- 5211. A bout ------------------------------------------- 53 12. Un-Installation – Windows Vista --------- 55 13. Health and Safety Information ------------58 Contents 1. Installation – Windows Vista “ ” “ ” 1. Installation – Windows Vista “ ” “ ” 1. Installation – Windows Vista 1. Installation – Windows Vista 1. Installation – Windows Vista 1. Installation – Windows Vista “ ” “ ” 1. Installation – Windows Vista “ ” 2. UI Features Instruction 3. Data Connection & Disconnection “ ” “ ” 3. Data Connection & Disconnection “ ” 3. Data Connection & Disconnection “ ” “ ” “ ” 4. Voice call Connection & Disconnection “ ” 4. Voice call Connection & Disconnection 4. Voice call Connection & Disconnection 4. Voice call Connection & Disconnection 4. Voice call Connection & Disconnection “ ” 5. SMS Sending “ ” 5. SMS Sending 5. SMS Sending “ ” 5. SMS Sending ... 5. SMS Sending “ ” 5. SMS Sending “ ” “ ” 5. SMS Sending 6. SMS Receiving “ ” 6. SMS Receiving “ ” 6. SMS Receiving “ ” “ ” “ ” “ ” 6. SMS Receiving “ ” “ ” “ ” 6. SMS Receiving “ ” “ ” “ ” ... 6. SMS Receiving “ ” 6. SMS Receiving “ ” “ ” “ ” “ ” “ ” “ ” “ ” “ ” “ ” 6. SMS Receiving 7. Phonebook “ ” 7. Phonebook ’ “ ” “ ” 7. Phonebook “ ” “ ” “ ” “ ” 7. Phonebook 7. Phonebook 8. Settings “ ” “ ” 8. Settings 8. Settings “ ” 8. Settings 8. Settings “ ” 8. Settings “ ” 8. Settings 8. Settings 8. Settings 8. Settings “ ” 9. Information “ ” “ ” 9. Information 9. Information

Haier Telecom (Qingdao) Co., Ltd. Date: December , 6, 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Hyun Chae,You /Application Examiner of CTK Co., Ltd.and hereafter referred to as CTK Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyun Chae,You of CTK Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

No1. Haier Road , Hi-tech Zone, Qingdao, China Tel No : +91-124-4648019 Fax No : +91-124-4648222 May 2 , 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Haier Telecom (Qingdao) Co., Ltd. FCC ID : SG7U802T Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Anil kaushik Executive Vice President

1 Chris Harvey From:  [[email protected]] Sent: Sunday, February 10, 2008 8:16 PM To: [email protected] Subject: RE: Haier Telecom (Qingdao) Co., Ltd., FCC ID: SG7U802T, Assessment NO.: AN08T7530, Notice#1 Attachments: [U802T] Part List.pdf; [U802T] Test report_FCC_modified.pdf; [U802T] User Menual_modified.pdf; [U802T] Authorization Letter_updated.pdf [U802T] Part List.pdf (72 KB) [U802T] Test report_FCC_modifi.. [U802T] User Menual_modified.p.. [U802T] uthorization Letter_u Dear Chris Harvey I'm sorry to late your request Please attached the updated file that you required Thanks Best regards, Hyun Chae -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, January 24, 2008 2:28 AM To: [email protected] Cc: [email protected] Subject: Haier Telecom (Qingdao) Co., Ltd., FCC ID: SG7U802T, Assessment NO.: AN08T7530, Notice#1 Dear Hyun Chae You, You are listed as the Technical Contact for the above referenced TCB application. The following item(s) need(s) to be resolved before the review can be continued: 1. The FCC has recently revised their Authorized person policy. The Authorization Letter submitted from Haier Telecom is signed by Anil Kaushik and has authorized the company of CTK Co. instead of an individual. The application form has been signed by Hyun Chae You ([email protected]) who must be specifically authorized to sign and submit information for this application. The new FCC policy can be seen at: http://fjallfoss.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?id=33316&sw itch=P Please update your Letter of Authorization to be signed by James Shi, who is the contact of record at the FCC for Grantee Code SG7 and authorize specific individuals at CTK to act on behalf of Haier Telecom. 2. The Parts List exhibit required by the FCC and referenced in the Confidentiality Letter was not submitted with this application. Please supply the required parts List exhibit. 3. The Users Manual has conflicting information by stating keep 30cm from body and also includes SAR compliance information. Please clarify the information in the Users Manual by removing or amending the information about maintaining 30cm separation. 4. The test report Frequency Stability chart seems to have a typo in the units for temperature. Please confirm the units of temperature used and update the test report. 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected]

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 1 of 2 EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 2 of 2

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 1 of 1 FCC ID label and Location Label

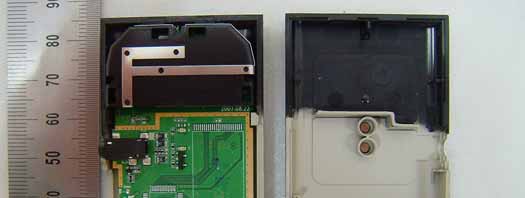

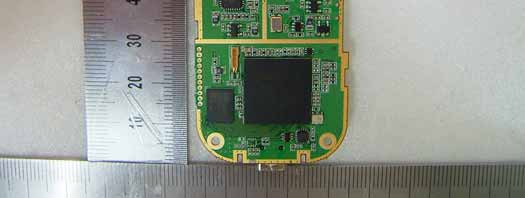

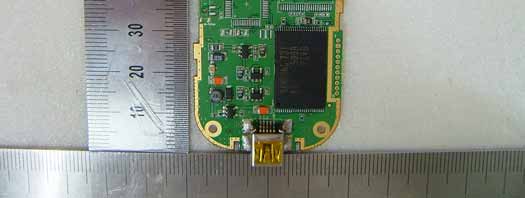

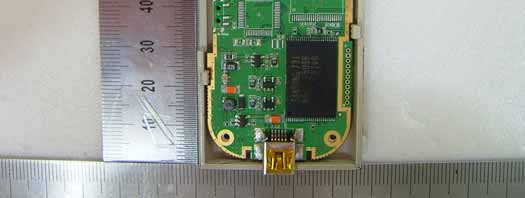

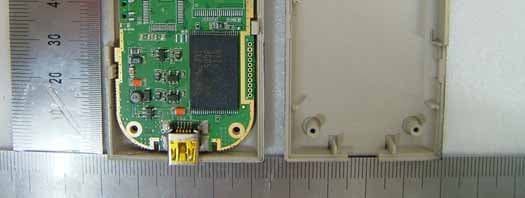

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 1 of 3 EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 2 of 3 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 3 of 3

Applicant : Haier Telecom (Qingdao)Co., Ltd. FCC ID : SG7U802T TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this CDMA 1X RTT (800MHz Single Band USB Modem). All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

DEMC#DR50110711AB Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: November 29, 2007 Test Report S/N:DR50110711AB Test Site : DIGIT AL EMC CO., LTD. FCC ID SG7U802T Haier Telecom (Qingdao) Co., Ltd. APPLICANT FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) EUT Type: CDMA 1X RTT (800MHz Single Band USB Modem) Model Name U802T Brand Name Haier Test Device Serial No.: Identical prototype TX Frequency Range: 824.70 ~848.31 MHz (CDMA) RX Frequency Range: 869.70 ~893.31 MHz (CDMA) Max. RF Output Power: 0.180W ERP CDMA Cellular Band (22.56dBm) Max. SAR Measurement: 0.376 mW/g CDMA Body SAR Application Type: Certification Rule Part(s): §2. 1093; FCC/OET Bulletin Supplement C[July 2001] Data of issue: Novem ber 30, 2007 This wireless portable device has been shown to be capable of compliance for localized speci fic ab sorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurem ents reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested by : Reviewed by : Sun-Kyu Ryu (Engineer) Harvey Sung (Chief Engineering Director) DEMC#DR50110711AB Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 22 1. INTRODUCTION .................................................................................................. .... TABLE OF CONTENTS 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP...................................................................................... ... 4 Robotic System..................................................................................................... ..... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY4 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System..................................................................................... .... 5 Probe Specifications ............................................................................................... ..... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment .............................................................................................. . 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom .......................................................................................................... . 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters.................................................................................... . 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure.......................................................................................... ... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points.......................................................................................... .. 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 12 Body Holster /Belt Clip Configurations ...................................................................... .... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS.................................................................. 14 Uncontrolled Environment ........................................................................................... 14 Controlled Environment............................................................................................... 14 11. MEASUREMENT UNCERTAINTIES............................................................................... 15 SAR Measurement Uncertainties .................................................................................. 15 12. SYSTEM VERIFICATION........................................................................................... 16 Tissue Verification...................................................................................................... 16 Test Sy…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2007120009 Date: December 4, 2007 Page 1 of 19 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT For FCC Test Report No. : 2007120009 Date of Issue : December 4, 2007 FCC ID : SG7U802T Model/Type No. : U802T Classification : Licensed Non-Broadcast Station Transmitter (TNB) Applicant : Haier Telecom (Qingdao) Co., Ltd. Applicant Address : No1. Haier Road , Hi-tech Zone, Qingdao, China Manufacturer : Haier Telecom (I) Pvt.Ltd. Manufacturer Address : 862 Udyog Vihar,Phase-V,Gurgaon, Haryana , India Contact Person : Mr.Anil kaushik Telephone : +91-124-4648019 Received Date : November 6, 2007 Test period : Start : November 7, 2007 End : December 4, 2007 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Eun-Won, Lee Test Engineer Young-Joon, Park Technical Manager Date: December 4, 2007 Date: December 4, 2007 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2007120009 Date: December 4, 2007 Page 2 of 19 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No December 4, 2007 Issued (2007120009) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2007120009 Date: December 4, 2007 Page 3 of 19 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS TEST REPORT 1.1 SCOPE 4 2.1 GENERAL INFORMATION 4 3.1 DESCRIPTION OF TESTS 5 4.1 TEST DATA 9 4.1.1 CONDUCTED OUTPUT POWER 9 4.1.2 EFFECTIVE RADIATED POWER OUTPUT 9 4.1.3 CDMA RADIATED MEASUREMENTS 10 4.1.4 FREQUENCY STABILITY(CDAM) 13 5.1 PLOTS OF EMISSIONS 15 6.1 LIST OF TEST EQUIPMENT 16 7.1 SAMPLE CALCULATIONS 18 8.1 CONCLUSION 19 TEST PLOTS CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2007120009 Date: December 4, 2007 Page 4 of 19 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT 1. 1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. 2.1 General Information Classification : Licensed Non-Broadcast Station Transmitter (TNB) EUT Type : CDMA 1X RTT (800MHz Single Band USB Modem) FCC Rule Part(s) : §22(H), §2 CDMA MS Protocol Rev. Number : 6 Model name : U802T Serial number : Identical prototype Emission Designators: : 1M28F9W Tx Freq. Range : 824.70 ~ 848.31 MHz (Cellular Band) Rx Freq. Range 869.70 ~ 893.31 MHz (Cellular Band) Modulation(s): : CDMA Frequency Tolerance: : ± 0.00025 % (2.5ppm) Max. Power Rating : 0.180W ERP CDMA Cellular Band(22.56dBm) Max. SAR Measurement : 0.376W/kg CDMA Cellular Band Body SAR Power Source : USB 5 Vdc CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2007120009 Date: December 4, 2007 Page 5 of 19 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 3.1 DESCRIPTION OF TESTS 3.1.1 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 3.1.2 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 3.1.3 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 10 GHz. At the input terminals of the spectrum analyzer, an isolator(RF circulator with on port terminated with 50ohms) and an 870 MHz to 890 MHz band pass filter is connected between the test transceiver(for conducted tests)or the receive antenna(for radiated tests) and the analyzer . The rejection of the band pass filter to signals in the 825-845 MHz range is adequate to limit the transmit energy from the test transceiver which appears to a level which will allow the analyzer to measure signals less than-90dBm. Calibration of the test receiver is performed in the 870-890 MHz range to insure accuracy to allow variation in the band pass filter insertion loss to be calibrated. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2007120009 Date: December 4,…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: SG7U802T Page 1 of 1 Test Setup Photos Radiated Electric Field Emissions
