SGJ-EFC003M3049BA ID Tag Transceiver

Yokogawa Electric Corporation

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Oct 04, 2004
Application Purpose: Original Equipment
Date of Application: Oct 04, 2004
Equipment Note: M3049BA ID Tag Transceiver
Frequency Range: 0.12600000 - 0.12600000
Company: Yokogawa Electric Corporation
Country: Japan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Model: M3049BA Doc. No.: EFC003-A01 Date: 16 July, 2004 Rev.: Yokogawa Electric Corporation 4. Construction 4.1 Layout Fig 4.1 Configuration of the Product ID Tag ID Tag Transceiver PDA Applicable area AC Adapter AC Power C1 C2 C3 Model: M3049BA Doc. No.: EFC003-A01 Date: 16 July, 2004 Rev.: Yokogawa Electric Corporation 4.3 Block Diagram Fig 4.2 Block Diagram of the model ID Tag Transceiver ID Tag CF RF CON ANT 125 kHz

External Photos

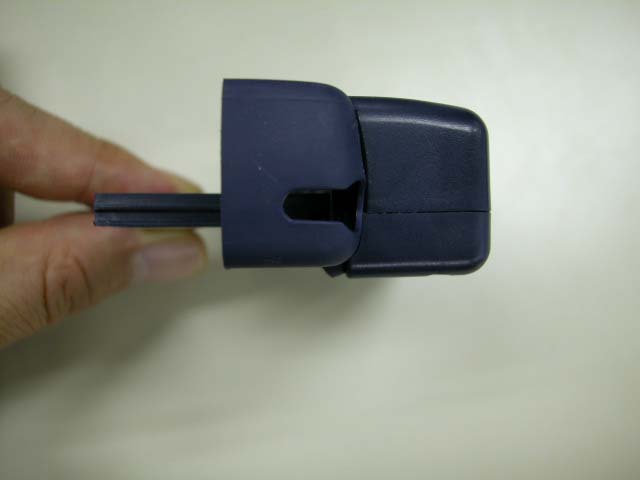

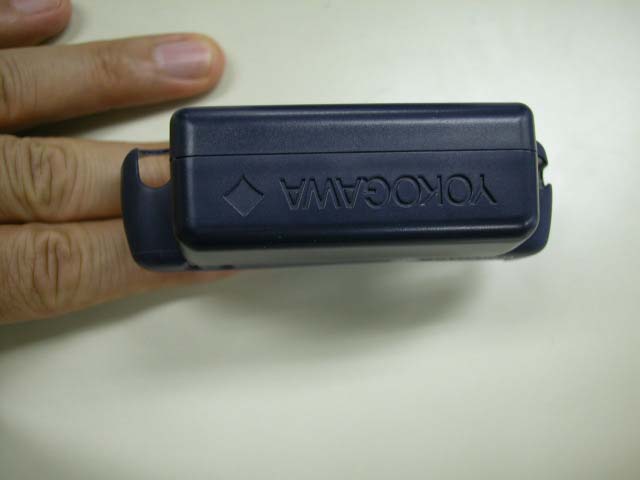

M3049BA IC Tag Transceiver - Front View M3049BA IC Tag Transceiver - Right View M3049BA IC Tag Transceiver - Back View M3049BA IC Tag Transceiver - Left View M3049BA IC Tag Transceiver - Top View M3049BA IC Tag Transceiver - Bottom View

ID Label/Location Info

Model: M3049BA Doc. No.: EFC003-A01 Date: 16 July, 2004 Rev.: Yokogawa Electric Corporation Fig 2.3 A photo showing the location of the FCC ID label on the Product Due to the small size of the RF ID Transceiver, the compliance statement is placed in the manual.

Internal Photos

CF Interface - Top CF Interface - Bottom RF Interface - Top RF Interface - Bottom, View 1 RF Interface - Bottom, View 2
