SGJ-WFC001VN210 Module

Doc. No.: WFC001-A05 VN210 Installation Manual Doc. No.: WFC001-A05 The photograph installed in end-products is actually appended. The VN210 is mounted by soldering the red circle part in the figure below. Soldering VN210 Doc. No.: WFC001-A05 Antenna Connection: Connection from VN210 output to the antenna input. Connection shall be made by professional personnel only. Case 1 is connected directly from VN210 to antenna by cable. Case 2 is connected from VN210 to the antenna via a short stub and the cable. CASE 1 Cable Doc. No.: WFC001-A05 CASE 2 The signal output from the VN210 module is connected with the antenna via the short stub that exists on the IF board. YFGW710 Block Diagram Terminal (+) (-) (+) (-) CN8 CN2 (RJ45) CN3 (100Base-FX) (100Base-TX) RF Cable CN7 (SMA) RF Connector (N type) CN1 (RJ45) J25 (RJ45) (LAN Cable) CN6 (SMA) U6-J1 (MMCX) U6 X1 X2 X3 X4 J1 J2 J3 J4 GW MAIN BOARD J19 CPU Board VN210 RF module IF Board (Mother Assembly) ( CN3: only mounted when optical I/F selected ) (To: Antenna or Antenna Cable) A B Connector C D E (Short Stub) Insulation Wire Insulation Wire Insulation Wire Insulation Wire Insulation Wire F G Soldering 24Vdc 24Vdc24Vdc (+) (-) (To Power Cuircuit) F1 Doc. No.: WFC001-A05 VN210 is installed in EJX, YTA, and YFGW710 and the following note sentence is described in the user manual. FCC and IC Regulations ・This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions :(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. ・This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at this own expense. ・Intentional or unintentional changes or modifications not expressly approved by the party responsible for compliance must not be made to this equipment. Any such changes or modifications could void the user’s authority to operate the equipment. Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The antenna is used two kinds only (AT1089/A S SL-ST P-00200). If excluding this is used, the change application is necessary for the antenna.

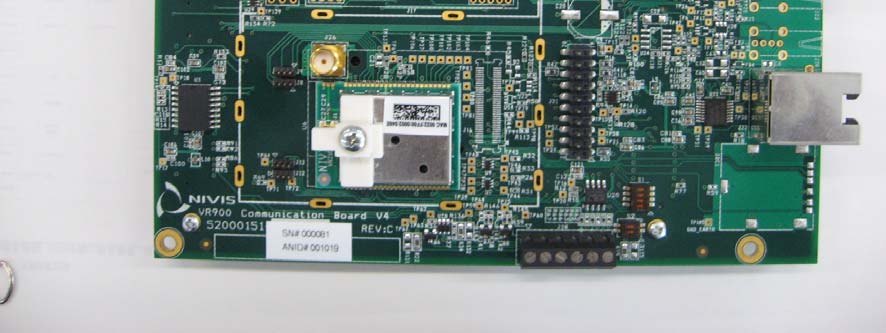

Doc. No.: WFC001-A06 VN210 VN210 Doc. No.: WFC001-A06 VN210 RF board VN210 Doc. No.: WFC001-A06 VR800 VN210

Doc. No.: WFC001-A09 LABEL Size：12mm×12mm Label VN210

Doc. No.: WFC001-A06 VN210 VN210 Doc. No.: WFC001-A06 VN210 RF board VN210 Doc. No.: WFC001-A06 VR800 VN210

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: Y okogawa Electric Corporation Type of Equipment : VN210 module Model No. : VN210 FCC ID: SGJ-W FC001 Yokogawa Electric Corporation declares that Model : VN210 module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “VN210“ has 6.05 mW of conducted Peak Output power and 9.91 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Ex posure Calculations: T he fo llo w ing info r matio n pr o vides the m inimu m separat io n d ist ance fo r t he hig hest g ain antenna provided with the “VN210“ as calculated from FCC OE T Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 6.05 mW (M aximum peak output power) G = 1.64 Numerical Antenna gain; equal 2.14 dBi r =20.0 cm For: VN210S = 0.00197 mW/cm 2 No. : 30JE0035-SH-C RF Exposure / SAR Statement

FCC ID : SGJ-WFC001 Test report No. : 30JE0035-SH-C-R2 Page : 2 of 37 Issued date : June 18, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information..................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing................................................................. 7 SECTION 5: Conducted emission ........................................................................................ 9 SECTION 6: Radiated emission ......................................................................................... 10 SECTION 7: Spurious emissions (Conducted)(include Band Edge compliance).............. 13 SECTION 8: 6dB bandwidth & 99% Occupied bandwidth.............................................. 13 SECTION 9: Maximum peak output power ...................................................................... 13 SECTION 10: Peak power density...................................................................................... 13 Contents of appendixes.........................................................................................................14 APPENDIX 1: Photographs of test setup ........................................................................... 15 APPENDIX 2: Data of EMI test ......................................................................................... 18 APPENDIX 3: Test instruments ......................................................................................... 34 APPENDIX 4: Worst Duty Specification............................................................................ 37 FCC ID : SGJ-WFC001 Test report No. : 30JE0035-SH-C-R2 Page : 3 of 37 Issued date : June 18, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Yokogawa Electric Corporation Address : 2-9-32 Nakacho Musashino-shi Tokyo, 180-8750 Japan Telephone Number : +81-422-52-5558 Facsimile Number : +81-422-55-3536 Contact Person : Hirofumi Suda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : VN210 Module Model Number : VN210 Serial Number : 0022-FF00-0002-046E (for conducted emission tests), 0022-FF00-0002-0264 (for antenna terminal tests), 0022-FF00-0002-049B (for radiated emission tests (transmitting mode) only), 0022-FF00-0002-021E (for radiated emission tests (receiving mode) only) Rating : DC 3.3V Condition of EUT : Production model Country of Mass-production : USA Receipt Date of Sample : April 5, 2010 (for conducted emission tests) May 12, 2010 (for antenna terminal tests) June 7, 2010 (for radiated emission tests) Modification of EUT : The test lab did not make the modification to the EUT supplied from the customer to have it pass the tests. 2.2 Product description Model: VN210 (referred to as the EUT in this report) is a VN210 Module. The clock frequency used in EUT: Timer Clock: 32.768kHz, RF Clock: 24MHz <Radio part> Equipment type : Transceiver Frequency of operation : 2405MHz to 2475MHz Radio part clock frequency : 24MHz Bandwidth / Channel spacing : 2.65MHz / 5MHz Type of modulation : ISA100.11a (O-QPSK) Antenna type : sleeve antenna Antenna connector type : MMCX type Antenna gain : 2.14 dBi (for built into EJX series and YTA series) , 2.00 dBi (for built into YFGW series) ITU code : G1D Operating Voltage : DC 3.3V Operation temperature range : -40 ~ +85 deg.C. FCC 15.31 (e)/212 The RF Module do not have voltage regulator. However, this application limited the host equipment, and EUT's voltage is supplied from voltage regulator of the limited host. Therefore, the test voltage was only the voltage of EUT specification. Therefore, this EUT complies with the requirement. FCC Part 15.203/212 The EUT has a unique coupling/antenna connector (MMCX). And the installation and replacement of antenna are done by professionals as directed in the user's manual. Therefore the equipment complies with the requirement of 15.203 and 15.212. FCC ID : SGJ-WFC001 Test report No. : 30JE0035-SH-C-R2 Page : 4 of 37 Issued date : June 18, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A <YFGW series> [AV] 6.5dB (23.12970MHz, N) [QP] 10.3dB (0.56304MHz, N, 0.57080MHz, L) Complied 6dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (a)(2) & 15.209 ConductedN/A Complied Maximum Peak Output Power ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (b)(3) & 15.209 ConductedN/A - Complied Out of Band Emission & Restricted Band Edges ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A <2.14dBi antenna> Tx: 5.4dB (7215.000MHz, Horizontal, PK) Rx: 21.9dB (887.985 MHz, Horizontal/Vertical, QP) Complied Power Density ANSI C63.4:2003 13. Meas…

Text truncated - open the document above for the full version.

Test Report No.: 30JE0035-SH-C-R2 Pa ge :18/ 37 Issued date : June 18, 2010 APPENDIX 2: Data of EMI test Test placeUL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room DateMay 12, 2010 Temperature / Humidity23deg.C., 57% EngineerKenichi Adachi ModeTx, Fre quency6dB BandwidthLimit [MHz][MHz][kHz] 24051.521>500 24401.503>500 24751.523>500 6dB Bandwidth UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.:30JE0035-SH-C-R2 Page :19/ 37 Issued date :June 18, 2010 6db1_IMG_Low6db1_IMG_Mid 6db1_IMG_High 6dB Bandwidth Tx, 2405MHzTx, 2440MHz Tx, 2475MHz 1MAX Ref Lvl 10 dBm Ref Lvl 10 dBmSWT 5 ms RF Att 20 dB 1 MHz/Center 2.405 GHzSpan 10 MHz A 1MA Unit dBm RBW 100 kHz VBW 300 kHz IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 2 Delta 2 [T1] 0.24 dB 1.52104208 MHz 2 [T1] -4.98 dBm 2.40419038 GHz 2 [T1] 0.24 dB 1.52104208 MHz 1 [T1] 1.60 dBm 2.40490982 GHz D1 -4.4 dBm Date: 12.MAY.2010 09:13:02 A Unit dBm Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB 1MAX1MA SWT 5 ms Center 2.475 GHzSpan 10 MHz1 MHz/ RBW 100 kHz VBW 300 kHz IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 2 Delta 2 [T1] -0.41 dB 1.52304609 MHz 2 [T1] -4.91 dBm 2.47418838 GHz 2 [T1] -0.41 dB 1.52304609 MHz 1 [T1] 1.32 dBm 2.47476954 GHz D1 -4.69 dBm Date: 12.MAY.2010 09:49:33 A Unit dBm 1MAX1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB SWT 5 ms RBW 100 kHz VBW 300 kHz IN1 1 MHz/Center 2.44 GHzSpan 10 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 2 Delta 2 [T1] 0.14 dB 1.50300601 MHz 2 [T1] -4.26 dBm 2.43920842 GHz 2 [T1] 0.14 dB 1.50300601 MHz 1 [T1] 2.04 dBm 2.43992986 GHz D1 -3.96 dBm Date: 12.MAY.2010 10:52:27 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 30JE0035-SH-C-R2 Page :20/ 37 Issued date : June 18, 2010 Test placeUL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room DateMay 12, 2010 Temperature / Humidity23deg.C., 57% EngineerKenichi Adachi ModeTx, ChFreq.P/MCableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2405.0-2.540.389.987.826.0530.00100022.18 Mid2440.0-2.980.419.987.415.5130.00100022.59 High2475.0-3.350.469.987.095.1230.00100022.91 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss *All comparison were carried out on same frequency and measurement factors. Peak Output Power (Conducted) ResultLimit UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.:30JE0035-SH-C-R2 Page :21/ 37 Issued date :June 18, 2010 Low1-SE2_IMG_LowLow1-SE1_IMG_Low Low1-SE3_IMG_LowLow1-SE4_IMG_Low Low1-SE5_IMG_LowLow1-SE6_IMG_Low 5GHz - 10GHz10GHz - 15GHz 20GHz - 25GHz15GHz - 20GHz Spurious emission (Conducted)(Reference chart) Tx, 2405MHz 30MHz - 1GHz1GHz - 5GHz A Unit dBm 1MAX D1 1MA Start 1 GHzStop 5 GHz400 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 1 s RF Att 20 dB IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 3 Marker 1 [T1] 1.86 dBm 2.40500000 GHz 1 [T1] 1.86 dBm 2.40500000 GHz 2 [T1] -47.62 dBm 1.84969940 GHz 3 [T1] -59.35 dBm 4.81404810 GHz D1 -21.86 dBm Date: 12.MAY.2010 10:31:08 A Unit dBm 1MAX D1 1MA Start 30 MHzStop 1 GHz97 MHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RBW 100 kHz VBW 300 kHz SWT 245 ms RF Att 20 dB IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -49.66 dBm 745.35070140 MHz 1 [T1] -49.66 dBm 745.35070140 MHz D1 -21.86 dBm Date: 12.MAY.2010 10:31:40 A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 5 GHzStop 10 GHz500 MHz/ RBW 100 kHz VBW 300 kHz SWT 1.25 s IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 Marker 2 [T1] -55.43 dBm 9.61923848 GHz 2 [T1] -55.43 dBm 9.61923848 GHz 1 [T1] -59.33 dBm 7.21442886 GHz D1 -21.86 dBm Date: 12.MAY.2010 10:32:19 A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 10 GHzStop 15 GHz500 MHz/ RBW 100 kHz VBW 300 kHz SWT 1.25 s IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -63.40 dBm 13.44689379 GHz 1 [T1] -63.40 dBm 13.44689379 GHz D1 -21.86 dBm Date: 12.MAY.2010 10:32:53 A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 15 GHzStop 20 GHz500 MHz/ RBW 100 kHz VBW 300 kHz SWT 1.25 s IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -64.05 dBm 17.01402806 GHz 1 [T1] -64.05 dBm 17.01402806 GHz D1 -21.86 dBm Date: 12.MAY.2010 10:33:28 A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 20 GHzStop 26.5 GHz650 MHz/ RBW 100 kHz VBW 300 kHz SWT 1.65 s IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -61.75 dBm 21.84969940 GHz 1 [T1] -61.75 dBm 21.84969940 GHz D1 -21.86 dBm Date: 12.MAY.2010 10:33:50 D2 -18.14 D2 -18.14 D2 -18.14D2 -18.14 D2 -18.14D2 -18.14 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.:30JE0035-SH-C-R2 Page :22/ 37 Issued date :June 18, 2010 Mid1-SE2_IMG_LowMid1-SE1_IMG_Low Mid1-SE3_IMG_LowMid1-SE4_IMG_Low Mid1-SE5_IMG_LowMid1-SE6_IMG_Low Spurious emission (Conducted)(Reference chart) Tx, 2440MHz 30MHz - 1GHz1GHz - 5GHz 5GHz - 10GHz10GHz - 15GHz 20GHz - 25GHz15GHz - 20GHz A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 20 GHzStop 26.5 GHz650 MHz/ RBW 100 kHz VBW 300 kHz SWT 1.65 s IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -61.70 dBm 21.94088176 GHz 1 [T1] -61.70 dBm 21.94088176 GHz D1 -21.88 dBm Date: 12.MAY.2010 10:59:41 A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 15 GHzStop 20 GHz500 MHz/ RBW 100 kHz VBW 300 kHz SWT 1.25 s IN1 -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 Marker 1 [T1] -64.65 dBm 16.95390782 GHz 1 [T1] -64.65 dBm 16.95390782 GHz D1 -21.88 dBm Date: 12.MAY.2010 10:59:20 A Unit dBm 1MAX D1 1MA Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 20 dB Start 5 GH…

Text truncated - open the document above for the full version.

FCC ID : SGJ-WFC001 Test report No. : 30JE0035-SH-C-R2 Page : 15 of 37 Issued date : June 18, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Conducted emission [Built into YFGW710-A1G-S00NA /AC3A] (photo 1) (photo 2) FCC ID : SGJ-WFC001 Test report No. : 30JE0035-SH-C-R2 Page : 16 of 37 Issued date : June 18, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Radiated emission (0 deg position) (photo 1) (photo 2) FCC ID : SGJ-WFC001 Test report No. : 30JE0035-SH-C-R2 Page : 17 of 37 Issued date : June 18, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 EUT (module and antenna) position (below 1GHz: module H: Y, V: Z, antenna: H: Y, V: Y) / (above 1GHz: module H: Y, V: Z, antenna: H: Y, V: Z) (module: X-axis, antenna: X-axis) (module: Y-axis, antenna: X-axis) (module: Z-axis, antenna: X-axis) (module: X-axis, antenna: Y-axis) (module: Y-axis, antenna: Y-axis) (module: Z-axis, antenna: Y-axis) (module: X-axis, antenna: Z-axis) (module: Y-axis, antenna: Z-axis) (module: Z-axis, antenna: Z-axis)
