SGJ-WFC011Field Wireless Communication Module

FN110 Field Wireless Communication Module IM 01W 03B01-01EN IM 01W 03B01-01EN 1st Edition 1. Introduction Thank you for purchasing the Field Wireless Communication Module. Your Field Wireless Communication Module was precisely calibrated at the factory before shipment. To ensure both safety and efficiency, please read this manual carefully before you operate the instrument. ■ Regarding This Manual ・ This manual should be provided to the end user. ・ The contents of this manual are subject to change without prior notice. ・ All rights reserved. No part of this manual may be reproduced in any form without Yokogawa’s written permission. ・ Yokogawa makes no warranty of any kind with regard to this manual, including, but not limited to, implied warranty of merchantab ility and fitness for a particular purpose. ・ If any question arises or errors are found, or if any information is missing from this manual, please inform the nearest Yokogawa sales office. ・ The specifications covered by this manual are limited to those for the standard type under the specified model number break-down and do not cover custom-made instruments. ・ Please note that changes in the specifications, construction, or component parts of the instrument may not immediately be reflected in this manual at the time of change, provided that postponement of revisions will not cause difficulty to the user from a functional or performance standpoint. ■ Safety, Protection, and Modification of this Product ・ In order to protect the operator, product, and system controlled by the product, observe the safety precautions described in this manual. If users handle contrary to these instructions, we cannot guarantee the safety. ・ Modification of the product is strictly prohibited. ・ The following safety symbols are used in this manual: CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or physical damage. It may also be used to alert against unsafe practices. IMPORTANT Indicates that operating the hardware or software in this manner may damage it or lead to system failure. 1.1 Radio Wave IMPORTANT ・ This product is equipped with a wireless module which is designated as a certification of construction type as a wireless facility for 2.4 GHz band low-power data communication system of the Radio Act. Refer to “5.2 Regulatory Compliance Statements” for detail. Due to the designated certification of construction type, users may be subject to legal punishment in case of: - Disassembling or modifying the wireless module or antenna in this instrument ・ Microwave ovens and other industrial, scientific and medical equipment, as well as local wireless stations (license required) and specific low-power wireless stations (license not required) for identifying mobile objects used in the production line of a factory, use the same frequency band as this product. Prevent interference with other wireless stations. ・ Check that local wireless stations and specific low-power wireless stations are not being used in the vicinity before using this product. ・ If this product causes radio interference in a local wireless station used for identifying mobile objects, change the working frequency or stop the emission of radio waves immediately. For details on how to prevent radio interference, contact our service office. ・ Although this product has been designed to resist high frequency electrical noise, if a radio transceiver is used near the transmitter or its external wiring, this product may be affected by high frequency noise pickup. To test this, start out from a distance of several meters and slowly approach this product with the transceiver while observing the measurement loop for noise effects. Thereafter use the transceiver outside the range where the noise effects were first observed. 1.2 Warranty ・ The warranty shall cover the period noted on the quotation presented to the purchaser at the time of purchase. Problems occurring during the warranty period shall basically be repaired free of change. ・ If any problems are experienced with this instrument, the customer should contact the Yokogawa representative from which this instrument was purchased or the nearest Yokogawa office. ・ If a problem arises with this instrument, please inform us of the nature of the problem and the circumstances under which it developed, including the model specification and serial number. Any diagrams, data and other information you can include in your communication will also be helpful. ・ The party responsible for the cost of fixing the problem shall be determined by Yokogawa following an investigation conducted by Yokogawa. ■ The purchaser shall bear the responsib ility for repair costs, even during the warranty period, if the malfunction is due to: ・ Improper and/or inadequate maintenance by the purchaser. ・ Malfunction or damage due to a failure to handle, use, or store the instrument in accordance with the design specifications. ・ Use of the product in question in a location not conforming to the standards specified by Yokogawa, or due to improper maintenance of the installation location. ・ Failure or damage due to modification or repair by any party except Yokogawa or an approved representative of Yokogawa. ・ Malfunction or damage from improper relocation of the product in question after delivery. ・ Reason of force majeure such as fires, earthquakes, storms/floods, thunder/lightening, or other natural disasters, or disturbances, riots, warfare, or radioactive contamination. 2. Notes on Handling This chapter provides important information on how to handle this product. Read this carefully before using this product. This product is fully factory-tested upon shipment. W hen this product is delivered, check the appearance for damage. 2.1 Check the Model and Specifications The model name and specifications are written on the name plate attached to the case. Verify that the specification indicated in the “Model and Suf…

Text truncated - open the document above for the full version.

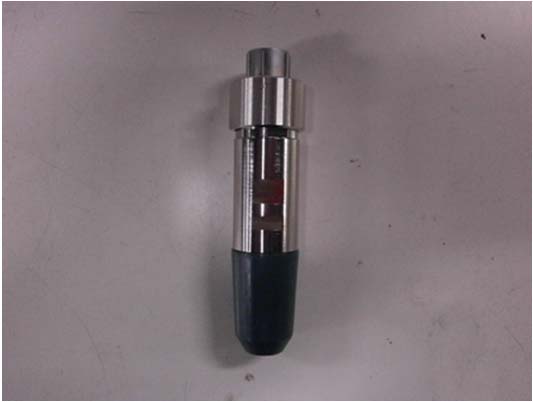

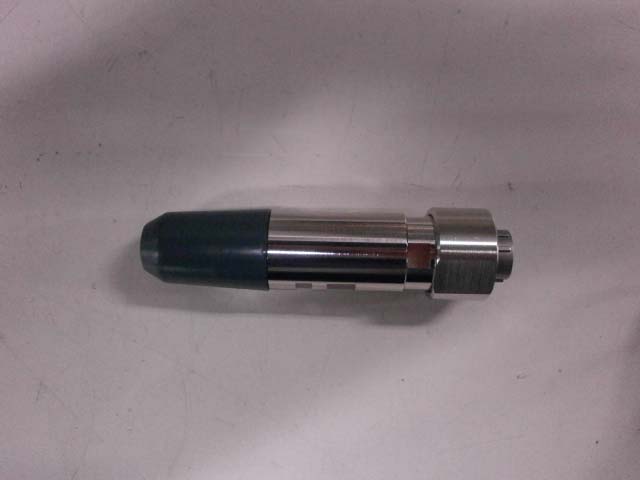

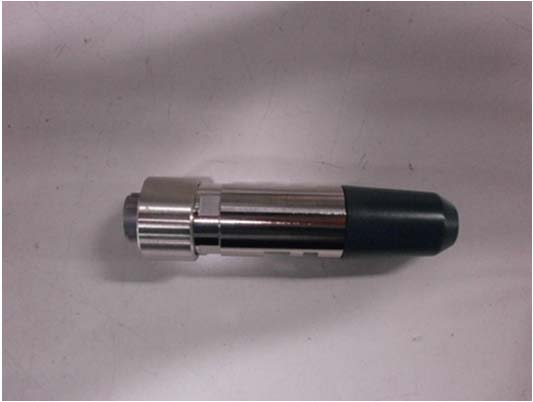

Doc. WFC011-A06(FN110 Photo) Photographic products (External) [UP] [Down] [Front] [Back] [Right] [Left]

Doc. WFC011-A09

Doc. WFC011-A06(FN110 Photo) P hotographic products (Internal) [Front] [Back]

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Yokogawa Electric Corporation Type of Equipment : Field W ireless Communication M odule M odel No. : FN110 FCC ID: SGJ-WFC011 Yokogawa Electric Corporation declares that M odel : Field W ireless Communication M odule com plies w ith F C C radiation exposure requirem ent specified in the F C C R ules 2.1091. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “FN110“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 16.03 mW (M aximum peak output power) G = 1.58 Numerical Antenna gain; equal 2.00 dBi r =20.0 cm For: FN110S = 0.00505 mW/cm 2 No. : 10248551S RF Exposure / SAR Statement

Test report No. : 10248551S-A Page : 2 of 31 Issued date : April 14, 2014 Revised date : April 16, 2014 FCC ID : SGJ-WFC011 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10248551S-A Revision Test report No. Date Page revised Contents - (Original) 10248551S-A April 14, 2014- - 1 10248551S-A April 16, 20144,10 Correction of erroneous description Test report No. : 10248551S-A Page : 3 of 31 Issued date : April 14, 2014 FCC ID : SGJ-WFC011 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Conducted emission ............................................................................................ 9 SECTION 6: Radiated emission ............................................................................................. 10 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 12 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 12 SECTION 9: Maximum peak conducted output power ....................................................... 12 SECTION 10: Peak power density ......................................................................................... 12 Contents of APPENDIXES ....................................................................................................... 13 APPENDIX 1: Data of Radio tests .......................................................................................... 14 APPENDIX 2: Test instruments ............................................................................................. 28 APPENDIX 3: Photographs of test setup ............................................................................... 29 Test report No. : 10248551S-A Page : 4 of 31 Issued date : April 14, 2014 Revised date : April 16, 2014 FCC ID : SGJ-WFC011 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Yokogawa Electric Corporation Address : 2-9-32 Naka-cho, Musashino-shi, Tokyo 180-8750 Japan Telephone Number : +81-422-52-5518 Facsimile Number : +81-422-52-2102 Contact Person : Tomoyuki Kamoshita SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Field Wireless Communication Module Model No. : FN110 Serial No. : Refer to 4.2 in this report. Rating : DC 2.9V - 4.8V Receipt Date of Sample : March 18, 2014 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No modification by the test lab. 2.2 Product description Model: FN110 (referred to as the EUT in this report) is a Field Wireless Communication Module. Clock frequency(ies) in the system : Transceiver 16MHz CPU 14MHz (Tx) CPU 14MHz,32MHz (Rx) RTC 32KHz *14MHz: Internal clock of CPU Radio specification: Equipment type : Transceiver Frequency of operation : 2405-2475MHz Bandwidth : 2MHz Channel spacing : 5MHz Type of modulation : O-QPSK, DSSS Antenna type : Multilayer Chip Antenna Antenna gain : 2.0dBi Antenna connector type : None ITU code : G1D Operation temperature range : -40 to +85 deg.C FCC 15.31 (e) The RF Module is constantly provided voltage (DC 2.8V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 10248551S-A Page : 5 of 31 Issued date : April 14, 2014 FCC ID : SGJ-WFC011 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2014, final revised on March 6, 2014 and effective April 7, 2014 * The revision on March 6, 2014 does not affect the test specification applied to the EUT. Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure *1) SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.10:2009 FCC 15.207 - N/A 22.1dB Freq.: 0.46108MHz Detector: Quasi-Peak Phase: N Mode: Tx 2405MHz Complied 6dB bandwidth ANSI C63.10:2009 FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum peak conducted output power ANSI C63.10:2009 FCC 15.247 (b)(3) ConductedN/A Complied Out of band emission & Restricted band edges ANSI C63.10:2009 FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 0.2dB Freq.: 4810.000MHz Polarization: Horizontal Detection: Average Mode: Tx, 2405 MHz Complied Power density ANSI C63.10:2009 FCC 15.247 (e)ConductedN/A * See data Complied Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 and 13-EM-W0422. *1) These tests were also referred to KDB 558074 v03 r01 (FCC), "Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247”. 3.3 Addition to standard Item Test Procedure SpecificationRemarksWorst Margin Results Occupied bandwidth (…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission (front) (rear) Test report No.: 10248551S-A 29 of 31 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission (front) (rear, below 1GHz) (rear, above 1GHz) Test report No.: 10248551S-A 30 of 31 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position 1 2 (Reference) X-axis X-axis Y-axis Y-axis Z-axis Z-axis *) This test was performed as the above pictures 1. The above pictures 2 denote the angle of EUT as references. End of Report Test report No.: 10248551S-A 31 of 31
