SH6MDBT40Bluetooth Module

Approval Sheet 產品名稱 ： BT4.0 modul 產品型號 ： MDBT40 Approved 客戶名稱 客戶名稱客戶名稱 客戶名稱 ： 產品名稱 產品名稱產品名稱 產品名稱 ： 產品型號 產品型號產品型號 產品型號 ： Checked 勁達國際電子有限公司 新北市中和區建康路3號5樓 Tel: +886-2-32340208 Fax: +886 1 Version No. Issued Date: 2014/ Approval Sheet (產品承認書 產品承認書產品承認書 產品承認書) module (Nordic nRF51822) MDBT40 Checked Designed Received Fax: +886-2-32340547 Version No.：E Issued Date: 2014/2/14 Designed 2 Index 1. Overall Introduction ....................................................................................................... 3 1.1 Applications .............................................................................................................. 3 1.2 Features .................................................................................................................... 4 1.3 Profile and Service Information .............................................................................. 5 2. Product Dimension ........................................................................................................ 6 2.1 PCB Dimensions, & Pin Indication & layout Guide ............................................... 6 2.2 Pin Assignment ........................................................................................................ 8 2.3 Software & Hardware Installation ......................................................................... 10 3. Main Chip Solution ...................................................................................................... 12 4. Shipment Packing Information ................................................................................... 12 5. Specification ................................................................................................................ 13 5.1 Absolute maximum ratings ................................................................................... 13 5.2 Operation conditions ............................................................................................. 13 5.3 Electrical Specifications ........................................................................................ 14 6. Block Diagram .............................................................................................................. 20 7. Antenna......................................................................................................................... 21 8. Reference Circuit ......................................................................................................... 23 8.1 nRF51822 schematic with internal LDO ............................................................... 23 8.2 nRF51822 schematic with 1.8V low voltage mode .............................................. 24 8.3 nRF51822 schematic with internal DC/DC converter .......................................... 25 9. BQB Certification ......................................................................................................... 26 10. Carrier Keep Out Area ............................................................................................... 26 11. Current Consumption Reference Data (BT3.0 VS BT4.0) ....................................... 27 12. BT 4.0 Product Certification Cost Comparison Chart ............................................. 28 13. FCC Statement ........................................................................................................... 30 3 1. Overall Introduction Raytac’s MDBT40 is a BT4.0 (Bluetooth low energy or BLE) module designed based on Nordic nRF581822 solution. The feature of the module: 1. Dual Transmission Mode of BLE & RF 2.4G upon customer preference. 2. Compact size with (L)18x(W)10x(H)3.2mm 3. Low power requirements, ultra-low peak, average and idle mode power consumption. 4. Compatible with a large installed based of mobiles phones, tablets and computers. 5. Fully coverage of wireless applications. 6. BLE & RF transmission switching may help products to fit all operation system 7. BLE & RF transmission switching may help products fit all kinds of hardware. 1.1 Applications . Computer peripherals and I/O devices . Mouse . Keyboard . Multi-touch trackpad . Interactive entertainment devices . Remote control . 3D Glasses . Gaming controller . Personal Area Networks . Health/fitness sensor and monitor devices . Medical devices . Key-fobs + wrist watch . Remote control toys 4 1.2 Features . 2.4GHZ transceiver . -93dbm sensitivity in Bluetooth low energy mode . TX Power -20 to +4dbm . RSSI (1db resolution) . ARM Cortex – M0 32 bit processor .Serial Wire Debug (SWD) . S100 series SoftDevice ready . Memory . 256kb or 128kb embedded flash program, memory . 16kb RAM . Support for non-concurrent multiprotocol operation . On-air compatibility with nRF24L series . Flexible Power Management . Supply voltage range 1.8V to 3.6V (Typical 3.0V) . 2.5us wake-up using 16MHz RCOSC . 0.6uA @ 3V mode . 1.2uA @ 3V in OFF mode + 1 region RAM retention . 2.6uA @ 3V ON mode, all blocks IDLE . 8/9/10 bit ADC- 8 configurable channels . 31 General Purpose I/O Pins . One 32 bit and two 16 bit timers with counter mode . SPI Master . Two-wire Master (I2C compatible) . UART (CTS/RTS) . CPU independent Programmable Peripheral Interconnect (PPI) . Quadrature Decoder (QDEC) . AES HW encryption . Real Timer Counter (RTC) 1.3 Profile and Service Information 5 1.3 Profile and Service Information 2. Product Dimension 2.1 PCB Dimensions, & Pin Indic PCB SIZE： ：： ：10 x18 (mm) 6 ension PCB Dimensions, & Pin Indication & layout Guide & layout Guide 7 8 2.2 Pin Assignment Pin No. Name Pin function Description (1)(2) GND Ground The pad must be connected to a solid ground plane (3) AVDD Power Analog power supply (4) P0.21 Digital I/O General-purpose digital I/O (5) P0.22 Digital I/O General-purpose digital I/O (6) P0.23 Digital I/O General-purpose digital I/O (7) P0.24 Digital I/O General-purpose digital I/O (8) P0.25 Digital I/O General-purpose digital I/O (9) P0.26 Digital I/O General-purpose digital I/O AIN0 Analog in…

Text truncated - open the document above for the full version.

International Certifica tion Corp. (全球檢測股份 有限公司) Tel：886-3-271-8666 Fax : 886-3-318-0155 No.3-1, Lane 6, Wen 33rd Rd., Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Subject: Modular appr oval request FCC ID: SH6MDBT40 Date: February 17, 2014 Dear reviewer: The modular would like to have aut horization as a modular approval. The requirements of section 15.212 have been met and shown on th e following statements 1) The radio elements of the modular tr ansmitter mus t have their own shielding The modular has shielding. Please refer to external photo. 2) The modular tr ansmitter must have buffered modulation/da ta inputs The buffer is integrated with IC nRF51822 3) The modular tr ansmitter must have its own power supply regulation The part No. of regulator is nRF51822 4) The modular tr ansmitter must comply with the antenna and tr ansmission system requirements of §§15.203, 15.204(b) and 15.204 (c). This RF Module is equipped with an onboard chip antenna and complies with this requirement.. 5) The modular tr ansmitter must be tested in a stand-alone configur ati on The modular is tested in a stand-alone configur ation via an extender. Please refer to test setup photo. 6) The modular tr ansmitter must be equipped with either a permanently affixed label or must be cap able of electr onically displaying its FCC identification number. This RF Module is labelled with it's own FCC ID. The Integration Manual contains labelling instructions for the final end-product into which this RF Module will be integrated. 7) The modular tr ansmitter must comply with any specific rules or operati ng requirements The modular complies with the requirement. Detail informati on please refer to user manual 8) The modular tr ansmitter must comply with any applicable RF exposure requirements in its final configuration. Maximum output power of this module is 4.28dBm = 2.68 mW < 10 mW (SAR Test Exclusion Thresholds ). The modular complies with the requirement. Please contact me if you have any questions about this letter. Best regards Gary Chang , Manager Report & Certification department Tel:+886-3-271-8628 Email:[email protected]

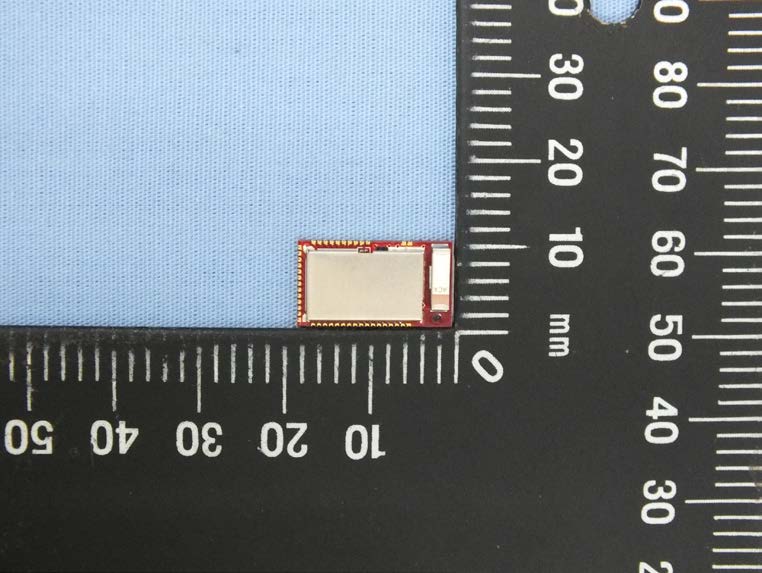

Photographs of EUT Project No.: EP412101 Page No. : 1 of 3

Label Location

Project No.: EP412101 Page No. : 2 of 3 Project No.: EP412101 Page No. : 3 of 3

Report No.: FR412101AE Page : 1 of 33 Report Version: Rev. 02 FCC Test Report FCC ID : SH6MDBT40 Equipment : BT4.0 module Model No. : MDBT40 Brand Name : Raytac Applicant : Raytac Corporation Address : 5F., No.3, Jiankang Rd., Zhonghe Dist, New Taipei City, Taiwan, 23586 Standard : 47 CFR FCC Part 15.247 Received Date : Jan. 12, 2014 Tested Date : Jan. 23 ~ Jan. 29, 2014 We, International Certification Corp., w ould like to declare that the tested sample has been ev aluated and in compliance w ith the requirement of the abov e standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approv al of the applicant. It shall not be reproduced except in full w ithout the w ritten approv al of our laboratory. Approv ed & Rev iew ed by: Gary Chang / Manager Ty: XXX Report No.: FR412101AE Page : 2 of 33 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .......................................................................................................... 5 1.1 Information.................................................................................................................................. 5 1.2 Local Support Equipment List....................................................................................................... 6 1.3 T est Setup Chart ......................................................................................................................... 6 1.4 T est Equipment List and Calibration Data...................................................................................... 7 1.5 T est Standards............................................................................................................................ 8 1.6 Measurement Uncertainty ............................................................................................................ 8 2 TES T CONFIGURATION............................................................................................................. 9 2.1 T esting Condition ........................................................................................................................ 9 2.2 T he Worst T est Modes and Channel Details.................................................................................. 9 3 TRANSMITTER TEST RESULTS............................................................................................... 10 3.1 AC Power Line Conducted Emissions ......................................................................................... 10 3.2 6dB and Occupied Bandwidth .................................................................................................... 13 3.3 RF Output Power....................................................................................................................... 16 3.4 Power Spectral Density.............................................................................................................. 18 3.5 Emissions in Restricted Frequency Bands................................................................................... 20 3.6 Emissions in non-restricted Frequency Bands ............................................................................. 30 4 TES T LABORATORY INFORMATION ....................................................................................... 33 Report No.: FR412101AE Page : 3 of 33 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR412101AE Rev. 01 Initial issue Feb. 12, 2014 FR412101AE Rev. 02 Modified extender board and emissions below 30MHz information Feb. 17, 2014 Report No.: FR412101AE Page : 4 of 33 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 0.164MHz 45.39 (Margin -9.86dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 4884.00MHz 51.36 (Margin -2.64dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 4.38 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR412101AE Page : 5 of 33 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Product Details 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 BT LE 2402-2480 0-39 [40] 1 Mbps Note 1: Bluetooth BR uses a GFSK (1Mbps). 1.1.3 Antenna Details Ant. No. Type Model Manufacturer Gain (dBi) Connector 1 Chip AT 7020 Series Advanced Ceramic X 1.3 N/A 1.1.4 Power Supply Type of Equipment under Test (EUT) Pow er Supply Type 3Vdc from Host 1.1.5 Accessories N/A 1.1.6 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 37 2402 9 2422 18 2442 28 2462 0 2404 10 2424 19 2444 29 2464 1 2406 38 2426 20 2446 30 2466 2 2408 11 2428 21 2448 31 2468 3 2410 12 2430 22 2450 32 2470 4 2412 13 2432 23 2452 33 2472 5 2414 14 2434 24 2454 34 2474 6 2416 15 2436 25 2456 35 2476 7 2418 16 2438 26 2458 36 2478 8 2420 17 2440 27 2460 39 2480 Report No.: FR412101AE Page : 6 of 33 Report Version: Rev. 02 1.1.7 Test Tool and Duty Cycle Test tool Hardware control Duty cycle of test signal (%) 18.50% Duty Factor (dB) 7.33 1.1.8 Power Setting Modulation Mode Test Frequency (MHz) 2402 2442 2480 GFSK/1Mbps Default Default Default 1.2 Local Support Equipme nt List Support Equipment List No. Equipment Brand Model S/N FCC ID Signal cable / Length (m) 1 Notebook DELL E6430 --- DoC USB 1.0m non-shielded cable w/o core. 2 Extender board Raytac Corporation MDBT 40IT 01 --- --- --- 1.3 Te st Se tup Chart Test Setup Diagram Report No.: FR412101AE Page : 7 of 33 Report Version: Rev. 02 1.4 Te st Equipme nt List and Calibration Data Test Item Conducted Emission Test Site Conduc…
