SH6PF1000Wireless Lighting Presenter

Wireless Lighting Presenter (2.4GHz) User’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transcribed in any form or by any means, electronic or mechanical, for any purpose, without the express written prior permission of the seller. The seller provides this document without warranty, or condition of any kind. The seller may make improvements or change in the product described in this documentation at any time. Other product and company name herein may be the trademarks of their respective owners. © 2010 All rights reserved. Be sure to carefully read this User’s Guide first for the proper use of this product and keep it for future reference. 2 IMPORTANT SAFETY AND HEALTH INFORMATION Laser beam can cause permanent damage to eyes. Do not look into the laser beam or shine the laser beam into your eyes, other peoples’ eyes, or pet’s eyes. Keep this device away from Children. This is a working tool, not a toy or entertainment device. It should only be used by adults. FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. EU DECLARATION OF CONFORMITY This product is carrying the CE-Mark in accordance with the related European Directives. Trademarks Windows, Windows Vista, Microsoft and PowerPoint are registered trademarks of Microsoft Corporation. Mac, Mac OS are registered trademarks of Apple, Inc. Other trademarks and registered trademarks not listed above may be used in this manual. 3 „ General introduction Product features This Wireless Lighting Presenter is a 3-in-1 product integrating Laser pointer, PowerPoint slide control and LED lighting function. In addition to its ergonomic shape design, we added continued slide page up and down function which assists you be more comfortable and professional at PowerPoint presentation occasion, especially the integrated white LED lighting function ensures no miss of your important idea or point even in the dark presentation location! Now just insert the batteries, plug the USB receiver and start to enjoy this plug-and-play, all-direction and up-to-50M control distance device!! Package contents † Wireless Lighting Presenter x 1 † USB Receiver x 1 † AAA Battery x 2 † User’s Manual x 1 System Requirements † Windows® 2000 / XP / Vista / 7 & PowerPoint® 2000 (or later) for Windows † Mac OS® X v.10.4 (or later) & PowerPoint® X (or later) for Mac † Available USB port „ Preparations to use Take out USB receiver and plug it to your PC USB port The USB receiver is stored in the battery chamber. Open the battery cover, take the USB receiver out and plug it to your PC USB port. Note When you put the USB receiver into the battery chamber, please note its storing direction. Note For first use this product on Mac PC, you may need to do following setting for normal use： Plug in USB receiver → Keyboard Setup Assistant → Click “Continue” → Identify Your Keyboard → Press any key on the keyboard → Select “Skip” → Choose “ANSI” → Click “Done” button Insert the batteries Open the battery cover and insert the supplied batteries with correct polarity. Now you can use this product. Note After inserted batteries, the laser function will become available. Please pay attention not point to any other person’s eyes when pressing the laser button. USB connector side up + - - + 4 „ Function and operation Icon Function and operation Press this button to shoot laser beam (1) Click this button to go to previous slide (2) Press and hold over 1 second to start continued slide up at speed about 2~3 slides per second. Release your finger to stop slide up (1) Click to start the slide show from the 1 st page (2) Press and hold over 1 second to exit the slide show (1) Click this button to go to next slide (2) Press and hold over 1 second to start continued slide down at speed about 2~3 slides per second. Release your finger to stop slide down Press this button to shoot white LED light Status indicating LED (1) Light up when pressing the laser button (2) Quick blink in 5 times after pressed any function key when battery power is detected low. Please replace with new batteries soon for a stable control. Note To avoid battery power consumption due to unintentional touch, any key function will be automatically stopped after a continued pressing over 30 seconds! „ ID Link No need to conduct ID link process whenever you want to use this product, UNLESS bat…

Text truncated - open the document above for the full version.

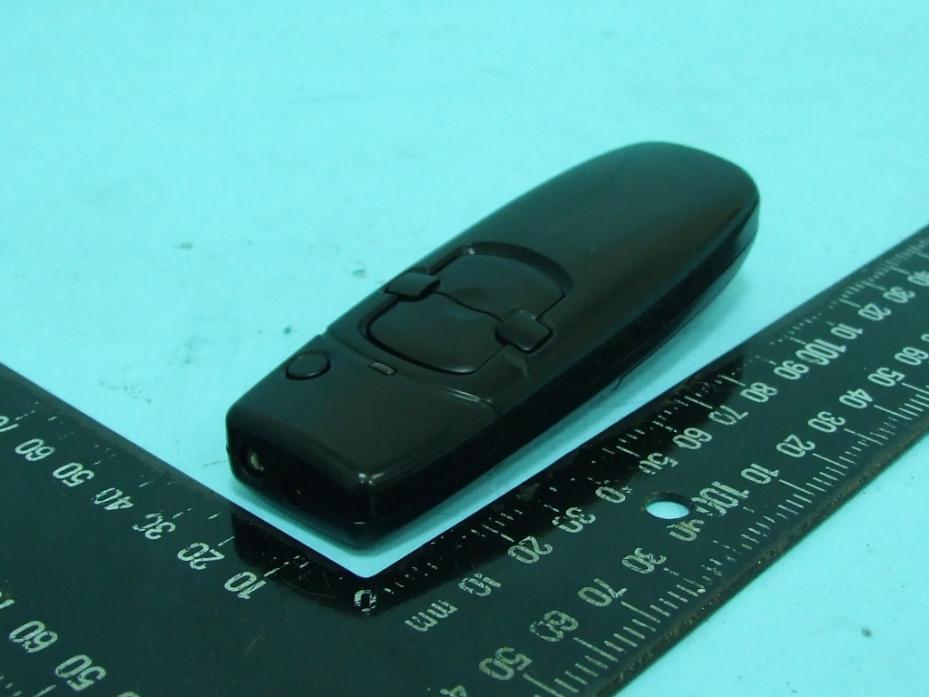

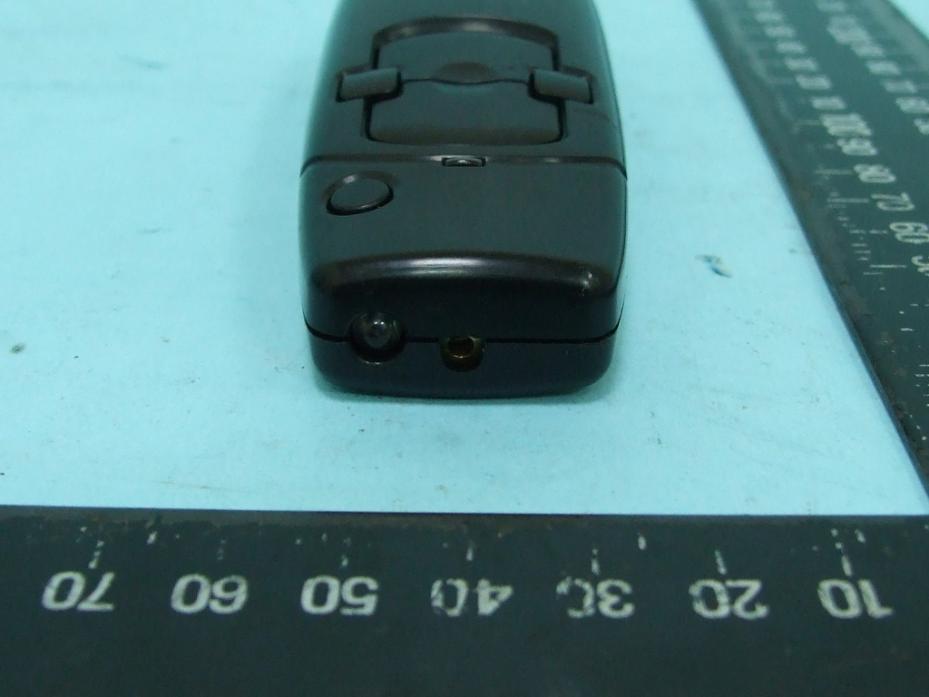

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 15, 2010 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 15, 2010 FAX : 886-2-2696-2255

NCC TEST REPORT Report No.: FR0N2610 SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : Wireless Lighting Presenter Model No. : PF1000 Brand Name : Raytac Filing Type : New Application Applicant : Raytac Corp. 12F.,No.786, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan FCC ID : SH6PF1000 Manufacturer : Raytac Corp. 12F.,No.786, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan Received Date : Dec. 10, 2010 Final Test Date : Dec. 15, 2010 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR0N2610 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Dec. 15, 2010 FAX : 886-2-2696-2255 FCC ID : SH6PF1000 Table of Contents 1. SUMMARY OF THE TEST RESULT .......................................................................................................................2 2. GENERAL INFORMATION ......................................................................................................................................3 2.1. Product Details .................................................................................................................................................................................... 3 2.2. Table for Test Modes .......................................................................................................................................................................... 3 2.3. Table for Testing Locations ................................................................................................................................................................. 3 2.4. Table for Supporting Units ................................................................................................................................................................... 3 2.5. EUT Operation during Test ................................................................................................................................................................. 3 2.6. Test Configurations ............................................................................................................................................................................. 4 3. TEST RESULT .........................................................................................................................................................6 3.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 6 3.2. Field Strength of Fundamental Emissions Measurement ..................................................................................................................... 9 3.3. 20dB Spectrum Bandwidth Measurement ......................................................................................................................................... 12 3.4. Radiated Emissions Measurement .................................................................................................................................................... 16 3.5. Band Edge Emissions Measurement ................................................................................................................................................. 28 3.6. Antenna Requirements...................................................................................................................................................................... 30 4. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 31 5. TEST LOCATION .................................................................................................................................................. 32 6. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 33 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A4 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B7 FCC TEST REPORT Report No.: FR0N2610 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Dec. 15, 2010 FAX : 886-2-2696-2255 FCC ID : SH6PF1000 History of This Test Report Original Issue Date: Dec. 15, 2010 Report No.: FR0N2610 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) Further, this requirement does not apply to intentional radiators that must be professionally installed. FCC TEST REPORT Report No.: FR0N2610 SPORTON International Inc. Page No. : 1 of 33 TEL : 886-2-2696-2468 Issued Date : Dec. 15, 2010 FAX : 886-2-2696-2255 FCC ID : SH6PF1000 CERTIFICATE OF COMPLIANCE according to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : Wireless Lighting Presenter Model No. : PF1000 Brand Name : Raytac Applicant : Raytac Corp. 12F.,No.786, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan Sporton International as requested by the applicant to evaluate the EMC performance of the product sample received on Dec. 10, 2010 would like to declare that the tested s…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR0N2610 Page No. : A1 of A4 FCC ID : SH6PF1000 Appendix A. Test Photos FCC TEST REPORT Report No.: FR0N2610 Page No. : A2 of A4 FCC ID : SH6PF1000 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR0N2610 Page No. : A3 of A4 FCC ID : SH6PF1000 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR0N2610 Page No. : A4 of A4 FCC ID : SH6PF1000 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
