If out of range while connected to a device (more than 33 feet/10 meters), Bluez will disconnect from the device. Once Bluez is back within range, it will automatically reconnect.However, if Bluez is disconnected If the device is turned off while connected to Bluez, Bluez will disconnect from it. When you turn on the device again, just press any button on Bluez to reconnect manually. Note: ColorStatus Red(quick flash) Low battery Red(quick flash four times when shutting down Bluez) Less than 2 hours working time Blue and Red(flash) Pairing Blue(slow flash) Connected, making a call， streaming audio Blue(slow double flash) Bluez and a paired mobile phone arenot connected. One of them is not turned on,or the two are more than 33 feet (10m) apart. Blue(solid)Charging complete Blue(quick double flash)Discoverable for pairing Red(solid)Charging Blue(quick flash) Receiving a call - To pair with another phone or re-pair with a device, press the Play Button and hold for 5 seconds to enter manual pairing. The LED indication will flash quickly blue/red. General Bluetooth Bluetooth ON Devices AFTERSHOKZ Connected ....... ....... ....... ....... AFTERSHOKZ How to charge Note: It's recommended to charge Bluez before using for the first time. Note: Bluez is not functional while charging. How to pair 1. Slide the Power Switch on Bluez to the “ON” position.(green) Connect Bluez to a standard USB port on your PC or a wall charger via the USB charging cable. Bluez will fully charge in 3 hours. The LED Indicator will show solid red when charging, and will turn solid blue when charging is completed. 2. Locate the Bluetooth menu on the device and select “AFTERSHOKZ”. - If Bluez is pairing with a device for the first time, it will enter the pairing mode automatically. The LED indicator will flash blue/red. - Bluez will automatically reconnect with a device that was previously paired in less than 18 seconds. The LED indicator will be flash blue. The adjustable (and removeable) Tension Band on Bluez is recommended for those who have a small head or feel Bluez is not secure on their head. Adjust to fit or remove the Tension Band as needed. Power Switch Call Button Play Button Volume Control USB Charging Port BLUEZ Bone Conduction Headset Keep ears open, be aware of surroundings LED Indicator USB to micro USB Charging Cable Tension Band (with instruction sheet) Warranty Registration Card Stereo Bluetooth headset with wireless phone and music functions More comfortable and stable for extended use. Open Ear design to keep aware of surroundings. Place the wraparound head band behind your neck with the transducers resting on the bone in front of your ears, not on your ears. Audio tone Answer a call End a call Reject a coming call Transfer audio to your mobile Redail last call Voice control Volume control Mute/Unmute a call Press Call Button Press Call Button Hold Call Button for 1 seconds Hold Call Button for 1 seconds while on call Press Call Button twice Hold Call Button Press Volume Control Press Play Button while having a call Two notes Single beep Two notes Actions Control Single beep Single beep Single beep Single beep Single beep Previous/next song Power on Power off Bluetooth disconnect Bluetooth connect Low battery Hold Volume Control for 2 seconds Four notes (ascending) Four notes (descending) Three beeps Three beeps Beeps three times every two minutes Slide Power Switch to On position (green) Single beep Slide Power Switch to Off position Actions Does not turn on Check if the battery is fully charged Charge the battery Does not reconnect automatically Bluez entries standby mode Press any button to reconnect manually Unable to pair Bluez doesn't enter pairing mode Press the Play Button and hold on for 5 seconds to enter Manual Pairing Mode People on the other end of a phone call can't hear you. The Play Button was pressed during the call, so the microphone of Bluez is muted. Press Play Button again to turn off mute function. Bone Conduction Speaker Up to 6 Hours <3 Hours Up to 10 days 10m(33ft) 2.1+EDR 43 grams/1.5 ounces Playback Time Charging Time Standby Time Effective Distance Bluetooth Version Speaker Type Weight Spec Play/Pause music players on your phone. (*) Press Play Button once No *This function may vary on different types of smart phones, depending on the operation system and software on your phone. Listening with headset at high volume may affect your hearing and the audio could be distorted. Store the headset in cool and dry place. The working temperature should be 0~45°C (32~113°F). Working in cold/hot environment or highly humid area will reduce the life of battery. After storage for a long period, please charge the headset before using again. The headset is water resistant, but is NOT waterproof. Please DON'T put the headset into water. Clean it with soft cloth if necessary. Clean the headset with a soft dry cloth. Do not bring the headset into contact with any sharp object. Do not leave the headset to extremely high or low temperature. Almacenamiento y mantenimiento Guarde los auriculares en un lugar fresco y seco. La temperatura operativa deberá encontrarse entre 0~45°C (32~113°F). El uso en ambientes muy fríos/cálidos o zonas de alta humedad reducirá la vida de la batería. Tras un largo periodo de almacenamiento, por favor, cargue los auriculares antes de volver a usarlos. Los auriculares son resistentes al agua, pero NO son sumergibles. Por favor, NO meta los auriculares en el agua. Límpielos con un trapo, si fuera necesario. Limpie los auriculares con un trapo seco. No deje que los auriculares entren en contacto con objetos afilados. No someta los auriculares a temperaturas extremadamente altas o bajas. No cargue los auriculares en ambientes húmedos. El diseño y las especificaciones están sujetos a cambios sin notificación previa. Para obtener más información acerca del producto, por favor, visite www.AfterShokz.com for a long time(more than 3 minutes), you may need to press any button …

Text truncated - open the document above for the full version.

AfterShokz, LLC Date 11/03/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, AfterShokz, LLC 6311 Fly Road, Suite 106, East Syracuse, NY 13057 Borenstein Bruce hereby authorize Bovey.yang NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District 0755-61156588 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 1 year duration . Sincerely, Company Officer: Borenstein Bruce Telephone Number: (+1)315-218-0308 Email: [email protected]

AfterShokz, LLC Date (11/03/2013) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: SHKASCEHB1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, VoxLinc , LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: [Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation] The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Borenstein Bruce Telephone Number: (+1)315-218-0308 Email: [email protected]

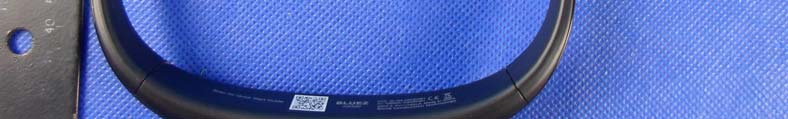

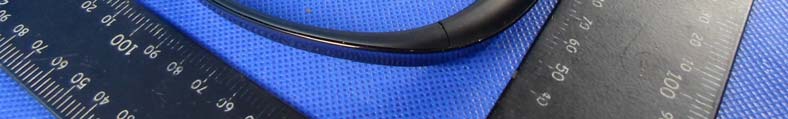

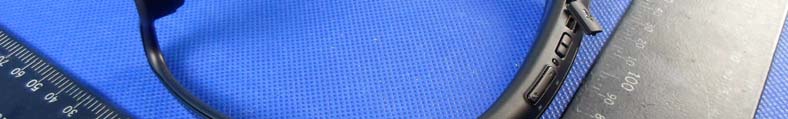

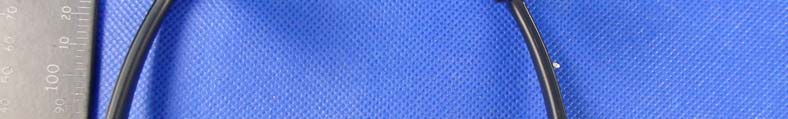

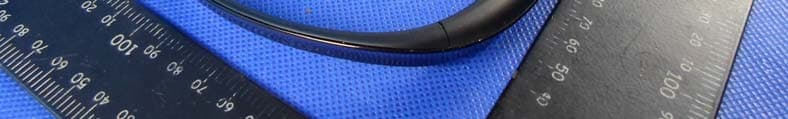

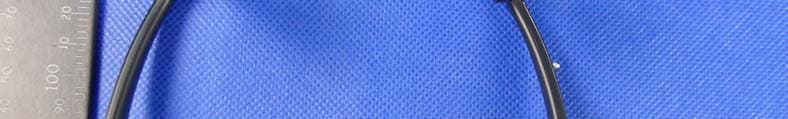

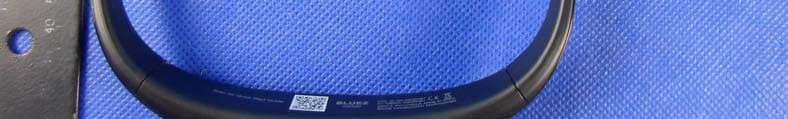

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Photo 7 Photo 8 Photo 9 BT Antenna Photo 10 Photo 11

RF EXPOSURE TEST Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) For portable device,the power limit is 60/f(in GHz) mW For limit 60/f is equal: 60/2.402=24.97mW 60/2.441=24.58 mW 60/2.480=24.19mW Maximum measured transmitter power Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 1Mbps 2402 0 3.720 2.089 2441 0 4.187 2.622 2480 0 3.648 2.316 2Mbps 2402 0 3.003 1.996 2441 0 2.953 1.973 2480 0 1.900 1.549 3Mbps 2402 0 2.970 1.981 2441 0 3.040 2.014 2480 0 2.096 1.620 The max.output power E.I.R.P is 2.622mW<24.97mW Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: SHKASCEHB1 Product： Bluez Trade Name： AfterShokz Model Name： AS330 Serial Model： N/A Report No.： NTEK-2013DC0109002F Prepared for AfterShokz, LLC 6311 Fly Road, Suite 106, East Syracuse, NY 13057 Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 75 Report No.: NTEK-2013DC0109002F TEST RESULT CERTIFICATION Applicant’s name................. : AfterShokz, LLC Address ................................. : 6311 Fly Road, Suite 106, East Syracuse, NY 13057 Manufacture's Name............ : AfterShokz, LLC Address ................................. : 6311 Fly Road, Suite 106, East Syracuse, NY 13057 Product description Product name ........................... : Bluez Model and/or type reference : AS330 Serial Model： N/A Standards............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 09 Jan. 2013 ~10 Mar. 2013 Date of Issue...........................................: 10 Mar. 2013 Test Result...............................................: Pass Testing Engineer : (Jason Chen) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 75 Report No.: NTEK-2013DC0109002F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 30 4 . NUMBER OF HOPPING CHANNEL 34 4.1 APPLIED PROCEDURES / LIMIT 34 4.1.1 TEST PROCEDURE 34 4.1.2 DEVIATION FROM STANDARD 34 4.1.3 TEST SETUP 34 4.1.4 EUT OPERATION CONDITIONS 34 4.1.5 TEST RESULTS 35 5 . AVERAGE TIME OF OCCUPANCY 36 Page 4 of 75 Report No.: NTEK-2013DC0109002F Table of Contents Page 5.1 APPLIED PROCEDURES / LIMIT 36 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 53 6.1 APPLIED PROCEDURES / LIMIT 53 6.1.1 TEST PROCEDURE 53 6.1.2 DEVIATION FROM STANDARD 53 6.1.3 TEST SETUP 53 6.1.4 EUT OPERATION CONDITIONS 53 6.1.5 TEST RESULTS 54 7 . BANDWIDTH TEST 60 7.1 APPLIED PROCEDURES / LIMIT 60 7.1.1 TEST PROCEDURE 60 7.1.2 DEVIATION FROM STANDARD 60 7.1.3 TEST SETUP 60 7.1.4 EUT OPERATION CONDITIONS 60 7.1.5 TEST RESULTS 61 8 . PEAK OUTPUT POWER TEST 67 8.1 APPLIED PROCEDURES / LIMIT 67 8.1.1 TEST PROCEDURE 67 8.1.2 DEVIATION FROM STANDARD 67 8.1.3 TEST SETUP 67 8.1.4 EUT OPERATION CONDITIONS 67 8.1.5 TEST RESULTS 68 9 . EUT TEST PHOTO 74 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 75 Report No.: NTEK-2013DC0109002F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 75 Report No.: NTEK-2013DC0109002F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd. Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 75 Report No.: NTEK-2013DC0109002F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluez Trade Name AFTERSHOKZ Model Name AS330 Serial Model N/A Model Difference N/A Product Description The EUT is a Bluez Operation Frequency: 2402~2480 MHz Modulation Type: BT(1Mbps): GFSK BT EDR(2Mbps): ∏ /4-DQPSK BT EDR(3Mbps): 8-DPSK Bit Rate of Transmitter 1Mbps/2Mbps/3Mbps Number Of Channel 79 CH Antenna Designation: Please see Note 3. Output Power(Conducted): BT(1Mbps): 4.187dBm BT EDR(2Mbps): 3.003dBm BT EDR(3Mbps): 3.040dBm Based on the application, features, or sp…

Text truncated - open the document above for the full version.

Page 74 of 75 Report No.: NTEK-2013DC0109002F 9. EUT TEST PHOTO Radiated Measurement Photos Page 75 of 75 Report No.: NTEK-2013DC0109002F CONDUCTED EMISSION Photos
