SL6-BEEKS001BEEKS BLE Beacon

INSTALLATION GUIDE HID® BEEKS001 Install Guide PLT-05252, Rev. A.1 © 2020 HID Global Corporation/ASSA ABLOY AB. All rights reserved. This document may not be reproduced, disseminated or republished in any form without the prior written permission of HID Global Corporation. HID GLOBAL, HID, the HID Brick logo, the Chain Design, BluFi, Bluzone, and BEEKs are trademarks or registered trademarks of HID Global, ASSA ABLOY AB, or its affiliate(s) in the US and other countries and may not be used without permission. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owner. 2020-09-16-hid-beeks001-installation-guide-in-en hidglobal.com An ASSA ABLOY Group brand Overview System components TerminologySensor locations Best practices Pre-requisites Specifications The BEEKs™ Install Guide covers the basics of the BLE beacon setup and provisioning of equipment with Bluzone Cloud account and project. This install guide is intended for install technicians. BEEKs™ Bluetooth Low-Energy (BLE) beacons are among the most advanced beacons in the industry. Being fully Apple iBeacon and Google Eddystone compatible, BEEKs beacons may be used for any standard beacon application that provides location based promotional or way-finding services to smartphone users. BEEKs beacons are available in multiple form factors and sensor configurations. When combined with HID Global’s end-to- end IoT ecosystem, that includes BluFi™ BLE to WiFi gateways and the Bluzone™ cloud services, BEEKs can be centrally managed remotely through the cloud to transfer new messages, firmware updates and battery status checks. Their unique design allows BEEKs to broadcast reliably even in densely populated WiFi environments. The BLE radio enables the Beacon to transmit condition monitoring, proximity messaging, way finding and asset location. Bluzone allows you to control the transmitting capabilities of the Beacon. The Beacon provides the ability to transmit in iBeacon, Eddystone or sBeacon format. The BEEKs Beacons link to ID64 with a QR code printed/ labeled on the outer casing. ƒMaximum of 15 – 20 beacons per BluFi for best results ƒMaximum 20 – 30 meters from beacon to BluFi for best results (distance will decrease for increased interference/ blockages) ƒRecommended epoxy glue for mounting: Loctite AA 330, Devcon 5-minute (for BEEKS001-CM) ƒNetwork troubleshooting ƒ2.4 GHz WiFi only ƒHTTPS port 443 must be open ƒDHCP required ƒ1 Mbps upload speed required ƒCaptive WiFi portals not compatible ƒCompatible certificate formats: .pem, .der ƒBluFi MAC address whitelisting may be required on some networks ƒSet up Bluzone account ƒDownload Bluzone mobile app ƒAdditional installation guides are available and can be found at : https://hid.gl/HID-BluFi-installation ITEMDESCRIPTION 1BluFi™ model BluFi-AC00 – Bluetooth to WiFi Gateway. 2Bluzone – Cloud Fleet Management and Condition Monitoring dashboard. 3 BEEKs™ model BEEKS001–XX Bluetooth Low Energy Beacons. ITEMDESCRIPTION 1Bluzone – Secure cloud-based SaaS to centrally manage BEEKs via BluFi gateways. Additionally, monitor, store and analyze performance data collected from deployed BEEKs fleet. 2BluFi Gateway – Receives data from BEEKs over Bluetooth and sends to Bluzone Cloud. 3BEEKs CM – Sends vibration and temperature data to BluFi. 4Asset – Equipment to be monitored or tracked T R A X Z Y T A R Orientation A = Axial R = Radial T = Tangential Vertical motor mount Horizontal motor mount 1 3 2 BLE Beacons model number BEEKS001 Different Configurations based on environments and use case BEEKS001- CM BEEKS001- Industrial BEEKS001- Lite BEEKS001- Plus BEEKS001-CMCondition monitoring for industrial applications, sends vibration (accelerometer) and temperature data. Enclosure is sealed with epoxy to preserve mechanical frequency response. Epoxy-mount. BEEKS001-IndustrialStatus/ process monitoring, sends basic motion and temperature data. VHB tape-mount. BEEKS001-LiteAsset location and way-finding. VHB tape-mount. BEEKS001-PlusAsset location and way-finding with longer battery life. VHB tape-mount. Operating temperature-13°F to +185°F (-25°C to +85°C) Storage temperature-22°F to +185°F (-30°C to +85°C) Specifications Standard ProtocolBluetooth Low Energy 4.2 Frequency range2400-2483.5 MHz No of channels40 ModulationGFSK Mode of operationHalf duplex RF output power+5dBm (<10mW) AntennaPCB, 0 dbi omnidirectional 1 4 3 WiFi WiFi Bluetooth Bluetooth 2 Beacons should be mounted to a clean, flat, rigid surface of the asset to be monitored. For Condition Monitoring Applications with BEEKS001-CM, the beacon should be oriented such that its three axes are parallel to the three axes of the asset, close to the source of vibration. NameBEEKS001- CM BEEKS001- Industrial BEEKS001- Lite BEEKS001- Plus Length x width2.36 in × 0.83 x 0.98 in (60 × 21 x 25 mm) 2.36 in × 0.83 x 0.98 in (60 × 21 x 25 mm) 2.36 in × 0.83 x 0.98 in (60 × 21 x 25 mm) 2.41 x 1.46 in (61.3 x 37.2 mm) Weight1.37 oz (39 g)1.0 oz (28 g)1.0 oz (28 g)2.7 oz (76 g) Housing materialPolycarbonate and ABS Data rates1Mbit/s Battery type3.6V / 2600mAh – Primary Lithium 3.6V / 2600 mAh (3ea) 3.6V / 7200 mAh Battery durationUp to 3 yrsUp to 5 yrsUp to 8 yrs HID® BEEKS001 Install GuidePLT-05252, Rev. A.1 INSTALLATION GUIDE hidglobal.com An ASSA ABLOY Group brand 1Initial setup For more detailed information, visit https://hid.gl/HID-BEEKs-installation 1. Account setup 1. Visit bluzone.io and register a new account. Verify your email by clicking on the link emailed to you. 2. Project setup 1. Use the dropdown menu in the top right portion of the screen to create a new project. 2. Go to Settings and send a Product Activation request for your use case e.g. RTLS, Status Monitoring or Advanced Condition Monitoring, depending on the SaaS model you have purchased. Your product features will be activated within 24 hours. Assign the beacon a name that coincides with the asset on which it is in…

Text truncated - open the document above for the full version.

Page 1 / 1 FCC Agent Authorization Letter Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 N ovember 13,2020 SUBJECT: FCC Application for FCC ID: SL6-BVCARD02 To Whom It May Concern: Please be advised that Applicant Name: HID Global Corporation Address: 611 Center Ridge Drive City: Austin, TX 78753 Country: United States We hereby authorize Janet Gavidia Magidi, Global Product Compliance to act on our behalf, to apply to Federal Communications Commission for our equipment. Any and all acts carried out by Janet Gavidia Magidi on our behalf shall have the same effect as acts of our own. I certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Robert Cresswell Title: Sr. Compliance Engineering Manager

Page 1 / 1 Applicant Name: HID Global Corporation Address: 611 Center Ridge Drive City: Austin, Texas 78753 Country: USA Feder al Communications Commission Authorization and Evaluation Division Conf identiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: SL6-BEEKS001 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The ab ove materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sinc erely, Signature: Name: Robert Cresswell Sr. Manager, Global Product Compliance Title: December 11, 2020 Date:

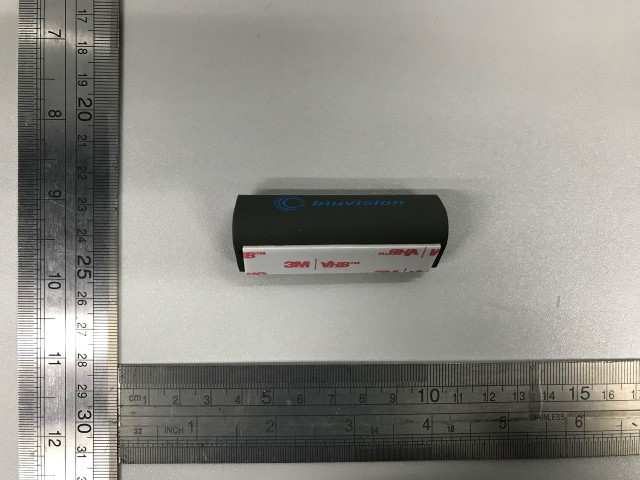

Test Report No.: 60373649 001 Appendix 3 Page 1 of 2 Appendix 3 EUT External Photos Test Report No.: 60373649 001 Appendix 3 Page 2 of 2 External View (Model: BEEKS001) External View (Model: BEEKS001)

FCC Label placement BEEKS001 FCC id SL6-BEEKS001

Test Report No.: 60373649 001 Appendix 4 Page 1 of 3 Appendix 4 EUT Internal Photos Test Report No.: 60373649 001 Appendix 4 Page 2 of 3 Internal View (Model: BEEKS001) Internal View (Model: BEEKS001) Test Report No.: 60373649 001 Appendix 4 Page 3 of 3 Internal View (Model: BEEKS001) Internal View (Model: BEEKS001)

Test Report No.: 60373649 001 Appendix 5 Page 1 of 2 Appendix 5 RF Exposure Information Test Report No.: 60373649 001 Appendix 5 Page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2402 -3.07 0.493 2440 -3.71 0.426 2480 -4.30 0.372 FCC According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation 25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.493/5)*√2.402 = 0.153 <3.0 (0.426/5)*√2.440 = 0.133 <3.0 (0.372/5)*√2.480 = 0.117 <3.0 Conclusion: No SAR is required. ISED Model: BEEKS001 According to table 1 in RSS-102 Issue 5, below exemption limit is applied: - Frequency: 2450MHz - At separation distance of ≤ 5mm - Exemption limits: 4mW Conclusion: The maximum peak output power of the transmitter is less than the SAR evaluation exemption threshold and hence it complies with the RSS-102 RF exposure requirement without SAR evaluation..

Produkte Products TÜV Rheinland Hong Kong Ltd.
3-4, 11/F., Fou Wah Industrial Building, 10-16 Pun Shan Street, Tsuen Wan, N.T., Hong Kong
Tel.: +852 2192 1000
Fax: +852 2192 1001
Email [email protected]
Web: www.tuv.com Prüfbericht-Nr.: Test Report No.: 60373649 001 Auftrags-Nr.: Order No.: 158209024 Seite 1 von 17 Page 1 of 17 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 11.05.2020 Auftraggeber: Client: HID Global Corporation 611 Center Ridge Drive, Austin, TX 78753 Prüfgegenstand: Test item: BEEKS ™ BLE Beacon Bezeichnung / Typ-Nr.: Identification / Type No.: BEEKS001 Auftrags-Inhalt: Order content: FCC and ISED Certification Prüfgrundlage: Test specification: FCC Part 15 Subpart C, ANSI C63.10-2013 RSS-247 Issue 2, RSS-Gen Issue 5 Wareneingangsdatum: Date of receipt: 09.11.2020 Prüfmuster-Nr.: Test sample No.: A002945197-001 Prüfzeitraum: Testing period: 24.11.2020 - 10.12.2020 Ort der Prüfung: Place of testing: Hong Kong Prüflaboratorium: Testing laboratory: TÜV Rheinland Hong Kong Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 15.12.2020 Benny Lau / Senior Project Manager kontrolliert von / reviewed by: 15.12.2020 Sharon Li / Senior Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: FCC ID: SL6-BEEKS001 IC: 24824-BEEKS001 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. FCC_15.247_DTS_v2.0 Test Report No.: 60373649 001 Date: 15.12.2020 Page 2 of 17 Table of Content Page Cover Page .............................................................................. 1 Table of Content ....................................................................... 2 Product information....................................................................................................... 4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use ........................................................................................................... 4 Submitted documents................................................................................................................................. 4 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 Remark ......................................................................................................................................................... 4 Test Set-up and Operation Mode .................................................................................. 5 Principle of Configuration Selection ......................................................................................................... 5 Test Operation and Test Software ............................................................................................................. 5 Special Accessories and Auxiliary Equipment ........................................................................................ 5 Countermeasures to achieve EMC Compliance ...................................................................................... 5 Test Methodology .......................................................................................................... 6 Radiated Emission ...................................................................................................................................... 6 Field Strength Calculation .......................................................................................................................... 6 Test Setup Diagram ....................................................................................................... 7 Test Facility .................................................................................................................... 9 Test Laboratory Information ...................................................................................................................... 9 List of Test and Measurement Instruments ............................................................... 10 Measurement Uncertainty ........................................................................................... 11 Results FCC Part 15 – Subpart C / RSS-247 Issue 2 ................................................. 12 FCC 15.203 – Antenna Requirement 1 ............................................................................ Pass ............... 12 FCC 15.204 – Antenna Requirement 2 ............................................................................ Pass ............... 12 RSS-Gen 6.3 – External Control....................................................................................... Pass ............... 12 RSS-Gen 8.3 – Antenna Requir…

Text truncated - open the document above for the full version.

Test Report No.: 60373649 001 Appendix 2 Page 1 of 2 Appendix 2 Test Setup Photos Test Report No.: 60373649 001 Appendix 2 Page 2 of 2 Set-up for Radiated Emission
