SL6-BEEKSIBEEKBluetooth Low Energy Location Sticker

SettingsApp Store Play Store Bluvision iBEEK Placement Go to your device’s “Settings” and turn bluetooth “ON” Download the “Bluvision” App to your device Launch Bluvision App and select “Pair new beacon” Place the iBEEK on a hard surface to make it dicoverable 1 3 2 4 QUICK START GUIDE Bluvision iBEEK (Keys) beacon beacon Select “Radar” and an item This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: SL6-BEEKSIBEEK CE: JRF: Call: 1-866-777-7210 9 AM – 5 PM Mon – Fri EST ––– or ––– [email protected] Support Center with Videos http://support.bluvision.com ––– or ––– CAUTION! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instuctions. 5 How to find your iBEEK FCC Statement NEED HELP? SUPPORT

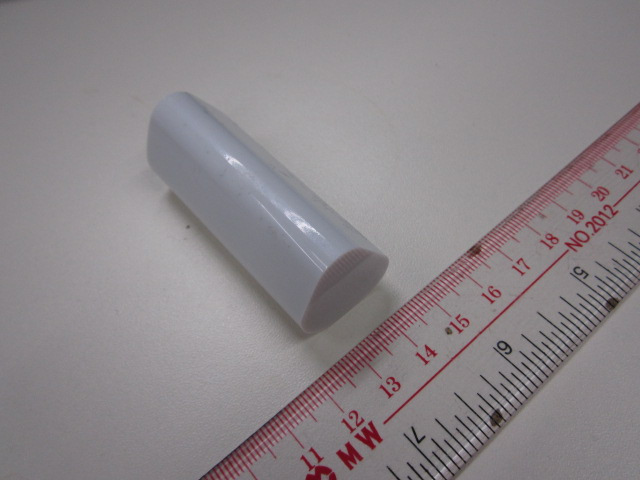

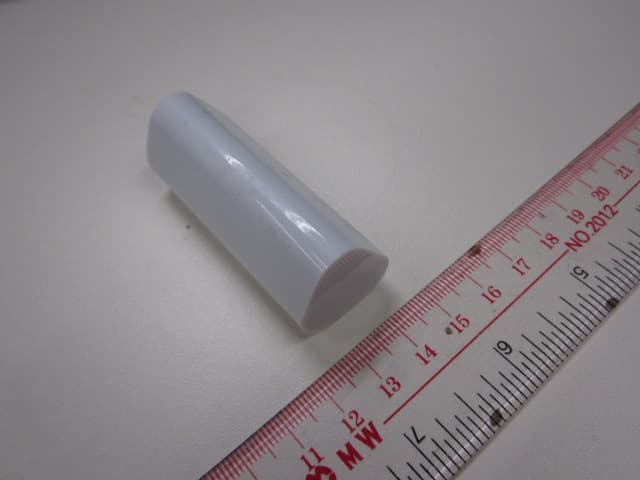

www.tuv.com Test Report No.: 14037488 001 Appendix 3 page 1 of 2 Appendix 3 EUT External Photos www.tuv.com Test Report No.: 14037488 001 Appendix 3 page 2 of 2 External View External View

www.tuv.com Test Report No.: 14037488 001 Appendix 4 page 1 of 3 Appendix 4 EUT Internal Photos www.tuv.com Test Report No.: 14037488 001 Appendix 4 page 2 of 3 Internal View Internal View www.tuv.com Test Report No.: 14037488 001 Appendix 4 page 3 of 3 Internal View

www.tuv.com Test Report No.: 14037488 001 Date: 20.05.2015 page 2 of 13 Table of Content Page Cover Page .........................................................................................1 Table of Content .........................................................................2 Test Summary ................................................................................................................ 4 Product information....................................................................................................... 5 Manufacturers declarations ....................................................................................................................... 5 Product function and intended use ........................................................................................................... 5 Submitted documents ................................................................................................................................. 5 Independent Operation Modes .................................................................................................................. 5 Related Submittal(s) Grants ....................................................................................................................... 5 Remark ......................................................................................................................................................... 5 Test Set-up and Operation Mode .................................................................................. 6 Principle of Configuration Selection ......................................................................................................... 6 Test Operation and Test Software ............................................................................................................. 6 Special Accessories and Auxiliary Equipment ......................................................................................... 6 Countermeasures to achieve EMC Compliance ....................................................................................... 6 Test Methodology .......................................................................................................... 7 Radiated Emission ...................................................................................................................................... 7 Field Strength Calculation .......................................................................................................................... 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 – Subpart C ................................................................................. 9 Subclause 15.203 – Antenna Information ....................................................................... Pass ................. 9 Subclause 15.207 – Conducted Emission on AC Mains .................................................. N/A ................. 9 Subclause 15.215 (c) – 20 dB Bandwidth ........................................................................ Pass ................. 9 Subclause 15.249 (a) – Radiated Emission (Fundamental and Harmonics) ................ Pass ............... 10 Subclause 15.205, 15.249 (d) – Spurious Radiated Emissions ..................................... Pass ............... 12 Appendix 1 – Test Results 4 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – EUT External Photos 2 pages Appendix 4 – EUT Internal Photos 3 pages Appendix 5 – Label, Operational Description, Block, Schematics and User Manual 13 pages www.tuv.com Test Report No.: 14037488 001 Date: 20.05.2015 page 3 of 13 Appendix 6 – RF Exposure Information........................................................................... 2 pages www.tuv.com Test Report No.: 14037488 001 Date: 20.05.2015 page 4 of 13 Test Summary Conducted Emissions Result: N/A 20dB bandwidth Result: Pass Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass www.tuv.com Test Report No.: 14037488 001 Date: 20.05.2015 page 5 of 13 Product information Manufacturers declarations Transceiver Operating frequency range 2402-2480 MHz Type of modulation GFSK Number of channels 40 Type of antenna Integral PCB Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 3.6Vdc Product function and intended use The equipment under test (EUT) is a Bluetooth Low Energy Transceiver operating at 2.4GHz. It is a location sticker. And it is powered by 3.6Vdc. FCC ID: SL6-BEEKSIBEEK Models Product description BeeksiBeek Bluetooth Low Energy location sticker Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Independent Operation Modes The basic operation modes are: - Transmitting Bluetooth signal . For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remark - None. www.tuv.com Test Report No.: 14037488 001 Date: 20.05.2015 page 6 of 13 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - Test software provided by the applicant is used to fix the transmitting channel. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14037488 001 Date: 20.05.2015 page 7 of 13 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntab…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14037488 001 Appendix 1 page 1 of 4 Appendix 1 Test Results www.tuv.com Test Report No.: 14037488 001 Appendix 1 page 2 of 4 20dB Bandwidth Tx frequency: 2402MHz A 2.402652 GHz Ref -10 dBm 2.402652 GHz Att 20 dB 2.402652 GHz Center 2.402 GHz 2.402652 GHz Span 2 MHz 2.402652 GHz 200 kHz/ 2.402652 GHz * 2.402652 GHz RBW 30 kHz 2.402652 GHzVBW 100 kHz 2.402652 GHz SWT 2.5 ms 2.402652 GHz 1 PK 2.402652 GHz MAXH 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz 2.402652 GHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 2.402652 GHz 1 Marker 1 [T1 ] -20.07 dBm 2.402084000 GHz 2 Marker 2 [T1 ] -40.28 dB m 2.401532000 GHz 3 Marker 3 [T1 ] -41.05 dB m 2.402652000 GHz MARKER 3 2.402652 GHz Comment: test print Date: 16.DEC.2014 13:39:09 www.tuv.com Test Report No.: 14037488 001 Appendix 1 page 3 of 4 Tx frequency: 2440MHz A 2.440648 GHz Ref -10 dBm 2.440648 GHz Att 20 dB 2.440648 GHz 1 PK 2.440648 GHz MAXH 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz 2.440648 GHz Center 2.44 GHz 2.440648 GHz Span 2 MHz 2.440648 GHz 200 kHz/ 2.440648 GHz * 2.440648 GHz RBW 30 kHz 2.440648 GHzVBW 100 kHz 2.440648 GHz SWT 2.5 ms 2.440648 GHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 2.440648 GHz 1 Marker 1 [T1 ] -23.88 dB m 2.440088000 GHz 2 Marker 2 [T1 ] -44.70 dBm 2.439532000 GHz 3 Marker 3 [T1 ] -45.56 dBm 2.440648000 GHz MARKER 3 2.440648 GHz Comment: test print Date: 16.DEC.2014 13:40:13 www.tuv.com Test Report No.: 14037488 001 Appendix 1 page 4 of 4 Tx frequency: 2480 MHz A 2.479536 GHz Ref -10 dBm 2.479536 GHz Att 20 dB 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 2.479536 GHz 1 PK 2.479536 GHz MAXH 2.479536 GHz Center 2.48 GHz 2.479536 GHz Span 2 MHz 2.479536 GHz 200 kHz/ 2.479536 GHz * 2.479536 GHz RBW 30 kHz 2.479536 GHzVBW 100 kHz 2.479536 GHz SWT 2.5 ms 2.479536 GHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 2.479536 GHz 1 Marker 1 [T1 ] -28.42 dB m 2.480088000 GHz 2 Marker 2 [T1 ] -48.36 dBm 2.479536000 GHz 3 Marker 3 [T1 ] -48.52 dBm 2.480652000 GHz MARKER 2 2.479536 GHz Comment: test print Date: 16.DEC.2014 13:41:33

www.tuv.com Test Report No.: 14037488 001 Appendix 6 page 1 of 2 Appendix 6 RF Exposure Information www.tuv.com Test Report No.: 14037488 001 Appendix 6 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2402 4.0 2.51 2440 1.7 1.48 2480 2.4 1.75 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (2.51/5)*√2.402 = 0.78 <3.0 (1.48/5)*√2.440 = 0.46 <3.0 (1.75/5)*√2.480 = 0.55 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14037488 001 Appendix 2 page 1 of 3 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14037488 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14037488 001 Appendix 2 page 3 of 3 Setup for radiated emission
