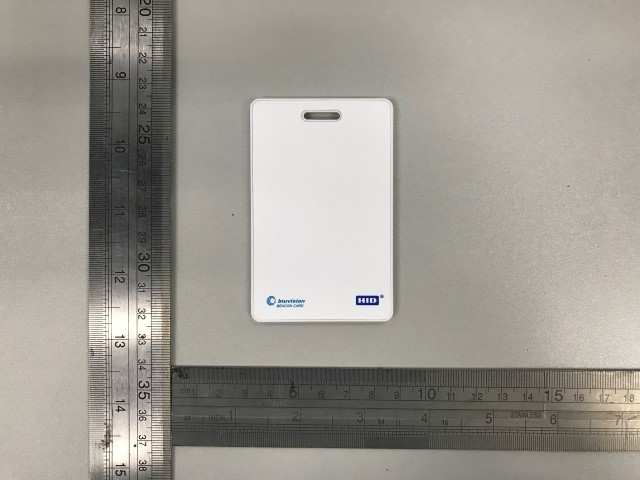

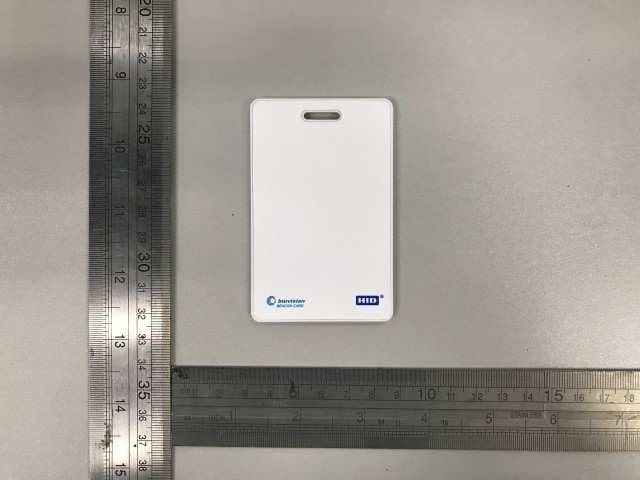

SL6-BVCARD02BEEKS Beacon Badge

INSTALLATION GUIDE HID® BEEKs Badge BVCARD01 Install Guide PLT-05423, Rev. A.0 © 2020 HID Global Corporation/ASSA ABLOY AB. All rights reserved. This document may not be reproduced, disseminated or republished in any form without the prior written permission of HID Global Corporation. HID GLOBAL, HID, the HID Brick logo, the Chain Design, BluFi, Bluzone, and BEEKs are trademarks or registered trademarks of HID Global, ASSA ABLOY AB, or its affiliate(s) in the US and other countries and may not be used without permission. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owner. 2020-09-14-hid-beeks-badge-BVCARD01-installation-guide-in-en hidglobal.com An ASSA ABLOY Group brand Overview System components TerminologyBEEKs locations Best practices Pre-requisites Specifications The BEEKs™ Install Guide covers the basics of the BLE beacon setup and provisioning of equipment with Bluzone Cloud account and project. This install guide is intended for install technicians. BEEKs™ Badge, personal BLE Beacons, worn as badges can provide valuable insight on individual location in numerous different applications. The BEEKs Combo Badge is designed to optionally hold a standard ISO card in portrait format for visual identification of the bearer. The ISO card may contain printing and/or RFID, but is not mandatory for the operation of the BEEKs Combo Badge. The ISO card is affixed by peel and stick into the cavity of the BEEKs Combo badge and permanently glued into position. When combined with HID Global’s end-to-end IoT ecosystem, that includes BluFi™ BLE to WiFi gateways and the Bluzone™ cloud services, BEEKs can be centrally managed remotely through the cloud to transfer new messages, firmware updates and battery status checks. Their unique design allows BEEKs to broadcast reliably even in densely populated WiFi environments. The BEEKs Beacons link to ID64 with a QR code printed/ labeled on the outer casing. ƒMaximum of 15 – 20 beacons per BluFi for best results ƒMaximum 20 – 30 meters from beacon to BluFi for best results (distance will decrease in case of increased interference/ blockages). For RTLS applications, the BEEKS Badge signal must be received by at least three BluFis in the vicinity. ƒNetwork troubleshooting ƒ2.4 GHz WiFi only ƒHTTPS port 443 must be open ƒDHCP required ƒ1 Mbps upload speed required ƒCaptive WiFi portals not compatible ƒCompatible certificate formats: .pem, .der ƒBluFi MAC address whitelisting may be required on some networks ƒSet up Bluzone account ƒDownload Bluzone mobile app ƒAdditional installation guides are available and can be found at: https://hid.gl/HID-BluFi-installation ITEMDESCRIPTION 1BluFi™ model BluFi-AC00 – Bluetooth to WiFi Gateway. 2BEEKs™ Badge Bluetooth Low Energy Beacons. 3Bluzone – Cloud Fleet Management and Condition Monitoring dashboard. ITEMDESCRIPTION 1Bluzone – Secure cloud-based SaaS to centrally manage BEEKs via BluFi gateways. Additionally, monitor, store and analyze performance data collected from deployed BEEKs fleet. 2BluFi Gateway – Receives data from BEEKs over Bluetooth and sends to Bluzone Cloud. 3BEEKs Badge – Sends data to BluFi. 4Person wearing the badge 1 2 3 BEEKs Badge - Model BVCARD01 Different configurations available StandardCombo Operating temperature-22°F to +170°F (-30°C to +77°C) Storage temperature-22°F to +170°F (-30°C to +77°C) Specifications Standard ProtocolBluetooth Low Energy 4.2 Frequency range2400-2483.5 MHz No of channels40 ModulationGFSK Mode of operationHalf duplex RF max output power+5dBm (<10mW) Antenna0 dBm single antenna, omnidirectional Bluetooth sensitivity-97dBm Transmission Power-40dBm to -5dBm (3m to 150m line of sight) 1 4 3 WiFi WiFi Bluetooth Bluetooth 2 BEEKs Badge is typically worn like any other badge hanging on a lanyard around a persons neck or on a clip mounted on a persons belt. NameBEEKs Standard Badge BEEKs Combo Badge Part No.BVBBN4WBVBBN4WC Length x width2.14 in × 3.39 in x 0.10 in (54 × 86 x 2.5 mm) 2.19 in x 3.43 in x 0.15 in (55.84 x 87.30 x 3.94 mm) Weight0.5 oz (14 g) Housing materialPolycarbonate Data rates1Mbit/s Battery typeSix CR2016 rated at 90mAh Total 540mAh Battery durationUp to 4 years BEEKs Standard Badge BEEKs Combo Badge HID® BEEKs Badge BVCARD01 Install GuidePLT-05423, Rev. A.0 INSTALLATION GUIDE hidglobal.com An ASSA ABLOY Group brand 1Initial setup For more detailed information, visit https://hid.gl/HID-BEEKs-installation 1. Account setup 1. Visit bluzone.io and register a new account. Verify your email by clicking on the link emailed to you. 2. Project set up 1. Use the dropdown menu in the top right portion of the screen to create a new project. 2. Go to Settings and send a Product Activation request for your use case e.g. RTLS, Status Monitoring or Advanced Condition Monitoring, depending on the SaaS model you have purchased. Your product features will be activated within 24 hours. Optionally. assign the beacon a name that coincides with the owner of the badge. You may alternatively also assign keep the random number name for enhanced privacy. The badge owner can at any any time slide a visual badge in form of a printed ISO card into the card holder of the BEEKs Badge. The ISO card can be removed and reinserted into the badge at any time and is not mandatory for the duress and RTLS functions. 3. Bluzone mobile app setup 1. Download the Bluzone mobile app from Google Play or the iOS App Store. 2. Login to your account with Bluzone credentials. 4. BluFI provisioning 1. In order to communicate with the Bluzone cloud and perform its location and duress functions, the BEEKS badge need to be in range of a properly configured BluFi set. See https://hid.gl/HID-BluFi-AC-installation for details. 2. Plug BluFi into power source for initial setup. 3. In Bluzone app, tap Provision > BluFi 4. Hold mobile device close to BluFi and select device with highest signal strength (swipe down to refresh list). 5. Fo…
