SL6MINIMINIKeyFob

Mini-Mini USER GUIDE Document Version: 2 Product ID: Mini-Mini September 2019 Copyright © 2007-2017 Bluvision/HID Global Corporation/ASSA ABLOY AB. All rights reserved. This document may not be reproduced, disseminated or republished in any form without the prior written permission of HID Global Corporation. Trademarks Bluvision, HID GLOBAL, HID, the HID logo are trademarks or registered trademarks of HID Global Corporation, or its licensors, in the U.S. and other countries. Contacts For additional offices around the world, see www.hidglobal.com corporate offices. 611 Center Ridge Drive Haverhill Business Park Phoenix Road Austin, TX 78753 Haverhill, Suffolk CB9 7AE USA England Phone: 866 607 7339 Phone: 44 (0) 1440 711 822 Fax: 949 732 2120 Fax:44 (0) 1440 714 840 19/F 625 King’s Road 600 Corporate Dr North Point, Island East Hong Kong Phone: 852 3160 9833 Suite 410 Fort Lauderdale, FL 33334 USA Fax: 852 3160 4809 Phone: 1-866-777-7210 Links in this Document Hyper Links are displayed in italic text. Web Links are in underlined blue. HID Americas and Corporate Europe, Middle East and Africa (EMEA) Asia Pacific Bluvision Bluvision Customer Support: bluvision.com HID Global Customer Support: support.hidglobal.com Getting Started The Bluvision Mini-Mini User Guide covers the basics of the equipment setup and provisioning of equipment with Bluzone Cloud account and project. For a more in-depth explanation, see Bluvision Developer web site https://bluvision.atlassian.net/wiki/spaces/PDP/pages/13041816/04.+How-to+Setup+Mini-Minis Prerequisites This equipment requires the steps below be followed prior to provisioning your Mini-Mini device. These prerequisites are NOT covered within the installation guide below. Please complete the following steps prior to provisioning of your Mini-Mini device.  This equipment requires the user to have a registered Bluzone account at the website o https://bluzone.io  Bluzone registration instructions are located at o https://bluvision.atlassian.net/wiki/spaces/PDP/pages/6914122/Getting+Up+And+Running  This equipment also requires a user have a Mini-Mini WiFi template setup and configured within Bluzone. Instructions for setting up a Mini-Mini WiFi template are located at: o https://bluvision.atlassian.net/wiki/spaces/PDP/pages/6914122/Getting+Up+And+Running#Gettin gUpAndRunning-ConfiguringMini-MiniWiFiprofiles USER GUIDE Application/Service/Profile • iBeacon support • sBeacon support • Eddystone support • Fully open and easily configurable for 3rd party beacon protocol How-to Provision Mini-Minis This will guide you through provisioning your Mini-Mini of your Bluzone Account and assigned project. Step-by-step provisioning guide There are 2 steps to the provisioning process: 1. Download Bluzone Application from Apple App Store. 2. Physically provisioning Mini-Mini using the Bluzone App. This requires BLE be enabled on device. Provisioning Step 1: Download Bluzone Mobile Application You can use the free Bluzone app with any compatible device, including: Bluzone app (iOS) - iPhone, iPad and iPod touch running iOS 7.0 or later; certain features may require later versions. Touch the App Store button on your iPhone, iPod touch or iPad to download the free Bluzone app, or download the application from iTunes®. (If you download from iTunes, you will need to sync before you see the Bluzone logo display on your device.) Provisioning Step 2 - Provisioning of a Mini-Mini using Bluzone Mobile Application Provisioning Steps Step 2 - Launch the Bluzone app on your iOS device Step 2.1 Sign In - Sign in using your Bluzone account’s registered username and password Step 2.2 Select Provision Action – Click “Provision” located at bottom of screen Step 2.3 Select Mini-Mini Provisioning – Click / Select Mini-Mini within option menu. Step 2.4 Select Your Mini-Mini – Select the closest Mini-Mini device from all Mini-Mini devices in range of mobile phone. Please make sure you are within 1 meter of device. The Mini-Mini Icon’s green color indicates the relative proximity to Mini-Mini device. The greener color displayed, the closer you are to Mini-Mini device. Step 2.5 WiFi Template - Choose appropriate Mini-Mini template. If this list is empty, please complete the required prerequisite step of creating Mini-Mini WiFi template on https://bluzone.io in your assigned project. Step 2.6 Mini-Mini Location - Next you will be prompted to select/assign the physical geo location of the Mini-Mini where it is being physically installed. Location is assigned by GPS and can be changed manually by dragging the pin in order to be more accurate. Drag the pin by holding your finger on pin located in center of screen and dragging to appropriate location. Step 2.7 Mini-Mini Selfie - Next you will be prompted to take a picture of the Mini-Mini. This is called a “Selfie” within Bluzone application. This is an optional step and is recommended so that others can easily identify the location of the Mini-Mini after deployment Step 2.8 Mini-Mini Profile - Next you will be prompted to enter a name for the Mini-Mini. You may keep the default name but it is recommended to choose a unique name that is meaningful to you. At this time you may also add Tags from the template, or create new ones if needed. Important: Click Provision after entering the information will submit provisioning request to Bluzone Cloud Step 2.9 Provision Request – Please wait for provisioning process to complete. This will be indicated using progress indicator / spinner located on screen. Congratulations, you have provisioned you first Bluvision Mini- Mini on Bluzone.io FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accorda…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: SL6MINIMINI Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Bluvision Inc., hereby requests permanent confidential below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name: Matthew Johnson Title: CTO Company: Bluvision Inc 600 Corporate Dr, Suite 300 Fort Lauderdale FL, 33334 January 6 th 2020 Federal Communications Commission Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Bluvision Inc., hereby treatment of information accompanying this application The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. stands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Johnson Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Bluvision Inc., hereby as outlined The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide stands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application.

600 Corporate Dr, Suite 300 Fort Lauderdale FL, 33334 October 1, 2019 TUV SUD America Inc. 10 Centennial Drive Peabody, MA 01960, USA Dear Sir or Madam, We, Bluvision Inc., 600 Corporate Drive, Ste 410, Fort Lauderdale, FL 33334, hereby authorize Marlene Sealey of TUV SUD America, 10040 Mesa Rim Road, San Diego, CA, 92121 and Efren Gonzalez of Bluvision Inc., 600 Corporate Drive, Ste 300, Fort Lauderdale, FL 33334 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Yours sincerely, Name: Matthew Johnson Title: CTO Company: Bluvision Inc

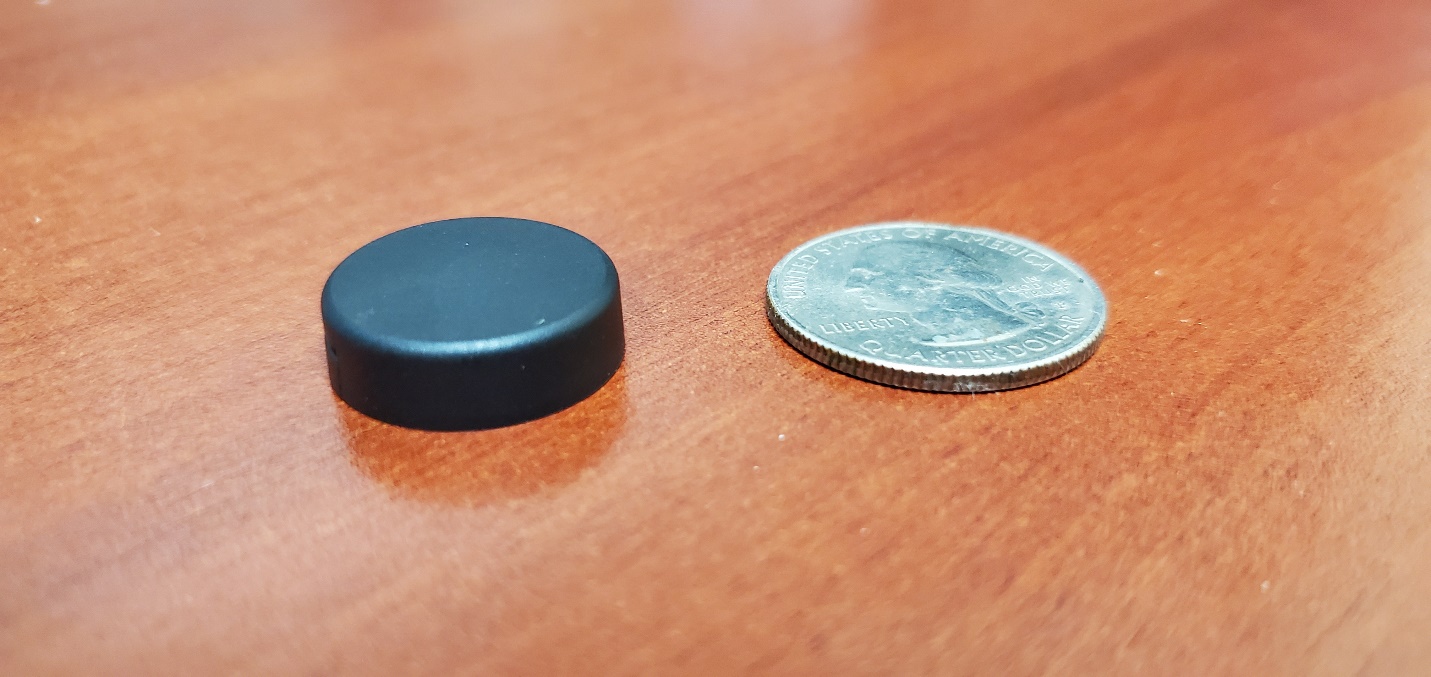

Figure 1: Top View Figure 2: Bottom View

Figure 1: Sample Label Figure 2: Label Location

Figure 1: Top View Figure 2: Bottom View Figure 3: Bottom View w/o Battery

TÜV SÜD America 5610 West Sligh Ave., Suite 100 Tampa, FL 33634 Phone: 813-284-2715 www.tuv-sud-america.com TÜV SÜD Certification Exhibit FCC ID: SL6MINIMINI FCC Rule Part: 47 CFR Part 2.1093 TÜV SÜD Project Number: 72155614 Manufacturer: HID Global Bluvision Inc Model: MiniMini RF Exposure Model(s): MiniMini FCC ID: SL6MINIMINI Project: 72155614 TÜV SÜD America Inc. Page 2 General Information: Applicant: HID Global Bluvision Inc Environment: General Population/Uncontrolled Exposure Exposure Conditions: Portable Technical Information: Minimum Test Separation Distance: 5 mm Highest Operating Frequency: 2480 MHz Antenna Type: PCB Embedded Antenna Antenna Gain: 0 dBi Maximum Transmitter Conducted Power: -0.19 dBm, 0.96 mW Maximum Transmitter EIRP: -0.19 dBm, 0.96 mW Justification for SAR Test Exclusion: Standalone SAR Test Exclusion: Per KDB 447498 D01 General RF Exposure Guidance v05r02, the standalone 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR = (0.96 / 5)*( √2.48) = 0.3 0.3 < 3.0 Standalone SAR test exclusion is applied.

TÜV SÜD America 5610 West Sligh Ave., Suite 100 Tampa, FL 33634 Phone: 813-284-2715 www.tuv-sud-america.com TÜV SÜD RESPONSIBLE FOR NAME DATE SIGNATURE Authorized Signatory Peter Walsh 2020 -January-10 Testing Thierry Jean Charles 2020-January-10 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. FCC Accreditation Designation Number US1063 Tampa, FL Test Laboratory Innovation, Science, and Economic Development Canada Accreditation Site Number 2087A-2 Tampa, FL Test Laboratory EXECUTIVE SUMMARY Samples of this product were tested and found to be in compliance with 15.247 and ISED Canada’s RSS-247. A2LA Cert. No. 2955.15 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. © TÜV SÜD. DISCLAIMER AND COPYRIGHT Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. Results of test not covered by our A2LA Accreditation Schedule are marked NUA (Not A2LA Accredited). FCC and ISED Canada Testing of the HID Global Bluvision Inc MiniMini In accordance with FCC 47 CFR part 15.247 and ISED Canada’s Radio Standards Specifications RSS-247 Prepared for: HID Global Bluvision Inc 600 Corporate Dr, 300 Fort Lauderdale, FL 33334 FCC ID: SL6MINIMINI IC: 24824-MINIMINI COMMERCIAL-IN-CONFIDENCE Date: 10. January 2020 Document Number: TP72155614.101| Version Number: 02 Document Number: TP72155614.101 | Version Number: 02 COMMERCIAL-IN-CONFIDENCE Page 2 of 45 Contents 1Report Summary .........................................................................................................................3 1.1Report Modification Record ...........................................................................................................3 1.2Introduction ....................................................................................................................................4 1.3Brief Summary of Results .............................................................................................................6 1.4Product Information .......................................................................................................................7 1.5Deviations from the Standard ..................................................................................................... 10 1.6EUT Modification Record ........................................................................................................... 10 1.7Test Location .............................................................................................................................. 11 2Test Details ............................................................................................................................... 12 2.1Antenna Requirements............................................................................................................... 12 2.26 dB Bandwidth .......................................................................................................................... 13 2.399% Bandwidth .......................................................................................................................... 16 2.4Peak Output Power .................................................................................................................... 19 2.5Band-Edge Compliance of RF Conducted Emissions ............................................................... 22 2.6RF Conducted Spurious Emissions ........................................................................................... 25 2.7Radiated Spurious Emissions into Restricted Frequency Bands ............................................... 28 2.8Power Spectral Density .............................................................................................................. 35 2.9Power Line Conducted Emissions ............................................................................................. 38 3Test Equipment Information ................................................................................................... 39 3.1General Test Equipment Used ................................................................................................... 39 4Diagram of Test Set-ups .......................................................................................................... 40 5Measurement Uncertainty ....................................................................................................... 44 6Accreditation, Disclaimers and Copyright............................................................................. 45 Document Number: TP72155614.101 | Version Number: 02 COMMERCIAL-IN-CONFIDENCE Page 3 of 45 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 2020-January-02 2 Corrected typo in Table 2.4.6-1 2020-January-10 Document Number: TP72155614.101 | Version Number: 02 COMMERCIAL-IN-CONFIDENCE Page 4 of 45 1.2 Introduction The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations Section 15.247 and Innovation Science and Economic Development Canada’s Radio Standards Specification RSS-247 for the tests documented herein. Document Number: TP72155614.101 | Version Number: 02 COMMERCIAL-IN-CONFIDENCE Page 5 of 45 Applicant HID Global Bluvision Inc Manufacturer HID Global Bluvision Applicant’s Email Address [email protected] Model Number(s) MiniMini Serial Number(s) N/A FCC ID SL6MINIMINI ISED Certification Number 24824-MINIMINI Hardware Version(s) V1.1 Softwa…

Text truncated - open the document above for the full version.

TÜV SÜD America 5610 West Sligh Ave., Suite 100 Tampa, FL 33634 Phone: 813-284-2715 www.tuv-sud-america.com TÜV SÜD Certification Exhibit FCC ID: SL6MINIMINI IC: 24824-MINIMINI FCC Rule Part: 15.247 ISED Canada’s Radio Standards Specification: RSS-247 Project: 72155614 Manufacturer: HID Global Bluvision Inc Model: MiniMini Test Setup Photos Model: MiniMini FCC ID: SL6MINIMINI IC: 24824-MINIMINI Project: 72155614 TÜV SÜD America, Inc. Page 2 Figure 1: Radiated Spurious Emissions – Front View – below 1 GHz Model: MiniMini FCC ID: SL6MINIMINI IC: 24824-MINIMINI Project: 72155614 TÜV SÜD America, Inc. Page 3 Figure 2: Radiated Spurious Emissions – Back View – 9 kHz -30 MHz Model: MiniMini FCC ID: SL6MINIMINI IC: 24824-MINIMINI Project: 72155614 TÜV SÜD America, Inc. Page 4 Figure 3: Radiated Spurious Emissions – Back View – 30 MHz – 1 GHz Model: MiniMini FCC ID: SL6MINIMINI IC: 24824-MINIMINI Project: 72155614 TÜV SÜD America, Inc. Page 5 Figure 4: Radiated Spurious Emissions – Front View – above 1 GHz Model: MiniMini FCC ID: SL6MINIMINI IC: 24824-MINIMINI Project: 72155614 TÜV SÜD America, Inc. Page 6 Figure 5: Radiated Spurious Emissions – Back View – above 1 GHz Model: MiniMini FCC ID: SL6MINIMINI IC: 24824-MINIMINI Project: 72155614 TÜV SÜD America, Inc. Page 7 Figure 6: RF Conducted Emissions
