SLH-WL-1003WiFi Finder

User’s guide 802.11g Wireless LAN WiFi Finder Important: Please do not connect your WLAN 11g WiFi Finder to the USB port of your computer before installing the 11g WLAN utility and driver. System Requirements ― Notebook PC or desktop PC with one free USB 2.0 port ― 32MB memory or greater ― 300MHz processor or higher ― Microsoft Windows XP / 2000 / Me / 98SE Finder Function 1. When to use This unique device is design for helping you to find a useable WLAN AP before you turn on your PC or NB. 2. There is one button in middle of the device and 5 LED around. Push the button all the way down and hold still for around 5 seconds till LED stops blinking. LED 1, 2, 3 will start to blink and the light on later. (1)：WLAN (Wi-Fi) detected with encryption Indicator (2)：No WLAN (Wi-Fi) detected Indicator (1) + (3)：WLAN (Wi-Fi) detected and without encryption Indicator (4)：Battery Charge Indicator (5)：Link Active Indicator Important: When the device plug in PC or NB the finder function will set to disable. The finder button is for searching wireless devices only before the device plug in NB or PC. (１) (２) (３) (４) (５) Driver installation 1. Insert the 802.11g Wireless LAN WiFi Finder CD in the CD-ROM drive and Click Install Driver. Note: In case this screen does not appear, in Windows Explorer browse to your CD-ROM and double-click the Setup.exe file. 2. The program will automatically proceed with installing. 3. Press [Continue Anyway] to continue. 4. Press [Finish] to exit the driver installation wizard. Hardware installation 1. Now connect your WLAN 11g WiFi Finder to the USB port of your computer. In the Find New Hardware Wizard that appears on your screen select [No, not this time], and click [Next]. 2. 3. Select [Install the software automatically (Recommended)], and click [Next] 4. Press [Continue Anyway] to continue. 5. Click [Finish] to finalize the installation. Your WLAN 11g WiFi Finder is now ready for use. The WLAN 11g WiFi Finder utility Open the WLAN 11g WiFi Finder utility by double-clicking the icon in the system tray at the lower right corner of your screen, or by clicking [Start] Æ [Programs] Æ [WLAN 11g USB Dongle]. Note: In Windows XP, please disable the Zero Configuration feature when prompted to do so. Configuration A. The Network Adapter field shows the name of the wireless network adapter. B. You can select a network SSID by clicking to its name in the Available Network field. Details will then be shown in the Current Network Information .field. C. Click on the Refresh button to see all available network SSIDs. D. The Signal Strength and Link Quality values are shown in block diagrams as well as in percentages. E. At the lower end of this screen you can see the number of transmitted and received frames. F. Click on the More Settings button to bring op the following screen: C B A D F E More settings A. Click on the Change/Apply button to modify the settings in the General Connection Setting field. B. Select the channel in ad-hoc mode from the Channel drop-down menu. C. Select the transmission speed from the Tx Rate drop-down menu. D. Unpick the Any box to select another network SSID. E. Select Infrastructure or Ad-hoc mode from the Network Type drop-down menu. F. Select Open System, Shared Key, Auto, WPA, WPA PSK, WPA2 or WPA2 PSK from the Authentication Mode drop-down menu. G. Select Disable, WEP, TKIP or AES from the Encryption drop-down menu. H. Click on the WEP Encryption Key Setting button to modify the WEP key settings. A new screen will appear (see hereafter). I. Click on the WPA Encryption Key Setting button to modify the WPA key settings. A new screen will appear (see hereafter). J. Select a previously saved profile from the Profile Name drop-down menu, and click on the Load button to load the profile into memory. Alternatively, key in the profile name and click on the Save Current or Delete button to respectively save or remove the profile. K. For advanced settings or information about the software, click on the Advanced Settings or the Information button. C B A D F E G HI J K WEP key settings A. Click on the Change/Apply button to modify the WEP key settings. B. Select an encryption key length of 64-bit, 128-bit, or 256-bit. C. Select the default key ID. D. Select Hexadecimal or ASCII in the Key Format field. E. Key in the values of the WEP keys in the Key Value field. WPA key settings C B A D E C B A D E F G H I J A. Click on the Change/Apply button to modify the WPA settings. B. About setting WPA-Radius Connect information. C. Select Authentication Protocol type. (Integrated EAP server and RADIUS authentication server) D. Input authenticates User Name from Radius server. E. Input authenticates Password from Radius server. F. Select Authentication Protocol type. (Integrated EAP server and RADIUS authentication server) G. About setting WPA-Pre-Shared Key (WPA-PSK) Connect information. H. Input the Pass-phrase encryption key character, the length between 8~64. I. Select WPA Pre-shared key format to ASCII or Hexadecimal. J. Choose the Certificate (CA) from Radius Server provided. Advanced settings A. Select English from the Language drop-down menu. B. Select the power saving mode. Power consumption is related to the data throughput. CAM mode (default) gives the highest power consumption/data throughput ratio, Fast and Maximum offer better and best power savings (but less performance). C. Select World Mode or your region from the User Select drop-down menu in the Country Roaming field, and experiment to get the best results. D. Move the slider in the Fragmentation Threshold bar to adjust the threshold between 256-bytes and 2346-bytes. E. Move the slider in the RTS / CTS Threshold bar to adjust the RTS threshold between 0 and 2347-bytes. C BA D E System information Click on the Information button in the More Settings screen to check the driver and utility version, and the MAC address. Federal Communications Commission (FCC) Requirements This equipment has been tested and fo…

Text truncated - open the document above for the full version.

Date: 07/15/2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Ken Sung /Manager HL-Tech Corporation REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

HL-Tech Corporation Federal Communications Commission Authorization and Evaluation Division FCC ID: SLH-WL-1003 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ken Sung/ Manager HL-Tech Corporation

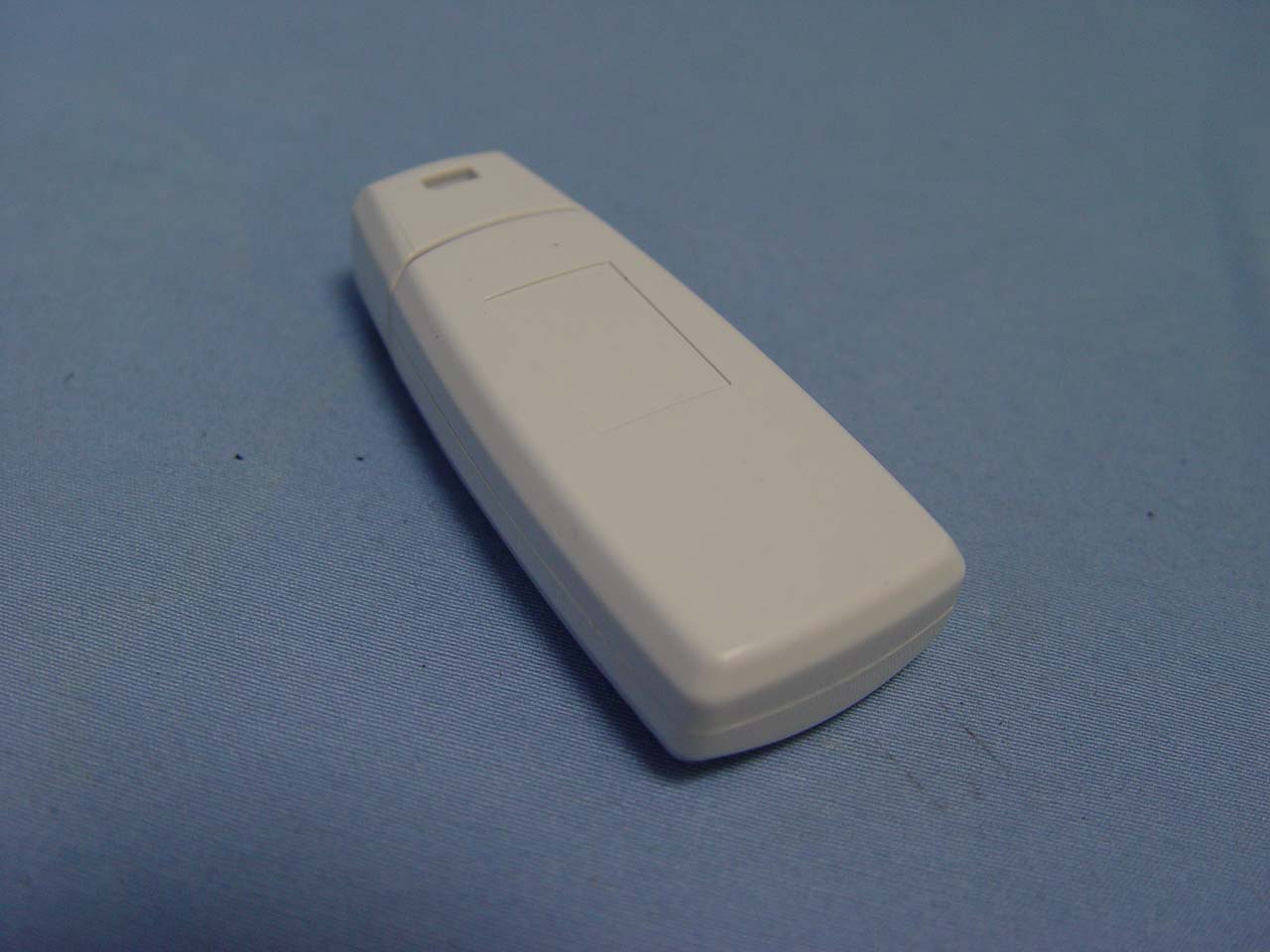

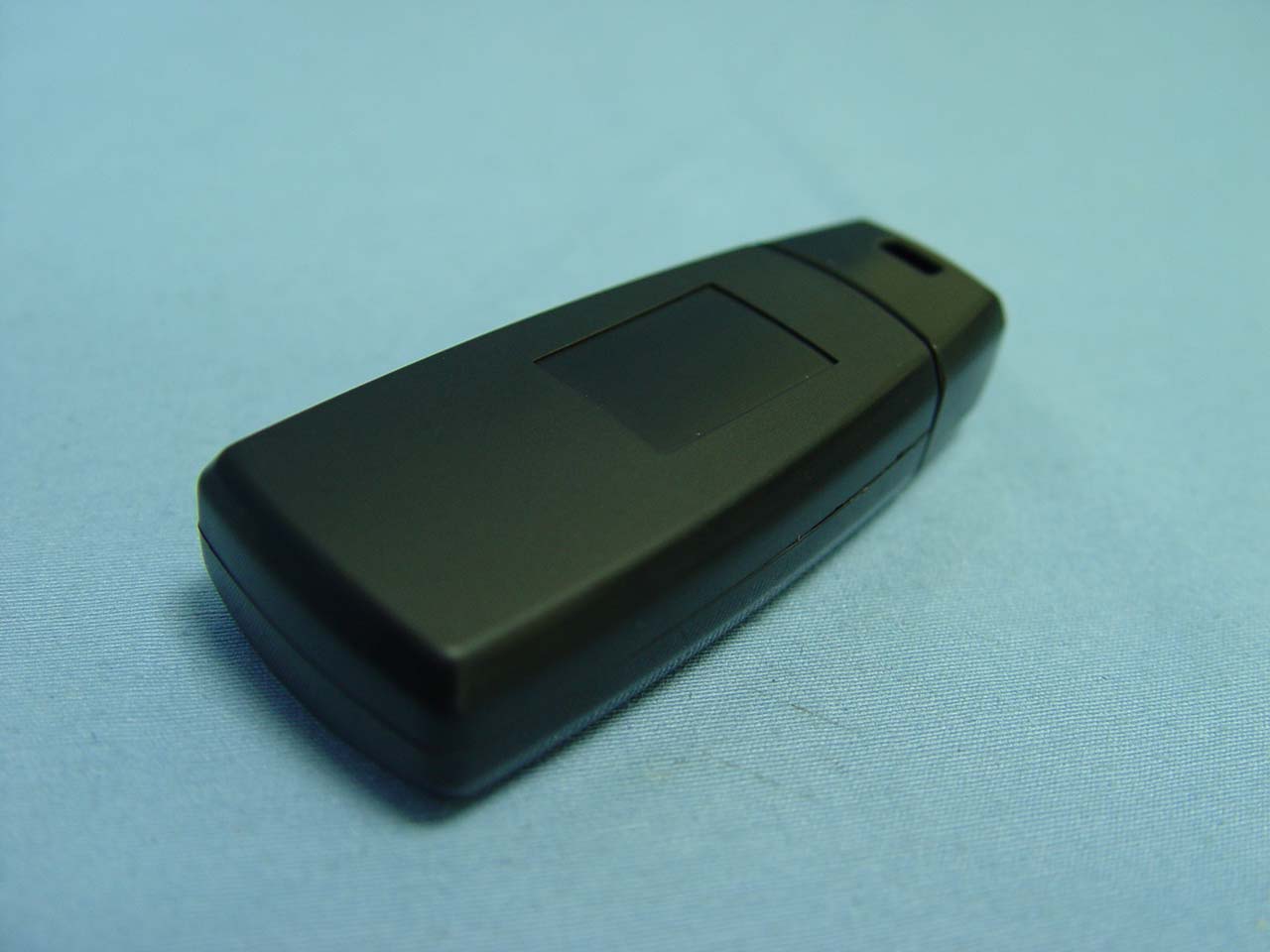

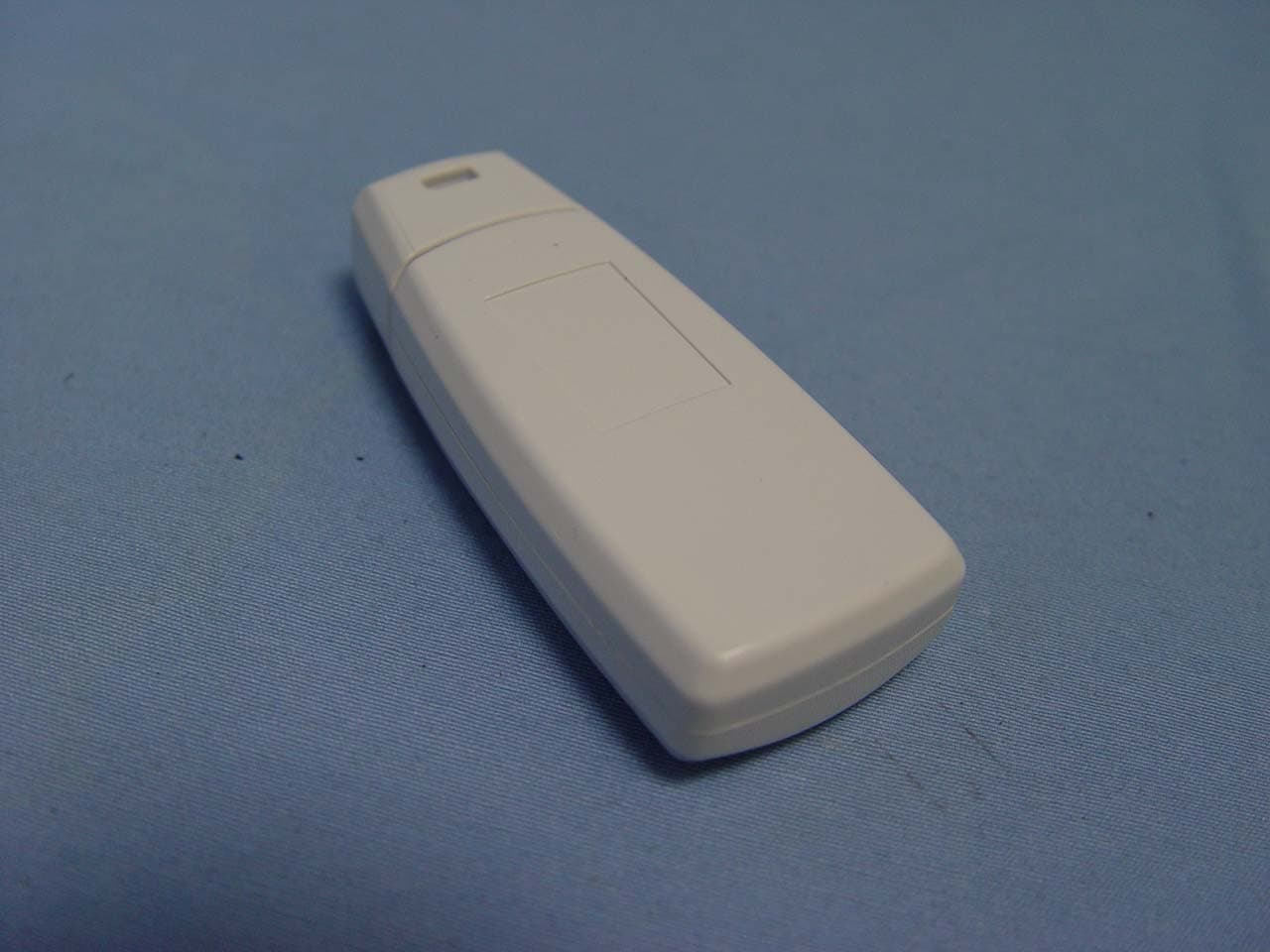

Compliance Certification Services Inc. Report No: 50816007 Date of Issue: August 23, 2005 Page 1 Total Page: 5 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50816007 Date of Issue: August 23, 2005 Page 2 Total Page: 5 Rev. 00 Compliance Certification Services Inc. Report No: 50816007 Date of Issue: August 23, 2005 Page 3 Total Page: 5 Rev. 00

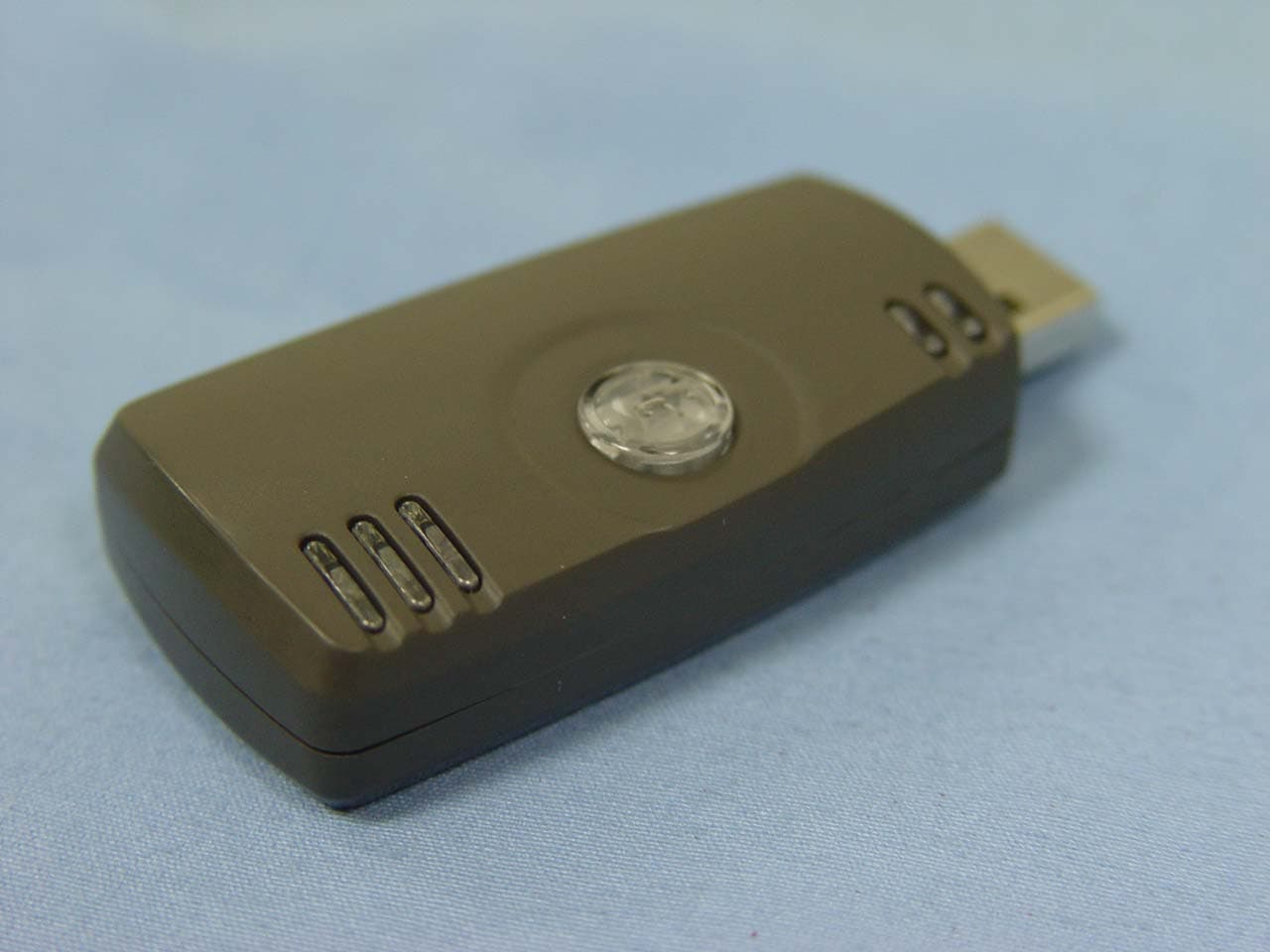

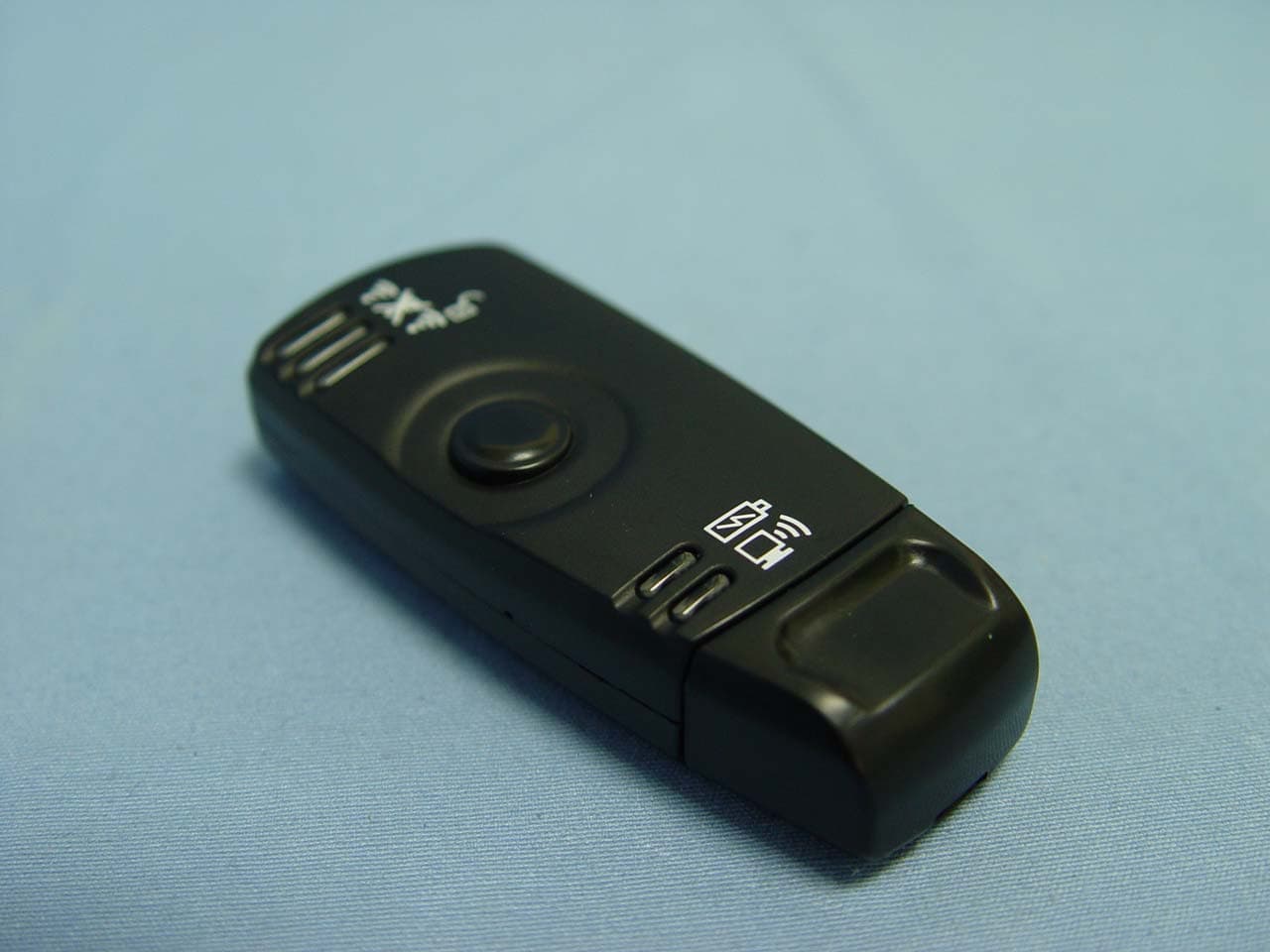

+/7HFK WIFI Finder ModelWL-1003 0$& 61 0DGHLQ7DLZDQ FCC ID:SLH-WL-1003

Compliance Certification Services Inc. Report No: 50816007 Date of Issue: August 23, 2005 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50816007 Date of Issue: August 23, 2005 Page 5 Rev.00

DATA SHEET HIGH FREQUENCY SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 Product specification – Ma r 08, 2005 V.5 Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 2 www.yageo.com FEATURES • Designed for 2.45 GHz ISM-band • Simplifies antenna circuitry • NiSn lead-free terminations • Suitable for wave and reflow soldering • Supplied in tape on reel. APPLICATIONS • Telecommunications • Computing (PCs, printers, PDAs) • Wireless office data communications including WLAN • Consumer electronics (wireless headphones). DESCRIPTION This 2.45 GHz ceramic multilayer antenna has been designed to meet the requirements of the Bluetooth TM(1) and IEEE 802.11b/g wireless communications protocol. It consists of a rectangular block of low-dielectric ceramic material and is fabricated in a water-based non-toxic process. The antenna is capable of providing good connectivity using near 50 Ω microstrip directly onto the PC board. Notes 1. Bluetooth is a trademark owned by Telefonieaktiebolaget L M Ericsson, Sweden. QUICK REFERENCE DATA DESCRIPTION VALUE Centre frequency 2.45 GHz 0 type/01type/02 type/03 type/Default/04 type/05 type Bandwidth ＞100 MHz Gain 4 dBi max. (depends on the special environment) VSWR 2.5 max. (depends on the special environment) Polarization Linear Azimuth beam width Omni-directional Impedance 50 Ω Power dissipation 1 W Operating temperature −55 to +85 °C Terminations NiSn Resistance to soldering heat 260 °C for 10 seconds Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 3 www.yageo.com MECHANICAL DATA L W F W F IWA0001 T C C Fig.1. Component outline. For dimensions see Table 1. Physical dimensions Table 1 Antenna dimensions SYMBOL DETAILS DIMENSIONS (mm) L − 5.3 ±0.20 W − 2.0 ±0.20 T − 1.3 ±0.20 F feed termination 2.0 ±0.20 C − 0.4 ±0.25 Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 4 www.yageo.com ELECTRICAL CHARACTERISTICS DESCRIPTION VALUE Centre frequency 2.45 GHz 0 type/01type/02 type/03 type/Default/04 type/05 type Bandwidth ＞100 MHz Gain 4 dBi max. (depends on the special environment) VSWR 2.5 max. (depends on the special environment) Polarization Linear Azimuth beam width Omni-directional Impedance 50 Ω Power dissipation 1 W Operating temperature −55 to +85 °C Terminations NiSn Resistance to soldering heat 260 °C for 10 s Weight 0.05 g/piece Physical dimensions Table 2 The dimensions of antenna appearance SYMBOL DETAILS DIMENSIONS (mm) L − 5.5 ±0.2 W − 2.2 ±0.2 F feed pad 2.2 ±0.2 C − 0.5 ±0.25 L1 − 5.3 ±0.5 FOOTPRINT DIMENSIONS W L CC Antenna F L 1 IWA0002 Fi g.2. Recommend dimensions of solder For dimensions see Table 2. Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 5 www.yageo.com Marker data: 1: SWR= 2.5; f= 2.30 GHz 2: SWR= 2.5; f= 2.70 GHz Marker data: 1: Γ= −10 dB; f= 2.33 GHz 2: Γ= −10 dB; f= 2.60 GHz Fig.3 The measurements of typical SWR and return loss on the special environment . 2.0 2.13.0 f (GHz) SWR 1.0 2.0 3.0 5.0 7.0 6.0 8.0 9.0 10.0 4.0 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 IWA0004 1 2 2.0 2.13.0 f (GHz) Γ (dB) 45 40 35 25 15 20 10 5 0 30 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 IWA0005 1 2 Pre-tuning reference only,after-tuning performance is depending on customer installation. Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 6 www.yageo.com XY plane YZ plane XZ plane − 270° −180° − 90° 0° 0° 0° −180° − 270° − 90° − 270° − 90° −180° 0° IWA0058 Fig.4 The definitions of X-Y-Z plane and angle for radiation pattern Vertical Horizontal 0° −90°−270° −180° IWA0006 0° −90°−270° −180° −180° 0° −90°−270° 0 −10 −20 −30−40 dBi dBi 0−10−20−30−40 dBi 0−10−20−30−40 XYXZYZ Table 3 Max. and avg. antenna gain value of radiation pattern Plane XY (dBi) XZ(dBi) YZ (dBi) Vertical Pol. (max.) −3.8 2.6 −1.8 Vertical Pol. (avg.) −8.4 −1.6 −9.7 Horizontal Pol. (max.) 4.0 −1.9 2.7 Horizontal Pol. (avg.) −2.2 −8.4 −2.1 Total gain (max.) 4.0 2.7 2.7 Total gain (avg.) −1.9 −1.3 −1.9 Fig.5 Radiation pattern measurements For antenna gain value see Table 3. Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 7 www.yageo.com ORDERING INFORMATION Components may be ordered by using either a Phycomp’s unique 12NC or the simple 17-digit clear text code (Yageo part number) 12NC ORDERING CODE E XAMPLE: 4311 153 00245 4 3 X X 1 5 3 0 0 2 X X Centre frequency Tolerance Size 5.3 x 2.0 x 1.3 mm 53 Packing 11 13 reel: ∅180 mm; 7", blister, 1000 pcs bulk, 1000 pcs Material 1high-frequency material Family 43 antenna IWA0008 245 2.45 GHz Default 00 at 100 MHz Impedance Bandwidth 200 2.00 GHz 00type 210 2.10 GHz 01type 230 2.30 GHz 03type 240 2.40 GHz 04type 220 2.20 GHz 02type 250 2.50 GHz 05type Yageo part number E XAMPLE: CAN4311153002451K DESCRIPTION CODE Family CAN43 = antenna products Packing 11 = 180 mm/7” blister Materials 1 = high frequency materials Size 53 = 5.3 × 2.0 × 1.3 mm Tolerance 00 = large than 100 MHz Working Frequency (1) 245 = 2.45 GHz (Default) 200 = 2.0 GHz (00 type) 210 = 2.1 GHz (01 type) 220 = 2.2 GHz (02 type) 230 = 2.3 GHz (03 type) 240 = 2.4 GHz (04 type) 250 = 2.5 GHz (05 type) Packing type 1K = 1,000 pcs per reel Notes 1. Depends on the special environment. Phycomp Product specification High Frequency SMD type antennas for BT/802.11b/g application 2.45 GHz size 5.3 × 2.0 2005 Mar 08 Rev.5 8 www.yageo.com TESTS AND REQUIREMENTS Table 4 Test procedures and requirements IEC 384-10/ CECC32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.4 mounting the antenna may be mounted on printed-circuit boards or ceramic substrates by applying wave soldering, …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50816007-RP1 FCC ID: SLH-WL-1003 Date of Issue: August 23, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 61 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For WIFI Finder Model: WL-1003 Trade Name: HL-Tech Issued to HL-Tech Corporation. 2F, No. 13, Lane 120, Sec. 1, Nei Hu Rd., Taipei, Taiwan 114, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50816007-RP1 FCC ID: SLH-WL-1003 Date of Issue: August 23, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 MEASUREMENT EQUIPMENT USED.........................................................................................6 3.6 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................9 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................22 7.4 BAND EDGES MEASUREMENT ................................................................................................27 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................36 7.6 RADIO FREQUENCY EXPOSURE........................................................................................................41 7.7 SPURIOUS EMISSIONS ................................................................................................................42 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................56 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................59 Compliance Certification Services Inc. Report No.: 50816007-RP1 FCC ID: SLH-WL-1003 Date of Issue: August 23, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product WIFI Finder Trade Name HL-Tech Model Number WL-1003 Model Discrepancy All the specification and layout are identical except they come with different external appearance and colors. Please refer to the EUT photos for detail descriptions. Power Supply Powered from host device Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 13.67 dBm IEEE 802.11g: 13.31 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification SMD Type Antenna / Gain: 4 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: SLH-WL-1003 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 50816007-RP1 FCC ID: SLH-WL-1003 Date of Issue: August 23, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The te…
