SLH-WL-3002BWLAN 802.11b/g mini PCI Card

WLAN 802.11 b/g MiniPCI WL-3002B Hardware Installation and Configuration Utility User’s Guide Integrated Baseband and MAC Solution IEEE 802.11b/g WLAN HL-TECH Corporation 2 Contents: Table of Contents . ........................................................2 Introduction ...............................................................3 Install the WLAN card in PC/NB ......................................4 Install WL-3002Bdriver..................................................5 Setup WL-3002B Configuration Utility... .............................7 HL-TECH Corporation 3 Introduction The Wireless LAN Configuration Utility is a powerful application that helps you to configure this WLAN card and monitor the statistics of the communication status. Unlike the standard method of configuring the card via the operating system utilities, this application permits the dynamic modification of the configuration parameters while the card is operating. It also offers more configuration options. We offer the Wireless LAN Configuration Utility for Windows® 98SE/Me/2000/XP. Mini-PCI WLAN equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. HL-TECH Corporation 4 Install the WLAN card in PC/NB Release the screw from PC/NB Find out the pre-wired cable Connect the cable with Mini-PCI Align and firmly plug the Mini-PCI card into the slot. Re-place the cover to PC/NB Secure the screw with a cross screwdriver. HL-TECH Corporation 5 Install WL-3002Bdriver The program will automatically proceed with installing. Press “Next” to continue Press “Browser” to change the folder where setup will install files or press “Next” to continue. Select or create a program folder and press “Next” to continue. The program will automatically proceed with installing. Press “Yes” to continue. HL-TECH Corporation 6 Press “Continue” to continue the process. Insert the Wireless Card to slot of NB and choose “Install the software automatically (Recommended)” and press “Next”. Press “Finish” to complete the installation HL-TECH Corporation 7 Setup WL-3002B Configuration Utility 1. Station: Figure 1-1 Open the WL-3002B Configuration Utility shown as Figure 1-1. The adapter can be set at “Station” or “Access Point” Mode from the Mode drop down menu. Station mode is selected for the item. „You can site survey the neighboring SSID site by pressing the “Refresh”, then sites name and signals strength of available SSID sites are shown on the “Available Network” field. „Double click the SSID site from “Available Network” field, and the SSID can be connected directly. „The information of the SSID is shown on the “ Current Network Information”. „Show the BSSID of connecting AP on the “Link Status” filed. „“Signal Strength” and “Link Quality” shown on diagrammatic curve, and described with percentage. „Record the number of Tx frames on the filed of “Tx Frame”. „Record the number of Rx frames on the filed of “Rx Frame”. HL-TECH Corporation 8 1.1 More Setting Press “Connetc this site “ in Figure 1-1to enter “More setting“ window. Figure 1-2 1.1.1 “General Connection Setting” group: „Read the current status from the group if the “Change” button is not pressed. „Press “Change” button for modifying the status, when the modification is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. „Modify the SSID name from the “SSID” field. When use the item, the “any “will be unchecked previously. „Change the channel by drop down menu “ Channel”. When use the item, the Ad_Hoc Mode will be set previously. „Select the transmission rate by “ Tx Rate” drop down menu. „Select the “Ad_Hoc” or “Infrastructure” Mode by the “Network Type” „ drop down menu. „Select the “Enable WEP” or “Disable WEP” by the “Encryption” drop „down menu. „Select the “Open System” , “Shared Key” mode or “Auto” from the „“Authentication Mode” drop down menu. HL-TECH Corporation 9 1.1.2 Encryption Setting 1.1.2.1 WEP Key Setting Press “WEP Encryption Setting” in Figure 1-2 to enter the “WEP Key Setting” page Figure 1-3 „Select the “Open System” , “Shared Key” mode or “Auto” from the “authentication Mode” drop down menu. „Press the “Change” button to modify the contents of “WEP Key setting”, when it is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. „Select which key length 64,128 or 256 bits will be modified or used by “Key Length” item. „Select which key set will be use by the field of “Default Key ID” „Modify the 4 sets key depending on the selected key length on the field of “Key Value”. The key value is used the hexadecimal format. „Select which key format “hexadecimal” or “ASCII” will be used from the “Key Format” HL-TECH Corporation 10 1.1.2.2 WPA Setting Press “WPA Encryption Setting” in Figure 1-2 to enter the “WPA Setting” page Figure 1-4 „You can select the WPA authentication protocol “TLS” or “PEAP” from “Protocol” filed. The TLS is used , the User name and Password need not to be used , but the Certificate need to be used. If the PEAP is used , the User name ,Password and Certificate need to be used. „If you select “pre-share-key” protocol , you can write down your password on the filed of “Passphrase” , the password length can be selected from 8 bytes to 63 bytes (ASCII format) depend on user . HL-TECH Corporation 11 1.1.3 Setup Profile Group: Figure 1-5 „Select the profile that has been saved previously from the “Profile name” drop down menu, then press “Load ” button to load the status to use. „Write the profile name on the field of “Profile name”, and pre…

Text truncated - open the document above for the full version.

Date: 2007/11/7 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

2007/11/8 Federal Communications Commission Authorization and Evaluation Division FCC ID: SLH-WL-3002B Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

1 Lucy Tsai From: amanda.wu [[email protected]] on behalf of application [[email protected]] Sent: Sunday, November 18, 2007 11:38 PM To: Lucy Tsai Cc: application Subject: Re:FW: HL-Tech Corporation, FCC ID: SLH-WL-3002B, Assessment NO.: AN07T7369, Notice#1 Attachments: WL-3002B Antenna specification 1119.pdf; WL-3002B Label Sample & Location 1119.pdf; WL-3002B Internal Photo Revsied 1119.pdf Dear Lucy, Plz see my reply as below, thank you. Best Regards, Amanda "Lucy Tsai" <[email protected]> 2007/11/19 10:50 AM 收件人： "application" <[email protected]> 副本抄送： 主旨： FW: HL-Tech Corporation, FCC ID: SLH-WL-3002B, Assessment NO.: AN07T7369, Notice#1 Hi Gina, Q#1: Please provide the rear side of the EUT photo. Ans: Plz have the attached. Q#2: Theory of operation indicates the RF chip¡¦s capability has includes 802.11a which does not agree with the application. Please confirm whether this application has included 802.11a or not and if it¡¦s not applied, please confirm how the 802.11a will be disabled. Ans: The 802.11a is disabled by software so the device support 802.11bg only. Q#3: Theory of operation also indicates that the frequency range of 802.11bg is from 2400-2495MHz which is out of the band allowed in USA. Please explain. Ans: The operating frequency range will be set to 2412~2462MHz by software before placing into USA that user can’t update them. Q#4: Antenna specification indicates the connector is a I-PEX standard connector which doesn¡¦t complied with Part 15.203. Please explain. Ans: please see attached antenna spec. Q#5: Since this is mini-PCI card that it is classified as a PC peripheral, it shall comply with DOC rule or certification. However, there is no FCC DOC logo found in the label. If it is seeking to follow certification rule, then please submit Part 15B test report and file as a composite device, otherwise, please make sure Part 15B is complied and FCC DOC logo onto the label. Ans: please see attached. 2 Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

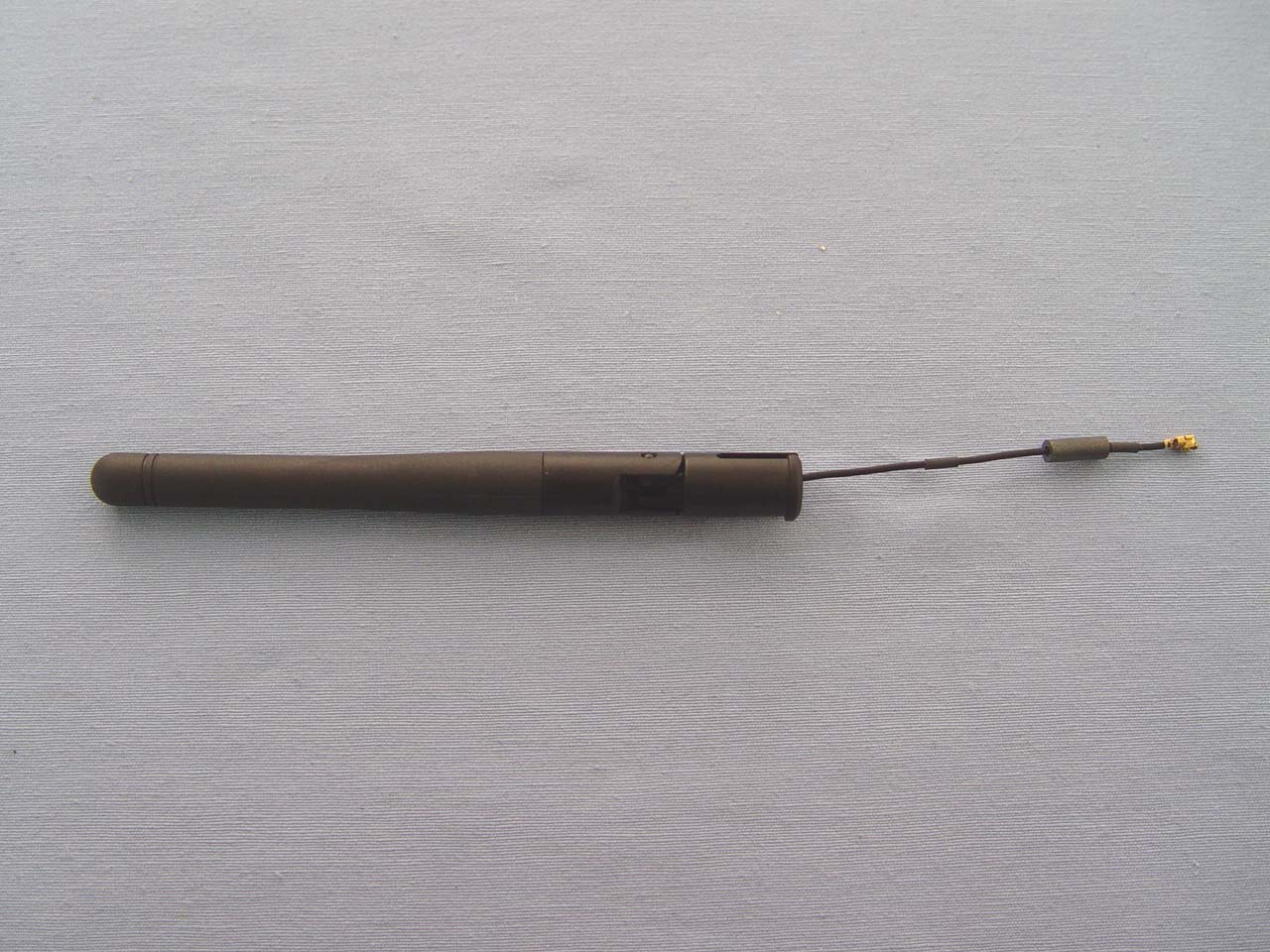

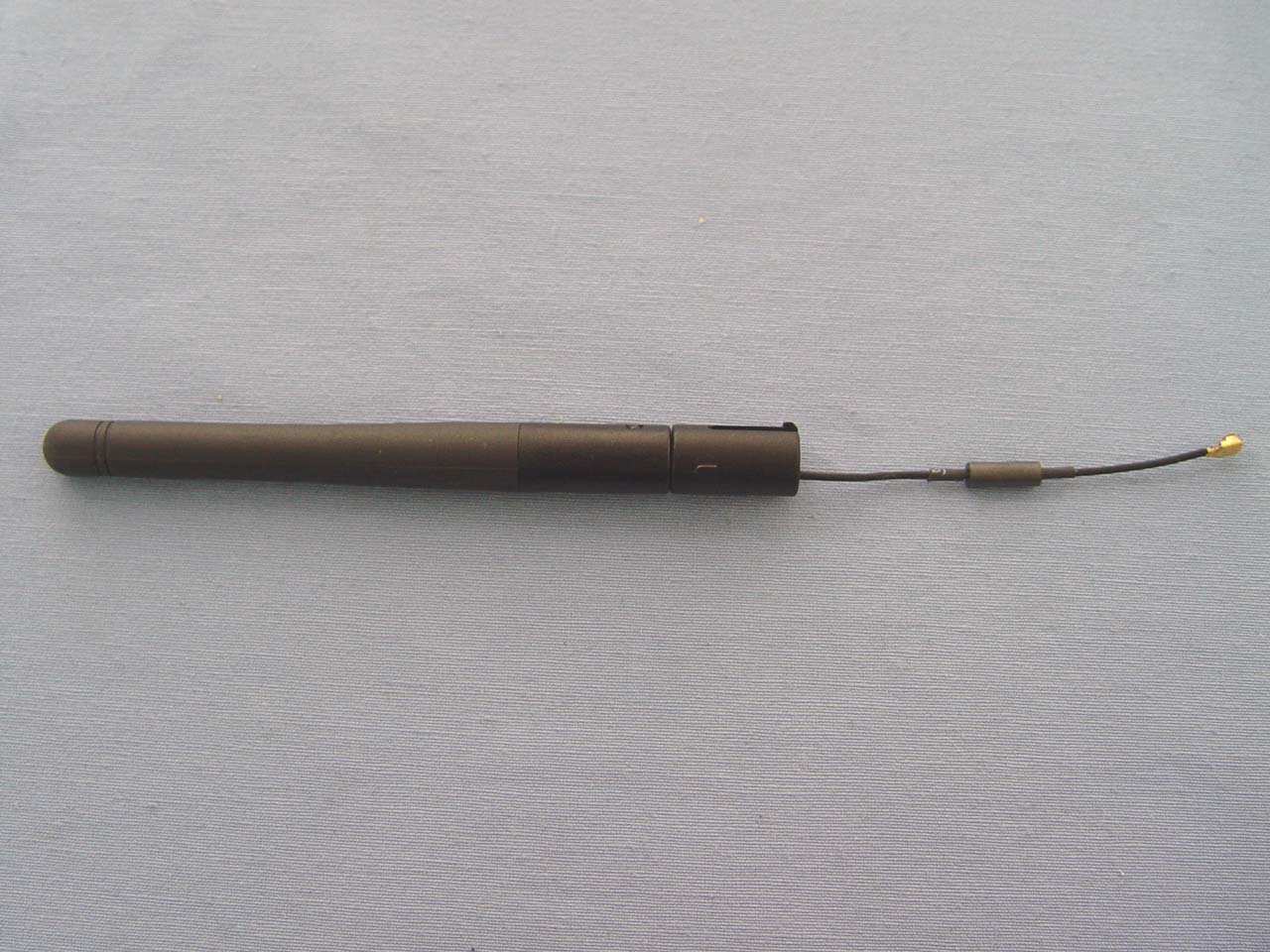

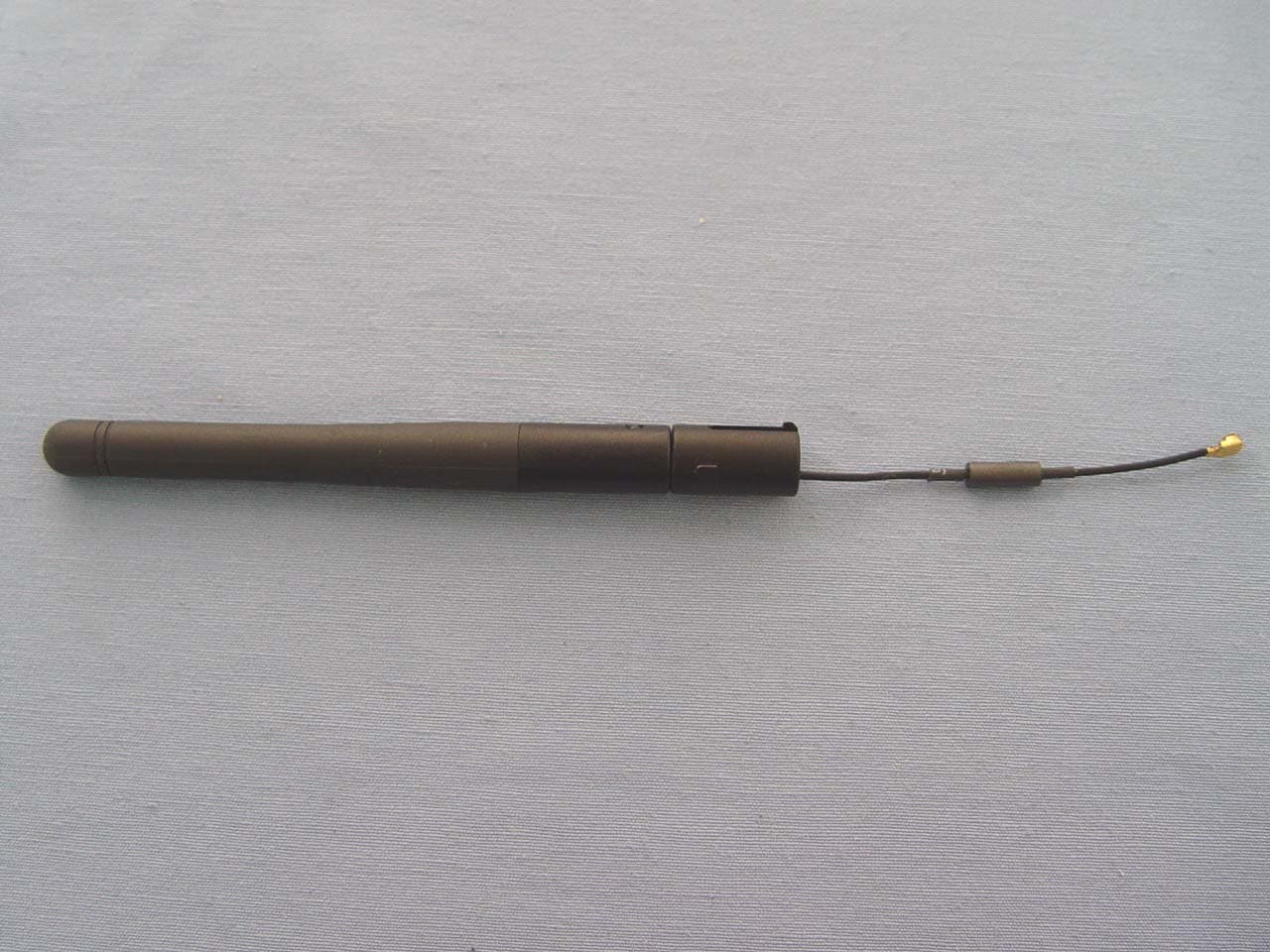

Compliance Certification Services Inc. Report No.: 71107107 Date of Issue: November 16, 2007 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71107107 Date of Issue: November 16, 2007 Page 2 Rev. 00

HL-Tech WLAN 802.11b/g mini PCI Card Model: FCC ID: SLH-WL-3002B format for end products

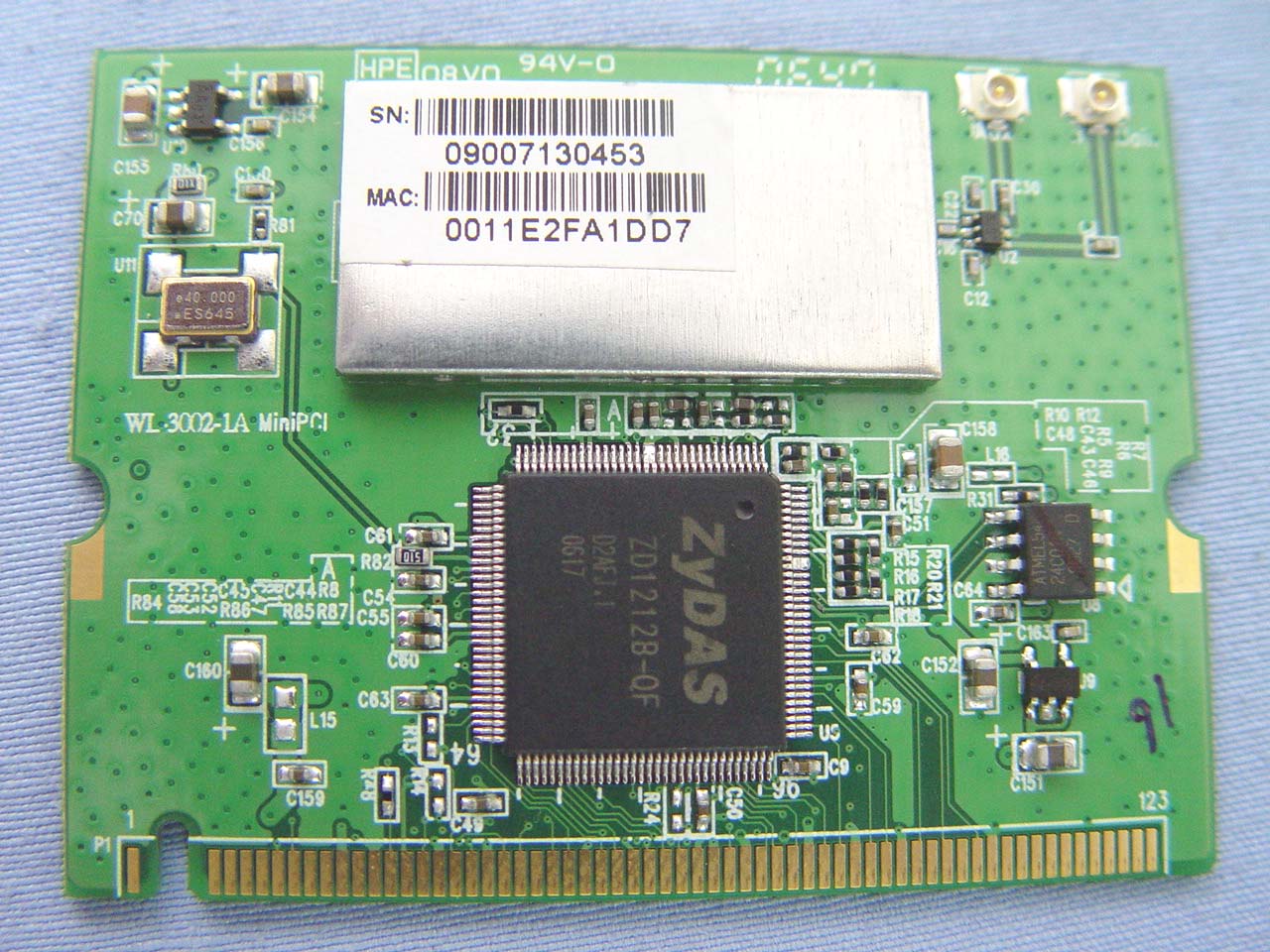

Compliance Certification Services Inc. Report No.: 71107107 Date of Issue: November 16, 2007 Page 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71107107 Date of Issue: November 16, 2007 Page 4 Rev.00

Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 60 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For WLAN 802.11b/g mini PCI Card Model: WL-3002B Trade Name: HL-Tech Issued to HL-Tech Corporation. 2F, No. 13, Lane 120, Sec. 1, Nei Hu Rd., Taipei, Taiwan 114, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES 9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................21 7.4 BAND EDGES MEASUREMENT ................................................................................................25 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................34 7.6 SPURIOUS EMISSIONS ................................................................................................................39 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................53 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................56 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................58 Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product WLAN 802.11b/g mini PCI Card Trade Name HL-Tech Model Number WL-3002B Model Discrepancy N/A Power Supply Powered from host device. Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 19.69 dBm IEEE 802.11g: 17.97 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification Gain: 2 dBi Antenna Designation Dipole antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: SLH-WL-3002B filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field stre…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Page 58 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Page 59 Rev. 00 RADIATED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 71107107-RP1 FCC ID: SLH-WL-3002B Date of Issue: November 16, 2007 Page 60 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
