SLH-WL-8005Wireless Access Point (AP)

WL – 8005 AP/AP Client User Manual http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 1 1.Overview................................................................................................................ 2 1.1.Product Feature..................................................................................... 2 2.WL – 8005 Setting ................................................................................................. 3 2.1.Setup WL - 8005 by Web Browser.................................................... 3 3. WL – 8005 Tool ..................................................................................................... 7 3.1.Using WL – 8005 Tool........................................................................... 8 http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 2 1. Overview 1.1.Product Feature zComplies with the IEEE 802.11b/g 2.4 GHz (DSSS) standard. zHigh-Speed data transfer rate – up 54Mbps. zSupport 64/128-bit WEP Data Encryption function for high level security. zSupports the most popular operating system: Windows 98SE/ME/2000/XP/Vista zMore Portable and mini-size design. zSuitable for any Notebook or PC zEasy and convenient setup tool (In AP Client Mode). http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 3 2. WL – 8005 Setting TheWL-8005 has two kinds of method to settings. In capture 2.1, we show how to setup WL-8005by web browser. And capture 2.2 explain how to use WL - 8005 Tool to setup WL-8005 (But in this version’s firmware. It’s only can used in AP Client Mode) . 2.1.Setup WL - 8005 by Web Browser Open web browser and entry The WL-8005 default IP address (192.168.1.10). Figure 2.1.1 After you entry default IP address, please press enter to login WL-8005 setting page. Figure 2.1.2 The default username and password: Username: admin Password: admin http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 4 You can see five select to set the WL-8005. In Simple Setup page, please accord to the rules with your wireless settings. Figure 2.1.3 Simple Setup pages. In Security Setup page, please accord to the rules with your wireless security settings. Figure 2.1.4 Security Setup pages http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 5 In the Site Survey page you can see how many Router/AP in this environment. Figure 2.1.5 Security Setup pages And you can do firmware upgrade in the Firmware Upgrade page. Figure 2.1.5 Security Setup pages http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 6 The last choose with AP Mode, you can use this choose to change WL-8005 working type. The WL-8005 default setting is working in Client Mode. So the last choose is “AP Mode”. When you select this choose, it will change to Reboot Page to request reboot device. After reboot, the WL-8005 will change working type to AP Mode. In this time the last choose will change to Client Mode. You can do opposite process to change back Client Mode. Example 2.1.1: AP Client Mode to AP Mode Example 2.1.1: AP Mode to AP Client Mode http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 7 3. WL – 8005 Tool TheWL – 8005 Tool is an easy and convenient setup tool. But in this version, it can only use the WL-8005atClient Mode. Figure 3.1 WL-8005 Tool Attention: Before you start using this tool, you maybe have something need to check first. You must check the WL – 8005 is working in Client Mode. Next, if you link to WL – 8005 need to pass through a router. You must to ascertain the router can’t to block broadcast packet. http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 8 3.1. Using WL – 8005 Tool Please press Search button to search WL – 8005 device and wait the progress bar end. After search, the WL – 8005 Tool will pop list window. The list window will list all WL – 8005 device on the network. You can use double click or press Select button to select device. http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 9 You should entry password after you select device. If the password is right with your enter. The WL – 8005 Tool will show allWL – 8005 device settings. http://www.hltech.com.tw Tel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 10 In your setting, you can use Site Survey button to search how many wireless access point in this environment. If you select any AP, the WL – 8005 Tool will auto change the main window’s SSID. It will change the same with your select. The last steps please press Apply button. WL – 8005 Tool can auto send all settings to you select WL – 8005 device in early. If sent setting to WL – 8005 device was success. The WL – 8005 Tool will show a message box. And in this time, WL – 8005 will reboot. When you close this message box, the WL – 8005 Tool will to get WL – 8005 settings again. You can double check your settings in this time. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the installation. , May cause harmful interference to radio communication. However, there is no guarantee that interference Will not occur in a particular installation. if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced ra…

Text truncated - open the document above for the full version.

Letter of Declaration We, Would like to declare that the following modification are approved by us and will be implemented into the product before placing to the market. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tel:

October 8, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: SLH-WL-8005 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Date: 2007/10/8 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

1 Lucy Tsai From: gina.lo [[email protected]] on behalf of application [[email protected]] Sent: Wednesday, October 31, 2007 10:36 PM To: Lucy Tsai Subject: Re:HL-Tech Corporation, FCC ID: SLH-WL-8005, Assessment NO.: AN07T7329, Notice#1 Attachments: WL-8005 Block Diagram for module.pdf; WL-8005 Theory of operation revised 1101.pdf; WL-8005 User Manual Revised 1031.pdf Dear Lucy, Please see my reply, thank you. Best Regards, Gina <[email protected]> 2007/10/31 01:15 AM 收件人： <[email protected]> 副本抄送： <[email protected]> 主旨： HL-Tech Corporation, FCC ID: SLH-WL-8005, Assessment NO.: AN07T7329, Notice#1 Hi Amanda, Please address following issues. Q#1: Please provide the block diagram for Bluetooth portion. Ans: Please see the block diagram for module as attachment. Q#2: Theory of opeation mentioned that when you connect between WL-8005 and PC or NB within LAN, you could control the WL-8005's the transmission rate, mode... etc by web. Please provide more information regarding what parameters can be controlled by user. Also please provide more information regarding the operation since current information doesn't address how the transmitter works. Ans: Please see the theory of opeation as attachment. Q#3: The user manual provided doesn't agree with the application, please have a check and provide the correct one. Ans: Please see the user manual as attachment. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing 2 fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

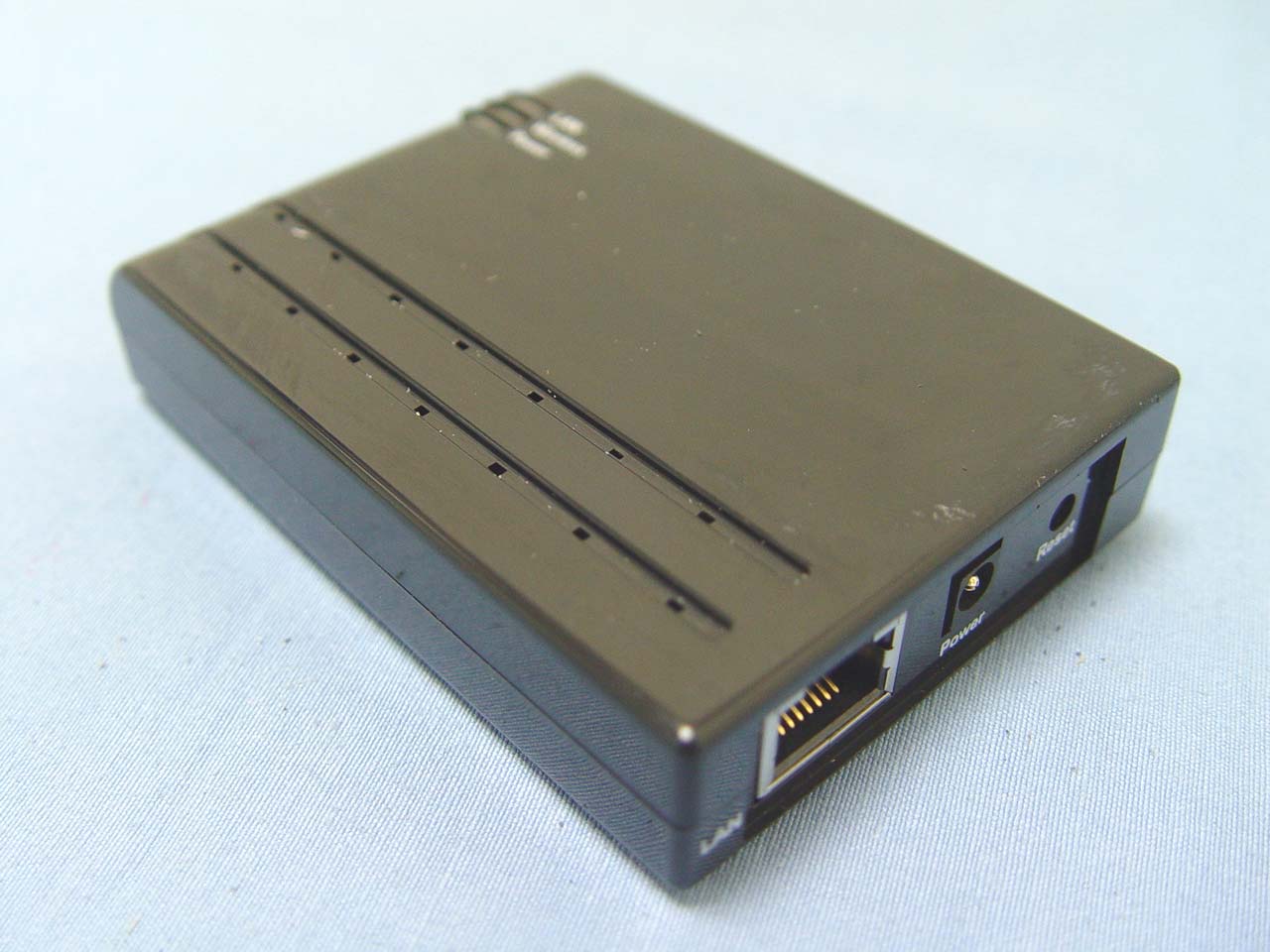

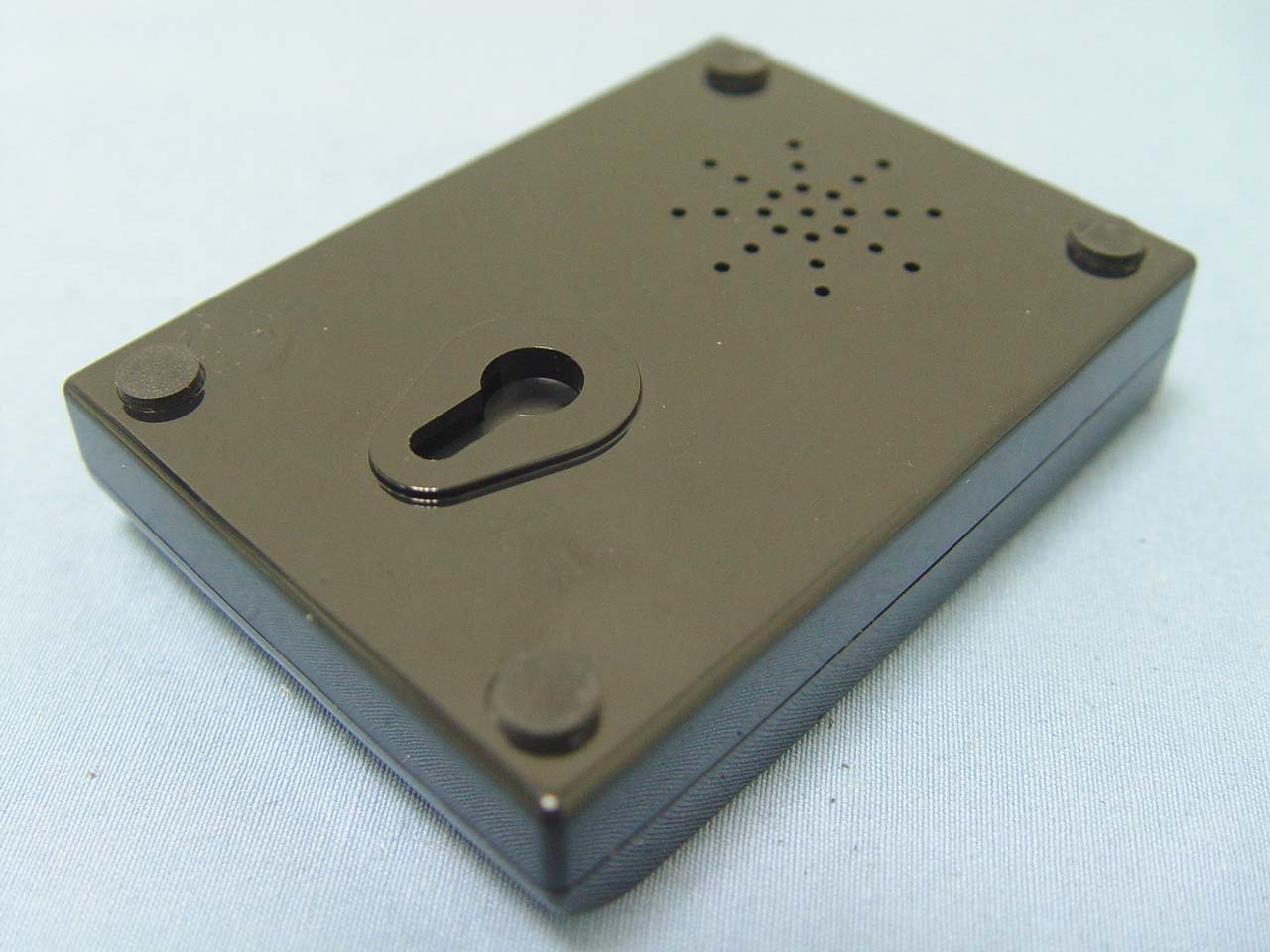

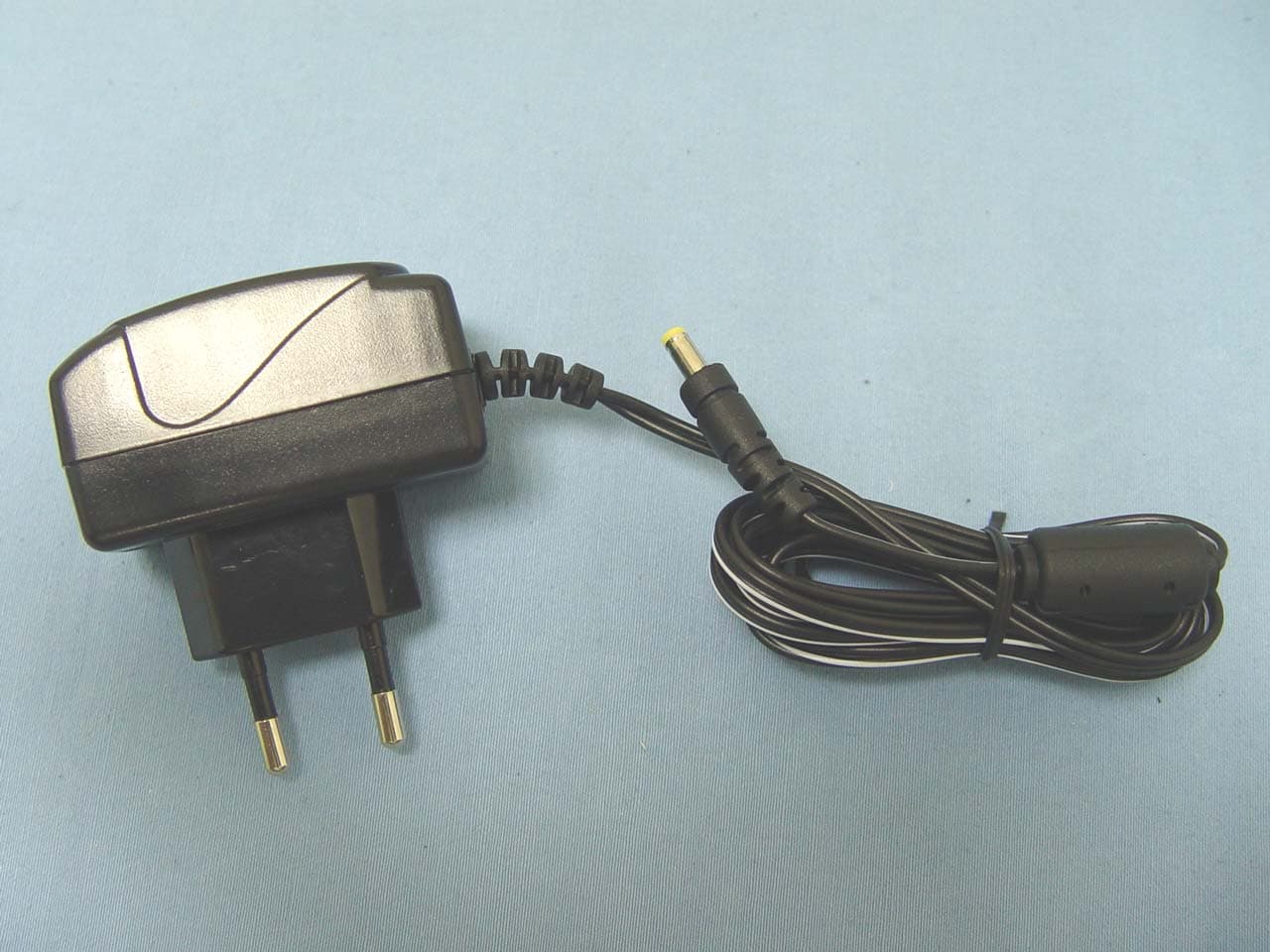

Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 1 Total Page: 13 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 8 Rev. 00

HL-TECH Model No.: TA-6410/ WL-8005 ver 1.0 Deskbridge DC Input: 5V http:www.teleadapt.com Te s t e d To C o m p l y With FCC Standards FOR HOME OR OFFICE USE FCC ID: SLH-WL-8005 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation Made in China

Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 9 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 12 Rev.00 Compliance Certification Services Inc. Report No.: 70907001 Date of Issue: October 25, 2007 Page 13 Rev.00

驪 ARISTOTLE ENTERPRISES 朗 料 RFA-02-P09 PCB, I-PEX, Ø1.13 RFA-02-P09.DWG 料 : TEST BY CHECK BY APPROVE BY : TEST BY CHECK BY APPROVE BY :北路638樓 :02-2225-8209 :02-2225-7523 QP-0603-F02 B Version 1 1.4 1.3 1.2 V2-plane Peak Gain (dBi) 2500 MHz 2450 MHz 2400 MHz 0.62.03.0 Frequency Parameter 2.1 2.1 H-plane Peak Gain (dBi) 0.4 0.6 H-plane Average Gain (dBi) 3.2 3.1 V1-plane Peak Gain (dBi) Gain Table H-plane -25-20-15-10 -5 05 0 30 60 90 120 150 180 210 240 270 300 330 -25-20-15-10 -5 05 H-plane 2400 MHz 2450 MHz 2500 MHz -25-20-15-10 -5 05 0 30 60 90 120 150 180 210 240 270 300 330 -25-20-15-10 -5 05 V1-plane 2400 MHz 2450 MHz 2500 MHz V1 plane V2-plane -25-20-15-10 -5 05 0 30 60 90 120 150 180 210 240 270 300 330 -25-20-15-10 -5 05 V2-plane 2400 MHz 2450 MHz 2500 MHz

-Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) RoHS REPORT INDEX-RFA-02-P09 NAME RoHS report 1 PCB NEW ERA ELECTRONIC S CO. LTD. CE/2005/81378 2 Coaxial Cable- Ø 1.13 LANTERRA INDUSTRIAL CO., LTD. CE/2006/42971 3 Connector-IPEX I-PEX JP CO., LTD. CE/2005/61647A 4 Tape CE/2005/A0721A

Compliance Certification Services Inc. Report No.: 70907001-RP1 FCC ID: SLH-WL-8005 Date of Issue: October 25, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 60 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Access Point (AP) Trade Name / Model: HL-Tech / WL-8005, Teleadapt / TA-6410, Teleadapt / TA-6450 Issued to HL-Tech Corporation. 2F, No. 13, Lane 120, Sec. 1, Nei Hu Rd., Taipei, Taiwan 114, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70907001-RP1 FCC ID: SLH-WL-8005 Date of Issue: October 25, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................21 7.4 BAND EDGES MEASUREMENT ................................................................................................25 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................34 7.6 SPURIOUS EMISSIONS ................................................................................................................39 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................53 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................56 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................58 Compliance Certification Services Inc. Report No.: 70907001-RP1 FCC ID: SLH-WL-8005 Date of Issue: October 25, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: HL-Tech Corporation. 2F, No. 13, Lane 120, Sec. 1, Nei Hu Rd., Taipei, Taiwan 114, R.O.C. Equipment Under Test: Wireless Access Point (AP) Trade Name / Model: HL-Tech / WL-8005, Teleadapt / TA-6410, Teleadapt / TA-6450 Date of Test: October 15 ~ 18, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard Note We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compli…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70907001-RP1 FCC ID: SLH-WL-8005 Date of Issue: October 25, 2007 Page 58 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70907001-RP1 FCC ID: SLH-WL-8005 Date of Issue: October 25, 2007 Page 59 Rev. 00 RADIATED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70907001-RP1 FCC ID: SLH-WL-8005 Date of Issue: October 25, 2007 Page 60 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
