SMJL100OFFICESTATION

Tel NO : +82-2-2028-7020 FAX NO: +82-2-2028-7011 NComputing Co., Ltd. Release Date : 2009. 03. 23 6 th Fl., JEI-Platz B/D, 459-11, Gasan-dong, Geumcheon-gu, Seoul, Korea Justification Letter R & D Division PRIVATE AND CONFIDENTIAL Federal Communications commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: FCC ID Grant Date SMJL100 11/05/2004 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, we hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We are aware that the above exhibits we are now requesting to be held confidential have been viewable since the date the grant was issued. Sincerely, Date : March 23, 2009 Thomas Lee / Senior Hardware Engineer

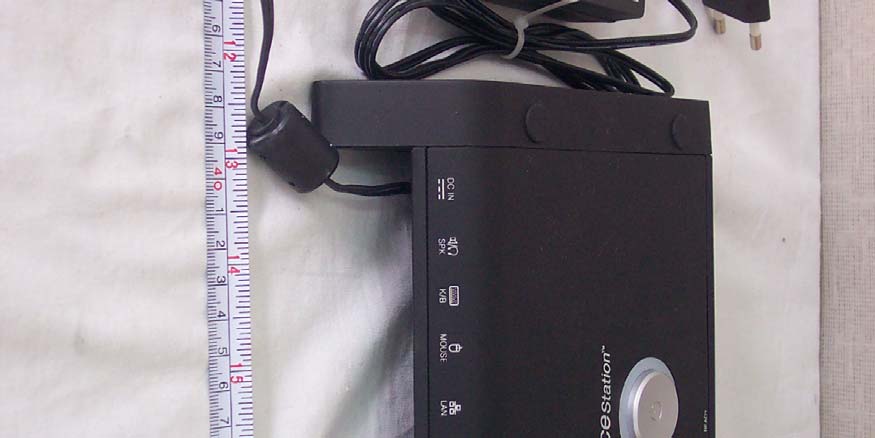

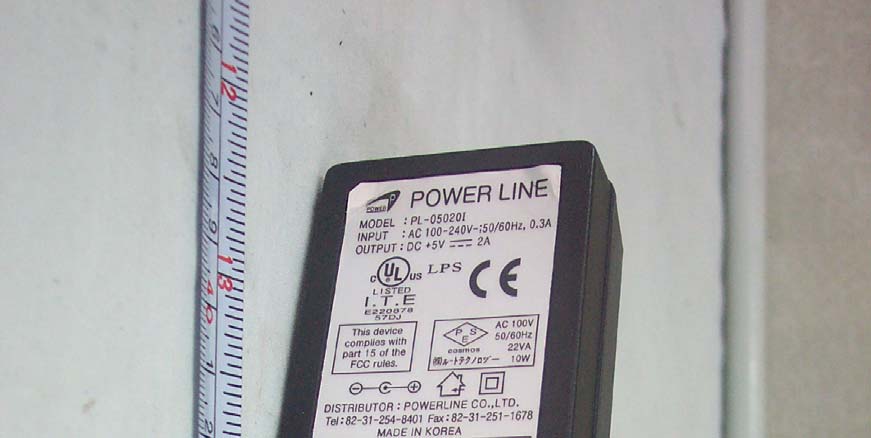

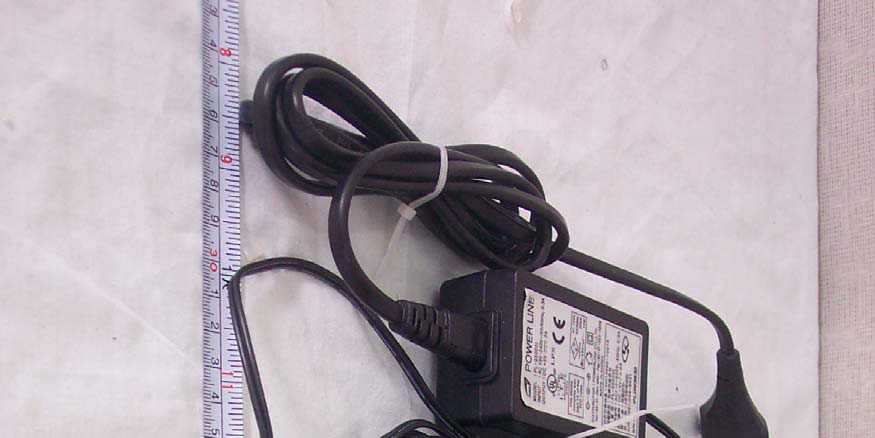

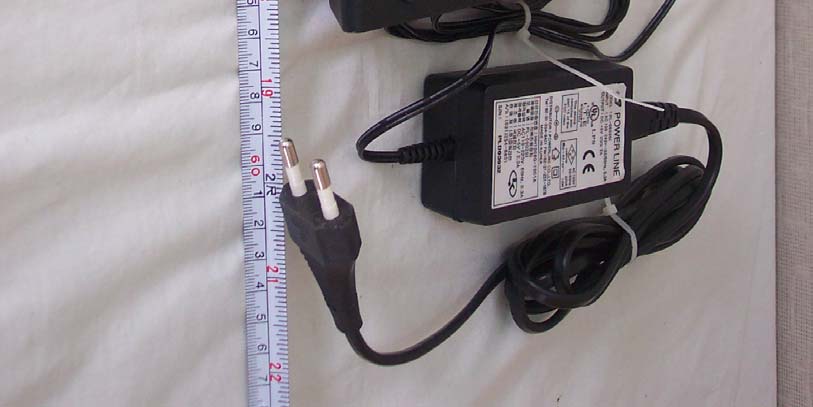

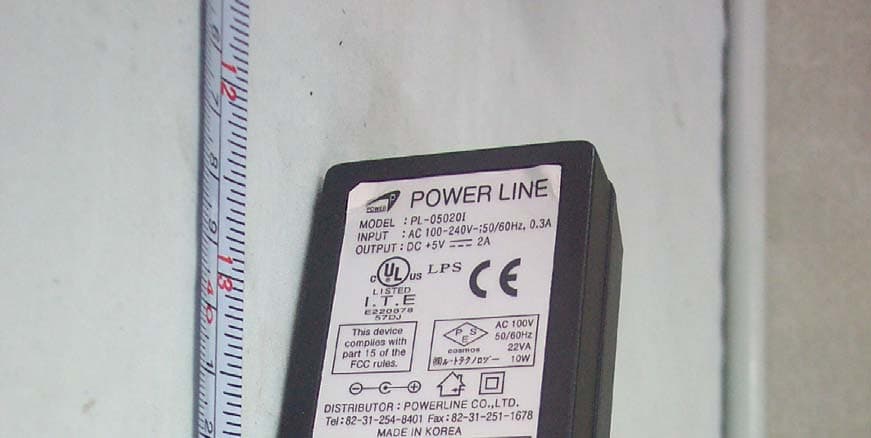

Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 18 of 33 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 19 of 33 z Rear View of EUT Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 27 of 33 z Front View of Adaptor Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 28 of 33 z Rear View of Adaptor

Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 15 of 33 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labelling Requirements

Product Serial No. : Type: Multi User / 100M LAN M/N : This device complies with Part 15 of the FCC Rules. Operation is subject to the foll owing two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation FCC ID : SMJL100 1.Model No. :)) 2.Date of Mfg. :

Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 20 of 33 z Inside View of EUT Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 21 of 33 z Front View of Main Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 22 of 33 z Rear View of Main Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 23 of 33 z Front View of Switch Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 24 of 33 z Rear View of Switch Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 25 of 33 z Front View of LED Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 26 of 33 z Rear View of LED Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 29 of 33 z Front View of Adaptor Board Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 30 of 33 z Rear View of Adaptor Board

Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 1 of 33 Nemko Korea Co., Ltd. 300-2, Osan-Ri, 7Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : NComputing Co., Ltd. Dates of Issue : November 02, 2004 2nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Test Report No. : NK2EE743 Anyang-City, Gyeonggi-Do, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. J. C. Lee EMC site, Korea FCC ID Brand Name Contact Person Applied Standard: Part 15 & 2 Classification : FCC Class B Device EUT Type: OfficeStation The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2001. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : J. H. Ko Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SMJL100 OfficeStation NComputing Co., Ltd. 2nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea Mr. J. C. Lee Telephone No. : +82 31 422 5157 Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 2 of 33 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS & EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMANDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D – BLOCK DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM 3 4 5 6 6 6 7 8 9 10 11 13 14 15 16 18 31 32 33 Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 3 of 33 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Factory : NComputing Co., Ltd. Mr. J. C. Lee Tel No.: +82 31 422 5157 NComputing Co., Ltd. 2nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea NComputing Co., Ltd. 2nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea z FCC ID: SMJL100 z Model: L100 z Alternate Model: N1000 *) Only differ model name with L100 z Brand Name: OfficeStation z EUT Type: OfficeStation z Electric Rating: Input : AC100-240V, 50/60Hz, 0.3A Output : DC +5V, 2.0A z Test Voltage: AC110V, 60Hz z Port/Connector: VGA, LAN, PS/2 x 2EA, Speaker/Headphone Jack, DC In z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (2001) October 08, 2004 to October 19,2004 Nemko Korea Co., Ltd. EMC Site NK2EE743 Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 4 of 33 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2001) was used in determining radiated and conducted emissions emanating from NComputing Co., Ltd. FCC ID : SMJL100, OfficeStation. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on June 06, 2001. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 5 of 33 TEST CONDITIONS & EUT INFORMATION Operating During Test The System of the host PC was located at outside of the shield room and connected to EUT via 3 m unshielded(UTP Type) RJ 45 cable then the test was performed during accessing the resources of host PC system continuously. Support Equipment OfficeStation (EUT) NComputing, FCC ID: SMJL100 1.6m shielded stereo jack cable 3.0m unshielded Ethernet cable S/N: N/A AC/DC Adaptor International Electronics, Model: PL-050201 2.5m unshielded AC/DC power cable S/N: PLD03932 LCD Monitor Hansol LCD Inc, Model: B17DF 1.8m shielded D-sub cable 1.8m unshielded AC power cable S/N: N/A Keyboard Solid Year Co., Ltd., Model: ACK-260 1.5m unshielded Din cable S/N: 910044844 PS/2 Mouse Microsoft Corporation, Model: X06-08477 1.5m unshielded Din cable S/N: N/A EUT Information Clock 80MHz(X1), 4MHz(Y2), 25MHz(U6) Chipset(s) U3(EPM3128A), U6(RTL8201), U7(LM1117A) Port(s) VGA, L…

Text truncated - open the document above for the full version.

Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 16 of 33 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK2EE743 FCC Certification NComputing Co., Ltd. FCC ID:SMJL100 Page 17 of 33 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
