SMJX300Multi-user Networking Card

1 User’s guide for Xtenda TM (X300 Series) © Copyright by Ncomputing Co. Ltd. 2004 . - Illegal copying of this software, hardware and this documentation is prohibited by law. All other brand- and product names are trademarks of registered trademarks of the respective owners. 2 Safety Instructions The following instructions pertain to the risk of fire, electric shock or bodily injury. Please read all of these instructions carefully. - Do not use this system on an unstable cart, stand or table. The product may fall, causing serious damage to the product. - Slots and openings in the cabinet and the back have been provided for ventilation. To ensure reliable operation of your computer, and to protect it from overheating, do not block or cover these openings. - Never push objects of any kind into the system through the cabinet openings. Objects may touch dangerous voltage points or short out parts that could result in a fire or electrical shock. Never spill liquid of any kind on the product. - This computer should only be connected to the adapter comes with your system. If you want to use other adapter, consult your dealer. - Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord. - Unplug your system form the main electrical power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. - Do not use this system near water. - Your adapter plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert or replace your obsolete outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. - To avoid generating an electric shock, be sure to plug the power cord into the system before plugging it into the wall socket. - For protection of your system and other devices during a lightning storm, or when it is left unattended and unused for long periods of time, unplug the computer and other devices form the wall outlet and disconnect the cable form system. This will prevent damage to the system and other devices due to lighting and power line surges. Warning 3 FCC Information to Use Note : This equipment has been tested and found to comply with the limit for a Class B digital device, pursuant 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. May cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. IF this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off nad on, the user is encourage to try to correct the interference by one or the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experience radio TV technician for help Change or modification not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment 4 Introductions What is Xtenda TM ? Xtenda X300 allows you to extend your computer for additional users without any hassle. Instantly up to 7 users can use the computer simultaneously and independently. NComputing’s patent-pending proprietary remote computing technologies including SoC(System on Chip) based multi-user terminal processing, virtual termainal server software and unique optimized protocol will scale efficiently your underutilized CPU horsepower to share without sacrificing any speed. Features of important chip *** X300 PCI Card z CPLD Device : ALTERA Cyclone EP1C6Q240 z PLD Device : ALTERA MAX EPM3128ATC100 z SDRAM : SAMSUNG K4S043232H-TC60 *** X300 Multi Box z PLD Device : ALTERA MAX EPM3064ATC44 Features of I/O Ports *** X300 PCI Card z Three PC(RJ-45) Port *** X300 Multi Box z One PS/2 Type Keyboard z One PS/2 Type Mouse z One VGA Port z One PC(RJ-45) Port z One Speaker Jack 1 Speaker/Headphone Jack PS/2 Keyboard Port PS/2 Mouse Port VGA Monitor Port X300 PCI Card Connection Port Power LED X300 Multi Box Connection Port Overview X300 PCI Card X300 Multi Box The X300 PCI Card ports are for connection with the X300 Multi Box only. They are not LAN ports for generic Ethernet connections. Connecting generic LAN devices may result in damage to the product . The product may vary depending on your model type. 2 Installing the X300 PCI Card Please follow the instructions below for installing the X300 PCI Card in the Host PC: 1Disconnect all peripheral and power cables from the Host PC. 2Remove the system cover of the Host PC. 3Find an available PCI slot for the installation of the X300 PCI Card. Remove the slot cover. 4Insert the X300 PCI Card and secure the end of the card to the chassis with a retaining screw. 5Replace the Host PC cover and reconnect all peripheral and power cables. 3 Connecting the X300 PCI Card to the X300 Multi Box Please follow the instructions below for connecting the X300 PCI Card to the X300 Multi Box: Connect a PS/2 type keyboard, mouse, speakers & monitor to the X300 Multi Box Use a LAN cable to connect the X300 PCI Card to the X300 Multi Box. Use speakers with built-in amplifier only. Rear view 4 Recommended Specifications - Windows® 2000 Professional - Windows® XP Home Edition - Windows® XP Professional Changes may be made to the list of supported Operating Systems without prior notice. Operating Systems supported by the X300 PCI Card are as follows: - Screen Resolution : 800 600, 1024 768 - Color Depth : 256 Color, 16 bit - Refresh Rate : 60 Hz Screen Resolutions Supported A maximum of 2 X300 PCI Cards ca…

Text truncated - open the document above for the full version.

Tel NO : +82-31-422-5157 FAX NO: +82-31-422-5158 NComputing Co., Ltd. Release Date : 2005. 12. 22 2 nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea Modification Letter R & D Division PRIVATE AND CONFIDENTIAL Federal Communications commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern; We, NComputing Co., Ltd. inform the modification items for the modified equipment (FCC ID : SMJX300). We will apply to manufacture the equipment (FCC ID : SMJX300) as follows. 1. Added the 68PF capacitor on R.G.B Signal of X300 PCI Card. 2. Added 0.01UF capacitor on PLL voltage of X300 PCI Card. 3. Reinforced the Ground between X300 PCI board and PCI Bracket. 4. Add the bead on VCC(5V) of X300 PCI board 5. Change from bead to resistor 6. Add the Capacitor on VCC(5V) of X300 Multi Box. Sincerely, Date of issue 2005. 12.22. Thomas Lee (Name and signature of authorized person)

Tel NO : +82-2-2028-7020 FAX NO: +82-2-2028-7011 NComputing Co., Ltd. Release Date : 2009. 03. 23 6 th Fl., JEI-Platz B/D, 459-11, Gasan-dong, Geumcheon-gu, Seoul, Korea Justification Letter R & D Division PRIVATE AND CONFIDENTIAL Federal Communications commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: FCC ID Grant Date SMJX300 01/02/2006 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, we hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We are aware that the above exhibits we are now requesting to be held confidential have been viewable since the date the grant was issued. Sincerely, Date : March 23, 2009 Thomas Lee / Senior Hardware Engineer

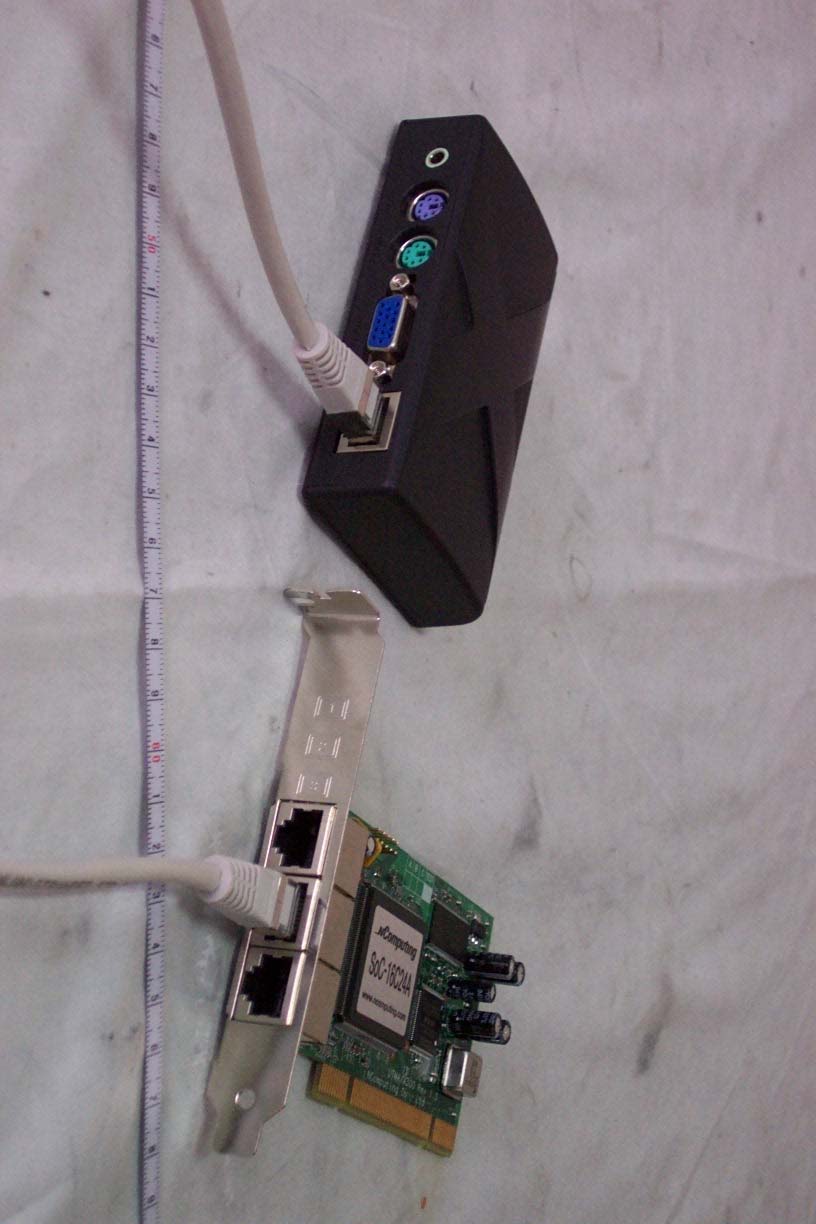

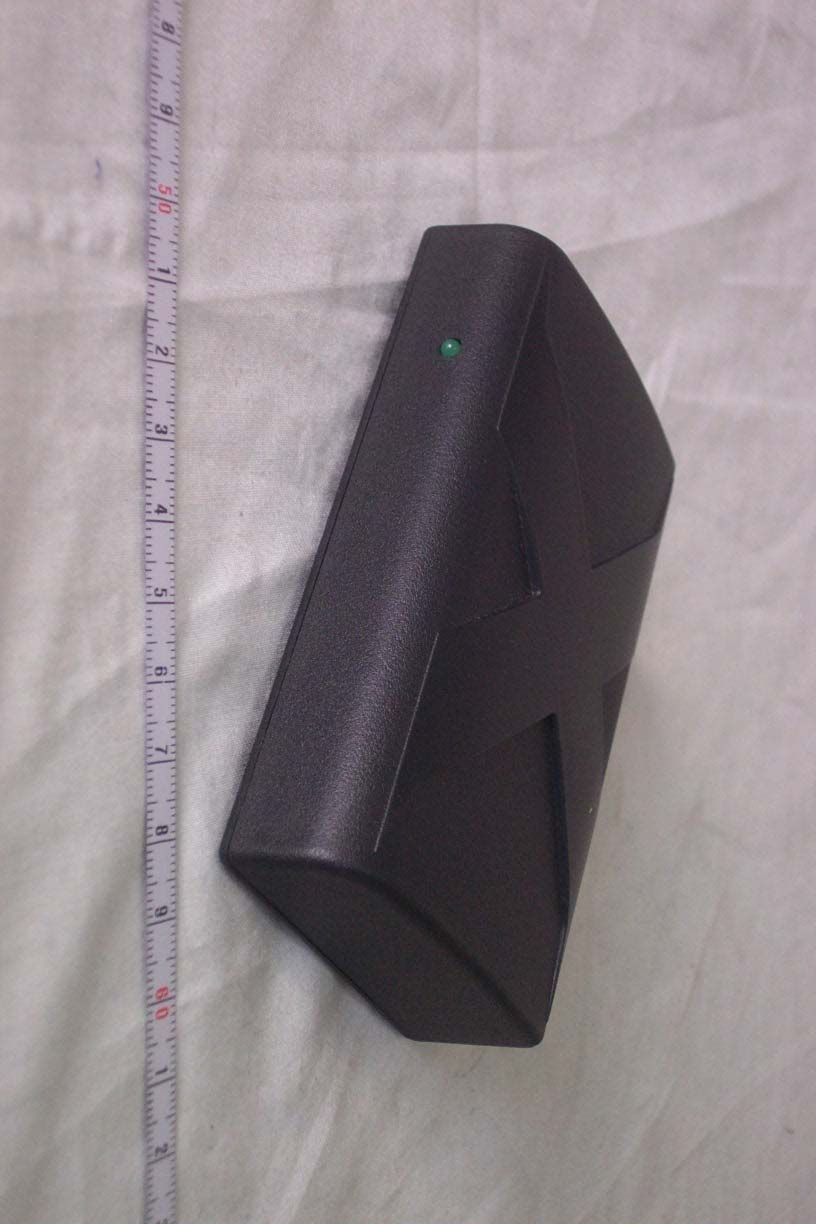

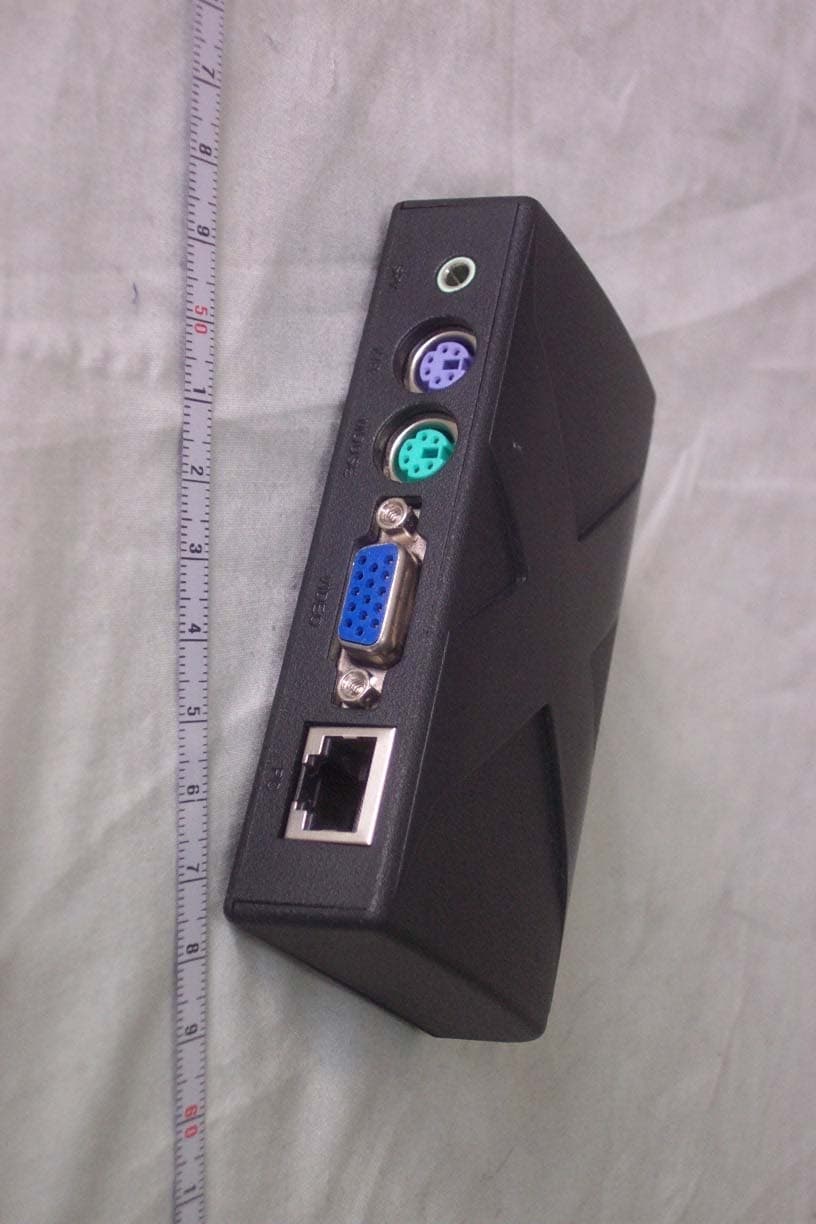

Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 21 of 37 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 22 of 37 z Rear View of EUT Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 23 of 37 z Front View of X300 Multi Box Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 24 of 37 z Rear View of X300 Multi Box

Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 17 of 37 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labelling Requirements Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 18 of 37 The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labelling Requirements

Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 31 of 37 APPENDIX D – PHOTOGRAPHS OF EUT MODIFICATION z Front View of X300 Multi Box Modification 5 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 32 of 37 z Rear View of X300 Multi Box Modification 6 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 33 of 37 z Front View of X300 PCI Card Modification 1 Modification 4 Modification 2 Modification 2 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 34 of 37 z Rear View of X300 PCI Card Modification 3

Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 25 of 37 z Inside View of X300 Multi Box Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 26 of 37 z Front View of X300 Multi Box Board Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 27 of 37 z Rear View of X300 Multi Box Board Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 28 of 37 z Label View of X300 Multi Box Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 29 of 37 z Front View of X300 PCI Card Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 30 of 37 z Rear View of X300 PCI Card

Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 1 of 37 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : NComputing Co., Ltd. Dates of Issue : December 21, 2005 2nd Fl, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Test Report No. : NK2FE807 Anyang-City, Gyeonggi-Do, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. J. C. Lee EMC site, Korea FCC ID Brand Name Contact Person Applied Standard: Part 15 & 2 Classification : FCC Class B Device EUT Type: Multi-user Networking Card The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : J. H. Ko Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SMJX300 Xtenda X300, Xtenda NComputing Co., Ltd. 2nd Fl, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea Mr. J. C. Lee Telephone No. : +82 31 422 5157 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 2 of 37 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS & EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMANDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - PHOTOGRAPHS OF EUT MODIFICATION APPENDIX E - SCHEMATIC DIAGRAM APPENDIX F - USER’S MANUAL APPENDIX G - BLOCK DIAGRAM 3 4 5 7 7 7 8 9 10 11 13 15 16 17 19 21 31 35 36 37 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 3 of 37 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Factory : NComputing Co., Ltd. Mr. J. C. Lee Tel No.: +82 31 422 5157 NComputing Co., Ltd. 2nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea 1) NComputing Co., Ltd. 2nd FI, Daeyoung Bldg, 1423-6, Gwanyang1-Dong, Dongan-Gu, Anyang-City, Gyeonggi-Do, Korea 2) AIONTECH DG Co., Ltd. Block A, Shu-An Ind., Shu-Tan Villate, He-man town, DongGuan, Guang Dong, CHINA z FCC ID: SMJX300 z Model: X300 z Brand Name: Xtenda X300, Xtenda z EUT Type: Multi-user Networking Card z Electric Rating: DC +5V z Test Voltage: AC120V, 60Hz z Port/Connector: X300 PCI Card : PC(RJ-45) Port x 3EA X300 Multi Box : Speaker/Headphone Jack, PS/2 Keyboard, PS/2 Mouse, VGA Port, PC(RJ-45) Port z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (2003) November 09, 2005 to December 19,2005 Nemko Korea Co., Ltd. EMC Site NK2FE807 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 4 of 37 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from NComputing Co., Ltd. FCC ID : SMJX300, Multi-user Networking Card. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4-2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 5 of 37 TEST CONDITIONS & EUT INFORMATION Operating During Test After the EUT(X300 PCI Card) installed at PC, it was connected to EUT (X300 Multi Box) via RJ-45 cable then the test was performed during accessing the resource of PC system continuously. Support Equipment Multi-user Networking Card (EUT) X300 Multi Box : NComputing, FCC ID: SMJX300 Model : X300 3.0m shielded Ethernet cable X300 PCI Card : AIONTECH DG Co., Ltd. FCC ID : SMJX300 Model : X300 3.0m shielded Ethernet cable S/N: N/A S/N: N/A PC (Host) Dell Asia Pacific Sdn. Model : Dimension 4550 1.8 unshielded AC power cable DOC S/N : 847481S CRT Monitor Dell Computer Corporation. Model: P1130 1.5m shielded D-sub cable 1.8m unshielded AC power cable DOC S/N: 5403497 Keyboard HP, Model: SK-250…

Text truncated - open the document above for the full version.

Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 19 of 37 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK2FE807 FCC Certification NComputing Co., Ltd. FCC ID:SMJX300 Page 20 of 37 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
