SOM-203535Bluetooth Headset

VXiReveal™/Xplorer™QuickͲStartGuide  1  IMPORTANT:CHARGEHEADSETFULLYPRIORTOFIRSTUSE PackageContents 1. Headset 2. 2EarHooks(1small,1large) 3. 4ContouredEarBuds(multiplesizes) 4. USBChargingCable 5. AutoAdapter 6. QuickͲStartGuide 7. WarrantyandComplianceInsert  FeaturesandFunctions A. VolumeUp/Mute B. VolumeDown C. ExtendableMicrophoneBoom D. On/OffSwitch E. IndicatorLights F. MultifunctionButton(MFB) G. NFCZone(picturedbelow)  IMPORTANTSAFETYNOTE:Prolongedexposuretohighvolumelevelscandamageyourhearing.Toavoidinjury,setthevolumeto thelowestcomfortablelevel.Ifyouexperienceringinginyourears,orvoicessoundmuffled,stopusingtheheadset.Avoidturningup the volumetoblocknoisysurroundings.It’spossibleforyourearstoadapttovolumethatistoohigh,andthiscouldresultin permanenthearingdamagewithoutanynoticeablediscomfort. VXiReveal™/Xplorer™QuickͲStartGuide  2  WearingandAdjustingtheReveal TogetthebestperformancefromournoiseͲcancelingtechnology,anglethemicrophoneboomtowardsthecornerofyourmouth. Positioningisimportant;smalladjustmentsinmicrophoneplacementcanimproveperformance. Theheadsetcanbewornoneitherear,withorwithouttheearhook. Choosetheearbudthatbest fitsyourear.Toadjustthefit,rotatetheearbudsothatthestabilizerloop(ifapplicable)presses againstthebackcurveofyourear. UsingtheHeadsetinHighͲNoiseSituations Themicrophoneboomisextendableforgreaterlevelsofnoisecancelationinnoisyenvironments.Simplyslidetheboominoroutas needed. Charging Connectchargercordtotheheadset’sUSBchargingport.Theheadsetindicatorlightswillilluminateredwhenchargingandblue whenfullycharged. TurningHeadsetOn/Off Slidetheswitchtoturntheheadsetonoroff. OneͲTouchPairing(NFC) 1)ConfirmthatyourcellphoneisNFCͲcapable. 2)MakesurethatNFCisenabledonyourcellphone. 3)Turntheheadseton. 4) PlacetheNFCzoneofyourcellphoneagainsttheNFCzoneoftheheadsetandholdtogetherwhileyourcellphone registerstheheadset. 5) Followthepromptson yourcellphoneuntilitconfirmspairingissuccessful.  NFC Zone on headset (back of unit, just below earpiece receiver)   VXiReveal™/Xplorer™QuickͲStartGuide  3  Note:NFCandOneͲTouchPairingaredependentonyourcellphone.Thesizeandsensitivityofyourphone’sNFCzoneandhowto connecttheheadsetmayvarybetweendevices. ManualPairing PlacingHeadsetintoPairingMode Whenyouturntheheadsetonforthefirsttime,itwillgointopairingmodeautomatically. Ifyouwanttopairtheheadsetwithanotherdevice,youwillneedtomanuallyputitintopairingmode: 1) Turntheheadsetonandmakesureitdoesnotconnecttoanotherdevice.  2) PressandholdtheMFBfor5seconds,untilthelightsalternateflashingbetweenredandblue.Youwillhearthevoice prompt“Discovering”(inEnglish). 3) Headsetwillbevisibleforpairingtodevicesfor120seconds. PairingtoaCellPhone 1) MakesurethatotherBluetoothdevicesareturnedofforoutofrange. 2) Placeheadsetintopairingmode. 3) PutyourcellphoneinBluetoothSearch/ScanModeperthemanufacturer’sinstructions. 4) Select“VXiReveal”or“VXiExplorer”topair.(Passcodeis“0000”ifneeded.) 5) Whenconnected,the headsetwillgiveyouthe voiceprompt,“Yourheadsetisconnected”(inEnglish). MultiͲPointMode MultiͲpointmodeisthedefaultmodeforthisheadset.Itenablestheheadsettobesimultaneouslypairedandconnectedtotwo devices.InmultiͲpointmode,theheadsetwillmonitorbothdevicesandallowyoutoswitchbetweenthemwhenthereisan incomingcall. TouseMultiͲPoint: 1) Paireachdeviceyouwishtousewiththeheadset.Powerofftheheadset. 2) EnableBluetooth,orpoweronbothpaireddevices,thenpowerontheheadset. 3) Youshouldhearthevoiceprompt“Yourheadsetisconnected”(inEnglish)twice,astheheadsetconnectstoeachdevice.  VXiReveal™/Xplorer™QuickͲStartGuide  4  QuickͲReferenceTable FunctionButton/DurationofPressLEDIndicatorAudioIndicator VoiceIndicator (inEnglish) PowerOn/OffSlideSwitch(Green=On) On= Threequick blueflashes Off=Fourquick redflashes Shorttone “Poweron”or“Power off” ManualPairingModePressandHoldMFB(5seconds) Redandblue, alternatingflash NONE“Discovering” VolumeUpVolumeUp(quickpress)NONESingletoneNONE VolumeDownVolumeDown(quickpress)NONESingletoneNONE Mute(On/Off)VolumeUp(1Ͳ2seconds)NONE Singletone,remindertone every10seconds NONE AnsweraCall/Active Call MFB(quickpress) Blueflash,once persecond TworisingtonesNONE EndaCallMFB(quickpress) Blueflash,every4 seconds TwofallingtonesNONE TransferAudioVolumeDown(1Ͳ2seconds)NONENONENONE LowBatteryn/aRed,fastflash Long,hightone@ 20seconds “Batterylow”  MultipleDevicePairingandAdvancedFeatures Theheadsetcanpairwithuptoeight(8)devices.However,onlytwo(2)devicesmaybeconnectedtotheheadsetatanytime (MultiͲPoint).Formoreinformationonadvancedfeatures,pleaserefertothecompleteuserguide,availableonline. Forthecompleteuserguide,technicalnotesandavailableaccessories, gotovxicorp.com. 271LocustStreet|Dover,NH03820|TollͲfree:800Ͳ742Ͳ8588|Phone:603Ͳ742Ͳ2888|vxicorp.com ©2014VXiCorporation.Allrightsreserved. PN203401/APN203404X 06/14

Date: July 28, 2014 To : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The VXi Corporation, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co.,Ltd., to act on the behalf of the VXi Corporation solely in matters relating to the application for an FCC equipment authorization for FCC ID: SOM-203535 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co.,Ltd. on our behalf of the VXi Corporation in connection with the Application shall have the same effect as acts of the VXi Corporation. The VXi Corporation also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Dave Geno

Date: July 28, 2014 To : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: VXi Corporation FCC ID: SOM-203535 FCC Part 15 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. VXi Corporation requests that the following documents regarding this submission for FCC ID: SOM-203535 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematic.pdf Operational Description Operation Description.pdf Those documents contain detailed system and equipment description and related information about the product which VXi Corporation considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, VXi Corporation considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Dave Geno

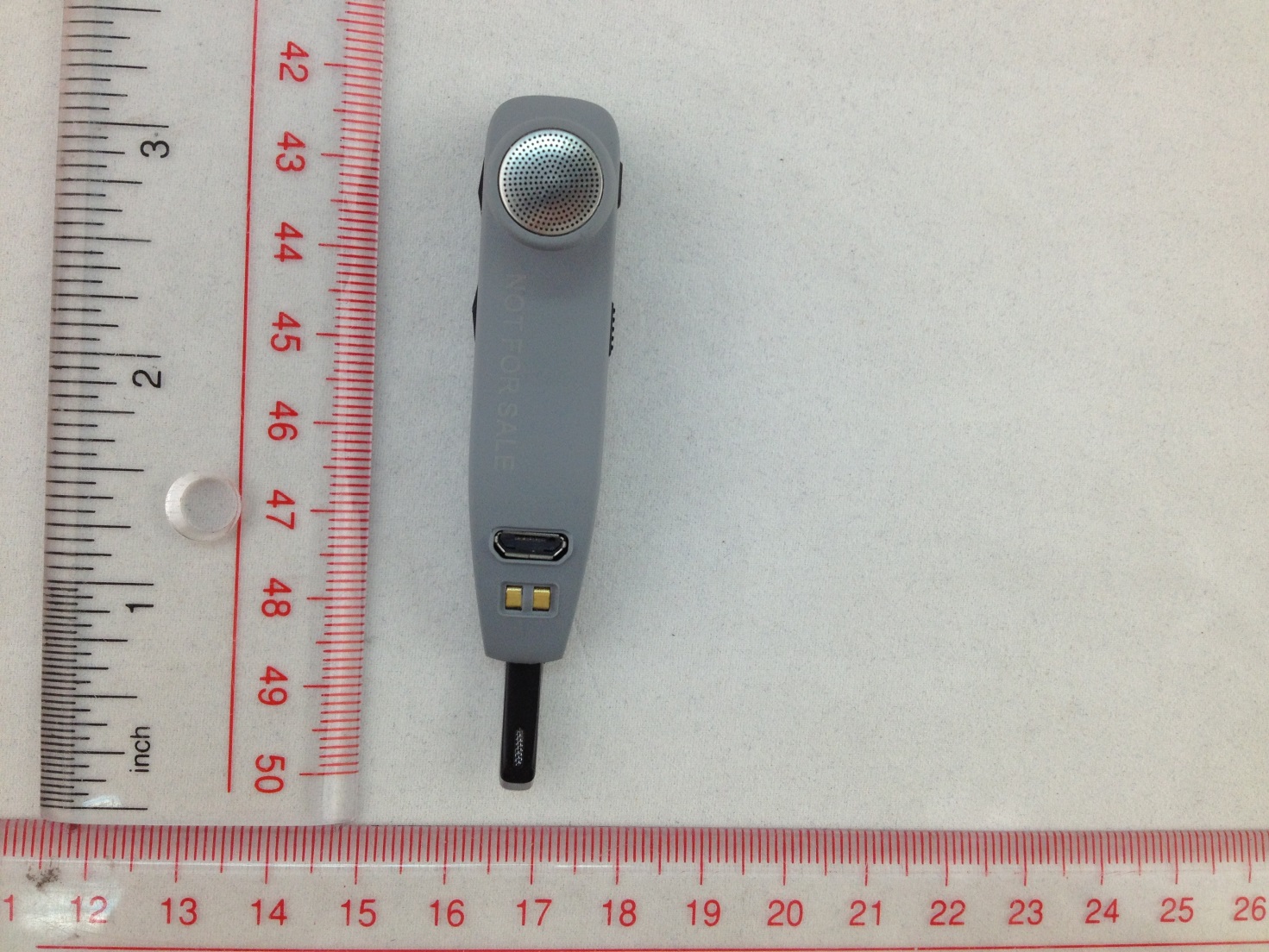

Appearance of the EUT 2 3

Drawing: Reveal (5th Ave) Screen Art Date: 07/28/14 Document Version: 1.3.0 Created By: David Jaques Location:Screen Artwork (to scale): Font:Outline: VXi Corporation Model: Blueparrott Reveal FCC ID: SOM-203535 IC: 4293A-203535 Made in China www.vxicorp.com 204XXXXXXXX N31153 Important Note: The listed TELEC & C-TICK certification marks are placeholders, pending delivery of the proper certification numbers. These artwork/numbers must be updated prior to production. Serial / Date Laser Etch Location Drawing: Xplorer (5th Ave) Screen Art Date: 07/28/14 Document Version: 1.3.0 Created By: David Jaques Location:Screen Artwork (to scale): Font:Outline: VXi Corporation Model: Blueparrott Xplorer FCC ID: SOM-203535 IC: 4293A-203535 Made in China www.vxicorp.com Important Note: The listed TELEC & C-TICK certification marks are placeholders, pending delivery of the proper certification numbers. These artwork/numbers must be updated prior to production. 204XXXXXXXX N31153 Serial / Date Laser Etch Location

2 3 4

RF Exposure Evaluation for FCC ID: SOM-203535 Refer user manual this device is a Bluetooth Speaker and this device was designed used in portable devices the minimum distance between human’s body is 5mm. Based on the 47CFR 2.1093, this device belongs to portable device. The definition of the category as following: Portable Derives: CFR Title 47 §2.1093(b) (b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. FCC KDB 447498 D01 General RF Exposure Guidance v05r02 Limit Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [ (max.power of channel,including tune −up tolerance,mW) (min.test separation distance,mm) ] · [ � f (GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC exclusion condition= [ (6.2 mW) (5 mm) ] · [ � 2. 48 (GHz) ] = 1.95 ＜ 3.0 RF Exposure Evaluation Result: PA S S

 5HSRUW1R%/6=   Revision History VersionIssue DateRevisions Rev. 012014.08.08Initial Issue TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) ........................................................................ 5 1.1 Identification of the Testing Laboratory............................................................................................ 5 1.2 Identification of the Responsible Testing Location ........................................................................... 5 1.3 Test Environment Condition ............................................................................................................ 5 1.4 Announce........................................................................................................................................ 6 2 PRODUCT INFORMATION................................................................................................................... 7 2.1 Applicant ......................................................................................................................................... 7 2.2 Manufacturer ................................................................................................................................... 7 2.3 General Description for Equipment under Test (EUT) ..................................................................... 7 2.4 Technical Information ...................................................................................................................... 7 2.5 Ancillary Equipment......................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ........................................................................................................... 9 3.1 Test Standards................................................................................................................................ 9 3.2 Verdict............................................................................................................................................. 9 4 GENERAL TEST CONFIGURATIONS ................................................................................................ 10 4.1 Test Environments ........................................................................................................................ 10 4.2 Test Equipment List....................................................................................................................... 10 4.3 Test Configurations ....................................................................................................................... 11 4.4 Description of Test Setup .............................................................................................................. 11 4.4.1 For Antenna Port Test ............................................................................................................ 11 4.4.2 For AC Power Supply Port Test.............................................................................................. 12 4.4.3 For Radiated Test (Below 30MHz).......................................................................................... 12 4.4.4 For Radiated Test (30MHz-1GHz) .......................................................................................... 13 4.4.5 For Radiated Test (Above 1GHz) ........................................................................................... 13 4.5Test Conditions ............................................................................................................................. 14  5HSRUW1R%/6=   5 TEST ITEMS ....................................................................................................................................... 15 5.1 Antenna Requirements.................................................................................................................. 15 5.1.1 Standard Applicable ............................................................................................................... 15 5.1.2 Antenna Anti-Replacement Construction ................................................................................ 15 5.1.3 Antenna Gain ......................................................................................................................... 15 5.2 Number of Hopping Frequency .....................................................................................................16 5.2.1 Limit........................................................................................................................................ 16 5.2.2 Test Procedure....................................................................................................................... 16 5.3 Peak Output Power ....................................................................................................................... 17 5.3.1 Test Limit................................................................................................................................ 17 5.3.2 Test Procedure....................................................................................................................... 17 5.4 Occupied Bandwidth ..................................................................................................................... 18 5.4.1 Limit........................................................................................................................................ 18 5.4.2 Test Procedure....................................................................................................................... 18 5.5 Carrier Frequency Separation ....................................................................................................... 19 5.5.1 Limit........................................................................................................................................ 19 5.5.2 Test P…

Text truncated - open the document above for the full version.

Report No.: BL-SZ1470107-601 139 ANNEX B TEST SETUP PHOTOS B.1 Conducted Test Photo B.2 Conducted Emissions Test Photo Report No.: BL-SZ1470107-601 140 B.3 Radiated Test Photo Below 30MHz 30MHz to 1GHz Report No.: BL-SZ1470107-601 141 Above 1GHz
