"I, an officer of Hawking Technologies, Inc. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Jason Owen Signature Printed Title Chief Manager Product Development FCC Declaration of Conformity The following equipment: * Type of Product : Wireless USB adapter * Model Number : WCU5102 Produced by: * Company Name : Hawking Technologies, Inc. * Company Address : 15281A Barranca Parkway, Irvine, CA 92618 We, Hawking Technologies, Inc., hereby declare that our product Wireless USB adapter, has been tested and complies with the requirements of FCC Part 15 Subpart B. (Class B) Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The result of electromagnetic emission has been evaluated by Intertek Testing Services and showed in the test report. (Report No.: ) The following importer in U.S.A. is responsible for this declaration: Company Name :Hawking Technologies Company Address 15281A Barranca Pkwy Tel 949 790 0800 Name (Full name) Jason Owen Position/Title Chief Manager –Product Development and Marketing 8/24/05 (Place) (Date) (Legal Signature) Attention: Application Examiner Re: Request for confidentiality Applicant: Hawking Technologies, Inc. FCC ID: SOY-HWU54DM To whom it may concern, Permanent Confidentiality Request is hereby submitted by Hawking Technologies, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Hawking Technologies, Inc. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, Jason Owen Chief Manager Product Development and Marketing Hawking Technologies

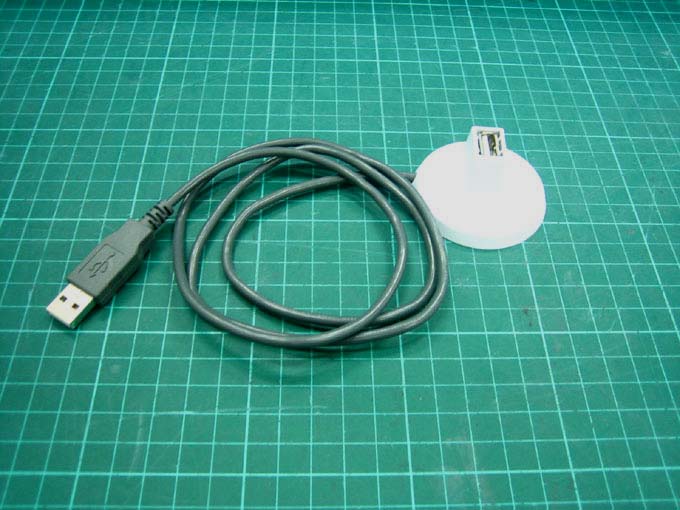

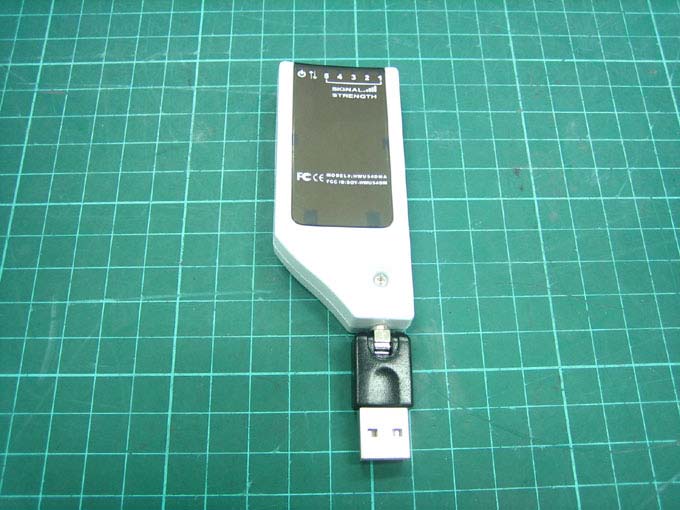

Photo 1: External photo of EUT Photo 2: External photo of EUT Photo 3: External photo of EUT Photo 4: External photo of EUT

Photo 1: Internal photo of EUT Photo 2: Internal photo of EUT Photo 3: Internal photo of EUT Photo 4: Internal photo of EUT Photo 5: Internal photo of EUT

FCC ID. : SOY-HWU54DM Report No.: EME-051045 Page 1 of 77 0597 ILAC MRA Specific Absorption Rate (SAR) Test Report for Hawking Technologies, Inc. on the Hi-Gain Mini Wireless-G USB Adapter Model Number: HWU54DM, HWU54DMA Test Report: EME-051045 Issue date: Nov. 3, 2005 Total No of Pages Contained in this Report: 77 Accredited for testing to FCC Part 15 Tested by: Kevin Chen Reviewed by: Jerry Liu Review Date: Nov. 3, 2005 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. FCC ID. : SOY-HWU54DM Report No.: EME-051045 Page 2 of 77 Table of Contents 1.0 General information .................................................................................................... 3 1.1 Client Information....................................................................................................... 3 1.2 Equipment under test (EUT) ....................................................................................... 4 1.3 Test plan reference ...................................................................................................... 4 1.4 Test configuration ....................................................................................................... 5 1.4.1 Support equipment & EUT antenna position ....................................................... 5 1.4.2 Test Condition ...................................................................................................... 6 1.5 Modifications required for compliance....................................................................... 6 2.0 SAR Evaluation........................................................................................................... 7 2.1 SAR Limits .................................................................................................................7 2.2 Configuration Photographs ......................................................................................... 8 2.3 SAR measurement system ........................................................................................ 15 2.4 SAR measurement system validation ....................................................................... 16 2.4.1 System Validation result ..................................................................................... 17 2.4.2 System Performance Check result...................................................................... 19 2.5 Test Result................................................................................................................. 21 3.0 Test Equipment ......................................................................................................... 23 3.1 Equipment List .......................................................................................................... 23 3.2 Tissue Simulating Liquid .......................................................................................... 24 3.2.1 Body Tissue Simulating Liquid for evaluation test ............................................ 24 3.2.2 Head Tissue Simulating Liquid for System performance Check test................. 24 3.2.3 Body Liquid results ............................................................................................ 25 3.2.4 Head Liquid results ............................................................................................ 26 3.3 E-Field Probe and 2450 Balanced Dipole Antenna Calibration ............................... 27 4.0 Measurement Uncertainty ......................................................................................... 28 5.0 WARNING LABEL INFORMATION - USA ......................................................... 30 6.0 REFERENCES.......................................................................................................... 31 7.0 Document Revision Record ...................................................................................... 32 APPENDIX A - SAR Evaluation Data ........................................................................... 33 APPENDIX B - Photographs .......................................................................................... 53 APPENDIX C - E-Field Probe and 2450MHz Balanced Dipole Antenna Calibration Data 55 FCC ID. : SOY-HWU54DM Report No.: EME-051045 Page 3 of 77 1.0 General information The device was tested at the Intertek Testing Services facility in Hsinchu, Taiwan. The maximum output power declared by the Hawking Technologies, Inc.. EUT model # HWU54DM, HWU54DMA was evaluated accordance with the requirements for compliance testing defined in FCC OET Bulletin 65, Supplement C (Edition 01-01) and meet the SAR requirement, the phantom employed was the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±20.6%, the dosimetry assessment system INDEXSAR SARA2 was used. In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Position (worst case) SAR 1g , W/kg 2mm thick box phantom wall 802.11b middle channel EUT stand perpendicular 0mm to phantom 0.562 W/kg In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65, Supplement C (Edition 01-01) for body configurations. 1.1 Client Information The HWU54DM, HWU54DMA has been tested at the request of: Applicant: Hawking Technologies, Inc. 15281 A Barranca Parkway, Irvine, CA 92618 FCC ID. : SOY-HWU54DM Report No.: EME-051045 Page 4 of 77 1.2 Equipment under test (EUT) Product Descriptions: Intertek verified …

Text truncated - open the document above for the full version.

FCC ID. : SOY-HWU54DM Report No.: EME-051044 Page 1 of 43 EMC TEST REPORT Report No. : EME-051044 Model No. : HWU54DM, HWU54DMA Issued Date : Oct. 28, 2005 Applicant : Hawking Technologies, Inc. 15281 A Barranca Parkway, Irvine, CA 92618 Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 43 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Project Engineer Reviewed By Jerry Liu Kevin Chen FCC ID. : SOY-HWU54DM Report No.: EME-051044 Page 2 of 43 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT........................................................................................4 1.2 Additional information about the EUT...................................................................4 1.3 Antenna description ................................................................................................5 1.4 Peripherals equipment ............................................................................................5 2. Test specifications .........................................................................................................6 2.1 Test standard ...........................................................................................................6 2.2 Operation mode ......................................................................................................6 2.3 Test equipment........................................................................................................7 3. Minimum 6dB Bandwidth test ......................................................................................8 3.1 Operating environment ...........................................................................................8 3.2 Test setup & procedure ...........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results .......................................8 4. Maximum Output Power test ......................................................................................15 4.1 Operating environment .........................................................................................15 4.2 Test setup & procedure .........................................................................................15 4.3 Measured data of Maximum Output Power test results .......................................15 5. Radiated Emission test ................................................................................................16 5.1 Operating environment .........................................................................................16 5.2 Test setup & procedure .........................................................................................16 5.3 Emission limits .....................................................................................................18 5.4 Radiated spurious emission test data ....................................................................19 5.4.1 Measurement results: frequencies equal to or less than 1 GHz .........................19 5.4.2 Measurement results: frequency above 1GHz...................................................21 6. Power Spectrum Density test ......................................................................................27 6.1 Operating environment .........................................................................................27 6.2 Test setup & procedure .........................................................................................27 6.3 Measured data of Power Spectrum Density test results .......................................27 7. Emission on the band edge..........................................................................................34 7.1 Operating environment .........................................................................................34 7.2 Test setup & procedure .........................................................................................34 7.3 Test Result ............................................................................................................39 8. Power Line Conducted Emission test §FCC 15.207 ...................................................40 8.1 Operating environment .........................................................................................40 8.2 Test setup & procedure .........................................................................................40 8.3 Emission limit.......................................................................................................41 8.4 Uncertainty of Conducted Emission.....................................................................41 8.5 Power Line Conducted Emission test data ...........................................................42 FCC ID. : SOY-HWU54DM Report No.: EME-051044 Page 3 of 43 Summary of Tests Hi-Gain Mini Wireless-G USB Adapter -Model: HWU54DM FCC ID: SOY-HWU54DM Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(e) Complies Emission on the Band Edge test 15.247(d) Complies AC Power Line Conducted Emission test 15.207 Complies FCC ID. : SOY-HWU54DM Report No.: EME-051044 Page 4 of 43 1. General information 1.1 Identification of the EUT Applicant : Hawking Technologies, Inc. Product : Hi-Gain Mini Wi…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up Photo 2: Conducted Emission Test Set-up

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up
