SOY-HWUN1Wireless -N USB 2.0 Adapter

1 2 LIMITED WARRANTY Hawking Technology guarantees that every HWUN1 Wireless-N USB Adapter with Upgradable Antennas is free from physical defects in material and workmanship under normal use for one(1) year from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, IT IS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to: [email protected] Trademarks & Copyright All brands and product names are trademarks of their respective companies. No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976. Warning Statement: Federal Communication Commission Interference Statement Federal Communications Commission (FCC) Requirements, Part 15 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: FCC RF Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Regulatory information/Disclaimers: Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. 3 TABLE OF CONTENTS 1. INTRODUCTION...............................................................................................................................4 2. FEATURES..........................................................................................................................................4 3. PACKAGE CONTENTS ....................................................................................................................5 4. SYSTEM REQUIREMENTS.............................................................................................................6 5. DRIVER INSTALLATION FOR WINDOWS VISTA.....................................................................6 5.1. USING WINDOWS CONFIGURATION (VISTA) ..............................................................8 6. INSTALLATION (WINDOWS 2000/XP) ....................................................................................... 12 6.1. VERIFY INSTALLATION (WINDOW 2000/XP).............................................................. 15 6.2. NETWORK CONFIGURATION (WIN 2000/XP)............................................................. 16 7. SETUP WLAN (WIN 2000/XP) ....................................................................................................... 17 – USING HAWKING CONFIGURATION-UTILITY............................................................................. 17 7.1. NETWORK SECURITY (WEP, WPA...) ........................................................................... 19 7.1.1. WEP SETUP................................................................................................................19 7.1.2. WPA SETUP................................................................................................................20 7.2. ADDING PROFILES............................................................................................................ 23 7.3. WPS CONFIGURATION ..................................................................................................... 25 8. QOS .................................................................................................................................................... 26 9. ADVANCED SETTINGS.................................................................................................................. 27 10. STATISTICS...................................................................................................................................... 28 11. LINK STATUS................................................................................................................................... 29 12. ABOUT..............................................................................................................................…

Text truncated - open the document above for the full version.

(949)790 -0800 x:2006 (949)294-0880 [email protected]

(949)790 -0800 x:2004 (949)294-0880 [email protected]

(949)790 -0800 x:2004 (949)294-0880 [email protected]

FCC ID .: SOY-HWUN1 Label Location

Page 3 Page 4

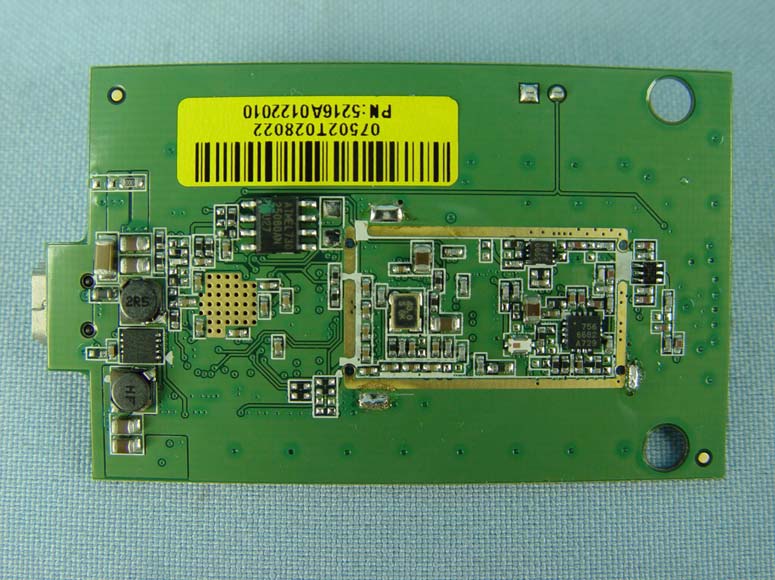

FCC ID: SOY-HWUN1 Report No.: RF970216L02 OPERATIONAL DESCRIPTION This device is a Wireless -N USB 2.0 Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: SOY-HWUN1 Report No: SA970216L02 1 RF EXPOSURE REPORT REPORT NO.: SA970216L02 MODEL NO.: HWUN1, HWUN1 / A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Hawking Technologies, Inc. ADDRESS: 15281A Barranca Pkwy, Irvine, CA 92618, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: SOY-HWUN1 Report No: SA970216L02 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: SOY-HWUN1 Report No: SA970216L02 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of the product, under normal use condition, is at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: SOY-HWUN1 Report No: SA970216L02 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58489 (numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 16.03 12.05 0.005 1.000 6 2437 16.11 12.07 0.005 1.000 11 2462 15.92 12.02 0.005 1.000 802.11g OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 14.02 14.08 50.82 17.06 0.016 1.000 6 2437 15.03 15.12 64.35 18.09 0.020 1.000 11 2462 15.08 15.04 64.13 18.07 0.020 1.000 FCC ID: SOY-HWUN1 Report No: SA970216L02 5 DRAFT 802.11n (20MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 14.04 14.07 50.88 17.07 0.016 1.000 6 2437 15.02 15.05 63.76 18.05 0.020 1.000 11 2462 15.13 15.09 64.87 18.12 0.020 1.000 DRAFT 802.11n (40MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 13.53 13.51 44.98 16.53 0.014 1.000 4 2437 15.58 15.51 71.70 18.56 0.023 1.000 7 2452 13.58 13.52 45.29 16.56 0.014 1.000

Report No.: RF970216L02 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF970216L02 MODEL NO.: HWUN1 (refer to item 3.1 for more details) RECEIVED: Feb. 20, 2008 TESTED: Feb. 21 ~ Feb. 29, 2008 ISSUED: Mar. 05, 2008 APPLICANT: Hawking Technologies, Inc. ADDRESS: 15281A Barranca Pkwy, Irvine, CA 92618, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 90 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970216L02 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION ......................................................................................................... 4 2. SUMMARY OF TEST RESULTS................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 5 3. GENERAL INFORMATION ......................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT............................................................................ 6 3.2 DESCRIPTION OF TEST MODES.............................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS...................................................................... 10 4. TEST TYPES AND RESULTS ................................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT .............................................. 11 4.1.2 TEST INSTRUMENTS .............................................................................................. 12 4.1.3 TEST PROCEDURES ............................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................... 13 4.1.5 TEST SETUP ............................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS.............................................................................. 14 4.1.7 TEST RESULTS ........................................................................................................ 15 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................... 28 4.2.2 TEST INSTRUMENTS .............................................................................................. 28 4.2.3 TEST PROCEDURES ............................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................... 29 4.2.5 TEST SETUP ............................................................................................................ 30 4.2.6 EUT OPERATING CONDITIONS.............................................................................. 30 4.2.7 TEST RESULTS ........................................................................................................ 31 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................ 33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................... 33 4.3.2 TEST INSTRUMENTS .............................................................................................. 33 4.3.3 TEST PROCEDURE ................................................................................................. 33 4.3.4 DEVIATION FROM TEST STANDARD ..................................................................... 33 4.3.5 TEST SETUP ............................................................................................................ 34 4.3.6 EUT OPERATING CONDITIONS.............................................................................. 34 4.3.7 TEST RESULTS ........................................................................................................ 35 4.4 MAXIMUM PEAK OUTPUT POWER ........................................................................ 49 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................... 49 4.4.2 INSTRUMENTS ........................................................................................................ 49 4.4.3 TEST PROCEDURES ............................................................................................... 49 4.4.4 DEVIATION FROM TEST STANDARD ..................................................................... 49 4.4.5 TEST SETUP ............................................................................................................ 50 4.4.6 EUT OPERATING CONDITIONS.............................................................................. 50 Report No.: RF970216L02 3 Report Format Version 2.0.6 4.4.7 TEST RESULTS ........................................................................................................ 51 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................... 53 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUR…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
