SOYHSB1802.11b/g Adjustable WiFi Signal Booster

802.11b/g Adjustable WiFi Signal Booster HWBA54G Wireless Access Point & HSB1 Signal Booster User Manual Table of Contents Chapter 1. Introduction........................................................................5 1.1 Package Contents........................................................................................6 1.2 Feature.........................................................................................................6 1.2.1 Access Point........................................................................................6 1.2.2 Signal Booster.....................................................................................6 1.3 Specifications..............................................................................................7 1.3.1 Access Point........................................................................................7 1.3.2 802.11b/g Adjustable WiFi Signal Booster........................................7 1.4 Physical Description...................................................................................7 Chapter 2. Install Access Point with Signal Booster.........................9 Chapter 3. Wireless LAN Access Point Connection.......................10 Chapter 4. Wireless LAN Access Point Configuration...................11 4.1 Getting Started...........................................................................................11 4.2 Configuring the Access Point....................................................................15 4.2.1 Client Mode configuration................................................................16 4.2.2 AP Mode configuration.....................................................................19 4.2.3 Repeater Mode Configuration...........................................................21 4.2.4 P2P Mode configuration...................................................................23 4.2.5 PMP Mode Configuration.................................................................25 4.2.6 WEP Setting......................................................................................27 4.2.7 WPA Setting.....................................................................................28 4.2.8 Advanced Setting..............................................................................30 4.2.9 Access Filter......................................................................................31 4.2.10 Status Setup.......................................................................................33 4.2.11 Admin Setup.....................................................................................34 4.2.12 LAN Setup........................................................................................36 Chapter 5. Troubleshooting...............................................................37 Appendix Signal Booster Quick Installation Guide........................39 LIMITED WARRANTY LIMITED WARRANTY Hawking Technology Co., Ltd guarantees that the Hawking HWBA54G (Wireless Access Point),HSB1(Signal Booster), and the RF Cable(HPP Cable) Three units will be sold as a kit to the market in the future Hawking Technology guarantees that every HSB1 WiFi 802.11b/g Adjustable WiFi Signal Booster and HWBA54G are free from physical defects in material and workmanship under normal use for two (2) years from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVEN SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to:[email protected] Trademarks & Copyright All brands and product names are trademarks of their respective companies. No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976. Warning Statement: Federal Communication Commission Interference Statement Federal Communications Commission (FCC) Requirements, Part 15 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: FCC RF Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a m…

Text truncated - open the document above for the full version.

LIMITED WARRANTY Hawking Technology guarantees that every HSB1 WiFi 802.11b/g Adjustable WiFi Signal Booster and HWBA54G is free from physical defects in material and workmanship under normal use for two (2) years from the date of purchase. The kit contains three units, Hawking HWBA54G (Wireless Access Point), RF cable and HSB1 (Signal Booster). RF Cable and HSB1 are designed to operate only with Hawking HWBA54G as a single system, more systems may be certified at a later time. Please visit Hawking Technologies website or contact by phone for any future certifications of different systems using the HSB1. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVEN SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to:[email protected] Trademarks & Copyright All brands and product names are trademarks of their respective companies. No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976. Warning Statement: Federal Communication Commission Interference Statement Federal Communications Commission (FCC) Requirements, Part 15 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: FCC RF Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Regulatory information/Disclaimers: Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. Network/Operating Range: IEEE 802.11b WLAN Standard IEEE 802.11g WLAN Standard 2400 - 2500 MHz Transmit Gain: up to 27dB Frequency Response: +/- 1 dB Output Power: 100/200/500mW Input Gain: Receiver Gain: 10-13 dBm, 12 dBm Typical Noise Figure: 3.5 dB typical Connectors: Input: SMA Jack Antenna: Reverse SMA Jack Power: External Power Adapter DC Surge Protection: Available Cable Type, Length: ½ Meter Ethernet A networking standard using cables (Category 5) to create a network. Network Adapter - Also known as a NIC (Network Interface Card). Used to provide PC’s or laptops with an Ethernet port or wireless access to the network. Broadband Modem - A device that allows broadband connection to the internet. Broadband connections include speeds faster than 56k (dial up modem speed). The two most common types of Broadband connections are DSL and Cable. Cable modem relies on the bandwidth of cable television lines while DSL modems rely on the telephone lines operating at DSL speeds. Router - A device used to share internet access from one user to multiple users. By taking one IP address (Addresses used by ISP’s to assign broadband services to your computer) the Router distributes the services of your broadband access among multiple users and IP’s. Wireless Wireless Device – Any WiFi device (802.11b/g) that communicates wirelessly using the IEEE802.11 wireless standard. These devices can range from wireless access points to wireless routers to wireless PCI client cards. IEEE 802.11 – Wireless Network Specifications • 802.11 -- applies to wireless LANs (Networks) and provides 1 or 2 Mbps transmission in the 2.4 GHz band using either frequency hopping spread spectrum (FHSS) or direct sequence spread spectrum (DSSS). • 802.11b (also referred to as 802.11 High Rate or Wi-Fi) -- an extension to 802.11 that applies to wireless LANs and provides 11 Mbps transmission (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4 GHz band. 802.11b uses only DSSS. 802.11b was a 1999 ratification to the original 802.11 standard, allowing wireless functionality comparable to Ethernet. • 802.11g -- applies to wireless LANs and provides 54 Mbps in the 2.4 GHz band. Backwards compatible with IEEE 802.11b products. Hi-Gain WiFi Device High powered antenna or device used to increase the distance of your WiFi network. dBi (decibel) - A unit of measurement used to…

Text truncated - open the document above for the full version.

CE MARK WARNING This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. LIMITED WARRANTY Hawking Technology guarantees that every HWBA54G Wireless-G AP / Bridge is free from physical defects in material and workmanship under normal use for two (2) years from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase. IN NO EVEN SHALL HAWKING TECHNOLOGY’S LIABILTY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. Hawking Technology makes no warranty or representation, expressed, implied or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to:[email protected] TRADEMARKS AND COPYRIGHT Windows 95/98/ME and Windows NT/2000/XP are registered trademarks of Microsoft Corp. All other brands and product names are trademarks of their respective companies. No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976. FCC WARNING This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his/her own expense. Table of Contents Chapter 1 Introduction...................................................................................1 1.1 Package Contents...................................................................................2 1.2 Features.................................................................................................2 1.3 Specifications.........................................................................................2 1.4 Physical Description...............................................................................3 Chapter 2 Wireless LAN Access Point Connection...................................5 Chapter 3 Wireless LAN Access Point Configuration..............................6 3.1 Getting Started.......................................................................................6 3.2 Configuring the Access Point.................................................................11 3.2.1 Client Mode configuration.................................................................................12 3.2.2 AP Mode configuration......................................................................................15 3.2.3 P2P Mode configuration....................................................................................20 3.2.4 PMP Mode configuration.................................................................................21 3.2.5 WEP Setting..................................................................................................23 3.2.6 WPA Setting.................................................................................................25 3.2.7 Advanced Setting..........................................................................................26 3.2.8 Access Filter.................................................................................................27 3.2.9 Status Setup..................................................................................................29 3.2.10 Admin Setup.................................................................................................30 3.2.11 LAN Setup....................................................................................................32 Charpter 4 Troubleshooting........................................................................33 Chapter 1 Introduction Thank you for purchasing the Hawking Technologies Hi-Speed 54M Wireless-G Access Point and Ethernet Bridge. The HWBA54G is compliant with the IEEE 802.11g/b wireless standards. The Hi-Speed 54G Wireless AP/Bridge utilizes the highest wireless security standards (WPA) to protect your network from outside intruders, including WPA-PSK, WEP, ESSID and MAC address filter functions. With ESSID authentication, WPA-PSK, 64-/128-bit WEP encryption and MAC address filtering, unauthorized outside access into your wireless network is prevented. The unique multi-function feature of the HWBA54G puts three solutions into one compact unit, saving you time and money. You may setup your HWBA54G as a Wireless Access Point to provide wireless access to any wired network or you may choose to set up your device as an Ethernet Bridge to make any Ethernet-ready device wireless. The Hi-Speed 54G Wirel…

Text truncated - open the document above for the full version.

October 13, 2004 POWER OF ATTORNEY We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC & IC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, Tracy

1 Helen Zhao Subject:FW: ??: FW: EDIMAX Technology Co., Ltd., FCC ID: NDD9521000409, Assessment NO.: AN04T4269, Notice#2-- HSB1 UserMan revised 1123.pdf HSB1 LabelSmp & Loc revised 11... HSB1 TestRpt 1123.pdf HSB1 additional test report re... -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of [email protected] Sent: Tuesday, November 23, 2004 1:10 AM To: Mike Kuo Cc: [email protected]; Helen Zhao; [email protected] Subject: ??: FW: EDIMAX Technology Co., Ltd., FCC ID: NDD9521000409, Assessment NO.: AN04T4269, Notice#3 Hi Mike, Edimax asks to change the applicant to Hawking Technologies, Inc. with FCC ID:SOYHSB1, details are as below: Applicant Name: Hawking Technologies, Inc Address:15281A Barranca Parkway,Irvine,CA92628 U.S.A Manufacture Name:Edimax Technology Co.,LTD Address:No.3,Wu Chuan 3rd Road,Wu-Ku Industrial Park,Taipei Hsien,Taiwan So attached please also find the updated label format/location and test report. As for the confidentiality request letter will be emailed by Mandy later. Best Regards, Ting (See attached file: HSB1 UserMan revised 1123.pdf)(See attached file: HSB1 LabelSmp & Loc revised 1123.pdf)(See attached file: HSB1 TestRpt 1123.pdf) (See attached file: HSB1 additional test report revised 1123.pdf) "Mike Kuo" <[email protected]> ???: <[email protected]> 2004/11/21 05:38 PM ??: RE: ??: FW: EDIMAX Technology Co., Ltd., FCC ID: NDD9521000409, Assessment NO.: AN04T4269, Notice#3 Hi Lucy and Ting : Question #1: In the additional test report attachment, what is the mode of operation from Page 2 - 4. The description for page 2 -4 is " the output power input from Access Point to the booster " 2 Where is the RF conducted power measured ? At the access point antenna port or at the booster antenna port ? Ans: Test data in page 2-4 of the additional test report is access point's RF output power measured from the anntenna connector of access point's output side. If it is measured from the antenna connector of Access Point, then the measured output power does not agree with output power listed on FCC ID:NDD9572030410. Please explain the differences. Ans.: The access point we measured here is the different set from Sporton measured. So due to the differnt set and differnt measurement equipment, such differnece may be possible happened. Question #2: This booster has three levels setting, 100mW , 200mW and 500mW. In the user manual mentioned that the booster can have max. of 23 dBm output. In page 45 product specification, Output Power: 100/200/500mW Transmit Power:3 dBm min; 23dBm max What is relation between selectable output power Vs Transmit Power ? Based upon the measurement report, the highest peak output power measured is 22.96 dBm with 500mW setting . 22.96 dBm is about 198 mW. Please explain . Ans.: After confirm with Edimax, the output power is the output of booster, and Transmit power is the input power from access point. So the tranmit power indicated in page 45 was typo which has been revised as the one indicated in page 6 of user manual. Please refer to attached revised user manual for details. Regarding the result of output power when setting in 500mW, after checking with Edimax that their output power may has +-2dBm's deviation and 500mW they indicated in the user manual is the max eirp output power which is equal to peak output power(22.96dBm)+2dBm(deviation)+antenna gain(2dBi)=27dBm. Regarding the test of peak output power The 23 dBm max. is rated as average or peak ? Ans. Peak was measured. Question #3 : Page 3 of user manual, it still suggest the Access point is sold separately. Please make necessary correction. Ans. Edimax finally agreed to add the statement that the three units of access point, RF cable and booster will be sold together when placing in the market. So attached please find the final version of user manual. Question # 4 : Page 6 " One HACST Reverse TNC Connector Adapter (For multiple vendor support ) . Please explain the purpose for this adapter . Ans. No HACST Reverse TNC Connector Asapter would be provided or connected, user manual has been revised as attached. Question # 5 : Page 40, the RF cable is described as SMA to SMA cable which does not agree with your reply to Question #2. Ans. The RF cable is reverse SMA to reverse SAM cable and user manual has been revised as attached. Question #6 : In the user manual, user can select more than 11 channel 3 which are outside of authorized frequency range . Please explain how the restricted the user to only capable of operating within authorized frequency range. Ans. The EUT would be set at the available frequency channel where it's imported by software and please refer to the page 18/21/23/24/26 of revised user manual for details. Question #7 : Your reply to Question 8 does not address the question. What is cable loss of RF cable that supplied with booster ? Ans. The cable loss of RF cable is 2dB. Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of [email protected] Sent: Thursday, November 18, 2004 6:03 AM To: Mike Kuo Cc: CCS- Application (E-mail); Helen Zhao Subject: ??: FW: EDIMAX Technology Co., Ltd., FCC ID: NDD9521000409, Assessment NO.: AN04T4269, Notice#2 Hi Mike, Please refer to the below for details. Best Regards, Ting "Mike Kuo" <[email protected]> ???: "CCS- Application \(E-mail\)" <[email protected]> 2004/11/05 09:37 ????: "Helen Zhao" <[email protected]> AM ??: FW: EDIMAX Technology Co., Ltd., FCC ID: NDD9521000409, Assessment NO.: AN04T4269, Notice#2 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, November 04, 2004 5:14 PM To: Mike Kuo Cc: Helen Zhao Subject: EDIMAX Technology Co., Ltd., FCC ID: NDD9521000409, Assessment NO.: AN04T4269, Notice#2 4 As indicated in section 15.204(b) of FCC rules, A transmission system consisting of an intentional radiator, an external RF power am…

Text truncated - open the document above for the full version.

Reply from Hawking : 1) Address Question #6: Certified and tested cable length is 80 cm as we show on the manual. The cable length will be provided with HSB1 during marketing. 2) Address Question #2:The operational configuration of the HSB1: HWBA54G Wireless Access Point, HPP Cable, HSB1 and 2dBi Dipole Antenna, used as a single kit Compliance with 15.204 d1 - NDD9572030410 is the ID of the Access Point approved for use as a kit with the HSB1. - The language in the user manual and all marketing material have been revised to comply with the FCC regulations and requests as of 11/30/2004. - The advice that only the cable provided with the device can be used is noted and the appropriate additions to the manual will be made. 3) Address Question #2:The language in the marketing material for the HSB1 as well as the user manual and package contents have been adjusted to comply with the regulations set by the FCC. The operational description stating that “adapters are available for multibrand operation” has been removed as of 11/30/2004.

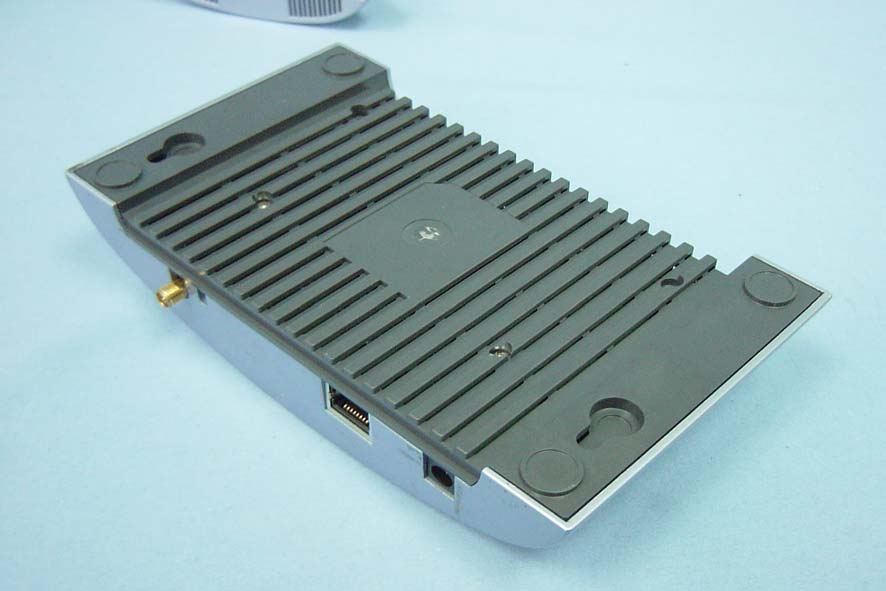

Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 1 of 9 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 2 Signal Booster: HSB1 Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 3 Wireless Access Point: HWBA54G Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 4

802.11b/g Adjustable WiFi Signal Booster Hawking Technologies HSB1 (Please see manual for FCC compliance) Made In Taiwan FCC ID:NDD9521000409

Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 5 INTERNAL PHOTOGARPHS OF EUT Signal Booster: HSB1 Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 6 Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 7 Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 8 Wireless Access Point: HWBA54G Compliance Certification Services Inc. Report No.: 41012001 Date of Issue: October 19, 2004 Page 9

1.1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT 802.11 b/g Adjustable WiFi Signal Booster Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 22.61 dBm (182.39mW) IEEE 802.11g: 23.06 dBm (202.30mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation* SAR Evaluation N/A Note: 1. The maximum output power is 23.06dBm (202.30mW) at 2462MHz (with 1.58 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S = So Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields S GP S GP d × ×= × ×× ×= 282.0 3770 )1000/(30 100 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Maximum Permissible Exposure (Wireless AP) EUT output power = 202.30 mW Antenna Gain = 1.585 d = 20 cm S = 0.064 mW / cm^2 (For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.)

Compliance Certification Services Inc. Report No.: 41012001-RP1 FCC ID: SOYHSB1 Date of Issue: October 19, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 66 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Hawking Technologies, Inc 802.11 b/g Adjustable WiFi Signal Booster Model: Signal Booster: HSB1 / Wireless Access Point: HWBA54G Trade Name: Hawking Prepared for Hawking Technologies, Inc 15281A Barranca Parkway, Irvine, CA92628 U.S.A Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 41012001-RP1 FCC ID: SOYHSB1 Date of Issue: October 19, 2004 Page 2 TABL…
