SQB-NIVISRN0003Networking Device

RepNode User’s Manual Version 1.2 RepNode User Manual Proprietary & Confidential Version 1.2 Revision History Date Revision Description Author 07/06/2006 1.0 Initial Release Edward Castro 07/17/2006 1.1 Updated FCC Statements & FCC ID Numbers Dan Cornescu 08/17/2006 1.2 Added pictures of Repnode enclosure; Removed Section 6 “OEM Responsibility to the FCC Rules and Regulations” Dan Cornescu RepNode User Manual Proprietary & Confidential Version 1.2 Table of Contents 1. Purpose and Scope of Document......................................................................... 1 2. Overview of the RepNode...................................................................................... 1 2.0 Block diagram........................................................................................................ 1 2.1 General presentation of the board and enclosure.................................................. 2 2.1.1 RS232 Interface block ........................................................................................ 6 2.1.2 Super Cap Charger block ................................................................................... 7 2.1.3 Buck / Boost Regulator block.............................................................................. 8 2.1.4 RF modem block................................................................................................. 9 2. Operation of the RepNode..................................................................................... 9 3.1. Getting started; Using The NetLink Application .................................................. 10 4. RF Exposure Limit Warning ................................................................................... 10 5. Compliance Statement (Part 15.19)....................................................................... 11 6. Information to the User {Part 15.105(b)}................................................................ 11 7. Warning (Part 15.21)................................................................................................ 11 RepNode User Manual Proprietary & Confidential Page 1 version 1.0 1. Purpose and Scope of Document The purpose of this document is to provide the user with instructions on how to properly operate the RepNode. 2. Overview of the RepNode The RepNode is a 900MHz frequency-hopping self-contained deployment tool which provides a link between a device running specially designed software and the mesh network. The RepNode uses a 10 Farad Super Capacitor to provide operating power during AC power outages. 2.0 Block diagram Below you will find the block diagram for the main functions of this device. RepNode User Manual Proprietary & Confidential Page 2 version 1.0 2.1 General presentation of the board and enclosure Below is a picture of RepNode circuit board . On the top side of the board (pictured above) you will find the RF components, (underneath the RF shield), the power supply section, transformer and the PCB antenna. The opposite side of the board contains the microcontroller and digital section as can be seen in the picture below. RepNode User Manual Proprietary & Confidential Page 3 version 1.0 RepNode User Manual Proprietary & Confidential Page 4 version 1.0 External view of RepNode enclosure RepNode User Manual Proprietary & Confidential Page 5 version 1.0 View of RepNode circuit board mounted inside enclosure The JTAG connector is located above and to the right of the RF shield on the front side of the circuit board. This is used for development purposes, loading firmware etc. A typical adapter cable schematic is shown bellow: RepNode User Manual Proprietary & Confidential Page 6 version 1.0 2.1.1 RS232 Interface block RepNode User Manual Proprietary & Confidential Page 7 version 1.0 The RS232 interface uses a ISL4221EIR level converter chip, U107 which translates the logic levels from the microcontrollers 3.3V to RS232 levels. This is an option and is not normally populated. The zero ohm resistors, R133 and R134 bypass the signals when the option is not used. 2.1.2 Super Cap Charger block RepNode User Manual Proprietary & Confidential Page 8 version 1.0 The RepNode is available as a 115 VAC unit or as a 230 VAC unit. This is determined at the time of manufacture by selecting either the 115 V or the 230 V transformer, T101. The RepNode uses an LT1769 battery charger, U105 which charges two parallel connected five Farad super capacitors, a total of 10 Farads. This design allows up to 200 mA charge current drawn from the transformer, which is rated at 2.3 VA. The charge current is programmed by the value of resistor R114. Op-Amps U104 and U106 keep the cells balanced by providing a low resistance return path between the cells at exactly ½ the charge voltage. Refer to the schematic above. The input AC line is connected to terminal block J106. The transformer is protected from over voltage transients by varistor RV101 and resetable fuse F101. The voltage at the secondary of transformer T101 is rectified by bridge rectifier D107 and filtered by capacitor C110. The filtered DC voltage is further protected from damaging voltage spikes by varistor RV102. There is an optional connection for a solar panel input at J105. This voltage is ORed with the transformer voltage by diode D102. 2.1.3 Buck / Boost Regulator block RepNode User Manual Proprietary & Confidential Page 9 version 1.0 The power supply block uses a switch-mode regulator circuit shown below which operates as a buck / boost regulator. This design maintains high efficiency due to a built in power switch and burst-mode control. The radio current demands can be as high a 500mA in the transmit mode. During receive, the radio typically requires 35mA. This design allows firmware control of the switching mode via microcontroller port bit GPIO1. A high selects burst mode operation and a low selects fixed frequency operation. Fixed frequency is selected by default by R132. Burst mode may be selected by defining…

Text truncated - open the document above for the full version.

J1N.\trs FCC CONFIDENTIATITY Dote: July l7,2006 Time: 3:28pm To: FCC Authorizotion & Evoluotion Division 7435 Ooklond Mills Rood Columbio, MD 2l 045-0429 From: Morius Chilom cEo 678-202-6800 77O-?s6-O606 (FAX) [email protected] Applicont NIVIS LLC Subject: Request for Non-Disclosure for FCC lD:SQB-NlVlSRN0003 Deor Lqdies ond/or Gentlemen: Pursuont to Title 47 CFR, Section 0.459, NlVlS, LLC hereby requests non-disclosure ond confidentiol treotment of the following moteriols submitted in support of FCC certificotion opplicotion for FCC lD: SQB-NlVlSRN0003. o. Schemotic Diogroms b. Operotionol Descripiion c. Block Diogrom The obove moteriols contoin trode secrets, proprietory ond technicol informoiion, which would customorily be guorded from competitors under Title 4Z CFR, Section 0.457(d)12). Disclosure or publicotion of ony portion of this compony's confidentiol mqteriol to other porties could couse substontiol competiiive horm ond provide unjustified benefits for competitors. NlVlS, LLC understonds thot pursuont to Iitle 47 CFR. Section 0.452(d)(l)(ii), disclosure of the opplicont ond oll occomponying documentotion will not be mode before the dote of the Gront. Sincerely, , o 5 r+ o .l 1I =, {r} t! FF * R 1S a € * 4,4 ,') /// / --.. t ' -* L-'/ OA- Morius O. Chilom \- r\, NIVIS LLC 1000 CIRCLE 75 PARKWAY " THIRD FLOOR o ATLANTA. GA 30339 o 678 202 6800

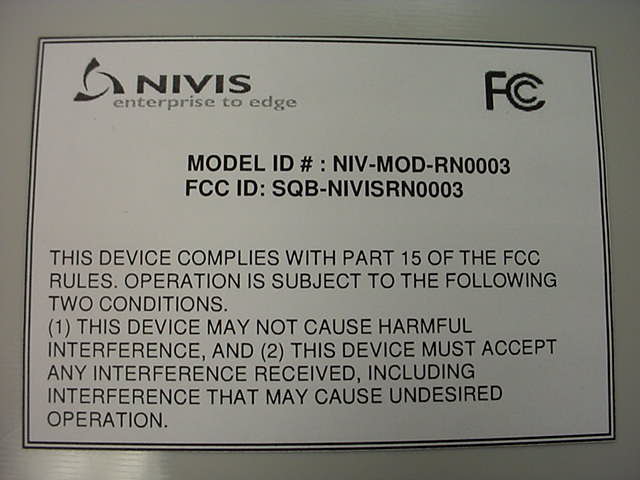

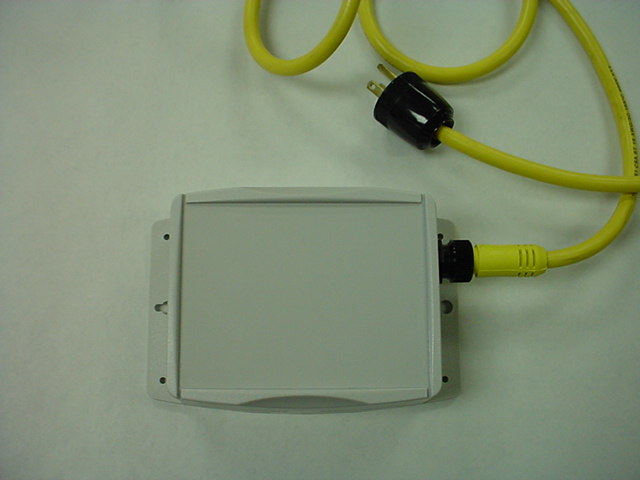

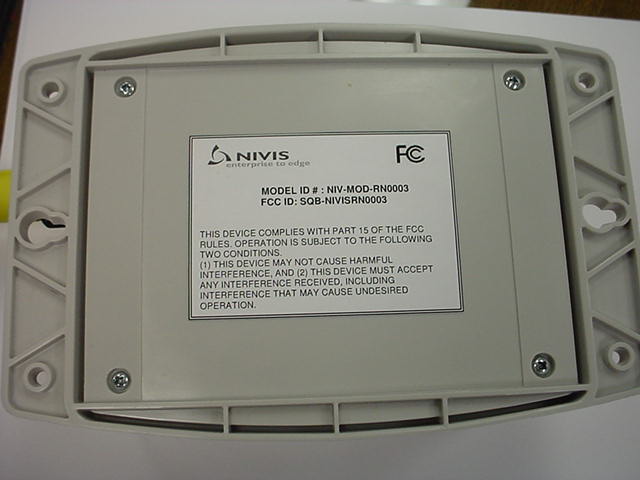

Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo One – External Top View, with Power Cord Attached Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Two – External Close up of AC Power Connection Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Three – External Back View, showing FCC ID Label Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Four – External Close-up of FCC ID Label

REVISIONS REVSION DESCRIPTION DATE APPROVED 2 CHANGE ID NUMBER 6/30/06 1. MATERIAL: .002” THICK POLYESTER WITH 3M #400 OR #7921 ACRYLIC ADHESIVE a. BACKING: SILICONE RELEASE LINER b. FACE COLOR: WHITE WITH BLACK INK (COMPANY LOGO WILL BE SUPPLIED) 2. ENVIRONMENTAL: a. TEMPERATURE RANGE: -40 º C TO +85 º C b. ADHESIVE, MATERIAL AND INK SHALL BE RESISTANCE TO UV DEGRADATION c. LIGHT AND HUMIDITY AS SPECIFIED IN UL 969 – OUTDOOR EXPOSURE TEST 3. FONT: ARIAL APPROXIMATELY AS SHOWN a. HEIGHT: .050” BOLD, .035 REGULAR 4. LABEL SIZE: 1.50” WIDE X 1.10” HIGH DRAWN BY: C.ENE/BAA DATE: 05/03/06 APPROVALS




 DOC CONTROL: DATE: TITLE: PURCH’G: DATE: DEV ENG: DATE: QUAL ASSR: DATE: L ABEL, FCC, ENCLOSURE REPEATER MODULE MFG ENG: DATE: SIZE A FCSM NO. DWG. NO. 90000153_2 REV. 2 PRODUCT MGR: DATE: SCALE: NONE SHEET: 1

 MODEL ID # : NIV-MOD-RN0003 FCC ID: SQB-NIVISRN0003 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo One – Internal Open for Inspection, Shield On Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Two – Internal PCB Board – Shield Removed Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Three – Internal Close up of RF Section Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Four – Internal Back Side of Board Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Five – Internal Close up of PCB Antenna Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Six – Internal PCB Antenna Interface Nivis RepNode FCC ID#: SQB-NIVISRN0003 Photo Seven – Internal RepNode User Manual Proprietary & Confidential Page 3 version 1.0 The JTAG connector is located above and to the right of the RF shield on the front side of the circuit board. This is used for development purposes, loading firmware etc. A typical adapter cable schematic is shown bellow:

MPE CALCULATIONS The following MPE calculations are based on an inverted-F printed circuit board trace antenna, with a 56mm straight section, and18 mm away from the ground plane. The measured ERP of the EUT was 124.4 dBμV/m at 3 meters, and conducted RF power of +26.7 dBm as presented to the antenna. The calculated gain of this antenna, based on the ERP measurements is 2.5 dB.

LS Research, LLC W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com LS Research, LLC Prepared For: Nivis Template: 15.247 FHSS 900 TX (V1 6-28-06) Report #: 306324 TX Customer FCC ID #: SQB-NIVISRN0003 Page 1 of 58 ENGINEERING TEST REPORT # 306324 TX Compliance Testing of: Nivis Repnode Test Date(s): June 8 th – June 27 th 2006 Prepared For: Nivis, LLC Attention: Trae Harrison 900 Circle 75 Parkway, 17 th Floor Atlanta, GA 30339 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 FHSS TX Frequency Hopping Spread Spectrum Operating in the Frequency Band 902 MHz – 928 MHz This Test Report is issued under the Authority of: Brian E. Petted, VP of Engineering Signature: Date: July 30, 2006 Test Report Prepared by: Teresa A. White, Document Coordinator Signature: Date: July 30, 2006 Tested by: Khairul Aidi Zainal, EMC Engineer Signature: Date: July 30, 2006 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Prepared For: Nivis Template: 15.247 FHSS TX (V1 6-28-06) Report #: 306324 TX Customer FCC ID #: SQB-NIVISRN0003 Page 2 of 58 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1. INTRODUCTION 4 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2. PERFORMANCE ASSESSMENT 6 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 8 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 9 3.1 Climate Test Conditions 9 3.2 Applicability & Summary of EMC Emission Test Results 9 3.3 Modifications Incorporated in the EUT for Compliance Purposes 9 3.4 Deviations & Exclusions from Test Specifications 9 3.5 Test Specifications and Related Documents 10 EXHIBIT 4. DECLARATION OF CONFORMITY 11 EXHIBIT 5. RADIATED EMISSIONS TEST 12 5.1 Test Setup 12 5.2 Test Procedure 13 5.3 Test Equipment Utilized 13 5.4 Test Equipment List 13 5.5 Test Results 13 5.6 Calculation of Radiated Emission Limits 14 5.7 Radiated Emissions Data Chart 15-16 5.8 Test Setup Photo(s) – Radiated Emissions Test 17-18 5.9 Screen Captures – Radiated Emissions 19-22 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE: 15.207 23 6.1 Test Setup 23 6.2 Test Procedure 23 6.3 Test Equipment Utilized 23 6.4 Test Equipment List 23 6.5 Test Results 23 6.6 FCC Limits of Conducted Emissions at the AC Mains Port 24 6.7 Test Data Chart Conducted Emission 25 6.8 Test Setup Photo(s) – Conducted Emissions Test 26 6.9 Screen Captures – Conducted Emissions Test 27 LS Research, LLC Prepared For: Nivis Template: 15.247 FHSS TX (V1 6-28-06) Report #: 306324 TX Customer FCC ID #: SQB-NIVISRN0003 Page 3 of 58 TABLE OF CONTENTS (page 2 of 2) EXHIBIT 7. OCCUPIED BANDWIDTH; 15.247(a)(2) 26 7.1 Limits 26 7.2 Method of Measurements 26 7.3 Test Data 26 7.4 Test Equipment List 27 7.5 Screen Captures – OCCUPIED BANDWIDTH 29-30 EXHIBIT 8. BAND-EDGE MEASUREMENTS 31 8.1 Method of Measurements 31 8.2 Screen Captures – Band-Edge 31-32 EXHIBIT 9. PEAK OUTPUT POWER (CONDUCTED); 15.247(b) 33 9.1 Method of Measurements 33 9.2 Test Data 34 9.3 Test Equipment List 34 9.4 Screen Captures – Power Output (Conducted) 34-35 EXHIBIT 10. CHANNEL OCCUPANCY 36 10.1 Test Setup & Procedure 36 10.2 Test Data 36 10.3 Plots of Channel Occupancy 36-39 EXHIBIT 11. SPURIOUS EMISSIONS: 15.247(d) ) 40 11.1 Limits 40-41 11.2 Test Equipment List 41 11.3 Spurs other than Harmonics 41 11.4 Screen Captures – Spurious Radiated Emissions 42-44 EXHIBIT 12. FREQUENCY & POWER STABILITY OVER VOLTAGE 45 EXHIBIT 13. CHANNEL PLAN AND SEPARATION 46 13.1 Test Data 46 13.2 Screen Captures – Channel Separation 47-51 EXHIBIT 14. EQUAL CHANNEL USAGE 52 EXHIBIT 15. PSEUDORANDUM HOPPING PATTERN 53-54 EXHIBIT 16. MPE CALCULATIONS 55 APPENDIX A TEST EQUIPMENT LIST 56 APPENDIX B GUI SETTING FOR CONTINUOUS TRANSMIT MODE 57-58 LSR Revision Control Date Revision # Revised By 7-17-06 0 AZ 7-21-06 1 TAW LS Research, LLC Prepared For: Nivis Template: 15.247 FHSS TX (V1 6-28-06) Report #: 306324 TX Customer FCC ID #: SQB-NIVISRN0003 Page 4 of 58 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.247 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for Digital Modulation Transmitters operating in the Frequency Band of 902 MHz – 928 MHz Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential 1.2 NORMATIVE REFERENCES Publication Year Title FCC CFR Parts 0-15 2005 Code of Federal Regulations - Telecommunications ANSI C63.4 2004 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2003 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. FCC Public Notice DA 00-1407 2000 Part 15 Unlicensed Modular Transmitter Approval FCC ET Docket No. 99-231 2002 Amendment to FCC Part 15 of the Commission’s Rules Regarding Spread Spectrum Devices. FCC Procedures 2005, 03-23 Measurement of Digital Transmission Systems operating under Section 15.247. LS Research, LLC Prepared For: Nivis Template: 15.247 FHSS TX (V1 6-28-06) Report #: 306324 TX Customer FCC ID #: SQB-NIVISRN0003 Page 5 of 58 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is acc…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS NIVIS FCC ID #: SQB-NIVISRN0003 Page 1 of 3 Test Setup Photo(s) – Radiated Emissions Test Vertical Orientation Horizontal Orientation TEST SETUP PHOTOS NIVIS FCC ID #: SQB-NIVISRN0003 Page 2 of 3 Test Setup Photo(s) – Radiated Emissions Test (continued) Side Orientation TEST SETUP PHOTOS NIVIS FCC ID #: SQB-NIVISRN0003 Page 3 of 3 Test Setup Photo(s) – Conducted Emissions Test
