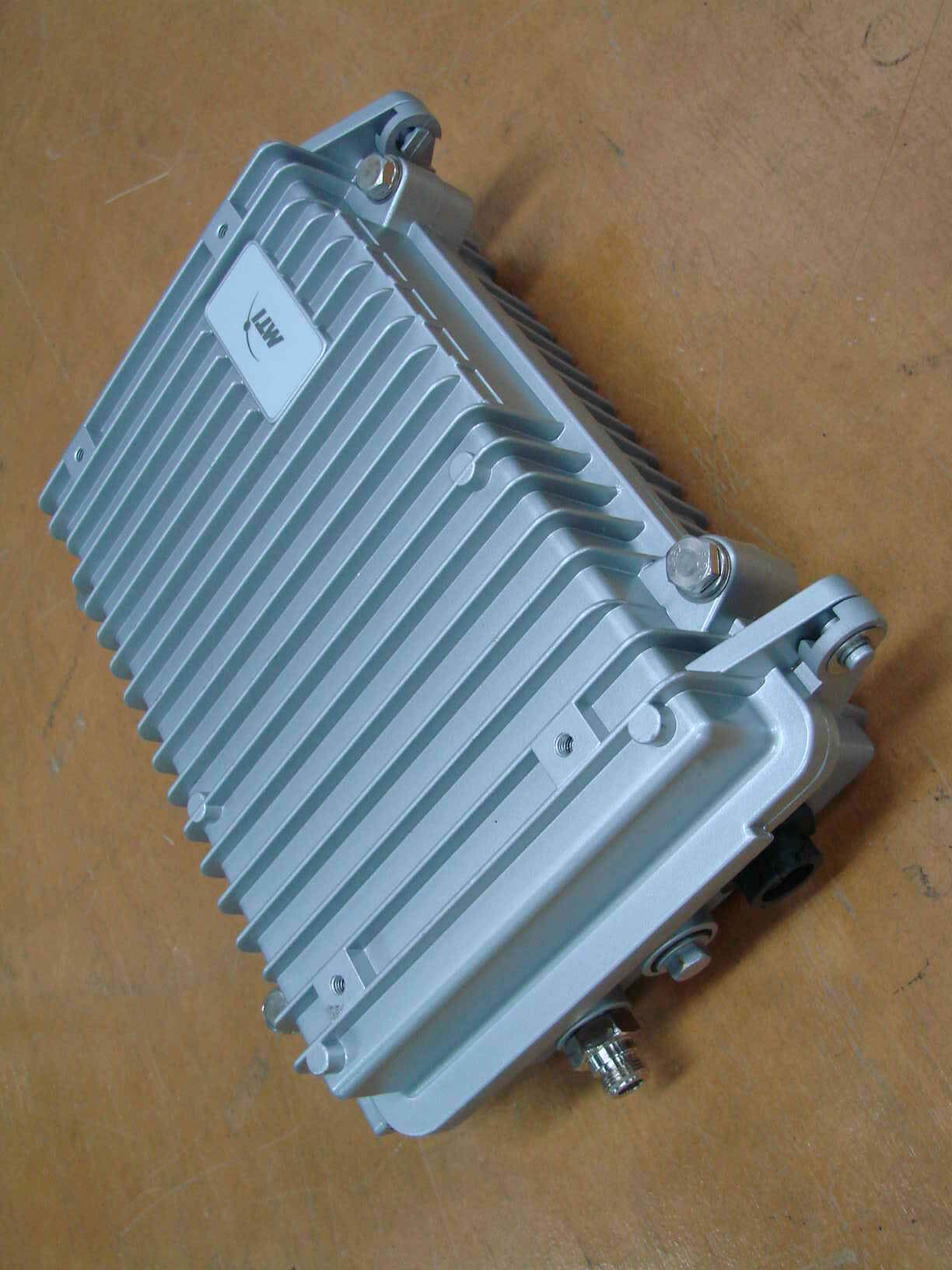

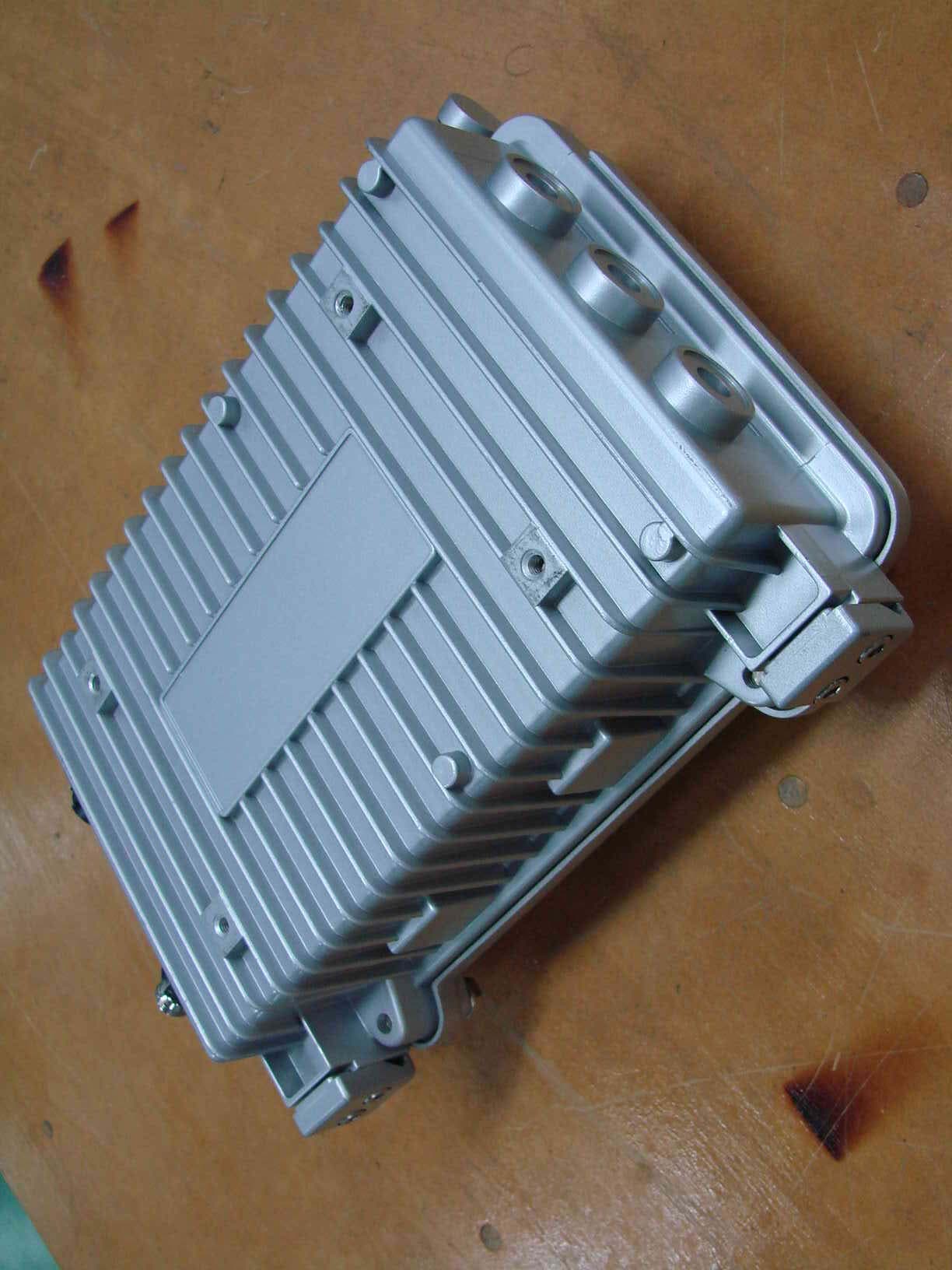

SQD-APU11B01POEAccess Point Unit

Access Point Unit (APU) 802.11b POE Corporate Service Unit (CSU) 802.11b POE User Guide Standard Release 1.0 Issue 1 May 2007 What’s inside? About this document Overview Installation Configuration Administration Troubleshooting Appendix NTPM99AE / NTPM99BC 2 3 Copyright © 2007 MTI co. ltd All rights reserved. May 2007. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. MTI and the MTI logo are trademarks of MTI co. ltd. Multi-Region Product Documentation This document may describe features that are not available in your region due to local regulations. 4 Access Point Unit: 2.4G-B-Radio-POE NTPM99AE 01 Rel 1.0 Issue1 May 2007 Publication history May 2007 Issue 1. Issued for APU(Access Point Unit) & CSU(Corporate Service Unit) 5 Access Point Unit: 2.4G-B-Radio-POE NTPM99AE 01 Rel 1.0 Issue1 May 2007 6 Access Point Unit: 2.4G-B-Radio-POE NTPM99AE 01 Rel 1.0 Issue1 May 2007 Contents PUBLICATION HISTORY..................................................................................... 4G CONTENTS .............................................................................................................. 6G LIST OF FIGURES.................................................................................................. 8G LIST OF TABLES.................................................................................................. 11G ABOUT THIS DOCUMENT................................................................................. 12G A UDIENCE............................................................................................................ 13G L IST OF ABBREVIATIONS..................................................................................... 13G SAFETY AND CONFORMANCE GUIDELINES.............................................. 16G S AFETY PRECAUTIONS......................................................................................... 17G R ADIO REGULATION CONFORMANCE.................................................................. 18G OVERVIEW ........................................................................................................... 19G I NTRODUCTION.................................................................................................... 19G P RODUCTDESCRIPTION....................................................................................... 21G APU (A CCESS POINTUNIT) ................................................................................. 21G CSU (C ORPORATE SERVICE UNIT) ...................................................................... 24G INSTALLATION.................................................................................................... 28G P RE-STUDY FOR................................................................................................... 30G W IRELESSNETWORK DESIGN AND DEPLOYMENT............................................... 30G APU INSTALLATION & CONFIGURATION .................................................. 42G P ROCEDURE1-1 ................................................................................................... 43G P ROCEDURE1-2 ................................................................................................... 46G P ROCEDURE1-3 ................................................................................................... 51G P ROCEDURE1-5 ................................................................................................... 56G CSU INSTALLATION & CONFIGURATION................................................... 57G P ROCEDURE2-1 ................................................................................................... 58G P ROCEDURE2-2 ................................................................................................... 60G P ROCEDURE2-3 ................................................................................................... 62G CONFIGURATION ............................................................................................... 66G P ROCEDURE3-1 ................................................................................................... 67G P ROCEDURE3-3 ................................................................................................... 86G P ROCEDURE3-4 ................................................................................................... 96G P ROCEDURE3-5 ................................................................................................. 105G P ROCEDURE3-6 ................................................................................................. 107G P ROCEDURE3-7 ................................................................................................. 136G ADMINISTRATION ............................................................................................ 177G S AVING CONFIGURATION................................................................................... 178G L OADING NEW CONFIGURATION......................................................................... 179G U PLOADING SOFTWARE..................................................................................... 180G R EBOOT A REMOTE STATION(APU AND CSU) .................................................. 187G TROUBLESHOOTING....................................................................................... 188G 7 Access Point Unit: 2.4G-B-Radio-POE NTPM99AE 01 Rel 1.0 Issue1 May 2007 APPENDIX ........................................................................................................... 193G A PPENDIX A. SPECIFICATION............................................................................. 194G A PPENDIX B. ANTENNA..................................................................................... 200G A PPENDIX C. LINKBUDGET AND DISTANCE.....................…

Text truncated - open the document above for the full version.

MTI Co., Ltd. 166-10, Garak-dong, Songpa-gu, Seoul, Korea Tel: +82-2-421-4042, Fax: +82-2-421-4043 Power of Attorney Date: July 09, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, _________________________ Mr. Hoyoung, Lee / Manager MTI Co., Ltd. Tel: +82-2-421-4042 Fax: +82-2-421-4043 E-Mail: [email protected]

#505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]031-746-8500 [FAX]031-746-8700 CBTL 전사-002 (Rev. 2) KOLAS www.onetech.co.k r Date : 2007. 07. 09. Ref. No : To : Application Examiner / Reviewing Engineer FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 CC : Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant: MTI Co., Ltd., FCC ID: SQD-APU11B01POE To whom it may concern, Request is hereby submitted, on behalf of my client, MTI Co., Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Operational Description Block Diagram Rationale for request for confidentiality: MTI Co., Ltd., has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected] #505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]031-746-8500 [FAX]031-746-8700 CBTL 전사-002 (Rev. 2) KOLAS www.onetech.co.k r From : Michael Jang /Manager Marketing Division ONETECH Corp.

FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : SQD-APU11B01POE FCC ID

FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

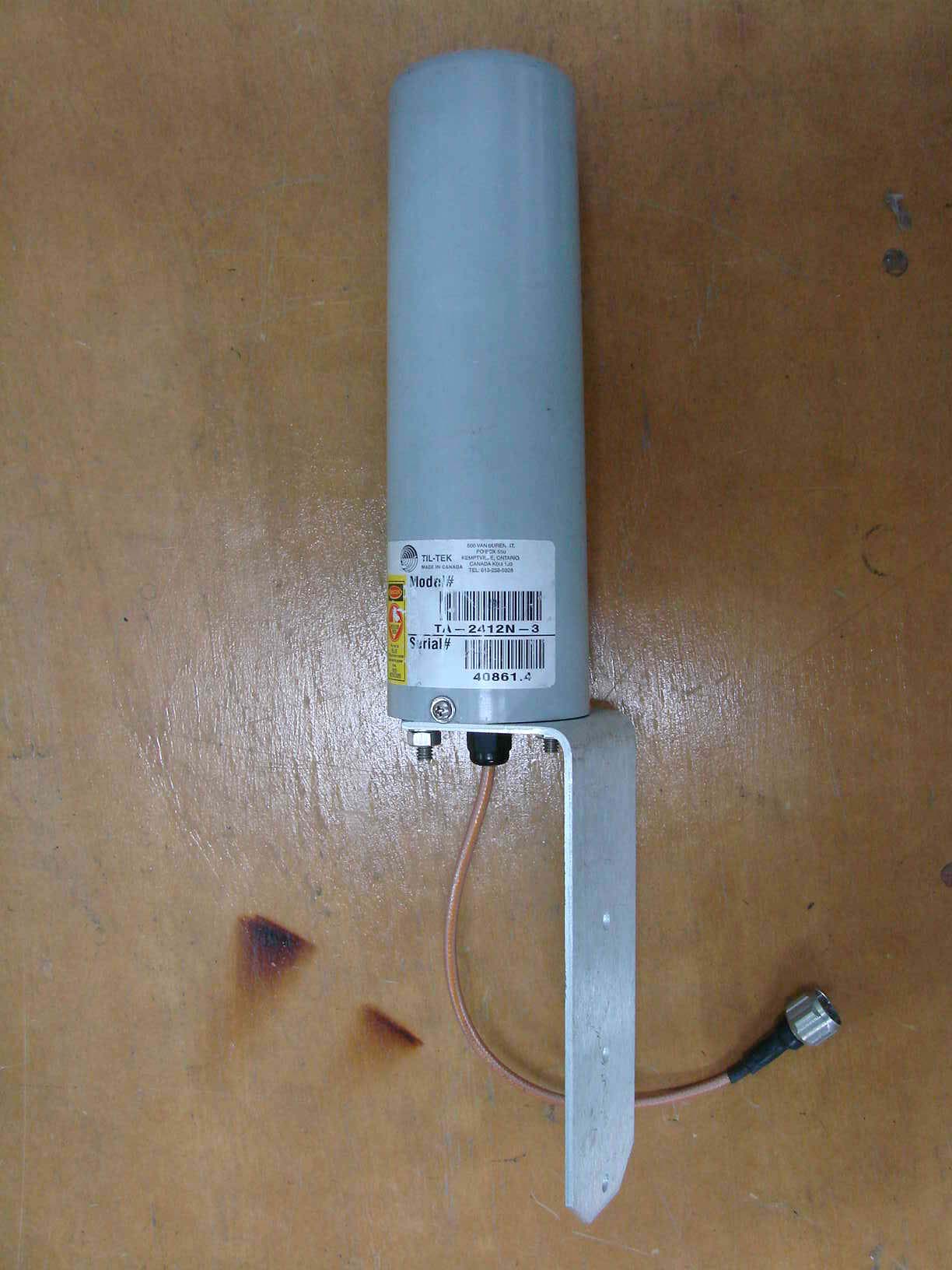

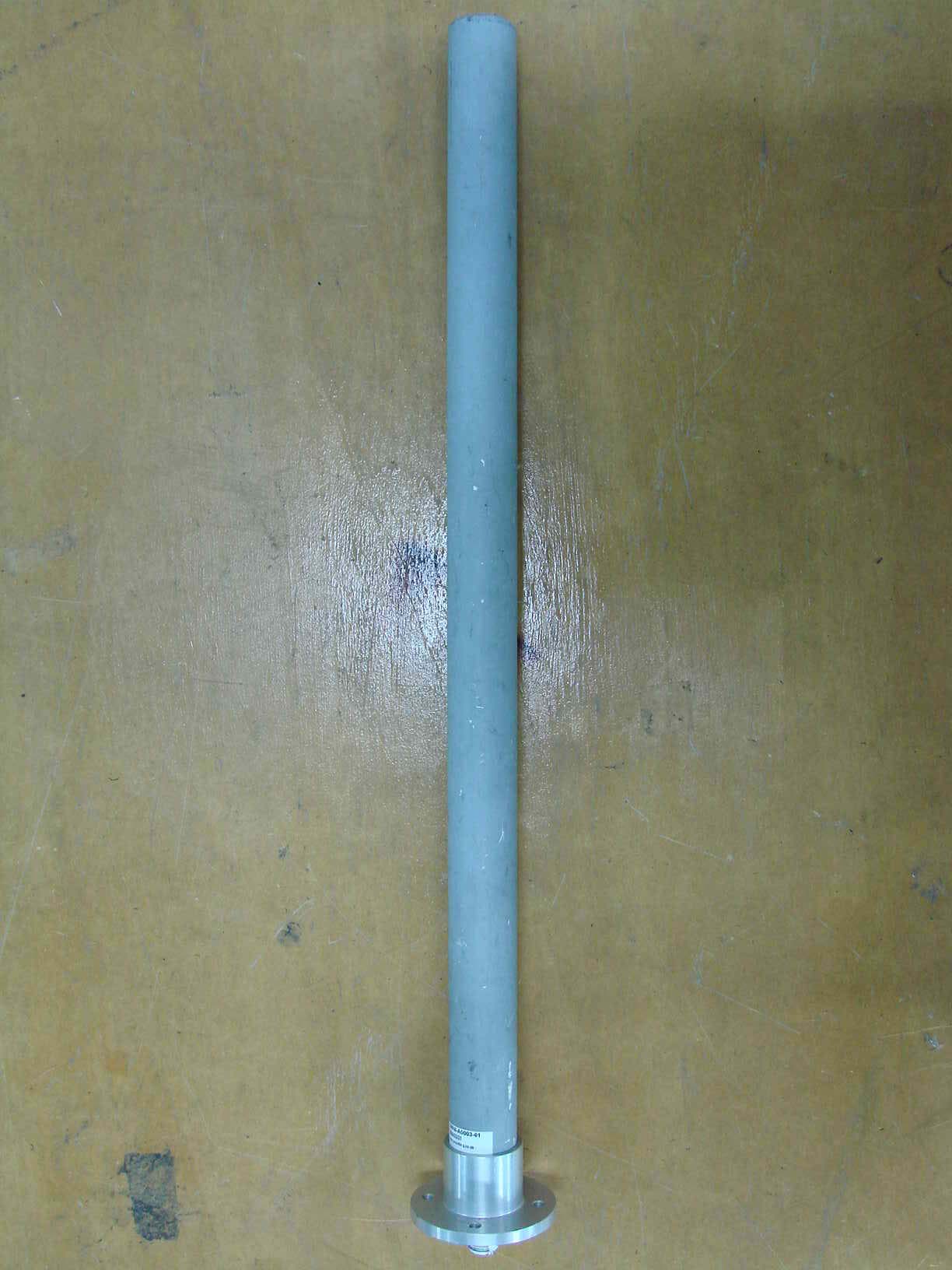

Appendix D Antenna Type NTA.2407 Panel Antenna The NTA-2407 is a compact, light-weight, vertically polarized panel antenna intended to mount to the APU Enclosure. The antenna consists of a printed patch array enclosed in an aluminum cavity with a UV stabilized ASA radome. The antenna is sealed and intended for outdoor use. Electrical Specifications Frequency Range : 2400-2483 MHz Gain : 14 +/- dBi VSWR : 2.0;1 MAX. Polarization : Vertical Power : 20 Watts H-Plane Beamwidth : 27 degrees E-Plane Beamwidth : 36 degrees Front to Back Ratio : 25 dB min (azimuth) Cross Pol. Descrimination : 13 dB min. Electrical Beamtilt : N/A Impedance : 50 ohms nominal Termination : SMA female Radiation Patterns/Masks H-Plane Mechanical Specifications Length : 8 in. (203 mm) Diameter : N/A Width : 11 in. (279.4 mm) Depth : 0.44 in. (11 mm) Weight (incl. hardware) : 1.66 lb. (0.75 ㎏) Rated Wind Velocity : 125mph ( 200 ㎞/h) Horizontal Thrust at rated wind : 38 lb. (17.2 ㎏) Mechanical Tilt : 0 +/- 22.5° Pan Mounting : Mounts to APU Enclosure Pig-Tail Length : N/A Material Specifications Radiating Elements : Plated copper on PCB Reflector : Irridited aluminum Radome : Gray UV stabilized ASA Mounting Hardware : Aluminum and HDG steel E-Plane NTA.2412 Bidirectional Antenna The NTA-2412 is a vertically polarized bidirectional antenna intended to mount to the APU Enclosure. The antenna consists of a printed dipole array enclosed in a UV stabilized ASA radome for superior weatherability. It is designed for wireless data in the ISM band and is at DC ground to aid in lighting protection. Electrical Specifications Frequency Range : 2400-2483 MHz Gain : 9 dBi (peak) VSWR : 1.5;1 max. Polarization : Vertical Power : 5 Watts H-Plane Beamwidth : 60 degrees E-Plane Beamwidth : 28 degrees Front to Back Ratio : N/A Cross Pol. Descrimination : 20 dB min. Electrical Beamtilt : N/A Impedance : 50 ohms nominal Termination : N male Radiation Patterns/Masks H-Plane Mechanical Specifications Length : 10.5 in. (267 mm) Diameter : 3 in. (76 mm) Width : N/A Depth : N/A Weight (incl. hardware) : 2 lb. (0.9 ㎏) Rated Wind Velocity : 125mph ( 200 ㎞/h) Horizontal Thrust at rated wind : 9 lb. (4 ㎏) Mechanical Tilt : N/A Mounting : Mounts to APU Enclosure Pig-Tail Length : 12 in. (304.8 mm) Material Specifications Radiating Elements : Plated copper on PCB Reflector : Irridited aluminum Radome : Gray UV stabilized ASA Mounting Hardware : Aluminum and HDG steel E-Plane NTA.2400 Omni directional Antenna The NTA-2400 is a vertically polarized, medium gain, omni-directional antenna that covers the 2.4 - 2.5 GHz ISM band. This antenna is a robust point to multi-point antenna designed to be completely waterproof. The antenna is intended to mount to the APU Enclosure. Electrical Specifications Frequency Range : 2400-2483 MHz Gain : 7 dBi typ VSWR : 2.0;1 typ. Polarization : Vertical Power : 5 Watts H-Plane Beamwidth : 360 degrees E-Plane Beamwidth : 14 degrees typ Front to Back Ratio : N/A Cross Pol. Descrimination : 18 dB typ. Electrical Beamtilt : N/A Impedance : 50 ohms nominal Termination : N female Radiation Patterns/Masks H-Plane Mechanical Specifications Length : 26 in. (660 mm) Diameter : 3.9 in. (100 mm) Width : N/A Depth : N/A Weight (incl. hardware) : 1.25 lb. (0.57 ㎏) Rated Wind Velocity : 125mph ( 200 ㎞/h) Horizontal Thrust at rated wind : 7 lb. (3.2 ㎏) Mechanical Tilt : N/A Mounting : Mounts to APU Enclosure Pig-Tail Length : N/A Material Specifications Radiating Elements : Copper Reflector : N/A Radome : Gray UV stabilized ASA Mounting Hardware : Aluminum and HDG steel E-Plane

FCC ID. : SQD-APU11B01POE Page 1 of 34 Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E077R-032 AGR No. : A069A-113R Applicant : MTI Co., Ltd. Address : 166-10, Garak-dong, Songpa-gu, Seoul, Korea Manufacturer : MTI Co., Ltd. Address : 166-10, Garak-dong, Songpa-gu, Seoul, Korea Type of Equipment : Spread Spectrum Device (802.11b) FCC ID. : SQD-APU11B01POE Model Name : APU11B01 POE Serial number : N/A Total page of Report : 34 pages (including this page) Date of Incoming : June 23, 2007 Date of issue : July 10, 2007 SUMMARY The equipment complies with the regulation; FCC Part 15 Subpart C Section 15.247. This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Young-Min, Choi / Senior Engineer Y. K. Kwon / Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. FCC ID. : SQD-APU11B01POE Page 2 of 34 Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE .............................................................................................................................4 2. TEST SUMMARY..............................................................................................................................................................5 2.1 TEST ITEMS AND RESULTS................................................................................................................................................5 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS.............................................................................................5 2.3 RELATED SUBMITTAL(S) / GRANT(S)..............................................................................................................................5 2.4 PURPOSE OF THE TEST.....................................................................................................................................................5 2.5 TEST METHODOLOGY......................................................................................................................................................5 2.6 TEST FACILITY.................................................................................................................................................................5 3. GENERAL INFORMATION............................................................................................................................................6 3.1 PRODUCT DESCRIPTION...................................................................................................................................................6 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT...................................................................6 4. EUT MODIFICATIONS ...................................................................................................................................................6 5. SYSTEM TEST CONFIGURATION...............................................................................................................................7 5.1 JUSTIFICATION.................................................................................................................................................................7 5.2 PERIPHERAL EQUIPMENT.................................................................................................................................................7 5.3 MODE OF OPERATION DURING THE TEST.........................................................................................................................7 5.4 CONFIGURATION OF TEST SYSTEM.................................................................................................................................8 5.5 ANTENNA REQUIREMENT................................................................................................................................................8 6. PRELIMINARY TEST ......................................................................................................................................................8 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS...........................................................................................................8 6.2 GENERAL RADIATED EMISSIONS TESTS..........................................................................................................................8 7. MIMIMUM 6DB BANDWIDTH ......................................................................................................................................9 7.1 OPERATING ENVIRONMENT.............................................................................................................................................9 7.2 TEST SET-UP.....................................................................................................................................................................9 7.3 TEST EQUIPMENT USED............................................................................................…

Text truncated - open the document above for the full version.

FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Radiated Emission Test FCC ID. : SQD-APU11B01POE Report No. : E077R-032 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) RF Test
