SQD-WCAP6220APUWiFi transceiver

NTPM99CA Nortel Networks WLAN Cable Access Point 6220 User Guide Standard Release 1.0 Issue 1 Oct 2004 What’s inside About this document Overview Planning your WLAN network Installation Configuration Administration Troubleshooting Appendix 2 Copyright © 2004 Nortel Networks All rights reserved. July 2004. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Nortel Networks and the Nortel Networks logo are trademarks of Nortel Networks, Inc. Multi-Region Product Documentation This document may describe features that are not available in your region due to local regulations. Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . • Reorient the receiving antenna . • Increase the separation between the equipment and receiver . • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected . • Consult the dealer or an experienced radio/TV technician for help FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera 3 Publication history August 2004 Issue 1. Issued for WLAN Cable Access Point 6220 Release 1 4 Contents ABOUT THIS DOCUMENT 6 A UDIENCE 7 L IST OF ABBREVIATIONS 7 T ECHNICAL SUPPORT AND INFORMATION 9 FCC CONFORMANCE 9 SAFETY GUIDELINES 10 W ARNING AND SAFETY PRECAUTIONS 10 S UMMARY OF WARNING AND SAFETY PRECAUTIONS 11 OVERVIEW 13 I NTRODUCTION 13 P RODUCT DESCRIPTION 15 APU(A CCESS POINT UNIT) 16 CSU(C ORPORATE SERVICE UNIT) 21 PLANNING YOUR WLAN NETWORK 25 S ITE SURVEY & PLANNING 26 W IRELESS NETWORK PLANNING 27 INSTALLATION 29 APU INSTALLATION & CONFIGURATION 32 P ROCEDURE 1-1 33 P ROCEDURE 1-2 38 P ROCEDURE 1-3 39 P ROCEDURE 1-4 41 P ROCEDURE 1-5 48 P ROCEDURE 1-6 50 CSU INSTALLATION & CONFIGURATION 52 P ROCEDURE 2-1 53 P ROCEDURE 2-2 55 CONFIGURATION 59 S OFTWARE INSTALLATION (AP CONFIGURATOR) 60 P ROCEDURE 3-1 62 P ROCEDURE 3-2 67 P ROCEDURE 3-3 73 P ROCEDURE 3-4 82 P ROCEDURE 3-5 86 P ROCEDURE 3-6 121 5 ADMINISTRATION 163 S AVE CONFIGURATION 164 L OAD NEW CONFIGURATION 165 L OAD NEW LICENSE 166 TROUBLESHOOTING 173 APPENDIX A SPECIFICATION 180 APPENDIX B DOCSIS SPECIFICATION 184 APPENDIX C ANTENNA TYPE 186 NTA.2407 PANEL ANTENNA 186 NTA.2412 BIDIRECTIONAL ANTENNA 187 NTA.2400 OMNI DIRECTIONAL ANTENNA 188 ET-PR12 BUILT-IN PANEL ANTENNA 189 APPENDIX D ENCLOSURE DIMENSION 190 APPENDIX E SITE SURVEY 192 APPENDIX F WIRELESS NETWORK PLANNING 196 APPENDIX G SNMP MIB LIST & EXAMPLE VALUES 203 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 6 About this document This document describes the system features used in the WLAN Cable Access Point 6220 Release 1.0 Product. Topics covered include the following: Overview Introduction Product Description APU (Access Point Unit) CSU (Corporate Services Unit) System Planning Site Survey & Planning Wireless Network Designing Installation APU Hardware Installation CSU Hardware Installation Configuration APU in Hot Spot Mode (802.11b) APU in Secure Data Mode (P2P, P2M) CSU in Secure Data Mode (P2P, P2M) Testing Connection between APU and CSU Advanced Configuration System Administration Tasks Save configuration Edit configuration Load new configuration Upload new license Troubleshooting 7 Audience The intended audience for this document includes: Installers Technicians Network planners Network & system engineers Network administrators List of Abbreviations AP Access Point APU Access Point Unit ARP Address Resolution Protocol BPDU Bridge Protocol Data Unit BPSK Binary Phase-Shift Keying CATV Community Antenna Television CM Cable Modem CMTS Cable Modem Termination System CPE Customer Premises Equipment CSU Corporate Service Unit DBPSK Differential Binary Phase-Shift Keying DHCP Dynamic Host Configuration Protocol DOCSIS Data Over Cable Service Interface Specifications DQPSK Differential Quadrature Phase Shift Keying DVM Digital Volt Ohm Meter EAP Extensible Authentication Protocol EIRP Equivalent Isotropic Radiated Power EMI Electromagnetic Interference FCC Federal Communications Commission FCS Frame Check Sequence FTP File Transfer Protocol HFC Hybrid Fiber Coax ICMP Internet Control Message Protocol IEEE Institute of Electrical and Electronics Engineers ISM Industrial Scientific and Medical equipment ISP Internet Service Provider ITU International Telecommunication Union LOS Line of Sight MAC Media Access Control MIB Management Information Base NAS Network Access Server NAT Network Address Translation WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue …

Text truncated - open the document above for the full version.

59 Configuration WLAN Cable Access Point 6220 (APU, CSU) have a various features about a management and operation as listed below. Software Installation APU Basic Configuration and Operation Test APU Basic Configuration and Operation Test Testing the connection between APU and CSU Testing Wireless Network Performance Basic Configuration Advanced and Optional Configuration 60 Software Installation (AP Configurator) The WLAN Cable AP Configurator is used to configure your wireless networking devices. Both the executable file needed to install the Configurator and the online help for the Configurator (*.chm) are included on the Software CD that you received with your hardware device. Refer to the online help or the WLAN Cable AP Configuration User Guide on the Document CD for detailed instructions on how to configure your device. This section explains the system configuration in detail.. Note: The features available to you in the WLAN Cable AP Configuration vary depending on the version of the software. This section explains all possible features involved in basic configuration. Your actual software may not display all of the features and fields described. Installing the Configurator Software 1. Insert the Software CD into your PC’s/laptop’s CD ROM drive, then you can see the installation web page as below. Figure 4-1 Software CD Starting Display 2. Click the installation button and press “open” button while finding the dialog box. 3. Double click the name of the Configurator Installation program (the .exe file on your Software CD). WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Oct. 2004 61 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Figure 4-2 Software Installation Launching 3. Follow the onscreen instructions to install the Configurator. Figure 4-3 Installation Dialog Window If you are installing the Configurator for the first time, files are stored in the directory Program Files/Nortel/WLAN Cable AP Configurator. If you are upgrading from a previous Configurator installation, your files will be stored in the directory where you last saved the Configurator files. The Install Shield also installs shortcuts to the Configurator on your desktop. 62 Procedure 3-1 APU Basic configuration and Operation Test Action Step Action 1. Prepare a Laptop computer and a client unit to test and configure the APU at the installation field. 2. There are two kinds of test setup between APU and Wi-Fi Radio card as below. A. Type I (Radio Connection: Primary) This type of test setup is very simple and reliable to setup and test the operation of APU without additional accessories except PCMCIA type radio card. APU operation test can be performed with only a radio connection between the antenna of the APU and Wi-Fi Radio Card in Laptop PC as shown in Figure 4.4 B. Type II (RF Cable Connection: Secondary) In case the more secure and reliable set, APU operation test can be performed with a RF cable between the antenna of the APU and Wi-Fi Radio Card in Laptop PC. This type of test setup may be a little cumbersome but, can check more securely APU operation and configuration excluded in any interference from a various radio devices around the site. Please make sure the cable has each different termination type at both ends (APU side: N type Male, Radio card side: PC card) 3. Be aware that the APU initially unpacked has the default parameter followed as below Factory Default „ IP address: DHCP Client (Ethernet 1) „ Read Write Password: public „ SNMP Secure Configuration Password: public „ IEEE 802.11 Interface Setup - Mode Selection: 802.11 compatible Access Point Mode - Frequency: CH1 (2412 MHz) - Transmit Rate: 11Mbps - SSID: WLAN Cable AP - WEP Encryption: Disable WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Oct. 2004 63 Figure 4-4 Test Network Configuration (Radio Connection) 4. Search the APU by scanning it’s default SSID “WLAN Cable AP” at a laptop computer and connect to the entity and then, check if the radio signal shows a good performance. WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 64 5. Launch the Configurator by either double clicking the WLAN Cable AP Configurator icon in your desktop or by opening the file config.exe from the directory “C:\Program Files\Nortel\WLAN Cable AP Configurator” where software is installed 6. The Configurator runs and the IP Address for your APU (and the IP addresses for any other devices in your network) appears in the Configurator window, as shown below. Figure 4-5 Configurator Starting Window 7. Make sure that the laptop computer gets an IP address from the DHCP server at Network Center by checking an IP address list box at the left side of the configurator window. 8. If the APU you wish to configure is on the same network subnet as your computer, you can select it from the list that is automatically displayed in the IP Address window. Press the<F5> key to refresh the scan list. Alternately, you can also right click anywhere in the scan window and select Re-scan local network. Note: To differentiate the APU to be configured, you should check the AP MAC address of APU which is printed on the label attached on the side of APU. 9. If you can find out the IP address of APU on the IP address window, Move a mouse pointer on the IP address. WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Oct. 2004 65 Figure 4-6 IP address list box 10. Right click on the IP address, and click the Configure button below the list box on the left side of a configurator window. The Read/Write Password screen is displayed, as shown below. Figure 4-7 SNMP Password (Read/Write) 11. Enter the password “public” for the device you have selected at both text boxes, and then click the OK button. 12. If the Setup tab is displayed in the main window as shown below, SNMP checking is a success. WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 66 Figure 4-8 Setup Tab Note: When you test the APU with Test CSU, you don’t have to change the para…

Text truncated - open the document above for the full version.

Solectron Technical Centre 21 Richardson Side rd Kanata ON K2K 2C1 · Canada Tel 613 271-5322 Fax 613 271-2581 http://www.solectrontechnicalctr.com/ December 9, 2004 Denis Lalonde Radio Compliance Discipline Leader American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: WCAP6220APU & WCAP6220CSU Dear Sir or Madam: MTI Co., LTD requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be held CONFIDENTIAL due to their proprietary nature. MTI Co., LTD considers this leading edge technology developed by MTI and its partners and being new technology, would not want to make this information available to its competitors. Exhibit 1. Schematics and Parts list 2. Block Diagrams Please call me or write if you have any questions or comments. Regards, Denis Lalonde email: [email protected] Solectron Technical Centre

MTI Co., LTD 166-10 Karak-dong, Songpa-ku Seoul, Korea 138-810 Tel : +82-2-421-4042 Fax: +82-2-421-4043 URL: www.mtico.co.kr Date 15 th September, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that MTI Co., Ltd authorizes the Solectron Technical Centre to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Hong Sup Byun Director MTI Co., Ltd Product Engineering and QC/QA Dept.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 4, 2004 RE: FCC ID: SQD-WCAP6220APU_ATCB001958 Attention: Denis Lalonde I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that manuals and internal photos of Part 15 devices may not be held confidential. While they may be held in temporary confidentiality until the product is first advertised or otherwise introduced to the market, they may not be held permanently confidential. Please remove the manual and internal photos from the confidentiality request. If these items are desire to be held in temporary confidentiality, please provide that appropriate temporary confidentiality request. 2. Please remove all shielding from the radio PCB and provide a photo of the circuitry underneath the shield. 3. Please note that the equipment code for a WLAN 802.11 device is DTS not DSS. DSS is for FHSS systems. Please correct the 731 to give the proper equipment code. 4. Please note that on page 26 of the report you state that the meter reading was taken using a spectrum analyzer with a Quasi-Peak adapter. The tables state peak readings. Please confirm that the readings were not QP but peak readings. 5. Please note that the report states that the worse case radiated emissions was done using a 14dBi antenna. Please note that the MPE report states that the highest gain antenna is a 15dBi antenna. Please explain why a lower than maximum antenna was used. Please test using the highest gain antenna. 6. Please show the test setup photos for each of the types of antennas. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Solectron Technical Centre 21 Richardson Side rd Kanata ON K2K 2C1 · Canada Tel 613 271-5322 Fax 613 271-2581 http://www.solectrontechnicalctr.com/ December 9, 2003 Denis Lalonde Radio Compliance Discipline Leader American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: WCAP6220APU (Short Term Confidentiality) Dear Sir or Madam: MTI Co., LTD requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be temporarily held CONFIDENTIAL due to their proprietary nature. MTI Co., LTD considers this leading edge technology developed by MTI and its partners and being new technology, would not want to make this information available to its competitors. Exhibit 1. Internal Pictures Please call me or write if you have any questions or comments. Regards, Denis Lalonde email: [email protected] Solectron Technical Centre

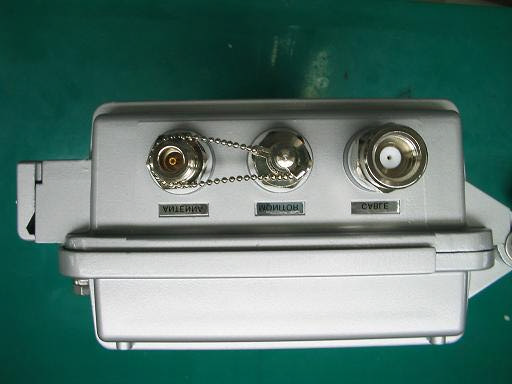

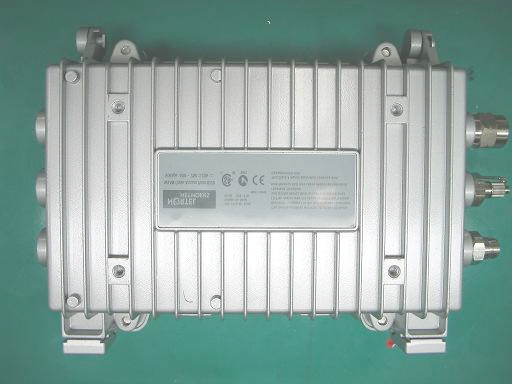

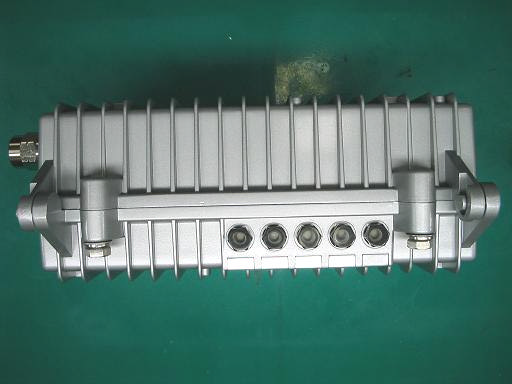

Front view of the APU Rear view of the APU Bottom view of the APU Side view of the APU

Omnidirectional antenna (NTA2400) Bi-directional antenna (NTA 2412) Flat panel antenna (NTA 2407)

LED PCB bottom LED PCB top Power supply PCB top Power supply PCB bottom Cable modem PCB top Cable modem PCB bottom Access Point PCB top Access Point PCB bottom Opened APU Opened APU with removed metal panel WLAN radio PCB top and bottom HFC PCB top HFC PCB bottom WLAN Radio PCB (with shield covers removed)

13 Overview Introduction This document describes the system features used in the WLAN Cable Access Point 6220 Release 1.0 Product. The Wireless LAN Cable Access Point 6220 is an outdoor hardened, strand-mountable access point solution designed to extend the reach of the cable operators’ hybrid fiber coax network utilizing wireless technologies from existing rights of ways. This solution from Nortel Networks provides cable operators a fast, low-cost alternative for delivering service to new customers by eliminating the time, permits, and construction costs associated with extending aerial or buried drops. The WLAN Cable Access Point 6220 solution provides : Flexible service platform The WLAN Cable Access Point 6220 is a flexible service platform giving cable operators the ability to offer many different wireless services such as Public Hot Spots and Commercial High Speed Data services. Standard Compliance and Interoperability The WLAN Cable Access Point 6220 utilizes standard-compliant DOCSIS TM cable modems, thus ensuring interoperability with the existing cable network. Wireless access is accomplished using industry- standard IEEE 802.11 radios approved by government regulatory agencies for use in “unlicensed” ISM frequencies. 14 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Security Security is of the highest importance when delivering wireless services. The WLAN Cable Access Point 6220 adheres to industry standards for 802.11 devices and augments those standards with additional security features designed to provide both the cable operator and the end-user maximum protection. Performance optimization via multiple antenna options Nortel Networks provides antenna options specifically engineered to enable the WLAN Cable Access Point 6220 to achieve peak link performance in Line of Sight (LOS) and Near LOS applications. Ease of installation Designed for simple, fast installation by professional technicians, the WLAN Cable Access Point 6220 is installed in a simple three-step procedure: lock down strand clamps, connect power via coax drop, and attach and align antenna for service optimization Figure 1-1 WLAN Cable Access Point 6220 Service Concept Diagram 15 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Product Description Table 1-1 WLAN Cable Access Point 6220 Products No. PEC Description 1 NTPM99AC APU, 2.4G,A/B/G RADIO, CM 2 NTPM99AE APU, 2.4G,FP ANTENNA, 14dB gain 3 NTPM99AF APU, 2.4G,OMNI ANTENNA, 7dB gain 4 NTPM99AP APU, 2.4G,BI-DIRECTIONAL ANTENNA, 9dB Peak 5 NTPM99AE APU Antenna Mounting Kit / Tool 6 NTPM99CB R1.0 WLAN6220 CAP DOC,CD 7 NTPM99DA R1.0 WLAN6220 CAP SOFTWARE, CD 8 NTPM99CA R1.0 WLAN6220 CAP DOC,PAPER 9 NTPM99BC CSU, 2.4G,B RADIO, Flat Panel 10 NTPM99EG CSU Mounting Kit / Tool Figure 1-2 WLAN Cable Access Point 6220 APU Package Components Figure 1-3 WLAN Cable Access Point 6220 CSU Package Components 16 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 APU(Access Point Unit) The following is a list of WLAN Cable Access Point 6220 APU features: Enclosure has three sorts of connector which support the connection to CATV Cable Network, Antenna and Monitoring Equipment. Coaxial Port has the standard type of connector so that can be efficiently adapted to every connector regardless of the termination type of coaxial cable like “Trunk or Drop Cable” Operation Power and Data Traffic are mixed at a signal amplifier as TBA(Trunk Bridge Amplifier), PI(Power Inserter) and supplied to the coaxial port on the APU through coaxial cable. Monitoring Port can provide the safe testing method for measuring CATV signal to an installation engineer by attenuating RF power and protect AC power signal. Basically, Two kinds of mounting types are available for APU, such as a steel wire strand mounting and wall mounting, but in case of wall mounting, another optional bracket kit will be needed for installation. The available antennas are totally three types such as ‘Directional Type’, ’Bi-directional Type’ and ‘Omni-directional Type’ , which can be mounted on the front or rear cover of APU with a Universal Bracket. Cable Modem Module is compliant to DOCSIS 2.0(Cablelabs) as well as DOCSIS 1.1 and WLAN AP support the secure mode connection which mean that wireless traffic from APU and CSU is not scanned and detected by a conventional sniffing program like ‘Netstumbler’. 17 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Figure 1-4 APU (Top head) Figure 1-5 APU (Bottom) 18 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Figure 1-6 Inner Panel (APU) 19 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Figure 1-7 APU (Back) Figure 1-8 APU System Structure and Signal Flow 20 WLAN Cable Access Point 6220 NTPM99CA Rel 1.0 Issue 1 Aug 2004 Table 1-2. Modules and Connectors (APU) Item Label Description & Function 1 Clamp Module Provide strand mounting function to APU, Strand Clamp and Mount Bosses 2 Lid Bolt Lid Bolt for closing a case of APU enclosure 3 Antenna Mount Hole Screw Holes for mounting a APU antenna with a universal bracket 4 Reserved Port Reserved Location for a future upgrade and revision 5 Logo Panel Location for Nortel networks Logo 6 Cable Entry Port Port for coaxial cable connection. Trunk and Drop termination types are supported 7 Cable Adaptor Coaxial Adaptor Port to connect F-type Drop cable to APU Cable Entry Port 8 Monitoring Port Port reserved for safe testing of Cable RF signal. The signal on this port is attenuated by 20 dB 9 Antenna Port Port for antenna connection 10 LED Panel Provide the information for system operation status through LED Display 11 LED1(Power) Indicate Power is turned on ON Indicate a valid cable modem operation 12 LED2(Link #1) Flash Indicate that cable modem is linked up on the HFC network ON Indicates a Ethernet link between access point and cable modem 13 LED3(Link #2) Flash Indicates that the access point is transmitting or receiving data ON Indicates the 802.11b rad…

Text truncated - open the document above for the full version.

Solectron Technical Centre 21 Richardson Side rd Kanata ON K2K 2C1 · Canada Tel 613 271-5322 Fax 613 271-2581 http://www.solectrontechnicalctr.com/ November 13, 2004 Denis Lalonde Radio Compliance Discipline Leader American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: FCCID: SQD-WCAP6220APU & IC:5340A-6220APU Dear Sir or Madam: This is the FCC Part 15 and Industry Canada RSS-210 MPE report for the MTI Co. WLAN 6220 Access Point Unit. Test Specification The system was tested to the limits of the following requirement: Table 1: RF Exposure Requirement Requirement Part / Section FCC Part 1 1.1310 RSS-210 14. RSS-210 makes reference to the RSS-102 requirements. Limits The specification levels are listed in Table 2. Table 2: RF Exposure Limit Frequency Range (MHz) FCC and RSS 102 General Exposure Limit (mW/cm 2 ) 2412 to 2462 1.0 RF Exposure Evaluation Table 3 and Table 4 demonstrate the results of RF exposure calculations: Page 2 Table 3: EIRP Calculations Peak Power (W) Antenna gain EIRP (W) NTA2412 antenna NTA2407 antenna NTA2400 antenna NTA2412 antenna NTA2407 antenna NTA2400 antenna 0.0174 (12.3 dBm) 31.6 (15 dBi) 7.9 (9 dBi) 5 (7 dBi) 0.54 (27.3 dBm) 0.13 (21.3 dBm) 0.09 (19.3 dBm) Table 4: RF Exposure Evaluation Power Density at 20 cm (mW/cm 2 ) NTA2412 antenna NTA2407 antenna NTA2400 antenna FCC and Indsutry Canada RF Exposure limit (mW/cm 2 ) 0.11 0.026 0.018 1 The power density was calculated using the following equation. S = (P x G) / (4 x pi x R 2 ) where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Evaluation Conclusion and Attestation The MTI Co. WLAN 6220 Access Point Unit meets the FCC Part 15 and Industry Canada RSS 102 maximum permissible requirements. Please call me or write if you have any questions or comments. Regards, Denis Lalonde email: [email protected] Solectron Technical Centre

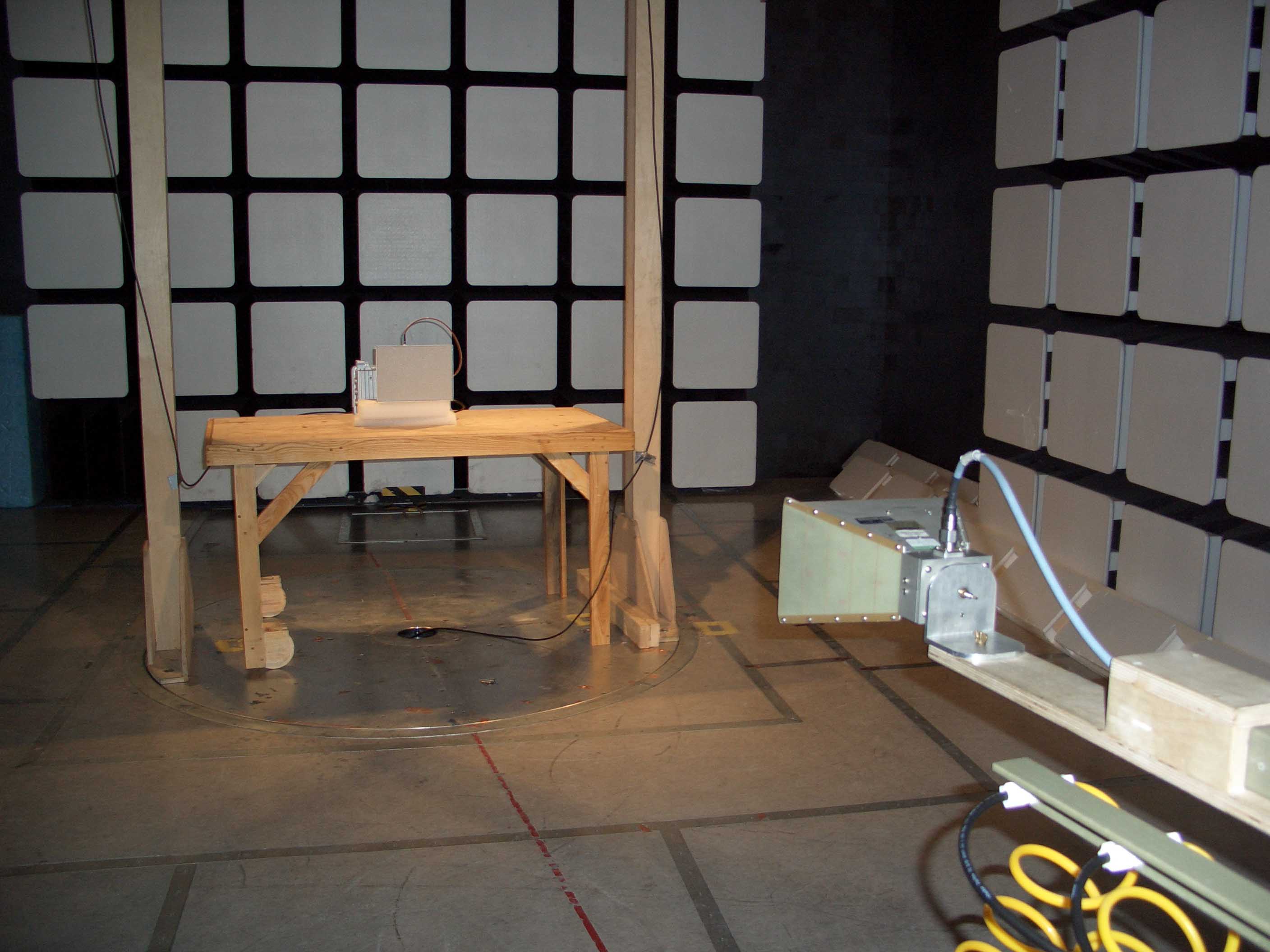

Certification Report for WLAN 6220 Access Point Unit FCC Part 15 & Industry Canada RSS-210 Document Number: KP000923-CR-RAD-03-01 Release Date: November 24, 2004 Prepared for: MTI Co., Ltd 166-10 Karak-Dong, Songpa-ku Seoul Korea, 138-810 Author: Denis Lalonde Radio Compliance Discipline Leader C-MAC Engineering Inc. A Solectron Company 21 Richardson Side Road, Kanata, Ontario, K2K 2C1 http://www.solectrontechnicalctr.com/ © Copyright C-MAC Engineering Inc. November 24, 2004 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at C-MAC Engineering Inc. Viewing of the master document electronically ensures access to the current issue. Any hard copies must be regarded as uncontrolled copies. C-MAC Engineering Inc. accepts no liability for the content of this document except when it is reproduced in its entirety by a method acceptable to C-MAC Engineering Inc. Certification Report for WLAN 6220 Access Point Unit FCC Part 15 & Industry Canada RSS-210 KP000923-CR-RAD-03-01 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at C-MAC Engineering Inc.. Viewing of the master document electronically ensures access to the current issue. Any hard copies must be regarded as uncontrolled copies. Page 2 of 76 Release date: November 24, 2004 Release Control Record This document is based on CEI document template KG000347-TR-EMC-03. Release no. Reason for change Date released 01 Original Release November 24, 2004 Approvals Accreditations C-MAC Engineering test facilities are accredited by the Standards Council of Canada (SCC) in accordance with the scope of accreditation outlined at the following web site http://www.scc.ca/scopes/reg126-eng-s.pdf. [1]. The SCC is a member of the APLAC [13] and ILAC [14] organizations which, through mutual recognition arrangements, provide accreditation of test facilities in the member countries. C-MAC Engineering is ISO 9001:2000 and ISO-IEC 17025 certified and its processes are documented in the C-MAC Engineering Quality Manual [2] and Lab Operations Manual [3]. KP000923-CR-RAD-03-01 Certification Report for WLAN 6220 Access Point Unit FCC Part 15 & Industry Canada RSS-210 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at C-MAC Engineering Inc.. Viewing of the master document electronically ensures access to the current issue. Any hard copies must be regarded as uncontrolled copies. Release date: November 24, 2004 Page 3 of 76 Table of Contents RELEASE CONTROL RECORD...............................................................................................2 APPROVALS................................................................................................................................2 ACCREDITATIONS....................................................................................................................2 TABLE OF CONTENTS..............................................................................................................3 LIST OF FIGURES......................................................................................................................5 LIST OF TABLES........................................................................................................................7 1. EXECUTIVE SUMMARY.....................................................................................................9 2. COMPLIANCE SUMMARY...............................................................................................10 3. EQUIPMENT UNDER TEST (EUT)..................................................................................11 3.1 PRODUCT FUNCTIONAL DESCRIPTION.............................................................................11 3.2 MANUFACTURER INFORMATION......................................................................................11 3.3 TRANSMITTER SPECIFICATIONS.......................................................................................12 3.4 SYSTEM COMPONENTS.........................................................................................…

Text truncated - open the document above for the full version.
