SRD10100Data Logger Base Unit

RTR500B Series Please Read First Terms to be Used Base UnitRTR500BC / 500BW Remote UnitRTR501B / 502B / 503B / 505B / 507B RepeaterRTR500BC (to expand the wireless communication range) Safety Precautions and Instructions The following items should be strictly obeyed for the safe usage of the product, and for protecting yourself and other people from bodily harm and/or damage to property. Before use, please carefully read and follow the safety precautions outlined below. Explanation of Symbols <Warning Symbols> DANGER These entries are actions that, if taken, may cause serious personal physical damage or death. CAUTION These entries are actions that if taken may lead to physical injury or damage to persons or things. <Picture Symbols> Denotes an import- ant warning or caution. Denotes a forbidden action. Denotes an action that should be carried out. DANGERTo Prevent Serious Accidents Do not disassemble, repair or modify the product and accessories. Do not use the product in any environment that is exposed to chemicals and harmful gases. Doing so may cause corrosion and/or other danger to the product. Also, coming in contact with hazardous substances may cause bodily harm to the user or people nearby. The RTR500B Series Base Units, temp-humidity sensors, and input modules (for RTR505B) are not water resistant. If liquid enters the product, immediately remove the power and stop using it. Do not touch the Base Unit or Repeater with wet hands. Do not connect or disconnect the power supply, cables, or sensors with wet hands. These actions may cause electric shock. Do not touch the product or AC adaptor during thunder and lightning. It may also cause electric shock. This product has been designed for private and/or industrial use only. It should not be used in situations where strict safety precautions are necessary such as with medical equipment, or in systems directly or indirectly connected with human life or well-being. Do not drop or expose the product to a strong impact. Do not modify or cut the communication cable, AC adaptor cord, or sensor. Also, do not twist, pull on or swing them. To prevent damage to the product from static electricity, remove static electricity from your body by touching metal around you (such as a door knob and window frame) before touching the unit. Please be careful not to touch the product during or after use in overly hot or cold environments. It may cause burns or frostbite. Place and store the product and accessories out of the reach of children. We are not responsible for any damage, malfunction or trouble, whether direct or indirect, caused by the use of our product. Do not use any power, battery, sensor, or cable other than those specified by T&D Corporation. Do not put anything on top of the product, AC adaptor or cable. It may cause overheating. Do not disconnect the communication cable during USB, LAN, or wireless communi- cation. Doing so may cause adverse effects to the Base Unit and/or PC. Make sure that the cable and AC adaptor are inserted fully, so as not to cause an improper connection. Also, when unplugging the cable from the unit, do not pull the cord, but hold the connector to disconnect. If the unit produces heat, emits smoke or a strange smell, or makes unusual noises, immediately remove the power supply and stop using it. If the unit is connected to the PC, disconnect it before removing the power supply. CAUTIONNotes about the Base Unit / Repeater • Do not use the product in wet areas or places exposed to water such as bathroom. • When connecting the product to your PC, make sure to follow all warnings and directions from your computer manufacturer. • We shall not guarantee the operation of the device if it has been connected to a PC using a USB hub or a USB extension cable. CAUTIONNotes about the Remote Unit • Contact with oil may cause cracks to appear in the casing of the unit. When using the unit in environments where such oils are present, please insure that it is protected from contact through use of a polyethylene bag or other means. • The following may cause water or foreign objects to enter the unit - Closing the case with dirt, dust, or hair on the rubber packing or between the unit and rubber packing - Scratches on the rubber packing - Involving a significant temperature change (especially from high to low) while the product is wet CAUTION Places not suitable for installation and storage (Base Unit / Remote Unit) • Areas exposed to direct sunlight • Areas subject to direct flames or heaters, as well as areas in which hot air accumulates and creates extremely high temperatures • Areas exposed to static electricity • Areas exposed to strong magnetic fields • Areas exposed to dampness • Areas subject to condensation or wet areas • Areas exposed to excessive vibration • Areas exposed to excessive smoke, dust or dirt. CAUTIONOther Precautions • Use the product in the specified operating environment, and do not use in any other purposes than those intended. • Condensation may occur inside the case when the product is moved from one environ- ment to another where there is a great difference in temperature. Do not use in areas susceptible to condensation. • Do not insert any foreign objects into any of the units' jacks. • If the unit gets dirty, wipe it with a clean cloth. • Make sure to remove dust and dirt from connection interfaces of the AC adaptor, cables, and sensors. • Please note that this document has been written based on the presupposition that details about contracts with an Internet provider, specific network environments and the set-up of any other necessary equipment to enable network connection has already been taken care of by the User and that connection has been confirmed as workable. T&D Corpora- tion shall not be responsible for any damages which a contractor, a user or a third party may suffer, whether direct or indirect, due to the inability to communicate or use communication devices. • Please be careful not to l…

Text truncated - open the document above for the full version.

Network Base Station RTR500BW Getting Started Guide tandd.com © Copyright T&D Corporation. All rights reserved. 2020. 09 16508150004 (1st edition) Terms used in this Guide Base UnitRTR500BW Remote UnitRTR501B / 502B / 503B / 505B / 507B, RTR-501 / 502 / 503 / 505 / 507S / 574 / 576 RepeaterRTR500BC/ RTR-500 (when used as a Repeater) Current ReadingsThe most recent measurements recorded by a Remote Unit Recorded DataMeasurements stored in the Remote Unit Thank you for purchasing our product. This document describes basic settings and simple operations for using this product with T&D WebStorage Service. What can the RTR500BW do? The RTR500BW is a Base Unit equipped with wired and wireless LAN func- tionality. Measurement data gathered via wireless communication from target Remote Units can be automatically uploaded to our cloud storage service “T&D WebStorage Service”. Remote monitoring, warning monitor- ing and device settings can also be carried out via the cloud service. Also equipped with Bluetooth ® and USB functions, it can be set on either a smartphone or a PC. Router Wireless Communication Wireless Communication Red Lamp, Siren, etc... Wired LAN Wireless LAN Measure / RecordCollect / Upload Data View / Analysis Storage / Warning Warning mail Product Specifications Compatible Devices Remote Units: RTR501B / 502B / 503B / 505B / 507B RTR-501 / 502 / 503 / 507S / 574 / 576 / 505-TC / 505-Pt / 505-V / 505-mA / 505-P (*1) (Including L Type and S Type) RTR-601-110 / 130 / E10 / E30 (*1) Repeaters: RTR500BC RTR-500 (*1) Maximum Number of Registrations Remote Units: Up to 50 Repeaters: 10 units x 4 groups Communication Interfaces Short Range Wireless Communication Frequency Range: 902 to 928MHz RF Power: 7mW Transmission Range: About 150 meters (500 ft) if unobstructed and direct Wired LAN (RJ45 connector 100 Base-TX/10 Base-T) Wireless LAN (IEEE 802.11 a/b/g/n, WEP(64bit/128bit) / WPA-PSK(TKIP) / WPA2-PSK(AES) Bluetooth 4.2 (Bluetooth Low Energy) For settings USB 2.0 (Mini-B connector) For settings Optical Communication:(proprietary protocol) Communication Time Data Download Time (for 16,000 readings) Via wireless communication: About 2 min. 20 sec 30 seconds of time should be added for each Repeater. (*2) External Output Terminal: PhotoMOS Relay Output OFF-State Voltage: AC/DC 50V or less ON-State Current: 0.1 A or less ON-State Resistance: 35Ω Communication Protocol (*3) HTTP, HTTPS, FTP, SNTP, DHCP PowerAC Adaptor: AD-05A4 PoE IEEE 802.3af DimensionsH 83 mm x W 102 mm x D 28 mm (excluding antenna) Antenna Length: 90 mm WeightApprox. 125 g Operating Environ- ment Temperature: -10 to +60°C Humidity: 90%RH or less (without condensation) Software RTR500BW for Windows, T&D Graph, T&D 500B Utility Compatible OS (*4)PC Software Microsoft Windows 10 32 / 64bit Microsoft Windows 8 32 / 64bit Microsoft Windows 7 32 / 64 bit (SP1 or later) Mobile Application Android OS, iOS (Check compatibility on the Software page of our website) *1: RTR-500 Series loggers and Repeaters, as well as, RTR-601 Series loggers do not have Bluetooth capability. *2: When using RTR500BC. Depending upon conditions it may take up to an additional 2.5 minutes. *3: Client Function *4: For installation, it is necessary to have Administrator (Computer Administrator) rights. The specifications listed above are subject to change without notice. About the LED Display LED Status Details ON BLINKING OFF ACTIVE • Network communication available • Connected via USB ACTIVE • Communication in progress... DIAG • Initializing after power on • Network transmission failure ACTIVE DIAG Autonomic operation stopped • Time acquisition failure or time has not been set • No Remote Units have been registered • No settings for autonomic operations such as warning monitoring and sending current readings have been made. • If other settings are incomplete ACTIVEDIAG • Unable to connect to the wireless LAN access point. • IP address cannot be received from DHCP server CH BUSY • Assigned wireless frequency channel is being used by another wireless device • Wireless communication failed due to noise generated by electronic devices near Base Unit W-LAN • Wireless LAN Communication Possible (Wired LAN Communication not available) ALARM Warning Issued • One of the following warnings was issued: Upper or Lower Limit Exceeded, Wireless Communication Error, Sensor Error, Low Battery Package Contents Before using this product, please confirm that all of the contents are included. RTR500BWUSB Cable US-15C AC Adaptor AD-05A4 Registration Code Label Manual Set (Warranty Included) Part Names FrontSideSide Antenna Optical Communication Area Power LED (green) Bluetooth Communication LED (blue) ON: Bluetooth Communication is set to ON BLINKING: Bluetooth Communication in progress... ACTIVE LED (green) DIAG LED (orange) CH BUSY LED (orange) W-LAN LED (green) Warning LED (red) External Output Terminal LAN Cable Connector PoE (orange) ON: recharging LINK (green) Blinking: connected to LAN AC Adaptor Jack USB Port Installing the Mobile App Install the mobile app “T&D 500B Utility”. Search for "TandD 500B Utility" in Google Play for Android devices and in the App Store for iOS devices. Install the T&D 500B Utility app to your target smart phone or tablet. * Compatible with Android OS and iOS. For details use the QR code to visit the web site. Registering as a Base Unit . Open T&D 500B Utility. . Connect the Base Unit with the supplied AC adaptor to a power source. . From the list of [Nearby Devices] tap the one you wish to use as a Base Unit; the Initial Settings wizard will open. The factory default password is "password". . Enter the following information in the [Base Unit Settings] screen and click the [Next] button. Base Unit NameAssign a unique name for each Base Unit. Base Unit PasswordEnter a password here for connecting to the Base Unit via Bluetooth or LAN. * If you forget the password, reset it by connecting the Base Unit to a PC via USB. See STEP 2 of [Setting…

Text truncated - open the document above for the full version.

Installing the Software Download RTR500BC for Windows and T&D Graph from the T&D Web- site and install them to your PC. * Do not connect the Base Unit to your computer until the software has been installed. tandd.com/software/rtr500bcforwin.html tandd.com/software/td_graph.html Software Settings . Open the RTR500BC for Windows, and then open RTR500BC Settings Utility. . In the [Base Unit Settings] window, assign a unique name for each Base Unit. . Check and make any necessary changes to settings in the [Monitor- ing / Warning Settings] and [Auto-Download Settings] windows. The default settings are as follows: • Monitoring: ON, Monitoring Interval: 10 min. • Auto-download: ON, everyday at 9:00 a.m. • Warning Monitoring : OFF Registering a Remote Unit . Connect the RTR500BC with the supplied USB cable to your computer. . Have the target data logger on hand and in the [Remote Unit Set- tings] window click on the [Register] button. . Follow the on-screen instructions and connect the Remote Unit to the RTR500BC. Upon recognition of the logger the [Remote Unit Registration] window will appear. RTR50 B / 50 B / 50 B / 505B / 507B Place a Remote Unit face down on the RTR500BC. * Make sure the optical communication area faces down and is aligned with the optical communication area of the Base Unit. RTR-574 / 576 For RTR574/576 units, connect directly to PC with a USB cable. If the [Remote Unit Registration] window does not appear: The USB driver may not have been installed correctly. Please see [Help for Unit Recognition Failure] and check the USB driver. 4. Enter the following information, and click [Register]. Upon Remote Unit Registration, changes in Recording Interval, and the starting of a new recording, all recorded data stored in the Remote Unit will be deleted. Group NameEnter a name for each Group to make it identifiable depending on which frequency channel it is using. If you wish to register a logger to an already registered Group, select the name of the target Group. Remote Unit Name Assign a unique name for each Remote Unit. Communication Frequency Channel* Select a frequency channel for wireless communication between the Base Unit and Remote Units. When installing multiple Base Units, make sure to select channels that are far apart in order to prevent interference of wireless commu- nication between the Base Units. Recording Mode One-Time mode Endless mode Upon reaching logging capacity, recording will automatically stop. Upon reaching logging capacity, the oldest data will be overwritten and recording will continue. Recording Interval Select the desired interval. Warning Monitoring To carry out Warning Monitoring, select ON. Settings can be made in each Remote Unit for "Upper Limit" or "Lower Limit" and for "Judg- ment Time". DownloadingTo carry out Auto-downloading of Recorded Data, select ON. Channels for Alternating Display Here you can select the measurement items you wish displayed in the RTR-574 LCD when the unit is using "Alternating Display" as the display mode. Button LockTo lock the operation buttons on RTR-574/576 units, select ON. Only the <DISPLAY> button will be functional for Remote Units when the button lock has been set to ON. * This setting can only be made when creating a New Group. Once a Registration has been made, changes cannot be made. If you wish to make changes to the communication frequency channel, you must re-register the Repeater into a New Group. Below are some examples of recording intervals and maximum recording times. RTR501B / 502B / 505B (Logging Capacity: 16,000 readings) EX: Recording Interval of 10 seconds x data readings of 16,000 = 160,000 minutes or about 111 days. RTR503B / 507B / RTR-574 / 576 (Logging Capacity: 8,000 readings) EX: Recording Interval of 10 seconds x data readings of 8,000 = 80,000 minutes or about 55.5 days. 5. Upon completion of Remote Unit Registration, the logger will auto- matically start recording. If you wish to register other Remote Units, repeat procedures from . . If you want to start recording at a desired time, open the [Remote Unit Settings] widow, and click the [Start Recording] button to start a new recording session. Installing the Device . Place the device in the measurement location. The wireless communication range, if unobstructed and direct, is about 150 meters (500ft.). . In the Settings window, open [Wireless Route Settings]-[Test Signal Strength]. . Click [Start] to begin the signal check. When completed, click [Close]. The result will appear. How to Read Signal Strength Results Communication is stable. Communication is unstable. If communication errors repeatedly occur, reposition the Remote Unit or add a Repeater. If no antenna mark appears, a communication error has occurred. Try to reposition the Remote Unit or add a Repeater. • Please refer to section [Notes and Precautions for Installing Wireless Communica- tion Devices] under [Please Read First] • By using a Repeater, it is possible to bypass obstacles and extend the wireless communication range. For details, please see on the back of the printed version of this document. Wireless Base Station RTR500BC Getting Started Guide tandd.com © Copyright T&D Corporation. All rights reserved. 2020. 09 16508010005 (1st Edition) Thank you for purchasing our product. The RTR500BC can be used either as a Base Unit or a Repeater. If you are going to use this product as a Repeater there is no need to install the software RTR500BC for Windows for this product. Please see section “Using as a Repeater” on the back side of the printed version of this guide. . Using as a Base Unit Using the T&D WebStorage Service Via E-mail ・warning Mail ・Recorded Data ・Current readings ・Recorded Data ・Current readings BaseUnit USB Remote Unit(s) Monitoring Current ReadingsGather Recorded Data / View GraphsWarning Info *See the explanation in the "RTR500B Series Help". Network A warning (or warning cancellation) has occurred in the RTR500BC Data Viewer. Please check the warning l…

Text truncated - open the document above for the full version.

L JIii& .. , ■''"' ., ,, 817-1 Shimadachi Matsumoto, Nagano 390-0852 Japan TEL +81-263-40-0131 FAX +81-263-40-3152 http://www.tandd.com/ October 1 6, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 20146 S UBJECT: Confidentiality request regarding applications for certification of FCC ID: SRD10100 and FCC ID: SRD50100 T o Whom It May Concern: Pursuant to Sec tions 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below. Schematics, block diagrams, circuit descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful t o the applicant and provide unjustified benefits to its competitors. Regards, a.o� Akemi Oana International Business Department Chief TandD Corporation T & D CORPORATION

L JIii& .. , ■''"' ., ,, 817-1 Shimadachi Matsumoto, Nagano 390-0852 Japan TEL +81-263-40-0131 FAX +81-263-40-3152 http://www.tandd.com/ October 16, 2020 Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Aapplications for certification of FCC ID: SRD10100 Models: RTR500BC and RTR500BW To Whom It May Concern: We are submitting an applica tion for certification for our FCC ID: SRD10100, Models RTR500BC and RTR500BW. The RF Portion o f these two models is electronically identical. The only difference between the two models is that model RTR500BW contains a LAN/Wireless Lan interface. Regards, a.o� Akemi Oana International Business Department Chief TandD Corporation T & D CORPORATION

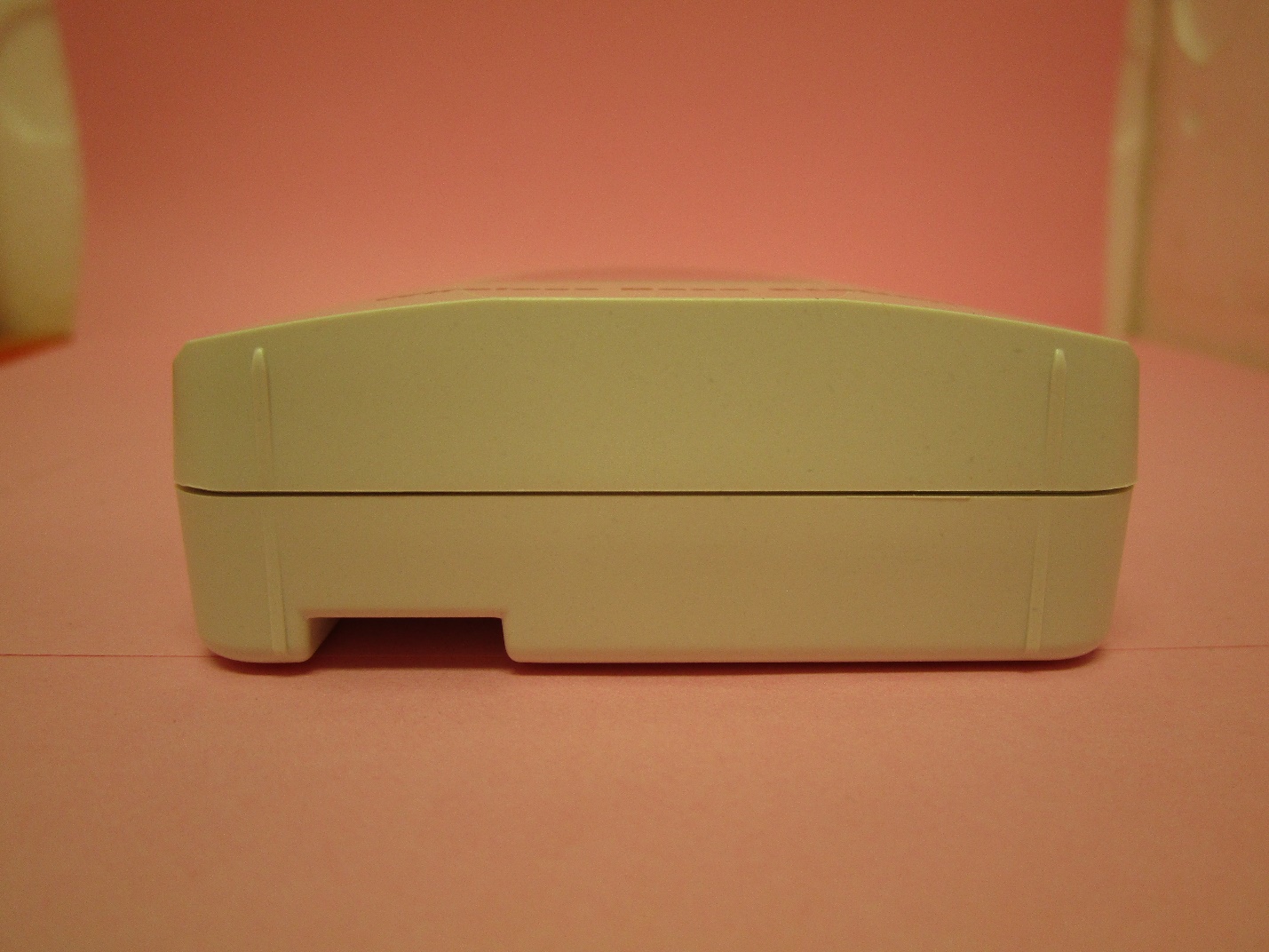

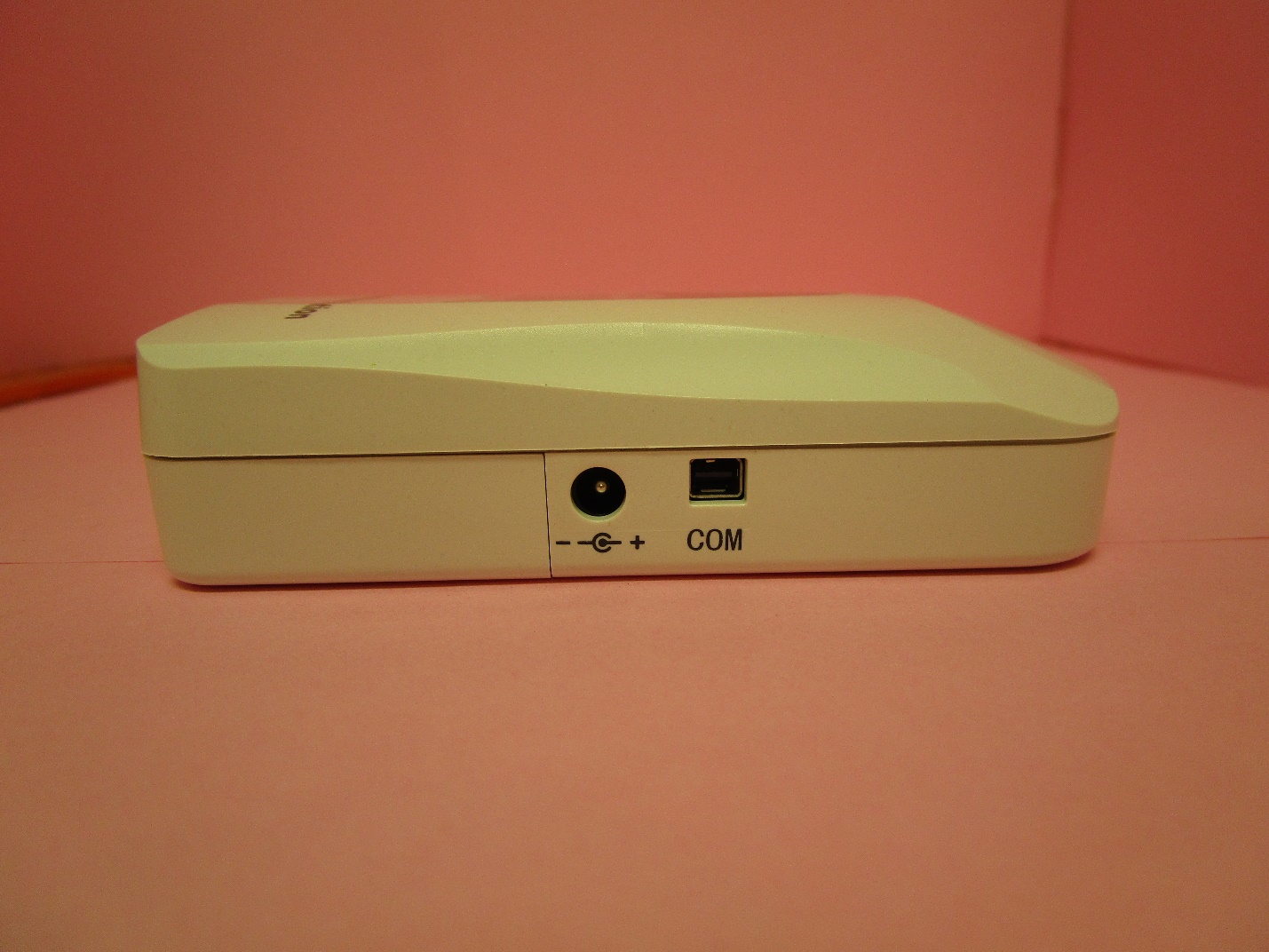

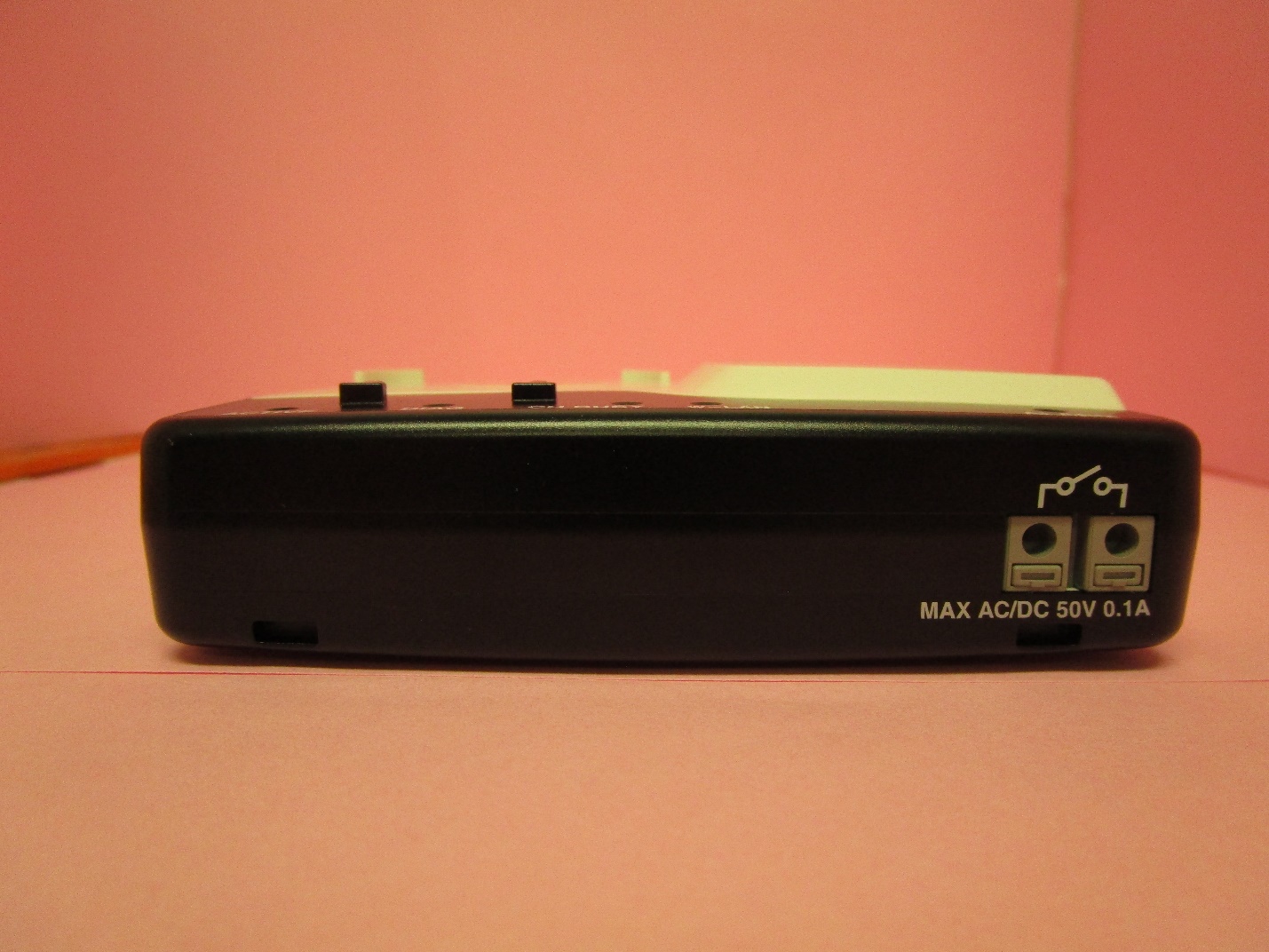

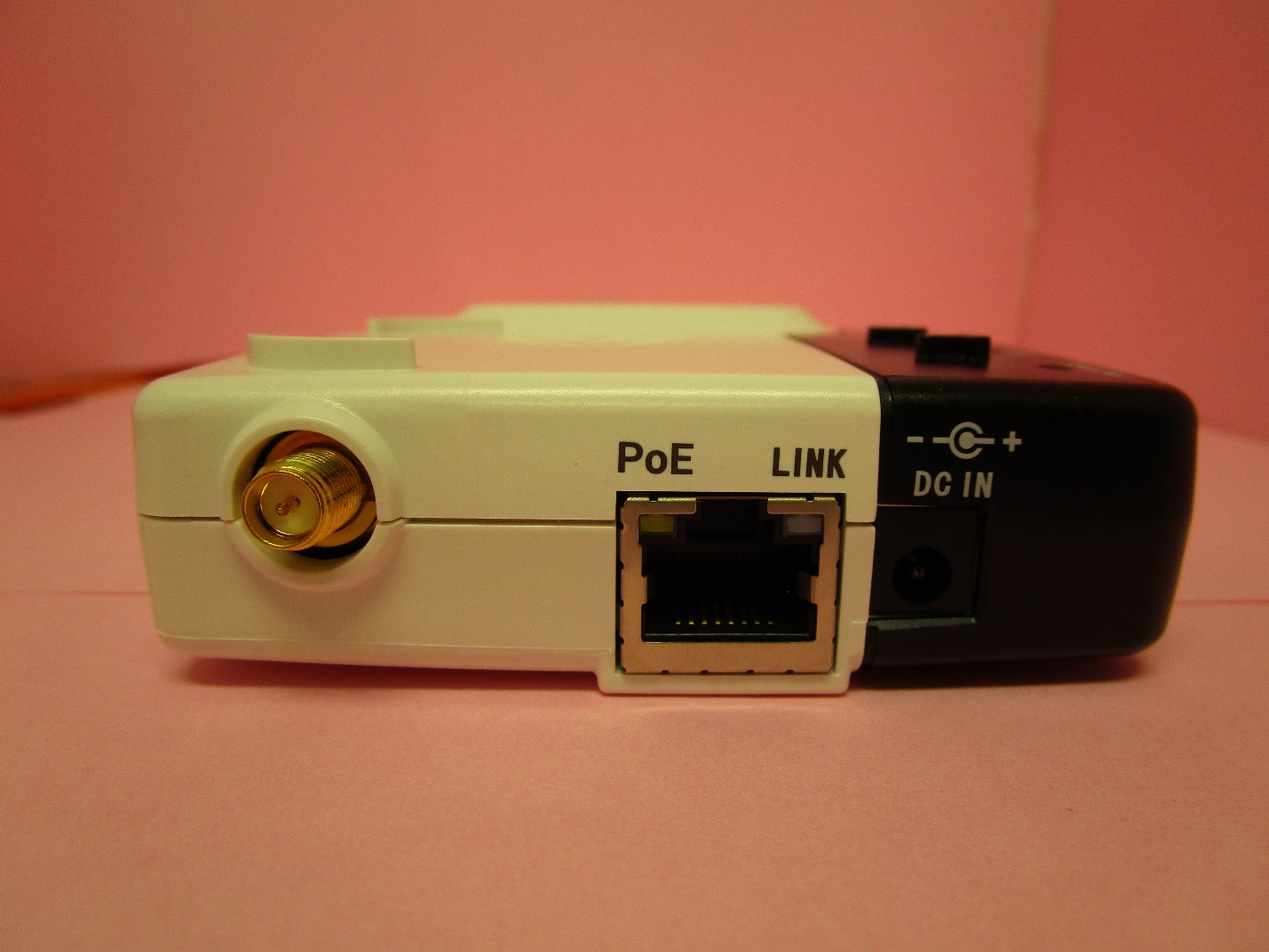

Applicant: T&D Corporation FCC ID: SRD10100 IC: 5558A-10100 External Photos Model: RTR500BC FRONT VIEW REAR VIEW Top View Bottom View Left Side Right Side Model: RTR500BW Front View Rear View Top View Bottom View Left Side View Right Side View

65.8 200 96 TANDD Wireless Base Station USB 24.4 COM Serial No. 認証ｼｰﾙ貼付位置 Authentication label here. 設計 製図 検図 承認 内 容 年 月 日 担当 株式会社 ティアンドデイ 材料 処理 品名 製品コード 0 0.5 0.5 6 6 30 30 120 120 350 350 1000 ±0.05 ±0.1 ±0.5 ±0.8 1 2 3 ±0.2 ±0.3 差 公 度 尺 量 数 Doc.No. 1:1 20.09.08 福田 RTR500BC（US) 外観図
