SSNBTM900Wireless Mouse

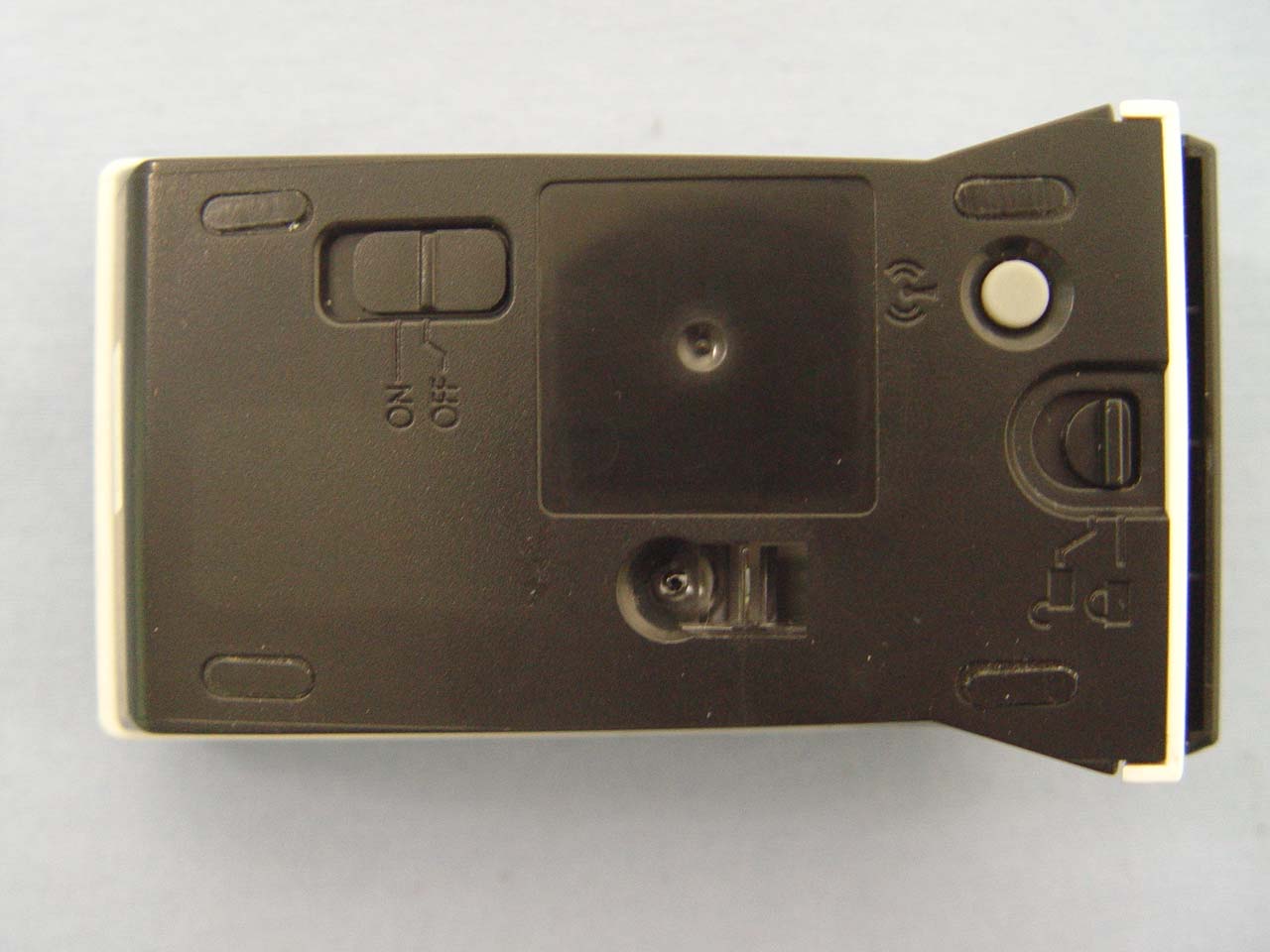

 Appearance English . Right Button 2. Scrolling Wheel 3. Left Button 4. Low-Power-Alert LED (Orange) 5. Spare USB Power Supply Jack 6. Sensor LED (Red) 7. Upper Cover Lock 8. Receiver Link Button 9. Power Switch Before Using . Install Batteries. 2. Turn the power on. 3. Pair the BTM-900 Bluetooth Mouse with your computer. Install Batteries Note: Please make sure that your Bluetooth software supports HID (Human Interface Device) profile before the pairing process. Un-lock the Upper Cover Lock. . 2 English Remove the upper cover. Install two AAA batteries into the BTM-900 Bluetooth Piano Mouse’s battery slot (if you had installed the batteries, please remove the old one before install the new batteries). 2. 3. Pairing Process - For Windows XP SP2 Press the Pairing button on the bottom of the mouse for connection link. . Open the Windows control panel, then select “Bluetooth devices”. Click “Add...” Select “My device is setup and ready to be found”, then click “Next”. In “Peripherals (keyboards, mice, joysticks)”, select BTM-900, then click “Next”. Select “Don’t use a passkey”, then click “Next”. The windows will start to connect BTM-900 automatically. Please press Finish button after the connection process completed. 2. 3. 4. 5. 6. 7. Once the connection between BTM-900 Bluetooth Mouse and your computer is established, the connection will keep permanently. That means the connection will re-establish automatically when the Windows runs. 3 English - For Mac OS X 10.2.6 or later Press the Pairing button on the bottom of the mouse for connection link. Click the Bluetooth icon n the task bar and select “Setup Bluetooth device”. Click “Continue” when the “Bluetooth Setup Assistant” shows up. Choose “Mouse” and then press “Continue” to the next step. The “Piano BTM-900 Mouse” is found by Bluetooth, please press “Continue” to the next step. Click “Continue” when the “Passkey exchange with your mouse” shows up. The process is finished successfully. The BTM-900 Piano Mouse is working now. . 2. 3. 4. 5. 6. 7. Now you can use the BTM-900 Bluetooth Piano Mouse wirelessly with Bluetooth-enabled Apple computer. Afterward, the connection of the two Bluetooth-enabled devices will re-establish automatically when the Mac OS X runs. Button Switch Press and hold both buttons for 3 seconds, then release buttons.. The left button and right button had been functional reversed. 2. 4 English If you want to switch buttons back to its original functional definition, please repeat the above step  and step 2 for change. 3. Spare USB Power Supply Insert USB connector of spare USB power cable into your laptop. . Insert DC power connector of spare USB power cable into your BTM-900 2. Conserving power Do not use your mouse for five minutes. After five minutes of inactivity, the mouse automatically enters Sleep mode to conserve batteries’ power. To wake up the mouse, just move the mouse or click either mouse buttons. . 2. When the mouse batteries are running low on power, the LED light on the Mouse turns orange, and blink. To use your mouse’s Sleep mode based on the below setps: Table OF Contents English 1 Español 5 Italiano 9 Deutsch 13 Françai 17 Russkey 21

Date: Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

LG Electronics Inc. Federal Communications Commission Authorization and Evaluation Division FCC ID: SSNBTM900 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

1 Helen Zhao Subject: FW: FW: LG Electronics Inc., FCC ID: SSNBTM900, Assessment NO.: AN07T6418, Notice# 1 BTM-900 Test Report revised 01... BTM-900 Internal Photo revised... BTM-900 Label Smp & Loc revise... From: amanda.wu Sent: Sunday, January 07, 2007 7:36 PM To: Helen Zhao Subject: Re:FW: LG Electronics Inc., FCC ID: SSNBTM900, Assessment NO.: AN07T6418, Notice#1 Dear Helen: Please see my reply, thank you. Best Regards, Amanda -----Original Message----- Sent: Friday, January 05, 2007 6:34 PM Subject: LG Electronics Inc., FCC ID: SSNBTM900, Assessment NO.: AN07T6418, Notice#1 Question #1: The FCC ID label format shows FCC DoC logo. Please explain why this device is subject to FCC DoC. Is the USB cable used for data transmission? Ans: This USB cable just has charging function only, it can't transmission via the USB cable, so the FCC DoC logo had been remove. Question #2: The test setup photos show a test jig was used for testing, RF conducted port test photo shows a board which does not match the internal photo. Please update the test report to specify clearly, please provide a close view of test setup in test setup photos or provide a detailed test setup diagram in the test report. Ans: Please see page 11 on the test rereport. Question #3: Please check the internal photos exhibit. Is it the correct exhibit for this application? Please advise where is the Broadcom chipset BCM2040. It seems you submitted the exhibit for AN07T6421. Ans: Sorry, it's human error, please have the internal photos again. 2 Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

LG Electronics Inc. Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the LG Electronics Inc. beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the B…
