SSNCMR900Wireless Dongle

1 Appearance English 1. Right Button 2. Scrolling Wheel 3. Left Button 4. Low-Power-Alert LED (Orange) 5. Sensor LED (Red) 6. Upper Cover Lock 7. Receiver Link Button 8. Power Switch Before Using 1. Install Batteries. 2. Turn the power on. 3. Connecting the receiver to the laptop 4. Linking the mouse and receiver for connection - Mouse Body - Receiver 1. Receiver link button 2. build-in LEDs (including 1 green & 1 red) 2 English Remove the upper cover. Install two AAA batteries into the CM-900/ 2.4GHz Piano Mouse’s battery slot (if you had installed the batteries, please remove the old one before install the new batteries). 2. 3. Plug the USB receiver into an available USB port on your laptop. The receiver’ s LED turns green, and blink, and then your laptop identifies the receiver while a default driver is installed. Connecting the receiver to the laptop Install Batteries Un-lock the Upper Cover Lock. 1. 3 English Important: If a message or dialog box appears on the screen, follow the on-screen prompts to complete the driver installation. - Communications link is as the below steps : Press and release the link button on the receiver. The receiver lights first blinks in green when the receiver is activated, and then turn off. Press and release the link button on the bottom of the mouse. The two devices establish their communication link. The receiver lights first blinks in green, and per mouse motions could be detectable and reflected as well as green blinks. 1. 2. Button Switch Press and hold both buttons for 3 seconds, then release buttons.1. Linking the mouse and receiver The mouse has 256 identification codes that allow the mouse and its receiver to operate without interference from other RF devices. After your computer detects the USB receiver and then default driver is installed, you must make a communications link between the mouse and its receiver before you can use the mouse. 4 English Conserving power of the Piano Mouse body Do not use your mouse for five minutes. After five minutes of inactivity, the mouse automatically enters Sleep mode to conserve batteries’ power. To wake up the mouse, just move the mouse or click either mouse buttons. 1. 2. When the mouse batteries are running low on power, the LED light on the Mouse turns orange and blink; and the LED inner the Receiver lights as well as the index in red. To use your mouse’s Sleep mode based on the below setps : If you want to switch buttons back to its original functional definition, please repeat the above step 1 and step 2 for change. 3. The left button and right button had been functional reversed. 2. Table OF Contents English 1 Español5 Italiano 9 Deutsch 13 Françai17 Russkey 21 EHU!Xbsojoh!Tubufnfou! ! ಃΜΒచ!!࿶ࠠԄᇡ᛾ӝ਱βեф౗৔ᓎႝᐒǴߚ࿶೚ёǴϦљǵ୘ဦ٬܈Ҕ֡ޣ! όளᏰԾᡂ׳ᓎ౗ǵуεф౗܈ᡂ׳চ೛ीβ੝܄ϷфૈǶ!!! ! ಃΜѤచ!եф౗৔ᓎႝᐒβ٬Ҕόளቹៜ०ૐӼӄϷυᘋӝݤ೯ߞǹ࿶ว౜Ԗυ! ᘋ౜ຝਔǴᔈׯ๓ԿคυᘋਔБளᝩុ٬ҔǶ߻໨ӝݤ೯ߞǴ٩ࡰႝݤߞೕۓբ཰! βคጕႝ೯ߞǶեф౗৔ᓎႝᐒ໪ڙהӝݤ೯܈ߞπ཰ǵࣽᏢϷᙴᕍҔႝݢᒟ৔܄! ႝᐒ೛ഢβυᘋǶ! ! GDD!xbsojoh!tubufnfou;!! ! Zpv!bsf!dbvujpofe!uibu!dibohft!ps!npejgjdbujpot!opu!fyqsfttmz!! bqqspwfe!cz!uif!qbsuz!sftqpotjcmf!gps!dpnqmjbodf!dpvme!wpje!! zpvs!bvuipsjuz!up!pqfsbuf!uif!frvjqnfou/! ! Uijt!efwjdf!dpnqmjft!xjui!qbsu!26!pg!uif!GDD!svmft/!Pqfsbujpo!jt!! tvckfdu!up!uif!gpmmpxjoh!uxp!dpoejujpot! ! )2*ǸUijt!efwjdf!nbz!opu!dbvtf!ibsngvm!joufsgfsfodf!boe!! ! )3*ǸUijt!efwjdf!nvtu!bddfqu!boz!joufsgfsfodf!sfdfjwfe-!jodmvejoh!! joufsgfsfodf!uibu!nbz!dbvtf!voeftjsfe!pqfsbujpo!! ! 2/ǸUijt!usbotnjuufs!nvtu!opu!cf!dp.mpdbufe!ps!pqfsbujoh!jo!! dpokvodujpo!xjui!boz!puifs!boufoob!ps!usbotnjuufs/! ! ! This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help.

Date: Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

LG Electronics Inc. Federal Communications Commission Authorization and Evaluation Division FCC ID: SSNCMR900 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

1 Helen Zhao Subject: FW: FW: LG Electronics Inc., FCC ID: SSNCMR900, Assessment NO.: AN07T6423, Notice# 1 CMR-900 User Menual Revised 01.. -----Original Message----- From: amanda.wu [mailto:[email protected]]On Behalf Of application Sent: Sunday, January 07, 2007 6:15 PM To: Helen Zhao Subject: Re:FW: LG Electronics Inc., FCC ID: SSNCMR900, Assessment NO.: AN07T6423, Notice#1 Dear Helen: Please see my reply, thank you. Best Regards, Amanda -----Original Message----- Sent: Friday, January 05, 2007 6:47 PM Subject: LG Electronics Inc., FCC ID: SSNCMR900, Assessment NO.: AN07T6423, Notice#1 Question #1: This device is a PC peripheral, please add 15.105(b) statement into the user manual. Ans: The 15.105(b) statement added into the userman, please see attachment. Best Regards, Helen The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the 2 sender.

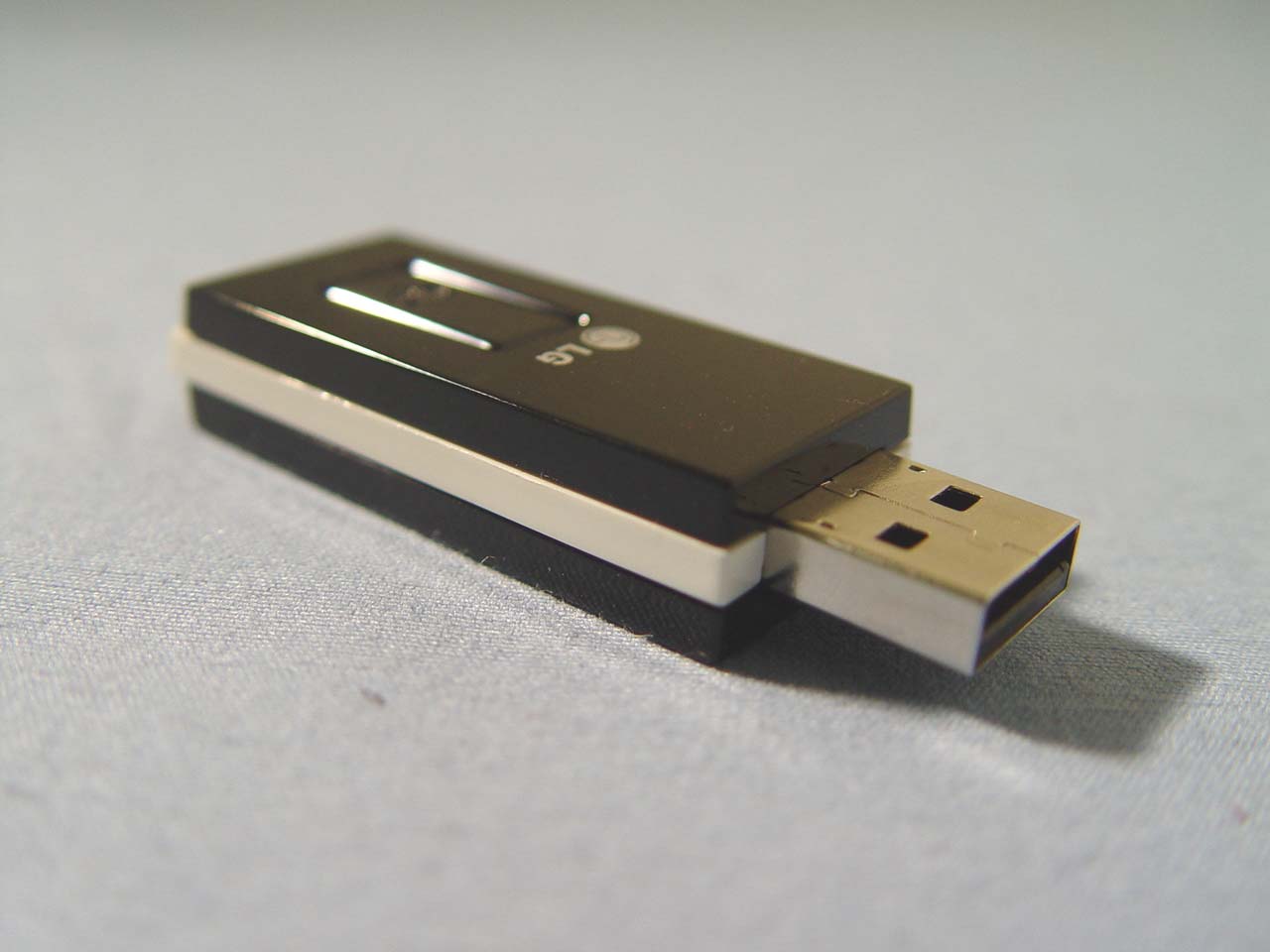

Compliance Certification Services Inc. Report No.: 61214007 Date of Issue: January 4, 2007 Page 1 Total Page: 3 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: 61214007 Date of Issue: January 4, 2007 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61214007 Date of Issue: January 4, 2007 Page 3 Rev.00

Compliance Certification Services Inc. Report No.: 61214007-RP1 FCC ID: SSNCMR900 Date of Issue: January 4, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 27 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Wireless Dongle Model Number: CMR-900 Tr a d e Na me : L G Issued to LG Electronics Inc. 50 Hyangjeong-dong, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, Seoul 361-480, Korea Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61214007-RP1 FCC ID: SSNCMR900 Date of Issue: January 4, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................................ 3 2. EUT DESCRIPTION...................................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................................... 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION................................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED.................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES .................................................................................................................................. 8 5.2 EQUIPMENT................................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................................10 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 10 6.2 SUPPORT EQUIPMENT ........................................................................................................ 10 7. FCC PART 15.249 REQUIREMENTS ........................................................................................................ 11 7.1 BAND EDGES MEASUREMENT ......................................................................................... 11 7.2 SPURIOUS EMISSION .......................................................................................................... 16 7.3 POWERLINE CONDUCTED EMISSIONS........................................................................... 23 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................................................26 Compliance Certification Services Inc. Report No.: 61214007-RP1 FCC ID: SSNCMR900 Date of Issue: January 4, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Dongle Trade Name LG Model Number CMR-900 Model Discrepancy N/A Power Supply Powered from host device Frequency Range 2402 MHz ~ 2480 MHz Modulation Technique GFSK Antenna Gain -14.18dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: SSNCMR900 filing to comply with Section 15.107 & 15.109 and Section 15.207, 15.209, 15.249. Compliance Certification Services Inc. Report No.: 61214007-RP1 FCC ID: SSNCMR900 Date of Issue: January 4, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.107 and 15.109 under the FCC Rules Part 15 Subpart B and Section 15.207, 15.209,15.249 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4 Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61214007-RP1 FCC ID: SSNCMR900 Date of Issue: January 4, 2007 Page 26 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: 61214007-RP1 FCC ID: SSNCMR900 Date of Issue: January 4, 2007 Page 27 Rev. 00 Powerline Conducted Emissions Setup Photos
