SSNUBIULG USB Drive

REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E. USER’S MANUAL L L G G U U S S B B D D r r i i v v e e Introduction Thank you for purchasing the USB Drive. Read this Manual carefully to use the USB Drive product you purchased faster and more efficiently. Warning z Don’t try to dismantle the product or remove its parts. z To avoid electric shock, don’t hold the product with a wet hand. z Don’t put the product in water or any fluid. Don’t use the product right away whenever this happens, otherwise its system and devices may be damaged. z Don’t put the product in a highly magnetic place, otherwise there will be a great chance of damage of product or data loss. z Don’t put the product in a high-temperature or high-heat-source place. LG USB Drive User Manual L L G G U U S S B B D D r r i i v v e e L L G G U U S S B B D D r r i i v v e e Copyright 2004 LG Electronics Inc. LG Electronics Inc. owns the copyright of both this User’s Manual. The product is subject to change for improvement without advance notification, and the contents of the actual installation and use of the product can be somewhat different from those outlined in the User’s Manual. Registered Trademark L L G G U U S S B B D D r r i i v v e e LG XTICK USB Drive is a registered trademark of LG Electronics Inc. Microsoft, Windows 98, 98SE, ME, 2000, and XP are official registered trademarks of Microsoft Corporation. Company names and product names other than the registered trademarks are the trademarks of their corresponding owners. L L G G U U S S B B D D r r i i v v e e Contents About Hi-Speed USB Drive A. Functions B. System Requirements C. Product Specifications How to Use Hi-Speed USB Drive A. Connecting Hi-Speed USB Drive B. Reading / Writing Data or Files C. Removing Hi-Speed USB Drive Main Functions The secure privacy function of DiskSafe A. Creating a secure privacy zone B. Using a secure privacy zone C. Changing a password D. Altering the capacity of a secure privacy zone E. Privacy function Frequently Asked Questions L L G G U U S S B B D D r r i i v v e e About Hi-Speed USB Drive Hi-Speed USB Drive is a high-speed USB 2.0 storage device in line with modern technological trend, applicable to USB 2.0 and backward compatible with USB 1.1. Hi-Speed USB Drive has multiple powerful functions, namely retrieval, copying and deletion of files of any format, fast transmission and exchange of data and files, unlimited application of functions, and a highly secure privacy function. Since Hi-Speed USB Drive is not a heavy burden on you at all, you can always bring it along, to use it readily wherever you go, have access to every computer located anywhere, and always have important data at hand to let you be ahead of your rivals. In short, Hi-Speed USB Drive is an innovative storage device indispensable to daily life. A. Functions z Totally conforms to the general standards of USB 2.0 and 1.1. z Offers a choice of capacity, i.e. 32MB, 64MB, 128MB, 256MB, 512MB, 1GB, and 2GB. z Highly efficient writing / reading speed. z Supports plug and play. z External power not required; supports USB Bus Power. z Data retention up to 10 years. z No driver has to be installed in operating systems like Windows 98*, ME, 2000, and XP,. * Windows 98 requires drivers B. System Requirements z IBM PC/AT compatible z Microsoft Windows 98/SE, ME & Windows 2000 and Windows XP z 32MB RAM (64MB recommended) z USB Port L L G G U U S S B B D D r r i i v v e e C. Product Specifications Product Specifications PC system with USB ports IBM PC / AT & Notebook & Sub-Notebook Operating System *Win98SE, Me, 2000, XP Memory 16, 32, 64, 128, 256, 512MB, 1GB, 2GB Interface USB 2.0 Compliant and USB 1.1 Compatible Data Retention Up to 10 Years Suspend Current <300uA, compliant to USB spec. of <500uA Operating Current <40mA LED built-in Active LED Data Read/Write speed Up to 7MB/sec (read)** - Up to 6MB/sec (write)** Storage Temperature -10°C - 70°C Operating Temperature 0°C - 60°C Relative Humidity under storage 5% - 95% Weight 1 ounce EMI Compliance FCC, CE, MIC Power Supply USB bus-powered (2.7V - 3.3V) *Drivers required for Windows 98SE **Performance varies depending on testing environment and flash memory How to Use Hi-Speed USB Drive To use Hi-Speed USB Drive, all you need to do is to connect the product to a USB port of your PC; you don’t need to restart your computer, as it automatically detect and identify this drive (Windows ME, 2000, XP and versions above these support USB-based mass storage devices). You have to install a driver whenever your operating system is Windows 98. A. Connecting Hi-Speed USB Drive After you plugged Hi-Speed USB Drive into your PC, Windows automatically creates a letter for your drive and indicates that it is a removable drive. Then, you may begin using the drive just like you use the other drives or floppy disk drive. L L G G U U S S B B D D r r i i v v e e After you correctly plug Hi-Speed USB Drive in, the ”removing hardware safely” icon appears in the tool bar at the bottom of the window. B. Reading / Writing Data or Files Hi-Speed USB Drive is a light, thin, and small portable storage device. With functions similar to those of a hard disk, it allows you to read, write, copy or delete any data or file. But, unlike a hard disk, Hi-Speed USB Drive is so small that you can bring it with you wherever you go. C. Removing Hi-Speed USB Drive Warning! Don’t pull out Hi-Speed USB Drive or remove it from the system while the write / read indicator is flashing. You should do this only when the indicator is off. Under a Window ME or Windows 2000 operating system, you should perform a safe procedure for removal of device before you remove the Hi-Speed USB Drive. If you pull it out or make it exit before it stops, damage may be done to y…

Text truncated - open the document above for the full version.

REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT C. BLOCK DIAGRAM

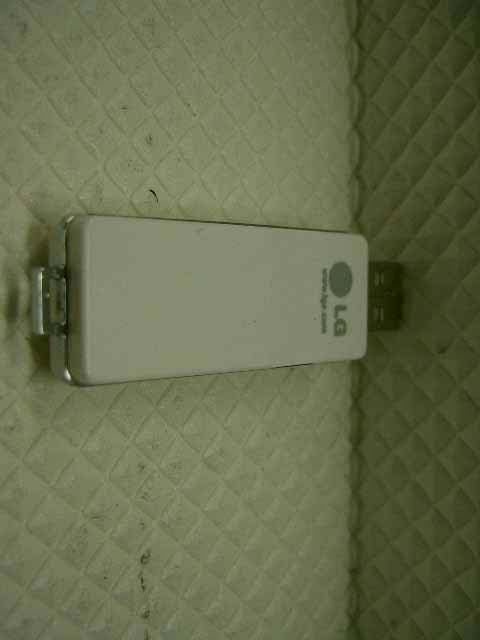

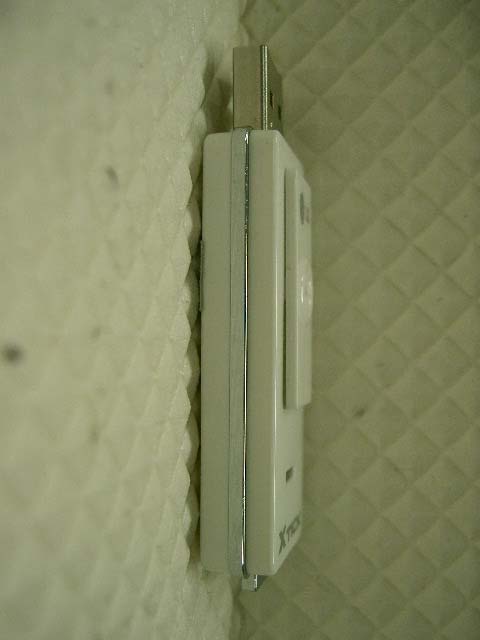

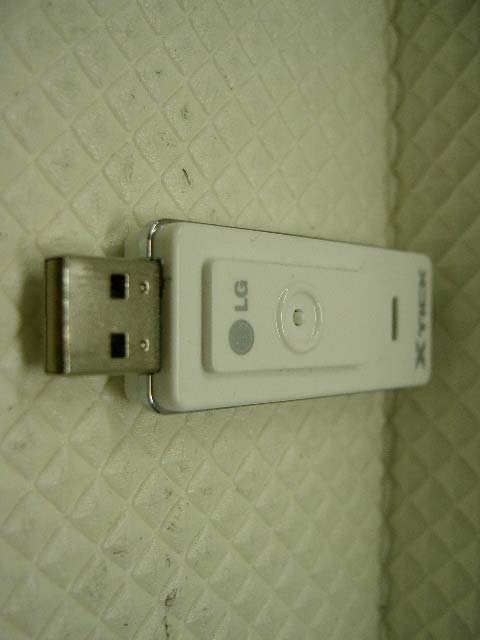

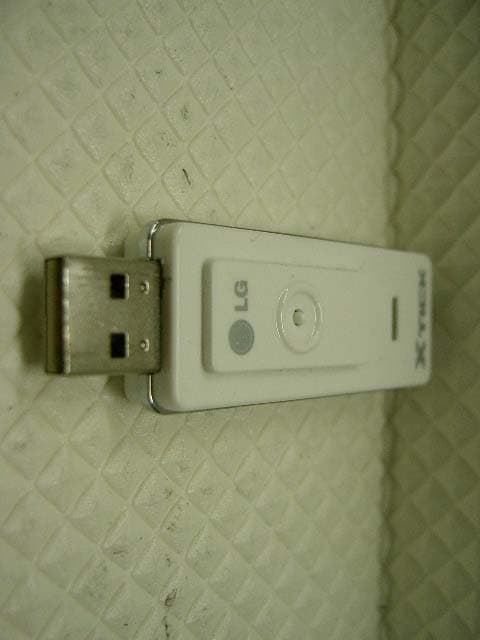

REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 AT TA CH MEN T B. EXTERNAL PHOTOS REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525

REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Figure 3.1 PRODUCT LABEL Both the FCC ID and compliance statement are included in the product label Model NO : UBIU FCC ID : SSNUBIU Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Including interference that may cause undesired operation. 50 Hyangjeong-dong, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, 361-480, Korea MANUFACTURED BY LG Electronics Inc. MADE IN KOREA REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) LABEL Location

REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 ATTACHMENT F. INTERNAL PHOTOS REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. Product Compliance Division, EMC Team SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 CERTIFICATION Rule Part(s): Equipment Class: Standard(s): EUT Type: Memory: Read Write Speed: Model(s): Port/Connector(s) This equipment has been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report prepared by : Ki-Soo Kim Manager of EMC Tech. Part  HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD.  SSNUBIU UBIU Manufacture; LG Electronics Inc. 50 Hyangjeong-dong, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, 361-480, Korea LG ELECTRONICS FRN : 0012281820 Date of Issue : DECEMBER 30, 2004 Test Report No.: HCT-F04-1217 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. HCT FRN : 0005-8664-21 FCC ID : MODEL : Part 15 & 2; ET Docket 95-19 FCC Class B Peripheral Device (JBP) FCC Class B: 1998 (CISPR 22) LG USB Drive 128MB Read 8MB/sec, Write 6MB/sec UBIU USB Port FCC ID : SSNUBIU REPORT NO. : HCT-F041217 HYUNDAI C–TECH 2/19 1/19 TABLE OF CONTENTS PAGE REPORT COVER 1 TABLE OF CONTENTS 2 1.1 SCOPE 3 2.1 INTRODUCTION (SITE DESCRIPTION) 4 3.1 PRODUCTION INFORMATION 5-6 4.1 DESCRIPTION OF TESTS (CONDUCTED) 7 4.3 DESCRIPTION OF TESTS (RADIATED) 8 5.1 LIST OF SUPPORT EQUIPMENT 9-10 6.1 TEST DATA (CONDUCTED) 11-14 7.1 TEST DATA (RADIATED) 15 8.1 SMPLE CALCULATIONS 16 9.1 TEST EQUIPMENT 17 10.1 TEST SOFTWARE USED 18 11.1 CONCLUSION 19 ATTACHMENT A: FCC ID LABEL & LOCATION ATTACHMENT B: EXTERNAL PHOTOGRAPHS ATTACHMENT C: BLOCK DIAGRAM ATTACHMENT D: TEST SETUP PHOTOGRAPHS ATTACHMENT E: USER’S MANUAL ATTACHMENT F: INTERNAL PHOTOGRAPHS I FCC ID : SSNUBIU REPORT NO. : HCT-F041217 HYUNDAI C–TECH 3/19 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. • FCC ID : SSNUBIU • Equipment Class: FCC Class B Peripheral Device (JBP) • EUT Type: LG USB Drive • Model(s): UBIU • Read Write Speed: Read 8MB/sec, Write 6MB/sec • Port(s): USB Port • Memory: 128MB • System Requirements: Windows 98/SE/ME/2000/XP Mac OS 9.0 or later Linux Kernel 2.4.0 or later • Power : USB 1.1 and 2.0 compatible • Rule Part(s): FCC Part 15 Subpart B • Test Procedure(s): ANSI C63.4 (2001) • Dates of Tests: NOVEMBER 23, 2004 ~ NOVEMBER 27, 2004 • Place of Tests: 254-1,MAEKOK-RI,HOBUP-MYUN,ICHON-SI,KYOUNGKI-DO,467-701,KOREA Applicant Name: Address: LG Electronics Inc. 50 Hyangjeong-dong, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, 361-480, Korea FCC ID : SSNUBIU REPORT NO. : HCT-F041217 HYUNDAI C–TECH 4/19 2.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSIC63.4-2001) was used in determining radiated and conducted emissions emanating from LG Electronics Inc. LG USB Drive FCC ID : SSNUBIU The open area test site and conducted measurement facility used to collect the radiateddata are located at the 254-1, MAEKOK-RI,HOBUP-MYUN,ICHON-SI,KYOUNGKI-DO, 467-701,KOREA. The site is constructed in conformance with the requirements of ANSI C63.4and CISPR Publication 22. Detailed description of test facility was submitted to the Commissionand accepted dated July 23,2003 (Confirmation Number: EA90661) FCC ID : SSNUBIU REPORT NO. : HCT-F041217 HYUNDAI C–TECH 5/19 3.1 PRODUCT INFORMATION 3.2 Equipment Description The UBIU is a LG USB Drive made by LG Electronics Inc. in Korea. Refer to the user’s manual for more information. • FCC ID : SSNUBIU • Equipment Class: FCC Class B Peripheral Device (JBP) • EUT Type: LG USB Drive • Model(s): UBIU • Read Write Speed: Read 8MB/sec, Write 6MB/sec • Port(s): USB Port • Memory: 128MB • System Requirements: Windows 98/SE/ME/2000/XP Mac OS 9.0 or later Linux Kernel 2.4.0 or later • Power : USB 1.1 and 2.0 compatible FCC ID : SSNUBIU REPORT NO. : HCT-F041217 HYUNDAI C–TECH 6/19 4.1 Description of Tests(Conducted & Radiated) 4.1.1 Powerline Conducted Emission (150kHz- 30MHz) The power line conducted RFI measurements were performed according to CISPR 22. The EUT was placed on a non-conducting 1.0 by 1.5 meter table which is 0.8 meters in height and 0.40 meters away from the vertical wall of the shielded enclosure. Power to the EUT is provided through a Rohde & Schwarz 50 Ω / 50 uH Line Impedance Stabilization Network (LISN) and the support equipment through a separate Solar 50 Ω / 50 uH Line- Conducted Test Facility LISN. Sufficient time for the EUT, support equipment, and test equipment were allowed in order for them to warm up to their normal operating condition. The RF output of the LISN was connected to the spectrum analyzer to determine the frequency producing the maximum EME. The spectrum was scanned from 150kHz to 30 MHz. Each maximum EME was measured using an EMI receiver. The detector function of the receiver was set to CISPR quasi- peak and average mode with the bandwidth set to 9 kHz. Each emission was maximized consistent with the typical applications by varying the configuration of the test sample. Interface cables were connected to the available interface ports of the test unit. The effect of varying the position of cables was investigated to find the configuration that produces maximum Diagram emission. Excess cable lengths were bundled at the cent…

Text truncated - open the document above for the full version.

REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT D. TEST SETUP PHOTOS REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr [CONDUCTED MEASUREMENT PHOTO] REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr [RADIATED MEASUREMENT PHOTO] REPORT NO : HCT-F04-1217 FCC ID : SSNUBIU DATE :DECEMBER 30,2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 www.hct.co.kr
