STZSRM9000KMA220 MHZ MOBILE VHF TRANSCEIVER

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRM9000KMA\SRM9000KMA FCC\SRM9000KMA FCC Exhibits\FCC_SRM9000 KMA_authorisation.doc Andrew Cutler EMC Technologies (NZ) Ltd 47 MacKelvie Street Grey Lynn Auckland Ref: Re: STZSRM9000KMA: FCC Equipment Approval 29 June 2012 To Whom It May Concern: Please be advised that ComGroup Australia Pty Ltd authorises EMC Technologies (NZ) Ltd to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or Telecommunications Certification Body. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRM9000KMA\SRM9000KMA FCC\SRM9000KMA FCC Exhibits\FCC_SRM9000 KMA_Confidentiality_Timco_090512.doc Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRM9000KMA: FCC Equipment Approval Confidentiality 29 June 2012 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Operational Description • Block Diagram • Parts List • Tune Up Instruction • User Manual [NOTE: This request is for the “Technical” manual that is used as a service manual by authorised personnel and contains detailed technical information including operational descriptions and Tune Up information]. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRM9000 FCC_IC\SRM9000KMA\SRM9000KMA FCC\SRM9000KMA FCC Exhibits\SRM9000KMA Exhibits Word\FCC_SRM9000 KMA_Extended Frequency Justification_150512.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRM9000KMA: Extended Frequency Justification 2 July 2012 Dear Sir/ Madam, ComGroup Australia would like to submit the following justification to show the frequency range as 220 – 222 MHz on the Grant of Equipment Authorization for STZSRM9000KMA mobile radiocommunications transceiver. This frequency range is applicable to FCC Part 90 radiocommunication systems that would include utilities and business and industrial services etc. These services account for the majority of users on this band. The frequencies for this band are arranged in pairs with 1.0 MHz separation. Frequency Pairs Available with channel bandwidths greater than 5 kHz as per CFR 47 Part 90.203(k) are as follows: 220.0025 – 220.7975 with 221.0025 – 221.7975 Part 90 220.8525 – 220.8975 with 221.8525 – 221.8975 Part 90 220.9275 – 220.9975 with 221.9275 – 221.9975 Part 90 Also the frequency of operation of the STZSRM9000KMA radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. From the FCC KDB634187 guide, it is noted that FCC rules would be violated if the STZSRM9000KMA equipment were programmed and operated on unauthorized frequencies. Sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRM9000KMA\SRM9000KMA FCC\SRM9000KMA FCC Exhibits\FCC_SRM9000 KMA_Frequency Programming_Timco.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRM9000KMA: 47 CFR Part 90.203(e) Compliance 29 June 2012 To Whom It May Concern: The frequency of operation of the STZSRM9000KMA mobile radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. The STZSRM9000KMA radio requires the operating frequencies to be programmed through the use of an external device only available to service or maintenance personnel. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRM9000KMA\SRM9000KMA FCC\SRM9000KMA FCC Exhibits\FCC_SRM9000 KMA_PA_Timco.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRM9000KMA: 47 CFR Part 2.1033(c)(8) 29 June 2012 To Whom It May Concern: The DC voltage applied to the final stages of the Radio Frequency amplifier of the STZSRM9000KMA mobile transceiver is nominally 13.8 volts and the DC current into the final stages is typically 5.0 amps. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRM9000KMA\SRM9000KMA FCC\SRM9000KMA FCC Exhibits\FCC_SRM9000 KMA_Spectrum_Efficiency_Timco.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRM9000KMA: 47 CFR Part 90.203(k) 29 June 2012 To Whom It May Concern: This is to certify that the STZSRM9000KMA mobile radio for Channels 1 through 160, 171 through 180 and 186 through 200, can operate with one voice channel per 12.5 kHz of channel bandwidth (11k0F3E emission) or one voice channel per 10 kHz of channel bandwidth (9K6F3E emission) as demonstrated by the tests conducted on the sample radio provided. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

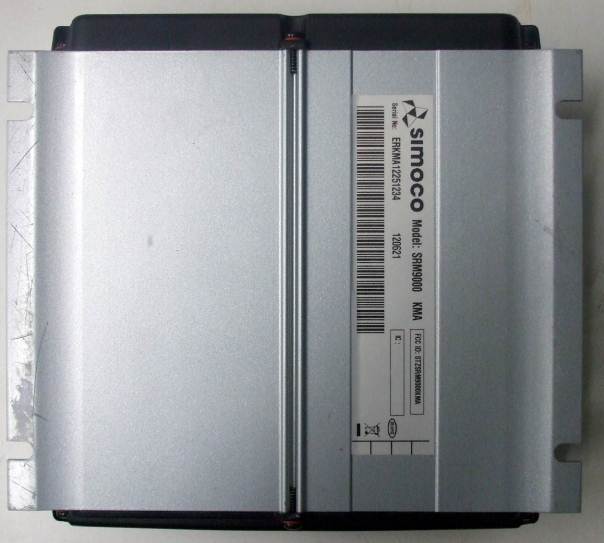

____________________________________________________________________________________________________________________________________________________________________________ Page 24 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. 9. PHOTOGRAPHS External views ____________________________________________________________________________________________________________________________________________________________________________ Page 25 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 26 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. MAR-9030PLCH Control Head MAR-9022CM Control Head MAR-9020plus Control Head

____________________________________________________________________________________________________________________________________________________________________________ Page 25 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full.

____________________________________________________________________________________________________________________________________________________________________________ Page 27 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. Internal Views ____________________________________________________________________________________________________________________________________________________________________________ Page 28 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. Shields removed

____________________________________________________________________________________________________________________________________________________________________________ Page 22 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. Exposure of humans to RF fields As per Section 1.1310 mobile transmitters are required to be operated in a manner that ensures the public is not exposed to RF energy levels in accordance with OST/OET Bulletin Number 65. Calculations have been made using the General Public/Uncontrolled Exposure limits. Minimum safe distances have been calculated below. Power density, mW/m 2 = E 2 /3770 - Occupational / Controlled Exposure limit will be 10 mW/m 2 or 60 V/m - General Population / Uncontrolled exposure limit will be 2 mW/m 2 or 28 V/m The minimum distance from the antenna at which the MPE is met is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, transmitter duty cycle and separation distance in metres: E, V/m = (√(30 * P * G * DC)) / d The rated maximum transmitter power = 25 watts. Transmitter is operated using a quarter wave whip antenna with a gain of 1.64 (2.14 dBi) The client has declared a duty cycle of 50% as the device operates on a push to talk basis Controlled Uncontrolled d = √ (30 * P * G*DC) / E d = √ (30 * 25 * 1.64 * 0.5) / 60 d = √ (30 * 25 * 1.64 * 0.5) / 28 d = 0.41 metres or 41 cm d = 0.88 metres or 0.88 cm Result: Complies if the safe distances defined for each environment are applied.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland 1145 Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT SIMOCO SRM9000 KMA VHF Mobile Transceiver tested to the Code of Federal Regulations (CFR) 47 Part 90 –Private Land Mobile Services Part 15 – Radio Frequency Devices for ComGroup Australia Pty Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. Table of Contents 1. COMPLIANCE STATEMENT 3 2. RESULT SUMMARY 3 3. ATTESTATION 4 4. CLIENT INFORMATION 5 5. TEST SAMPLE DESCRIPTION 5 6. TEST RESULTS 7 7. TEST EQUIPMENT USED 23 8. ACCREDITATIONS 23 9. PHOTOGRAPHS 24 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. 1. COMPLIANCE STATEMENT The Simoco SRM9000 KMA VHF Mobile Transceiver complies with the limits defined in 47 CFR Part 15, 47 CFR Part 90 and 47 CFR Part 2 when tested in-accordance with the test methods described in 47 CFR Part 2. 2. RESULT SUMMARY The results of testing, carried out in 25 th - 31 st July 2012, are summarised below. Clause Description Result 90.203 Certification required Noted 2.1046 90.205 RF power output Power and antenna height limits Noted Complies 2.1047 2.1047(a) 2.1047(b) Modulation Characteristics Low pass filter response Modulation limiting characteristics Noted Noted Noted 2.1049 2.202 90.207 90.209 90.210 Occupied bandwidth Bandwidths Types of emissions Bandwidth limitations Emission masks Noted Noted Complies Complies Complies 2.1051 Spurious emissions at antenna terminals Complies 2.1053 Field strength of spurious radiation Complies 2.1055 90.213 Frequency stability Frequency stability Noted Complies 90.214 Transient frequency behaviour Complies 15.109 15.111 Receiver radiated emissions Receiver local oscillator voltage Complies Complies 1.1310 Radio frequency exposure limits Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. 3. AT T E S TAT I ON This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report contains corrections to Report 120624.1 dated 15 th August 2012 correcting poor graph reproduction and typographical errors. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand. Andrew Cutler General Manager EMC Technologies NZ Ltd ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name ComGroup Australia Pty Ltd Address 1270 Ferntree Gully Road Scoresby State Victoria, 3179 Country Australia Contact Mr Robert Stowell 5. TEST SAMPLE DESCRIPTION Brand Name Simoco Model Number SRM9000 KMA Product VHF mobile radio Manufacturer Simoco Manufactured in Taiwan Designed in Australia Serial Number ERKMA12251234 FCC ID STZSRM9000KMA The test sample has sockets for a transmit antenna, external audio and control head. The radio was tested for emissions using three different control heads as described: - MAR-9030PLCH in transmit and receive modes - MAR-9022CM in receive mode - MAR9020plus in receive mode only. ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. The sample tested has the following specifications: Rated Transmitter Output Power 25.0 Watts (44.0 dBm) Transmitter FCC frequency range Part 90: 220-222 MHz Test frequencies Chl Frequency MHz Power Watts Spacing kHz 1 221.075 25.0 10.0 2 221.075 25.0 12.5 Emission Designators / Modes of operation 9k60F3E – Analogue speech 11k2F3E – Analogue speech Power Supply Rechargeable Lead acid battery DC voltage supply typically 12.0 Vdc Standard Temperature and Humidity Temperature: +15C to + 30 maintained. Relative Humidity: 20% to 75% observed. Standard Test Power Source Standard Test Voltage: 13.8 Vdc Extreme Temperature High Temperature: + 50C maintained.…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 29 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. Open Air Test Site Setup: MAR-9030PLCH Control Head Attached ____________________________________________________________________________________________________________________________________________________________________________ Page 30 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. MAR-9022CM Control Head Attached ____________________________________________________________________________________________________________________________________________________________________________ Page 31 of 31 Test Report No 120624.1a 27 th August 2012. This report may not be reproduced except in full. MAR-9020plus Control Head Attached
