STZSRP9170KMA220 MHz PORTABLE VHF TRANSCEIVER

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRP9180_FCC_IC\SRP9180_KMA_FCC\SRP9180_ KMA_ Exhibits\FCC_SRP9180 KMA_Confidentiality_Timco_120612.doc Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRP9170KMA: FCC Equipment Approval Confidentiality 29 June 2012 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Operational Description • Block Diagram • Parts List • Tune Up Instruction • User Manual [NOTE: This request is for the “Technical” manual that is used as a service manual by authorised personnel and contains detailed technical information including operational descriptions and Tune Up information]. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRP9180_FCC_IC\SRP9180_KMA_FCC\SRP9180_ KMA_ Exhibits\FCC_SRP9180 KMA_Extended Frequency Justification_120612.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRP9170KMA: Extended Frequency Justification 29 June 2012 Dear Sir/ Madam, ComGroup Australia would like to submit the following justification to show the frequency range as 220 – 222 MHz on the Grant of Equipment Authorization for STZSRP9170KMA portable radiocommunications transceiver. This frequency range is applicable to FCC Part 90 radiocommunication systems that would include utilities and business and industrial services etc. These services account for the majority of users on this band. The frequencies for this band are arranged in pairs with 1.0 MHz separation. Frequency Pairs Available with channel bandwidths greater than 5 kHz as per CFR 47 Part 90.203(k) are as follows: 220.0025 – 220.7975 with 221.0025 – 221.7975 Part 90 220.8525 – 220.8975 with 221.8525 – 221.8975 Part 90 220.9275 – 220.9975 with 221.9275 – 221.9975 Part 90 Also the frequency of operation of the STZSRP9170KMA radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. From the FCC KDB634187 guide, it is noted that FCC rules would be violated if the STZSRP9170KMA equipment were programmed and operated on unauthorized frequencies. Sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRP9180_FCC_IC\SRP9180_KMA_FCC\SRP9180_ KMA_ Exhibits\FCC_SRP9180KMA_Frequency Programming_Timco.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRP9170KMA: 47 CFR Part 90.203(e) Compliance 29 June 2012 To Whom It May Concern: The frequency of operation of the STZSRP9170KMA mobile radio cannot be programmed by the operator to transmit on frequencies other than those programmed by service or maintenance personnel. The STZSRP9170KMA radio requires the operating frequencies to be programmed through the use of an external device only available to service or maintenance personnel. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

Form Number: FN0024_0 Page 1 of 2 Filename: H:\Standards\FCC\SRP9180_FCC_IC\SRP9180_KMA_FCC\SRP9180 KMA_NDA_290812.doc NON DISCLOSURE AGREEMENT BETWEEN: ComGroup Australia Pty. Ltd. 1270 Ferntree Gully Road Scoresby Victoria 3179 Australia AND: (Purchaser/ Recipient Details) SUBJECT OF AGREEMENT: SRP9170/80 Series Service Manual Issue 1.01C, June 2012 Confidentiality CONFIDENTIALITY: The SRP9170/80 Series Service Manual contains information that, should it become public, might be used to disadvantage ComGroup Pty. Ltd. in the market place. The information contained in the Service Manual is the confidential information of ComGroup Pty. Ltd. and at all times remains their property. The recipient of this information shall not use, copy, abstract or disclose any information it receives or anything it learns as a result of the information to any other person, firm, corporation or other entity without the express consent of ComGroup Australia. Dissemination of the information by the recipient shall be limited to the recipient’s employees who have a need to know and who shall be bound to honour the provisions of this Agreement. EXCEPTIONS: The obligation of confidentiality shall not apply to any information which: (a) is contained in a generally available non-confidential publication bearing a date prior to the date of this agreement; (b) is or becomes generally available to the public other than as a result of the improper action of the recipient. ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected] Page 2 of 2 USE OF INFORMATION: All information shall be used by the recipient solely for the purpose of supporting ComGroup Australia products and services. The parties acknowledge that they have read and understood this agreement and agree to be bound by its terms. Date Date: Signed Signed: Name (Print) Name (Print) Company Name ComGroup Australia Pty. Ltd. Company Name Purchaser/ Recipient Position Position

Form Number: FN0024_0 Page 1 of 1 Filename: H:\Standards\FCC\SRP9180_FCC_IC\SRP9180_KMA_FCC\SRP9180_ KMA_ Exhibits\FCC_SRP9180 KMA_Spectrum_Efficiency_Timco.doc Timco Engineering Inc 849 N.W. State Road 45 PO Box 370 Newberry Florida 32669 Ref: Re: STZSRP9170KMA: 47 CFR Part 90.203(k) 29 June 2012 To Whom It May Concern: This is to certify that the STZSRP9170KMA portable radio for Channels 1 through 160, 171 through 180 and 186 through 200, can operate with one voice channel per 12.5 kHz of channel bandwidth (11k0F3E emission) or one voice channel per 10 kHz of channel bandwidth (9K6F3E emission) as demonstrated by the tests conducted on the sample radio provided. Yours sincerely, Robert Stowell Senior Engineer ComGroup Australia Pty Ltd ABN 29 095 068 429 www.comgroup.net.au 1270 Ferntree Gully Rd, Scoresby Victoria 3179, Australia Tel: +61 3 9730 3800 Fax: +61 3 9730 3968 Email: [email protected]

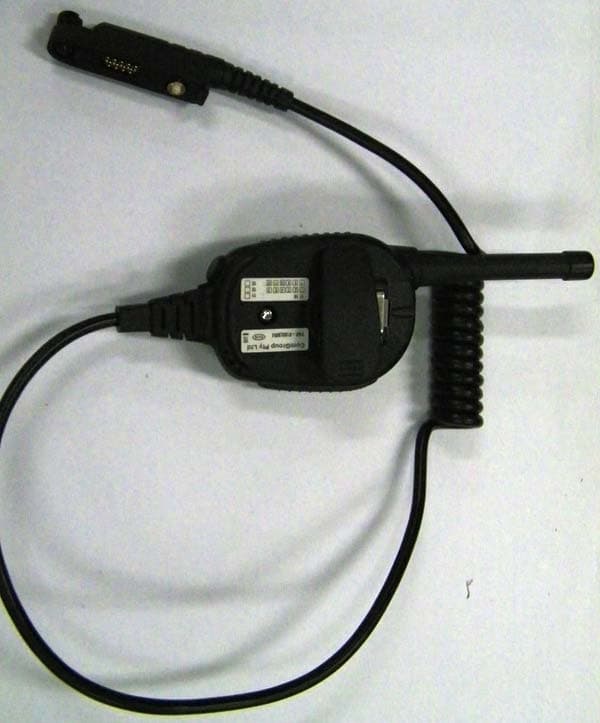

____________________________________________________________________________________________________________________________________________________________________________ Page 23 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. 9. PHOTOGRAPHS External views –

____________________________________________________________________________________________________________________________________________________________________________ Page 23 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. 9. PHOTOGRAPHS External views –

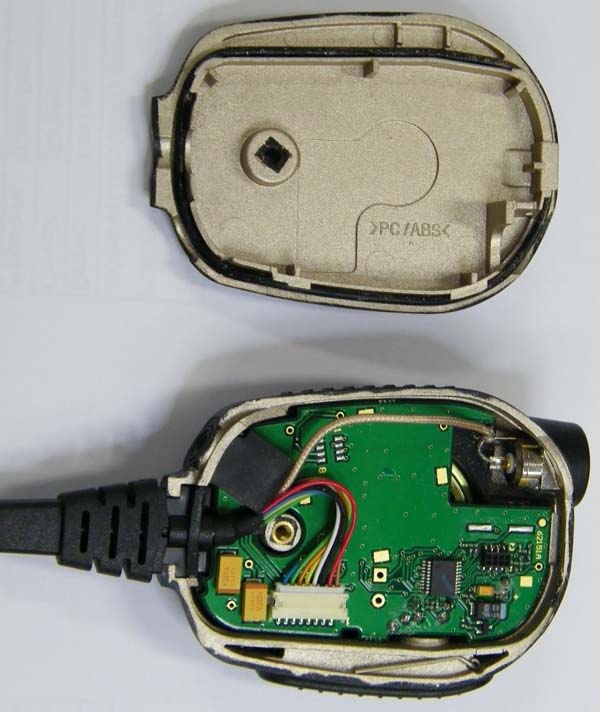

____________________________________________________________________________________________________________________________________________________________________________ Page 26 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. Internal Views ____________________________________________________________________________________________________________________________________________________________________________ Page 27 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 28 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. Main PCB ____________________________________________________________________________________________________________________________________________________________________________ Page 29 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 30 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full.

Report No.: M120704F Page 17 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A1 Test Sample Photographs Battery 1 Battery 2 DUT DUT Report No.: M120704F Page 18 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A2 Test Sample Photographs Passive SPK-MIC Active SPK-MIC Holster Report No.: M120704F Page 19 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A3 Test Sample Photographs Face Frontal Position Belt Clip Position Report No.: M120704F Page 20 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A4 TEST SETUP PHOTOGRAPHS Belt Clip Position with Holster Report No.: M120704F Page 21 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX A5 Test Setup Photographs Face Frontal Position SPK_MIC Belt Clip Position SPK_MIC

Report No.: M120704F Page 22 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX B Plots Of The SAR Measurements Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table: SAR Measurement Plot Numbers Test Position Plot Number Frequency (MHz) Belt Clip 1 221.0.75 Belt Clip with Holster 2 221.0.75 Face Frontal 3221.0.75 Belt Clip SPK-MIC 4221.0.75 Face Frontal SPK-MIC 5221.0.75 Table: Validation Plot Numbers Date Plot Number Frequency 13 th July 2012 6 300 MHz Report No.: M120704F Page 23 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Date: 13 July 2012 File Name: M120704 220 MHz Belt Clip 13-07-12.da52:0 DUT: SIMOCO PTT; Type: SRP9180 KMA; Serial: ET9KA1210DCMK * Communication System: PTT; Frequency: 221.075 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 222 MHz; σ = 0.9 mho/m; ε r = 59.826; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(7.75, 7.75, 7.75); Calibrated: 16/07/2012 - Phantom: ELI 4.0; Serial: 1101; Phantom section: Flat Section Configuration/Channel 1 Test/Area Scan (81x211x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.73 mW/g Configuration/Channel 1 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 42.855 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 2.888 mW/g SAR(1 g) = 1.66 mW/g; SAR(10 g) = 1.16 mW/g Maximum value of SAR (measured) = 1.74 mW/g 0 dB = 1.73 mW/g = 4.76 dB mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 20.5 Degrees Celsius Liquid Temperature 20.3 Degrees Celsius Humidity 42.0% Report No.: M120704F Page 24 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 25 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Date: 13 July 2012 File Name: M120704 220 MHz Belt Clip with Holster 13-07-12.da52:0 DUT: SIMOCO PTT; Type: SRP9180 KMA; Serial: ET9KA1210DCMK * Communication System: PTT; Frequency: 221.075 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 222 MHz; σ = 0.9 mho/m; ε r = 59.826; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(7.75, 7.75, 7.75); Calibrated: 16/07/2012 - Phantom: ELI 4.0; Serial: 1101; Phantom section: Flat Section Configuration/Channel 1 Test/Area Scan (81x211x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.60 mW/g Configuration/Channel 1 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 41.565 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 2.399 mW/g SAR(1 g) = 1.5 mW/g; SAR(10 g) = 1.07 mW/g Maximum value of SAR (measured) = 1.56 mW/g 0 dB = 1.60 mW/g = 4.08 dB mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 20.5 Degrees Celsius Liquid Temperature 20.3 Degrees Celsius Humidity 42.0% Report No.: M120704F Page 26 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 27 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Test Date: 13 July 2012 File Name: M120704 220 MHz Face Frontal 13-07-12.da52:0 DUT: SIMOCO PTT PTT; Type: SRP9180 KMA; Serial: ET9KA1210DCMK * Communication System: PTT; Frequency: 221.075 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 222 MHz; σ = 0.798 mho/m; ε r = 47.778; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(7.79, 7.79, 7.79); Calibrated: 12/12/2011 - Phantom: ELI 4.0; Serial: 1101; Phantom section: Flat Section Configuration/Channel 1 Test/Area Scan (81x211x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.94 mW/g Configuration/Channel 1 Test/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.894 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 2.668 mW/g SAR(1 g) = 1.8 mW/g; SAR(10 g) = 1.34 mW/g Maximum value of SAR (measured) = 1.88 mW/g 0 dB = 1.94 mW/g = …

Text truncated - open the document above for the full version.

Report No.: M120704F Page 35 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. APPENDIX C CALIBRATION DOCUMENTS 1. SN: 1380 Probe Calibration Certificate 2. SN: 1012 D300V3 Dipole Calibration Certificate 3. SN: 442 DAE3 Data Acquisition Electronics Calibration Certificate Report No.: M120704F Page 36 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 37 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 38 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 39 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 40 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 41 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 42 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 43 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 44 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 45 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 46 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 47 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. Report No.: M120704F Page 48 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of th…

Text truncated - open the document above for the full version.

Page 1 of 60 SAR Test Report Report Number: M120704F Test Sample: Simoco Push To Talk transmitter Model Number: SRP9180 KMA Tested For: ComGroup Australia Pty Ltd Date of Issue: 19 th July 2012 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] Report No.: M120704F Page 2 of 60 Accredited for compliance with ISO/IEC 17025. The results of the test, calibrations and/or measurement included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, calibration and inspection reports. This document shall not be reproduced except in full. CONTENTS 1.0 GENERAL INFORMATION ........................................................................................................ 3 2.0 DESCRIPTION OF DEVICE ....................................................................................................... 4 2.1 Description of Test Sample ................................................................................................... 4 2.2 Test sample Accessories ....................................................................................................... 4 2.2.1 Battery Types .................................................................................................................................... 4 2.2.2 Belt Clip ........................................................................................................................................... 4 2.3 Test Signal, Frequency and Output Power............................................................................ 4 2.4 Conducted Power Measurements ......................................................................................... 4 2.5 Battery Status ........................................................................................................................ 5 2.6 Details of Test Laboratory ..................................................................................................... 5 2.6.1 Location ............................................................................................................................................ 5 2.6.2 Accreditations ................................................................................................................................... 5 2.6.3 Environmental Factors ..................................................................................................................... 6 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ............................................................... 6 3.1 Probe Positioning System ..................................................................................................... 6 3.2 E-Field Probe Type and Performance ................................................................................... 6 3.3 Data Acquisition Electronics .................................................................................................. 6 3.4 Calibration and Validation Procedures and Data .................................................................. 6 3.4.1 Validation Results @ 300 MHz ........................................................................................................ 7 3.4.2 Deviation from reference validation values ..................................................................................... 7 3.4.3 Liquid Depth 15cm ........................................................................................................................... 7 3.5 Phantom Properties (Size, Shape, Shell Thickness) ............................................................. 8 3.6 Tissue Material Properties ..................................................................................................... 8 3.6.1 Liquid Temperature and Humidity ................................................................................................... 8 3.7 Simulated Tissue Composition Used for SAR Test ............................................................... 9 3.8 Device Holder for DASY5 ...................................................................................................... 9 4.0 SAR MEASUREMENT PROCEDURE USING DASY5 ........................................................... 10 5.0 MEASUREMENT UNCERTAINTY ........................................................................................... 11 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS ................................................................ 13 7.0 SAR TEST METHOD ............................................................................................................... 14 7.1 Description of the Test Positions (Face Frontal and Belt Clip) ............................................ 14 7.1.1 “Face Frontal Position” ................................................................................................................ 14 7.1.2 “Belt…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 32 Test Report No 120625.1a 28 th August 2012. This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT SIMOCO SRP9180 KMA VHF Portable Transceiver tested to the Code of Feder…
