SU3RM900ARAEMesh Radio (RM900A)

Revision: Dec, 2011 RAEMesh Radio User Manual (for RM2400, RM900, RM900A...) RAE Systems Inc Revision: Dec, 2011 Introduction The RAEMesh Radio module offers a complete microcontroller/transceiver solution Containing all hardware features necessary for development of a low data-rate, low-power wireless application. The primary components include an IEEE 802.15.4 compliant Zigbee-ready transceiver , a microcontroller, a 40-pin interface connector, a MMCS antenna connector, This documentation describes the RAEMesh radio module hardware interface as well as RAE System’s Command Interface. Hardware Specifications Frequency Band 802.15.4 standard. RM2400:16 channels of operation in the 2.4GHz world wide ISM band. 5MHz channel spacing. RM900: 11 channels. 868, 906,908......924MHz RM900A: 11 channels. 868, 906,908......924MHz Power +3.3V + .3V from carrier board, 3.0V to 3.6V from battery pack Interfaces 40-pin surface-mount 2x20 1.27mm pitch RF 250kbps OQPSK Direct Sequence Spread Spectrum. Dimensions 46.5 mm x 26 mm x 10 mm Antenna Interface 50-Ohm MMCX female Operating Temperature Range -40ºC to +85ºC Indicators Two LEDs, one red, one blue (DS1, DS2) Current Consumption 0.5 μA Sleep 120 mA TX @ 18 dBm 25 mA RX / Idle RF receive sensitivity -100dBm at at 1% packet error rate for a 20 byte payload. Data Rate 250 kbps Antenna Omnidirectional antenna, 3.5dBi max Revision: Dec, 2011 Mechanical Size Top View The height of the shielding box is 4.3mm from the PCB. 40 Pin header (1.27mm) is used for board to board connection. Corresponding mate connector can be JVE 22P8702-40M00B-01G-4.5 Revision: Dec, 2011 Pin Layout Pin Description Pin Description 1 DGND 2 DGND 3 nRESET 4 DGND 5 TXD1 6 TXD0/Bootload. 7 RXD1 8 RXD0 9 GPIO0 10 GPIO/LED2 11 GPIO1 12 GPIO/LED3 13 GPIO2 14 GPIO/LED4 15 GPIO3 16 GPIO/LED5 17 TEMP_E/GPIO4 18 GPIO/PS_CS 19 WakeUp/GPIO5 20 GPIO/PS_FRAME 21 BUZZER/GPIO6 22 +3.3V 23 GPIO7/PS_DIR 24 AGND 25 BUTTON0/GPIO8 26 AREF 27 BUTTON1/GPIO9 28 ATEMP/ADC1 29 GPIO10 30 ADC2 31 RF_SO 32 TCK 33 RF_SI 34 TMS 35 RF_CK 36 TDO 37 SFD 38 TDI 39 +3.3V 40 +3.3V Revision: Dec, 2011 Firmware The module is pre-loaded with the bootloader, which supports serial bootloading of firmware update. The module contains RAEMesh application and comply with the RAE System’s RCS protocol. The module also has built-in RAEMesh Module Command Interface(RMCI). This documentation is focused on the instruction on RMCI interface. The RMCI command interface allows customer to easily access to low level mesh functionality without pain to develop the firmware. The module can be configured to a GTW to hook up to a getaway or just a stand alone regular full function node or a Sleepy reduce function node. Make sure to configure the module to right mode before using. Quick Start UART Via the TXD1 and RXD1 pins the command interpreter can be accessed. The RCM can buffer up to 128 bytes of incoming data in a software FIFO buffer and uses XON/XOFF flow control. See the datasheet of the Atmel ATmega1281 for more information about the build-in UART. Connect Pin5 (TXD1) and Pin7 (RXD1) to the customer board. Use the following settings for serial port. RTR and STD: 19200bps, 8N1. GTW: 38400bps, 8N1. Data Packet RCM will transmit any data in the { }, all data in the {} will be transparently sent out without radio’s interpretation. The maximum data packet is 50 bytes including {}. The data in the {} can be any characters including ‘{‘ ‘}’ ’[‘ ’]’ . The interval between 2 data packets must be >200ms for RTR and GTW. The interval between 2 data packets must be >1s for STD. Wakeup If the radio is set to STD mode, the Wakeup pin Pin19 (PE7) is used to make the radio asleep and wakeup. A constant high on this pin will let the radio go to the sleep mode and a low level signal on this pin will wake-up the radio. The Radio sleep mode is the power save mode so the power consumption can be very low. (<40uA) The Wakeup pin must be held up to 10ms before sending a data packet. Power Ground: Pin1, Pin2 and Pin4. VCC: Pin39, Pin40. 3.0V or 3.3V Radio consumes less than 100mW in normal RX/TX mode. Radio consumes 600mW at TX and 100mW at RX for High power module Heartbeat Connect Pin12 to a LED for heartbeat indicator. Reset RST: Pin3 Active Low. Revision: Dec, 2011 PC communication Please has your serial port debug software installed on the PC. For example: sscom32.exe Microsoft Hyper Terminal is not recommended for this application because it is not good to send characters and commands in Hex. Base on correct setting and connection, you will see following display on your screen when power is applied. GTW:
[%A ]RAEMESH-II RM900A 16MHz FwVer:V1.02b on Sep 28 2011 09:52:14 Stack: BC1.10.0 Type: Coordinator/Gateway Band: 915 EUI: 0001002400001005 Channel: 0x10 TxPwr: Medium PanId: 0x03E5 RTR:  [%A ]RAEMESH-II RM900A 16MHz FwVer:V1.02b on Sep 28 2011 09:52:14 Stack: BC1.10.0 Type: FFD/Router Band: 915 EUI: 0001002400001005 Channel: 0x10 TxPwr: Medium PanId: 0x03E5 STD  [%A ]RAEMESH-II RM900A 16MHz FwVer:V1.02b on Sep 28 2011 09:52:14 Stack: BC1.10.0 Type: RFD Sleep Sensor Band: 915 EUI: 0001002400001005 Channel: 0x10 TxPwr: Medium PanId: 0x03E5 Revision: Dec, 2011 RAEMesh2 Module Command Interface Format: SOP Length Command Code Command Data EOP Byte: 1 1 1 0~n 1 Byte Number Name Comment 0 SOP Radio Protocol beginning of packet. This is always ‘[‘ (0x5B) 1 Length Total length of packet + 0x20, include ‘[‘ and ‘]’. 2 Command Code 0x20 ~ 0xFF. Excluding:0x5A~0x5F and 0x7A~0x7F. 0xF0~0xFF are reserved for common commands. Even for packet sent from SDTE or RDTE to RCM. Odd for packet response from RCM to SDTE or RDTE. 3 Command Data Hex ... ... N+3 EOP Radio protocol end of packet.. This is always ‘]’(0x5D) The minimum length for one packet is 4 bytes long. The Length is 0x20 based. E.g. the total length of a packet without command data is 4, the Length byte is 0x20 + 4 = 0x24. The SDTE or RDTE always initiate the communication with Radio module (RRCM, SRC…

Text truncated - open the document above for the full version.

Date: _12-15-2011__ RAE Systems, Inc 3775 North First Street. San Jose CA 95134 To Whom It May Concern: ______Intertek Shanghai_____ is authorized to act on our behalf, until otherwise notified, for applications to RAE Systems, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12-15-2012_____ By: __________________________ ________________________ (Signature 1 ) (Print name) Title: _Engineering Director---Wireless_ On behalf of: _____RAE Systems, Inc______ (Company Name) Telephone: ________408-9528200________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Request for Confidentiality Date: _12-15-2011_ Subject: Confidentiality Request for: ______ ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _____RAE Systems, Inc______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ________________________ (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Modular Approval Request Letter FCC ID: SU3RM900A Data: December. 15, 2011 Gentlemen: There’s a RM900A (RAEMesh Radio Module) that would like to have your authorization as a modular approval. The specific product as below, RM900A, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 Released: June 26, 2000 by cross-reference list below. Company : RAE Systems, Inc Model Name : RAEMesh Radio Model Number : RM900A FCC ID : SU3RM900A Requirement of Public Notice DA00-1407/ Part 15.212 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. RM900A has only digital I/Os for data input or output. All these I/Os are buffered. Refer the schematic.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the RM900A. Please see schematic.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The RM900A meets the FCC antenna requirements. It has a unique MMCX connector and need special cable to connect to antenna 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The RM900A was tested in a stand-alone configuration. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of RM900A is clearly indicated. Please see the “RM900A FCC label.pdf” 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The RM900A is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see users manual.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The RM900A comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Thank you. Director, Wireless System Product RAE Systems, Inc TEL: 408-952800 Email: [email protected]

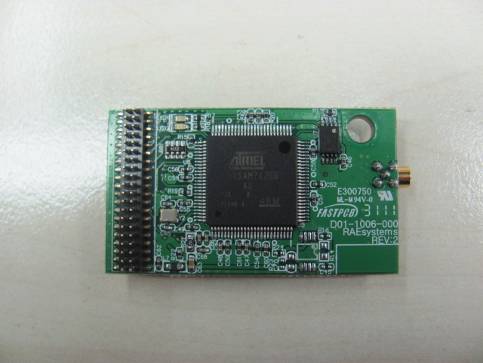

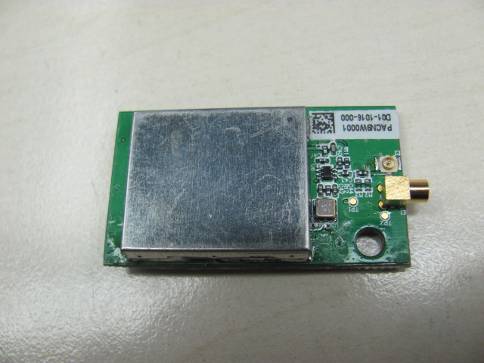

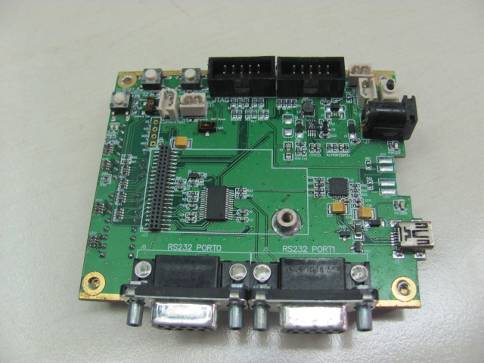

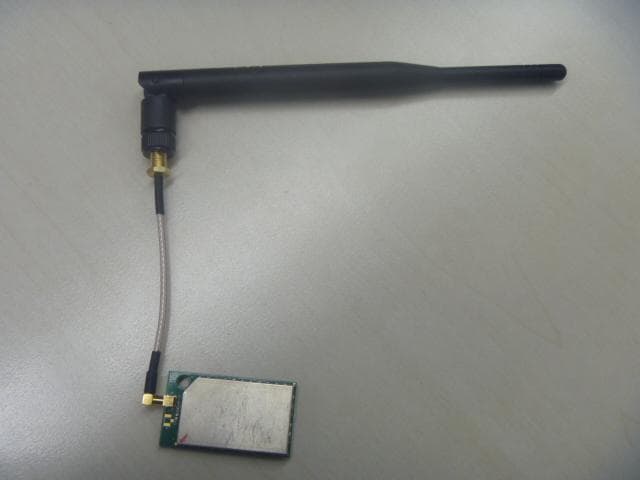

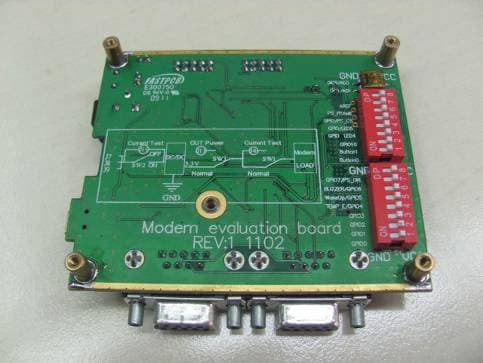

FCC ID: SU3RM900A Page 1 of 6 External Picture FCC ID: SU3RM900A Page 2 of 6 EUT FCC ID: SU3RM900A Page 3 of 6 RF cable between EUT and Omnidirectional Antenna FCC ID: SU3RM900A Page 4 of 6 Omnidirectional Antenna FCC ID: SU3RM900A Page 5 of 6 RF cable and Chip Antenna FCC ID: SU3RM900A Page 6 of 6 Debug Board

FCC ID: SU3RM900A Page 1 of 2 Internal Picture FCC ID: SU3RM900A Page 2 of 2

FCC ID: SU3RM900A Page 1 of 19 EMC TEST REPORT for Intentional Radiator No. SH12010206-001 Applicant : RAE Systems Inc. 3775 N. 1st St., San Jose, California USA 95134 Manufacturer : RAE Systems Inc. 3775 N. 1st St., San Jose, California USA 95134 Product Name : RAEMesh Radio Type/Model : RM900A SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2010): Radio Frequency Devices ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment RSS-310 Issue 3 (December 2010): Licence-exempt Radio Apparatus (All Frequency Bands): Category II Equipment Date of issue: Jan 11, 2012 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: SU3RM900A Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Ltd. Shanghai ETL Semko Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: SU3RM900A Page 3 of 19 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 4 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. RADIATED EMISSION ................................................................................................................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 8 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. ASSIGNED BANDWIDTH (20DB BANDWIDTH) ............................................................................................ 14 4.1 Limit .............................................................................................................................. 14 4.2 Test Configuration ........................................................................................................ 14 4.3 Test procedure and test setup ........................................................................................ 14 4.4 Test protocol ................................................................................................................. 14 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 15 5.1 Limit .............................................................................................................................. 15 5.2 Test configuration ......................................................................................................... 15 5.3 Test procedure and test set up ....................................................................................... 16 5.4 Test protocol ................................................................................................................. 16 6. OCCUPIED BANDWIDTH ............................................................................................................................ 17 6.1 Test limit ....................................................................................................................... 17 6.2 Test Configuration ........................................................................................................ 17 6.3 Test procedure and test setup ........................................................................................ 17 6.4 Test protocol ................................................................................................................. 17 7. SPURIOUS EMISSION FOR RECEIVER ......................................................................................................... 18 7.1 Test limit ....................................................................................................................... 18 7.2 Test Configuration ........................................................................................................ 18 7.3 Test procedure…

Text truncated - open the document above for the full version.

FCC ID: SU3RM900A Page 1 of 22 Test Data FCC ID: SU3RM900A Page 2 of 22 1. Radiated emission Omnidirectional Antenna, Channel L, Horizontal 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1290H1_red MES WAKE1290H1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 3 of 22 Omnidirectional Antenna, Channel L, Vertical 20 30 40 50 60 70 80 90 100 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1290V1_red MES WAKE1290V1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 4 of 22 Omnidirectional Antenna, Channel M, Horizontal 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1290H6_red MES WAKE1290H6_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 5 of 22 Omnidirectional Antenna, Channel M, Vertical 20 30 40 50 60 70 80 90 100 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x xx x x x x x x x MES WAKE1290V6_red MES WAKE1290V6_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 6 of 22 Omnidirectional Antenna, Channel H, Horizontal 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1290H10_red MES WAKE1290H10_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 7 of 22 Omnidirectional Antenna, Channel H, Vertical 20 30 40 50 60 70 80 90 100 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1290V10_red MES WAKE1290V10_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 8 of 22 Chip Antenna, Channel L, Horizontal 20 30 40 50 60 70 80 90 100 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1250H1_red MES WAKE1250H1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 9 of 22 Chip Antenna, Channel L, Vertical 20 30 40 50 60 70 80 90 100 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1250V1_red MES WAKE1250V1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 10 of 22 Chip Antenna, Channel M, Horizontal 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1250H10_red MES WAKE1250H10_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 11 of 22 Chip Antenna, Channel M, Vertical 20 30 40 50 60 70 80 90 100 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1250V10_red MES WAKE1250V10_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 12 of 22 Chip Antenna, Channel H, Horizontal 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1250H6_red MES WAKE1250H6_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 13 of 22 Chip Antenna, Channel H, Vertical 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES WAKE1250V6_red MES WAKE1250V6_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 14 of 22 2. Conducted Emission FCC ID: SU3RM900A Page 15 of 22 3. Occupied bandwidth Channel L FCC ID: SU3RM900A Page 16 of 22 Channel M FCC ID: SU3RM900A Page 17 of 22 Channel H FCC ID: SU3RM900A Page 18 of 22 4. Assigned bandwidth (20dB bandwidth) FCC ID: SU3RM900A Page 19 of 22 FCC ID: SU3RM900A Page 20 of 22 5. Pulse-repetition frequency The repetition frequency = 1/cycle = 1/0.0252 = 40Hz FCC ID: SU3RM900A Page 21 of 22 6. Spurious emission for receiver Horizontal 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES wake1125H8_red MES wake1125H8_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: SU3RM900A Page 22 of 22 Vertical 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES wake1125V8_red MES wake1125V8_pre LIM FCC 15 F 3 QP Field Strength QP

FCC ID: SU3RM900A Page 1 of 6 Test Setup FCC ID: SU3RM900A Page 2 of 6 1. Radiated Emission 30MHz-1000MHz, Omnidirectional Antenna FCC ID: SU3RM900A Page 3 of 6 30MHz-1000MHz, Chip Antenna FCC ID: SU3RM900A Page 4 of 6 Higher than 1GHz, Omnidirectional Antenna FCC ID: SU3RM900A Page 5 of 6 Higher than 1GHz, Chip Antenna FCC ID: SU3RM900A Page 6 of 6 2. Conducted emission
