Regulatory notices This document provides country- and region-specific non-wireless and wireless regulatory notices and compliance information for your product. Some of these notices may not apply to your product. 이 문서에는 국가 및 지역별 유무선 규제사항 설명과 제품의 준수 정보가 있습니다. 이러한 정보 중 일부는 귀하의 제품에 적용되지 않을 수 있습니다. Federal Communications Commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increase the separation between the equipment and receiver. ■Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ■Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by HP may void the user's authority to operate the equipment. Cables To maintain compliance with FCC Rules and Regulations, connections to this device must be made with shielded cables having metallic RFI/EMI connector hoods. Declaration of Conformity for products marked with the FCC logo (United States only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following 2 conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. If you have questions about the product that are not related to this declaration, write to Hewlett-Packard Company P. O. Box 692000, Mail Stop 530113 Houston, TX 77269-2000 For questions regarding this FCC declaration, write to Hewlett-Packard Company P. O. Box 692000, Mail Stop 510101 Houston, TX 77269-2000 or call HP at 281-514-3333 To identify your product, refer to the part, series, or model number located on the product. Products with wireless LAN devices or HP Mobile Broadband Modules This device must not be co-located or operating in conjunction with any other antenna or transmitter. Å WARNING: Exposure to Radio Frequency Radiation The radiated output power of this device is below the FCC/Industry Canada radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation of tablet PCs and notebook computers. During normal operation of tablet PCs and notebook computers with displays equal to or less than30.5 cm (12 inches): To avoid the possibility of exceeding the FCC/Industry Canada radio frequency exposure limits, human proximity to the antennas should not be less than 2.5 cm (1 inch). To identify the location of the wireless antennas, refer to the computer user guides included with your computer. During normal operation of notebook computers with displays greater than 30.5 cm (12 inches): To avoid the possibility of exceeding the FCC/Industry Canada radio frequency exposure limits, human proximity to the antennas should not be less than 20 cm (8 inches), including when the computer display is closed. To identify the location of the wireless antennas, refer to the computer user guides included with your computer. Ä CAUTION: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use, due to its operation in the 5.15- to 5.25-GHz frequency range. FCC/Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High-power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65- to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device. The antennas for this device are not replaceable. Any attempt at user access will damage your computer. Brazil notice Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência em sistemas operando em caráter primário. Este equipamento atende aos limites da Taxa de Absorção Específica referente à exposição a campos elétricos, magnéticos e eletromagnéticos de frequência adotados pela ANATEL. Canada notices This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations CAN ICES-3(B)/NMB-3(B). If this device has WLAN or Bluetooth capability, the device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Avis Canadien Ce dispositif numérique de Classe B répond aux exigences de la réglementation du Canada relative aux équipements causant des interférences CAN ICES-3(B)/NMB-3(B). Si ce dispositif est doté de fonctionnalités de réseau sans fil ou Bluetooth, il est conforme aux normes d’exemption de licence RSS d’Industrie Canada. Son fonctionnement est assujetti aux deux conditions suivantes : 1) Ce dispositif ne doit causer aucune interférence dangereuse, et 2) ce dispositif doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un fonction…

Text truncated - open the document above for the full version.

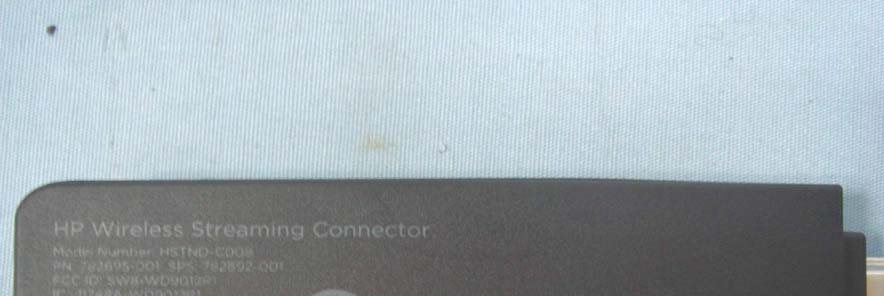

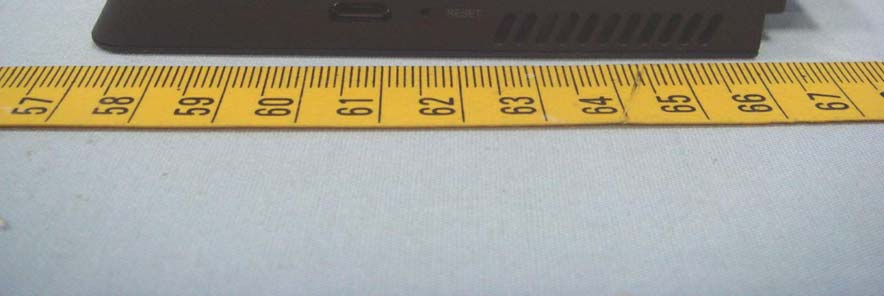

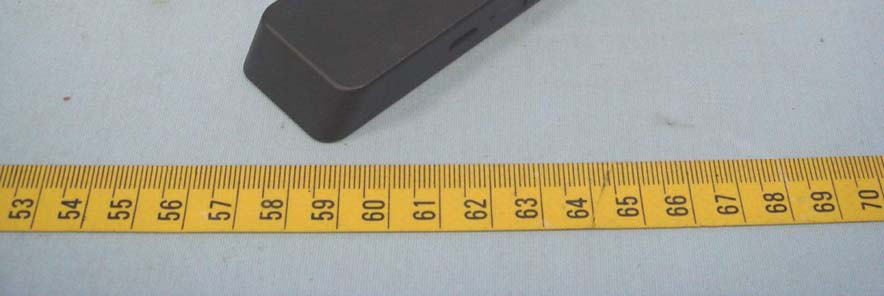

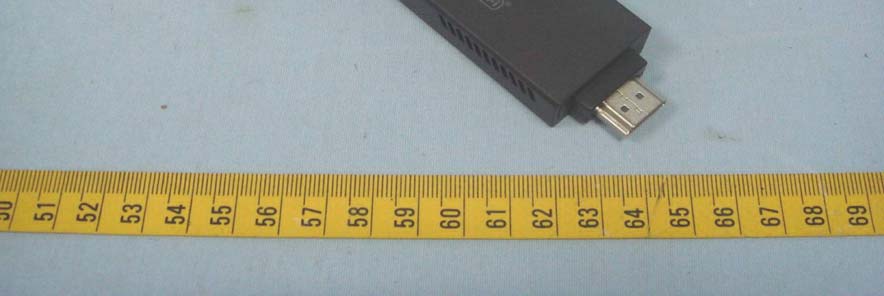

Report No: T140813D03 Page 1 / 5 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T140813D03 Page 2 Rev.00

Report No: T140813D03 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140813D03 Page 4 Rev.00 Report No: T140813D03 Page 5 Rev.00 Antenna

Compliance Certification Services Inc. Report No.: T140813D03-RP3 Date of Issue: September 04, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HP Wireless Streaming Connector Model HSTND-C008 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5180 ~ 5240MHz / 5745 ~ 5825MHz 802.11n HT20: 5180 ~ 5240MHz / 5725 ~ 5825MHz 802.11n HT40: 5190 ~ 5230MHz / 5755 ~ 5795MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: Antenna Gain :5.9 dBi (Numeric gain 3.89) 2.4GHz: Antenna Gain :5.3 dBi (Numeric gain 3.39) Maximum Average output power IEEE 802.11b Mode: 19.32 dBm (85.507 mW) IEEE 802.11g Mode: 22.14 dBm (163.682 mW) IEEE 802.11n HT 20 Mode: 20.73 dBm (118.304 mW) IEEE 802.11n HT 40 Mode: 21.36 dBm (136.773 mW) UNII Band I IEEE 802.11a Mode: 13.56 dBm (22.699 mW) IEEE 802.11n HT20 Mode: 13.38 dBm (21.777 mW) IEEE 802.11n HT40 Mode: 13.24 dBm (21.086 mW) UNII Band III IEEE 802.11a Mode: 13.53 dBm (22.542 mW) IEEE 802.11n HT20 Mode: 13.47 dBm (22.233 mW) IEEE 802.11n HT40 Mode: 13.36 dBm (21.677 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140813D03-RP3 Date of Issue: September 04, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/09/04 Initial Issue ALL Gloria Chang Compliance Certification Services Inc. Report No.: T140813D03-RP3 Date of Issue: September 04, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140813D03-RP3 Date of Issue: September 04, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 246285.5073.39200.05771 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462163.6823.39200.11041 IEEE 802.11n HT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462118.3043.39200.07981 IEEE 802.11n HT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2422 ~ 2452136.7733.39200.09231 IEEE 802.11a mode (UNII Band I): Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5180 ~ 524022.6993.89200.01761 IEEE 802.11a HT20 mode (UNII Band I): Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5180 ~ 524021.7773.89200.01691 IEEE 802.11a HT40 mode (UNII Band I): Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5190 ~ 523021.0863.89200.01631 Compliance Certification Services Inc. Report No.: T140813D03-RP3 Date of Issue: September 04, 2014 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11a mode (UNII Band III): Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5745 ~ 582522.5423.89200.01741 IEEE 802.11a HT20 mode (UNII Band III): Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5745 ~ 582522.2333.89200.01721 IEEE 802.11a HT40 mode (UNII Band III): Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5755 ~ 589521.6773.89200.01681

Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For HP Wireless Streaming Connector Model: HSTND-C008 Trade Name: hp Issued to GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln.235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., LujhuTownship, TaoyuanCounty 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 2, 2014 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION ......................................................................................................6 3.2 EUT EXERCISE ..................................................................................................................6 3.3 GENERAL TEST PROCEDURES .......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 3.5 DESCRIPTION OF TEST MODES ......................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................9 4.2 MEASUREMENT EQUIPMENT USED................................................................................9 4.3 MEASUREMENT UNCERTAINTY ....................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES ........................................................................................................................11 5.2 EQUIPMENT .....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT..................................................................................13 6.2 SUPPORT EQUIPMENT ...................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6 DB BANDWIDTH .............................................................................................................14 7.2 PEAK POWER...................................................................................................................25 7.3 AVERAGE POWER...........................................................................................................27 7.4 BAND EDGES MEASUREMENT ......................................................................................29 7.5 PEAK POWER SPECTRAL DENSITY ..............................................................................53 7.6 SPURIOUS EMISSIONS ...................................................................................................64 7.7 POWERLINE CONDUCTED EMISSIONS ........................................................................91 8. APPENDIX IPHOTOGRAPHS OF TEST SETUP.................................................................94 APPENDIX 1: PHOTOGRAPHS OF EUT ..................................................................................98 Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln.235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Manufacturer: GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln.235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Equipment Under Test: HP Wireless Streaming Connector Trade Name: hp Model: HSTND-C008 Date of Test: August 14 ~ September 1, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance n…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 94 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX I: PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 95 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 96 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: T140813D03-RP1 FCC ID: SW8-WD9012R1 Date of Issue: September 2, 2014 Page 97 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted EmissionsSetup Photos
