SW8TM51010Wi-Fi & BLE M.2 Wireless Module

User Manual Model: TM51010 FCC ID: SW8TM51010 Overview TM51010 Wireless Module is a powerful, generic Wi-Fi/BLE Board based on highly integrated Realtek RTL8720DN and Nordic nRF52832 module with built-in security features and ultra-low power consumption. The embedded system product developers and device makers can now drastically shorten their development cycle and reduce time to market by using this Wi-Fi & BLE M.2 Wireless Module. Features  IPEX antenna design for Wi-Fi and BLE to ensure better RF performance  Wi-Fi MCU with Amazon FreeRTOS to support Cloud service securely  Android SDK of BLE Mesh ready for fast installation and via Smartphone to ensure better user experience  Multi-Threading optimization to speed up network distribution process by saving time 1.5x than SIG Mesh Specifications Wi-Fi Network Standards IEEE 802.11 a/b/g/n 1x1 Operating Frequency 2.4GHz & 5GHz Data Rate Up to 150Mbps Antenna IPEX connector for external antenna Bluetooth LE RF Protocol BLE SIG Mesh Operating Frequency 2.4GHz Operation Range 30m (indoor open space) Antenna IPEX connector for external antenna M.2 Interface VCC support 3.3V USB x1 I2C x1 GPIO x15 Others Dimensions (L x W x H) 45 x 32 x 5.8mm Operating Temp. -20°C to +85°C Module installation 1. Insert the module into the M.2 slot of the end product motherboard. (Figure 1) 2. Secure the module to the motherboard with screw. (Figure 2) Figure 1 Figure 2 This Limited module is installed in the End-product for USB-C Smart Dock (M/N: DUD8070) FCC Statement This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution The user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement 1. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 2. For end product that integrate this module, a minimum distance of 20 cm must be maintained between the antenna and the user. Under such configuration, the FCC radiation exposure limits set forth for a population/uncontrolled environment can be satisfied. This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna, as long as 1 condition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co - location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end- product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: SW8TM51010” Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all require regulatory information/warning as show in this manual.

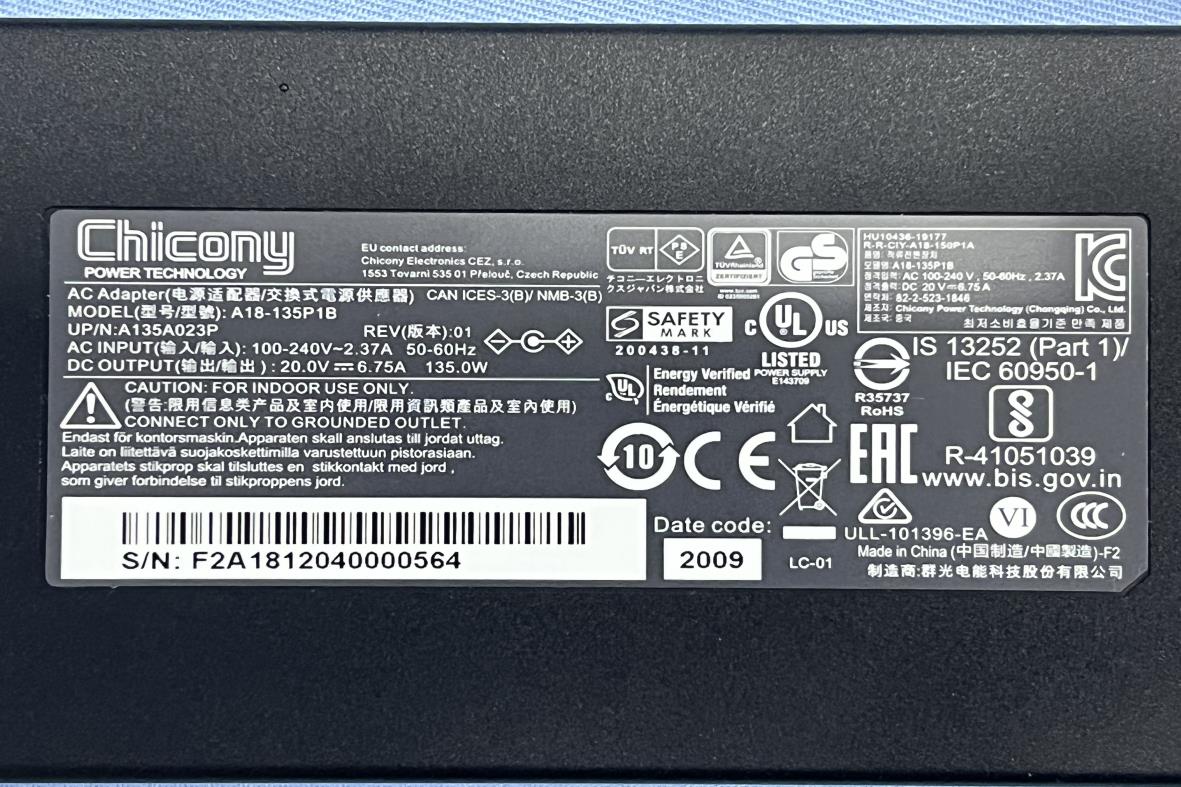

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 18 Report No.: TM-2203000166P Rev.: 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 18 Report No.: TM-2203000166P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 18 Report No.: TM-2203000166P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 18 Report No.: TM-2203000166P Rev.: 00 CONNECTED HOST UNDER TESTS USB-C Smart Dock (GOOD WAY / DUD8070) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 6 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 7 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 8 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 9 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 10 / 18 Report No.: TM-2203000166P Rev.: 00 Adapter This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 11 / 18 Report No.: TM-2203000166P Rev.: 00 Power Cable Type C to USB

20220525 DUD8070 Lable & Location Label Die-cutArtwork Bottom Case Label Location 49.50 mm 24.50 mm C2.00 R2.00 依照產品需求打印序號框範圍 Size:30 x10mm MADE IN CHINA USB-C Smart Dock Model: DUD8070 Input Rating: DC 20V 6.75A Contains FCC ID: SW8TM51010 依照產品需求打印序號框範圍 Size:30 x10mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA USB-C Smart Dock Model: DUD8070 Input Rating: DC 20V 6.75A Contains FCC ID: SW8TM51010 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA USB-C Smart Dock Model: DUD8070 Input Rating: DC 20V 6.75A Contains FCC ID: SW8TM51010 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

TM51010 Module Label Label size: 12 x 5 mm Label Text: FCC ID: SW8TM51010 TM51010 Module Label Location

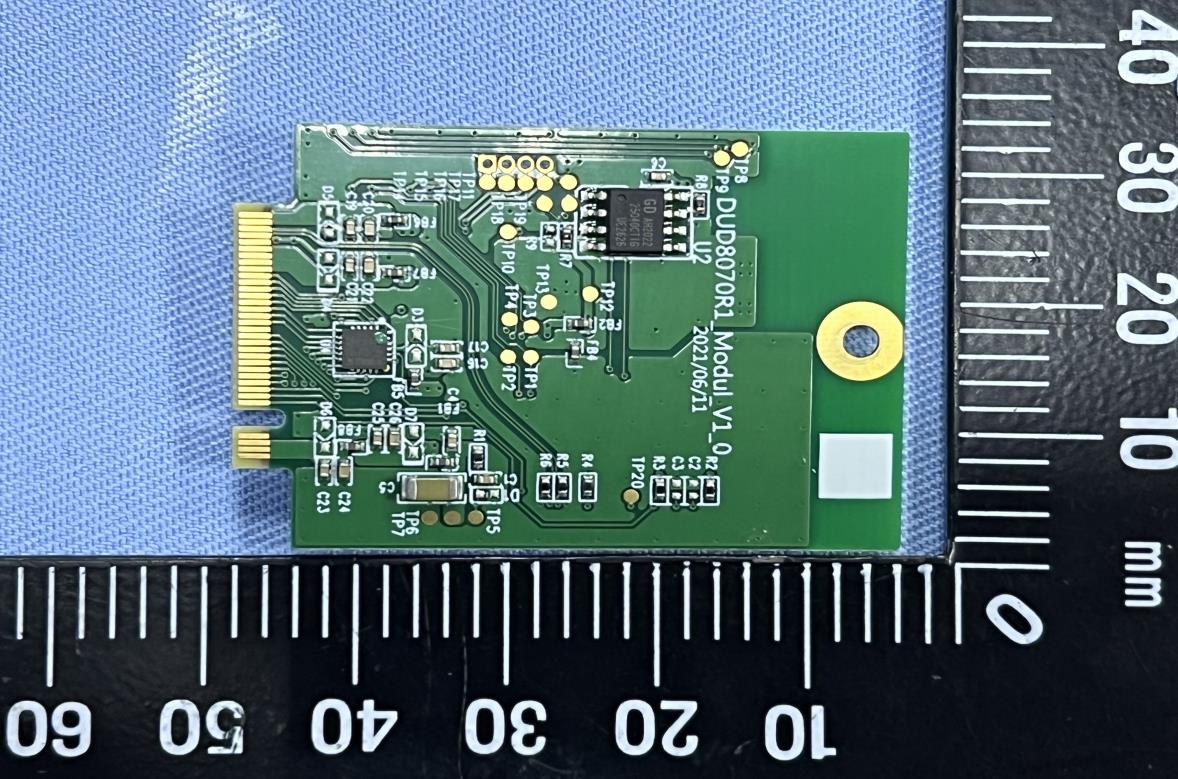

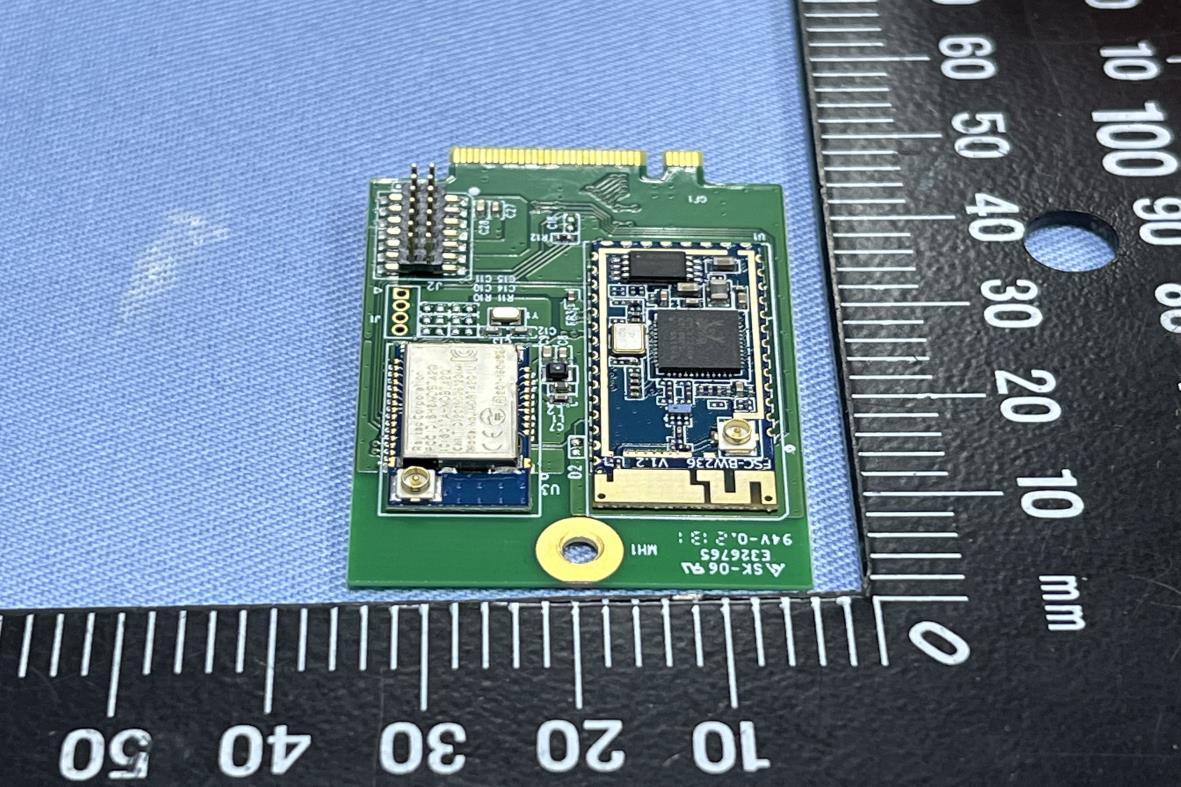

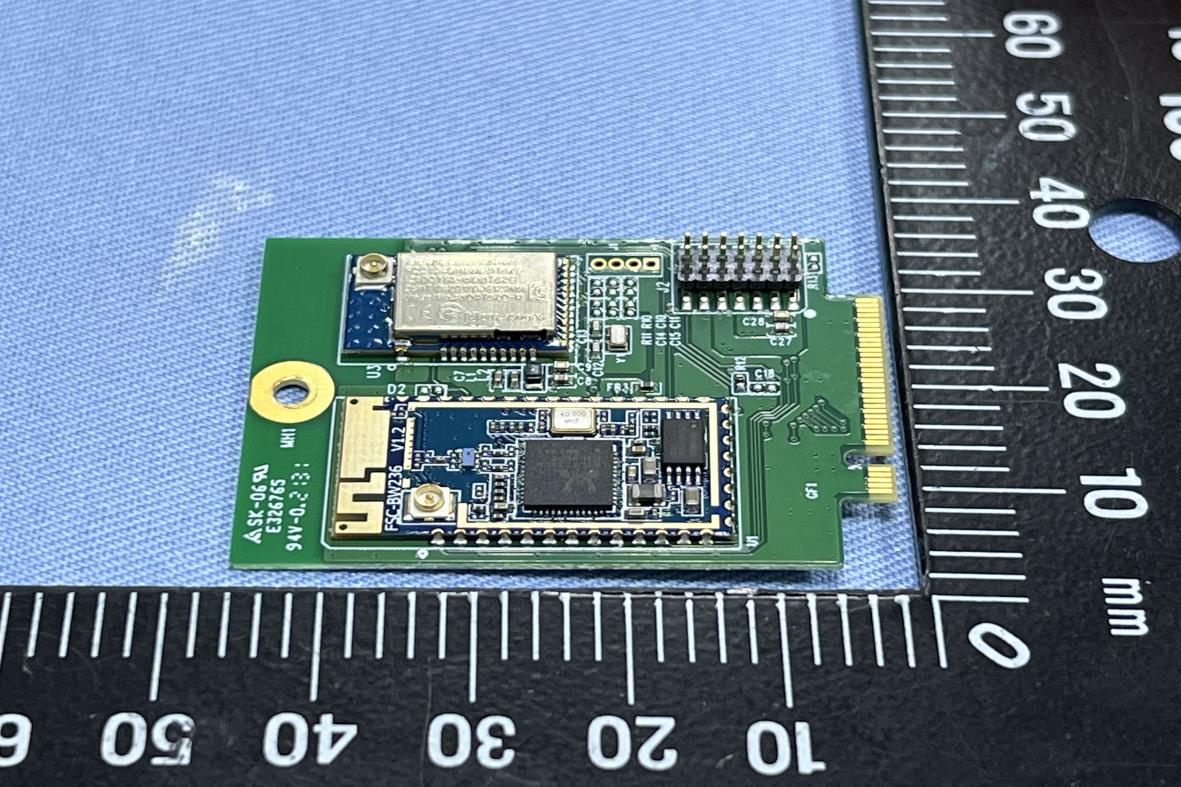

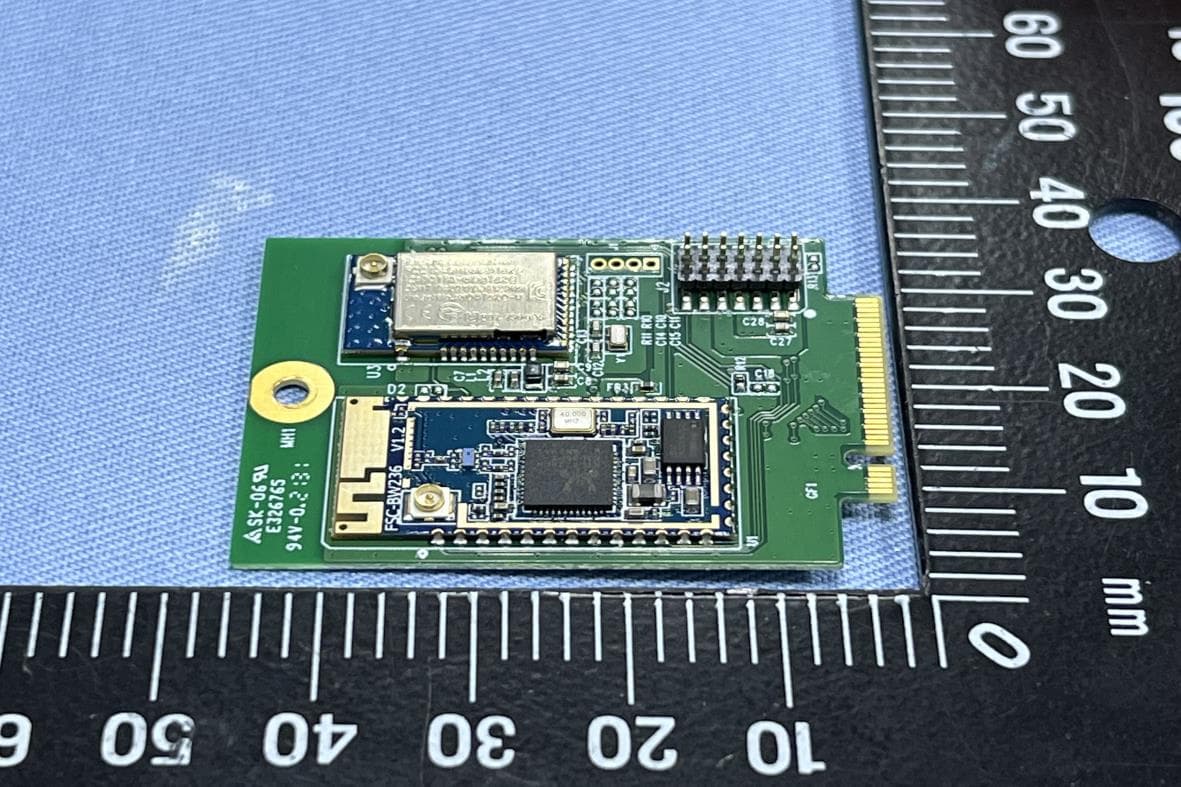

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 12 / 18 Report No.: TM-2203000166P Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT CONNECTED HOST UNDER TESTS This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 13 / 18 Report No.: TM-2203000166P Rev.: 00 CONNECTED HOST UNDER TESTS This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 14 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 15 / 18 Report No.: TM-2203000166P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 16 / 18 Report No.: TM-2203000166P Rev.: 00 Wifi Module & Crystal BT Module & Crystal This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 17 / 18 Report No.: TM-2203000166P Rev.: 00 Wifi Antenna This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 18 / 18 Report No.: TM-2203000166P Rev.: 00 BT Antenna

Project No: TM-2203000166P FCC ID: SW8TM51010 Page 1 / 10 Report No.: TMWK2203000915KR Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group KDB 447498 D01 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Wi-Fi & BLE M.2 Wireless Module Model: TM51010 Trade Name: GOOD WAY Issued to GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: May 19, 2022 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 10 Report No.: TMWK2203000915KR Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 16, 2022 Initial Issue ALL Doris Chu 01 May 19, 2022 See the following Note Rev. (01) P.1, .P.4 Doris Chu Rev. (01) 1. KDB 447498 D03 revised to KDB 447498 D01. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 10 Report No.: TMWK2203000915KR Rev.: 01 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ......................................................................... 4 2. LIMIT ..................................................................................................................... 5 3. EUT SPECIFICATION .......................................................................................... 6 4. TEST RESULTS ................................................................................................... 8 5. MAXIMUM PERMISSIBLE EXPOSURE............................................................... 9 6. SIMULTANEOUS TRANSMISSION SAR ANALYSIS ........................................ 10 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 10 Report No.: TMWK2203000915KR Rev.: 01 1. TEST RESULT CERTIFICATION We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D01 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 Compliance Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 10 Report No.: TMWK2203000915KR Rev.: 01 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of FCC part 2.1093 of the chapter. TABLE 1 - LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 * 100 6 3.0-30 1842/f 4.89/f * 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * 100 30 1.34-30 824/f 2.19/f * 180/f 2 3…

Text truncated - open the document above for the full version.

Produced By：Jacky Date:2021/03/29 Antenna Measurement Report WANSHIH ELECTRONIC CO.,LTD Outline •Measurement Instrument & Anechoic chamber •Equipment Under Test •Antenna Placement •Test Method •Measurement Data •Return loss & Isolation •Efficiency & Gain Table •Radiation 2D & 3D Pattern Measurement Instrument & anechoic chamber TEST INSTRUMENT： 1.AGILENT E5071C NETWORK ANALYZER 2.3D OTA Chamber(Wanshih) Measurement Instrument & Anechoic chamber Equipment Under Test(EUT) X Y Z(Horn) Antenna Placement Ant 2 Ant 1 Return Loss VSWR Return Loss & VSWR Ant 1 Return Loss VSWR Return Loss & VSWR Ant 2 Return Loss Ant 1 & Ant 2 Isolation Efficiency & Gain Antenna-1 Antenna-2 Frequency (GHz) 2.4G 2.45G 2.5G 5.15G 5.25G 5.35G 5.725G 5.85G Peak EIRP (dBi) 3.08 3.02 2.68 2.75 2.98 3.05 4.38 4.1 Tot.Rad.(dBi) -2.63 -2.6 -2.89 -2.2 -2.47 -2.1 -2.4 -2.33 Efficiency(%) 54.58 54.95 51.4 60.26 56.62 61.66 57.54 58.48 Frequency (GHz) 2.4G 2.45G 2.5G Peak EIRP (dBi) 1.26 1.35 1.52 Tot.Rad.(dBi) -2.89 -2.67 -2.6 Efficiency(%) 51.4 54.08 54.95 Position XY Cut YZ Cut XZ Cut Radiation 2D Pattern Ant 1 2.4~2.5GHz Position XY Cut YZ Cut XZ Cut Radiation 2D Pattern Ant 1 5.15~5.85GHz Position Radiation 3D Pattern 2.45 GHz 5.85 GHz 5.25 GHz Ant 1 Position XY Cut YZ Cut XZ Cut Radiation 2D Pattern Ant 2 Position Radiation 3D Pattern 2.4 GHz 2.5 GHz 2.45 GHz Ant 2

Project No: TM-2203000166P FCC ID: SW8TM51010 Page: 1 / 102 Report No.: TMWK2203000914KR Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART E Test Standard FCC Part 15.407 Product name Wi-Fi & BLE M.2 Wireless Module Brand Name GOOD WAY Model No. TM51010 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Shawn Wu Supervisor Page: 2 / 102 Report No.: TMWK2203000914KR Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 16, 2022 Initial Issue ALL Doris Chu 01 May 19, 2022 See the following Note Rev. (01) P.35, P.47 Doris Chu Rev. (01) 1. Remove E.2.b for BW 80MHz in section 4.3.2. 2. Remove BW 80MHz test setup in section 4.3.3. 3. Revised limit in section 4.3.1. 4. Remove IC test limit in section 4.5.1. Page: 3 / 102 Report No.: TMWK2203000914KR Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Table of contents 1. GENERAL INFORMATION .................................................................................................................... 4 1.1 EUT INFORMATION .............................................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ............................................................................................................ 5 1.3 ANTENNA INFORMATION .................................................................................................................... 6 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 1.5 FACILITIES AND TEST LOCATION...................................................................................................... 8 1.6 INSTRUMENT CALIBRATION ............................................................................................................... 8 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT .......................................................................... 10 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ...................................................................... 10 2. TEST SUMMARY ................................................................................................................................. 11 3. DESCRIPTION OF TEST MODES ....................................................................................................... 12 3.1 THE EUT CHANNEL NUMBER OF OPERATING CONDITION ......................................................... 12 3.2 THE WORST MODE OF MEASUREMENT ......................................................................................... 13 3.3 EUT DUTY CYCLE ............................................................................................................................... 14 4. TEST RESULT...................................................................................................................................... 15 4.1 AC POWER LINE CONDUCTED EMISSION ...................................................................................... 15 4.2 26DB BANDWIDTH, 6DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) .............................. 18 4.3 OUTPUT POWER MEASUREMENT ................................................................................................... 34 4.4 POWER SPECTRAL DENSITY ........................................................................................................... 37 4.5 RADIATION BANDEDGE AND SPURIOUS EMISSION ..................................................................... 47 APPENDIX-A TEST PHOTO ..................................................................................................................... A-1 APPENDIX 1…

Text truncated - open the document above for the full version.

Page: A-1 / A-4 Report No.: TMWK2203000914KR Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 APPENDIX-A TEST PHOTO Radiation (Below 1GHz) Radiation (Above 1GHz) Page: A-2 / A-4 Report No.: TMWK2203000914KR Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Conducted Emission Set Up Photo Page: A-3 / A-4 Report No.: TMWK2203000914KR Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Conduction Page: A-4 / A-4 Report No.: TMWK2203000914KR Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。
