SW8TR1B100Z1SScene Button

Scene Button User’s Manual Introduction The Scene Button is a wireless switch designed to control other associated devices through the Z-Wave controller. After receiving the signals emitted by the Scene Button, the Z-Wave controller can then give commands or operate according to its own settings. Its great compatibility with Z-Wave products makes it suitable for Z-Wave smart home gateway. Different scene device actions can be triggered by clicking, double-clicking, or holding the button. The Scene Button can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or on the desk. The Scene Button is also a security Z-Wave device and supports the Over- The-Air (OTA) feature for the product’s firmware upgrade. If you want it to be a security device that use secure/encrypted message to communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed. Package Contents
Scene Button x 1
User Manual x 1
3M Double-sided tape x 1
Screw x 2 Command Class Z-Wave Scene Button Command Class Supported COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_SUPERVISION_V1 COMMAND_CLASS_BATTERY_V1 COMMAND_CLASS_WAKE_UP_V2 COMMAND_CLASS_TRANSPORT_SERVICE_V2 COMMAND_CLASS_SECURITY_V1 COMMAND_CLASS_SECURITY_2_V1 COMMAND_CLASS_VERSION_V3 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_CENTRAL_SCENE_V2 COMMAND_CLASS_CONFIGURATION_V1 Security COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_ CENTRAL_SCENE_V2 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_BATTERY_V1 COMMAND_CLASS_WAKE_UP_V2 COMMAND_CLASS_VERSION_V3 COMMAND_CLASS_SUPERVISION_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Scene Button Device Information Basic Device Class: ROUTING_SLAVE Generic Device Class: SENSOR_NOTIFICATION Specific Device Class: NOTIFICATION_SENSOR Detailed description of each Command Class [COMMAND_CLASS_ZWAVEPLUS_INFO] The Z-Wave Plus Info Get Command is used to get additional information of the Z-Wave Plus device in question. [COMMAND_CLASS_SUPERVISION] The Supervision Command Class allows a sending node to request application-level delivery confirmation from a receiving node. The delivery confirmation includes relevant application-level status information in the confirmation message. The Supervision Command Class MAY be used for solitary commands such as Set and unsolicited Report commands. The Supervision Command Class MUST NOT be used for session-like command flows such as Get←→Report command exchanges or firmware update. [COMMAND_CLASS_BATTERY] The Battery Command Class is used to request and report battery levels for a given device. [COMMAND_CLASS_WAKE_UP] The Wake Up Command Class version 2 enables read back of the Wake Up Interval capabilities in a node. The Z-Wave Scene Button wakes up by wake up timer or presses the physical button once, it will send Wakeup Notification Command to the node ID that requires to be reported and stay awake for 10 seconds, if no WAKE_UP_NO_MORE_INFORMATION command is received. [COMMAND_CLASS_TRANSPORT_SERVICE] The Transport Service Command Class supports the transfer of datagrams larger than the Z-Wave frame. [COMMAND_CLASS_SECURITY] The Security Command Class create the foundation for secure application communication between nodes in a Z-Wave network. The security layer provides confidentiality, authentication and replay attack robustness through AES-128. [COMMAND_CLASS_SECURITY_2] The Security 2 Command Class is a framework for allowing nodes to communicate securely in a Z-Wave network. The Security 2 Command Class provides backwards compatibility to nodes implementing the Security 0 Command Class. Security 2 Command Class also defines a new encapsulation format, new Security Classes and a new KEX Scheme 1, which together offers a number of advantages over the Security 0 Command Class. Security 2 Command Class is scalable and allows more KEX Schemes, Security Classes and encapsulation formats to be introduced in the future if necessary. [COMMAND_CLASS_VERSION] The Version Command Class, version 3 allows supporting nodes to advertise capabilities related to the Version Command Class and optionally provide a detailed list of information regarding implementation on the Z- Wave chip. [COMMAND_CLASS_FIRMWARE_UPDATE_MD] The Firmware Update Meta Data Command Class may be used to transfer a firmware image to a Z-Wave device. [COMMAND_CLASS_ASSOCIATION] The Association Command Class is used to manage associations to Node ID destinations. A Node ID destination may be a simple device or the Root Device of a Multi Channel device. [COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION] The Multi Channel Association Command Class is used to manage associations to Multi Channel End Point destinations as well as to Node ID destinations. [COMMAND_CLASS_ASSOCIATION_GRP_INFO] The Association Group Information (AGI) Command Class allows a node to advertise the capabilities of each association group supported by a given application resource. Controllers and installer tools SHOULD use AGI information to support controller-assisted button-to-button association and GUI-based drag-and-drop association in a plug-and-play fashion. Centralized gateway-based deployments may create a single association from the lifeline association group to a central management application. Group Name Description 1 Lifeline Lifeline group, association with 5 nodes. [COMMAND_CLASS_MANUFACTURER_SPECIFIC] Manufacturer Specific Command Class, version 2 adds a set of commands to communicate unique identification, e.g. the serial number, of the product. Commands not mentioned here remain unchanged as specifi…

Text truncated - open the document above for the full version.

Date: July 7, 2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: SW8TR1B100Z1S To whom it may concern: We, the undersigned, hereby authorize Kevin Tsai / Deputy Manager of SGS Compliance Certification Services Inc. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with GOOD WAY TECHNOLOGY CO., LTD. This authorization is valid until further written notice from the applicant. Alex.Lee Manager GOOD WAY TECHNOLOGY CO., LTD. TEL: 886-2-8919-1200 #719 FAX: 886-2-8919-1220 E-Mail: [email protected]

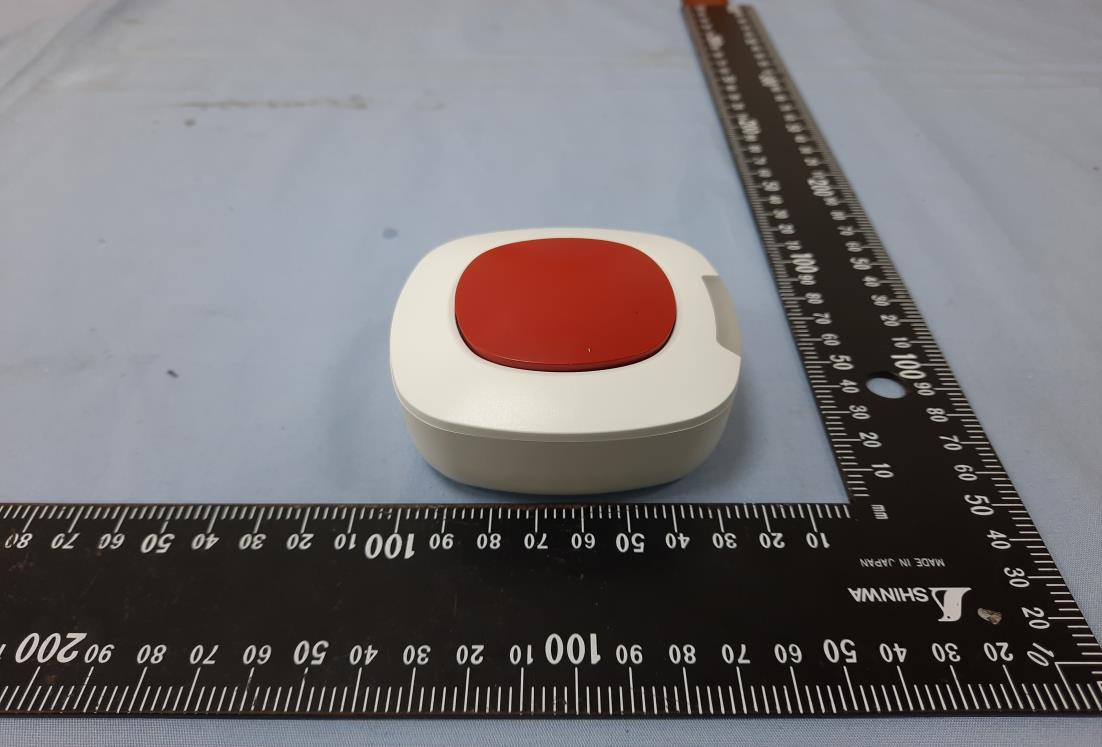

Page: 1 / 9 Report No.: T200528D01 Rev.: 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Page: 2 / 9 Report No.: T200528D01 Rev.: 01 Page: 3 / 9 Report No.: T200528D01 Rev.: 01

label position

Page: 4 / 9 Report No.: T200528D01 Rev.: 01 INTERNAL PHOTOGRAPHS OF EUT Page: 5 / 9 Report No.: T200528D01 Rev.: 01 Page: 6 / 9 Report No.: T200528D01 Rev.: 01 Page: 7 / 9 Report No.: T200528D01 Rev.: 01 Page: 8 / 9 Report No.: T200528D01 Rev.: 01 RF IC & Crystal SAW filter Page: 9 / 9 Report No.: T200528D01 Rev.: 01 Antenna

FCC ID: SW8TR1B100Z1S Page 1 / 8 Report No.: T200528D01-MF Rev.: 02 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Z-Wave® Scene Button Model: TR1B100Z1 Trade Name: GOOD WAY Issued to GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: July 10, 2020 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Page 2 / 8 Report No.: T200528D01-MF Rev.: 02 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 2, 2020 Initial Issue ALL Allison Chen 01 July 8, 2020 See the following note Rev.(01) P.6, P.8 Allison Chen 02 July 10, 2020 See the following note Rev.(02) P.6, P.8 Allison Chen Rev.(01) 1. Revised output power, tune up power and test result. Rev.(02) 1. Revised output power, tune up power and test result. Page 3 / 8 Report No.: T200528D01-MF Rev.: 02 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ......................................................................... 4 2. LIMIT ..................................................................................................................... 5 3. EUT SPECIFICATION .......................................................................................... 6 4. TEST RESULTS ................................................................................................... 7 5. MAXIMUM PERMISSIBLE EXPOSURE............................................................... 8 Page 4 / 8 Report No.: T200528D01-MF Rev.: 02 1. TEST RESULT CERTIFICATION We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 No non-compliance noted Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. Page 5 / 8 Report No.: T200528D01-MF Rev.: 02 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. Page 6 / 8 Report No.: T200528D01-MF Rev.: 02 3. EUT SPECIFICATION EUT Z-Wave® Scene Button Model TR1B100Z1 Model Discrepancy N/A Frequency band (Operating) Bluetooth: 2402MHz-2480MHz 802.11b/g/n HT20: 2412MHz ~ 2462 MHz 802.11n HT40: 2422MHz ~ 2452MHz 802.11a/n HT20: 5180MHz ~ 5240MHz / 5260MHz ~ 5320MHz / 5500MHz ~ 5700MHz / 5745MHz ~ 5825MHz 802.11n HT40: 5190MHz ~ 5230MHz / 5270MHz ~ 5310MHz / 5510MHz ~ 5670MHz / 5755MHz ~ 5795MHz 802.11ac VHT80: 5210MHz / 5290MHz / 5530MHz / 5775MHz Z-wave: 908 MHz, 908.4 MHz, 916 MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Z-wave Antenna Gain :-0.70 dBi (Numeric gain:0.85) Maximum average output power Z-wave -1.57 dBm(0.697 mW) EIRP= E(dBuV/m) + 20 log (D) – 104.8 = 93.69 + 20 log (3) – 104.8 = 93.69 + 9.54 – 104.8 = -1.57 dBm Maximum tune up power Z-wave 0.57 dBm(1.140 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Page 7 / 8 Report No.: T200528D01-MF Rev.: 02 4. TEST RESULTS No non-compliance noted. Calculation Given d GP E  = 30 & 377 2 E S= Where E = Field …

Text truncated - open the document above for the full version.

FCC ID: SW8TR1B100Z1S Page: 1 / 36 Report No.: T200528D01-RP Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.249 Product name Z-Wave® Scene Button Brand Name GOOD WAY Model TR1B100Z1 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.( Wugu Laboratory) Approved by: Kevin Tsai Deputy Manager Page: 2 / 36 Report No.: T200528D01-RP Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 2, 2020 Initial Issue ALL Allison Chen Page: 3 / 36 Report No.: T200528D01-RP Rev.: 00 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................. 4 1.1 EUT INFORMATION ....................................................................................................................... 4 1.2 EUT CHANNEL INFORMATION ..................................................................................................... 5 1.3 ANTENNA INFORMATION ............................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY .................................................................................................. 6 1.5 FACILITIES AND TEST LOCATION............................................................................................... 7 1.6 INSTRUMENT CALIBRATION ........................................................................................................ 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ..................................................................... 8 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ................................................................. 8 2. TEST SUMMERY............................................................................................................................. 9 3. DESCRIPTION OF TEST MODES ................................................................................................ 10 3.1 THE WORST MODE OF OPERATING CONDITION .................................................................... 10 3.2 THE WORST MODE OF MEASUREMENT .................................................................................. 10 3.3 EUT DUTY CYCLE ........................................................................................................................ 11 4. TEST RESULT............................................................................................................................... 12 4.1 AC POWER LINE CONDUCTED EMISSION ............................................................................... 12 4.2 20dB BANDWIDTH ....................................................................................................................... 13 4.3 RADIATION BANDEDGE AND SPURIOUS EMISSION .............................................................. 18 APPENDIX-A TEST PHOTO ............................................................................................................. A-1 Page: 4 / 36 Report No.: T200528D01-RP Rev.: 00 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Equipment Z-Wave® Scene Button Brand Name GOOD WAY Model No. TR1B100Z1 Model Discrepancy N/A Received Date May 28, 2020 Date of Test June 3, 2020 Power Operation Power from Battery. (AAA*2) RF Field Strength 908.4 MHz: 90.24 dBuV/m @peak 908.42 MHz: 93.90 dBuV/m @peak 916 MHz: 93.06 dBuV/m @peak Date Rate 9.6 kbps / 40 kbps / 100 kbps Page: 5 / 36 Report No.: T200528D01-RP Rev.: 00 1.2 EUT CHANNEL INFORMATION Frequency Range 908.4 MHz, 908.42 MHz, 916 MHz Modulation Type FSK / GFSK Number of channel 3 Channel Remark: Refer as ANSI C63.10: 2013 clause 5.6.1 Table 4 for test channels Number of frequencies to be tested Frequency range in which device operates Numbe…

Text truncated - open the document above for the full version.

Page: A-1 / A-4 Report No.: T200528D01-RP Rev.: 00 APPENDIX-A TEST PHOTO Radiated Emission Set up Photos 908.4 MHz Below 1GHz Above 1GHz Page: A-2 / A-4 Report No.: T200528D01-RP Rev.: 00 908.42 MHz Below 1GHz Above 1GHz Page: A-3 / A-4 Report No.: T200528D01-RP Rev.: 00 916 MHz Below 1GHz Above 1GHz Page: A-4 / A-4 Report No.: T200528D01-RP Rev.: 00 Conducted Emission Setup Photos
