SW8ZGATE802.11b/g/n and Z-WAVE

Z-Gate ™ FG2200 (LAN to Z-Wave ® Home gateway) FG3200 (WiFi to Z-Wave ® Home gateway) User's Manual 1 Table of Contents SAFETY INSTRUCTIONS ......................................... 1 COPYRIGHT ........................................................ 1 TRADEMARKS ..................................................... 1 INTRODUCTION ............................................... 2 FEATURES .......................................................... 2 PACKAGE CONTENTS ............................................ 3 PRODUCT OVERVIEW ...................................... 4 FG2200 ............................................................ 4 FG3200 ............................................................ 5 CONNECTION .................................................. 6 SPECIFICATION ................................................ 7 FG2200 ............................................................ 7 FG3200 ............................................................ 9 REGULATORY COMPLIANCE ........................... 12 FCC CONDITIONS .............................................. 12 CE .................................................................. 12 WEEE INFORMATION ........................................ 12 1 Before attempting to connect, operate or adjust this product, please save and read the User's Manual completely. The style of the product shown in this User's Manual may be different from the actual unit due to various models. Safety Instructions Always read the safety instructions carefully: ■ Keep this User’s Manual for future reference ■ Keep this equipment away from humidity ■ If any of the following situation arises, get the equipment checked by a service technician: • The equipment has been exposed to moisture. • The equipment has been dropped and damaged. • The equipment has obvious sign of breakage. • The equipment has not been working well or cannot get it to work according to the User’s Manual. Copyright This document contains proprietary information protected by copyright. All right are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. Trademarks All trademarks and registered trademarks are the property of their respective owners or companies. 2 Introduction Our Z-Gate TM series are designed to connect and communicate multi Z-Wave ® devices. Feature packed, tiny and powerful Z-Wave ® home gateway to communicate. Monitor and control your home remotely from anywhere in the world using a mobile phone or tablet PC. Enhanced expansion capability plus stylish appearance, the Z-Gate TM series are the most versatile accessories to the Z-Wave ® users. Features  CPU: 400MHz MISPS SoC  Flash NAND 8MB  Memory DDR2 64MB  WAN/LAN Port  Z-Wave ® dongle built-in with internal antenna  WiFi (FG3200 only)  Micro SD Slot (internal) [SD card support up to 64G maximum capacity] 3 Package Contents  Z-Gate TM  Built-in Antenna (FG3200 only)  5V/2.5A Adapter FG2200 FG3200 Ada pter 4 Product Overview FG2200 Item Description 1 Wall Mount Hole Mounts the device to the wall 2 RJ45 port Connects to an Ethernet 3 DC-in jack Connects to the power adapter 4 Reset Restores to the default settings 5 LED Power (Red); LAN / WAN (Green); Z-Wave ® (Blue) 4321 5 5 FG3200 Item Description 1 Antenna 2.4GHz Wi-Fi 2 Wall Mount Hole Mounts the device to the wall 3 RJ45 port Connects to an Ethernet 4 DC-in jack Connects to the power adapter 5 Reset Restores to the default settings 6 LED Power (Red); LAN / WAN (Green); Z-Wave ® (Blue) 5432 61 6 Connection Connect your Z-Gate TM with a router using your LAN cable and start the controller. From now on Z-Gate TM will be visible to all devices within your local area network (LAN). To make the connection with cell phone, Ethernet, and other Z-Wave ® devices, please refer to the illustrations below. 7 Specification FG2200 Main Function Core CPU Clock Rate 400MHz DDR2 SDRAM 64M Bytes Flash 8M Bytes Ethernet Interface RJ-45 Standard IEEE802.3 Speed 10/100Mbps LAN For Bridge or Wireless ISP Mode WAN For Gateway Mode Z-Wave ® RF Frequency 908.42 MHz (US) 868.42 MHz(EU) 922.5 MHz (JP) Data Rate 9.6 / 40 / 100kbit/s Output Power-21...+2.5 dBm High Sensitivity (Typical Values) -99 dBm @9.6 kbit/s -97 dBm @40 kbit/s -93 dBm @100 kbit/s LED Indicator Display Red Power Green LAN / WAN Blue Z-Wave ® 8 Micro SD Slot (Option) TF Card Support up to ver. 2.0 (SDHC) Compatible with ver. 3.0 (SDXC) Power DC Jack Input 5VDC Power Adapter Input AC 100-240V Output DC 5V/2.5A Power Consumption Normal Mode 1.15W Housing Physical Properties Material ABS (Plastic) Dimension (L x W x H) 104 x 50 x 17.5 mm Weight 55.5g Working Environment Operation Temperature 0~60 degree Storage Temperature -20~85 degree Relative Humidity 5~90% (Non-condensing) Compliance CE, FCC 9 FG3200 Main Function Core CPU Clock Rate 400MHz DDR2 SDRAM 64M Bytes Flash 8M Bytes Wireless Wi-Fi Standard IEEE 802.11 b/g/n Wireless Local Area Networks Wi-Fi Frequency Range 2.4G~2.5GHz Measured Data Rates 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps in 802.11b Modes 6Mbps, 36Mbps, 48Mbps, 54Mbps in 802.11g Modes MCS0~MCS7 in both HT20 and HT40 in 802.11n Modes (up to 150Mbps) Measured Channels 2.412, 2.442, 2472GHz in 802.11 b/g and 802.11n HT20 modes 2.422, 2.437, 2.452, in 802.11n HT40 mode Ethernet Interface RJ-45 Standard IEEE802.3 Speed 10/100Mbps LAN For Bridge or Wireless ISP Mode WAN For Gateway Mode 10 Z-Wave ® RF Frequency 908.42 MHz (US) 868.42 MHz(EU) 922.5 MHz (JP) Data Rate 9.6 / 40 / 100kbit/s Output Power-21...+2.5 dBm High Sensitivity (Typical Values) -99 dBm @9.6 kbit/s -97 dBm @40 kbit/s -93 dBm @100 kbit/s LED Indicator Display Red Power Green LAN / WAN Blue Z-Wave ® Micro SD Slot (Option) TF Card Support up to ver. 2.0 (SDHC) Compatible with ver. 3.0 (SDXC) Power DC Jack Input 5VDC Power Adapter Input AC 100-240V Output DC 5V/2.5A Power Consumption Normal Mode 1.70W Housing Physical Propertie…

Text truncated - open the document above for the full version.

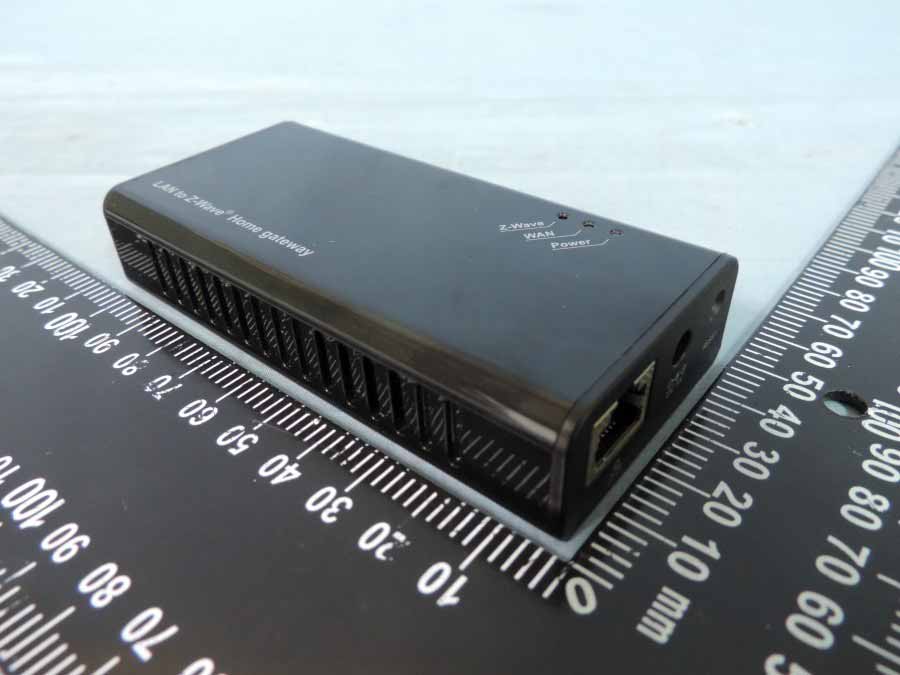

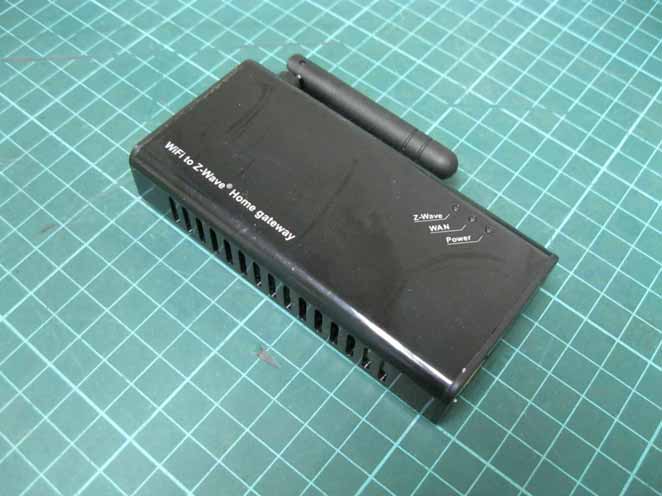

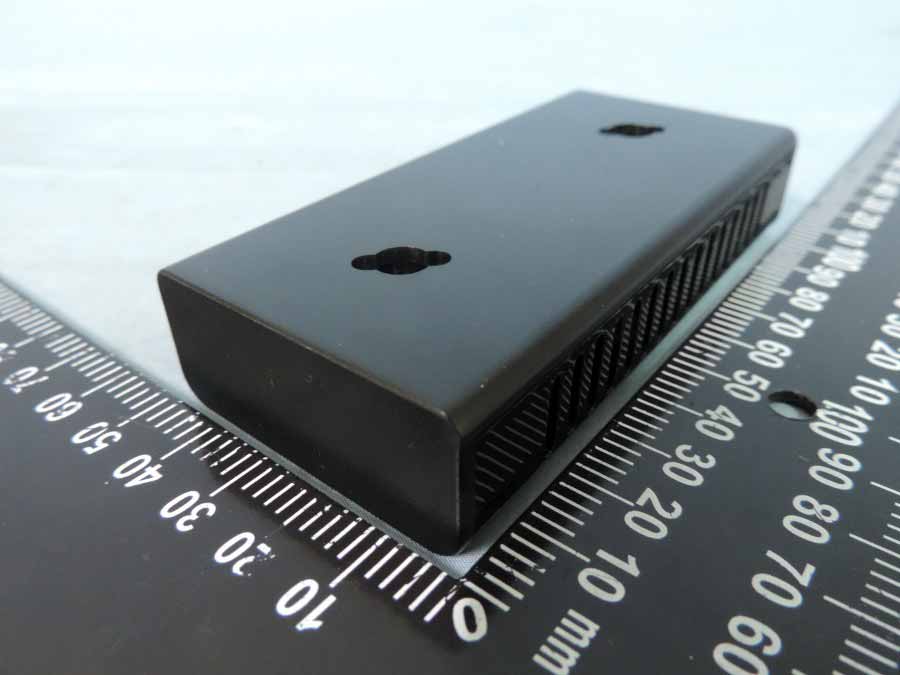

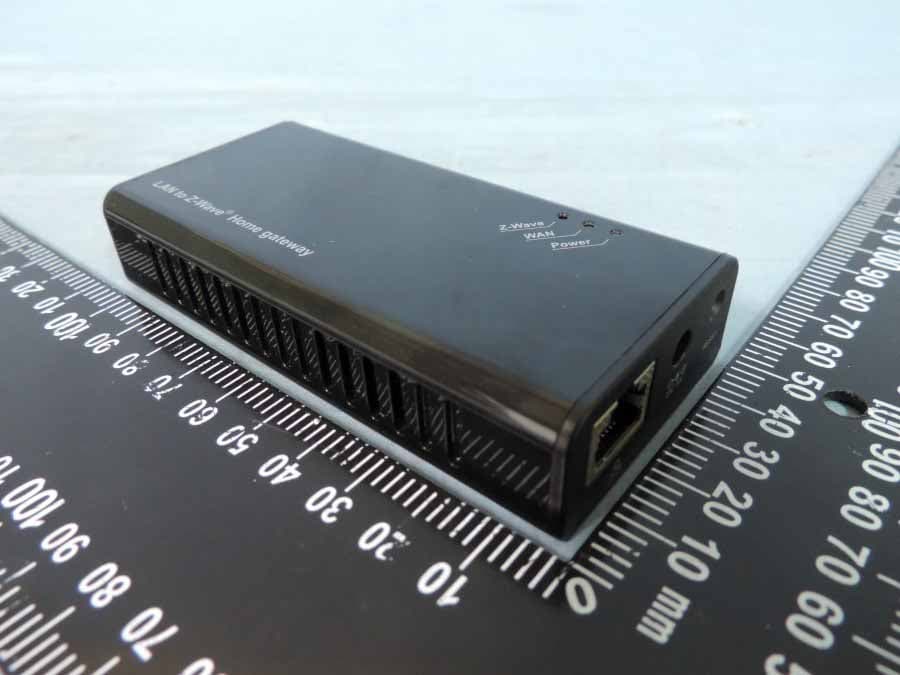

Report No.T140627D04 Page 1 of 6 External Photo (Model : FG3200) Report No.T140627D04 Page 2 of 6 Report No.T140627D04 Page 3 of 6 External Photo (Model : FG2200) Report No.T140627D04 Page 4 of 6 Report No.T140627D04 Page 5 of 6 Power Adapter(Model:DSA-15P-05 US 050125 ) Report No.T140627D04 Page 6 of 6

Report No.T140627D04 Page 1 of 12 Internal Photo Report No.T140627D04 Page 2 of 12 Report No.T140627D04 Page 3 of 12 Report No.T140627D04 Page 4 of 12 Report No.T140627D04 Page 5 of 12 Report No.T140627D04 Page 6 of 12 Report No.T140627D04 Page 7 of 12 Antenna Report No.T140627D04 Page 8 of 12 Module (WIFI) Report No.T140627D04 Page 9 of 12 Report No.T140627D04 Page 10 of 12 Report No.T140627D04 Page 11 of 12 Module (Z-WAVE) Report No.T140627D04 Page 12 of 12

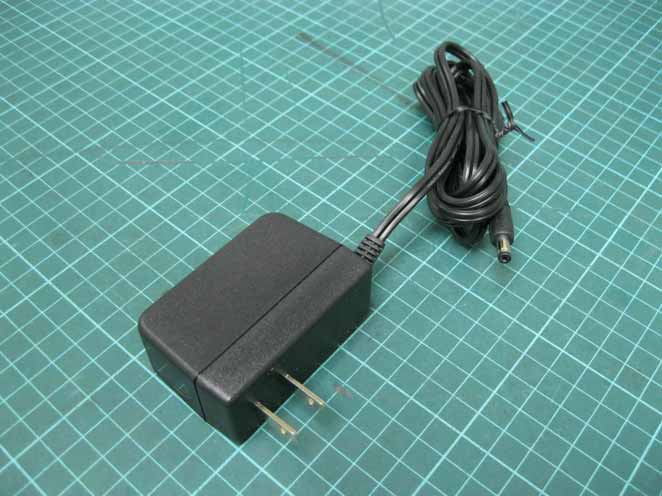

Snap-on Diagnostics Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: B Mode: 24 dBm± 2 dB G Mode: 24 dBm± 2 dB N 20Mode: 24 dBm± 2 dB N 40 Mode: 24 dBm± 2 dB Alex.Lee Manager GOOD WAY TECHNOLOGY CO., LTD. TEL: 886-2-8919-1200 #719 FAX: 886-2-8919-1220 E-Mail: [email protected]

Compliance Certification Services Inc. Report No.: T140627D04-RP1-2 Date of Issue: October 08, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Z-Gate Product Description LAN to Z-Wave / Wifi to Z-Wave Model FG3200 ; FG2200 RF Module Realtek RF Module, Model Number : RTL8188EE ZWAVE RF Module, Model Number : MZM5101A-C84 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11gn HT40: 2.422GHz ~ 2.452GHz Z-Wave: 908.42MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Wifi: Antenna Gain :2.26 dBi (Numeric gain 1.68) Z-Wave:Antenna Gain :1.30 dBi (Numeric gain 1.35) Maximum Average output power IEEE 802.11b Mode: 25.07 dBm(321.366 mW) IEEE 802.11g Mode: 25.29 dBm(338.065 mW) IEEE 802.11gn HT 20 Mode: 25.55 dBm(358.922 mW) IEEE 802.11gn HT 40 Mode: 24.62 dBm(289.734 mW) Z-Wave:94.01 dBuV/m (0.7553 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140627D04-RP1-2 Date of Issue: October 08, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/09/30 Initial Issue ALL Michelle Chiu 01 2014/10/01 Revised Product Name & Added Product Description ALL Dola Hsieh 02 2014/10/08 Revised ALL Gloria Chang Compliance Certification Services Inc. Report No.: T140627D04-RP1-2 Date of Issue: October 08, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140627D04-RP1-2 Date of Issue: October 08, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462321.3661.68200.10741 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462338.0651.68200.11301 IEEE 802.11gn HT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462358.9221.68200.12001 IEEE 802.11gn HT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2422 ~ 2452298.7341.68200.09991 For Z-Wave: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 908.420.75531.35200.00020.6056

FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 1 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For Z-Gate Model : FG3200 ; FG2200 Trade Name : GOOD WAY Issued for GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: October 08, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 2 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 09/30/2014 Initial Issue All Page 26 Dola Hsieh 01 10/01/2014 Revised Product Name & Added Product Description All Page 26 Dola Hsieh 02 10/08/2014 Revised Antenna Information Page 5 Gloria Chang FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 3 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS ................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 9 7. FCC PART 15.249 REQUIREMENTS .......................................................................... 10 7.1 20dB BANDWIDTH ................................................................................................ 10 7.2 RADIATED EMISSION ........................................................................................... 13 7.3 CONDUCTED EMISSION ...................................................................................... 20 APPENDIX I SETUP PHOTOS ........................................................................................ 25 FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 4 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant GOOD WAY TECHNOLOGY CO., LTD. Address 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan Equipment Under Test Z-Gate Model FG3200 ; FG2200 Trade Name GOOD WAY Tested Date June 27 ~ September 22, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 5 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Z-Gate Product Description LAN to Z-Wave / Wifi to Z-Wave Model Number FG3200 ; FG2200 RF Module ZWAVE RF Module, Model Number : MZM5101A-C84 Identify Number T140627D04 Received Date June 27, 2014 Frequency Range 908.42MHz Transmit Power 94.01 dBuV/m Channel Number 1 Channels Type of Modulation ASK Antenna Type Chip (SMD) Antenna, Antenna Gain 1.3 dBi Power Rating 5Vdc Test Voltage 120Vac, 60Hz DC Power Cable Type Non-shielded cable, 1.5m (Non-detachable), with a ferrite core I/O Port RJ-45 Port × 1, Power Port × 1 RF Module : No. Manufacturer Model No. Brand NameApplicant Device description FCC ID 1 AzureWave RTL8188EE Realtek Realtek Semiconductor Corp. 802.11b/g/n RTL8188EE miniCard TX2-RTL818 8EE 2 Qcom RTL8188EE Realtek Realtek Semiconductor Corp. 802.11b/g/n RTL8188EE miniCard TX2-RTL818 8EE Power Adapter : No. Manufacturer Model No. Power Input Power Output 1 DVE DSA-15P-05 US 050125 100-240Vac, 0.5A max, 50/60Hz +5V, 2.5A FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 6 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. The difference of the series model : Model Number Difference ( Function ) FG3200 Wifi/LAN to Z-Wave FG2200 LAN to Z-Wave Remark : 1. The sample selected for test was engineering sample that approximated to p…

Text truncated - open the document above for the full version.

FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 25 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I SETUP PHOTOS RADIATED EMISSION SETUP FCC ID : SW8ZGATE Report No.T140627D04-RP1-1 Page 26 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
