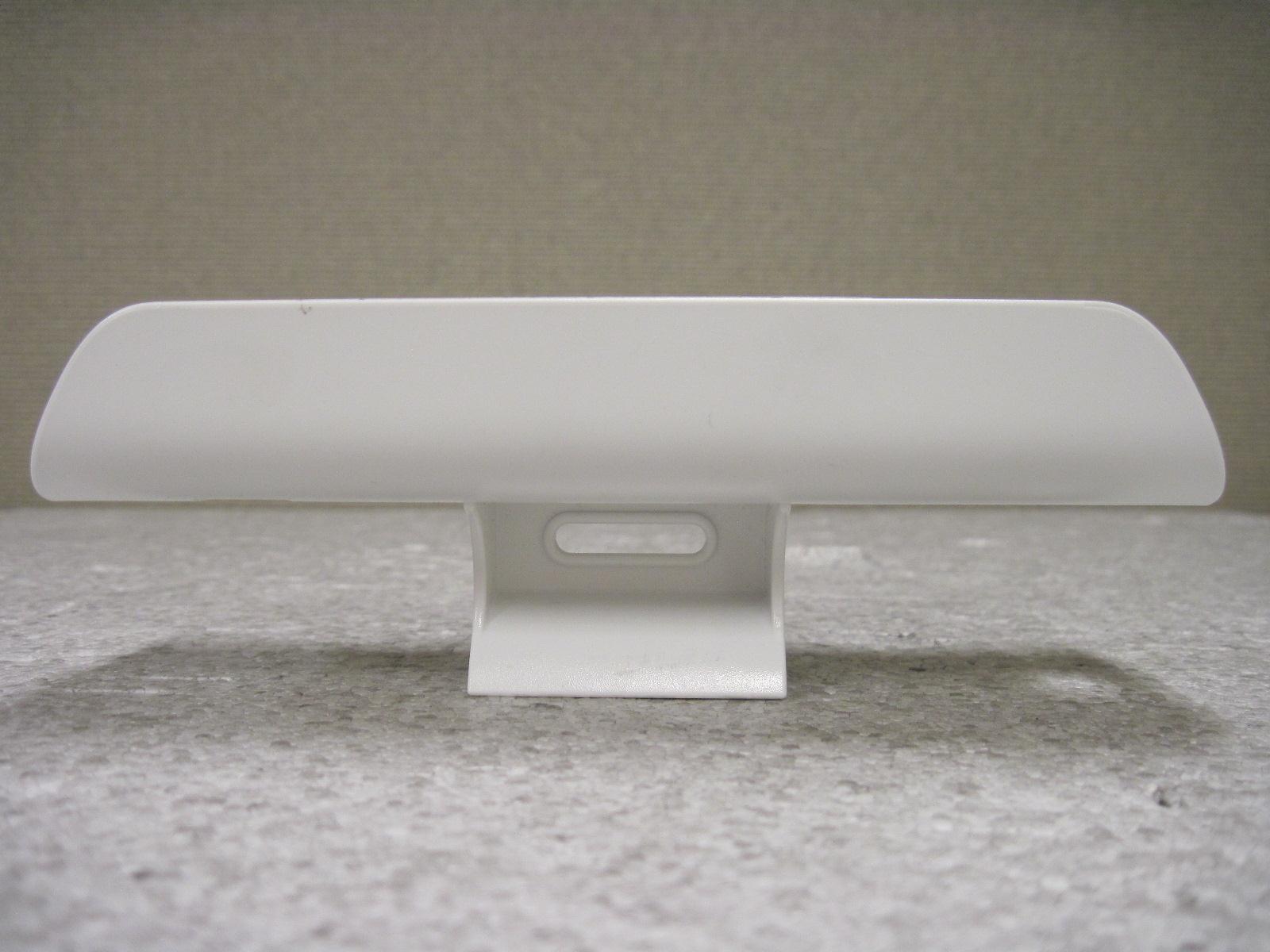

SWX-M5LB2x2 MIMO AirMax 5GHz CPE

1 Introduction Introduction Thank you for purchasing a Nanostation M series product. This is a point-to-point CPE wireless device. This Quick Start Guide is for use with the following models: ModelOperating FrequencyEthernet Ports NanoStation M22402-2482 MHz2 NanoStation M55170-5875 MHz*2 NanoStation Loco M22402-2482 MHz1 NanoStation Loco M55170-5875 MHz*1 * Only 5745-5850 MHz is supported in the USA and Canada Package Contents U B I Q U I T I N N E T W O R K S U B I Q U I T I N E T U B I Q U I T I N N E T W O R K S U B I Q U I T I N E T NanoStation24v PoE Adapter Power CordMounting Ties * Products may be different from pictures and are subject to change without notice. Installation Requirements • 10 mm wrench • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable 2 Quick Reference Guide Hardware Overview * Secondary Ethernet Port included only on NanoStation M2 & M5 Secondary Main Reset Secondary Ethernet Port* Main Ethernet Port Note: Secondary Ethernet Port is capable of 24V Power over Ethernet output which can provide power to a secondary device. It can be enabled using the AirOS interface. LEDs LAN1LAN2 Power The Power LED will light steady green when properly connected to a power source. LAN1WAN/Main Ethernet The LAN1 Ethernet LED will light steady green when an active Ethernet connection is made to the Primary Ethernet Port and flash when there is activity. LAN2LAN/Secondary Ethernet The LAN2 Ethernet LED (on NanoStation M2/M5 only) will light steady green when an active Ethernet connection is made to the Secondary Ethernet Port. Signal These LEDs display the signal strength. 3 Typical Deployment Typical Deployment LAN or Computer to Ethernet Port labeled LAN on PoE Adapter Ethernet Port on Ubiquiti Device to Ethernet Port labeled POE on PoE Adapter Connect the Power Cord to the PoE Adapter and a power outlet Note: Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. 4 Quick Reference Guide Accessing AirOS 1. Make sure that your host machine is connected via Ethernet to the Ubiquiti Networks device (as shown on previous page). 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (e.g. 192.168.1.100). 3. Launch your Web browser and type http://192.168.1.20 in the address field and press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Select your country from the Select Your Country drop-down. To use the product you must agree to the terms of use. To do so, click I agree to these terms of use. Click Login. 5. The AirOS Interface will appear allowing you to customize your settings as needed. 5 Ubiquiti Networks Wiki and Forum Ubiquiti Networks Wiki and Forum Ubiquiti Networks has an online Wiki with Manuals, Guides, and Information. It is located at www.ubnt.com/wiki. Another great resource is the Ubiquiti Networks Forum. You can post and view comments, questions, and answers with other forum members and Ubiquiti staff at www.ubnt.com/forum. 6 Quick Reference Guide Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. Note: This product is locked to the US Country Code to ensure compliance with FCC regulations. 7 Specifications Specifications NanoStation M Enclosure Size 29.4 x 8 x 3 cm Weight 0.5 kg Max Power Consumption 8 Watts Power Supply 24V, 1A PoE Supply Included Power Method Passive PoE (Pairs 4, 5+; 7,8 return) Operating Temperature -30° to 75° C Operating Frequency M2 2412 MHz - 2462 MHz M3 3300 MHz - 3700 MHz M365 3650 MHz - 3675 MHz M5 5470 MHz - 5825 MHz Networking Interface 2 10/100BASE-TX Ethernet Ports NanoStation M Loco Enclosure Size 163 x 31 x80 mm Weight 0.18kg Max Power Consumption 5.5 Watts Power Supply 24V, 0.5A PoE Supply Included Power Method Passive PoE (Pairs 4, 5+; 7,8 return) Operating Temperature -30° to 80° C Operating Frequency Loco M2 2412 MHz - 2462 MHz Loco M5 5470 MHz - 5825 MHz Networking Interface 1 10/100BASE-TX Ethernet Ports 8 Quick Reference Guide Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. 3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requires the use of the ground wire as a part of the safety certifica…

Text truncated - open the document above for the full version.

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Elliott TCB 41039 Boyce Road Fremont, CA, 94538 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for the Ubiquiti Networks NanoStationLocoM5 pursuant to the following rules: FCC Part 15.247 RSS-210 The NanoStationLocoM5 is a 5GHz 2x2 MIMO AirMax, which operates as a point-to-point CPE. If there are any questions or if further information is needed, please contact Jen nifer Sanchez at Ubiquiti Networks for assistance. Sincerely, Jennifer Sanchez Wireless Compliance Manager Ubiquiti Networks [email protected]

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 May 16, 2011 National Technical Systems 41039 Boyce Road Fremont, CA, 94538 RE: CONFIDENTIALITY REQUEST FOR NanoStationLocoM5 (FCC ID: SWX-M5LB) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We request that the schematics, block diagram and theory of operation required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 May 16, 2011 National Technical Systems 41039 Boyce Road Fremont, CA, 94538 RE: Professional Installation for Ubiquiti Networks Models NanoStationM5 and NanoStationLocoM5 To Whom It May Concern: This product is designed for outdoor point to point broadband wireless. It is available through special distribution channels worldwide serving system integrators in the Wireless Internet Service Provider Industry. A professional installer with experience in extended Ethernet cable deployment, tower mounting, and Ubiquiti AirMax system knowledge will be required to properly enable the equipment. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. March 24, 2011 Subject: Signing Authority for Agency Approvals Dear Regulatory Authority, Please accept this letter authorizing Jennifer Sanchez of Ubiquiti Networks to act on my behalf as the point of contact for any FCC or Industry Canada filings and submissions for Grantee Code SWX and Industry Canada Company Number 6545A. Sincerely, Robert Pera CEO/Founder Ubiquiti Networks

34.5mm 24.5mm 1X1 www.ubnt.com This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SWX-M5 IC ID: 6545A-M5 Indoor 5 5GHz Indoor AirMax 13dBi CPE NanoStation 5 5GHz Indoor/Outdoor Dual-Polarity 13dBi CPE This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SWX-M5LB IC ID: 6545A-M5LB 24V 0.5A POE Compliant RoHS www.ubnt.com NanoStation 5 5GHz Indoor/Outdoor Dual-Polarity 13dBi CPE This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SWX-M5LB IC ID: 6545A-M5LB 24V 0.5A POE Compliant RoHS www.ubnt.com

§ 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5725-5850 MHz; highest conducted power = 29.96Bm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 13 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (993.2mW) G = Antenna Gain (20.0 numeric) R = (993.18*20.0/ 4*3.14*1.0) 1/2 = (19864 / 12.56) 1/2 = 39.77cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory May 17, 2011 Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Dear Robert Pera, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, NanoStationLocoM5 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ubiquiti Networks\EMCS82946-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks Cover Page NanoStationLocoM5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS82946-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page ii of xvi DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks NanoStationLocoM5 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMCS82946-FCC247 Rev. 1 May 17, 2011 Prepared For: Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page NanoStationLocoM5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS82946-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page iii of xvi DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks NanoStationLocoM5 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Lionel Gabrillo, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status NanoStationLocoM5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS82946-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page iv of xvi DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  April 27, 2011 Initial Issue. 1 May 17, 2011 Revised to reflect editorial corrections. Electromagnetic Compatibility Ubiquiti Networks Table of Contents NanoStationLocoM5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS82946-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page v of xvi DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 6 E. Equipment Configuration .................................................................................................................................... 8 F. Support Equipment ............................................................................................................................................. 8 G. Ports and Cabling Information ............................................................................................................................ 8 H. Mode of Operation .......................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emission, Test Setup Photograph 3. Conducted Emissions, 15.207(a), Test Setup Photograph 4. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 5. Radiated Spurious Emissions, Test Setup, 1 GHz – 18 GHz Photograph 6. Radiated Harmonics Emissions, Test Setup
